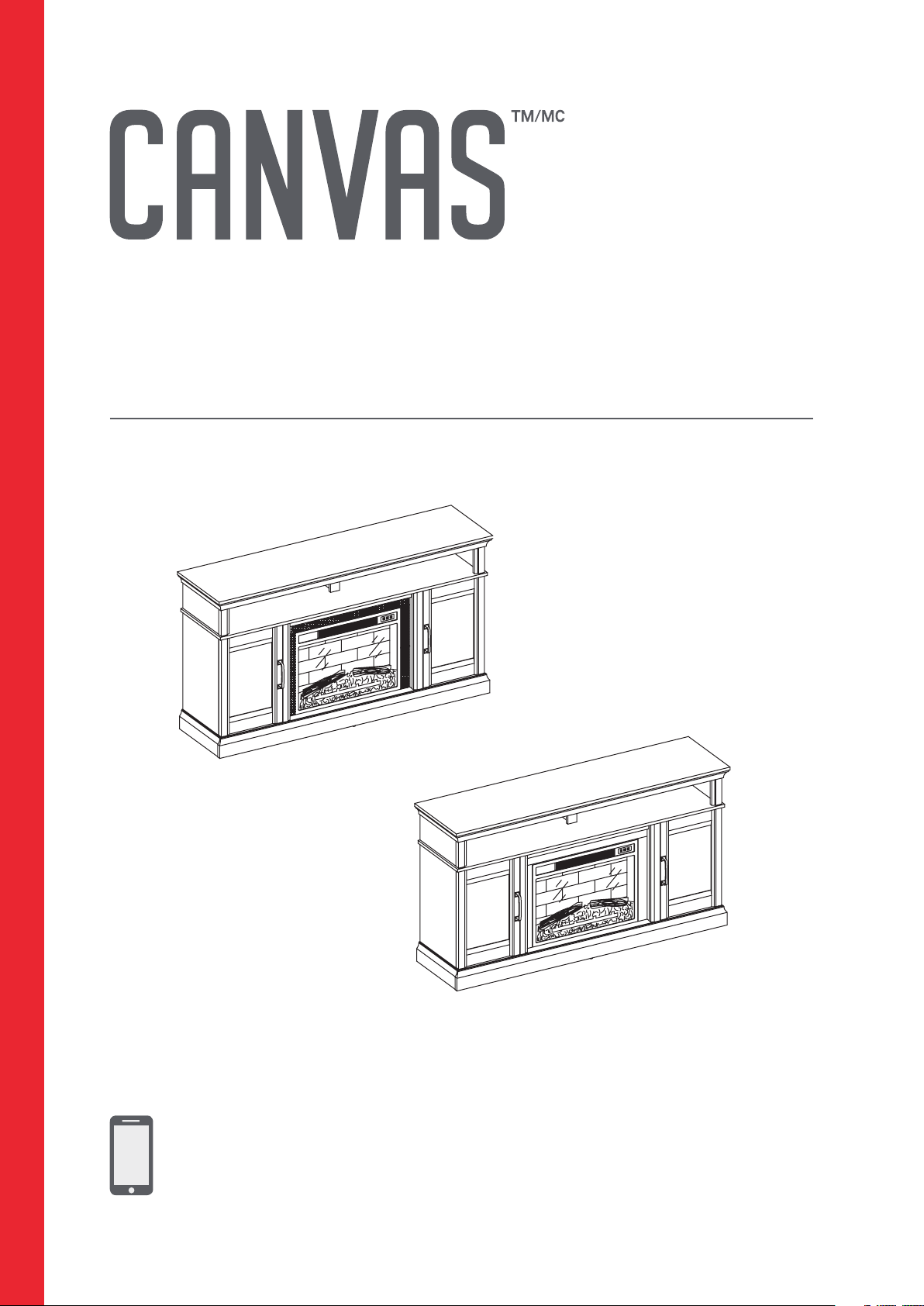

60” ABBOTSFORD MEDIA FIREPLACE
MODEL NO. 064-4015-0
FAUX STONE SURROUND
WOOD SURROUND
OR
ASSEMBLY INSTRUCTIONS
HAVING TROUBLE?
TOLL-FREE:
1-888-670-6684

We believe in the power of décor and its
ability to make up the fabric of your home.
That’s why CANVAS® collections draw
inspiration from Canadians and the way
they live.
From on-trend furniture pieces to holiday
décor and all your outdoor living essentials,
CANVAS® makes it easy to refresh your
space to reflect your unique style and the
way you live every day.
We would love to hear from you and
welcome your thoughtful feedback. Visit our
website at canadiantire.ca to tell us about
your experience, and share your photos with
us using #mycanvasstyle.
Show us how you bring CANVAS® products
to life. We can’t wait to see!
INSPIRED BY CANADA

ABBOTSFORD MEDIA FIREPLACE 33
Safety Information 4
Parts List 6
Step-by-step Guide 10
Operating Instructions 44
Cleaning and Maintenance 49
Troubleshooting 50
Warranty Information 51
TABLE OF CONTENTS
When using electrical appliances, basic precautions should always be followed
to reduce the risk of fire, electric shock and injury to persons, including the
following:
• If the information in this manual is not followed exactly, an electric shock or fire
may result causing property damage, personal injury or loss of life.
• This appliance is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers,
clothes and curtains, at least 3’ (0.9 m) from the front of the heater and keep
them away from the sides and rear.
• Extreme caution is necessary when any heater is used near children or by
individuals with disabilities and whenever the fireplace is left operating and
unattended.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar covering. Arrange cord away from trac areas and where it will not be
tripped over.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening
as this may cause an electric shock or fire, or damage the appliance.
• This appliance has hot and arcing or sparking parts inside. Do not use it in areas
where gasoline, paint or flammable vapours or liquids are used or stored.
This fireplace should not be used as a drying rack for clothing.
Christmas stockings or decorations should not be hung on it or near it.
WARNING! TO REDUCE THE RISK OF SERIOUS INJURY,
READ THE FOLLOWING SAFETY INSTRUCTIONS BEFORE
ASSEMBLING AND OPERATING THIS FIREPLACE.

ABBOTSFORD MEDIA FIREPLACE4ABBOTSFORD MEDIA FIREPLACE4
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
Use this appliance only as described in the manual. Any other use is not recommended
by the manufacturer and may cause fire, electric shock or injury to persons. Read all
instructions before installing or using the fireplace.
1. Read all instructions before using
this heater.
2. Do not use this heater outdoors.
3. This heater is not intended for use in
bathrooms, laundry areas and similar
indoor locations. Never locate the heater
where it may fall into a bathtub or other
water container.
4. Do not run the power cord under
carpeting. Do not cover the power
cord with throw rugs, runners, or the
like. Arrange the power cord away from
trac areas and where it will not be
tripped over.
5. To disconnect the heater, turn controls to
o, then remove the plug from the outlet.
6. Connect to properly grounded outlets
only. Always plug heaters directly into
a wall outlet/receptacle. Never use with
an extension cord or relocatable power
tap (outlet/power strip).
7. To prevent a possible fire, do not block
firebox air intakes or the exhaust in any
manner. Do not operate the firebox on
soft surfaces, like a bed, where openings
may become blocked.
8. There is a thermostat limiter inside the
heater. When the inner temperature

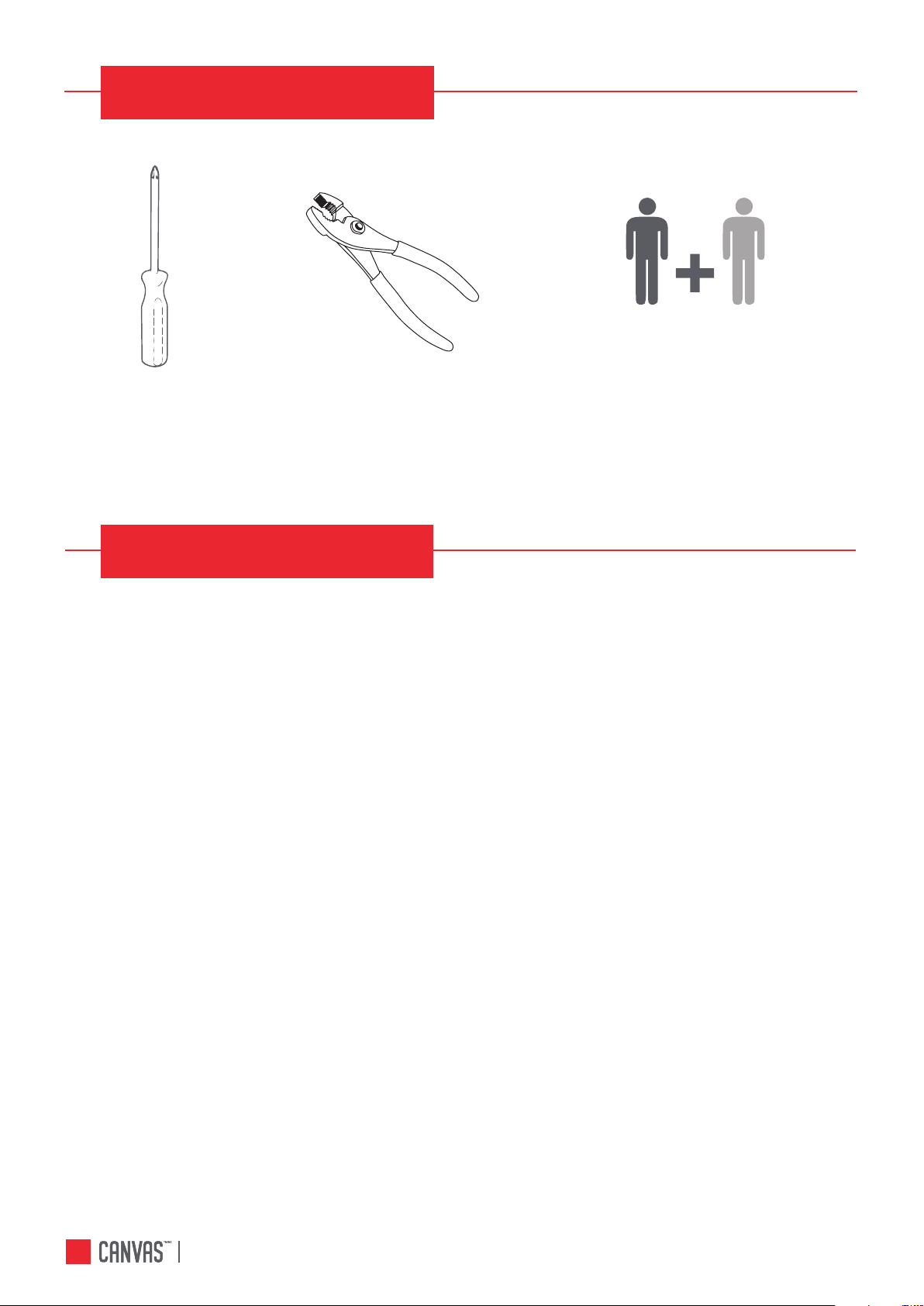

Cross-head
Screwdriver
Pliers 2 people
TOOLS REQUIRED

ABBOTSFORD MEDIA FIREPLACE 55
overheats or abnormal heating occurs,
the thermostat protective device cuts
o the power supply to avoid fireplace
damage and reduce the risk of fire.
9. Use this heater only as described
in this manual. Any other use not
recommended by the manufacturer
may cause fire, electric shock,
or injury to persons.
10. If possible, always unplug this
appliance when not in use.
11. Do not operate any heater with
a damaged cord or plug or after
the heater malfunctions.
12. Do not operate any heater if it has
been dropped or damaged in any
manner. Disconnect power at service
panel and have heater inspected by a
reputable electrician before reusing.
13. Any repairs to this fireplace should
be carried out by a qualified service
person.
14. Under no circumstances should this
fireplace be modified. Parts having
to be removed for servicing must
be replaced prior to operating this
fireplace again.
15. Only connect to properly grounded
outlets.
16. This appliance, when installed,
must be electrically grounded in
accordance with local codes, with
the current CSA C22.2 Canadian
Electrical Code or follow the National
Electrical Code, ANSI/NFPA N0.70.
17. The heater must not be located
immediately below a wall outlet/
receptacle.
18. Do not slide insert on top of wood
to avoid scratching wood surface.
19. Do not place any objects on top of
insert and top air intake vents as this
will cause unit to overheat and can
cause a fire.
A 15 A, 120 V, 60 Hz circuit with a properly grounded
outlet is required. Preferably, the fireplace should be
on a dedicated circuit as other appliances on the same
circuit may cause the circuit breaker to trip or the fuse
to blow when the heater is in operation. The unit comes
standard with 6’ (1.8 m) three-wire cord, exiting from the
rear of the fireplace. Do not exceed the current rating of
the current tap. Always plug heaters directly into a wall
outlet/receptacle. Never use with an extension cord or
relocatable power tap (outlet/power strip).
• This heater is for use on a 120 V outlet. The cord
has a plug as shown. See illustration for grounding
instructions. An adaptor as shown in Fig. B is available
for connecting three-blade grounding type plugs to two-slot receptacles. The green
grounding plug extending from the adaptor must be connected to a permanent ground
such as a properly grounded outlet box. The adaptor should not be used if a three-slot
grounded receptacle is available.
NOTE: The use of grounded adapters are banned in certain jurisdictions in Canada
due to safety concerns. Use of grounded adapters on two-slot receptacles is unsafe
and should only be installed by a certified electrician. Check with local laws to ensure
compliance with legal requirements.
SAVE THESE INSTRUCTIONS
A
B
Grounding Pin
Grounding Pin
Adaptor
Metal Screw
Cover of Grounded Outlet Box
Cover of Grounded Outlet Box

6ABBOTSFORD MEDIA FIREPLACE
PARTS LIST
OPTIONAL WOOD SURROUND PARTS
ITEM DESCRIPTION QUANTITY
A Top Panel 1
B Lower Left Side Panel 1
C Lower Right Side Panel 1
D Middle Shelf 1
E Bottom Panel 1
F Bottom Front Stretcher 1
G Bottom Rear Stretcher 1
H Lower Left Partition Panel 1
I Lower Right Partition Panel 1
J Faux Stone Middle Crossbar 1
K Faux Stone Left Middle Stile 1
L Faux Stone Right Middle Stile 1
M Lower Partition Moulding 2
N Upper Side Panel 2
O Upper Side Panel Moulding 2
P Upper Partition Panel 1
Q Upper Partition Panel Moulding 1
R Adjustable Shelf 2
S Upper Back Panel 1
T Lower Side Back Panel 2
U Door Panel 2
V Remote Control with Battery 1
W Fireplace Insert 1
X Top Trim 1
Y Side Trim 2
J1 Wood Middle Crossbar 1
K1 Wood Left Middle Stile 1
L1 Wood Right Middle Stile 1

ABBOTSFORD MEDIA FIREPLACE 7
OPTIONAL WOOD SURROUND PARTS
ABC
DF
GHI
J
J1
K
K1
L
L1
M
NO
P
QRS
T U
E
V
W
X
Y
Y

ABBOTSFORD MEDIA FIREPLACE8
PARTS LIST
ITEM DESCRIPTION QUANTITY
AA Wood Dowel 49 + (5)
BB Cam Lock 52 + (6)
CC Cam Bolt 52 + (6)
DD Short Flat-head Screw 4 + (1)
EE Medium Flat-head Screw 4 + (1)
FF Long Flat-head Screw 4 + (1)
GG Door Stopper 2
HH Washer-head Screw 42+ (5)
II Metal Bracket 2
JJ Triangle Metal Plate 2
KK Floor Leveller 2
LL Long Pan-head Screw 8 + (1)
MM Shelf Support 8 + (1)
NN Zinc Screw 24 + (3)
OO Hinge 4
PP Handle 2
QQ Handle Bolt 4
RR Cam Lock Cover 32 + (4)
SS Acrylic Stopper 1
TT Glue 2
UU Touch-up Pen 1
VV Tipping Restraint Hardware 2
ZZ Short Pan-head Screw 12 + (3)
Hardware indicated in brackets ( ) are extra if needed.

ABBOTSFORD MEDIA FIREPLACE 9
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
PP
OO
RR
SS
TT
UU
VV
ZZ
QQ

ABBOTSFORD MEDIA FIREPLACE10
READ CAREFULLY BEFORE STARTING ASSEMBLY
This fireplace has two options for assembly.
It can be assembled with FAUX STONE or WOOD to frame the insert.
If assembling with the FAUX STONE SURROUND, use parts J, K and L.
If assembling with the WOOD SURROUND, use parts J1, K1 and L1.
Choose one option before you begin assembly, and discard the parts you
do not need.
Once assembled, this cannot be changed.
J
L
K1
L1
K
J1
FAUX STONE SURROUND
WOOD SURROUND
OR
STEP-BY-STEP GUIDE

ABBOTSFORD MEDIA FIREPLACE 11

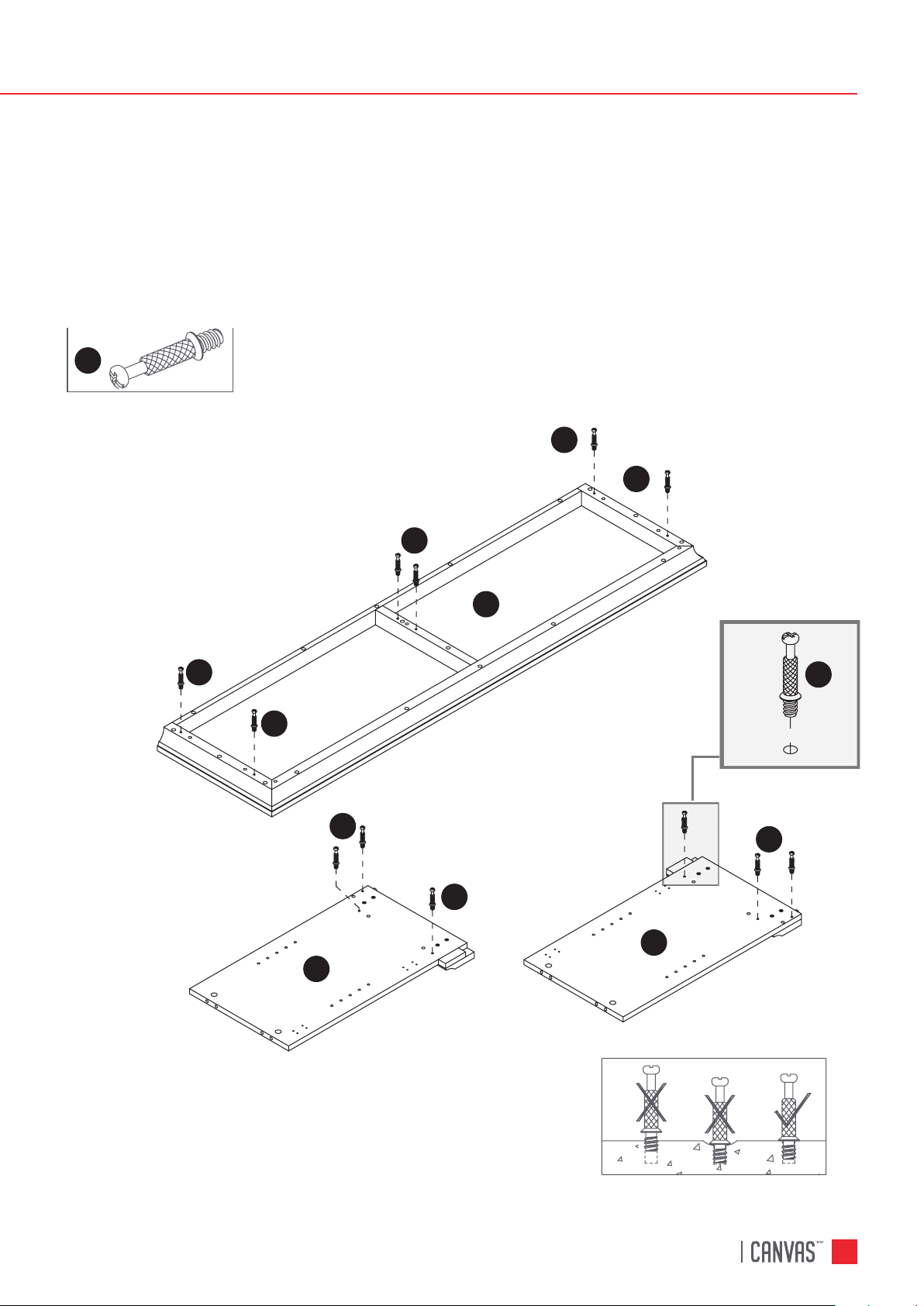

STEP 1
REQUIRES A, B, C, CC
Securely screw the CAM BOLTS (CC) into the designated small holes on the TOP
PANEL (A) and LOWER SIDE PANELS (B and C) using a cross-head screwdriver.
X 12
Not actual size
CC
CC
CC
CC
CC
CC
CC
CC
CC
A
B
C
CC

ABBOTSFORD MEDIA FIREPLACE12
X 24
STEP 2
REQUIRES D, E, O, Q, CC
Securely screw the CAM BOLTS (CC) into the designated small holes on the MIDDLE
SHELF (D), BOTTOM PANEL (E), UPPER SIDE PANEL MOULDINGS (O) and UPPER
PARTITION PANEL MOULDING (Q) using a cross-head screwdriver.
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
D
O
O
Q
E
Not actual size
STEP-BY-STEP GUIDE

ABBOTSFORD MEDIA FIREPLACE 13

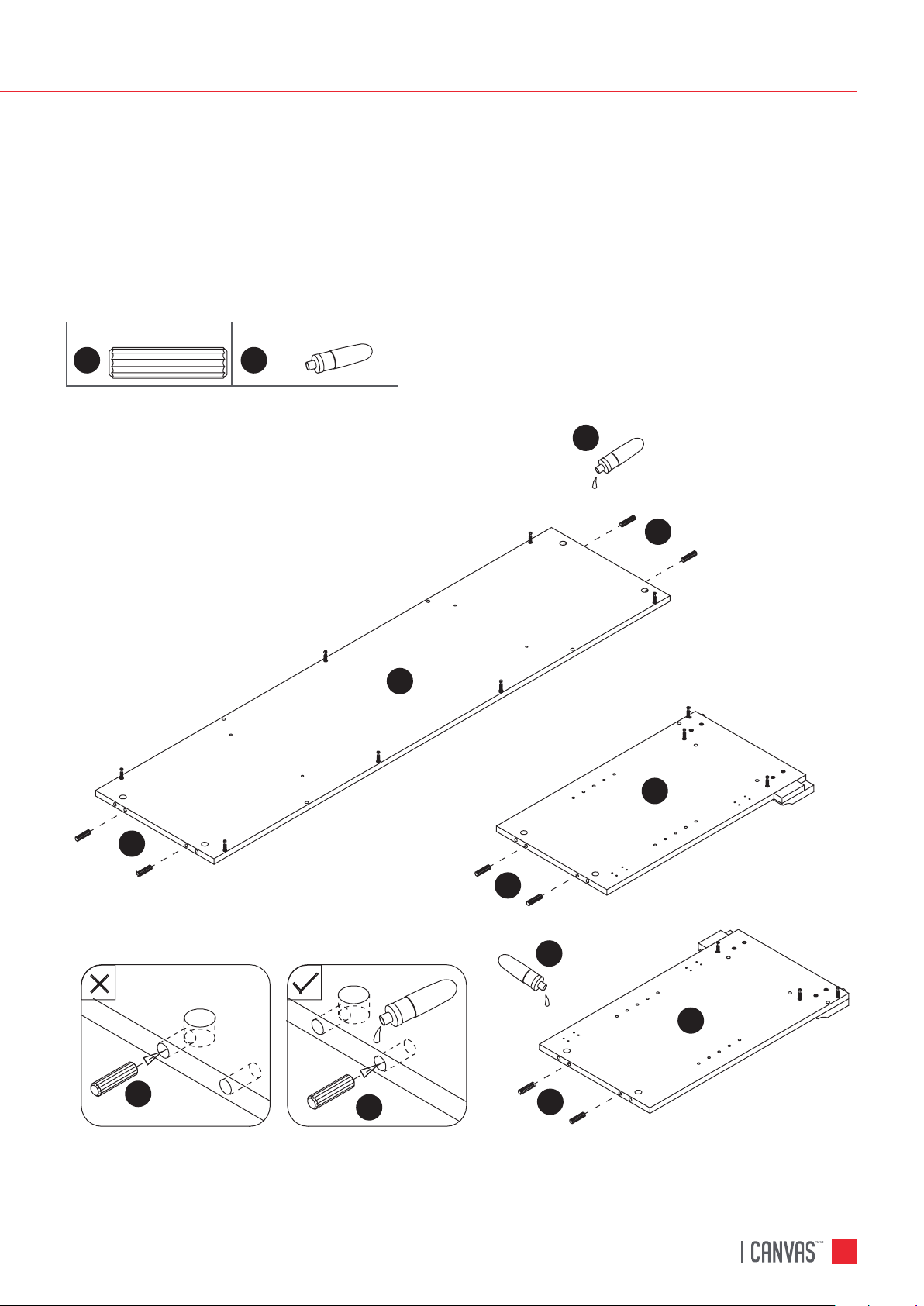

STEP 3
REQUIRES E, B, C, AA, TT
Glue the WOOD DOWELS (AA) into the inner holes on the BOTTOM PANEL (E) and
LOWER SIDE PANELS (B and C) as shown.
B
E
C
AA
AA
AA
AA
AA
AA
Not actual size
X 8
AA TT
TT
TT

ABBOTSFORD MEDIA FIREPLACE14
STEP 4
FAUX STONE OPTION REQUIRES F, G, J, AA, TT
WOOD OPTION REQUIRES F, G, J1, AA, TT
Glue the WOOD DOWELS (AA) into the inner holes on the BOTTOM FRONT
STRETCHER (F), BOTTOM REAR STRETCHER (G), FAUX STONE MIDDLE
CROSSBAR (J) or WOOD MIDDLE CROSSBAR (J1) as shown.
X 8
AA TT
TT
TTTT
Not actual size
F
G
J
AA
AA
AA
AA
AA
AA
AA
AA
STEP-BY-STEP GUIDE
FAUX STONE OPTION
SHOWN HERE

ABBOTSFORD MEDIA FIREPLACE 15

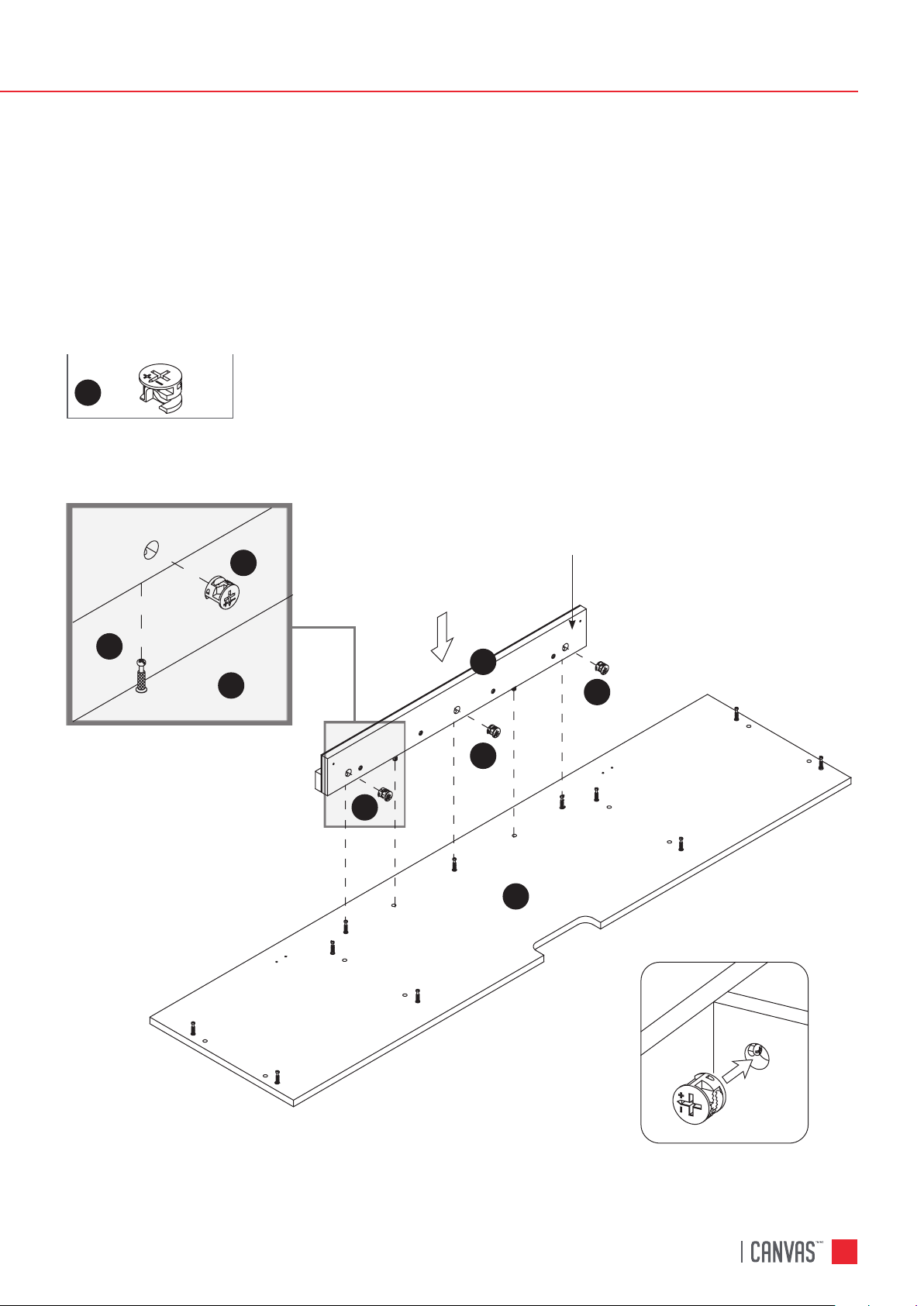

STEP 5
FAUX STONE OPTION REQUIRES D, J, BB
WOOD OPTION REQUIRES D, J1, BB
Attach the FAUX STONE MIDDLE CROSSBAR (J) or WOOD MIDDLE CROSSBAR (J1)
to the MIDDLE SHELF (D) by engaging three CAM LOCKS (BB).
X 3
BB
J
D
D
BB
BB
BB
BB
Not actual size
J
FAUX STONE OPTION
SHOWN HERE

ABBOTSFORD MEDIA FIREPLACE16

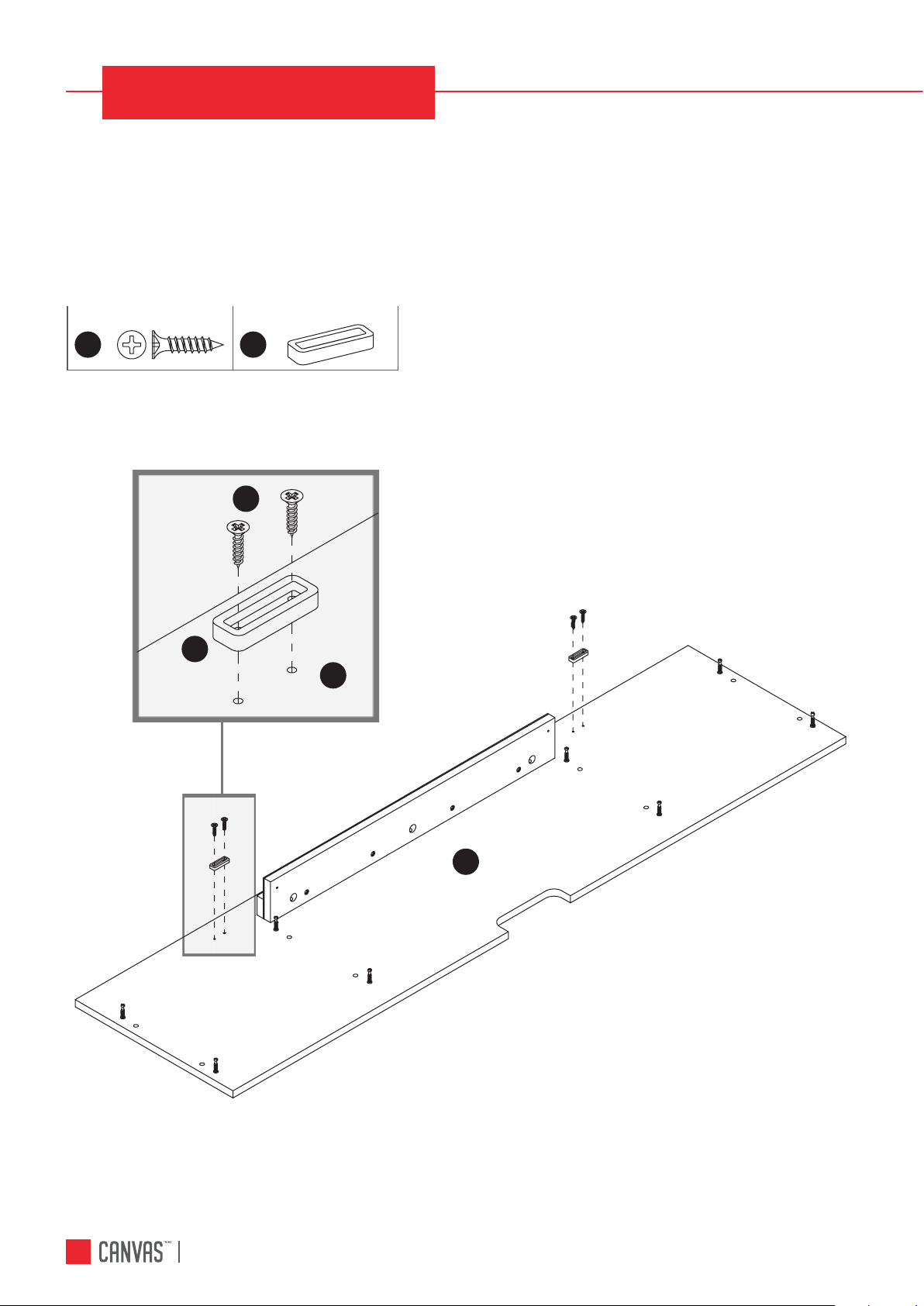

STEP 6
REQUIRES D, EE, GG
Fasten two DOOR STOPPERS (GG) to the MIDDLE SHELF (D) with two MEDIUM
FLAT-HEAD SCREWS (EE) per stopper.
X 4 X 2
EE
EE
GG
GG
D
D
Not actual size
STEP-BY-STEP GUIDE

ABBOTSFORD MEDIA FIREPLACE 17
STEP 7
REQUIRES E, G, BB
Attach the BOTTOM REAR STRETCHER (G) to the BOTTOM PANEL (E) by engaging
three CAM LOCKS (BB).
X 3
BB
Not actual size
G
G
E
E
BB
BB
BB
BB

ABBOTSFORD MEDIA FIREPLACE18

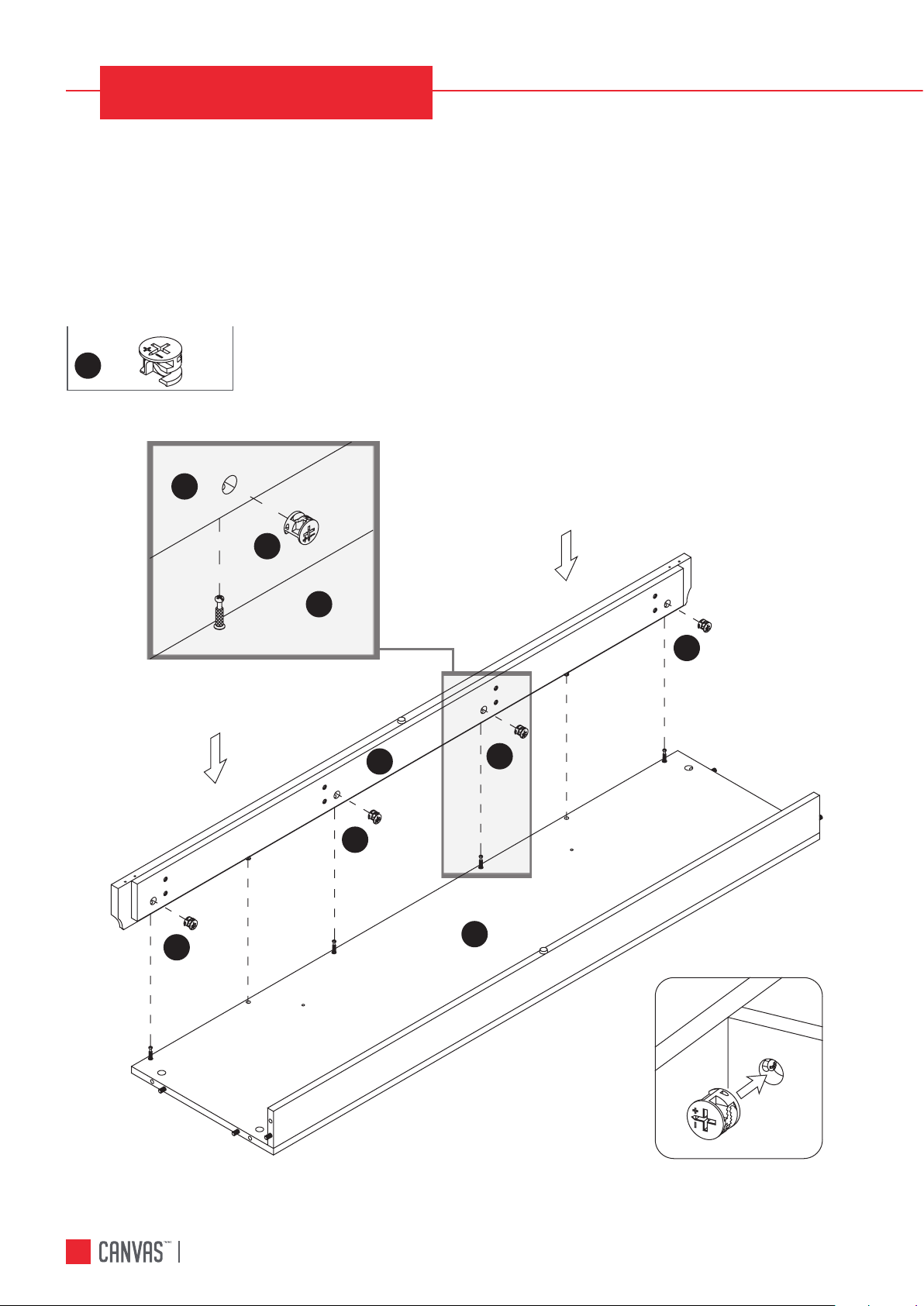

STEP 8
REQUIRES E, F, BB
Attach the BOTTOM FRONT STRETCHER (F) to the BOTTOM PANEL (E) by
engaging four CAM LOCKS (BB).
X 4
BB
Not actual size
E
E
F
F
BB
BB
BB
BB
BB
STEP-BY-STEP GUIDE

ABBOTSFORD MEDIA FIREPLACE 19
STEP 9
REQUIRES B, C, E, F, G, BB
Align the large holes on both LOWER SIDE PANELS (B and C) with inserted WOOD
DOWELS (AA) and press them together. Attach the LOWER SIDE PANELS (B and C)
in place by engaging six CAM LOCKS (BB).
X 6
BB
B
C
E
E
GBB
BB
BB
BB
Not actual size
BB
F
G

ABBOTSFORD MEDIA FIREPLACE20
STEP 10
REQUIRES H, I, M, CC
Securely screw the CAM BOLTS (CC) into the designated holes on the LOWER
PARTITION PANELS (H and I) and LOWER PARTITION MOULDINGS (M) using a
cross-head screwdriver.
H
I
X 10
CC
CC
CC
CC
CC
CC
CC
CC CC
CC
Not actual size
M
M
STEP-BY-STEP GUIDE
