Carax TPMS CRX-1001 User manual

MANUAL
TPMSCRX‐1001

Manual for Tire Pressure Monitoring System, TPMS
1/21
TPMS CRX-1001 Manual
TABLE OF CONTENTS
TIRE PRESSURE MONITORING SYSTEM, TPMS........................................2
NOTICE ...........................................................................................................2
SPECIFICATIONS OF TPMS..........................................................................3
SYSTEM INSTALLATION...............................................................................3
ACCESSORIES FOR TIRE PRESSURE MONITORING SYSTEM ................3
DISPLAY UNIT INSTALLATION.....................................................................4
WIRELESS TRANSMITTER SENSOR INSTALLATION................................5
SYSTEM OPERATION....................................................................................6
SYSTEM ALARM............................................................................................6
SETUP METHOD ............................................................................................7

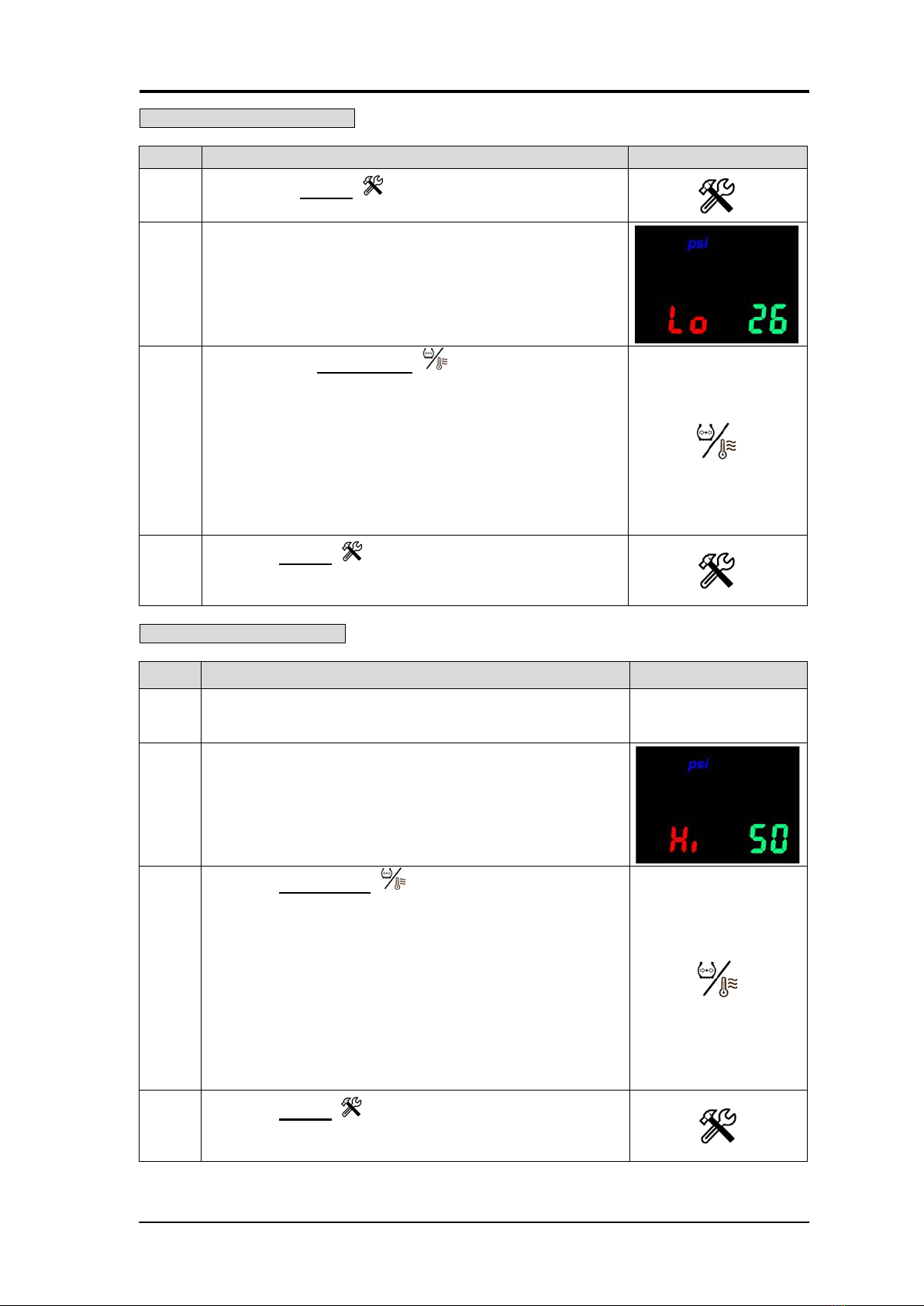

Tire Under Pressure Warning.............................................................................................. 9
Tire Over Pressure Warning ................................................................................................ 9

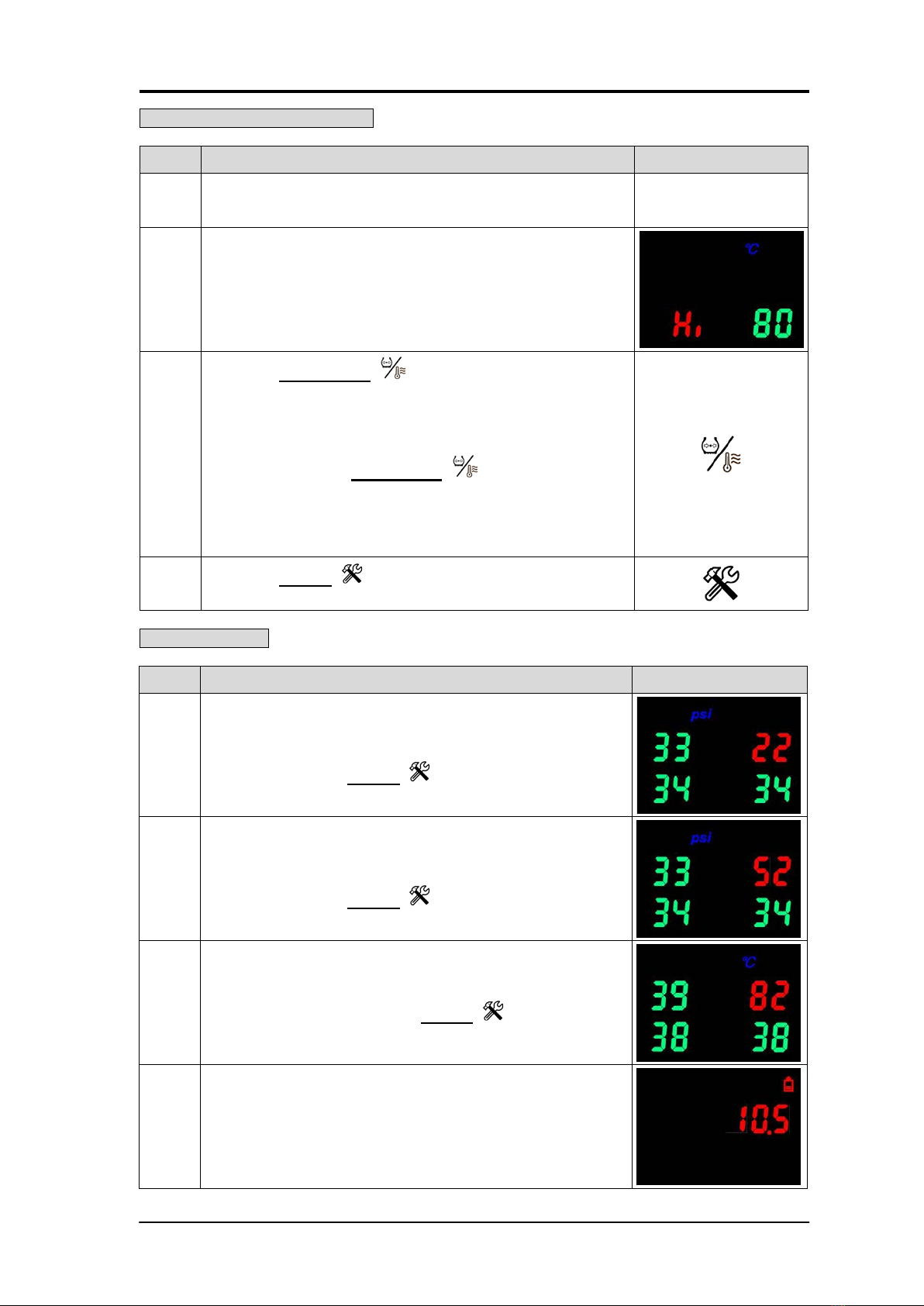

Tire Over Temperature Warning........................................................................................ 10
Alarm Instruction ................................................................................................................ 10
RESET FOR TIRE CHANGES AND ROTATION..........................................11

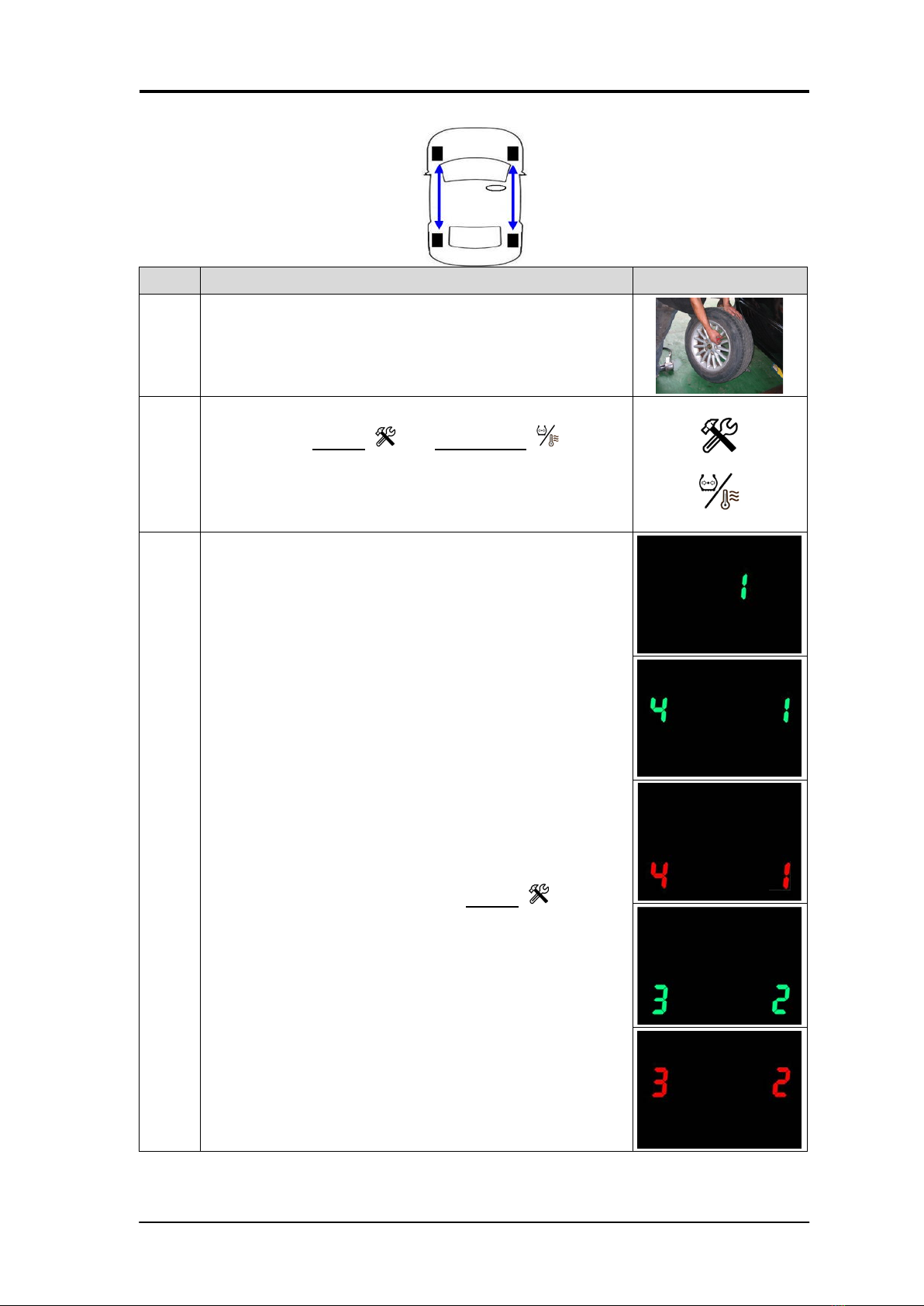

Mode 1: Front to rear tires exchanged ............................................................................ 12

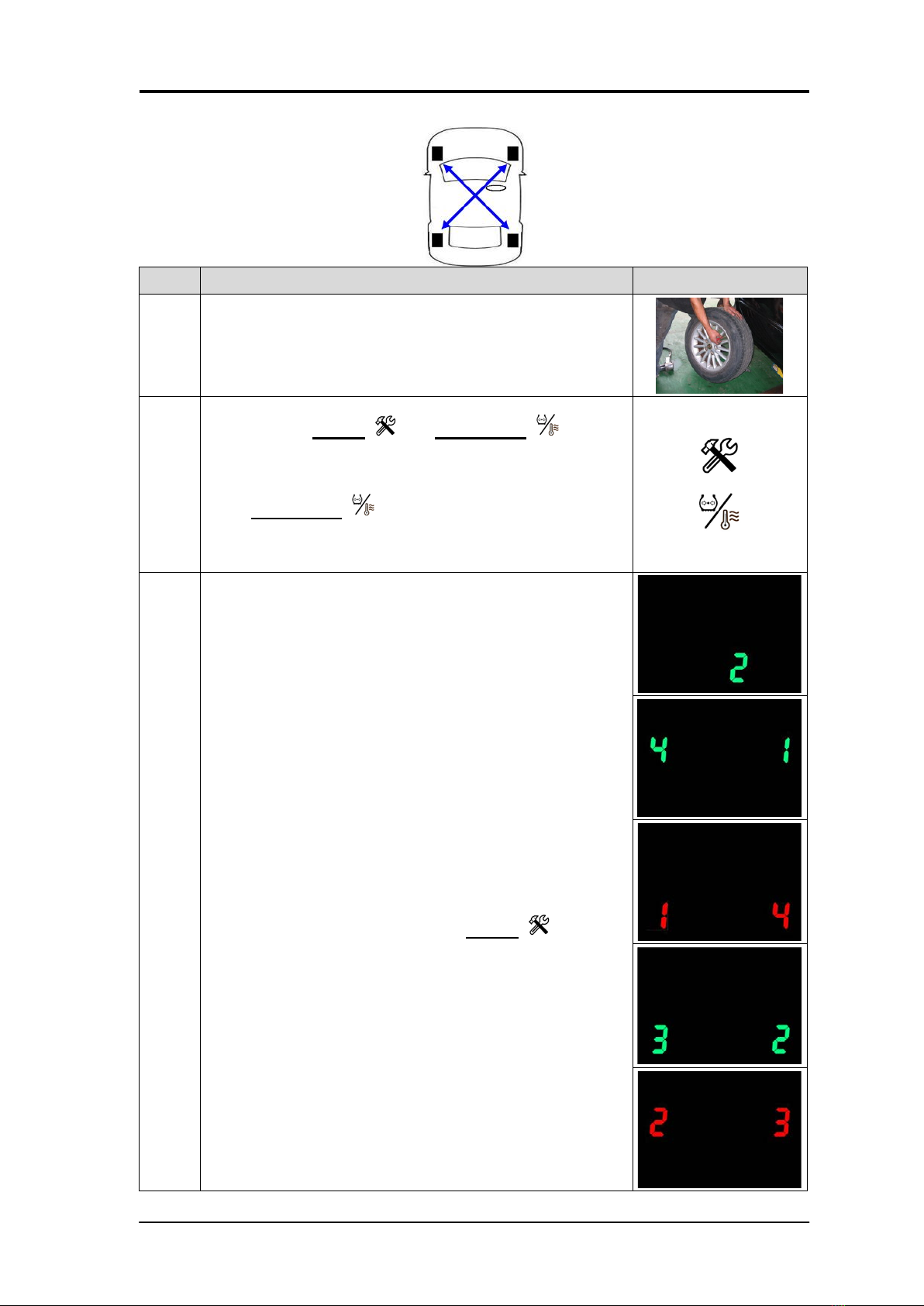

Mode 2: Tires diagonal exchanged.................................................................................. 13

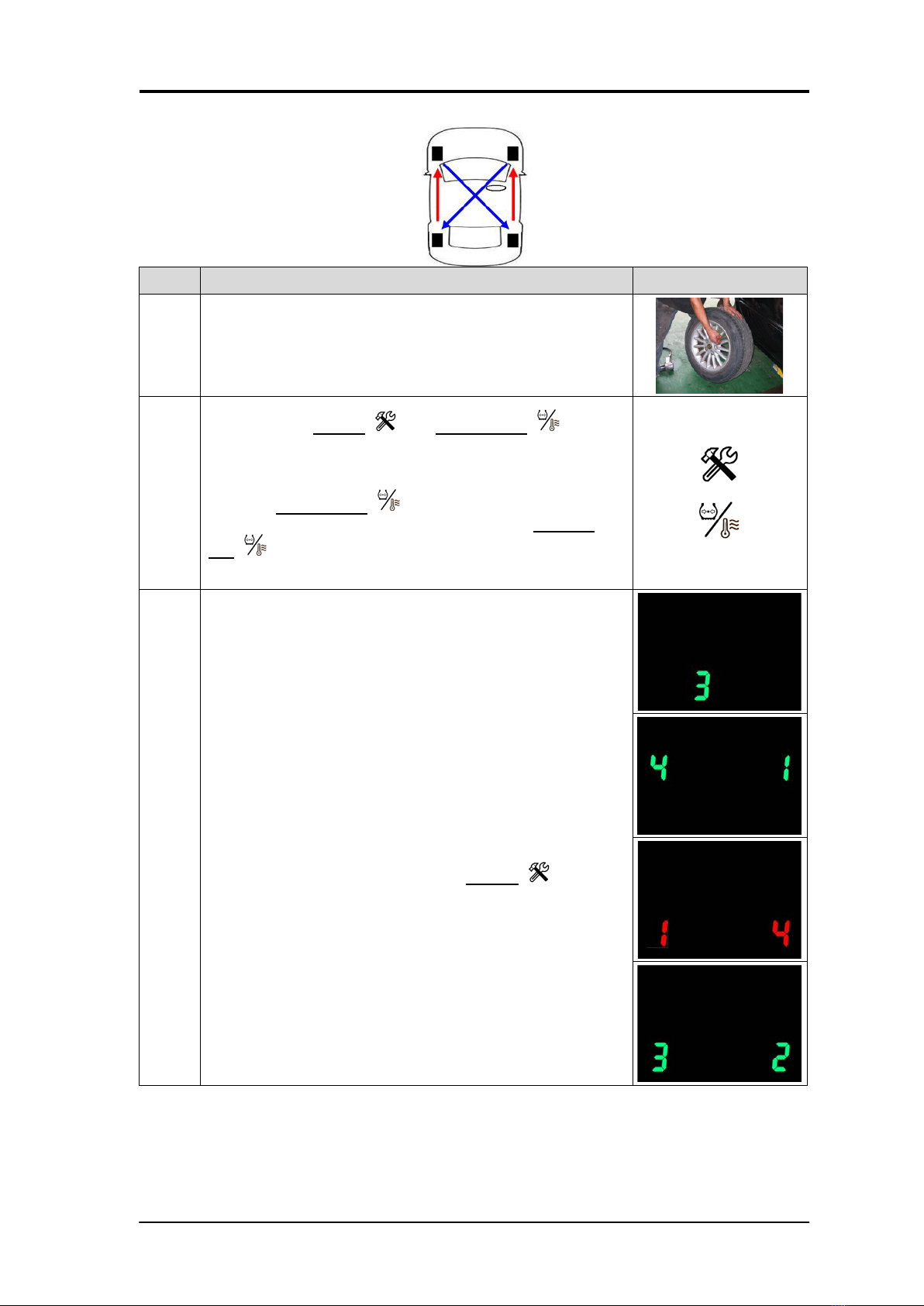

Mode 3: Front tires diagonal exchanged, and Rear tires parallel changed to Front. . 14
Mode 4: Random re-position tires.................................................................................... 15
Mode 5: Single sensor replaced....................................................................................... 16
APPENDIX ....................................................................................................17
ANNEXES .....................................................................................................18
TROUBLESHOOTING GUIDE......................................................................20

Manual for Tire Pressure Monitoring System, TPMS
2/21
Tire Pressure Monitoring System, TPMS
Tire Pressure Monitoring System (TPMS) improves safety while driving. Once installed in your
vehicle, the system will automatically monitor your tires in real-time for pressure and
temperature. When any tire’s pressure and/or temperature appear abnormal, the system will,
in real-time, transmit signals to active an alarm and show a digital figure to warn the driver of
a problem. The system aids safety, can extend the tire life and help reduce fuel consumption.
NOTICE
FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the factoring measures.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected
Caution: Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
To comply with the FCC RF exposure compliance requirements, this device and its antenna
must not be co-located or operating to conjunction with any other antenna or transmitter.
System Scope of Use and Warnings
Tire Pressure Monitoring System, TPMS
This system is a sensing device designed to measure and display tire operation and / or
activate an alert to the driver when pressure and temperature irregularities are detected. It is
the responsibility of the driver to react promptly and with discretion to alerts. Abnormal tire
inflation pressure should be corrected at the earliest opportunity.
Caution: The system is wireless RF product; therefore, it may not receive signal due to
interference environment or incorrect operating or installation. When the system continually
cannot receive signal from one of the tire sensor more than 20 minutes since the system be
switched on, the system will show “ E2 ”. In this case, it may cause by a RF interference
environment and driver need to drive the vehicle to other place. If the display still cannot
receive any correct signal from tire sensor, then, driver needs to find a nearby qualified tire
maintain service for checking and maintain. It may cause by a tire sensor damaged or battery
power consumption is low (the battery consumption will be lower than under normal using
condition due to sensors need to send warning signal continually to driver) . If the system
continually cannot receive signal from any sensors more than 20 minutes, the system might
damaged and will show “E1”. Driver needs to drive to other place (there might be a
interference nearby) or send the system to agent for repair
＊System Installation and Usage
Use of the TPMS requires that qualified personnel according to the instructions here have
properly installed it. This system is suitable for use on a passenger car, SUV and 4X4 tires,
with up to maximum cold inflation pressure of 74 Psi (Guage) ,below instruction is Guage
value mentioned.
＊Reacting to Alerts
When an alert or warning is received, reduce vehicle’s speed and proceed to a safe location
to stop where the tire can be inspected and /or serviced.

Manual for Tire Pressure Monitoring System, TPMS
3/21
The low-pressure alert indicates that the air pressure has dropped to a selected minimum and
a high-temperature alert indicates that the temperature of the tire content has surpassed the
threshold value set.
When the battery voltage icon illuminate which means the battery voltage of vehicle is below
battery voltage default (11v).
＊Use of Chemicals
Temporary resealing or re-inflation products containing internal sealants or propellants in any
tire assembly may adversely affect the operation of the sensor/transmitter.
Specifications of TPMS
1. RECEIVER SPECIFICATINS
Operating voltage
12V DC
Operating current
< 200mA
Storage temperature
-30oC to 75oC
Operating temperature
-25oC to 75oC
2. SENSOR AND TRANSMITTER SPECIFICATIONS
Storage temperature -40
o
C to 125
o
C
Operating temperature
-30oC to 110oC
Operating humidity Max 95%
Operating frequency 433.92MHz
Pressure monitoring range
0~74 psi
Pressure reading accuracy
At Normal condition
± 1psi at normal pressure range
Temperature reading accuracy
± 4oC in normal environmental condition
Transmission power Max 75dBμV/m
Battery 3.0V
Sensor weight 27g ±3g
System Installation
There are two parts of system installation
1. Installing the display unit in the vehicle
2. Installing the transmitter unit sensor in each tire.
We strongly suggest installing the display unit first, and then install the tire transmitters.
Note: Warranty including “Wireless Display Unit and Wireless Transmitter Sensor and Power
Connection cable”, not including other accessories.
When remove transmitter sensors to different tires and replace new transmitter sensors,
suggest to change all of the valve steams and screws.

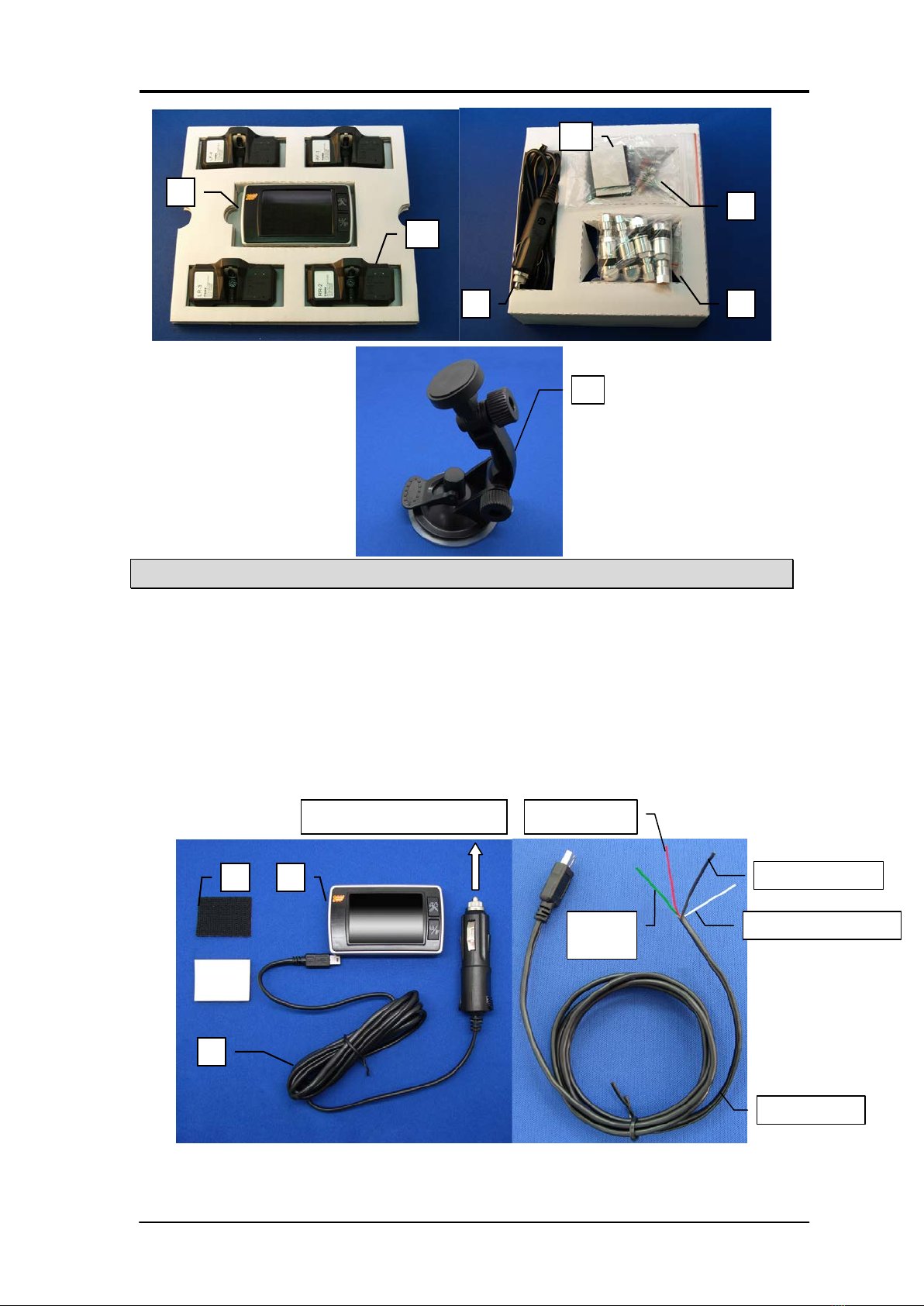

Accessories for Tire Pressure Monitoring System
NO.
Accessory Name
Quantity
A
Wireless Display Unit
1
B
Velcro for Display
2
C
Power Connection for Cigarette Lighter
1
D
Wireless Transmitter Sensor (Remote Sensing
Module)
4
E
Tire Valves
4
F
Screw for Tire Valves (Nylok screw)
4
Caution: the power connection is NOT COMPATABLE with USB interface; please do not plug
in any USB devices.

Manual for Tire Pressure Monitoring System, TPMS
4/21
Display Unit Installation
1. Plug in one side of C the power cable connection into A the display located on the side.
2. Connect the power cable C into the vehicle’s cigarette lighter socket for power connection.
( or cut the cigar jet and not to cut the cable more than 5cm. plug the power cable with
ACC, Positive, Negative into fuse box)
Note: Plugging the power cable with ACC, Positive, Negative into fuse box, the LED light will
turn on only when ACC is on and the LED light will be off when ACC is turned off.
3. Install the display unit in front of driver at an appropriate position.
Stick the Velcro B into the bottom of the display unit A, and Stick the unit into the
convenient place.
4. After set up the monitor please take off the protection film from the panel of monitor.
A
F
C
D
E
B
H
A
B
C
Positive (Red)
Plug into car power socket
ACC
(Green)
Power Cable
Antenna (black)
Negative (spiral shield)

Manual for Tire Pressure Monitoring System, TPMS
5/21
Wireless Transmitter Sensor Installation
Step
Operation Process
Photograph
1
Use a jack to raise the vehicle and place jack stands
underneath the vehicle for safety. Refer to vehicle owner’s
manual for full service advice. Seek the assistance of a
qualified motor mechanic if required.
2
Take off the tires and bleed the air. Then take off the air
valve of the tire from the wheel. (NOTE: You must change
the valve to TPMS valve). This part of the process will
normally require the service of a tire fitting service or
mechanic.
3
Recognize the number on each sensor (D) with position of
tire on the vehicle. (VERY IMPORTANT)
a. RF – 1 = Right Front, No. 1
b. RR – 2 = Right Rear, No. 2
c. LR – 3 = Left Rear, No. 3
d. LF – 4 = Left Front, No. 4
4 Set up the new TPMS special valve (E) in the wheel. Use wrench to fix the valve, and then tighten nut to
40~45kgf-cm (4~4.5Nm).
5 Use the new TPMS special Nylok screw (F) to tighten the transmitter sensor into the valve on the wheel.
Torgue value must be 40~45kgf-cm (4~4.5Nm).
D
E
F

Manual for Tire Pressure Monitoring System, TPMS
6/21

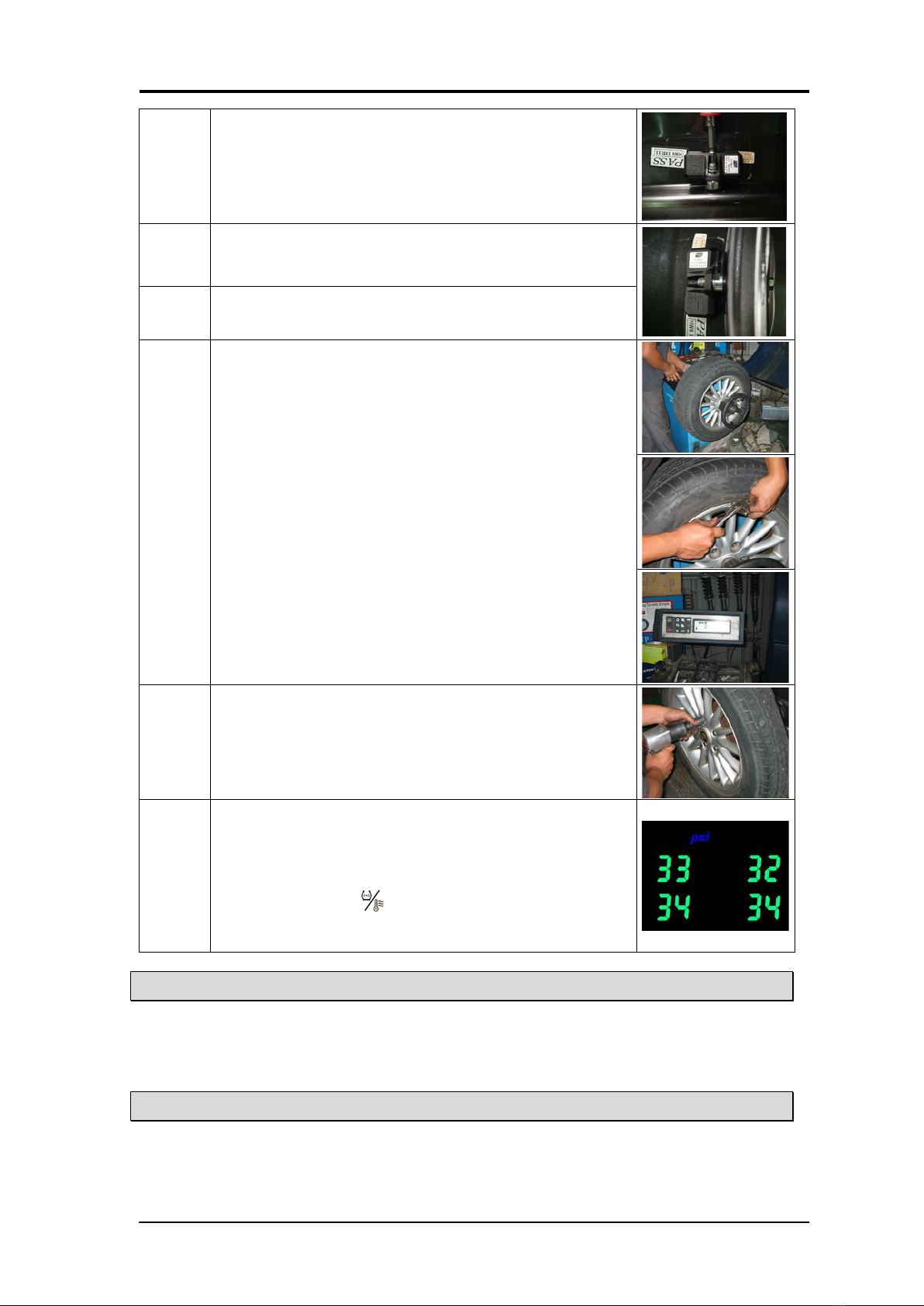

6 Adjust the transmitter sensor angle so that the transmitter fits tightly on the wheel and then tighten the screw for the
transmitter’s sensor so that it is fixed on the wheel.
7 Clean inside the tire to prevent the tire from damaging the
transmitter sensor.
8
Inflate the tires.
Balance the tire
a. Balance tires using a balance machine
b. A lead tire weight may need to be added for balancing.
c. Balance until the tire balance shows balance as “OK”
The Steps above will require the assistance of a tire fitting
service or a mechanic. It is important that the wheels are
balanced after the fitting of the TPMS sensors in order to
ensure the safe operation of the tire when refitted to the
vehicle.
9 Set up the other three tires in the same manner.
10
Turn the ignition key of the vehicle until the power is
activated on the cigar lighter, this may be first or second
position depending on the car manufacturer. The in-car
display will be activated.
The function button ( ) of the display unit can be
switched to pressure or temperature depending on the
customer’s need.
System Operation
After the system is installed, it will automatically monitor the tire pressure and temperature.
Once the ignition is turned on, and the vehicle is in motion, the display will show the real-time
tire pressure and temperature individually.
System Alarm
The alarm system will start, if tire pressure is too low, and if tire temperature is too high, the
alarm system will start too, and tire pressure will show on display. If high tire temperature and
low tire pressure situation happen at the same time, the system will show low tire pressure at

Manual for Tire Pressure Monitoring System, TPMS
7/21
first and then show tire temperature, both of tire pressure and temperature will show on the
screen for six seconds by turns.
The alarm will keep making sound till turning off alarm system or solving abnormal situation,
and below the manual will explain operation process.

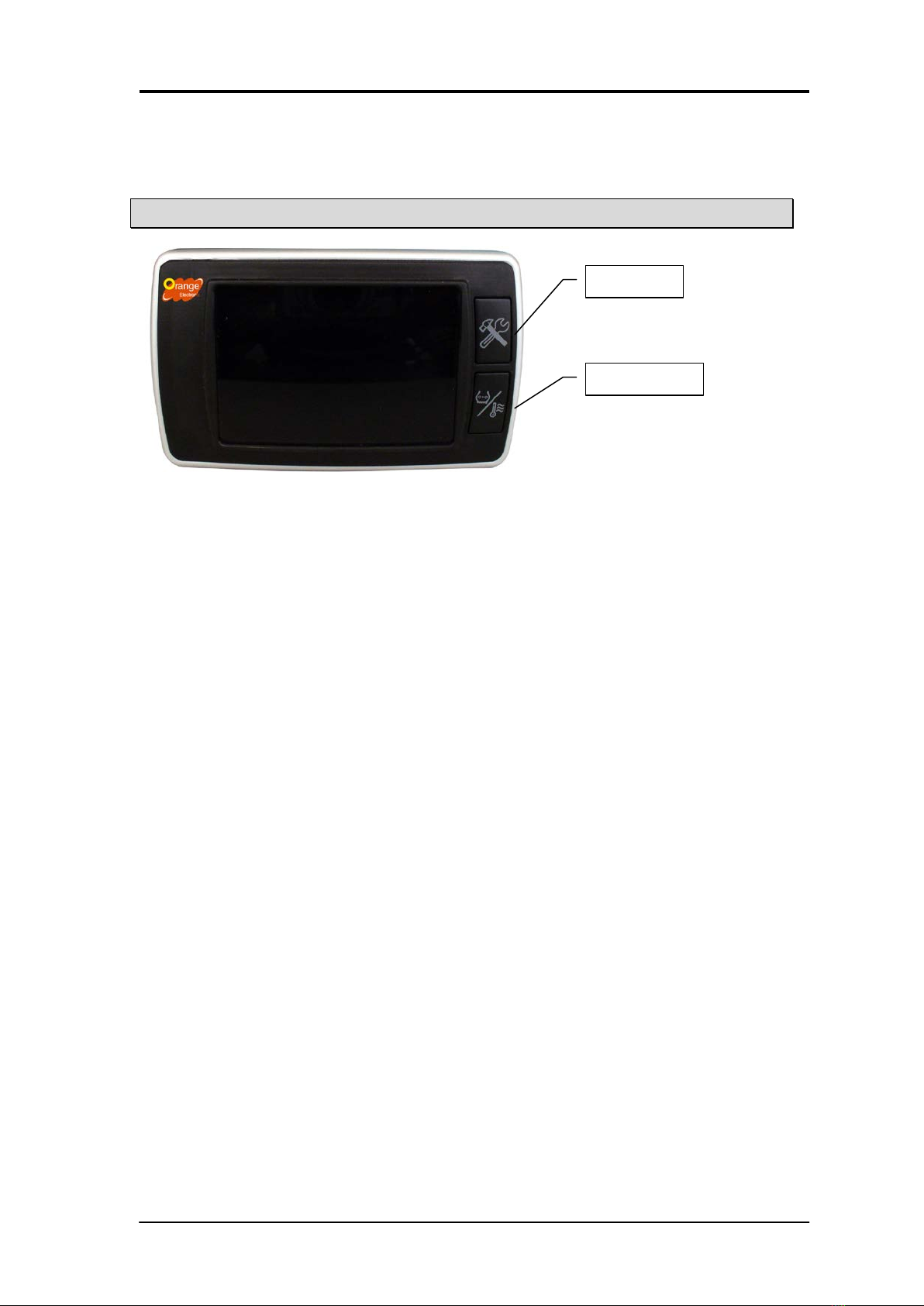

Setup Method
The driver can follow the steps to adjust the system of pre-loaded values
(Notice: the system has been pre-set with alert figures. If the driver wants to change the figure,
then follow the professional tire technician’s instruction).
Set Key
Function Key

Manual for Tire Pressure Monitoring System, TPMS
8/21

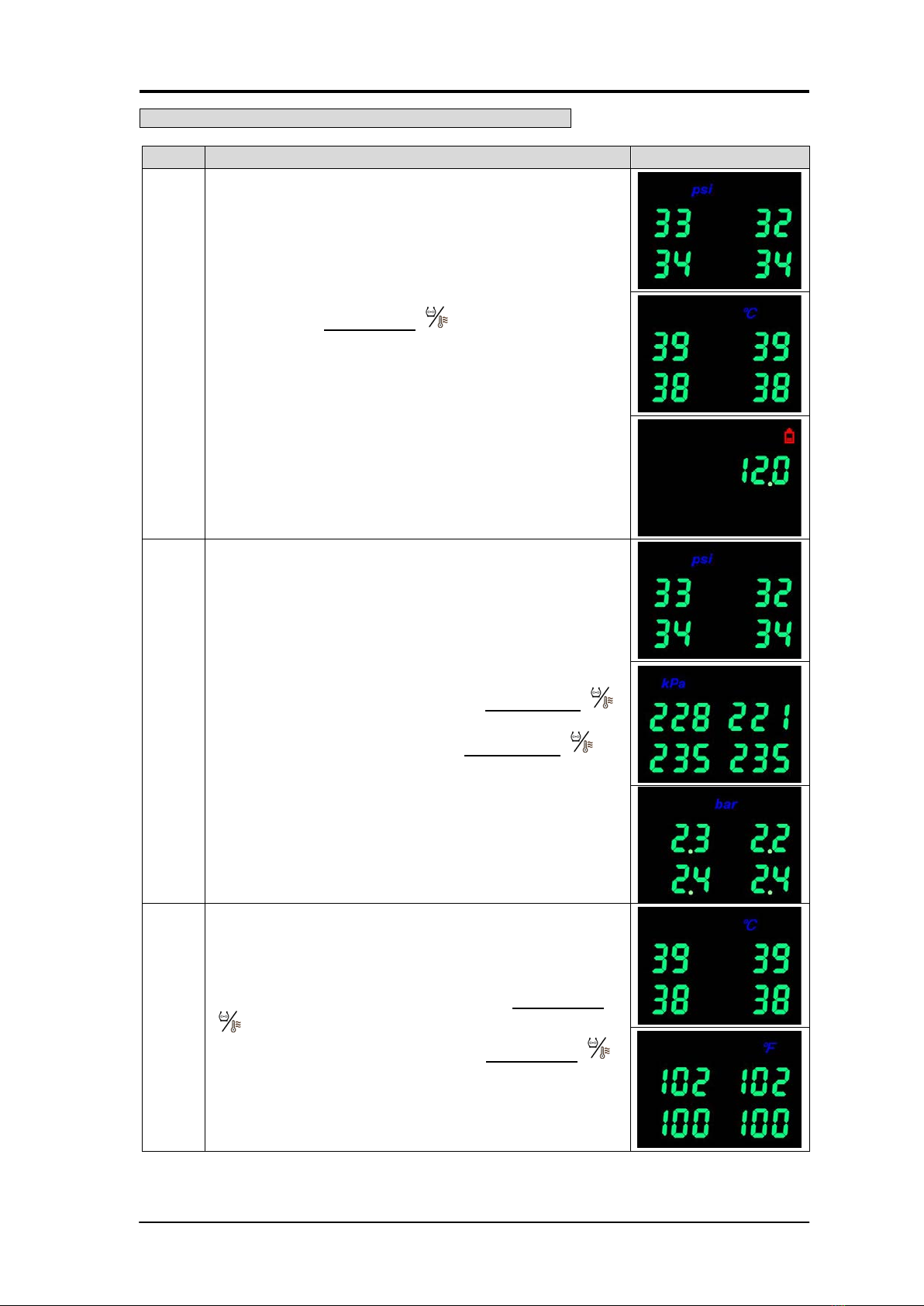

Choosing preferred Pressure Units and Temperature Units
Step Operation process Photograph
1
By pressing the function key ( ) , it will switch among
displaying the pressure unit, displaying the temperature
unit, displaying the battery voltage, and displaying both
pressure unit and temperature unit by turns. The operator
can choose which one to set up first.
2 If the pressure unit is chosen. Press the function key ( )
for 3 seconds, it will switch to kPa, psi, bar in turn. Once the
preferred unit is chosen release the function key ( ).
3
If the temperature unit is chosen. Press the function key
()for 3 seconds, it will switch to °C and °F in turn. Once
the preferred unit is chosen release the function key ( ).

Manual for Tire Pressure Monitoring System, TPMS
9/21
Tire Under Pressure Warning
Tire Over Pressure Warning
Step Operation process Photograph
1
After the setting operation of low tire pressure, the system
will automatically entry the setting mode of high tire
pressure.
2
The wireless receiver and display unit will now show the
high tire pressure factory default (50 psi / 350 kPa / 3.5 bar)
shown in green light and the blue light indicates the ”psi”. or
pre-selected units ( kPa or bar).
3
Press the function key ( ) to adjust the high tire
pressure warning value.
The high pressure figure set up range is from 40 psi to 60
psi, ( the kPa value will add 10 units; and the unit value will
return to 280 kPa when it has reached 420 kPa / the bar
value will add 0.1 units; and the unit value will return to 2.8
bar when it has reached 4.2 bar), the driver can continually
push the function key (the lower button) to adjust the
appropriate low pressure figure; the factory default value
is 50 psi.
When the tire pressure exceeds this setting, the system will
generate warning signals.
4 Press the set key ( ) to complete the low pressure setting
operation. The system will automatically entry the high tire
temperature setting mode.
Step Operation process Photograph
1 Pressing the set key ( ) for over 3 seconds can change
to the low pressure set up mode.
2
The wireless receiver and display unit will show the low tire
pressure preset default (26 psi / 180 kPa / 1.8 bar) which
shown in green and the preset unit ( psi or kPa or bar)
shown in blue, here indicates ”psi”.
3
By pressing the function key ( ) once, the psi value will
add 1 unit; and the unit value will return to 18 psi when it
has reached 35 psi. ( the kPa value will add 10 units; and
the unit value will return to 120 kPa when it has reached
250kPa / the bar value will add 0.1 units; and the unit value
will return to 1.2bar when it has reached 2.5 bar) The
system will use this setting as the standard value for low
tire pressure monitoring, which means when the tire has
deflated to a pressure value lower than this setting, the
system will automatically start to warn the driver.
4 Press the set key ( ) to exit the low tire pressure warning
value setup mode. The system will automatically enter the
high tire pressure set up mode.

Manual for Tire Pressure Monitoring System, TPMS
10/21
Tire Over Temperature Warning
Step Operation process Photograph
1
After the setting operation of high tire pressure, the system
will automatically entry the setting mode of high tire
temperature.
2
The first shown figure is the tires factory default high
temperature value (80°C) for the tires. The green light
indicates the tires factory default (80oC / 176°F), the blue
light indicator for “C”, and the directive character indicator for
“Hi”.
3
Press the function key ( ) to change the high
temperature figure.
The high temperature figure set up range is from 60°C to
100°C ( the °F value will add 1 unit; and the unit value will
return to 140°F when it has reached 212°F, the driver can
continually push the function key ( ) to adjust the
appropriate high temperature figure; the factory default
value is 80°C / 176°F.
When the tire temperature exceeds this setting, the system
will generate the warning signals.
4 Press the set key ( ) to complete the high temperature
setting operation.
Alarm Instruction
Type Warning Description Photograph
1 The tire pressure of RF Tire (22 psi) is below tire pressure
default (26 psi), which shown in red; and active an alarm to
warn the driver, press set key ( ) to turn off the alarm.
2 The tire pressure of RF Tire (52 psi) is above tire pressure
default (50 psi), which shown in red; and active an alarm to
warn the driver, press set key ( ) to turn off the alarm.
3
The tire temperature of RF Tire (82°C)is above tire
temperature default (80°C), which shown in red; and active
an alarm to warn the driver, press set key ( ) to turn off the
alarm.
4
The battery voltage of Vehicle is below battery voltage
default (11v) will be shown in red.
When display is not in battery monitor mode, the battery
voltage icon will flash to warn the driver.

Manual for Tire Pressure Monitoring System, TPMS
11/21
5
When it lasts 20 minutes above that wireless receiver
couldn’t receive one of the signal from wireless transmitter
sensor, the display will show E2; E1 indicates all wireless
transmitter sensor not receivable.
Reset for Tire Changes and Rotation
The rotation is necessary to prolong the life of your tires. The system requires resetting the tire
position to ensure the transmitter sensor can indicate the right position of your tires on display
unit. TPMS provides three modes of tire rotation methods and one mode for random
repositioning and single sensor replacement.
Mode 1: Front to Rear tires exchanged
Mode 2: Tires diagonal exchanged
Mode 3: Front tires diagonal exchanged, and Rear tires parallel exchanged to Front.
Mode 4: Random tire repositioning
Mode 5: Single sensor replaced
No.4 No.1
No.1 → Front-right tire
No.2 → Rear-right tire
No.3 → Rear-left tire
No.4 → Front-left tire
No.3 No.2
Warming
1.Do not turn off the vehicles power during this process. Doing so will immediately
interrupt the repositioning setup process. The ignition can either be in the on or start
position.
2.After repositioning, check the display is detecting all tire pressures correctly. If the
system cannot work normally, please reset it and follow the instructions again.

Manual for Tire Pressure Monitoring System, TPMS
12/21
Mode 1: Front to rear tires exchanged
Step Operation process Photograph
1 Rotate the tires. Front to Rear, and Rear to Front. To
prevent incorrect positioning, mark the tires.
2 Press both the set key ( ) and function key ( )
simultaneously for 5 seconds. The display will flash green
and red, and a “beep” sound will be heard. You can release
the buttons, and the system will have entered into mode 1.
3
3-1
After entering mode 1, the display will show “ 1”,
3-2
LED lights will flash green for front tires, rear tires will flash
red. (Green means tires position before changing, Red
means after changing, it is to show that the front to rear tires
have been exchanged.)
3-3
The operator only needs to press the set key ( ) for 3
second and listen for the “beep”. This means that mode 1
has been chosen and will exchange all four sensors ID
positions and will automatically return the monitoring status
to normal.

Manual for Tire Pressure Monitoring System, TPMS
13/21
Mode 2: Tires diagonal exchanged
Step Operation process Photograph
1 Rotate the tires diagonally. To prevent from incorrect
positioning, mark the tires.
2
Press both the set key ( ) and function key ( )
simultaneously for 5 seconds. The display will flash green
and red, and a “beep” sound will be heard. You can release
the buttons, and the system has entered into mode 1. Re-
press function key ( ) for 1 second and wait for “beep”,
then the LED will show”2” and system will have entered into
mode 2.
3
3-1
After entering mode 2, the display will show “2”.
3-2
Tires No1.and No.4 with green LED lights will turn red, and
Tires No.2 and No.3 with green lights first and then turn red.
(This means Tires are exchanged diagonally).
3-3
The operator only needs to press the set key ( ) for 3
second and listen for the “beep”. This means the mode 2
has been chosen and will exchange all four sensors ID
positions and will automatically return the monitoring status
to normal.

Manual for Tire Pressure Monitoring System, TPMS
14/21
Mode 3: Front tires diagonal exchanged, and Rear tires parallel changed to Front.
Step Operation process Photograph
1 Rotate the front tires diagonally to the rear, and the rear tires parallel to the front. To prevent incorrect positioning, mark
the tires.
2
Press both the set key ( ) and function key ( )
simultaneously for 5 seconds. The display will flash green
and red, and a “beep” sound will be heard. You can release
the buttons, and the system will have entered into mode 1.
Re-press function key ( ) for 1 second and wait for
“beep” then the LED will show “2”, re-press the function
key ( ) again, and wait for “beep”, you will then see “3”,
the system will have entered into mode 3.
3
3-1
After entering mode 3, the display will show “3”
3-2
LED will flash diagonally for front to rear and parallel rear to
front in red.
3-3
The operator only needs to press the set key ( ) for 3
second and listen for the “beep”. This means that mode 3
has been chosen and will exchange all four sensors ID
positions and will automatically return the monitoring status
to normal.

Manual for Tire Pressure Monitoring System, TPMS
15/21
Mode 4: Random re-position tires
Step Operation process Photograph
1 The tire shop will check the tire for abrasion and rotate tires
into the appropriate position.
2
Press both the set key ( ) and function key ( )
simultaneously for 5 seconds. The display will flash green
and red, and a “beep” sound will be heard. You can release
the buttons, and the system will have entered into mode 1.
Continue to press the function key ( the lower button), each
time for one second and each time wait for the beep until the
display shows”4”., After entering into mode 4 the LED will
show “4” and the tire LED light will be on tire :”1”. If sensor
on Tire No. “1” remains at the same position and need no
reconfiguration, please press the setup button to enter into
Tire No. “2” setup configuration.
3
3-1
After entering mode 4, the display will show “4”
3-2
When Tire No.1 needs to be reconfigured, deflate Tire No.1
once under 26 psi (tire low pressure default), and wait for
the receiver to receive the signal. When tire No. 1 receives
the signal, you will hear alarm “beep”. Then, start inflate the
tire No.1, it will keep on “beep” till Tire No. 1 is completely
inflated to normal pressure.
3-3
Tire No.1 LED will turn from red to green when Tire No.1 is
inflated to normal pressure, and now wait for tire No. 2.

Manual for Tire Pressure Monitoring System, TPMS
16/21
4
Repeat the 3-2 step above for tire No.2, No.3 and No.4
System will be back to monitoring condition automatically, and
receiver start to receive signals of tire pressure & tire
temperature.
Mode 5: Single sensor replaced
Step Operation process Photograph
1
Take off the broken sensor and replace it with a new sensor.
( if you are only checking for a signal problem from Mode 4
instructions, there is no need to take off the sensor, start
from step 2 if this is the case)
2
Press both the set key ( ) and function key ( )
simultaneously for 5 seconds. The display will flash green
and red, and a “beep” sound will be heard. You can release
the buttons, and the system will have entered into mode 1.
Continue to repress the function key, each time for one
second and each time wait for the beep until the display
shows “5”, Which means that mode has been chosen and
now preparation can be made to exchange the replaced
sensor’s ID position. Tire No. 1 will show a green LED,
which means to prepare for tire No. 1 set up.
3
3-1
After entering mode 5, the display will show “5”
3-2
Press set key ( ) to choose tire which new sensor
installed, LED will show Tire No.1 / 2 / 3 / 4.
3-3
When Tire No.1 (RF Tire) needs to be replaced, deflate tire
No.1 under 26 psi (tire low pressure default value) and wait
for the receiver to receive the signal. When Tire No. 1
receives the signal, you will hear “beep”. Then, start inflate
tire No.1, it will keep on “beep” till Tire No. 1 is completely
inflated to normal pressure. Tire No.1 LED will turn from red
to green, and return to normal operation mode. This means
that the sensor ID setting is finished.

Manual for Tire Pressure Monitoring System, TPMS
17/21
4 System will be back to monitoring condition automatically, and receiver start to receive signals of tire pressure & tire
temperature.
Appendix
Glossary
kPa Pressure reading in Kilo Pascal
psi Pressure reading in pound per square inch
Bar Pressure reading in bar
°C Temperature reading in degrees Celsius
°F Temperature reading in degrees Fahrenheit
Inflating Pressure
environment Recommended inflation pressure of a tire at ambient temperature of 25˚C / 77°F by vehicle manufacturers.
Low Pressure Alert
Visual and audible warning, this is activated when the tire’s
pressure goes below the preset level. Initial low pressure alert is
26 psi
High Pressure Alert Visual and audible warning, this is activated when the tire’s pressure goes higher than the preset level. Initial High pressure
alert is 50 psi
High Temperature Alert Visual and audible warning, this is activated when the tire’s temperature goes higher than the preset level. Initial High
temperature alert is 80°C.
Display / Receiver
Module The electronic module mounted inside the vehicle that alerts the
driver of any tire irregularities.
Sensor / Transmitter
Module The electronic module mounted on the wheels that measure the
air pressure and temperature of the tire.

Manual for Tire Pressure Monitoring System, TPMS
20/21
Troubleshooting Guide
1. The receiver shows no sign or any information after its power is turned on.
1.The power cord connector is not fully contacted with the receiver
Solution: Remove the power cord and plug it into the outlet again until it is contacted
completely.
2.The power cord failed
Solution：Ask your distributor to have your power cord replaced and send the defected one
back to manufacturer for repair.
3. The battery is run out of power.
Solution：If the battery voltage is always lower than 9V every time you start the engine, it is
recommended that the car should be brought to the service center for inspection.
4. The digits shown on the display panel become incomplete, or the light indicators become
abnormal.
Solution：Send the defected receiver display back to agent for repair and reconfigure its ID
using the Tire Switching Mode (Mode IV).
5. The fuse is blown in display
Solution：Send the defected receiver display back to agent for repair and reconfigure its ID
using the Tire Switching Mode (Mode IV).
2. The Set button or the Conversion button has no response.
1. The inner circuits of the receiver failed
Solution：Ask your distributor to have your receiver replaced, reconfigure its ID using the Tire
Switching Mode (Mode IV), and send the defected receiver back to manufacturer for repair.
3. The receiver cannot receive signal from one or some certain tires (but not all of them)
after its power is turned on the numeric values representing the locations of those tires
displayed on the screen become “E2”.
1. There is interference from other electronic device in the vehicle.
Solution：Remove other electronic device in the vehicle to determine if TPMS is interfered by
those removed devices.
2. The IDs of those tires do not set up correctly
Solution：Ask your installation supplier to reconfigure the IDs of those tires by using the
Single Sensor Replacement Mode(Mode V)
3. The transmitter of those tires failed.
Solution
：
Ask your distributor to have those transmitters replaced, reconfigure the IDs of those
tires by using the Single Sensor Replacement Mode (Mode V), and then send the defected
transmitter back to manufacturer for repair.

Manual for Tire Pressure Monitoring System, TPMS
21/21
4. The receiver cannot receive signal from any of the four tires after its power is turned on the
numeric values representing tire locations displayed on the screen all become “E1”.
1. There is interference from other electronic device in the vehicle.
Solution：Remove other electronic device in the vehicle to determine if TPMS is interfered by
those removed devices.
2. The inner circuits of the display panel failed.
Solution：Ask your distributor to have your receiver replaced, reconfigure its ID using the Tire
Switching Mode (Mode IV), and send the defected receiver back to manufacturer for repair.
5. The buzzer has no sound output.
1. The inner circuits of the receiver failed.
Solution
：
Ask your distributor to have your receiver replaced, reconfigure the IDs of the tires
using the Tire Switching Mode(Mode IV),and then send the defected receiver back to
manufacturer for repair
6. The pressure (or temperature)values show the wrong tire locations
1. The IDs of the four tires are not configures correctly
Solution：Ask your installation supplier to reconfigure the IDs of the tires by using the Tire
Switching Mode (Mode IV or Mode V).
2. After rotating the tires, it cannot reconfigure the IDs from sensors.
Solution：Ask your installation supplier to reconfigure the IDs of the tires by using the Tire
Switching Mode (Mode IV or Mode V).
