Cardinal Gates STAIRWAY SPECIAL User manual

A
B
CEF
G
J
I
1
6 ”
A
C or J
2
C or J
3
2X
E4
B
F
I
5
LOOSEN AT TOP AND
BOTTOM OF GATE TO
ADJUST GATE WIDTH
2X
G
6K
H
ONE-WAY
STOP BRACKET
OPTION

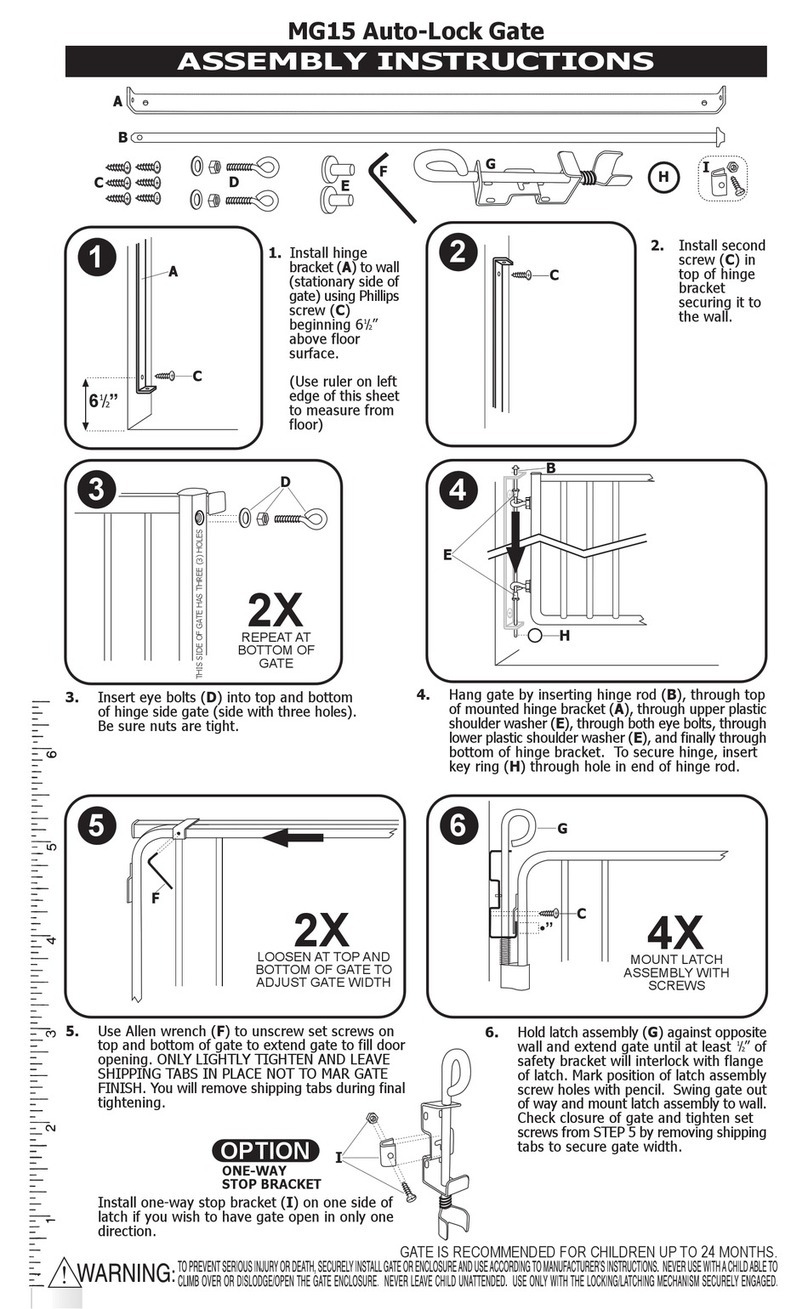

ASSEMBLY INSTRUCTIONS
2. Install second
screw (C) in
top of hinge
bracket
securing it to
the wall.
NOTE: THIS SIDE OF GATE HAS
THREE (3) HOLES - ONLY USE TOP AND
BOTTOM HOLES FOR THIS STEP
3. Insert eye bolts with nut and washer (E)
into top and bottom of hinge side gate
(side with three holes). Be sure nuts are
tight. Do not use middle hole for this step.
4. Hang gate by inserting hinge rod (B), through top
of mounted hinge bracket (A), through upper plastic
shoulder washer (F), through both eye bolts, through
lower plastic shoulder washer (F), and finally through
bottom of hinge bracket. To secure hinge, insert
key ring (I) through hole in end of hinge rod. Gate
can be mounted at angles up to 30 degrees.
5. Use Allen wrench (G) to unscrew
set screws on top and bottom of
gate to extend gate. LEAVE
SHIPPING TABS IN PLACE TO NOT
MAR GATE FINISH. You will remove
shipping tabs during final tightening.
6. Mount latch assembly (K) to gate using 3/4” bolts with serrated
washers (D). Attach wall mount for latch assembly (H) up
into part (K) that is now secure on gate. Slide gate out to
mark holes for (K) on attaching wall. (*OPTIONAL ONE WAY
BRACKET INSTALLED HERE) Then attach the wall mount of
latch assembly to wall using Phillips head screws (C). Optional
long screws (J) maybe be used to attach gate to stud through
dry wall.
GATE IS RECOMMENDED FOR CHILDREN BETWEEEN 6 AND 24 MONTHS.
STAIRWAY SPECIAL - MODEL SS30
D
H
KL
ONE-WAY
STOP BRACKET
OPTION
D
D
ONE-WAY
STOP BRACKET
OPTION
L
IF GATE IS INSTALLED AT TOP OF STAIRCASE:
Install one-way stop bracket (L) on one side of
wall mount latch to have gate open in only one
direction for maximum safety.
FOR OPENINGS 27” (68cm) - 42.5” (108cm)
SEE REVERSE
FOR GATE
OPERATION
INSTRUCTIONS
1. Install hinge bracket
(A) to wall (stationary
side of gate) using
Phillips screw (C)
beginning 6 ” above
floor surface. (Use
ruler on left edge of
this sheet to measure
from floor).
OPTION: Long
screws (J) maybe be
used to attach gate to
stud through dry wall.

GATE MAINTENANCE
GATE CARE & REMINDERS
GATE WARRANTY
Your Cardinal Gate is warranted to be free of manufacturing defects for a period of one year
from the date of purchase when used in homes, and according to manufacturers instructions.
When used commercially, such as day care centers, the warranty is 90 days.
Cardinal Gates, lnc. will either repair or replace, at our option, any parts necessary to correct
defects in material or workmanship during the warranty period. The warranty disclaims liabilty
for incidental, special and consequential damages of any nature.
TO EXERCISE WARRANTY:
Ship your gate in a protective carton, freight prepaid to:
CARDINAL GATES, INC.
79 Amlajack Way
Newnan, GA 30265
You must include the following:
1. Proof of purchase (store receipt, etc.).
2. Brief note describing problem with gate.
3. Full return address along with phone number.
FOR FURTHER ASSISTANCE
Call 1-800-318-3380
79 Amlajack Way
Newnan, GA 30265
770-252-4200
www.cardinalgates.com
GATE OPERATION
FOR OPENING: FOR CLOSING:
When approaching
gate, if latch is to your
left, use right hand.
Depress flip latches
simultaneously with
thumb and index
finger while lifting
gate with remaining
fingers of hand.
REMEMBER: Latch to right, use left hand; latch to left, use right hand
Grasp gate in
middle. Lift
gate and align
latch pins with
bracket holes.
Drop in place.
There is no
need to close
gate using flip
latches.
When used outdoors we suggest spraying hinge and latch parts with a marine corrosion inhibitor
by CRC or equivalent. This can be obtained normally at marinas or auto parts stores. Remove
set screws when separating frames for cleaning. An external hardware set is available. Please
call for information.
To clean, rinse with lukewarm water, wash gently with mild soap or detergent and lukewarm water,
using a soft cloth or sponge. Rinse again. Dry with a soft cloth or sponge to prevent water spotting.
DO NOT SCRUB or use brushes or squeegees.
At CARDINAL GATES, INC., we design what we believe to be the very best, and most user
friendly gates available. Our gates are built to last many years with proper use and care. Here
are a few suggestions...
• Close gates gently - do not slam - to prevent damage to latch mechanism.
• When closing, be sure safety bracket on gate frame engages as depicted in instructions.
• For safety, always close gate when not in use. Children should not be allowed to swing on an
open gate as this can damage hinge mount.
• Keep allen wrench in a secure place. We suggest removing set screws when separating sections
for cleaning. Periodically check all screws, bolts, etc. for security and proper adjustment.
CARDINAL GATES, INC., offers many accessories such as extensions, stair kits, and other
safety products. Check with your dealer or call CARDINAL GATES, INC. at 1-800-318-3380.
We sincerely hope that you thoroughly enjoy many years of service from your CARDINAL GATE.
