CARDIOSTRONG CST-BX70i User manual

Assembly and Operating Instructions
ErgometerBX70i

Art. No. CST-BX70i

BX70i

2

BX70i
3
Dear Customer,
Thank you for deciding for a high-quality training equipment of the brand cardiostrong,
the brand that makes athlete‘s hearts beat faster. cardiostrong oers a wide range
of home tness equipment like elliptical cross trainers, ergometers, treadmills and
rowing machines. cardiostrong equipment is the optimal equipment for all those who
want to train at home independent of goals and tness level. For further information
please visit www.sport-tiedje.com or www.cardiostrong.de.
SAFETY NOTICE
Please read all of the instructions carefully before assembly and rst
use. These instructions are intended to ensure speedy assembly and
explain safe usage. Make sure that all people exercising with the
equipment (in particular children and persons with limited physical, sensory, mental or
motor capabilities) are informed about these instructions and its content in advance.
In case of doubt, a responsible person must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge. As
far as possible, potential safety hazards which could cause injury have been eliminated.
Make sure to follow the instructions carefully and that all parts are securely in place. If
required, read through the instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here. The
contract partner cannot be held liable for damage to health, accidents or damage to
the equipment when it is not used in accordance with these instructions.
The equipment is only suitable for use at home. The equipment is not suitable for
semi-professional (e. g., hospitals, clubs, hotels, schools, etc.) and commercial or
professional use (e. g., health clubs).
Retain these instructions in a safe place for future reference, maintenance or when
ordering replacement parts.

BX70i

4
CONTENTS
1 GENERAL INFORMATION 6
1.1 Technical data 6
1.2 Personal safety 7
1.3 Electrical safety 8
1.4 Set-up place 8
2 ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE 9
2.1 General instructions 9
2.2 Faults and Troubleshooting 10
2.3 Maintenance and service calendar 11
3 ASSEMBLY 12

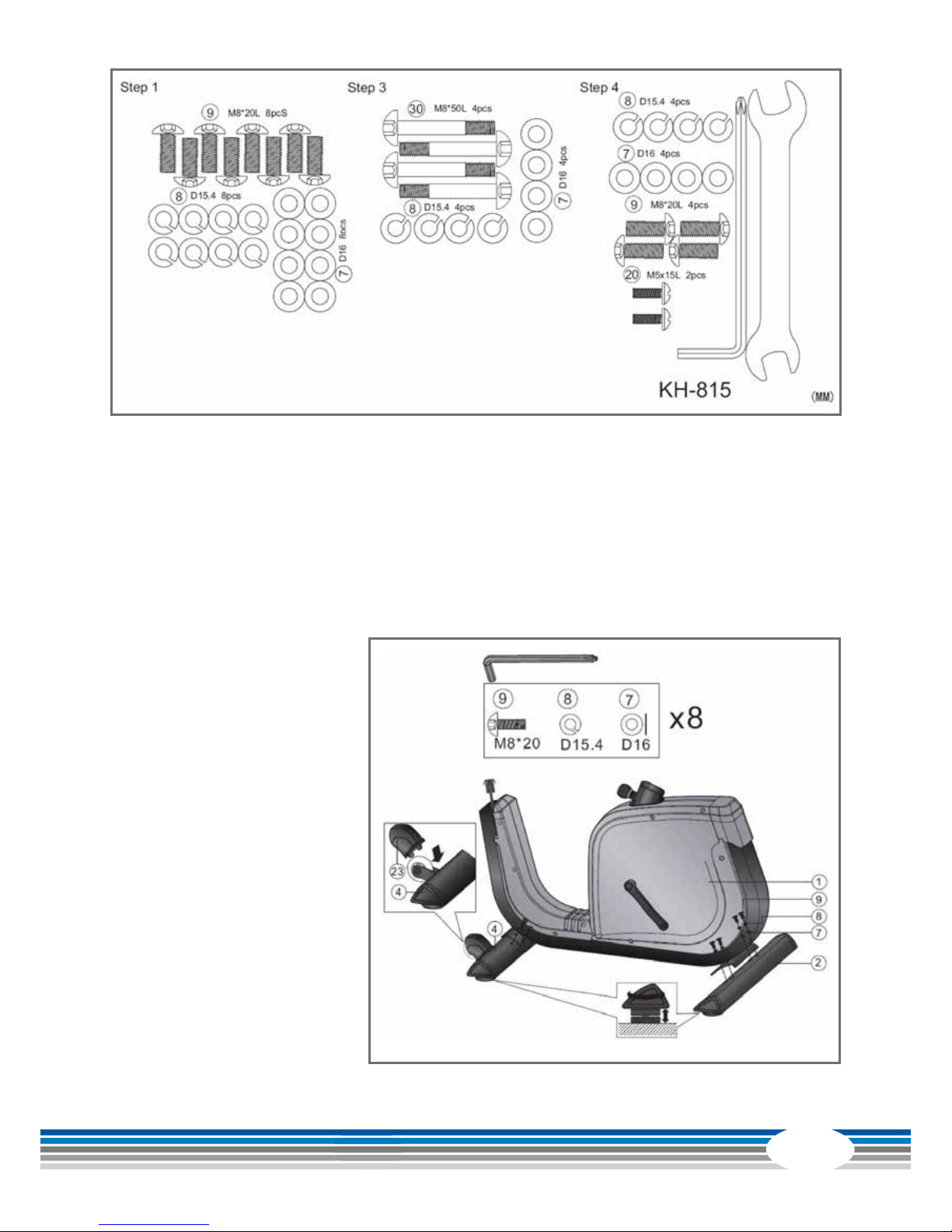

3.1 Package contents 12
3.2 Assembly instructions 13
4 OPERATING INSTRUCTIONS 19
4.1 Console display 19
4.2 Button functions 20
4.3 Turning on and setting the equipment 21
4.4 Programs 21
4.4.1 Manual mode 21
4.4.2 Beginner mode 22
4.4.3 Advance mode 22
4.4.4 Sporty mode 23
4.4.5 Cardio mode 23
4.4.6 Watt mode 24
4.5 iConsole+ App 24
5 WORKOUT INSTRUCTIONS 25
5.1 Heart-rate measuring 25
5.2 10 tips for eective ergometer training 28
5.3 Designing a workout 29
5.4 Stretching exercises for leg and chest muscles 31
5.5 Workout journal 33

BX70i
5
6 WARRANTY INFORMATION 34
7 DISPOSAL 36
8 ORDERING ACCESSORIES 37
9 ORDERING SPARE PARTS 38
9.1 Service hotline 38
9.2 Serial number and model name 38
9.3 Parts list 39
9.4 Exploded drawing 42
10 USER MANUAL iCONSOLE+ APP 44

BX70i

6
1 GENERAL INFORMATION
1.1 Technical data
LED display of
+ speed in km/h
+ training time in min
+ training distance in km
+ cadence (rotations per minute)
+ calories burnt
+ heart rate (when using the hand sensors or a chest strap)
+ watt
+ resistance level
Resistance system: electromagnetic induction brake
Resistance level: 32
Watt: 25 - 350 Watt (adjustable in 5-watt increments)
Total number of training programs: 18
Manual programs: 1
Pre-set programs: 12
Watt-controlled programs: 1
Heart rate controlled programs: 4
User dened programs: 1
Flywheel mass: 10 kg
Transmission: 1 : 8.1
Pedal arm length: 17 cm
Weight and dimensions
Article weight (gross, including packaging): 50.8 kg
Article weight (net, without packaging): 46.6 kg
Packaging dimensions (L x W x H): approximately 102 cm x 28 cm x 68 cm
Set-up dimensions (L x W x H): approximately 96 cm x 56cm x 143 cm
Maximum user weight: 150 kg/330 lbs

BX70i
7
1.2 Personal safety
+ Before you start using the equipment, you should consult your physician that
this type of exercise is suitable for you from a health perspective. Particularly
aected are persons who: have a hereditary disposition to high blood pressure
or heart disease, are over the age of 45, smoke, have high cholesterol values, are
overweight and/or have not exercised regularly in the past year.
+ Please note that working out excessively can seriously damage your health. Please
also be aware that heart rate monitoring systems might be imprecise.
+ The equipment may only be used for its intended purpose; that means for cycle
training for adults.
+ Any other usage is prohibited and potentially dangerous. The contract partner
cannot be held liable for damage resulting from improper use.
+ The equipment is strictly for use by one person at a time.
+ Children should not be allowed unsupervised access to the equipment.
+ Before starting your training, make yourself familiar with all of the equipment‘s
functions and setting options. Have an expert explain the correct usage of the
product to you.
+ Make sure that nobody is in the range of motion of the equipment while exercising.
+ Keep your hands, feet and other body parts, hair, clothing, jewelry and other
objects well clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.
When selecting sports shoes, think about the suitability of the sole – preferably
this should be made of rubber or other non-slip materials. Shoes with heels,
leather soles, studs or spikes are not suitable. Never work out in bare feet.
+ It is also important to take note of the information given in the workout instructions
for creating a workout plan.
+ At the rst signs of weakness, nausea, dizziness, pain, diculty in breathing or
other abnormal symptoms, stop your workout immediately and, if necessary,
consult your physician.
+ Without prior agreement from your authorized contract partner, opening the
equipment is prohibited.

BX70i

8
1.3 Electrical safety
+ The equipment requires a 220 - 230V / 50 Hertz mains power supply.
+ The equipment should be connected directly to a grounded plug socket only by
means of the power cable supplied. The use of multi-socket adapters or similar
is not recommended. Extension leads must comply with local electrical safety
guidelines. Always fully unwind the power cable.
+ The outlet should be secured with a fuse with a minimum value of „16 amperes,
slow“.
+ In order to reduce the risk of an electric shock, always unplug the equipment from
the mains socket immediately after your workout, before assembly or dismantling,
and before maintenance or cleaning. Do not pull on the cable.
+ When plugged in, do not leave the equipment unattended at any time. To avoid
use by anyone unfamiliar with the operating instructions, the power cable should
be removed when the equipment is not in use.
+ Keep the power cable away from heat, oil and sharp edges. Do not route the power
cable underneath the equipment or under a carpet or rug, and do not place any
objects on top of it.
+ Make no modications to either the power cable or the mains plug.
+ If the power cable or the plug are damaged or defective, contact your authorized
contract partner. Do not use the equipment in the meantime.
+ Do not keep electrical devices (e. g., mobile phones) in close proximity to the
console or the control electronics, otherwise display values (e. g., pulse measuring)
could be inaccurate.
1.4 Set-up place
+ The equipment should only be used indoors, in a suciently heated and dry area
(ambient temperature between 10°C and 35°C). The equipment should not be
used outdoors or in rooms with high humidity (over 70%) like swimming pools. The
equipment should only be stored in surroundings with an ambient temperature
between 5°C and 45°C.
+ The training room should be well ventilated during training and not be exposed to
any draughts.
+ Choose a location in which to place the equipment such that there is enough free
space/clearance to the front, the rear and to the sides of the equipment (at least
1.50 m). Furthermore, the equipment should not be set up in main entrances or on
escape routes.
+ Always keep the power cable away from hot surfaces and grounds and make sure
that the cable is not stuck somewhere or becomes a „trip hazard“.
+ No objects of any type should be inserted into the openings of the equipment.

BX70i
9
+ The equipment should be placed on a level and solid surface, any unevenness in
the oor should be leveled out.
+ A oor protective mat / equipment underlay can help to protect high-quality oor
coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to
level out slight unevenness.
2 ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE
2.1 General instructions
+ Please check if all parts and tools belonging to the equipment are included in the
delivery and if there is any transport damage. If there are any complaints, please
contact your contract partner directly.
+ Some of the nuts and bolts to be used in assembly are already pre-mounted in
order to make set-up as easy as possible.
+ The equipment must be assembled by adults. In case of doubt, ask for assistance
from another person with technical skills.
+ Keep children away from the equipment during assembly, because small parts are
included in the delivery and may be swallowed.
+ Make sure that you have enough space (at least 1.50 m) in every direction during
assembly.
+ Do not leave any tools and packaging materials like plastic sheeting laying around
to avoid danger of suocation for children.
+ Assemble the equipment on an underlay mat or on the cardboard packaging in
order to avoid damage to the equipment and to the oor (scratches).
+ Before starting assembly, all individual parts should be placed on the oor next to
each other.
+ Read the assembly instructions carefully and assemble the equipment according
to the illustrations. Proceed carefully and cautiously.
+ First loosen all parts and check for their correct tting. Then tighten the screws
using a tool.
+ Modications to the design or improper repairs may pose a hazard to the user and
should not be carried out. The product warranty may be void as a result.
+ Only authorized service technicians are permitted to carry out all servicing and/or
repairs – it excludes maintenance and care.
+ Damaged or worn components may impair your safety and the lifespan of
the equipment. You should therefore immediately replace damaged or worn
components. Please contact your contract partner in such a case. The equipment
should no longer be used until it has been repaired. When needed, only use
original cardiostrong spare parts.

BX70i

10
+ Check the tightness of all screw connections once a month.
+ In order to be able to guarantee the constructively dened safety level of this
equipment, we recommend having the equipment regularly maintained (at least
once a year) by specialists (service technicians of your contract partner).
+ The equipment may be cleaned of dust, dirt and sweat using a damp cloth. The
use of solvents should be strictly avoided. Also, make sure that no liquids (e. g.
sweat) get into the openings of the equipment (e. g. console).
2.2 Faults and Troubleshooting
The equipment runs through regular quality controls during production. Nevertheless,
errors or malfunctions on the equipment may occur. Individual parts are often the
cause of faults and replacement is usually sucient. Please use the following overview
to see the ve most common errors and how to repair them. If the equipment still
does not work properly, please contact your contract partner.
Error Cause Repair
Cracking near the
pedal
Loose pedals Tighten the pedals
Equipment wobbles Equipment is not level Adjust the supporting feet
Handlebar/saddle
wobbles
Screws are loose Tighten screws
Display does not turn
on
Power supply disrupted Check all screw connections
and see if the plug is plugged
in
No pulse reading • Sources of interference
in the room
• Using a chest strap:
- Unsuitable chest strap
- Chest strap is
incorrectly positioned
- Empty batteries
• Eliminate sources of
interference (e. g. mobile
phone, loudspeaker, etc.)
• Use a suitable chest strap (see
recommended accessories)
• Reposition the chest
strap and/or moisten the
electrodes
• Change the batteries

BX70i
11
2.3 Maintenance and service calendar
The following routine work must be done in the specied time intervals:
Part Weekly Monthly 2x annually Annually
Display console C I
Tighten the pedals I
Plastic covers C I
Seat rail I
Legends: C = cleaning; I = inspect

BX70i

12
3 ASSEMBLY
3.1 Package contents
The package contains the parts represented in the illustration, including a power
cable with mains plug. If one of the illustrated parts is missing, please contact your
contract partner.

BX70i
13
3.2 Assembly instructions
Before starting assembly, look carefully through the individual assembly steps shown
and assemble the equipment in the order indicated.
Step 1: Assembly of the bases
(1) Mount the front base
(4) and the rear base (2) on
the main frame (1) with the
help of the spacer sleeve
(7), spring washer (8) and
socket screw (9).
(2) Turn the wheel on the
rear foot cap (3) in order
to set the corresponding
height. Tighten the screws.

BX70i

14

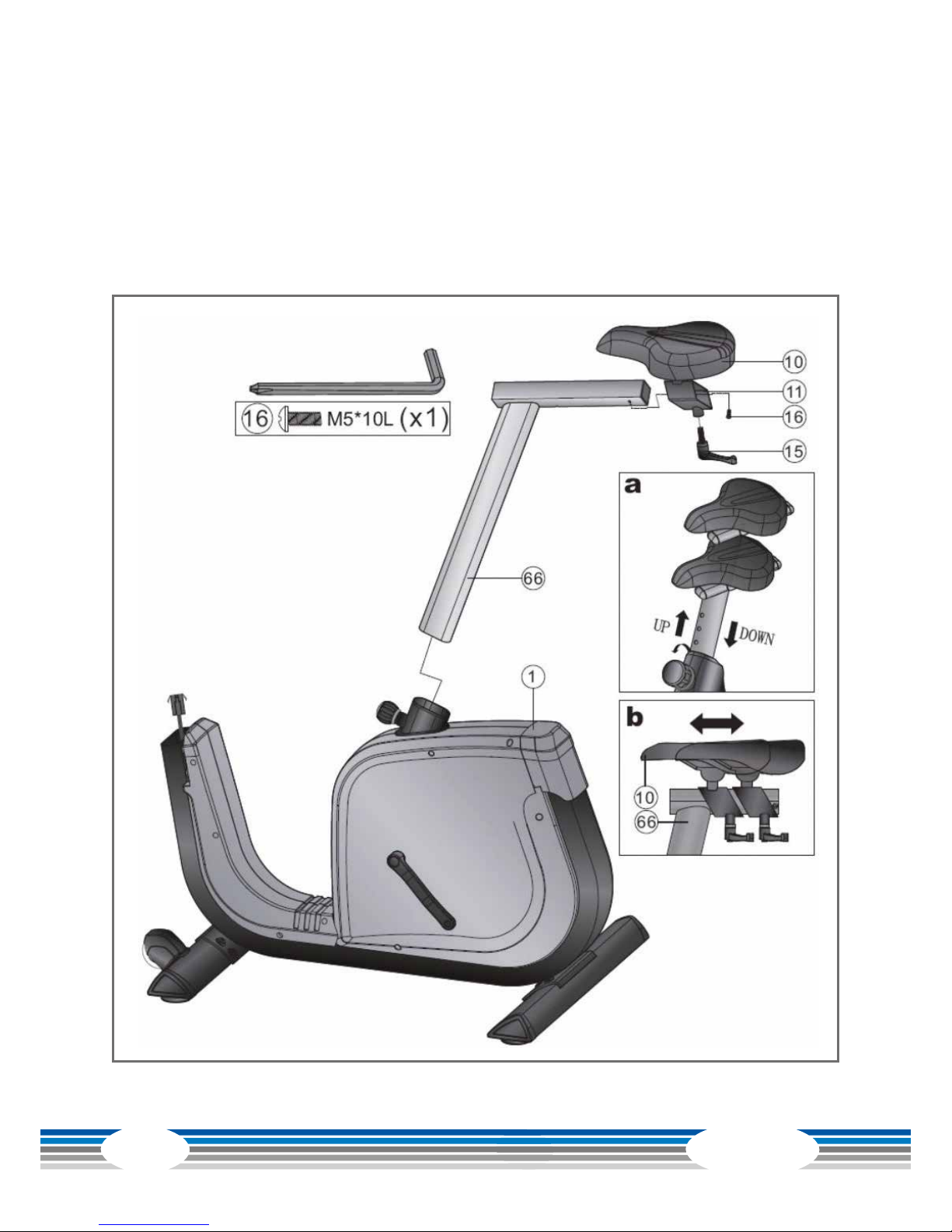

Step 2: Assembly of the saddle and seat tube
(1) Mount the seat (10) on the adjusting tube of the seat (11).
(2) Mount the adjusting tube on the seat post (66) with the help of the spacer sleeve
(15) and the control knob (16).
(3) The seat can be adjusted in a vertical and horizontal direction, see gure a. and b.

BX70i
15
Step 3: Assembly of the handlebar tube
(1) This assembly step should be executed by at least two persons.
(2) First take the upper protective cover (28) o (see gure a). Then connect the
computer cables (72 & 73) (see gure b).
(3) Insert the handlebar tube (29) on the main frame and mount this with the spacer
sleeve (7), spring washer (8) and socket screw (30). Place the upper protective cover
back on and mount it on the main frame.

BX70i

16

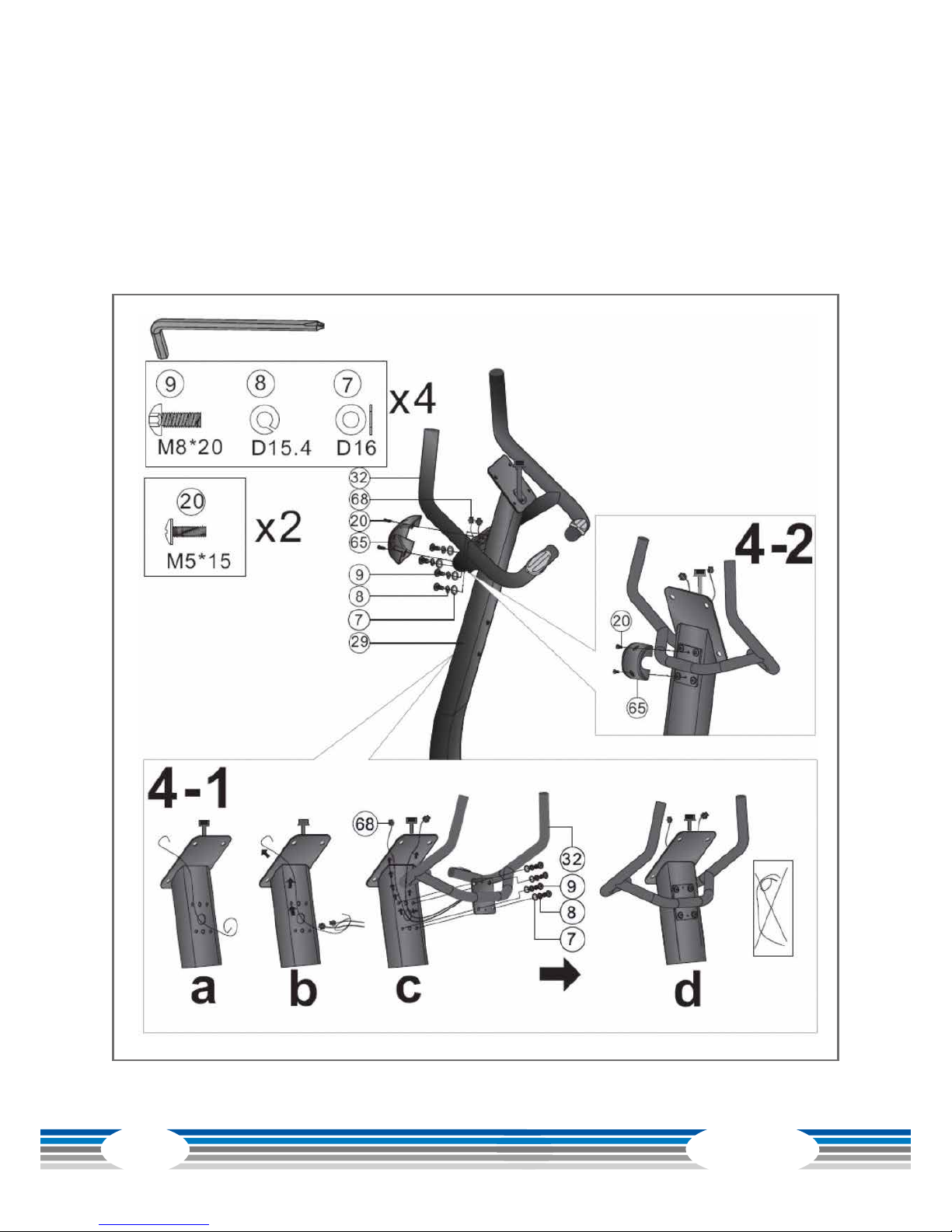

Step 4: Assembly of the handlebars
(1) Mount the handlebars (32) on the handlebar tube (29) by means of the protective
cover (65), the spacer sleeve (7), the spring washer (8), the socket screw (9) and the
screw (20).
(2) Make sure that all cables are correctly connected, see gure a, b, c, d.

BX70i
17

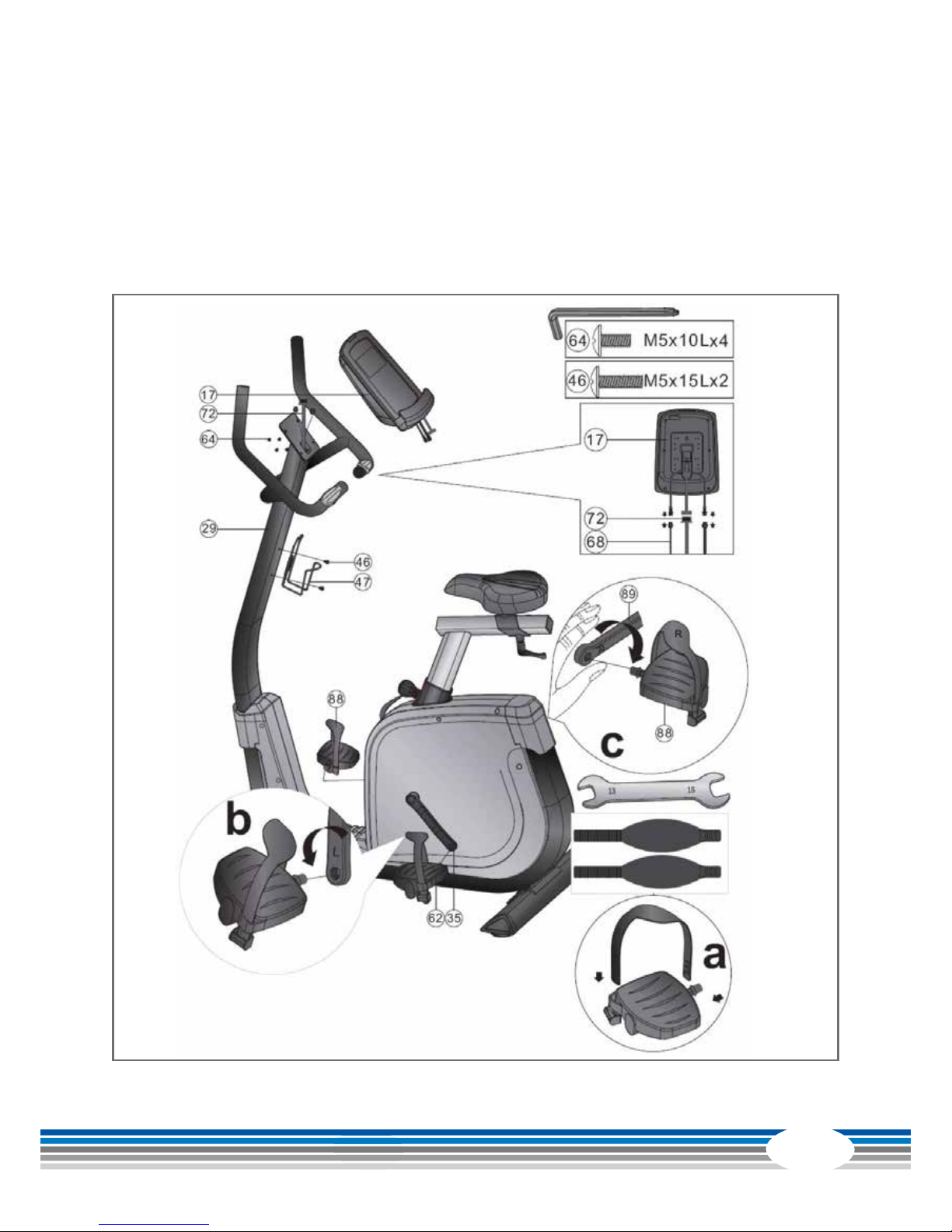

Step 5: Assembly of the console & pedals
(1) Connect the upper computer cable (72) and the hand pulse cable (68) with the
computer (17) and mount the computer (17) on the handlebar tube (29) by means of
the screw (64).
(2) Mount the pedals (62 & 88) on the cranks (35 & 89).

BX70i

18
Step 6: Power connection
(1) Connect the adapter (81) with the adapter access on the rear part of the equipment.

BX70i
19
4 OPERATING INSTRUCTIONS
4.1 Console display
TIME Training time displayed during training. Range 0:00 to
99:59 min.
SPEED Training speed displayed during training. Range 0.0 to 99.9
km/h
DISTANCE Training distance displayed during training. Range 0.0 to
99.9 km/h
CALORIES Calories burnt displayed during training. Range 0 to 999
kcal
PULSE Pulse (beats per minute) displayed during training. Pulse
alarm sounds if the pre-set pulse target is exceeded.

BX70i

20
4.2 Button functions
Up - Increase resistance level.
- Set selection criteria.
Down - Lower resistance level.
- Set selection criteria.
Mode Conrm selection or setting.
Reset
- Hold for two seconds, then the computer will restart or
begins again with the user settings.
- Return to the main menu during the presetting of the
exercise values or stop mode.
Start/ Stop Starting or stopping the exercise.
Recovery Check recovery status of the heart rate.
Body fat Test body fat % and BMI.
RPM Rotations per minute Range 0 to 999
WATT
Training power consumption. In the watt program mode,
the computer remains in the pre-set watt value (range 0 to
350)
MANUAL Training in the manual mode.
PROGR Beginner, Advance and Sporty PROGRAM selection.
CARDIO Training mode target heart rate.
