CARDIOSTRONG Ergometer BC70 User manual

Assembly and Operating Instructions
ErgometerBC70

Art. No. CST-BC70-B-2 CSTBC70B.02.02

BC70

2

BC70
3
Dear Customer,
Thank you for deciding for a high-quality training equipment of the brand cardiostrong®, the brand
that makes athlete‘s hearts beat faster. cardiostrong® oers a wide range of home tness equipment
like elliptical cross trainers, ergometers, treadmills and rowing machines. cardiostrong® equipment
is the optimal equipment for all those who want to train at home independent of goals and tness
level. For further information please visit www.sport-tiedje.com or www.cardiostrong.de.
SAFETY NOTICE
Please read all of the instructions carefully before assembly and rst use. These
instructions are intended to ensure speedy assembly and explain safe usage. Make
sure that all people exercising with the equipment (in particular children and
persons with limited physical, sensory, mental or motor capabilities) are informed
about these instructions and its content in advance. In case of doubt, a responsible
person must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge. As far as possible,
potential safety hazards which could cause injury have been eliminated. Make sure to follow the
instructions carefully and that all parts are securely in place. If required, read through the instructions
again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The equipment is only suitable for use at home. The equipment is not suitable for semi-professional
(e. g., hospitals, clubs, hotels, schools, etc.) and commercial or professional use (e. g., health clubs).
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

BC70

4
CONTENTS
1 GENERAL INFORMATION 5
1.1 Technical data 5
1.2 Personal safety 6
1.3 Electrical safety 7
1.4 Set-up place 7
2 ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE 8
2.1 General instructions 8
2.2 Faults and Troubleshooting 9
2.3 Maintenance and service calendar 9
3 ASSEMBLY 10
3.1 Package contents 10
3.2 Assembly instructions 12
4 OPERATING INSTRUCTIONS 20
4.1 Console display 20
4.2 Button functions 22
4.3 Turn on the machine 23
4.4 Programmes 25
4.4.1 QUICK START in the manual programme 26
4.4.2 Manual Mode 26
4.4.3 Prole programmes 27
4.4.4 User-dened programmes 29
4.4.5 Watt-controlled programme 30
4.4.6 Heart rate control 31
4.4.7 Recovery 32
4.5 Check or delete saved data 32
4.6 Battery compartment 35
4.7 Heart-rate measuring 36
5 WARRANTY INFORMATION 38
6 DISPOSAL 40
7 RECOMMENDED ACCESSORIES 40
8 ORDERING SPARE PARTS 41
8.1 Service hotline 41
8.2 Serial number and model name 41
8.3 Parts list 42
8.4 Exploded drawing 45

BC70
5
1 GENERAL INFORMATION
1.1 Technical data
LED display
+Speed in km/h
+Training time in min
+Training distance in km
+Cadence (rotations per minute)
+Calorie consumption
+Heart rate (when using the hand pulse sensors or a chest strap)
+Power output in watts
+Resistance level
Resistance system: electronic magnetic brake system
Resistance level: 16
Watt: 10 - 350 watt
User memory: 5
Total number of training programs: 19
Manual programs: 1
Pre-set programs: 12
Watt-controlled programs: 1
Heart rate controlled programs: 4
User dened programs: 1
Flywheel mass: 9 kg
Pedal arm length: 17 cm
Bottom bracket width: 8 cm
Weight and dimensions
Article weight (gross, including packaging): 62.5 kg
Article weight (net, without packaging): 62 kg
Packaging dimensions (L x W x H): approximately 1300 mm x 340 mm x 750 mm
Set-up dimensions (L x W x H): approximately 1430 mm x 740 mm x 1070 mm
Maximum user weight: 130 kg/286 lbs

BC70

6
1.2 Personal safety
+Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who: have
a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke,
have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
+Please note that working out excessively can seriously damage your health. Please also be aware
that heart rate monitoring systems might be imprecise.
+The equipment may only be used for its intended purpose; that means for cycle training for
adults.
+Any other usage is prohibited and potentially dangerous. The contract partner cannot be held
liable for damage resulting from improper use.
+The equipment is strictly for use by one person at a time.
+Children should not be allowed unsupervised access to the equipment.
+Before starting your training, make yourself familiar with all of the equipment‘s functions and
setting options. Have an expert explain the correct usage of the product to you.
+Make sure that nobody is in the range of motion of the equipment while exercising.
+Keep your hands, feet and other body parts, hair, clothing, jewelry and other objects well clear of
moving parts.
+During use, wear suitable sports clothing rather than loose or baggy clothing. When selecting
sports shoes, think about the suitability of the sole – preferably this should be made of rubber or
other non-slip materials. Shoes with heels, leather soles, studs or spikes are not suitable. Never
work out in bare feet.
+It is also important to take note of the information given in the workout instructions for creating
a workout plan.
+At the rst signs of weakness, nausea, dizziness, pain, diculty in breathing or other abnormal
symptoms, stop your workout immediately and, if necessary, consult your physician.
+Without prior agreement from your authorized contract partner, opening the equipment is
prohibited.

BC70
7
1.3 Electrical safety
+The equipment requires a 220 - 230V / 50 Hertz mains power supply.
+The equipment should be connected directly to a grounded plug socket only by means of the
power cable supplied. The use of multi-socket adapters or similar is not recommended. Extension
leads must comply with local electrical safety guidelines. Always fully unwind the power cable.
+The outlet should be secured with a fuse with a minimum value of„16 amperes, slow“.
+In order to reduce the risk of an electric shock, always unplug the equipment from the mains
socket immediately after your workout, before assembly or dismantling, and before maintenance
or cleaning. Do not pull on the cable.
+When plugged in, do not leave the equipment unattended at any time. To avoid use by anyone
unfamiliar with the operating instructions, the power cable should be removed when the
equipment is not in use.
+Keep the power cable away from heat, oil and sharp edges. Do not route the power cable
underneath the equipment or under a carpet or rug, and do not place any objects on top of it.
+Make no modications to either the power cable or the mains plug.
+If the power cable or the plug are damaged or defective, contact your authorized contract
partner. Do not use the equipment in the meantime.
+Do not keep electrical devices (e. g., mobile phones) in close proximity to the console or the
control electronics, otherwise display values (e. g., pulse measuring) could be inaccurate.
1.4 Set-up place
+The equipment should only be used indoors, in a suciently heated and dry area (ambient
temperature between 10°C and 35°C). The equipment should not be used outdoors or in rooms
with high humidity (over 70%) like swimming pools. The equipment should only be stored in
surroundings with an ambient temperature between 5°C and 45°C.
+The training room should be well ventilated during training and not be exposed to any draughts.
+Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment (at least 1.50 m). Furthermore,
the equipment should not be set up in main entrances or on escape routes.
+Always keep the power cable away from hot surfaces and grounds and make sure that the cable
is not stuck somewhere or becomes a„trip hazard“.
+No objects of any type should be inserted into the openings of the equipment.
+The equipment should be placed on a level and solid surface, any unevenness in the oor should
be leveled out.
+A oor protective mat / equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.
2

BC70

8
2 ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE
2.1 General instructions
+Please check if all parts and tools belonging to the equipment are included in the delivery and if
there is any transport damage. If there are any complaints, please contact your contract partner
directly.
+Some of the nuts and bolts to be used in assembly are already pre-mounted in order to make
set-up as easy as possible.
+The equipment must be assembled by adults. In case of doubt, ask for assistance from another
person with technical skills.
+Keep children away from the equipment during assembly, because small parts are included in
the delivery and may be swallowed.
+Make sure that you have enough space (at least 1.50 m) in every direction during assembly.
+Do not leave any tools and packaging materials like plastic sheeting laying around to avoid
danger of suocation for children.
+Assemble the equipment on an underlay mat or on the cardboard packaging in order to avoid
damage to the equipment and to the oor (scratches).
+Before starting assembly, all individual parts should be placed on the oor next to each other.
+Read the assembly instructions carefully and assemble the equipment according to the
illustrations. Proceed carefully and cautiously.
+First loosen all parts and check for their correct tting. Then tighten the screws using a tool.
+Modications to the design or improper repairs may pose a hazard to the user and should not be
carried out. The product warranty may be void as a result.
+Only authorized service technicians are permitted to carry out all servicing and/or repairs – it
excludes maintenance and care.
+Damaged or worn components may impair your safety and the lifespan of the equipment.
You should therefore immediately replace damaged or worn components. Please contact your
contract partner in such a case. The equipment should no longer be used until it has been
repaired. When needed, only use original cardiostrong® spare parts.
+Check the tightness of all screw connections once a month.
+In order to be able to guarantee the constructively dened safety level of this equipment, we
recommend having the equipment regularly maintained (at least once a year) by specialists
(service technicians of your contract partner).
+The equipment may be cleaned of dust, dirt and sweat using a damp cloth. The use of solvents
should be strictly avoided. Also, make sure that no liquids (e. g. sweat) get into the openings of
the equipment (e. g. console).

BC70
9
2.2 Faults and Troubleshooting
The equipment runs through regular quality controls during production. Nevertheless, errors
or malfunctions on the equipment may occur. Individual parts are often the cause of faults and
replacement is usually sucient. Please use the following overview to see the ve most common
errors and how to repair them. If the equipment still does not work properly, please contact your
contract partner.
Error Cause Repair
Crackling noise in pedal
area
Loose pedals Tighten the pedals
Equipment wobbles Equipment is not level Adjust the supporting feet
Handlebar/saddle
wobbles
Screws are loose Tighten screws
Display doesn‘t turn on Power is disconnected Check all screw connections and see
if the plug is plugged in
No pulse reading • Interference in the room
• Using a chest strap:
- unsuitable chest strap
- chest strap is incorrectly
positioned
- batteries are empty
• Eliminate sources of interference
(e. g. mobile phone, loudspeaker,
etc.)
• Use a suitable chest strap (see
recommended accessories)
• Reposition the chest strap and/or
moisten the electrodes
• Change the batteries
2.3 Maintenance and service calendar
The following routine work must be done in the specied time intervals:
Part Weekly Monthly 2x annually Annually
Display console C I
Tighten the pedals I
Plastic covers C I
Seat rail I
Legends: C = cleaning; I = inspect

BC70

10
3 ASSEMBLY

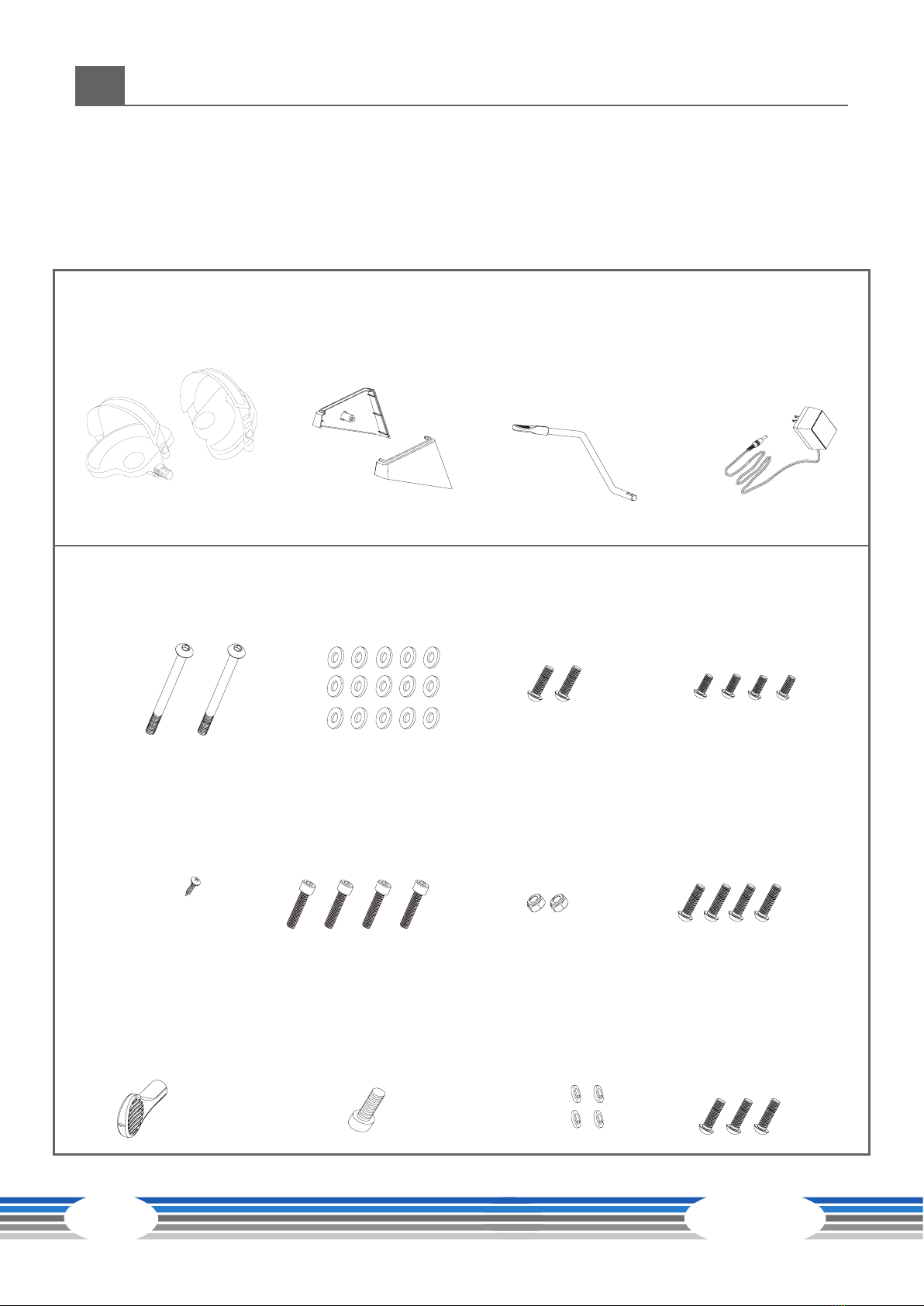

3.1 Package contents
The package contains the parts represented in the illustration, including a power cable with mains
plug. If one of the illustrated parts is missing, please contact your contract partner.
IV-M1 & IV-M2 Pedal
IV-N1 Screw
IV-N6 Screw
IV-N11 Adjusting lever
IV-N2 Washer
IV-N7 Screw
IV-N13 Screw IV-N16 Screw
IV-N3 Screw
IV-N9 Nut
IV-N15 Spring washer
IV-N4 Screw
IV-N10 Screw
IV-M
IV-N
IV-M3 & IV-M4
Cover
IV-M5 Lever IV-M6 Plug

BC70
11
IV-A IV-B
IV-C
IV-D
IV-E
IV-G
IV-K
IV-J
IV-LIV-L
IV-F
(IV-J1)
Frame Front base foot
Front handles
Side handles
console mast
Backrest mast
Console Backrest Seat cushion
Bottle Holder
Rear base foot

BC70

12
3.2 Assembly instructions
Before starting assembly, look carefully through the individual assembly steps shown and assemble
the equipment in the order indicated.

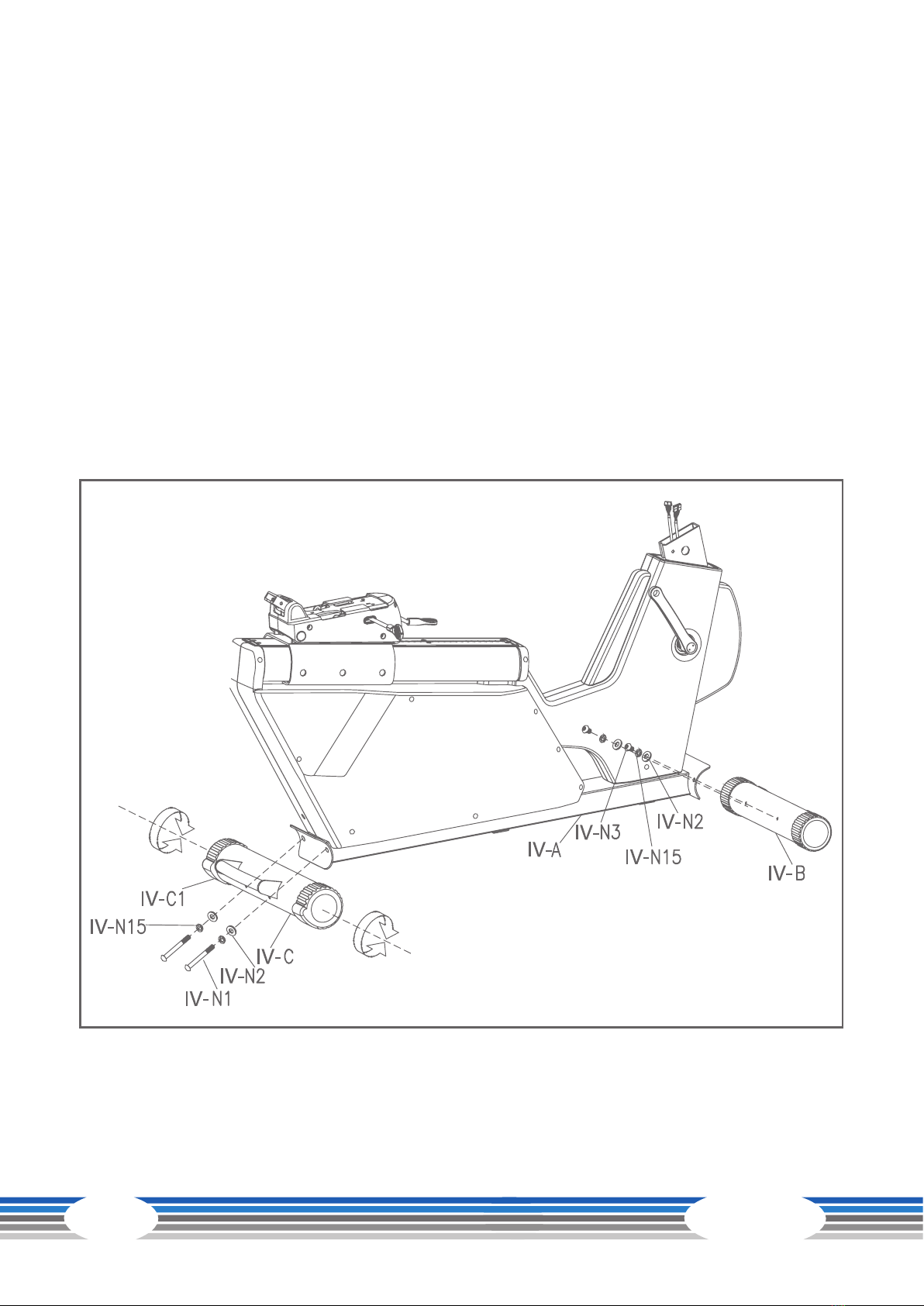

Step 1: Assembly of the front and back feet
(1) Mount the rear base foot (IV-C) on the frame (A) with two washers (IV-N2), two spring washers
(IV-N15) and two screws (IV-N1).
(2) Then mount the front base foot (IV-B) on the frame (A) with two washers (IV-N2), two spring
washers (IV-N15) and two screws (IV-N3).
Stabilization of the equipment:
If the equipment is not stable after construction, adjust the setting screws on the underside of the
base foot (IV-C1) correspondingly.

BC70
13
Step 2: Assembly of the console mast
First loosen the screws (IV-N12) from the frame.
(1) Connect the sensor cables (IV-E1 and IV-E2) from the console mast with the sensor cables (IV-A1
and IV-A2) from the frame.
(2) Mount the console mast (IV-E) on the frame (IV-A) with two screws (IV-N12).
(3) Slide the covers (IV-M3 and IV-M4) on the frame (IV-A) and mount with two screws (IV-N6).
Warning: Make sure that the cables are not stuck when they are pushed together.
IV-E
IV-E2
IV-A2
IV-E1
IV-A1
IV-M3 IV-N6
IV-N12
IV-M4
IV-A

BC70

14
Step 3: Assembly of the upper handles and the console
(1) Set the upper handles (IV-D) on the iron plate of the console mast (IV-E) and mount with two nuts
(IV-N9).
(2) Loosen the four screws (IV-H1) from the console (IV-H)
(3) Connect the sensor cables (IV-E1 and IV-E2) from the console mast with the cables from the
console. Make sure that the cables are properly connected with each other.
(4) Push the cable carefully into the console mast and mount the console (IV-H) on the console mast
(IV-E) with two screws (IV-H1).
(5) Release the two screws (IV-N14) from the central tube (IV-E), equip the bottle holder
(IV-J1) with the central tube (IV-E) with the two screws (IV-N14).
Adjustable rack for smart phone/tablet
USB port for power
supply

BC70
15
Step 4: Assembly of the backrest mast and the side handles
(1) Mount the backrest mast (IV-G) on the frame (IV-A) with two screws (IV-N4) and washers (IV-N2).
(2) Connect the sensor cables (IV-F5 and IV-F4) from the handle with the sensor cables (IV-A2) from
the frame.
(3) Move the side handles (IV-F) on the frame (IV-A) and mount the parts with three screws (IV-N16)
and three washers.
IV-A
IV-N2
IV-G
IV-F
IV-N16
IV-N2
IV-F5
IV-F4
IV-N4
IV-A2

BC70

16
Step 5: Assembly of the backrest and the seat cushion
(1) Mount the backrest (IV-L) on the backrest mast (IV-G)
with four screws (IV-N7).
(2) Mount the seat cushion (IV-K) on the frame of the side
handles (IV-F) with four washers (IV-N2) and four screws (IV-
N10).
Step 6: Assembly of the adjusting lever
Push the adjusting lever (IV-M5) into the
frame (IV-A) and mount it with a stop screw
(IV-N13).
IV -F
IV-K
IV -L
IV-G
IV-N7
IV-N2
IV-N10
IV-M5
IV-A
IV-N13
IV -F
IV-K
IV -L
IV-G
IV-N7
IV-N2
IV-N10
IV-M5
IV-A
IV-N13

BC70
17
Step 7: Assembly of the pedals
(1) Move the right pedal on to the right crank
and mount it by turning the pedal clockwise.
(2) Move the left pedal on to the left crank
and mount it by turning the pedal counter-
clockwise.
Step 8: Connecting the power cable
The plug for the power cable is located on the back end of the frame. Insert the power plug into an
outlet.

BC70

18
Step 9: Adjusting the backrest
Press the adjusting lever back, move the
seat to the desired position and move
the adjusting lever back to the front.
Step 10: Adjustment of the seat
Pull the lever (IV-G44) up, place
the seat at the desired distance
and move the lever back down.
IV-G44
IV-G44

BC70
19
Step 11: Adjusting the backrest
Pull the lever (IV-M7) up in order
to increase the seat angle and
press it down to lower the seat
angle
.
Step 12: Transport
The front base has transport wheels. Stand behind the machine and lift it up until the weight is
placed on the transport wheels. After this, you can easily move the machine to a new position.
IV-M7
Transport wheels

BC70

20
4 OPERATING INSTRUCTIONS
4.1 Console display
