CARDIOSTRONG Ergometer BX70i User manual

TF
CSTBX70i.02.03
Assembly and Operating Instructions
Art. No. CST-BX70i-2
ExerciseBikeBX70i


BX70i
2

BX70i
3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Electrical Safety 9
1.4 Set-Up Place 10
2 ASSEMBLY 11
2.1 General Instructions 11
2.2 Scope of Delivery 12
2.3 Assembly 14
3 OPERATING INSTRUCTIONS 20
3.1 Console display 20
3.2 Button Function 22
3.3 Turning On and Setting the Equipment 22
3.4 Training programme 23
3.4.1 MANUAL MODE 23
3.4.2 PROGRAM MODE 24
3.4.3 H.R.C. MODE 25
3.4.4 WATT MODE 26
3.4.5 USER PROGRAM MODE 26
3.4.6 RECOVERY 27
3.4.7 BODY FAT 27
3.5 Bluetooth and tness apps 29
4 STORAGE AND TRANSPORT 30
4.1 General Instructions 30
4.2 Transportation Wheels 30
5 TROUBLESHOOTING, CARE AND MAINTENANCE 31
5.1 General Instructions 31
5.2 Faults and Fault Diagnosis 31
5.3 Error Codes and Troubleshooting 32
5.4 Maintenance and Inspection Calendar 32
6 DISPOSAL 32
7 RECOMMENDED ACCESSORIES 33

BX70i
4
8 ORDERING SPARE PARTS 34
8.1 Serial Number and Model Name 34
8.2 Parts List 35
8.3 Exploded Drawing 38
9 WARRANTY 39
10 CONTACT 41

BX70i
5
Dear customer,
Thank you for choosing a high-quality equipment of the brand cardiostrong®. cardiostrong® oers
sports and tness equipment for the sophisticated home sport and the equipment of tness studios
and business customers. With cardiostrong® tness equipment, the focus is on what sport is all about:
maximum performance! Therefore, the equipment is developed in close consultation with athletes
and sports scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2010 cardiostrong® is a registered brand of the company SportTiedje GmbH. All
rights reserved. Any use of this trademark without the explicit written permission of
Sport-Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is suitable for home use and semi-professional use (e.g. hospitals, clubs, hotels,
schools, etc.). The equipment is not suitable for commercial or professional use (e.g. tness
studio).

BX70i
6
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been
eliminated. Make sure to carefully follow the instructions and that all parts are
securely in place. If required, read through the instructions again to correct any
mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

BX70i
7
1 GENERAL INFORMATION
1.1 Technical Data
LED display of
+ speed in km/h
+ training time in min
+ training distance in km
+ cadence (rotations per minute)
+ calories burnt
+ heart rate (when using the hand sensors or a chest strap)
+ watt
+ resistance level
Resistance system: electromagnetic induction brake
Resistance level: 32
Watt: 25 - 350 Watt (adjustable in 5-watt increments)
Total number of training programs: 18
Manual programs: 1
Pre-set programs: 12
Watt-controlled programs: 1
Heart rate controlled programs: 1
User dened programs: 1
Flywheel mass: 10 kg
Transmission: 1 : 8.1
Pedal arm length: 17 cm
Weight and dimensions
Article weight (gross, including packaging): 50.8 kg
Article weight (net, without packaging): 46.6 kg
Packaging dimensions (L x W x H): approximately 102 cm x 28 cm x 68 cm
Set-up dimensions (L x W x H): approximately 96 cm x 56cm x 143 cm
Maximum user weight: 150 kg/330 lbs

BX70i
8
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that heart
rate monitoring systems can be inaccurate. If you notice any signs of weakness, nausea,
dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising immediately
and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing. When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make sure
that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

BX70i
9
1.3 Electrical Safety
⚠DANGER
+ In order to reduce the risk of an electric shock, always unplug the equipment from the
mains socket immediately after your workout, before assembly or dismantling, and before
maintenance or cleaning. Do not pull on the cable.
⚠WARNING
+ Do not leave the equipment unattended while the mains cable is plugged into the mains
socket. During your absence, the mains cable must be removed to prevent improper use by
third parties or children.
+ If the mains cable or plug is damaged or defective, contact your contract partner. In the
meantime, the equipment must not be used.
ATTENTION
+ The equipment requires a mains connection of 220-230V with 50 Hertz mains voltage.
+ The equipment may only be connected directly to an earthed socket using the supplied
mains cable. Extension cables must conform to VDE guidelines. Always completely unwind
the mains cable.
+ The socket must be protected by a fuse with a minimum fuse rating of "16 amps, slow blow".
+ Do not make any changes to the mains cable or the mains plug.
+ Keep the mains cable away from water, heat, oil and sharp edges. Do not route the mains
cable underneath the equipment or under a carpet or rug, and do not place any objects on
top of it.

BX70i
10
1.4 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms (ambient
temperatures between 10°C and 35°C). The equipment should not be used outdoors or in
rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

BX70i
11
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around, as
otherwise there is a danger of suocation for children. Keep children away from the equipment
during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Do not open the packaging when it is lying on its side.
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek the
help of another technically skilled person.
ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

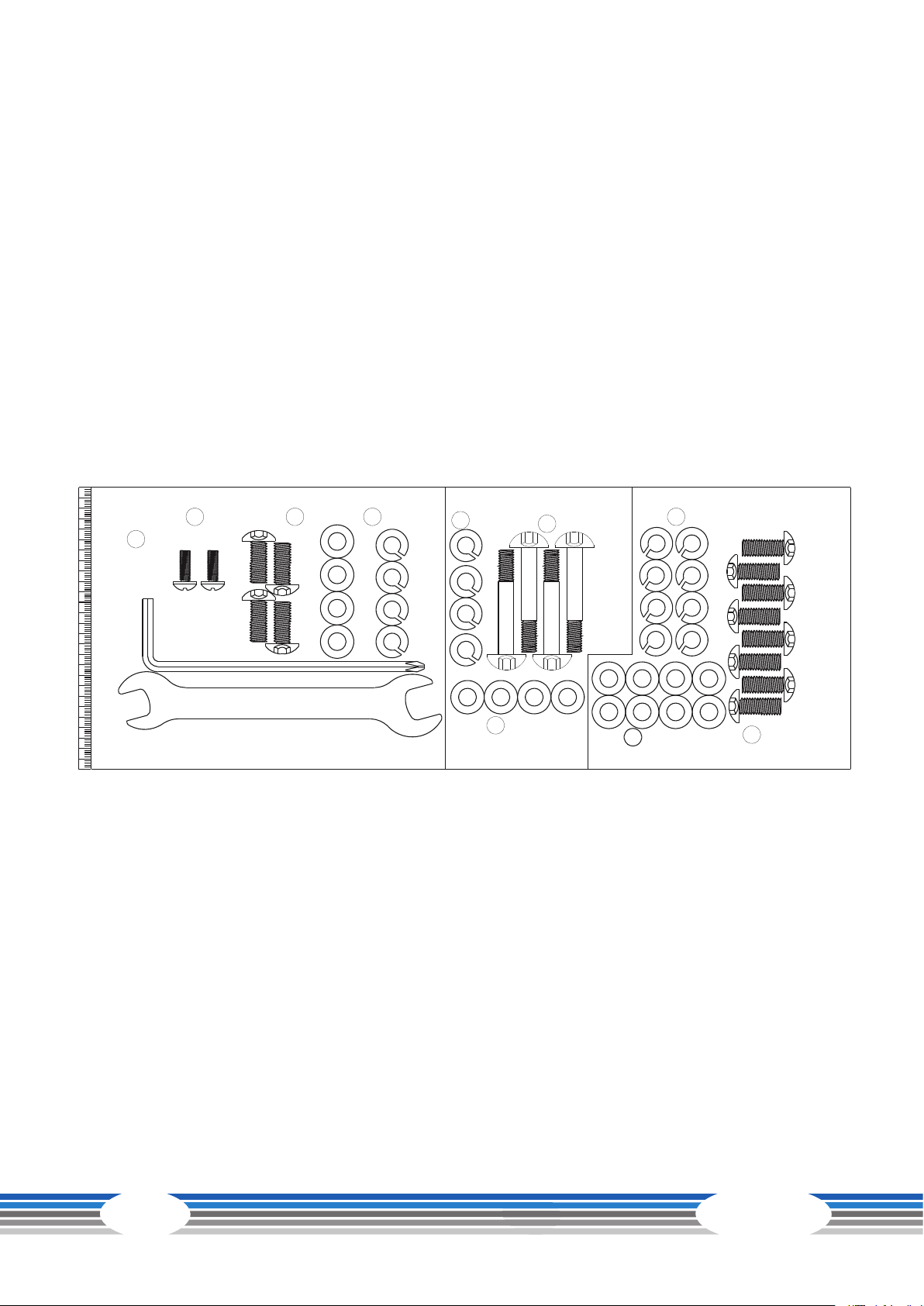

(MM)
9M8*20L 8pcS
7scp861D
8D15.4 8pcs
M8*50L 4pcs
30
8D15.4 4pcs
7scp461D
Step 3 Step 1
9M8*20L 4pcs 7D164pcs
M5x15L 2pcs
20
Step 4
8D15.4 4pcs
BX70i
12

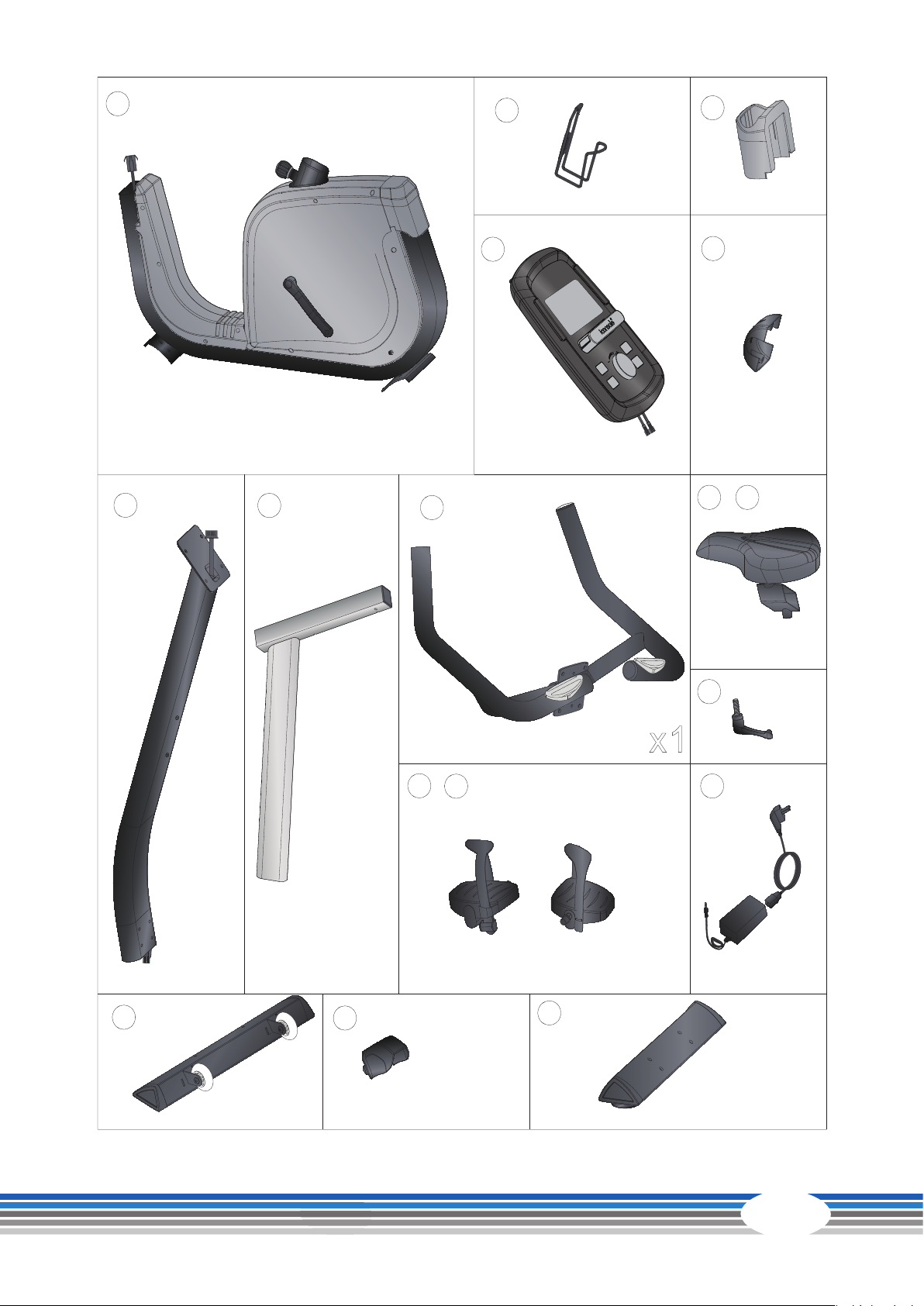

2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

1
11
66
29
28
17 65
32
62
2
4
88 81
x1
x1
x1x1
x1
x1
x1 x1
x1
x1
x1
x1
10 &
&
23
x2
47
x1
x1
15
BX70i
13

D15.4
M8*20D16
97x8
8
4
1
2
9
8
7
4
23
BX70i
14
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Then tighten the screws
using the tool only when you are instructed to do so.
Step 1: Assembly of the bases
1. Mount the front base (4) and the rear base (2) on the main frame (1) with the help of the spacer
sleeve (7), spring washer (8) and socket screw (9).
2. Turn the wheel under the foot cap in order to set the corresponding height. Tighten the screws.
Mount the cover for wheel (23).
Down Up

1
a
b
M5*10L (x1)16
66
10
15
11
16
10
66
DOWN
UP
BX70i
15

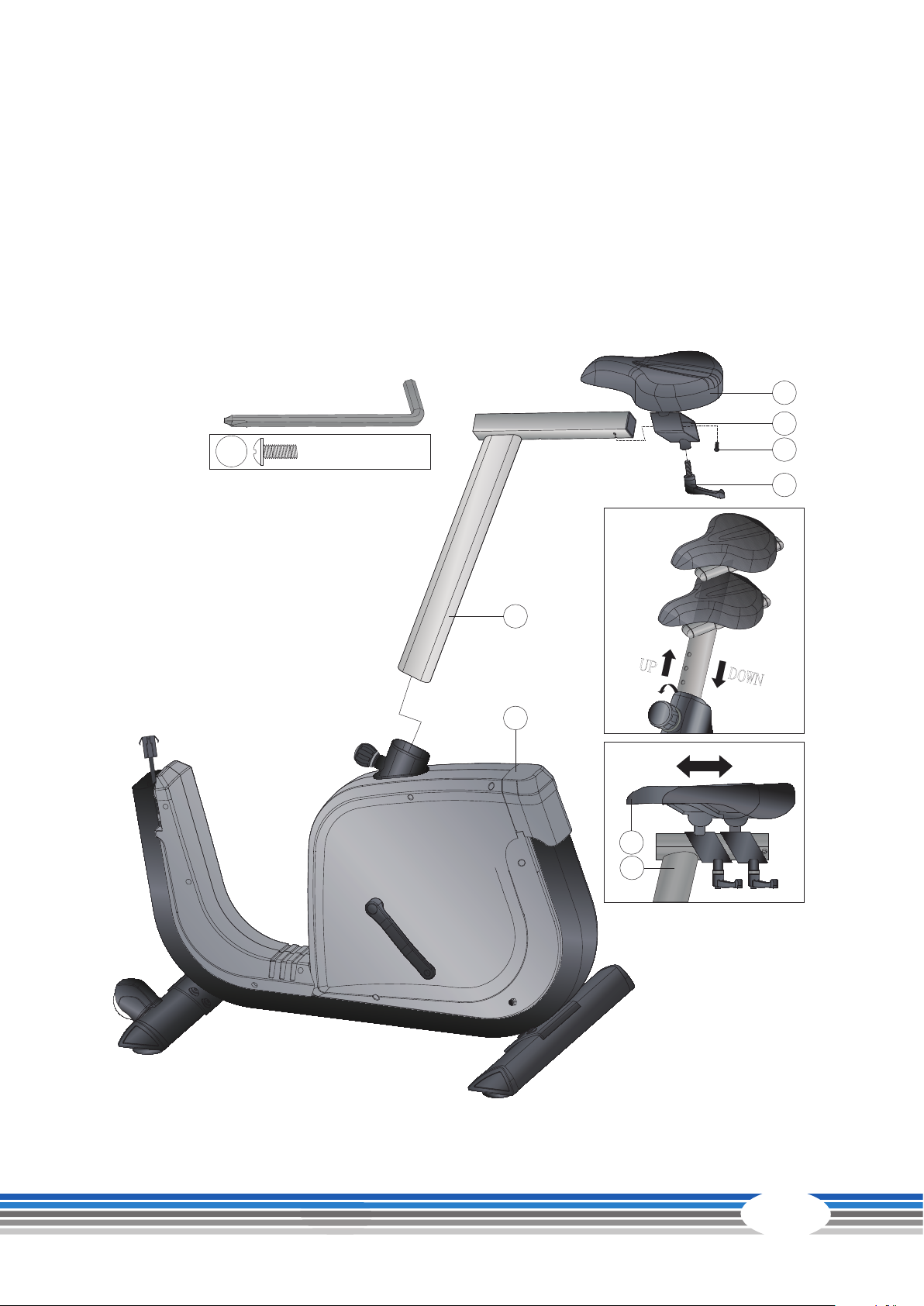

Step 2: Assembly of the saddle and seat tube
1. Mount the seat (10) on the adjusting tube of the seat (11).
2. Mount the adjusting tube on the seat post (66) with the help of the round cross screw (16) and
quick-released knob (15).
3. The seat can be adjusted in a vertical and horizontal direction, see gure a. and b.

73
72
D15.4
M8*50D16
30 87x4
28
29
a
b
30
7
8
28
29
BX70i
16

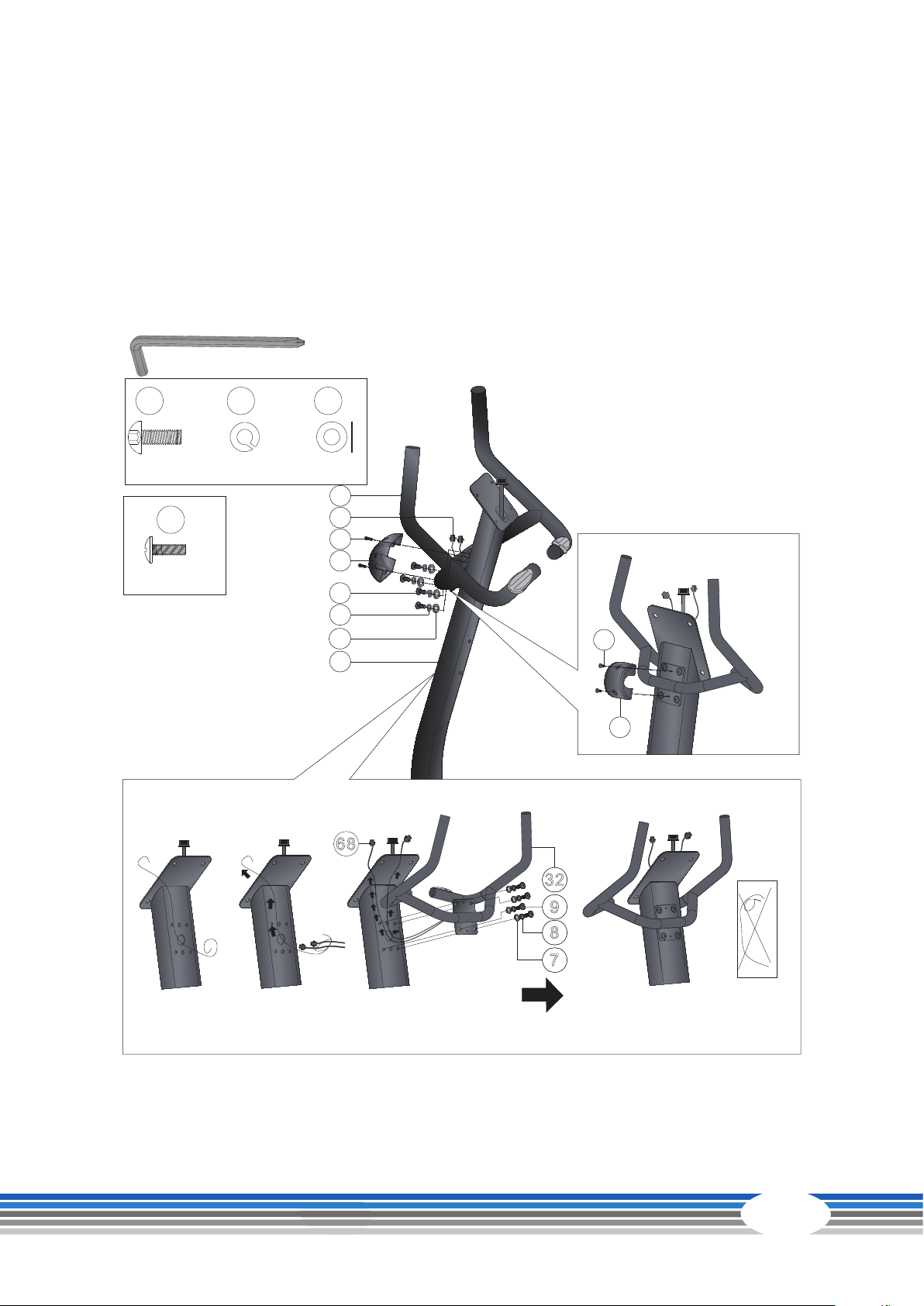

Step 3: Assembly of the handlebar tube
1. This assembly step should be executed by at least two persons.
2. First take the upper protective cover (28) o (see gure a). Then connect the computer cables
(72 & 73) (see gure b).
3. Insert the handlebar tube (29) on the main frame and mount this with the spacer sleeve (7),
spring washer (8) and socket screw (30). Place the upper protective cover back on and mount it
on the main frame.

D15.4
M8*20D16
97x4
8
x2
68
20
65
7
8
9
4-1
M5*15
20
4-2
29
abcd
7
8
9
32
68
20
65
32
BX70i
17
Step 4: Assembly of the handlebars
1. Mount the handlebars (32) on the handlebar tube (29) by means of the protective cover (65), the
spacer sleeve (7), the spring washer (8), the socket screw (9) and the screw (20).
2. Make sure that all cables are correctly connected, see gure a, b, c, d.

R
88
89
13 15
88
17
M5x10L
17
72
68
64
64
72
L
R
46
47
M5x15L
46
29
a
c
b
x2
x4
62 35
BX70i
18

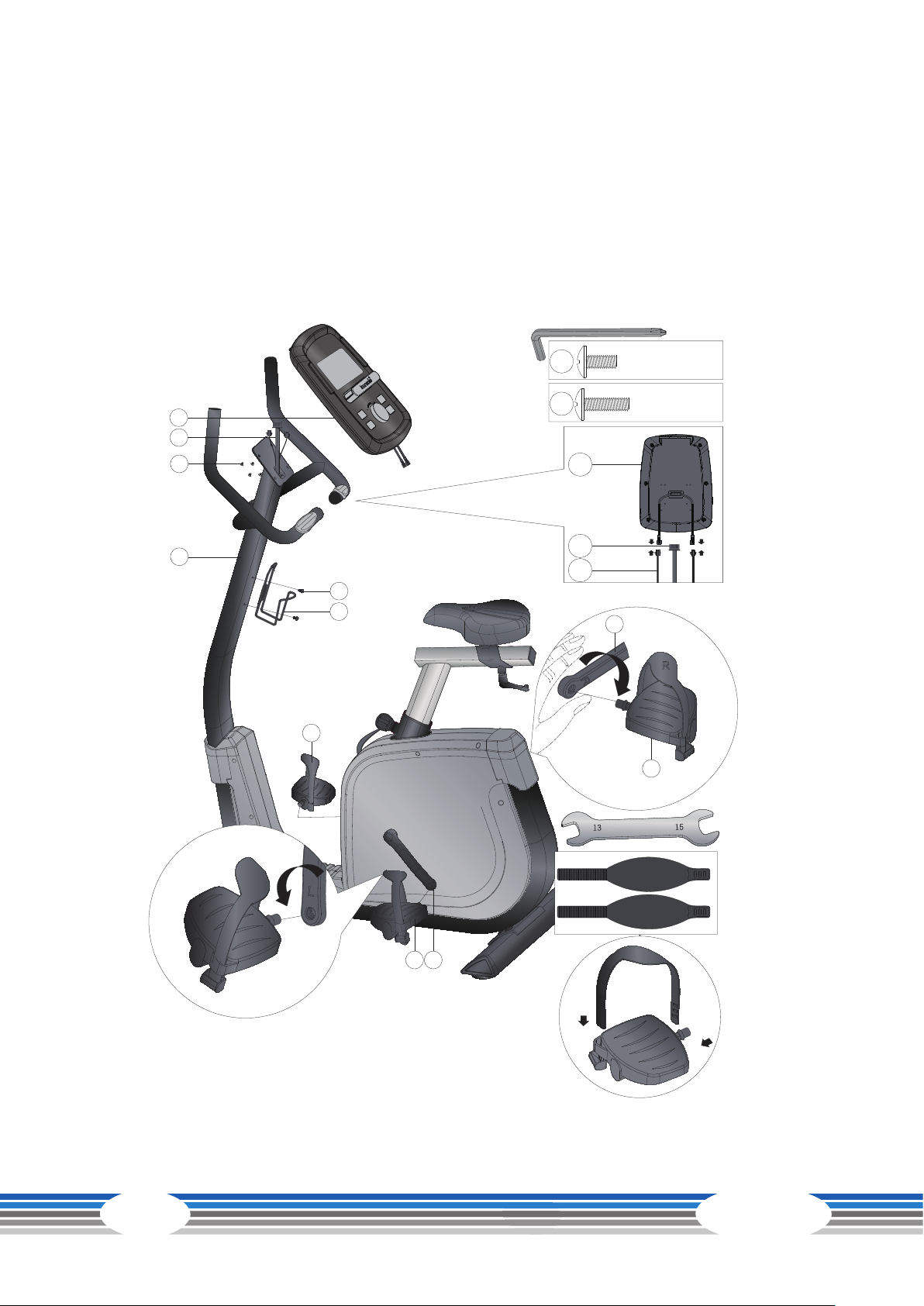

Step 5: Assembly of the console & pedals
1. Connect the upper computer cable (72) and the hand pulse cable (68) with the computer (17)
and mount the computer (17) on the handlebar tube (29) by means of the screw (64).
2. Mount the pedal (62 & 88) to the crank (35 & 89), please see gure b,c.
LNOTICE:
Tighten the right pedal clockwise, and the left pedal anti-clockwise.

81
BX70i
19

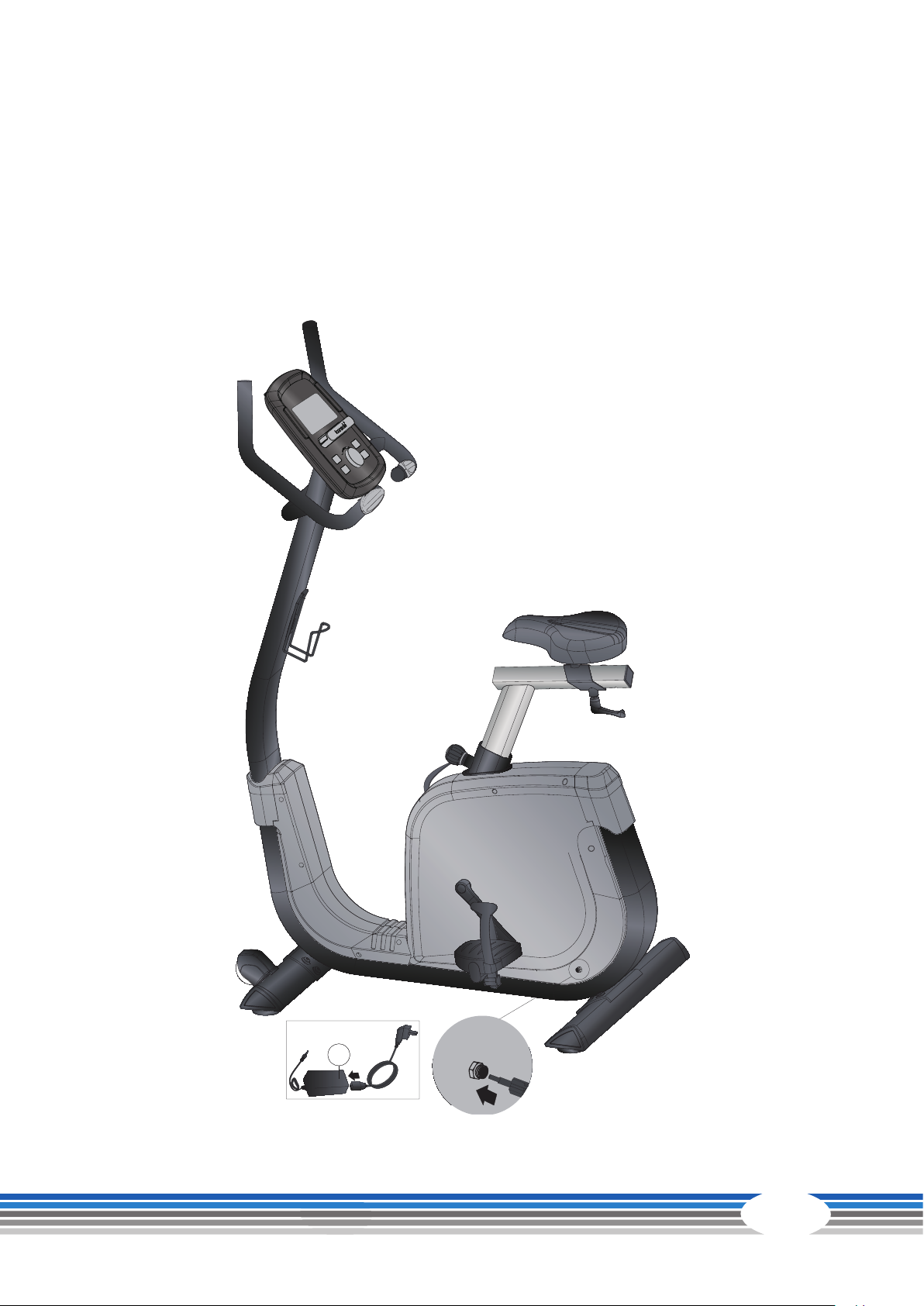

Step 6: Connecting the equipment to the mains supply
ATTENTION
The equipment must not be connected to a multiple socket, otherwise it cannot be guaranteed
that the equipment will be supplied with sucient power. Technical errors can result.
Plug the power plug into a wall outlet that complies with the instructions in the chapter on electrical
safety.

BX70i
20
3 OPERATING INSTRUCTIONS
LNOTICE
Familiarise yourself with all the functions and setting options of the device before starting
training. Have the proper use of this product explained to you by a specialist.

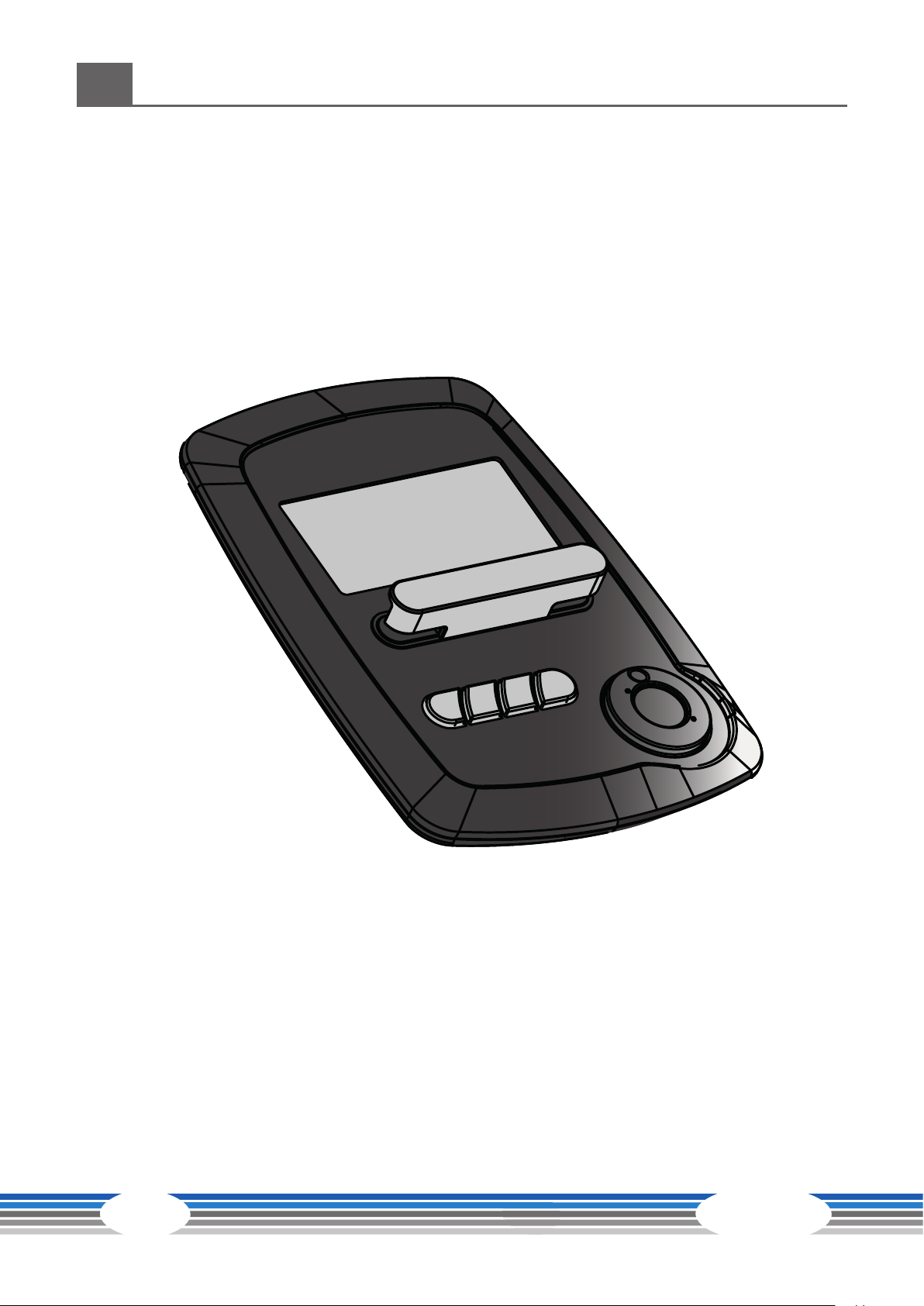

3.1 Console display
