Carisma Racing 4XS User manual

INSTRUCTION MANUALINSTRUCTION MANUAL

Needle Nose Plier
Nippers
Hex Driver
0.05” / 1.5mm /2mm
Screwdrive
(Small) Screwdrive (Large)
Curved
Scissor
Hobby Knife

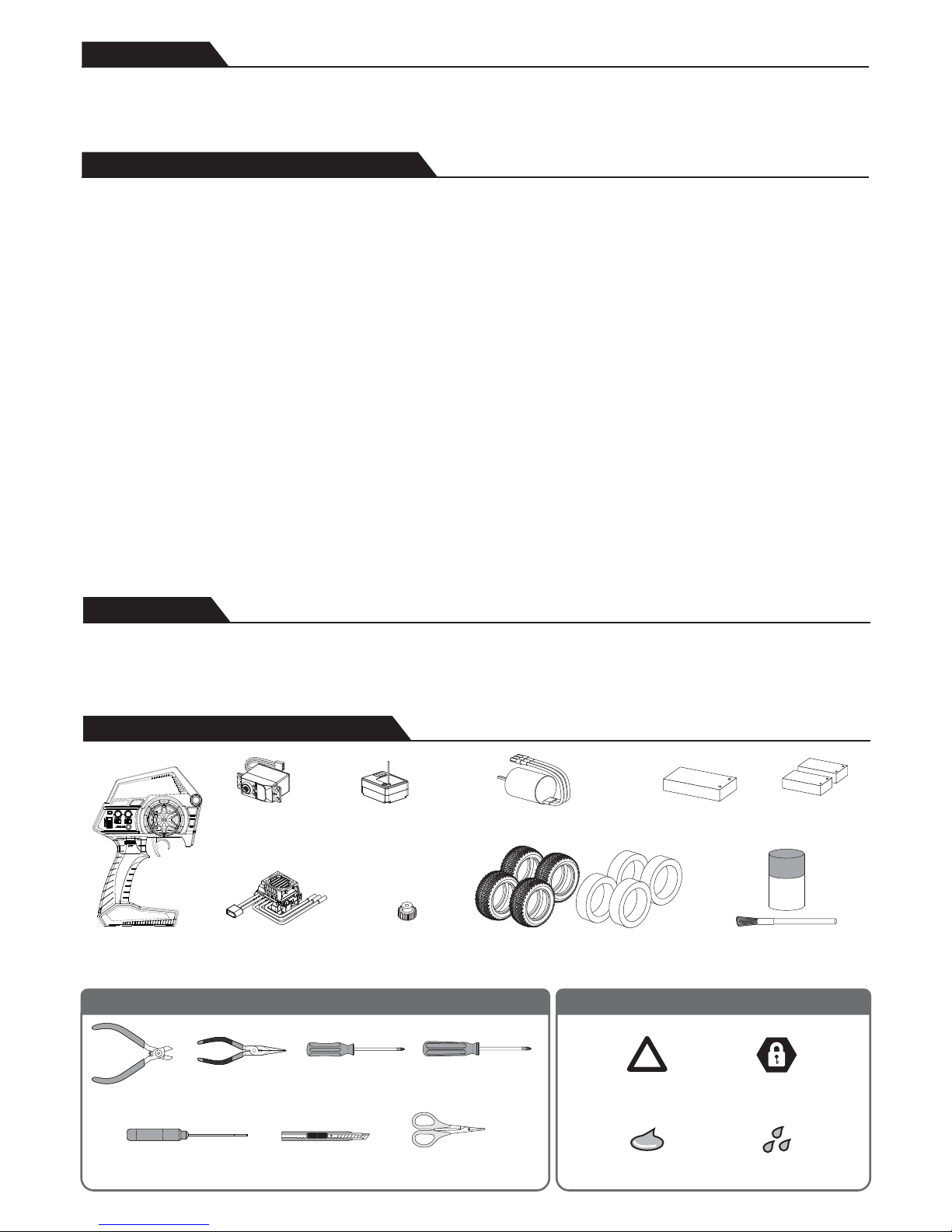

TOOLS (Hex Wrenches, Pliers, Hobby Knife, Soldering Iron, etc.) IMPORTANT SYMBOLS
• 2 Channel (Min.)
Transmitter
• 2 Channel (Min.)
Receiver
• Metal Gear
Steering Servo • 540 Brushless Motor
• 540 Spec Electronic
Speed Control
• Lithium Polymer 7.4V 2S Battery Pack
(Shorty or Saddle Pack Required)
• Motor Pinion Gear
(48 Pitch) • Tires and Inserts • Paint for Polycarbonate Body
• Carbon Chassis, Top Deck, and Shock Stays • Complete Ball Bearing set • Precision-Machined Spring Steel components • CNC-Machined Aluminum parts
• CV-style Front and Rear Driveshafts • Revolution Design Ultra O-Rings used throughout • AKA™ Racing Wheels • All-Metal Precision Gear Differentials (3 INCLUDED)
• Adjustable Torque-Control Slipper Clutch • Precision Coil-Over Aluminum Shocks • Stylish Clear Polycarbonate Racing Body and Wing • Adaptable to both Saddle
and Shorty Battery Configuration • Adjustable Chassis Dynamics and Settings • Includes all Oils, Greases, Thread lock, and Fluids Required for Assembly • Complete
Set of Anti Roll Bars (Front and Rear)
!
Special Attention
is Required Thread-lock
Grease Oil
Introduction
Thank you for your purchase of the Carisma Racing™ 4XS competition 4WD buggy kit. Designed in Germany by noted engineer Michael Vollmer, this model has
spent over two years in design, development, and testing prior to release. It also represents a significant step for our company into the category of
competition-class race cars, and I hope that you enjoy building and driving your new race car as much as we have enjoyed and learned from making it for you.
Carisma Racing
Safety, Precautions, and Warnings
Kit Features
Items Required For Completion
OR
As the user of this product, you are solely responsible for operating it in a manner that does not endanger yourself and others or result in damage to the product or
the property of others.
This model is controlled by a radio signal that is subject to interference from many sources outside your control. This interference can cause momentary loss of
control so it is necessary to always keep a safe distance in all directions around your model, as this will help to avoid collisions or injury.
• Always operate your model in an open area away from cars, traffic, or people.
• Avoid operating your model on the street where injury or damage can occur.
• Never operate the model out into the street or populated areas for any reason.
• Never operate your model with low transmitter batteries.
• Carefully follow the directions and warnings for this product and any optional support equipments (chargers, rechargeable battery packs, etc.) that you use.
• Keep all chemicals, small parts and anything electrical out of the reach of children.
• Moisture causes damage to electronics. Avoid water exposure to all equipments not specifically designed and protected for this purpose.
It is the buyer’s responsibility to ensure safety precautions in operating this model. You are responsible for the assembly and operations of this model. Please read
the manual thoroughly and always keep it at hand for all times for reference. ONLY use Carisma/Carisma Racing parts for maximum performance. 3rd party parts
installation will immediately void warranty. Improper operations may caused personal or property damage. Carisma/Carisma Racing or our distributors are NOT
responsible for the damage in any way resulting from Shipping, improper construction or improper use. By opening the box, the buying is accepting all resulting
liabilities. In the event that that buying is NOT prepare to accept this liability. Please DO NOT OPEN THE BOX and return this kit in new, unassembled and unused
condition to the place of purchase.
The 4XS is a High Competition, High Quality, 10th scale Electric Off Road Buggy Race Car for persons age 14 or order. THIS IS NOT A TOY. It is a precision racing
chassis kit. Adult supervision is required at all times during assembly and operating. If in doubt, ask your fellow RC racers for advice or contact your local supports
for assistant. We are constantly improving and developing and therefore the exact specifications of the kit may change from batch to batch without prior notice.
This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Carisma guarantees this model kit to be free from defects in both materials and workmenship at point of purchase. The total monetary value under warranty will NOT,
at any case what so ever be exceed the cost of the original kit purchased. This warranty does not cover any components damaged by use or modifications or wear.
Part or parts missing from this kit must be reported within 30days of purchase.
Proof of purchase must be sent at all time when applying for a claim under warranty. Should you find defective or missing part, contact your local distributor. Your
local service and customer support will be your first point of contact. Always buy from your local stores where you can get the best customer supports.
In the event that your kit is purchased through carisma-shop.com. Please contact [e-mail] for all matters.
2

ABAG A / BEUTEL A
BORSA A / バッグA

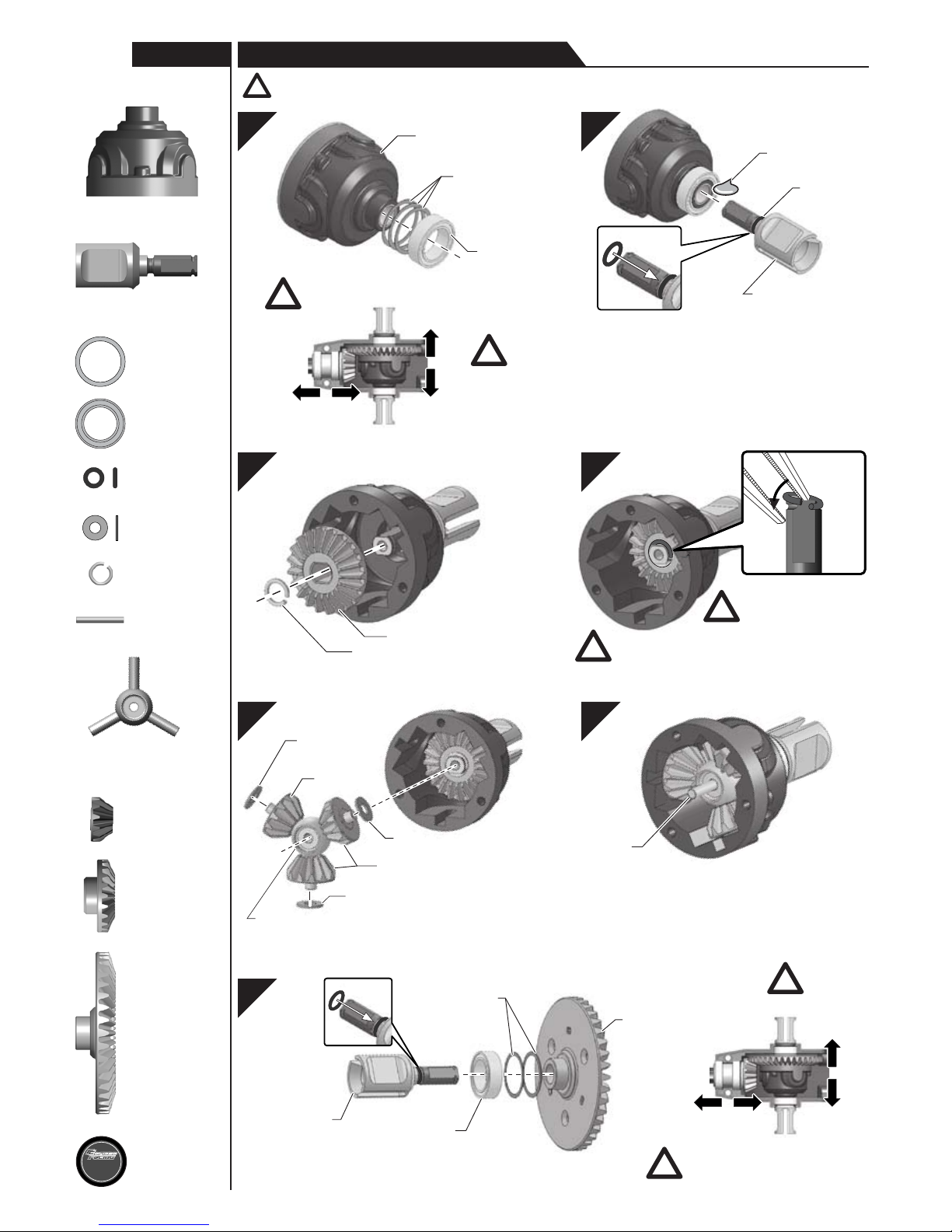

STEP 1 - 7 Front & Rear Gear Di Assembly
O-Ring
5 x 3 x 1mm
RBP-G00113
x 4pcs
Di Crown Gear 21T
MASM2218A
x 4pcs
Di Ring Gear 39T
MASM2216A
x 2pcs
Di Case
GTB4P0401
x 2pcs
Shim
2.7 x 6 x 0.5mm
MASM2545A
x 6pcs
Di Case
Shim
2.7 x 6 x 0.5mm
Di Spider Gear Carrier
O-Ring
5 x 3 x 1mm
Di Outdrive
Shim
2.7 x 6 x 0.5mm
Di Spider Gear 12T
Shim
2.7 x 6 x 0.5mm Di Pin
2 x 17.8mm
Shim
10.1 x 12 x 0.1mm
2 or 3 pcs may be
required for proper
fitment
TEST FIT THE ASSEMBLY TO THE GEAR BOX
BEFORE SECURING THE SNAP RING
Ball Bearing
8 x 12 x 3.5mm
Di Crown Gear
Snap Ring A5
Shim
10.1 x 12 x 0.1mm
MASM2543A
x 10pcs
Ball Bearing
8x12x3.5mm
TWSM00093
x 4pcs
Snap Ring A5
MASM2512A
x 6pcs
Di Spider Gear 12T
MASM2219A
x 6pcs
Di Outdrive Ball Bearing
8 x 12 x 3.5mm
Shim
10.1 x 12 x 0.1mm
2 or 1 pcs
pcs may be
Required for proper
Fitment
!
Di Outdrive
TWSM00021
x 4pcs
Di Spider Gear Carrier
TWSM00023
x 2pcs
Di Pin
2 x 17.8mm
TWSM00022
x 2pcs
O-Ring Grease
CHM-G00057
(BAG R)
USE PLIERS
BE CAREFUL
!
!
!
TEST FIT THE ASSEMBLY TO THE
GEAR BOX BEFORE SECURING THE
SNAP RING
!
O-RING
GREASE
3g
Made in China
MAKE TWO
Di Ring Gear
39T
Di Spider
Gear 12T
TEST FIT BEFORE SECURING THE SNAP RING
!
O-Ring Grease
5 6
3 4
1 2
7
CHECK GEAR MESH
!
CHECK GEAR MESH
3

Snap Ring
A5
Gear 21T
Fill up about
this level
Completed
Front / Rear
ABAG A / BEUTEL A
BORSA A / バッグA
STEP 8 - 12
SPC-G00009
x 2pcs
Flat Head Screw
M2 x 10mm
TWSSW00006
x 6pcs
Made in China
SILICON DIFF OIL
3,500cst 10ml
3.5K
3.5K cst
CHM-G00054
Made in China
SILICON DIFF OIL
7,000cst 10ml
7K
7K cst
CHM-G00055
Flat Head Screw
M2 x 10mm
!
!
USE PLIERS
BE CAREFUL
TEST FIT BEFORE SECURING THE SNAP RING
!
USE 0.05” HEX DRIVER
ADD ABOUT 5g
For Front Use 7K cst.
For Rear Use 3.5K cst.
10 11
12 11
8 9
Fill up about
this level
4

Spur Gear 83T
TWPRT00006
x 1pc
B1BAG B1 / BEUTEL B1
BORSA B1 /バッグB1
STEP 1 - 4
Pin
2.5 x 11.8mm
TWSM00046
x 1pc
Slipper Plate C
Pin 2.5 x 10mm
Slipper Spring
Ball Bearing
5 x 10 x 4mm
Slipper Bearing
Bushing
Pin 2.5 x 8.8mm
Slipper Outdrive A
Slipper Preload Nut
O-Ring
12 x 8 x 2mm
Spur Gear 83T
Slipper Pad B
Slipper Plate A
Slipper Plate B
Slipper Plate Carrier
Slipper Pad A
Pin 2.5 x 11.8mm
Ball Bearing
8 x 12 x 3.5mm
Slipper Axle
Slipper Pad A
O-RING
12 x 8 x 2mm
RBP-G00112
x 1pc
Slipper Spring
MASM2463A
x 1pc
Slipper Plate A
TWSM00073
x 1pc
Slipper Plate B
TWSM00074
x 3pcs
Slipper Plate C
TWSM00075
x 1pc
Slipper Pad A
SPC-G00015
x 4pcs
Slipper Outdrive A
TWSM00071
x 1pc
Slipper Pad B
SPC-G00016
x 1pc
Slipper Plate Carrier
TWSM00072
x 1pc
Pin
2.5 x 8.8mm
TWSM00047
x 1pc
Ball Bearing
8 x 12 x 3.5mm
TWSM00093
x 1pc
Ball Bearing
5 x 10 x 4mm
TWSM00091
x 1pc
Slipper Bearing
Bushing
TWSM00070
x 1pc
Slipper Preload Nut
TWSM00076
x 1pc
Pin
2.5 x 10mm
TWSM00045
x 1pc
Slipper Axle
TWSM00069
x 1pc

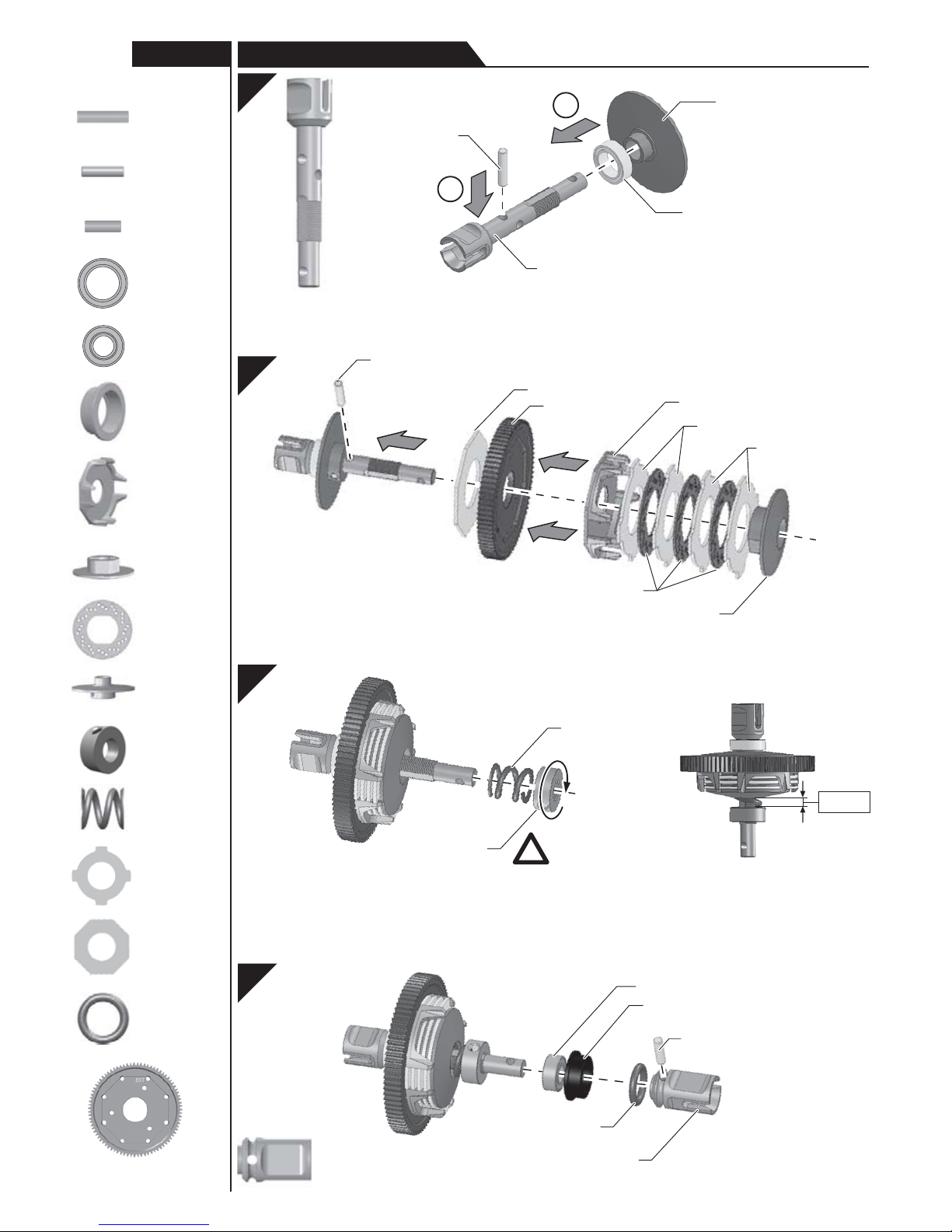

Mid-Slipper Assembly
1
2
2.5-3mm
THREAD ON SHAFT
!
1
2
3
4
5

Set Screw
M3 x 3
Completed
Slipper
Assembled
BAG B / BEUTEL B
BORSA B / バッグB
STEP 5 - 6
ROTATE THE PRELOAD NUT TO APPLY PRESSURE TO
THE SLIPPER PLATES.
B1
Set Screw
M3x3
TWSSW00013
x 1pc
TWSM00036
x 1pc
Plate A
TWSM00038
x 1pc
TWSM00037
x 1pc
Ball Bearing
8 x 12 x 3.5mm
TWSM00093
x 2pcs
Snap Ring A5
MASM2512A
x 2pcs
Shim
2.7 x 6 x 0.5mm
MASM2545A
x 3pcs
WARNING:
Keep out of reach of children. Not to be
taken internally. May cause digestive
discomfort. Flush eyes with water. If
irritation continues, consult a physician.
Made in China
SILICON DIFF OIL
100,000cst 10ml
100K
100K cst
O-Ring
5 x 3 x 1mm
RBP-G00113
x 2pcs
B2
BAG B2 / BEUTEL B2
BORSA B2 / バッグB2
STEP 1 - 5
O-Ring
5 x 3 x 1mm
Outdrive A
Outdrive B
Ball Bearing
8 x 12 x 5mm
Spur Gear
83T
Plate A
Snap Ring A5
Outdrive B
Snap Ring A5
Carrier
Gear 12T
12T
Gear 12T
Shim
2.7x6x0.5mm
Shim
2.7 x 6 x 0.5mmShim
2.7 x 6 x 0.5mm
Gear 21T
Ball Bearing
8 x 12 x 3.5mm
Outdrive A
!USE PLIERS
BE CAREFUL
ADD ABOUT 5g
Fill up about
this level
Fill up about
this level
!
USE A PLIERS
BE CAREFUL
Threadlock
CHM-G00059
(BAG R)
Spur Gear 83T
TWPRT00006
x 1pc
MASM2218A
x 2pcs
GTB4P0401
x 1pc
MASM2219A
x 3pcs
TWSM00023
x 1pc
Mid-Slipper Assembly
2.5-3mm
Thread-lock
Grease
FOR HIGH BITE TRACK
WARNING:
Keep out of reach of children. Not to be
taken internally. May cause digestive
discomfort. Flush eyes with water. If
irritation continues, consulta physician.
SILICON DIFF OIL
7,000cst 10ml
7K
7K cst
FOR LOOSE TRACK
!
5 6
1 2
3
5
4
6

BAG B2 / BEUTEL B2
BORSA B2 / バッグB2
STEP 6
Di Gasket
Flat Head Screw
M2 x 10mm
Mid Di Spur Gear
Plate B
Mid Di Shaft A
Input Drive Shaft
Shim
10.1 x 12 x 0.1mm
Pinion Support Ring
Di Input Gear 15T
Flat Head Screw
M2 x 10mm
Shim
4.2 x 6.4 x 0.1mm
Ball Bearing
10 x 15 x 4mm
Input Bearing
Crush Spacer
Flat Head Screw
M2 x 10mm
Di Pin
2 x 17.8mm
B2
BAG C / BEUTEL C
BORSA C / バッグC
STEP 1
C
Di Pin
2 x 17.8mm
TWSM00022
x 1pc
Flat Head Screw
M2 x 10mm
TWSSW00006
x 3pcs
Mid Di Spur Gear
Plate B
TWSM00039
x 1pc
Flat Head Screw
M2x10mm
TWSSW00006
x 1pc
Mid Di Shaft
Bushing
TWSM00040
x 1pc
Shim
10.1 x 12 x 0.1mm
MASM2543A
x 1pc
Shim
4.2 x 6.4 x 0.1mm
MASM2544A
x 2pcs
Di Input Gear 15T
MASM2217A
x 1pc
Ball Bearing
10 x 15 x 4mm
TWSM00090
x 2pcs
Input Bearing
Crush Spacer
TWSM00018
x 1pc
Input Drive Shaft
TWSM00035
x 1pc
Mid Di Shaft A
TWSM00042
x 1pc
Mid Di Shaft
Bushing
Mid Di Shaft
Pin B
Di Gasket
SPC-G00009
x 2pcs
Thread-lock
CHM-G00059
(BAG R)
CVD Grease
CHM-G00058
CVD
GREASE
3g
Made in China
Pinion Support Ring
TWSM00049
x 1pc
Mid Di Shaft
Pin B
TWSM00041
x 1pc

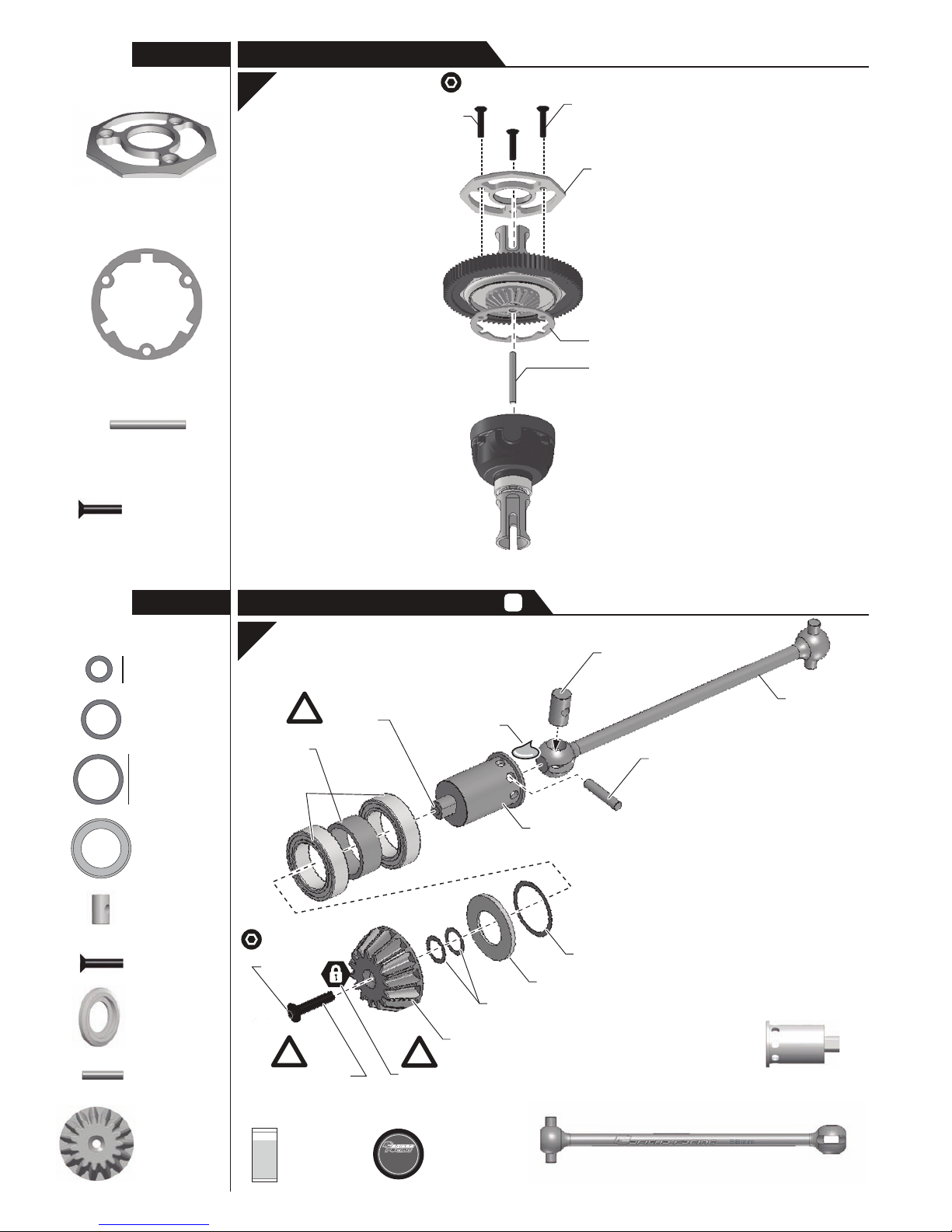

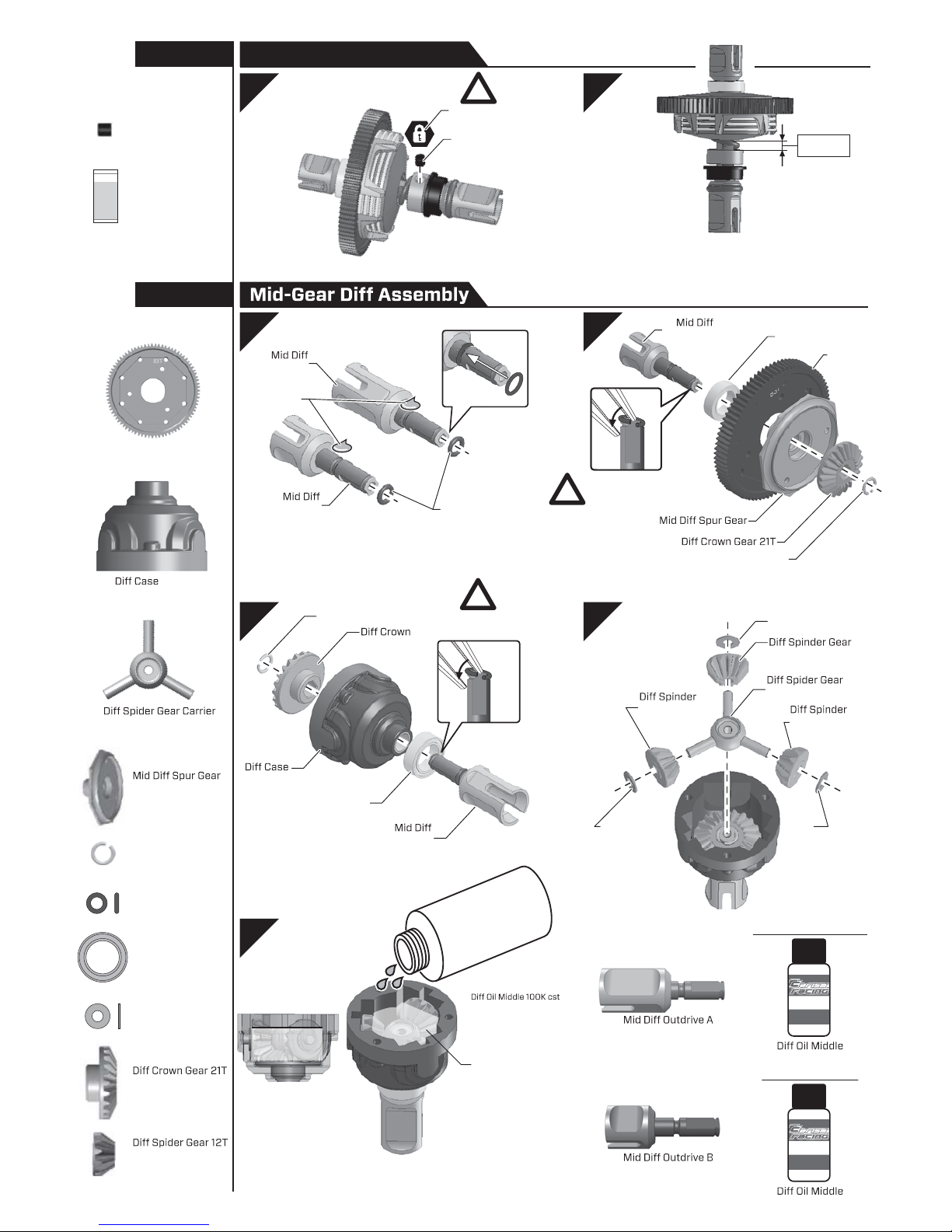

Mid-Gear Di Assembly

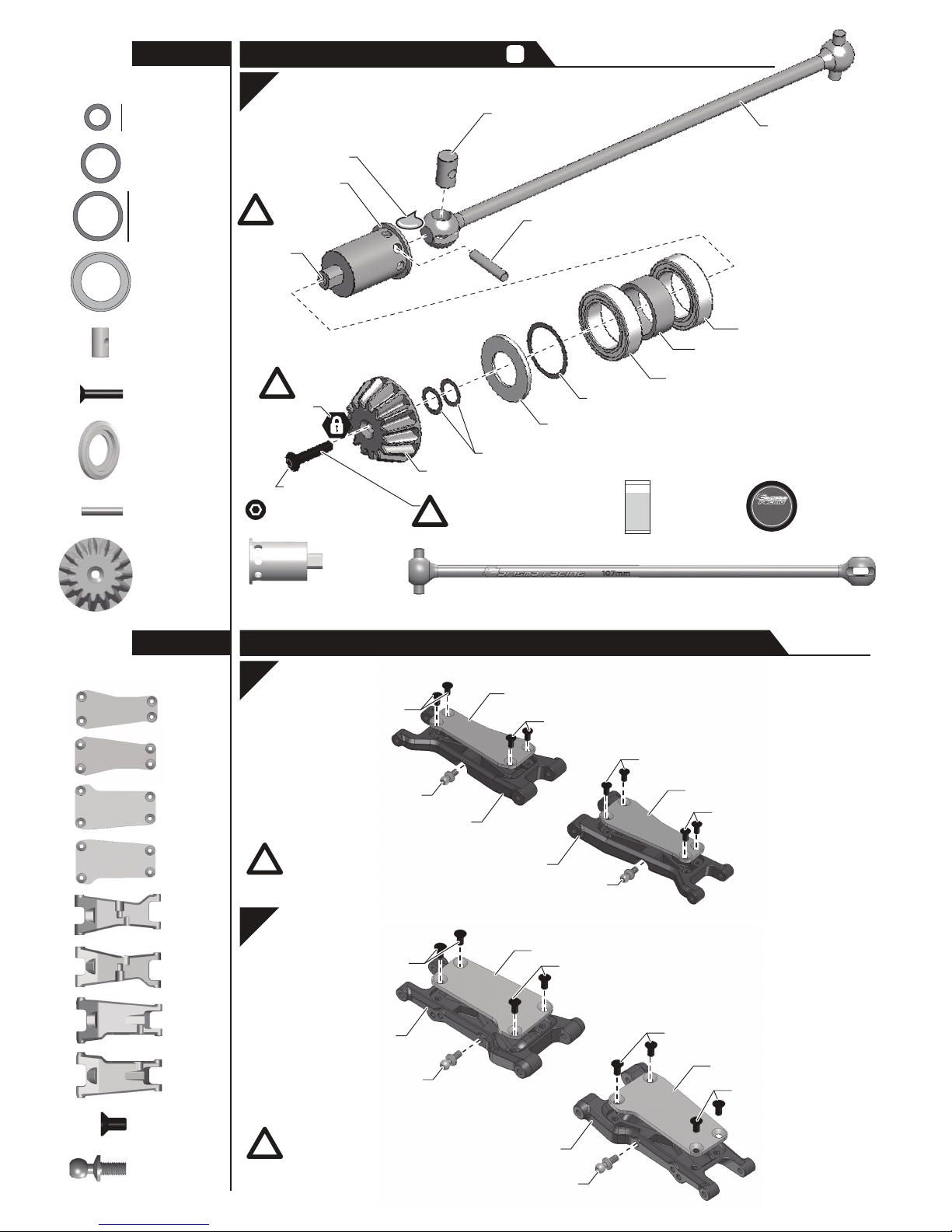

Main Drive Shaft Assembly 1
USE 0.05” HEX DRIVER
Thread-lock
De-Grease this
screw hole before
assembly CVD Grease
!
!
De-Grease this screw
before adding Thread-lock
It is Absolutely Essential That This Screw is Secured
and Thread-lock is Applied
!
6
1
USE 0.05”
HEX DRIVER
7

Mid Di Shaft B
BAG C / BEUTEL C
BORSA C / バッグC
STEP 2
C
BAG D / BEUTEL D
BORSA D / バッグD
STEP 1 - 2
D
Mid Di Shaft
Bushing
Mid Di Shaft
Pin B
Input Drive Shaft
Shim
10 x 12 x 0.1mm
Ball Bearing
10x15x4mm
Ball Bearing
10x15x4mm
Input Bearing
Crush Spacer
Pinion Support Ring
Di Input Gear 15T
Flat Head Screw
M2 x 10mm
Shim
4.2 x 6.4 x 0.1mm
A-Arm Plate
Front Left
TWCBF00001
x 1pc
A-Arm Plate
Front Right
TWCBF00002
x 1pc
A-Arm Plate
Rear Left
TWCBF00003
x 1pc
A-Arm Plate
Rear Right
TWCBF00004
x 1pc
A-Arm Front
Left
GTB4P0101
x 1pc
A-Arm Front
Right
GTB4P0102
x 1pc
A-Arm Rear
Left
GTB4P0103
x 1pc
A-Arm Rear
Right
x 1pc
Flat Head Screw
M3 x 6mm
TWSSW00009
x 16pcs
Ball Stud
4.8 x 6mm
TWSM00002
x 4pcs
A-Arm Plate Front Left
Flat Head Screw
M3 x 6mm
A-Arm Plate Front Right
A-Arm Plate Rear Right
A-Arm Plate Left Right
Flat Head Screw
M3 x 6mm
Flat Head Screw
M3 x 6mm
Flat Head Screw
M3 x 6mm
Flat Head Screw
M3 x 6mm
Flat Head Screw
M3 x 6mm
Flat Head Screw
M3 x 6mm
Ball Stud
4.8 x 6mm
A-Arm Front Left
A-Arm Rear Left
A-Arm Front Right
A-Arm Rear Right
Ball Stud
4.8 x 6mm
Ball Stud
4.8 x 6mm
Ball Stud
4.8 x 6mm
Flat Head Screw
M3 x 6mm
Flat Head Screw
M2x10mm
TWSSW00006
x 1pc
Mid Di Shaft
Bushing
TWSM00040
x 1pc
Shim
10.1 x 12 x 0.1mm
MASM2543A
x 1pc
Shim
4.2 x 6.4 x 0.1mm
MASM2544A
x 2pcs
Di Input Gear 15T
MASM2217A
x 1pc
Ball Bearing
10 x 15 x 4mm
TWSM00090
x 2pcs
Input Bearing
Crush Spacer
TWSM00018
x 1pc
Pinion Support Ring
TWSM00049
x 1pc
Mid Di Shaft
Pin B
TWSM00041
x 1pc
Input Drive Shaft
TWSM00035
x 1pc
Mid Di Shaft B
TWSM00043
x 1pc
Thread-lock
CHM-G00059
(BAG R)
CVD Grease
CHM-G00058
CVD
GREASE
3g
Made in China
Main Drive Shaft Assembly 2
Front And Rear Lower Suspension Arm Arms Assembly
Front Lower Suspension Arms Assembly
CVD Grease
USE 0.05” HEX DRIVER
Thread-lock
DO NOT MAKE M3 x 6mm
SCREW TOO TIGHT
!
DO NOT MAKE M3 x 6mm
SCREW TOO TIGHT
!
!
2
1
Rear Lower Suspension Arms Assembly
2
De-Grease this
screw hole before
assembly
!
De-Grease this screw
before adding Thread-lock
It is Absolutely Essential That
This Screw is Secured and
Thread-lock is Applied
!
8

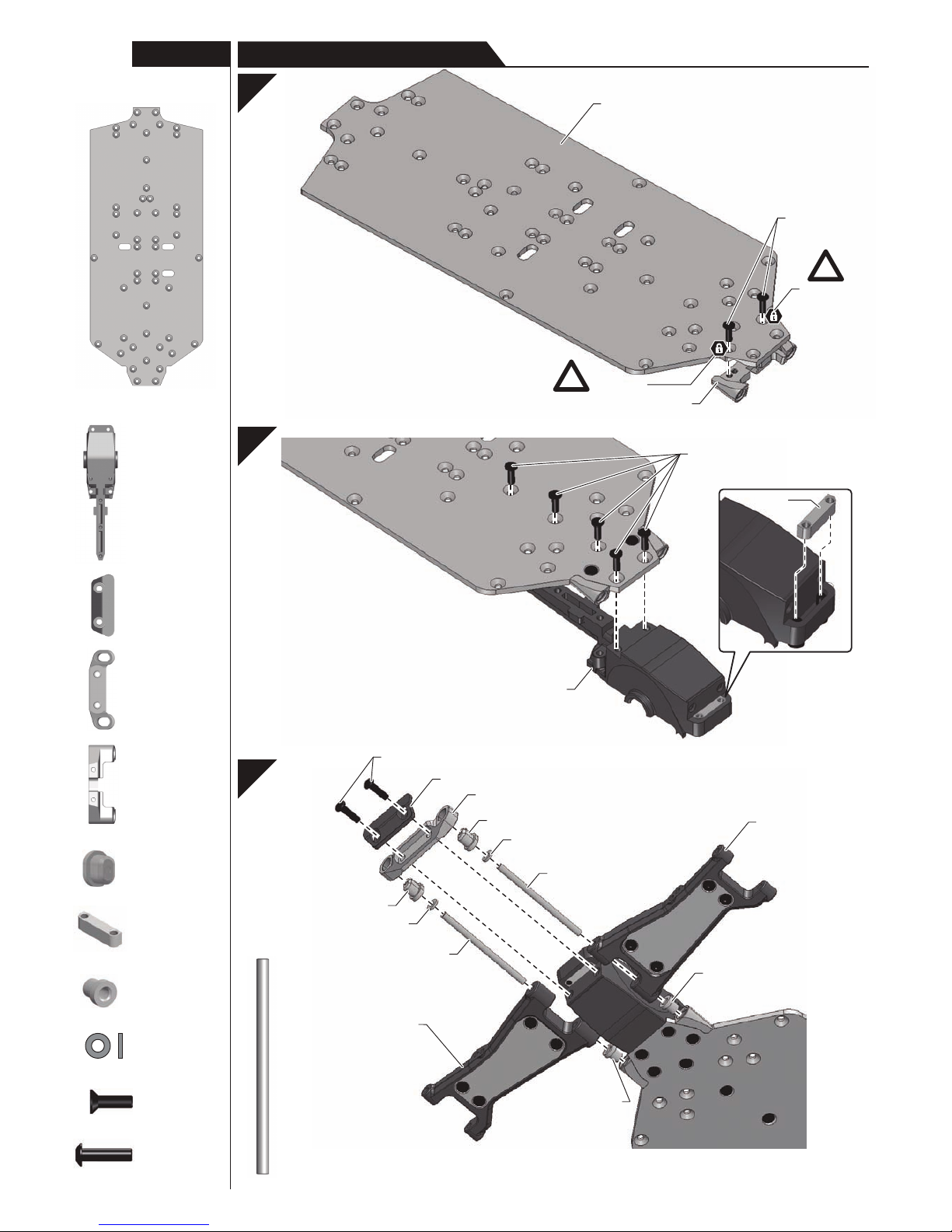

Gear Box Lower
GTB40202
x 1pc
Chassis Plate
Suspension Mount FR.
Thread-lock
Front Gear Box Lower
Flat Head Screw
M3 x 10mm
Thread-lock
BAG E / BEUTEL E
BORSA E / バッグE
STEP 1 - 3
E
Flat Head Screw
M3 x 10mm
Button Head
M3 x 12mm
Bumper
Suspension Mount FF
Shim 3.1 x 6 x 1mm
Hinge Pin Front Inner
ø3 x 52mm
Hinge Pin Front Inner
ø3 x 52mm
Shim 3.1 x 6 x 1mm
Suspension Insert
FF12 ,RR1.5 Degree
Suspension Insert FR
Front Arms Assembled
(BAG D)
Suspension Insert FR
Front Arms Assembled
(BAG D)
Suspension Insert
FF12 ,RR1.5 Degree
Flat Head Screw
M3 x 10mm
TWSSW00007
x 7pcs
Chassis Plate
TWCBF00005
x 1pc
Gear Box Insert
TWSM00030
x 1pc
Suspension Insert
FR
GTB4P0903
x 2pcs
Suspension Insert
FF12 ,RR1.5 Degree
GTB4P0902
x 2pcs
Suspension Mount
FR
TWSM00082
x 1pc
Bumper
GTB4P0601
x 1pc
Suspension Mount
FF
TWSM00081
x 1pc
Hinge Pin Front Inner
ø3 x 52mm
TWSM00031
x 2pcs
Shim
3.1 x 6 x 1mm
TWSM00059
x 2pcs
Button Head Screw
M3 x 12mm
TWSSW00002
x 2pcs
Chassis Plate Assembly
Gear Box
Insert
!
!
1
2
3
9

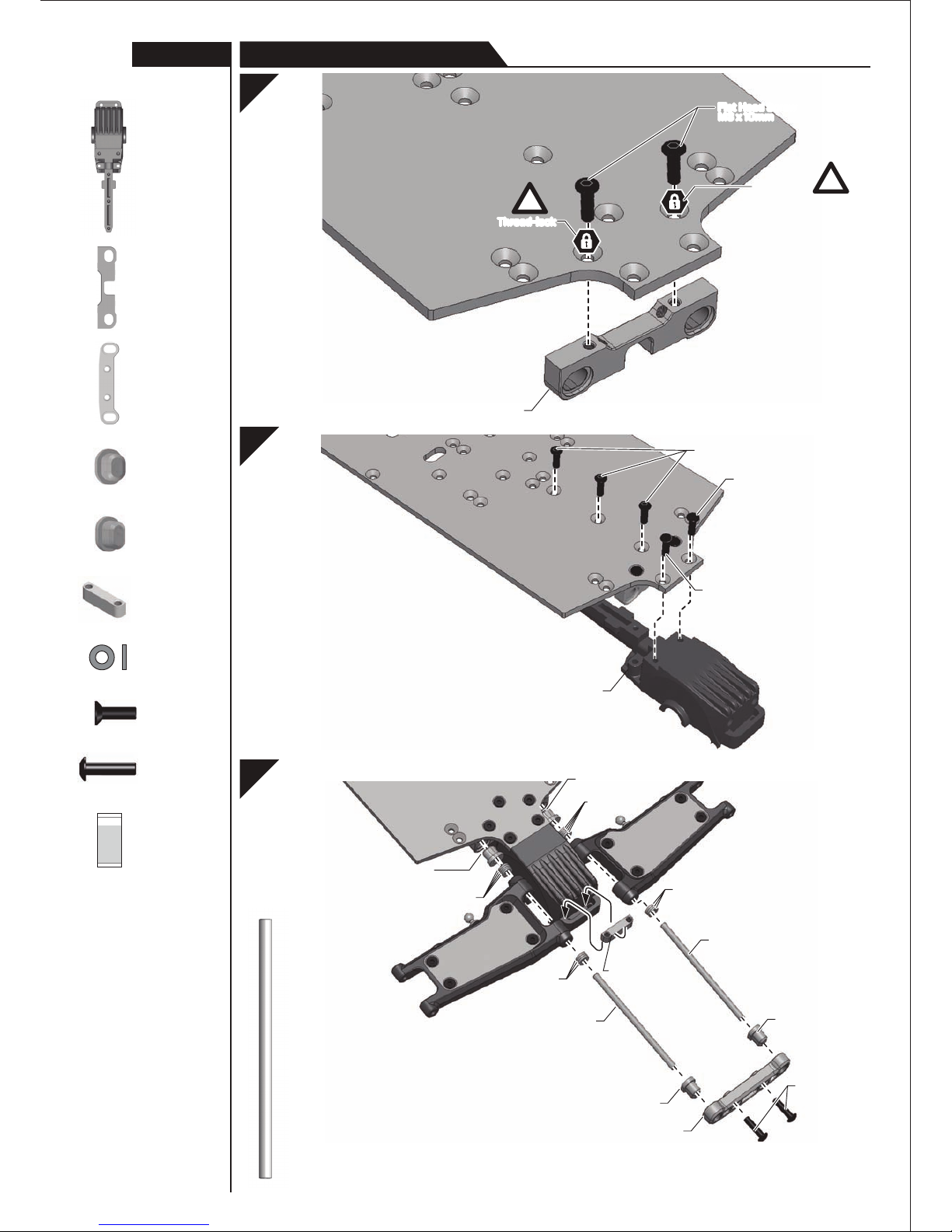

Gear Box Rear
Lower
GTB4P0204
x 1pc
BAG E / BEUTEL E
BORSA E / バッグE
STEP 4 - 6
E
Suspension Mount
RF
TWSM00083
x 1pc
Suspension Mount RF
Flat Head Screw
M3 x 10mm
Flat Head Screw
M3 x 10mm
Flat Head Screw
M3 x 10mm
Flat Head Screw
M3 x 10mm
Rear Gear Box Lower
Button Head
M3 x 12mm
Hinge Pin Rear Inner
ø3 x 63mm
Hinge Pin Rear Inner
ø3 x 63mm
Shim 3 x 6 x 1mm
x 3pcs
Shim
3 x 6 x 1mm
x 3pcs
Shim
3 x 6 x 1mm
x 4pcs
Suspension Insert
FF10-14 ,RR0-3 Degree
Suspension Insert
RF 3 Degree
Suspension Insert
RF 3 Degree
Suspension Insert
FF10-14 ,RR0-3 Degree
Suspension Mount RR
Button Head
M3 x 12mm
Shim
3 x 6 x 1mm
x 4pcs
Gear Box Insert
Suspension Mount
RR
TWSM00084
x 1pc
Hinge Pin Rear Inner
ø3 x 63mm
TWSM00033
x 2pcs
Thread-lock
CHM-G00059
(BAG R)
Flat Head Screw
M3 x 10mm
TWSSW00007
x 7pcs
Gear Box Insert
TWSM00030
x 1pc
Shim
3.1 x 6 x 1mm
TWSM00059
x 14pcs
Button Head Screw
M3 x 12mm
TWSSW00002
x 2pcs
Suspension Insert
RF 3 Degree
GTB4P0905
x 2pcs
Suspension Insert
FF10-14,RR0-3
Degree
GTB4P0901
x 2pcs
Chassis Plate Assembly
Thread-lock
Thread-lockThread-lock
!
!
4
5
6
10

BAG F / BEUTEL F
BORSA F / バッグF
STEP 1 - 2
FButton Head Screw
M3 x 8mm

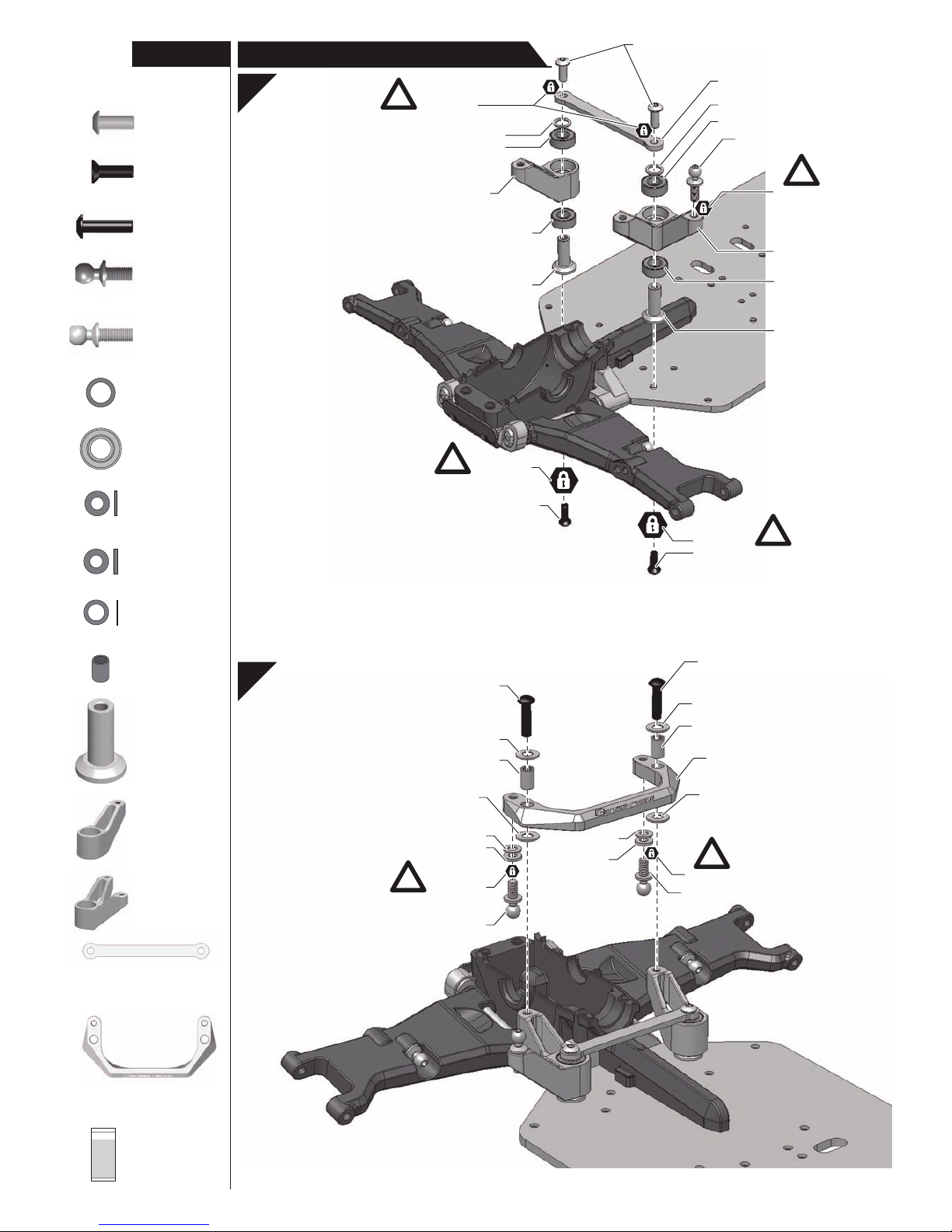

Bell Crank Post
Shim
TWSM00009
x 2pcs
Flat Head Screw
M3 x 10mm
TWSSW00007
x 2pcs
Bell Crank Plate
TWCBF00009
x 1pc
Button Head Screw
M3 x 8 mm
TWSSW00005
x 2pcs
Button Head Screw
M3 x 12 mm
TWSSW00002
x 2pcs
Steering Plate
Collaor
MASM2563A
x 2pcs
Bell Crank Plate
Bell Crank Post Shim
Ball Bearing 5 x 10 x 4mm
Ball Bearing 5 x 10 x 4mm Ball Stud 4.8 x 8mm
Button Head Screw
M3 x 12mm
Steering Plate Collaor
Steering Plate
Ball Stud 4.8 x 6mm
Bell Crank B
Ball Bearing
5 x 10 x 4mm
Bell Crank Post
Flat Head Screw
M3 x 10mm
Bell Crank A
Ball Bearing 5 x 10 x 4mm
Bell Crank Post
Bell Crank Post Shim
Flat Head Screw
M3 x 10mm
Button Head Screw
M3 x 12mm
Steering Plate Collaor
Shim 3.1 x 6 x 0.5mm Shim
3.1 x 6 x 0.5mm
Thread-lock
Thread-lock
Shim
3.1 x 6 x 0.5mm
TWSM00058
x 2pcs
Ball Bearing
5 x 10 x 4mm
TWSM00091
x 4pcs
Bell Crank A
TWSM00011
x 1pc
Bell Crank B
TWSM00012
x 1pc
Bell Crank Post
TWSM00010
x 2pcs
Ball Stud
4.8 x 6mm
TWSM00002
x 2pcs
Ball Stud
4.8 x 8mm
TWSM00003
x 1pc
Shim 3.1 x 6 x 1mm
Shim
3.1 x 6 x 1mm
Shim
3.1 x 6 x 1mm
TWSM00059
x 2pcs
Shim
6 x 4.1 x 0.2mm
MASM2564A
x 4pcs
Steering Plate
TWSM00080
x 1pc
Thread-lock
CHM-G00059
(BAG R)
Shim 3.1 x 6 x 1mm
Shim 6 x 4.1 x 0.2mm
Shim 6 x 4.1 x 0.2mm
Shim 6 x 4.1 x 0.2mm
Shim 6 x 4.1 x 0.2mm
Ball Stud 4.8 x 6mm
Steering Bell Crank Assembly
Thread-lock
Thread-lock
Thread-lock
!
!
Thread-lock
!
!
2
1
11
!
!

BAG G / BEUTEL G
BORSA G / バッグG
STEP 1 - 2
G

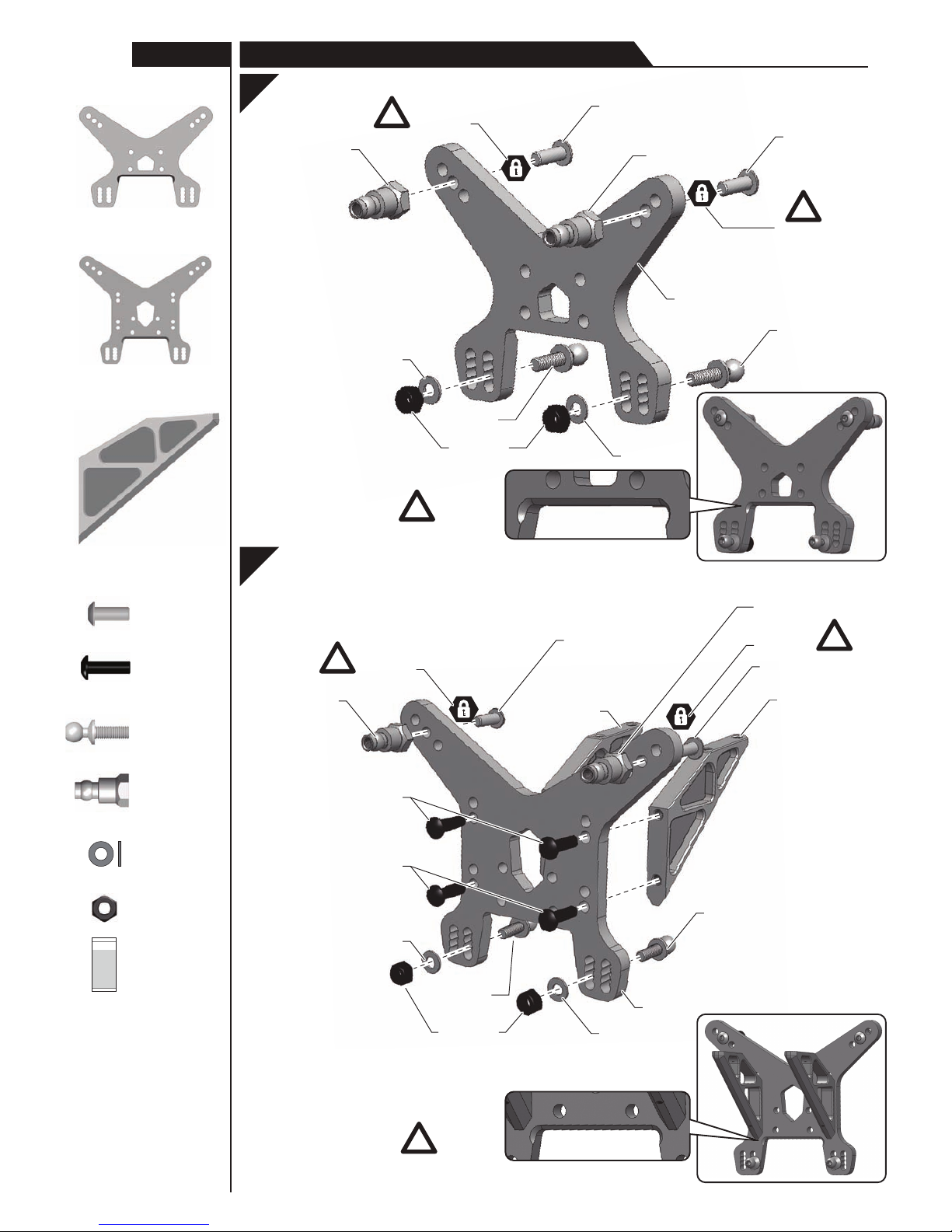

Rear Shock Tower Assembly
Shock Mount
Shock Tower Front
TWCBF00010
x 1pc
Shock Tower Rear
TWCBF00011
x 1pc
Wing Mount
GTB4P0703
x 2pcs
Button Head Screw
M3 x 8 mm
TWSSW00005
x 4pcs
Button Head Screw
M3 x 10 mm
TWSSW00001
x 4pcs
Shim
3.1 x 6 x 0.5mm
TWSM00058
x 4pcs
M3 Locknut
MASM1168A
x 4pcs
Button Head
M3 x 8mm
Shock Mount
Shim
3 x 6 x 0.5mm
Ball Stud
4.8 x 8mm
Ball Stud
4.8 x 8mm
Shock Tower Front
Shim
3 x 6 x 0.5mm
Ball Stud
4.8 x 8mm
M3 Locknut
Button Head
M3 x 8mm
Wing Mount
Button Head
M3 x 8mm
Button Head
M3 x 10mm
Button Head
M3 x 8mm
Shock Mount
Ball Stud
4.8 x 8mm
Shock Tower Rear
Shim
3.1 x 6 x 0.5mm
M3 Locknut
Shim
3.1 x 6 x 0.5mm
Wing Mount
Shock Mount
Button Head
M3 x 10mm
Ball Stud
4.8 x 8mm
TWSM00003
x 4pcs
Shock Mount
TWSM00064
x 4pcs
Thread-lock
CHM-G00059
(BAG R)
Front Shock Tower Assembly

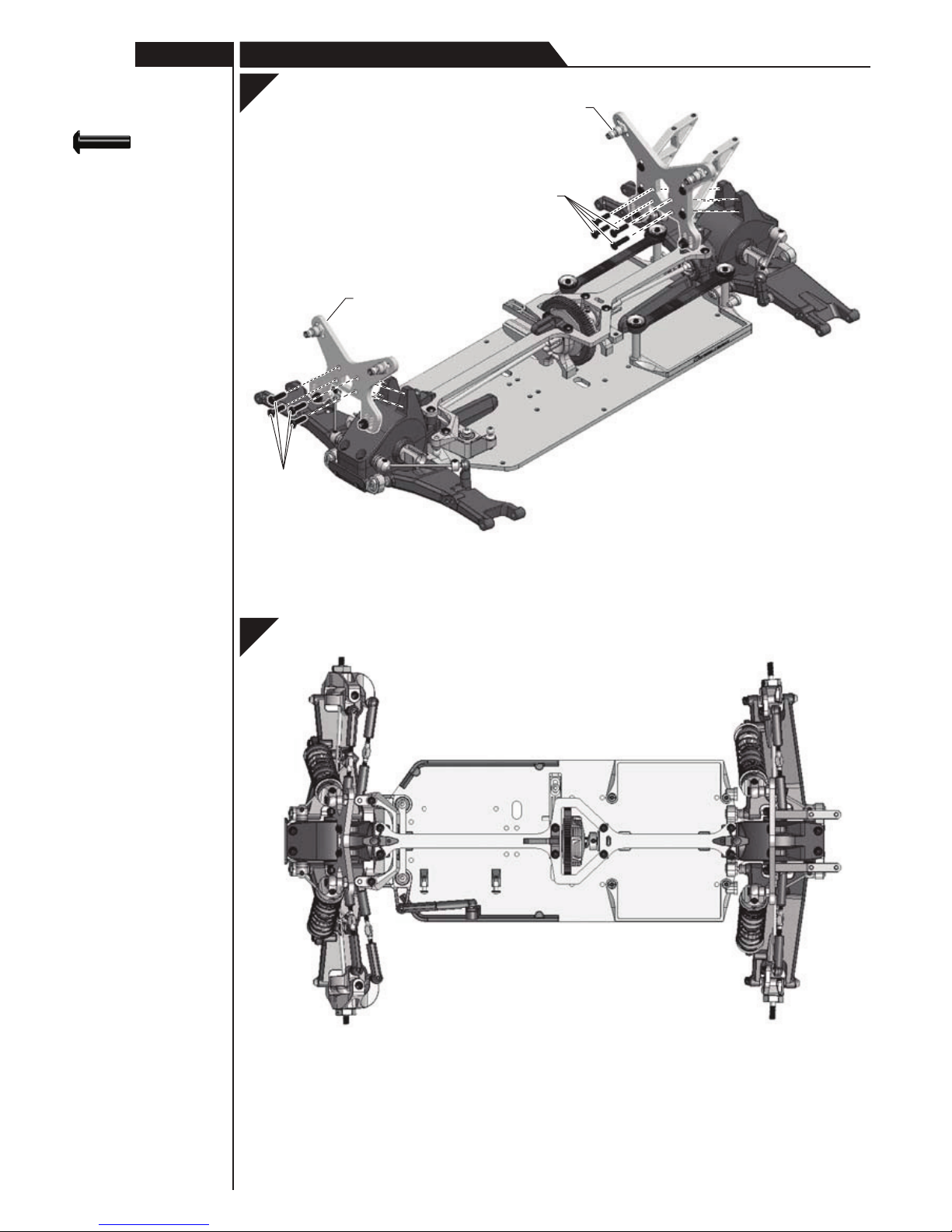

Front And Rear Shock Towers Assembly
Thread-lock
Thread-lock
Thread-lock
Thread-lock
NOTE
DIRECTION
!
NOTE
DIRECTION
!
!
!
!
!
1
2
12

BAG H / BEUTEL H
BORSA H / バッグH
STEP 1-3

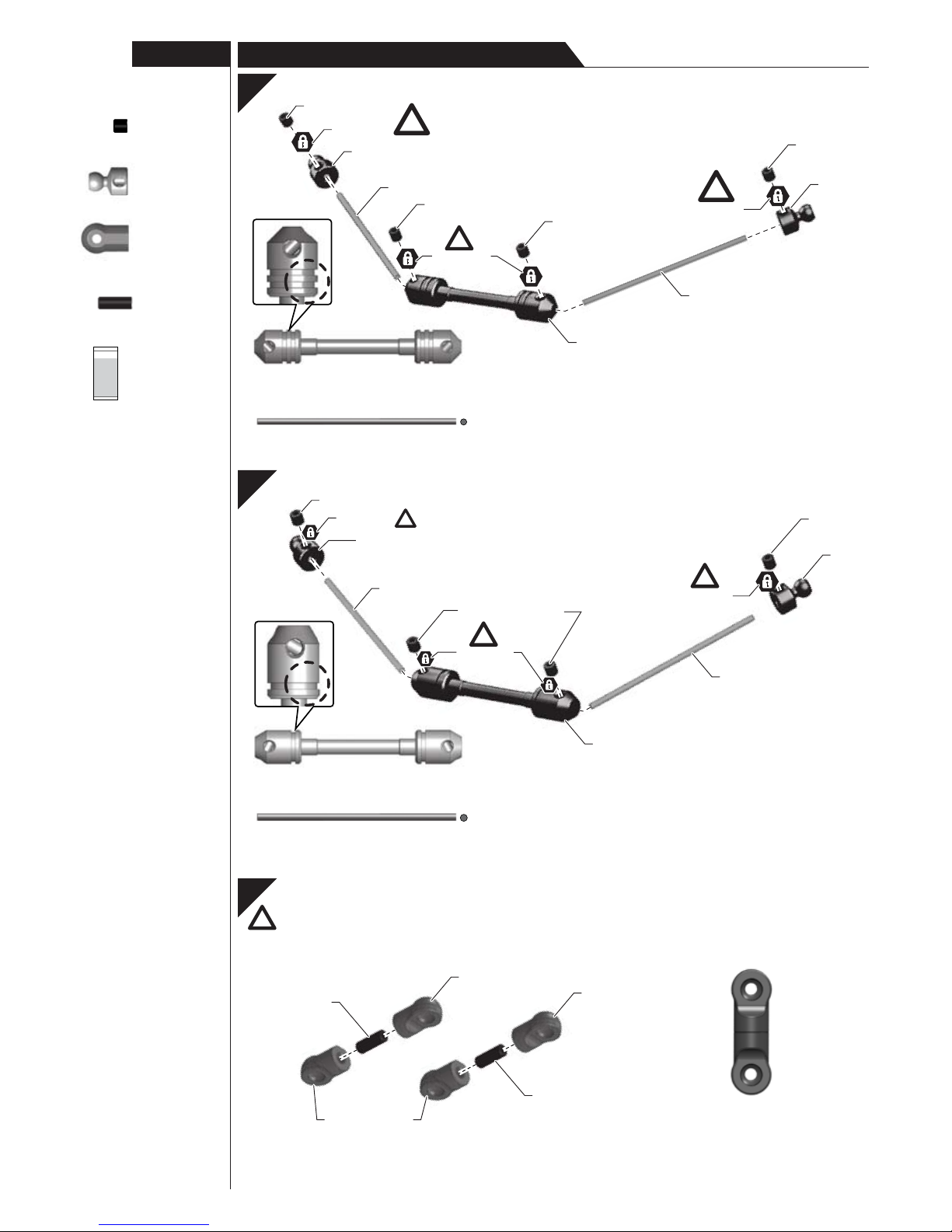

Rear Sway Bar Assembly
Ball End Sway Bar Assembly
H
Pivot Ball Sway Bar
TWSM00051
x 4pcs
Set Screw
M3 x 3mm
TWSSW00013
x 8pcs
Ball End Sway Bar
GTB4P0503
x 8pcs
Set Screw
M3 x 3mm
Set Screw
M3 x 3mm
Set Screw
M3 x 3mm
Set Screw
M3 x 3mm
Set Screw M3 x 3mm
Set Screw
M3 x 3mm
Set Screw M3 x 3mm
Pivot Ball
Sway Bar
Pivot Ball
Sway Bar
Ball End Sway Bar
Ball End Sway Bar
Set Screw
M3 x 8mm
Set Screw
M3 x 8mm
Ball End Sway Bar
Pivot Ball Sway Bar
Pivot Ball Sway Bar
Sway Bar Front ø1.5mm
Sway Bar Rear ø1.7mm
Sway Bar Front ø1.5mm
Sway Bar Rear ø1.7mm
Sway Bar Axle Front
Sway Bar Axle Rear
Sway Bar Axle Front
TWSM00085
x 1pc
Sway Bar Front ø1.5mm
MASM2464A
x 2pcs
Sway Bar Axle Rear
TWSM00086
x 1pc
Set Screw
M3 x 8mm
TWSSW00014
x 4pcs
Sway Bar Rear ø1.7mm
MASM2536A
x 2pcs
!MAKE FOUR(4) Ball End Sway Bars
Thread-lock
Thread-lock
Thread-lock
Thread-lock
COMPLETED
BALL END
SWAY BAR
!
!
Threadlock
!
!
!
!
Thread-lock
Thread-lock
CHM-G00059
(BAG R)
1
2
3
Front Sway Bar Assembly
13

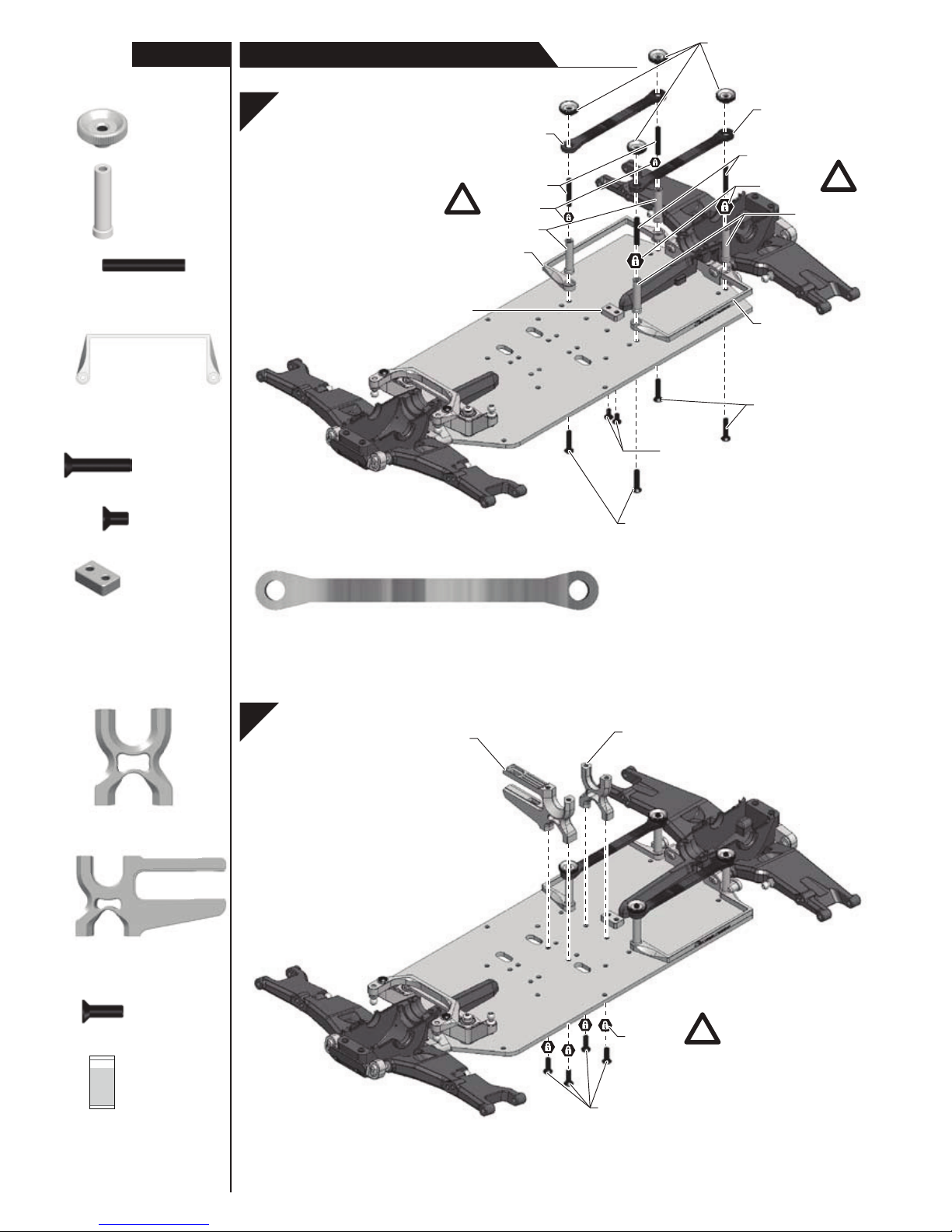

Front & Rear Sway Bar Assembly

Flat Head Screw
M3 x 6mm
TWSSW00009
x 2pcs
BAG I1 / BEUTEL I1
BORSA I1 / バッグI1
STEP 1 - 2
I1
Battery Post
TWSM00007
x 4pcs
Battery Holder
Saddle Pack
GTB4P0701
x 2pcs
Center Mount
TWSM00028
x 1pc
Center Mount
TWSM00029
x 1pc
Battery Stopper
GTBP0306
x 1pc
Flat Head Screw
M3 x 16 mm
TWSSW00008
x 4pcs
Flat Head Screw
M3 x 10 mm
TWSSW00007
x 4pcs
Battery Plate
Thumb Nut
Battery Holder Plate Saddle Pack
TWCBF00007
x 2pcs
Battery Plate
Thumb Nut
TWSM00006
x 4pcs
Battery Holder
Plate Saddle Pack
Battery Holder
Plate Saddle Pack
Motor Mount Center Mount
Battery Holder
Saddle Pack
Flat Head Screw
M3 x 16mm
Flat Head Screw
M3 x 6mm
Flat Head Screw
M3 x 16mm
Battery Holder
Saddle Pack
Battery Stopper
Set Screw
M3 x 20mm
Battery
Post
Set Screw
M3 x 20mm
Battery Post
Flat Head Screw
M3 x 10mm
Set Screw
M3 x 20 mm
TWSSW00012
x 4pcs
Thread-lock
CHM-G00059
(BAG R)
Thread-lock
Thread-lock
Thread-lock
!
!
!
1
2
• If You Choose SHORTY PACK layout, Please Go To Page 17
14

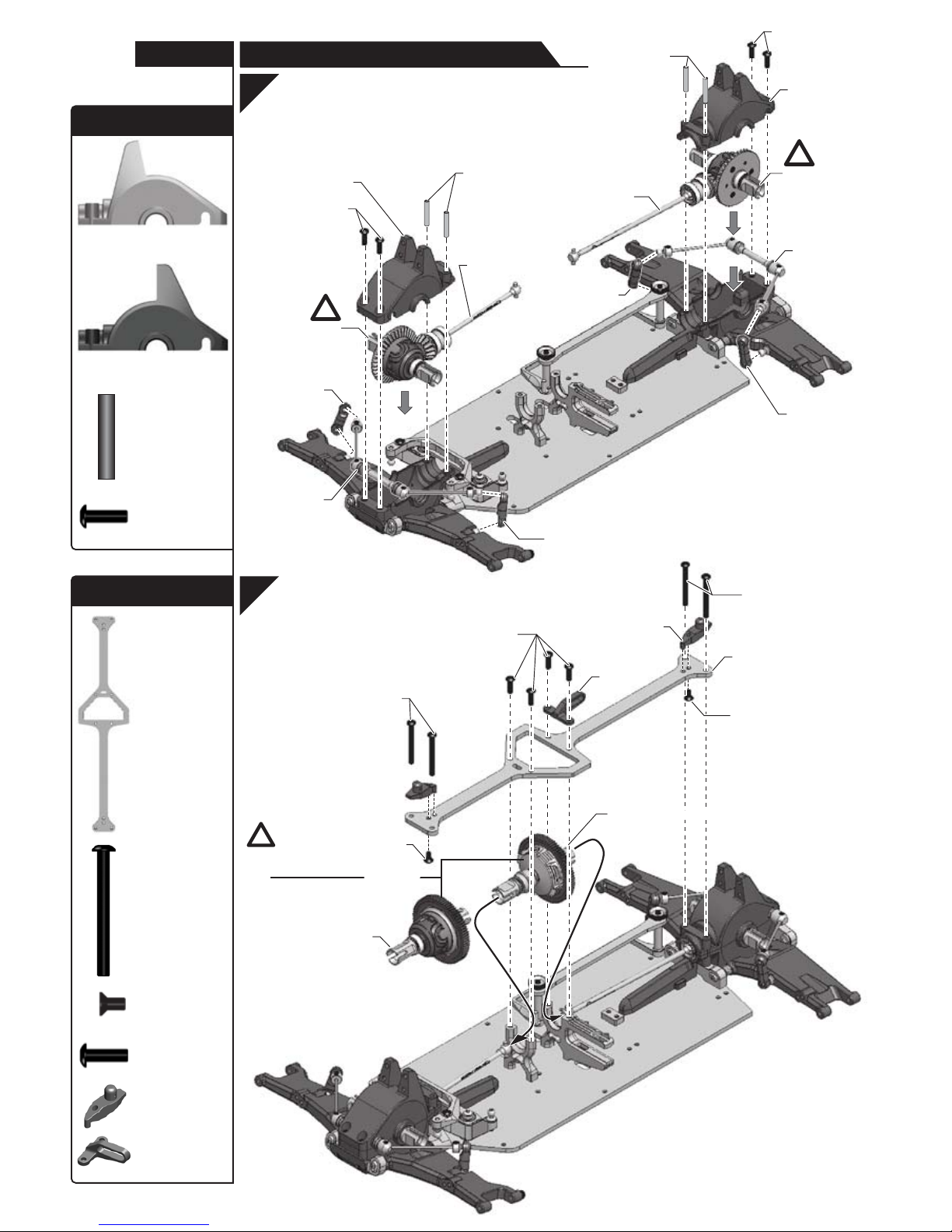

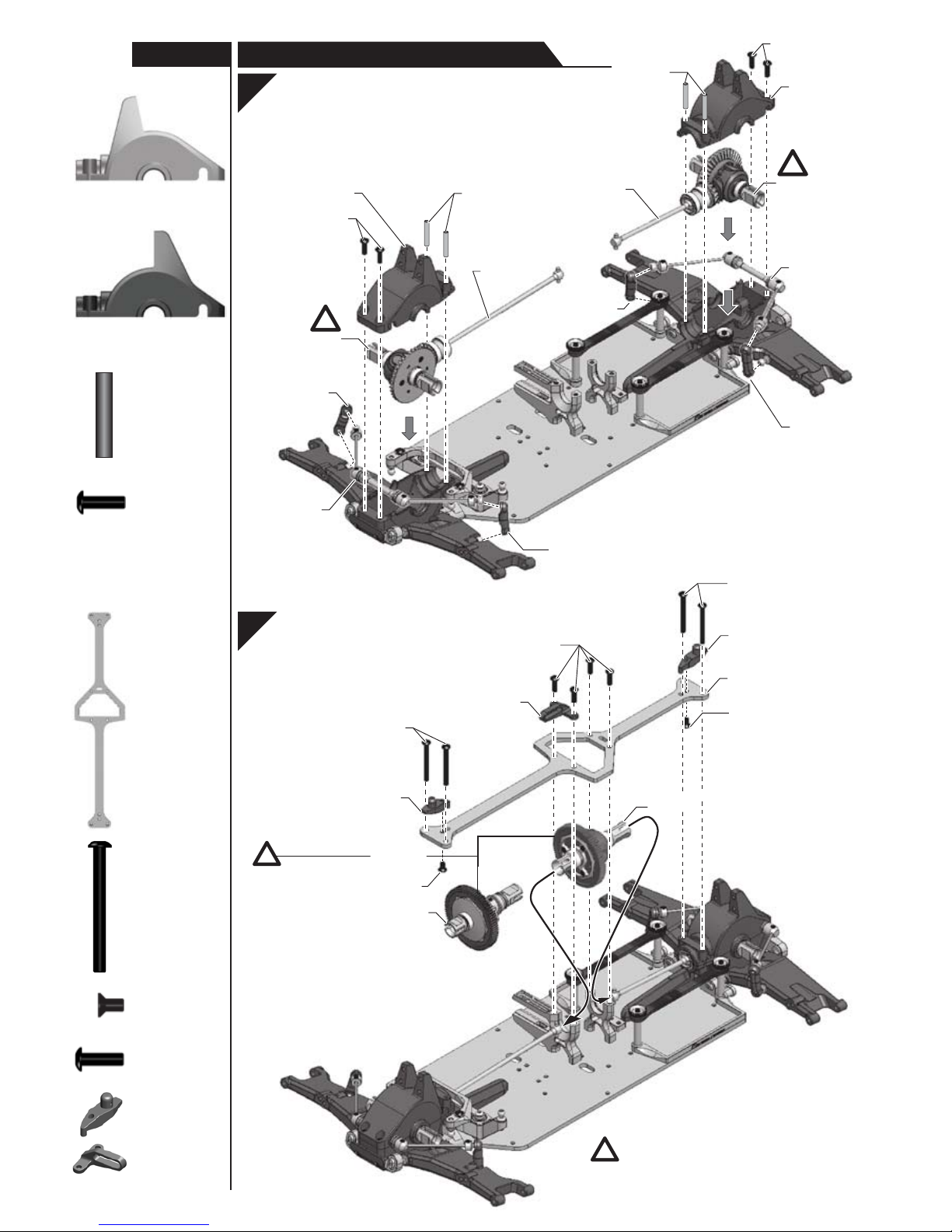

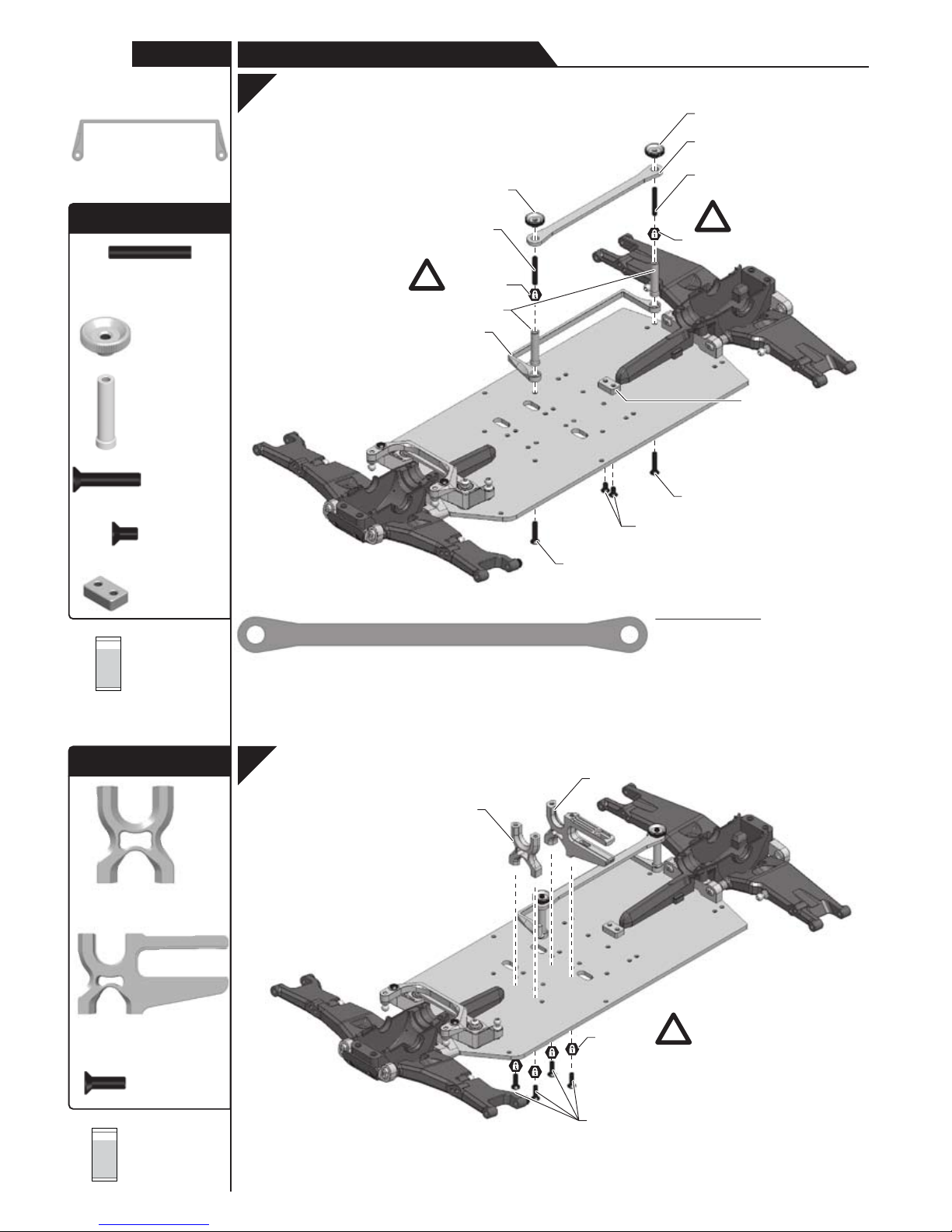

Saddle Pack Layout Assembly

Steel Tube
4 x 3 x 20.4mm
MASM2555A
x 4pcs
Button Head Screw
M3 x 10mm
TWSSW00001
x 4pcs
Top Deck
TWCBF00006
x 1pc
Button Head Screw
M3 x 10mm
TWSSW00001
x 4pcs
Body Mount
GTB4P0604
x 2pcs
Cable Guide
GTB4P0602
x 1pc
Button Head Screw
M3 x 30mm
TWSSW00004
x 4pcs
Button Head Screw
M3 x 10mm
Button Head Screw
M3 x 10mm
BAG I1 / BEUTEL I1
BORSA I1 / バッグI1
STEP 3 - 4
I1Gear Box Upper
Rear Sway Bar
Assembled
(BAG H)
Button Head Screw
M3 x 30mm
Button Head Screw
M3 x 30mm
Steel Tube
4 x 3 x 20.4mm
NOTE POSITION
Front Di. Assembled
(BAG A)
Front Sway Bar
Assembled
(BAG H)
Main Drive Shaft (1)
Assembled
(BAG C)
Gear Box Front
Upper
Ball End Sway Bar
Assembled
(BAG H)
Main Drive Shaft (2)
Assembled
(BAG C)
Ball End Sway Bar
Assembled
(BAG H)
Ball End Sway Bar
Assembled
(BAG H)
Ball End Sway Bar
Assembled
(BAG H)
Steel Tube
4 x 3 x 20.4mm
NOTE POSITION
Rear Di. Assembled
(BAG A)
Gear Box Front Upper
GTB4P0201
x 1pc
Gear Box Upper
GTB4P0203
x 1pc
Flat Head Screw
M3 x 6mm
Button Head Screw
M3 x 10mm
Cable Guide
Body Mount
Body Mount
Top Deck
Flat Head Screw
M3 x 6mm
!
!
Mid Slipper Assembled
(BAG B1)
USE
Mid Slipper
Mid Gear Di. OROR
Mid Gear Di. Assembled
(BAG B2)
Mid Gear Di. Assembled
(BAG B2)
!
!
Flat Head Screw
M3 x 6mm
TWSSW00009
x 2pcs
3
4
Use Slipper Assembly for High Grip Conditions
(Astro-turf, Carpet)
15
Saddle Pack Layout Assembly

Button Head Screw
M3x12mm
TWSSW00002
x 8pcs
BAG I1 / BEUTEL I1
BORSA I1 / バッグI1
STEP 5 - 6
I1
Button Head Screw
M3 x 12mm
Button Head
Screw
M3 x 12mm
Rear Shock Tower
Assembled
(BAG G)
Front Shock Tower
Assembled
(BAG G)
5
6Saddle Pack Layout
16
Saddle Pack Layout Assembly

Gear Plate A
TWSM00028
x 1pc
Gear Plate B
TWSM00029
x 1pc
Flat Head Screw
M3 x 10 mm
TWSSW00007
x 4pcs
I2BAG I2 / BEUTEL I2
BORSA I2 / バッグI2
STEP 1 - 2
Gear Plate A
Gear Plate B
Flat Head Screw
M3 x 10mm
FROM BAG I1
Thread-lock
CHM-G00059
(BAG R)
Thread-lock
Flat Head Screw
M3 x 6mm
TWSSW00009
x 2pcs
Battery Post
TWSM00007
x 2pcs
Battery Stopper
GTB4P0306
x 1pc
Flat Head Screw
M3 x 16 mm
TWSSW00008
x 2pcs
Battery Holder Plate Shorty Pack
TWCBF00008
x 1pc
Battery Plate
Thumb Nut
TWSM00006
x 2pcs
Set Screw
M3 x 20 mm
TWSSW00012
x 2pcs
Battery Holder
Shorty Pack
Set Screw
M3 x 20mm
Battery Plate
Thumb Nut
Battery Plate
Thumb Nut
Battery Holder Plate
Shorty Pack
Set Screw
M3 x 20mm
Flat Head Screw
M3 x 15
Battery
Stopper
Flat Head Screw
M3 x 16
Battery Post
Flat Head Screw
M3 x 6mm
FROM BAG I1
FROM BAG I1
Battery Holder
Shorty Pack
GTB4P0702
x 1pc
Thread-lock
CHM-G00059
(BAG R)
Thread-lock
Thread-lock
!
!
!
1
2
17
Shorty Pack Layout Assembly

BAG I2 / BEUTEL I2
BORSA I2 / バッグI2
STEP 3 - 4
I2
FROM BAG I1
Steel Tube
4 x 3 x 20.4mm
MASM2555A
x 4pcs
Button Head Screw
M3 x 10mm
TWSSW00001
x 4pcs
Gear Box Front Upper
GTBP0201
x 1pc
Gear Box Upper
GTBP0203
x 1pc
FROM BAG I1
Steel Tube
4 x 3 x 20.4mm
Steel Tube
4 x 3 x 20.4mm
NOTE POSITION
Rear Di. Assembled
(BAG A)
!
Rear Sway Bar
Assembled
(BAG H)
Front Sway Bar
Assembled
(BAG H)
Main Drive
Shaft (2)
Assembled
(BAG C)
Ball End Sway Bar
Assembled
(BAG H)
Main Drive
Shaft (1)
Assembled
(BAG C)
Ball End Sway Bar
Assembled
(BAG H)
Ball End Sway Bar
Assembled
(BAG H)
Ball End Sway Bar
Assembled
(BAG H)
NOTE POSITION
Front Di. Assembled
(BAG A)
!
Button Head Screw
M3 x 10mm
Button Head Screw
M3 x 10mm
Gear Box Upper
Gear Box Front
Upper
Top Deck
TWCBF00006
x 1pc
Button Head Screw
M3 x 10mm
TWSSW00001
x 4pcs
Body Mount
GTB4P0604
x 2pcs
Cable Guide
GTB4P0602
x 1pc
Button Head Screw
M3 x 30mm
TWSSW00004
x 4pcs
Flat Head Screw
M3 x 6mm
TWSSW00009
x 2pcs
Flat Head Screw
M3 x 6mm
!
USE
Mid Slipper
Mid Gear Di.
Mid Gear Di. Assembled
(BAG B2)
Mid Slipper Assembled
(BAG B1)
Mid Slipper Assembled
(BAG B1)
Button Head Screw
M3 x 30mm
Cable
Guide
Button Head Screw
M3 x 30mm
Button Head Screw
M3 x 10mm
Body Mount
Top Deck
Flat Head Screw
M3 x 6mm
OROR
3
4
18
Shorty Pack Layout Assembly

Button Head Screw
M3x12mm
TWSSW00002
x 8pcs
FROM BAG I1
Button Head Screw
M3 x 12mm
Button Head
Screw
M3 x 12mm
Rear Shock Tower
Assembled
(BAG G)
Front Shock Tower
Assembled
(BAG G)
Shorty Pack Layout
5
6
19
I2BAG I2 / BEUTEL I2
BORSA I2 / バッグI2
STEP 5 - 6 Shorty Pack Layout Assembly

STEP 2 - 4
BAG K / BEUTEL K
BORSA K / バッグK
STEP 1
K
C-Hub Left
13 Degree
GTB4P0801
x 1pc
C-Hub Right
13 Degree
GTB4P0802
x 1pc
SteeringHub
Left
GTB4P0805
x 1pc
SteeringHub
Right
GTB4P0806
x 1pc
Ball Stud
4.8 x 8mm
Ball Stud
4.8 x 6mm
Button Head Screw
M3 x 12mm
Button Head
Screw
M3 x 12mm
Shim
3.1 x 6 x 1mm
C-Hub Left
13 Degree
Steering
Hub
Left
Bushing
Steering
Knuckle
Ball Stud
4.8 x 8mm
Ball Stud
4.8 x 6mm
Button Head Screw
M3 x 12mm
Button Head
Screw
M3 x 12mm
Shim
3.1 x 6 x 1mm
C-Hub Right
13 Degree
Steering
Hub
Right
Bushing
Steering
Knuckle
Button Head Screw
M3x12mm
TWSSW00002
x 4pcs
Bushing Steering
Knuckle
TWSM00014
x 4pcs
Ball Stud
4.8 x 8mm
TWSM00003
x 2pcs
Ball Stud
4.8 x 6mm
TWSM00002
x 2pcs
Shim
3.1 x 6 x 1mm
TWSM00059
x 2pcs
1
1
3

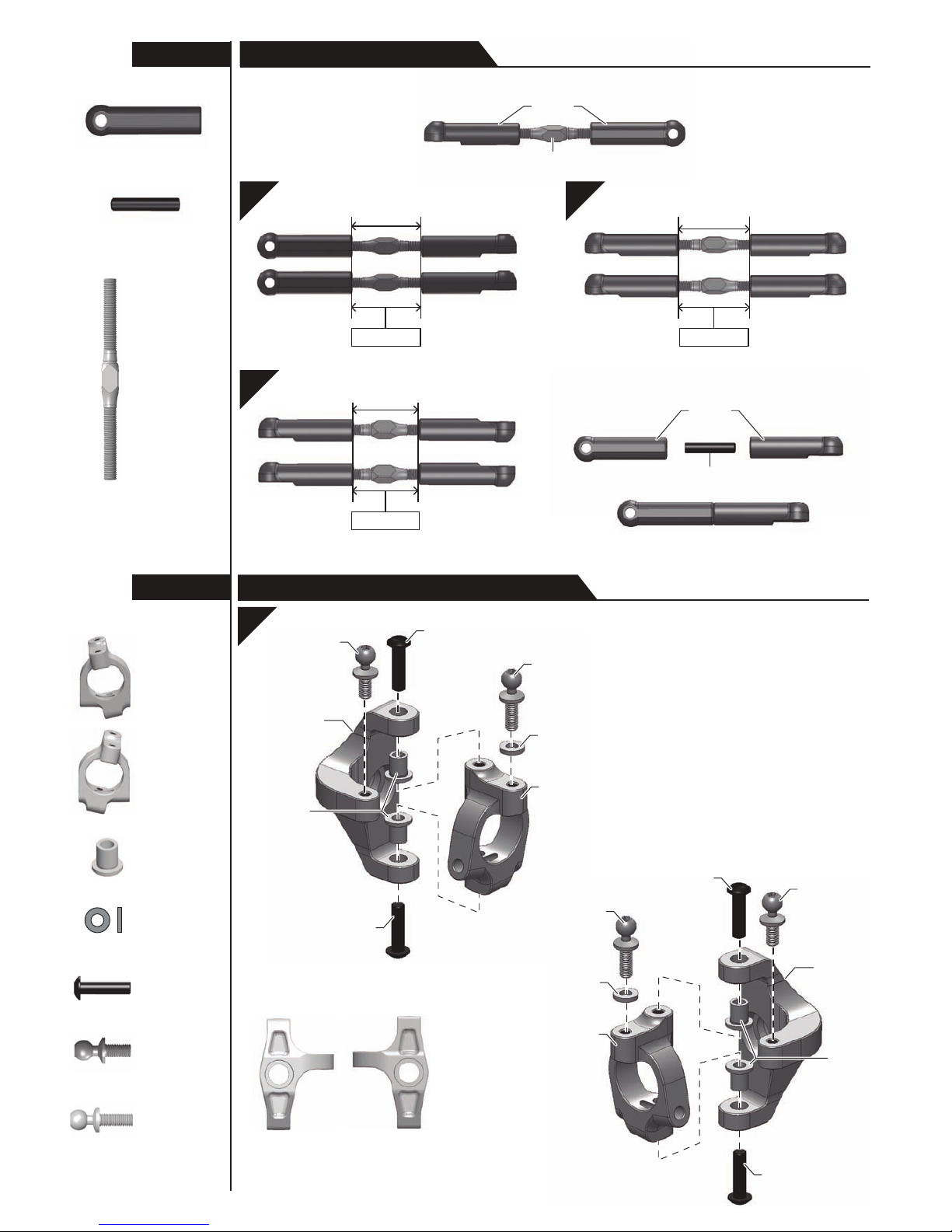

BAG J / BEUTEL J
BORSA J / バッグJ
STEP 1 - 3
Steering Link
J
Ball End
GTB4P0501
x 14pcs
Set Screw
M3 x 16mm
TWSSW00011
x 1pc
Turnbuckle
48mm
TWSM00087
x 6pcs
Ball End
Turnbuckle
48mm
21.6mm 19.5mm
18.5mm
Servo Link Assembly
Ball End
Set Screw
M3 x 16mm
Servo Link
Assembled
Camber / Steering Link Assembly
Turnbuckles Assembly
Front Camber Link 2Rear Camber Link
20
Front Steering Knuckle Assembly
