CarlStahl XLED-PS-6 User manual

TECHNICAL SUMMARY
XLED-PS-6 / XLED-PS-6-C
www.x-led.de
v.08.2021

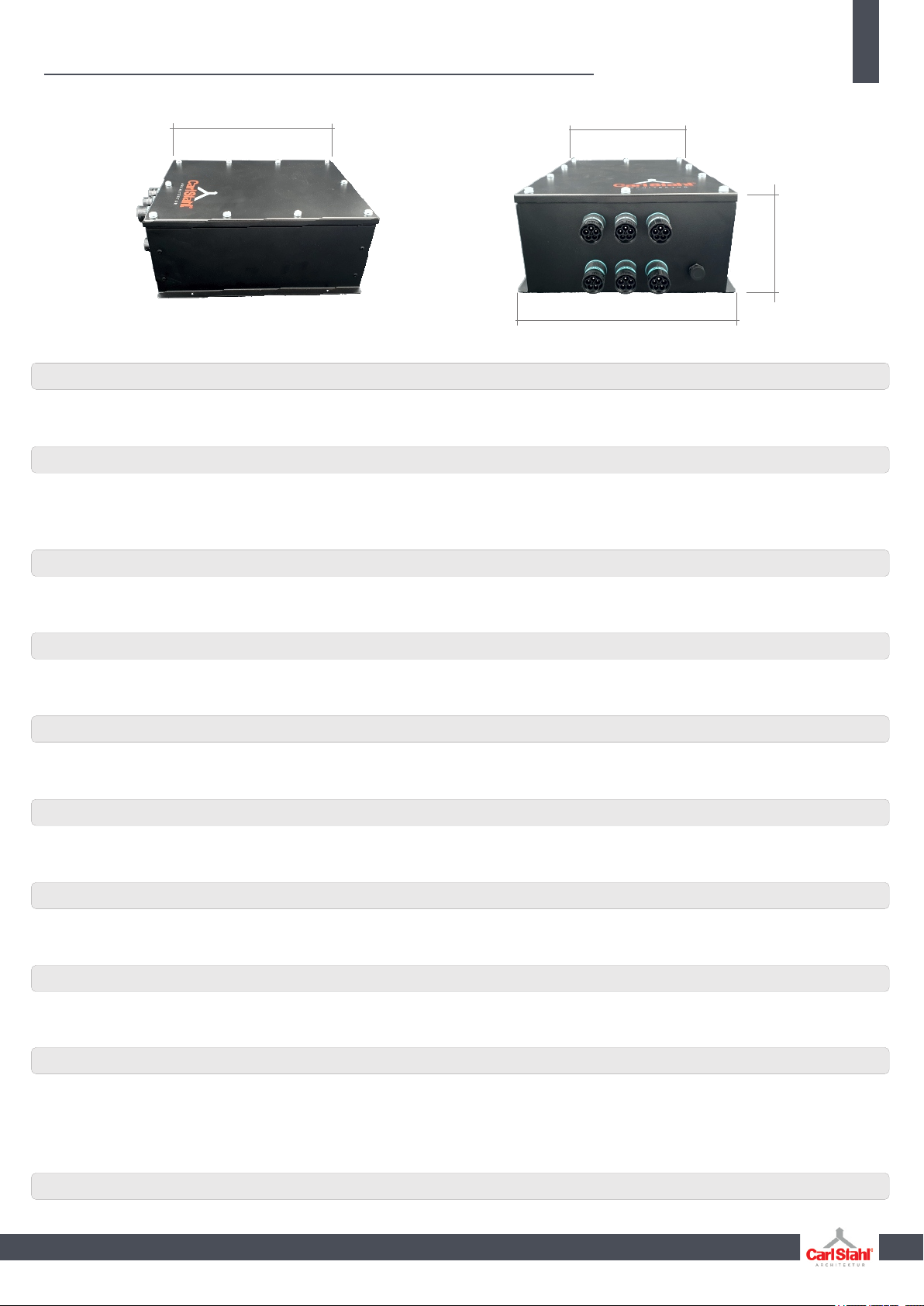

X-LED Power Supply
XLED-PS-6 / XED-PS-6-C
2www.x-led.de
www.x-led.de // [phone] // [email protected]

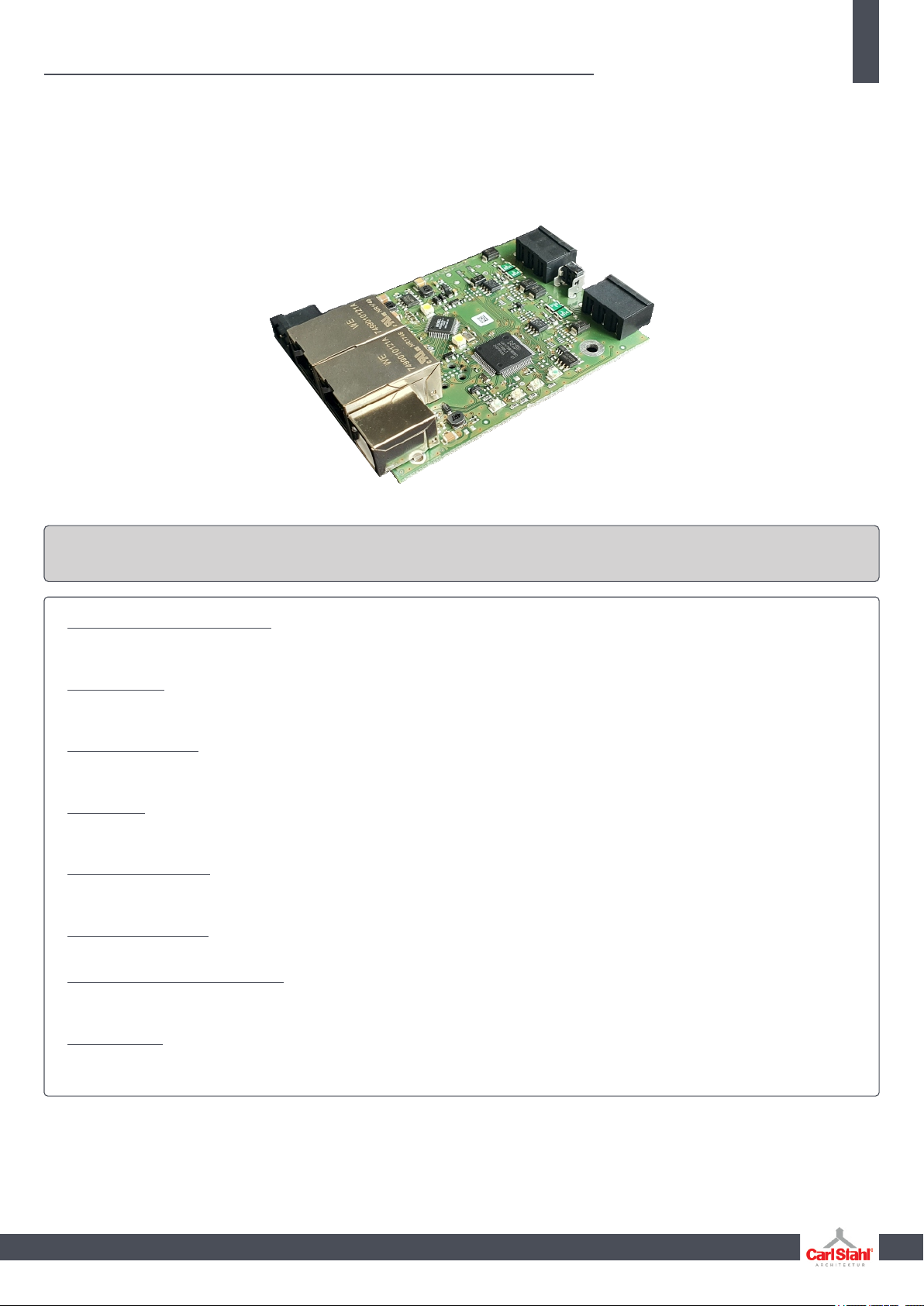

STELLA (X-LED version)
3
[email protected] // [phone] // www.x-led.de
X-LED Power supply
XLED-PS-6 / XED-PS-6-C
The MADRIX STELLA is a dedicated control interface for DMX512 and Art-Net or Streaming ACN that is designed for high quality
and practicability in permanent LED installations.
Art-Net / Streaming ACN / USB:
Art-Net or Streaming ACN data is directly converted to DMX512. Optimize and decentralize cabling to cover any distance
to the device using Ethernet network. In addition, simply connect to MADRIX 5 over USB.
2 DMX-IN/OUT:
Directly connect DMX512 to the two 3-pin screw terminals to distribute 2 DMX universes per unit as input and/or output,
eliminating the need for XLR connectors as a result. Simply use several units at the same time for larger projects.
Easy Configuration:
MADRIX STELLA offers powerful features.
Managing the device is still quick and easy. Supply power over USB or 5 V to 24 V over a 2-pin screw terminal.
Sync Mode:
MADRIX 5 and MADRIX hardware allow you to fully synchronize Art-Net data for all output ports and across multiple devices
to get an optimal image on the LEDs without visual interruptions.
3rd-Party Controllers:
MADRIX STELLA complies with official protocol specifications and can be used as a regular node with your other consoles,
controllers, or software solutions.
Daisy-Chain Support:
2 Ethernet ports allow for separate network connections as well as linearly daisy-chaining several devices together.
Designed For DIN Rails Or Walls:
Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe.
2 extra brackets are provided for optional wall mounting. 9 indicators quickly show the device status with the option to turn them off.
Special Notes:
The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources.
Firmware is upgradable. Access and change the specific device settings using the built-in web configuration page.

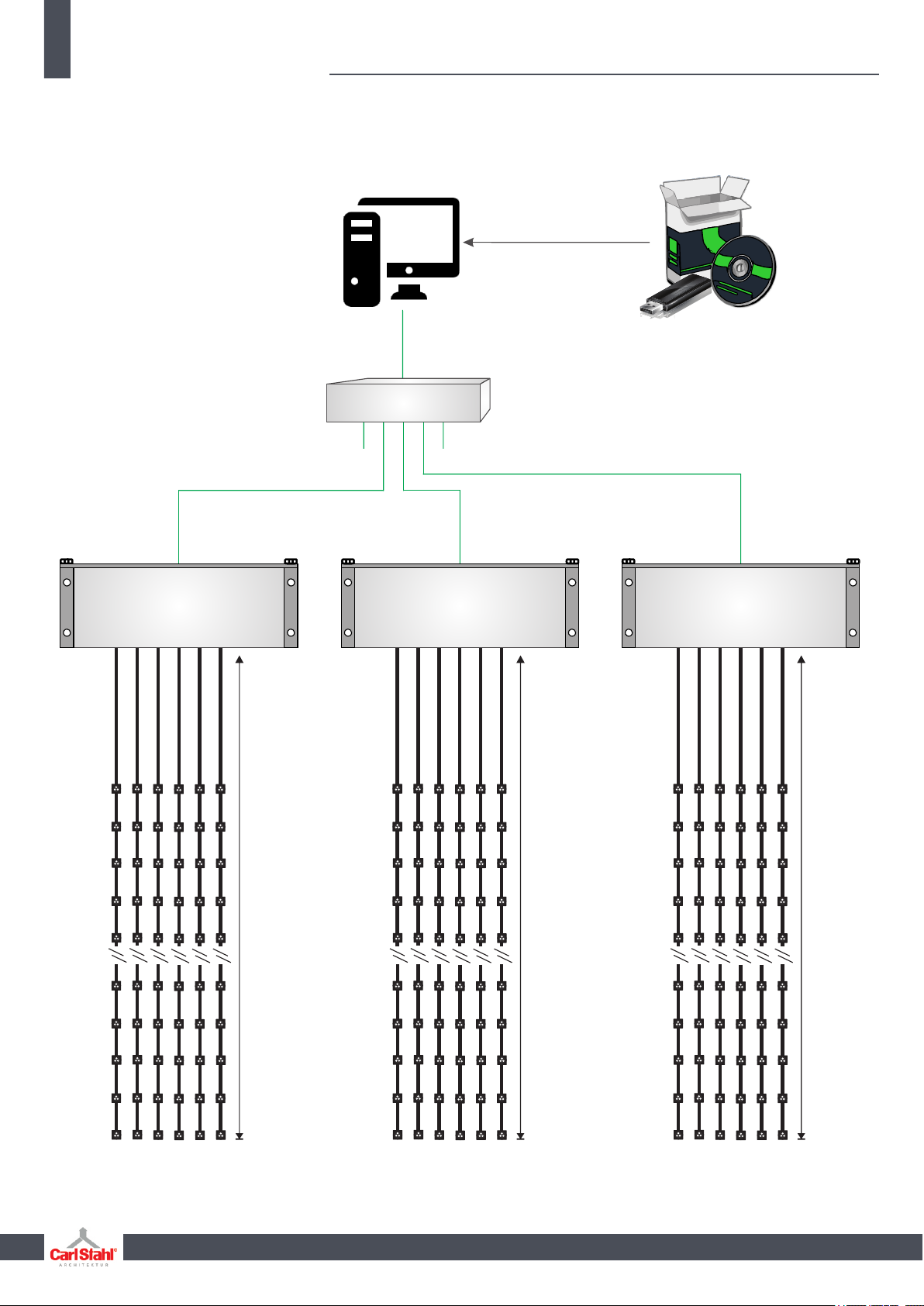

Switch / Hub
XLED-PS / XLED-PS-C
Power supply, incl. STELLA
for max. 6 LED-LINES,
max. 56 Dots per LINE,
* 20m - 60m
* 20m - 60m
* 20m - 60m
XLED-PS / XLED-PS-C
Power supply, incl. LUNA Controller
for max. 9 LED-LINES,
max. 56 Dots per LINE,
........
XLED-PS / XLED-PS-C
Power supply, incl. STELLA
for max. 6 LED-LINES,
max. 56 Dots per LINE,
Input device
(Media - PC)
Datacable (RJ45)
* LED Line configuration, please see X-LED LINE - Technical summary.
4www.x-led.de
www.x-led.de // [phone] // [email protected]
X-LED Power Supply
XLED-PS-6 / XED-PS-6-C
Software

XLED-PS / XLED-PS-C
Power supply, incl. STELLA
for max. 6 LED-LINES,
max. 56 Dots per LINE,
* 20m - 60m
* 20m - 60m * 20m - 60m
Daisy-Chain Network connection Datacable (RJ45)
Input device
(Media - PC)
XLED-PS / XLED-PS-C
Power supply, incl. LUNA Controller
for max. 9 LED-LINES,
max. 56 Dots per LINE,
up to 40x power supplies
XLED-PS / XLED-PS-C
Power supply, incl. STELLA
for max. 6 LED-LINES,
max. 56 Dots per LINE,
* LED Line configuration, please see X-LED LINE - Technical summary.
5
[email protected] // [phone] // www.x-led.de
X-LED Power supply
XLED-PS-6 / XED-PS-6-C
Software

6www.x-led.de
www.x-led.de // [phone] // [email protected]
X-LED Power Supply
XLED-PS-6 / XED-PS-6-C
Stand-alone playback unit
Stand-Alone Playback:
Independently run the most sophisticated light shows from this energy-efficient playback unit via Art-Net or Streaming ACN.
Easily control up to 8 or 32 universes per device.
Live Recording:
Record any Art-Net or Streaming ACN network stream onto the inserted memory card.
Unlike any other solution, recording a beautiful light show with MADRIX 5 is as easy as pressing record and play.
Central Hub:
Simply connect compatible MADRIX hardware interfaces or third-party nodes to provide the correct output for your lighting fixtures.
Time-Controlled Shows:
Run scenes automatically with the help of the internal clock as well as the available sunrise and sunset timers.
Master-Slave Synchronization & Scalability:
Manage large projects simply by connecting several units.
The entire group is automatically synchronized across all DMX universes for flawless and uninterrupted playback.
Web Configuration:
Use the built-in web configuration page to access and change specific device settings,
such as the important IP address, subnet mask, playlist settings, and much more.
Live Control:
Encased in a non-conductive design for DIN rails or wall mounting, 8 on-device buttons allow for quick playback and recording control.
You can also directly adjust the overall speed and intensity.
Remote Control:
Trigger MADRIX AURA via HTTP commands and the built-in web server or use Art-Net/sACN.
You can even add MADRIX ORION for interactive installations.

Switch / Hub
Datacable (RJ45)
Stand-Alone Playback:
Independently run the most sophisticated light
shows from this energy-efficient playback unit
via Art-Net or Streaming ACN.
Easily control up to 8 or 32 universes per device.
Stand-alone
XLED-PS / XLED-PS-C
Power supply, incl. STELLA
for max. 6 LED-LINES,
max. 56 Dots per LINE,
* 20m - 60m
* 20m - 60m
* 20m - 60m
XLED-PS / XLED-PS-C
Power supply, incl. LUNA Controller
for max. 9 LED-LINES,
max. 56 Dots per LINE,
........
XLED-PS / XLED-PS-C
Power supply, incl. STELLA
for max. 6 LED-LINES,
max. 56 Dots per LINE,
* LED Line configuration, please see X-LED LINE - Technical summary.
7
[email protected] // [phone] // www.x-led.de
X-LED Power supply
XLED-PS-6 / XED-PS-6-C

Daisy-Chain Network connection Datacable (RJ45)
Stand-Alone Playback:
Independently run the most sophisticated light
shows from this energy-efficient playback unit
via Art-Net or Streaming ACN.
Easily control up to 8 or 32 universes per device.
Stand-alone
XLED-PS / XLED-PS-C
Power supply, incl. STELLA
for max. 6 LED-LINES,
max. 56 Dots per LINE,
* 20m - 60m
* 20m - 60m * 20m - 60m
XLED-PS / XLED-PS-C
Power supply, incl. LUNA Controller
for max. 9 LED-LINES,
max. 56 Dots per LINE,
up to 40x power supplies
XLED-PS / XLED-PS-C
Power supply, incl. STELLA
for max. 6 LED-LINES,
max. 56 Dots per LINE,
* LED Line configuration, please see X-LED LINE - Technical summary.
8www.x-led.de
www.x-led.de // [phone] // [email protected]
X-LED Power Supply
XLED-PS-6 / XED-PS-6-C

Connector groups
Connector secondary
Fuses
Voltage range
Rated power
Rated current
Frequency
PF
Voltage adj. range
Current adj. range
Inrush current
Operating temperature
Protection level
Size
Network connection
Control
Housing
Operating features
Mounting options
2 x 3 groups
max. 56 Dots per group
5 fuses (per DMX-splitter)
90 - 305 VAC (L/N/PE max. 4mm² )
127 - 431 VDC (L/N/PE max. 4mm² )
2x 300 Watt
2x 15 A
50-60 Hz
> 0,94
17 VDC - 22 VDC (per DMX-splitter / Group)
7.5 A - 15 A (per DMX-splitter / Group)
COLD START 2x 70 A at 230 VAC
-20°C to +50°C
IP65 - outdoor rated
W: 260mm (230mm) D: 300mm H: 117mm
Art-Net, Daisy-Chain Support
2 x DMX512A
Aluminum, black or grey powder coated
Temperature monitoring (only with Controller)
Power In / Power Out
Wall mounting, horizontal, vertical
9
[email protected] // [phone] // www.x-led.de
X-LED Power supply
XLED-PS-6 / XED-PS-6-C
BILD PSU mit Maße
230mm
300mm
260mm
117mm

XLED-PS / XLED-PS-C
Power supply, incl. STELLA
for max. 6 LED-LINES,
max. 56 Dots per LINE,
XLED-PS / XLED-PS-C
Power supply, incl. LUNA Controller
for max. 9 LED-LINES,
max. 56 Dots per LINE,
XLED-PS / XLED-PS-C
Power supply, incl. STELLA
for max. 6 LED-LINES,
max. 56 Dots per LINE,
........
XLED-PS / XLED-PS-C
Power supply, incl. STELLA
for max. 6 LED-LINES,
max. 56 Dots per LINE,
XLED-PS / XLED-PS-C
Power supply, incl. LUNA Controller
for max. 9 LED-LINES,
max. 56 Dots per LINE,
XLED-PS / XLED-PS-C
Power supply, incl. STELLA
for max. 6 LED-LINES,
max. 56 Dots per LINE,

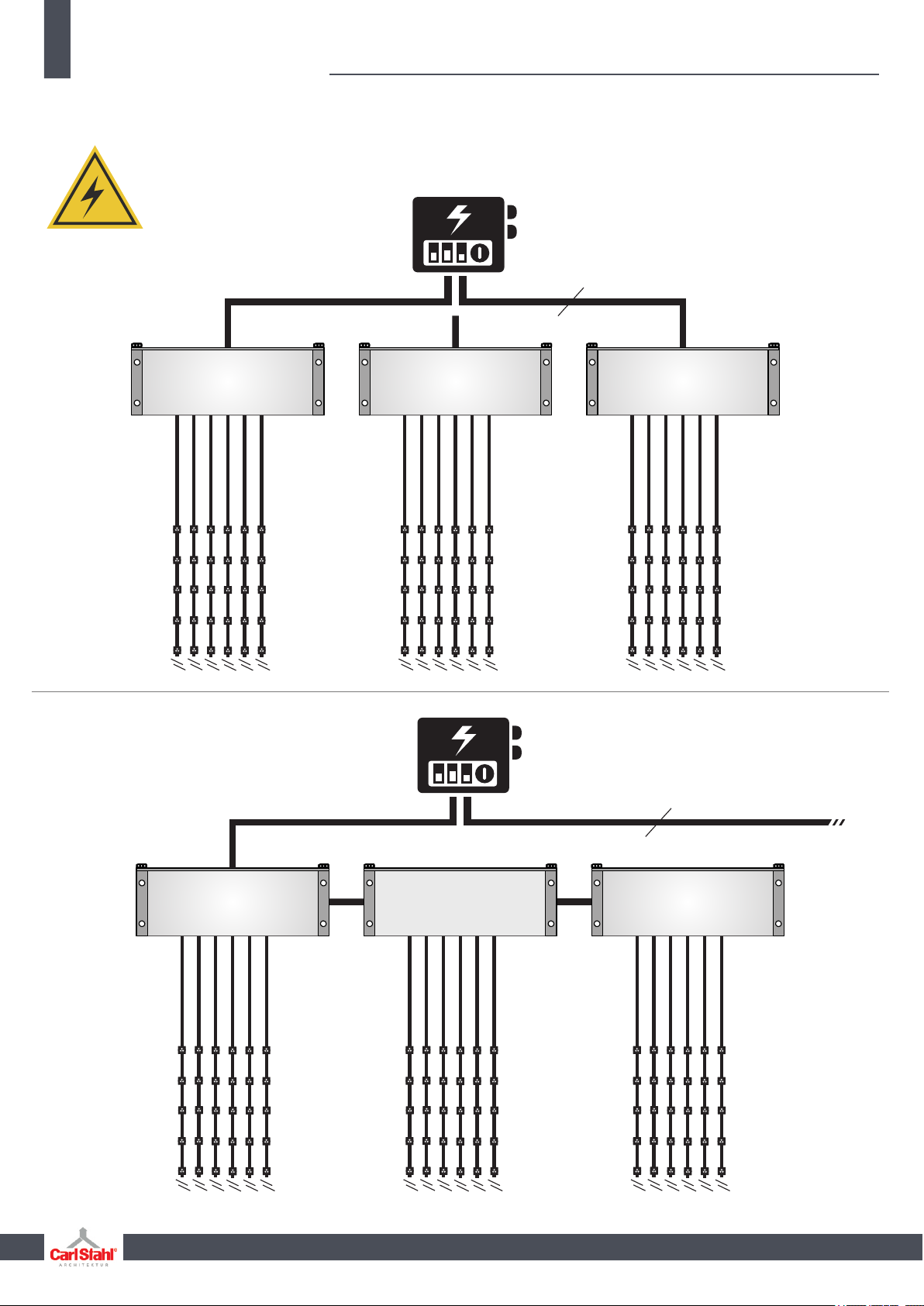

up to 3x power supplies
Electrification
next 3 PSUs
min. 1.5mm²
min. 1.5mm²
10 www.x-led.de
www.x-led.de // [phone] // [email protected]
X-LED Power Supply
XLED-PS-6 / XED-PS-6-C

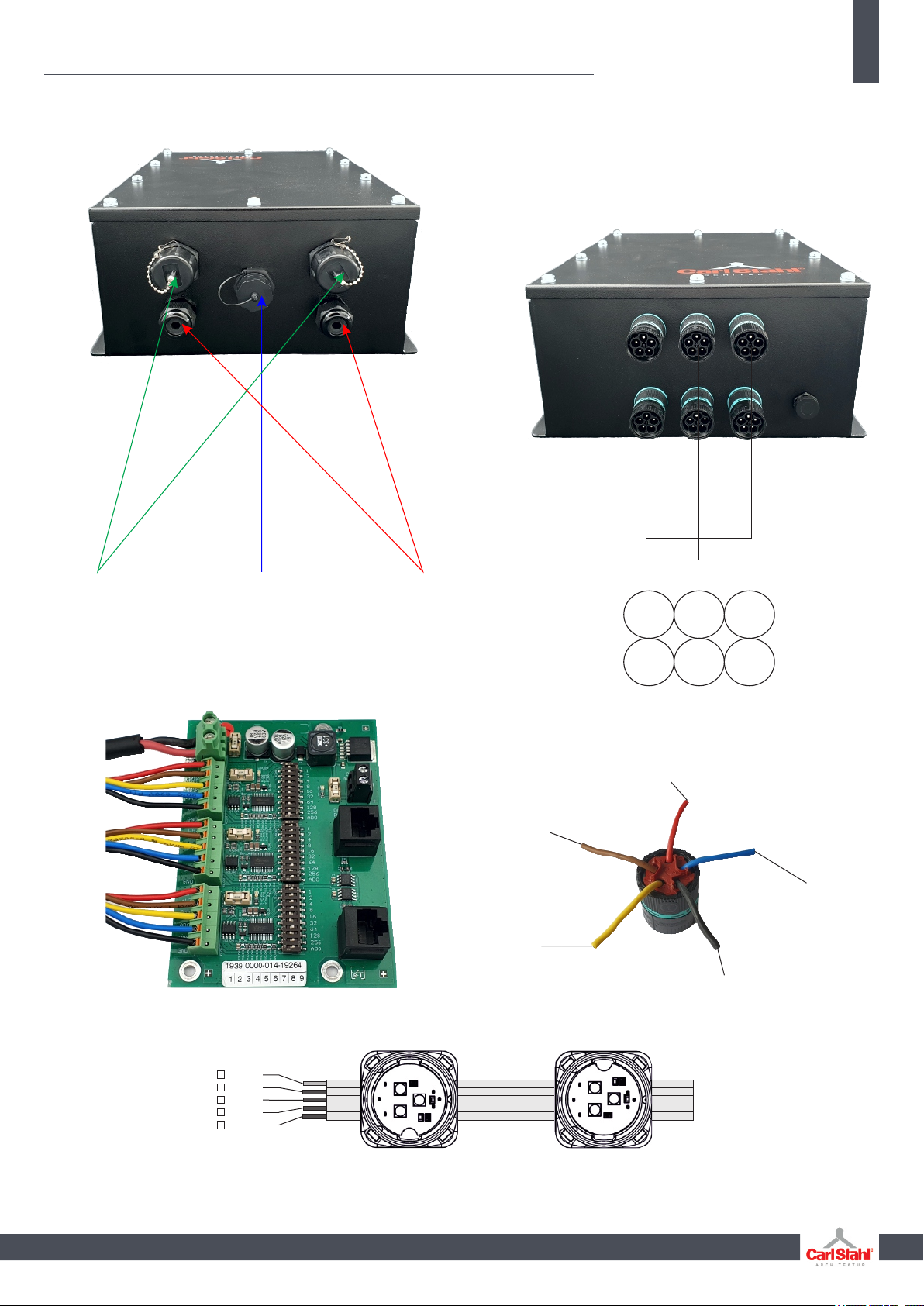

Wiring
1
2
3
4
5
+12VDC
Data +
Data -
GND
AADR
( marked in white )
LED-Lines
Data In/Out
(RJ45)
Power In/Out
USB
- GND
AADR
+ VDC
Data +
Data -
123
456
11
[email protected] // [phone] // www.x-led.de
X-LED Power supply
XLED-PS-6 / XED-PS-6-C

12 www.x-led.de
www.x-led.de // [phone] // [email protected]
Our devices are certifi ed according to the following European and American Standards
CONFORMITY
NOTE:
This equipment has been tested and found to comply with the limits for a class a digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of these equipment in a residental area is likely
to cause harmful interference in which case the user will be required to correct the interference at his own expense.
„This Class (A) digital apparatus complies with Canadian ICES-003”
COPYRIGHT:
©Carl Stahl ARC GmbH. All rights reserved.
Specifications are subject to change without notice.
No representation or warranty as to the accuracy or completeness of the information included herein is given
and any liability for any action in reliance thereon is disclaimed.
All trademarks are owned by Carl Stahl ARC GmbH or their respectives owners.
Warranty:
We provide for our LED-Dots ( XLED-DOT-...-...) and power supply units ( XLED-PS-...) a warranty of 5 years.
Within the warranty period a failure rate of 3 % could occur. This failure rate is no claim for warranty.
We advise to order a corresponding number of spare parts. For professional replacement we provide a training by our specialists.
Requirement for our warranty is the compliance with our installation and maintenance guidlines.
Due to side and application conditions problems can occur, which are not covered by the warranty, except they where named specifically
by the client in advance. The installation has to be made by trained and skilled workers.
Clean device from dirt and residue regularly. Use solvent-free cleaning agents only and do not employ aggressive chemicals or high pressure‚
cleaner. Operate device only after complete drying.
SERVICING AND MAINTENANCE
Please check all trouble-shooting measures given in this operating manual.
For any further questions please contact our hotline.
Tel: [phone] 300 | Fax: [phone] 305
