Carpet Pro CPU-3QD User manual

Household and
Commercial Upright
Vacuums
Owner’s
Manual
CPU-3QD
CPU-3N
CPU-4N
CPU-4T
Save These Instructions

1
Getting Started
Important Safety Instructions 2
Grounding Instructions 3
Parts Identification 4-5
Replacement Bags/Filters 4-5
How to Assemble and Operate the Vacuum 6-7
Maintenance and Care
How to Change the Vacuum Bag 8
How to Change the Filters 8
Handle Adjustments 9
Edge Cleaning Feature 9
Automatic Self-Adjusting Nozzle 9
On-Board Tool Cleaning 10
How to Replace the Vacuum Belt 11
How to Clean the Nozzle Hose 12
Thermal Fuse Protection 13
Problem Solving Guide
Troubleshooting 14
For Best Performance 14
Warranty 15

2
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions
should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE. FOR HOUSEHOLD USE ONLY.
IMPORTANT:
The manufacturer cannot accept responsibility for damage
caused when the appliance is not used according to the instructions, or for uses other
than those for which it was intended.
WARNING: To reduce the risk of fire, electric shock, damage or injury:
SAVE THESE INSTRUCTIONS
• Do not leave appliance when plugged
in. Unplug from outlet when not in use
and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close
attention is necessary when used by or
nearchildren.
• Use only as described in this manual.
• Do not use with damaged cord or plug.
If appliance is not working as it should,
has been dropped, damaged, left
outdoors, or dropped into water, return
it to the distributor where purchased
for service.
• Do not pull or carry by cord, use cord
as a handle, close a door on the cord,
or pull cord around sharp edges or
corners. Do not run appliance over
cord. Keep cord away from heated
surfaces.
• Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with
wethands.
• Do not put any object into openings.
Do not use with any opening blocked;
keep free of dust, lint, hair and
anything that may reduce air flow.
• Keep hair, loose clothing, fingers and
all parts of body away from openings
and movingparts.
• Do not pick up anything that is
burning or smoking, such as cigarettes,
matches or hotashes.
• Do not use without vacuum bag in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or
combustible liquids such as gasoline
or use in areas where they may be present.
• Do not attempt to service the unit
while appliance is plugged in.
• Connect to a properly grounded outlet
only. See Grounding Instructions.
• Make sure your extension cord is
in good condition and is the correct
size for your appliance, i.e. 16 AWG.
If in doubt, use the next heavier
gage. The smaller the gage number,
the heavier the cord. An undersized
extension cord will cause a drop in
line voltage resulting in loss of power
and overheating.
• Use only three-wire outdoor extension
cords that have three-prong grounding
plugs and grounding receptacles that
accept the appliance’s plug.
• To reduce the risk of personal injury
due to a loose electrical connection
between the appliance’s plug and
extension cord, firmly and fully attach
the appliance plug to the extension
cord. Periodically check the connection
while operating to ensure it is fully
attached. Do not use an extension
cord that provides a loose connection.
A loose connection may result in
overheating, fire, and increases the
risk of a burning.
• To reduce the risk of disconnection
of the appliance cord from the extension
cord during operating, secure the
extension cord to the appliance plug
as described in the manual.

3

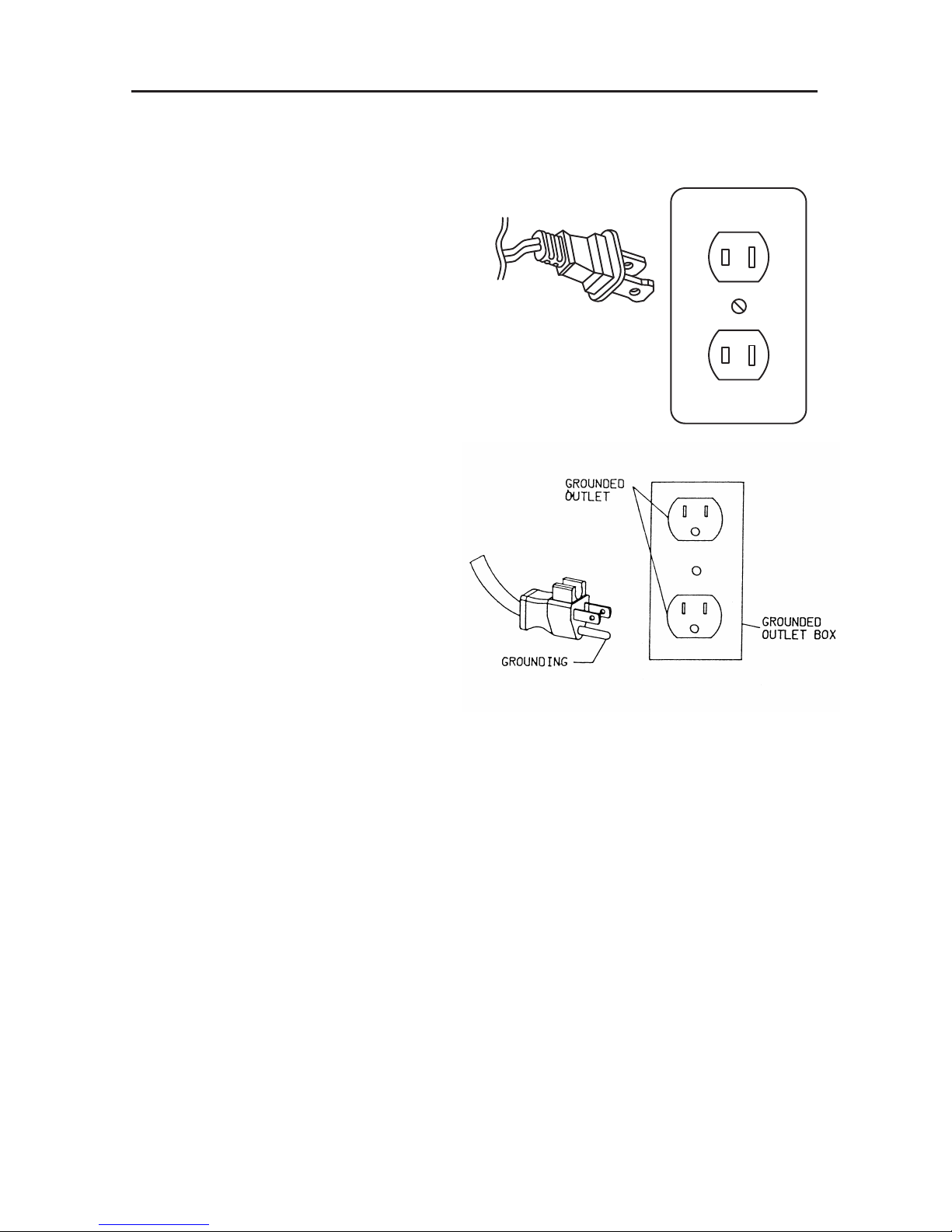

GROUNDING INSTRUCTIONS
MODELS: CPU-3QD and CPU-3N
This product is equipped with a polarized
alternating current line plug (a plug having
one blade wider than the other). This
plug fits into the power outlet only one
way. This is a safety feature. If you are
unable to insert the plug fully into the
outlet, try reversing the plug. If the plug
still does not fit, contact an electrician to
replace the obsolete outlet. Do not defeat
the safety purpose of the polarized plug.
MODELS: CPU-4N and CPU-4T
This appliance must be grounded. If
it should malfunction or break down,
grounding provides a path of least
resistance for electric current to reduce
the risk of electric shock. This appliance
is equipped with a cord having an
equipment-grounding conductor and
grounding plug. The plug must be
plugged into an appropriate outlet that
is properly installed and grounded in
accordance with all local codes and
ordinances.
This appliance is for use on a nominal 120 volt circuit and has a grounding attachment
plug. Make sure that the appliance is connected to an outlet having the same configuration
as the plug. No adapter should be used with this appliance.
WARNING - Improper connection of the equipment-grounding conductor can result
in a risk of electric shock. Check with a qualified electrician or service person if you
are in doubt as to whether the outlet is properly grounded. Do not modify the
plug provided with the appliance. If it will not fit the outlet, have a proper outlet
installed by a qualified electrician.

4
PARTS IDENTIFICATION
Model CPU-3QD
Handle tube
Headlight
Handle grip
Hose handle
Cord retainer
Self-adjusting
nozzle
Tools
Bag compartment
Bag compartment
cover latch
Hose hanger
Cord storage
hook
Easy-carry
handle
Accessory
attachment
opening
Quick
clean-out port
Nozzle
hose
Thermal reset
instructions
Thermal reset
button
Quick
Draw
wand
Furniture
guard
On/Off
switch
Full bag
indicator
Quick cord
release
Replacement Bags and Filters
• Genuine Carpet Pro Vacuum Bags
Part # CPP-6
6 per package
• Genuine Carpet Pro Post Filter
Part # CMPS-PF
1 per package
• Genuine Carpet Pro Electrostatic
Secondary Filter
Part # 06.317
1 per package
• Genuine Carpet Pro Foam Secondary
Filter
Part # CMPS-SF
1 per package

5
PARTS IDENTIFICATION
Models CPU-3N, CPU-4N and CPU-4T
On/Off
switch
Handle
tube
Cord retainer
(CPU-4N & 4T only)
Self-adjusting
nozzle
Tools
(CPU-4T
only)
Bag
compartment
Bag
compartment
cover latch
Cord storage hook
Easy-carry
handle
Accessory
attachment
opening
Nozzle
hose
Thermal reset
instructions
Thermal reset
button
Furniture
guard
Nozzle
hose
Replacement Bags and Filters
• Genuine Carpet Pro Vacuum Paper Bags
Part # CPP-6
6 per package
• Genuine Carpet Pro Post Filter
Part # CMPS-PF
1 per package
• Genuine Carpet Pro Electrostatic
Secondary Filter
Part # 06.317
1 per package
• Genuine Carpet Pro Foam Secondary Filter
Part # CMPS-SF
1 per package
Headlight
(CPU-3N only)

6
How to Attach the Handle to
the Vacuum Cleaner
Model: CPU-3QD
The vacuum cleaner and the handle are
packed separately.
1. Remove the handle screw, insert
handle into the hole on top of the
vacuum cleaner (Fig. 1).
2. Line up the small hole on the handle
with the small hole on the vacuum
cleaner, and insert the screw. Make
sure the screw is tightened securely.
How to Attach the Extension
Power Cord to the Cord Lock
1. Connect the extension power cord to
the pigtail cord on thevacuum.
2. Snap the extension power cord into
the slot on the end of the cord lock.
3. Turn the knob on the bottom of the
cord lock to tighten the lock and
prevent the cords from pulling apart
(Fig. 2).
How to Attach the Cord to the
Retainer Hook on the Handle
1. Create a loop in the power cord,
and push it through the slot and over
the hook of the cord retainer (Fig. 3).
2. Pull down on the power cord to
remove any slack (Fig. 4).
On/Off Switch
1. To turn the vacuum on, push the switch
located on the dust compartment to the
( I ) position (Fig. 5).
2. To turn the vacuum off, push the switch
located on the dust compartment on
the ( 0 ) position.
Fig. 1
Fig. 2 Fig. 3
Fig. 4 Fig. 5
HOW TO ASSEMBLE AND OPERATE THE VACUUM

7
How to Attach the Handle to the
Vacuum Cleaner
Models: CPU-3N, CPU-4N and CPU-4T
The vacuum cleaner and the handle are
packed separately.
1. Remove the handle screw, insert handle
into the hole on top of the vacuum
cleaner (Fig. 1).
2. Line up the small hole on the handle
with the small hole on the vacuum
cleaner, and insert the screw. Make
sure the screw is tightened securely.
How to Attach the Cord Retainer
to the Handle
Models: CPU-4N and CPU-4T
1. Pull apart the rounded end of the cord
retainer to open it up enough to fit
around the vacuum handle (Fig. 2).
2. Attach the cord retainer around the
vacuum handle (Fig. 3).
3. Create a loop in the power cord and
push it through the slot and over the
hook of the cord retainer (Fig. 4).
4. Pull down on the power cord to remove
any slack (Fig. 4).
On/Off Switch
1. To turn the vacuum on, push the switch
located on the dust compartment to the
( I ) position (Fig. 5).
2. To turn the vacuum off, push the switch
located on the dust compartment on
the ( 0 ) position.
HOW TO ASSEMBLE AND OPERATE THE VACUUM
Fig. 1
Fig. 2 Fig. 3
Fig. 4 Fig. 5

8
Always operate the vacuum cleaner with
a vacuum bag installed.
Bags should be changed when they are
2/3 full.
To Change the Vacuum Bag
1. Unplug the vacuum cleaner. Remove
the bag compartment cover, and
remove the used bag from the bag
holder (Fig. 1).
2. Attach the new vacuum bag onto the
bag holder (Fig. 2).
3. Pull the bottom corners of the new
vacuum bag (Fig. 3).
4. Reinsert the tabs on the end of the
bag compartment cover into the
grooves on the bag compartment
housing. Press it into place, and
fasten the bag compartment cover
latchtightly(Fig. 4).
HOW TO CHANGE THE FILTERS
This vacuum cleaner is equipped with a
secondary filter and a post filter. Filters
should be changed often and cannot be
washed or re-used.
To Change the Secondary Filter
1. Unplug the vacuum cleaner. Lift the latch
to remove the bag compartment cover,
and remove the bag.
2. Remove the secondary filter, and replace
it with a new filter (Fig. 5).
3. Replace the bag and bag compartment cover.
To Change the Post Filter
1. Unplug the vacuum cleaner. Lift the latch
to remove the bag compartment cover.
2. Remove the foam filter from the front of
the bag compartment (Fig. 6).
3. Do not throw away the filter holder.
4. Insert a new filter, and replace the bag
compartment cover.
HOW TO CHANGE THE VACUUM BAG
Fig. 1 Fig. 2
Fig. 3 Fig. 4
Fig. 5
Fig. 6

9

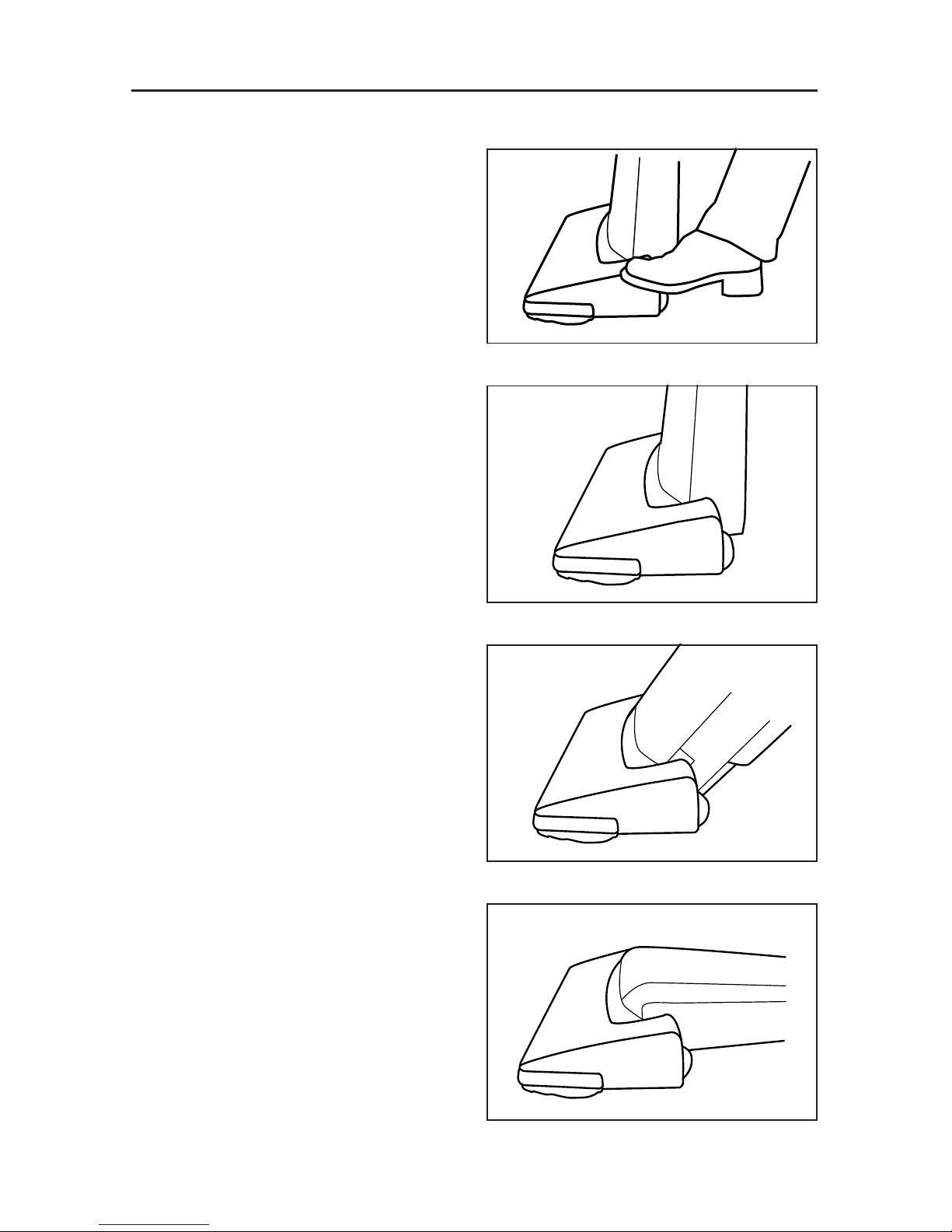

The handle on this vacuum cleaner can
be set to one of three positions – upright,
middle or low.
How to Adjust the Handle
1. To release the handle, step on the on
the left rear corner of the vacuum
cleaner nozzle (Fig. 1).
2. Upright position – when cleaning tools
are being used or for storage (Fig. 2).
Handle locks in this position.
3. Middle position – for normal cleaning
(Fig. 3).
4.Low position – for cleaning under
furniture (Fig. 4).
Edge Cleaning Feature
The edge cleaning feature provides
improved cleaning of carpets near walls
and stationary furniture. For maximum
edge cleaning, position the right side of
the vacuum (from the user’s perspective)
near walls or stationary furniture.
Automatic Self-Adjusting Nozzle
This vacuum cleaner is designed with
an automatic self-adjusting nozzle. No
manual adjustments are required. The
height of the nozzle is instantly and
automatically adjusted to carpet pile
height. This self-adjusting feature allows
the nozzle to float evenly over all carpet
pile surfaces.
HANDLE ADJUSTMENTS
Fig. 1
Fig. 2
Fig. 3
Fig. 4

10
Model: CPU-3QD
This model is equipped with on-board
cleaning tools including a metal telescopic
wand, stretch hose, dusting brush and
crevice tool.
1. To use the cleaning tools, lift the hose
handle straight up from the vacuum
(Fig. 1).
2. Extend the wand by pulling the button
back and pushing the end of the wand
forward (Fig. 2).
3. Attach any of the on-board tools
to the end of the wand or directly onto
the hose handle (Fig. 4) and (Fig. 5).
Model: CPU-4T
This model is equipped with on-board
cleaning tools including a metal wand,
stretch hose, dusting brush and crevice tool.
1. Remove the stretch hose from the
nozzle of the vacuum (Fig. 3).
2. Attach any of the on-board tools
to the end of the wand or directly
onto the house cuff (Fig. 4) and (Fig. 5).
ON-BOARD TOOL CLEANING
Fig. 4 Fig. 5
Fig. 1 Fig. 2
Fig. 3

11

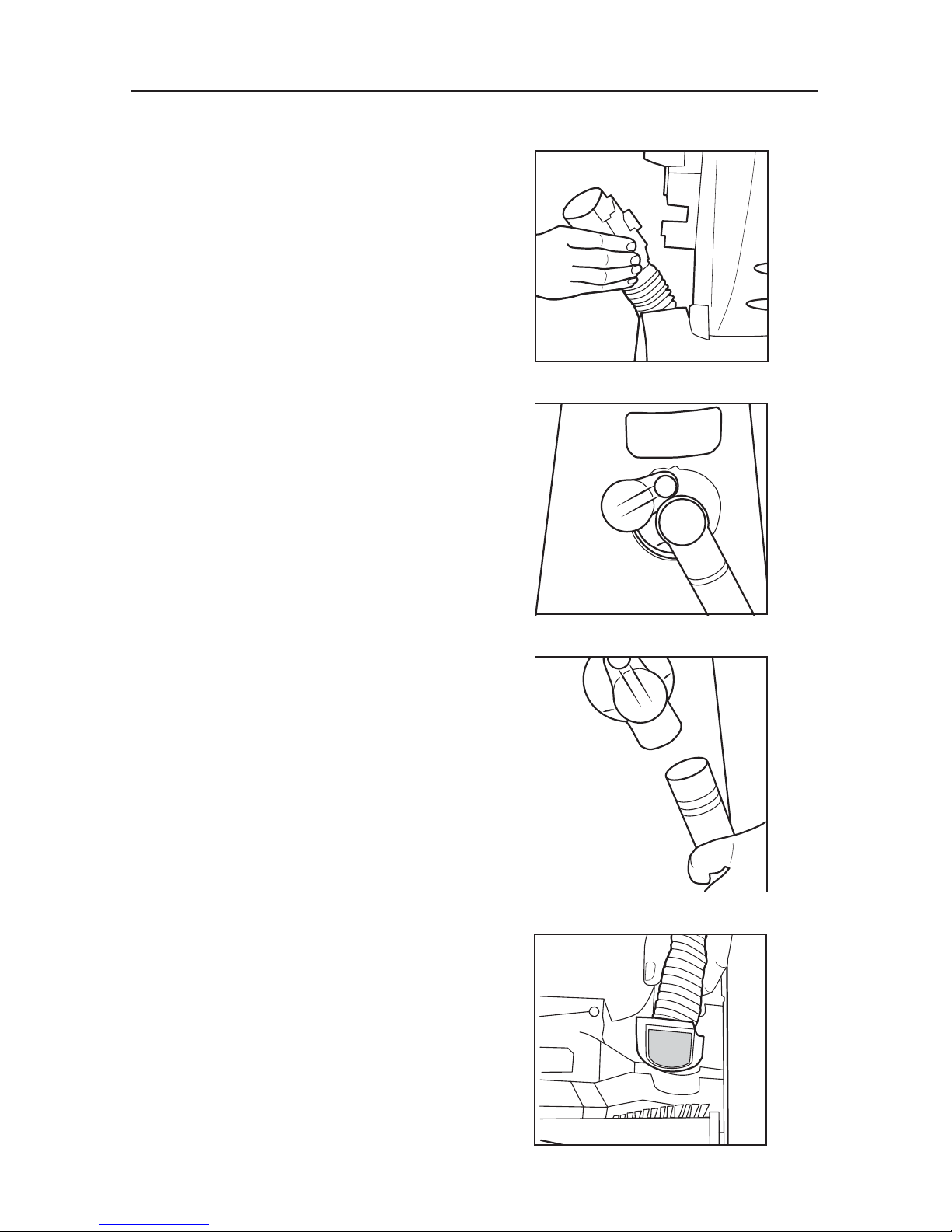

CAUTION: Unplug the vacuum cleaner
before performing any of these steps.
How to Remove the Bottom Plate
1. Place the vacuum cleaner in the low
position by pressing the foot pedal
release twice while reclining the handle.
Turn the vacuumover.
2. Remove the two screws holding the
bottom plate in place (Fig. 1).
3. Remove the bottom plate.
How to Replace the Belt
1. Turn the vacuum cleaner over and
remove the bottom plate as described
in the above section.
2. Remove the belt guard (Fig. 2). Remove
the brushroll by pulling it straight out
(Fig. 3).
3. Remove the belt from the brushroll.
4. Loop a new belt over the motor pulley
(Fig. 4) and over the end of the brushroll.
5. Stretch the belt while inserting the
brushroll back into the nozzle housing.
6.Reinsert the belt guard.
7. Spin the brushroll by hand to make
sure it turns smoothly and the new
belt is properly aligned.
8. Replace the bottom plate by hooking
the front end of the plate into the two
ribs on the front end of the nozzle
housing. Press the bottom plate into
place and fasten it with the two screws.
NOTE: To ensure maximum cleaning
efficiency, check the belt regularly to
ensure it is in good condition. Replace
the belt if it is stretched, cracked or if
excessive slipping is occurring.
HOW TO REPLACE THE VACUUM BELT
Fig. 1
Fig. 2
Fig. 3
Fig. 4

12
CAUTION: Unplug the vacuum cleaner
before performing any of these steps.
The nozzle hose carries the dirt from the
nozzle to the vacuum bag. If the hose
should become clogged:
Model: CPU-3QD
1. Remove the wand from the wand/hose
holder.
2. Squeeze the tabs on both sides of the
quick clean-out port and pull away
from the vacuum (Fig. 1).
3. Check above and below the port
opening for obstructions.
4. Remove any obstructions.
5. Replace the quick clean-out port by
squeezing both tabs and pushing the
hose back into the wand/hose holder.
Replace thewand.
Models: CPU-3N and CPU-4N
1. Pull out and turn the lid of the accessory
attachment opening. Remove the clog
or blockage (Fig. 2).
Model: CPU-4T
1. Pull out and turn the lid of the accessory
attachment opening. Remove the clog
or blockage (Fig. 2).
2. If the above step is not enough, remove
hose cuff from the attachment port
inlet (Fig. 3). If you haven’t located the
clog, turn the vacuum cleaner over
and remove the bottom plate. Check
nozzle inlet tube for obstructions
(Fig. 4). Clear tube and reinstall the
bottom plate.
HOW TO CLEAN THE NOZZLE HOSE
Fig. 1
Fig. 2
Fig. 3
Fig. 4

13
This vacuum cleaner comes equipped with a Manual Reset Thermal Fuse Protector.
The thermal protector is designed to protect the vacuum cleaner from overheating
due to a cutoff in airflow (i.e. clogged hose, operating the vacuum without a bag).
Should this situation occur, the thermal fuse protector will safely shut off the vacuum
cleaner to avoid any potential damage.
To Reset the Thermal Fuse
1. Unplug the vacuum cleaner.
2. Check for problem (over-filled bag, clog in hose, clogged filters, etc.).
3. Correct problem.
4. Locate “tripped” fuse — the small black button located on the lower left side
on the back of the main body (roughly one inch to the right of the left wheel).
5. Using a pencil, paper clip, or other pointy object, push the reset button.
6. Plug vacuum cleaner in and begin using.
Please return to a Service Center if the problem continues or if you have any questions.
THERMAL FUSE PROTECTION

14
PROBLEM CHECK POINT POSSIBLE SOLUTION
Vacuum won’t
turn on
Power Cord Plug unit in firmly.
House Fuse or Breaker Replace fuse/reset breaker.
Vacuum won’t
pick up or low
suction
Vacuum Bag Install new bag.
Filter Install new filter.
Hose Remove obstacle.
Dust escaping
from vacuum
Bag Compartment Cover Reinsert the cover and secure latch.
Filter Review filter installation (page 8).
Vacuum Bag Review bag installation (page 8).
Troubleshooting
WARNING! To reduce the risk of electrical shock or injury from moving parts, unplug
vacuum before servicing or cleaning.
CAUTION! To reduce the risk of electric shock, do not handle plug or appliance with
wet hands.
Any other service should be performed by an AuthorizedService Representative.
To locate your nearest Authorized Retailer, visit our website at
CarpetProVacuums.com or call 866-539-2099.
For Best Performance
• Keep machine and all accessories clean and in good operating condition.
• Change vacuum bags when they are 2/3 full to maintain optimum
cleaning efficiency.
• Change filters when dirt is visible on them or every six months if someone in your
home suffers from allergies. Otherwise, once a year should do for replacing the filters.
• Replace filters frequently if vacuuming fine powders such as flour or drywall dust.
• Always use genuine filters and parts, as use of other products may result in poor
cleaning or filtration performance. Genuine filtration products are designed
for maximum performance.
• Store machine carefully in a dry area.
• For optimum cleaning performance and safety, follow your owner’s manual instructions.
PROBLEM SOLVING GUIDE

15
WARRANTY
What is Covered:
This warranty covers any defects in material and workmanship in your new vacuum.
How Long Coverage Lasts:
Warranty coverage for the vacuum lasts one year. Household models used
commercially are only warranted for 90 days.
What is Not Covered:
• Damage to the vacuum which occurs from neglect, abuse, alterations, accident,
misuse or improper maintenance.
• Normal replacement items: disposable vacuum bags, disposable filters and belts.
What We Will Do:
This warranty provides, at no cost to you, all labor and parts to keep this vacuum
in correct operating condition during the warranted period.
How to Get Service:
Warranty service can only be obtained by presenting the vacuum to an Authorized
Carpet Pro Retailer. A proof-of-purchase and product serial number will be required
before service is rendered. To locate your nearest service center, please call 866-539-2099
or visit CarpetProVacuums.com.
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER WARRANTIES
WHETHER WRITTEN, ORAL, EXPRESSED OR IMPLIED, (INCLUDING ANY WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE). THIS WARRANTY
DISCLAIMS LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
How State Law Applies:
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Owner’s Warranty Information (keep this for your records…)
Store name
Store Address City State Zip
Telephone Date of purchase
Serial number Model number
Register your warranty online at CarpetProVacuums.com/Register.

Owner’s
Manual

Aspiradoras
Verticales de
Uso Doméstico y
Comercial
Owner’s
Manual
CPU-3QD
CPU-3N
CPU-4N
CPU-4T
Conserve estas instrucciones.
MANUAL DEL
USUARIO
