Carpet Pro SCBP-1 User manual

Owner’s
Manual
Model SCBP-1
Backpack Vacuum
Save These Instructions
OPERATING INSTRUCTIONS
COMMERCIAL
BACKPACK VACUUM CLEANERS
CONGRATULATIONS
YOU HAVE JUST ACQUIRED A HIGH QUALITY VACUUM
CLEANER. PLEASE READ THIS MANUAL CAREFULLY,
BEFORE OPERATING YOUR NEW VACUUM CLEANER.
KEEP MANUAL ON HAND FOR FUTURE REFERENCE.
Ultra
Lightweight
Household &
Commercial
Vacuums

Important Safety Instructions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Polarization Instructions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Parts Identification� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Replacement Bags and Belts � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
How to Assemble the Vacuum � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Vacuum Features � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
How to Change the Vacuum Bag � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
How to Remove/Install the Bottom Plate � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
How to Change the Headlight Bulb� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
How to Change the Belt � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
How to Replace the Squeegee � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
How to Reset the Circuit Breaker� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
Troubleshooting � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
For Best Performance � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Warranty � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
The model and serial numbers of this product may be found on the back side of the unit� You should complete the
enclosed warranty card and mail it back to us as soon as possible for your protection� Also, note the model and serial
numbers of your unit in the spaces provided below, and retain this book as a permanent record of your purchase�
Model Number _____________________________________________________________________________________
Serial Number ______________________________________________________________________________________
Date Purchased _____________________________________________________________________________________
Your vacuum cleaner is a product of high-quality materials and superior workmanship� We urge you to read these
operating instructions carefully before you use this vacuum cleaner in order to obtain the full performance and satisfaction
it can offer you�
Before you plug in your vacuum cleaner, make sure the voltage indicated on the rating plate located on the back of the
vacuum cleaner is the same as your local supply�
1
Index
Customer’s Record
Save These Instructions

2
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
When using an electrical appliance, basic precautions should always be followed, including the following:
SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of fire, electric shock or injury:
1� Do not leave appliance unattended when plugged in� Unplug from outlet when not in use and before servicing�
2� WARNING: ELECTRIC SHOCK COULD OCCUR IF USED OUTDOORS OR ON WET SURFACES�
3� Do not allow to be used as a toy� Close attention is necessary when used by or near children�
4� Use only as described in this manual�
5� Do not use with damaged cord or plug� If appliance is not working as it should, has been dropped,
damaged, left outdoors or dropped into water, return it to a service center�
6� Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners�
Do not run appliance over cord� Keep cord away from heated surfaces�
7� Do not unplug by pulling on cord� To unplug, grasp the plug, not the cord�
8� Do not handle plug or appliance with wet hands�
9� Turn off all controls before unplugging�
10� Do not put any object into openings� Do not use with any opening blocked; keep free of dust, lint, hair and anything
that may reduce air flow�
11� Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts�
12� Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes�
13� Do not use without vacuum bag in place�
14� Use extra care when cleaning on stairs�
15� Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present�
16� Do not attempt to service the unit while appliance is plugged in�
IMPORTANT SAFETY INSTRUCTIONS

3
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer�
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects
or other reproductive harm�
Two-Wire Polarized Cord
Household Model
This product is equipped with a polarized alternating current
line plug (a plug having one blade wider than the other).
This plug will fit into the power outlet only one way. This is a
safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the plug. If the plug should still fail to
fit, contact an electrician to replace the obsolete outlet. Do
not defeat the safety purpose of the polarized plug.
Three-Wire Polarized Cord
Commercial Model
This appliance must be grounded. If it should malfunction or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an
equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
This appliance is for use on a nominal 120 volt circuit and has
a grounding attachment plug that looks like the plug illustrated
in Fig. 1. Make sure that the appliance is connected to an
outlet having the same configuration as the plug. No adapter
should be used with this appliance.
WARNING - Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check with a
qualified electrician or service person if you are in doubt as
to whether the outlet is properly grounded. Do not modify the
plug provided with the appliance. If it will not fit the outlet,
have a proper outlet installed by a qualified electrician.
Fig. 1

4
Parts Identification
On/Off
Power Switch
Outer Bag
(To Access
Vacuum Bag)
Headlight
Household Model
Only
Quick Release
Cord Hook
Lower
Cord Hook
Furniture Guard
Circuit Breaker Reset Button
Self-Adjusting Nozzle
Power Cord
• Genuine Carpet Pro Paper Bags
Part # CPLW-P6, 6 per package
• Genuine Carpet Pro Belt Set
Part # CPLW-B2, 2 per package
Replacement Bags and Belts

5
Edge Cleaning
The edge cleaning feature provides improved cleaning near walls and stationary furniture� For
maximum edge cleaning, place the left side of the nozzle from the user’s perspective against the wall
or stationary furniture�
Automatic Carpet Height Adjustment
Your vacuum cleaner is designed with an automatic, self-adjusting nozzle� No manual adjustments are
required� The height of the nozzle is instantly and automatically adjusted to the flooring surface� This
self-adjusting feature allows the nozzle to float evenly over all flooring surfaces�
Commercial Model
Bare Floor Cleaning
Your vacuum cleaner comes equipped with a squeegee on the bottom of the vacuum to improve its
effectiveness in cleaning bare floors (figure 6)� When cleaning tile, hardwood, linoleum, etc�, use the
On setting, as opposed to the maximum power setting for best results�
Fig. 1
Fig. 2 Fig. 3
Fig. 4 Fig. 5
How to Assemble the Vacuum
Vacuum Features
Installing the Handle
The vacuum cleaner handle is packed as a separate component that requires assembly�
1� Release the handle bracket from the handle tube by removing the two screws
(figure 1)�
2� Place handle onto the handle tube, aligning holes with pegs (figure 2)�
3� Place the handle bracket back into position (figure 3)�
4� Secure with two screws removed in step 1�
5� Thread cord through cord guides and proceed with wrapping the cord (figures 4 & 5)�
6� Wrap the cord around the top and bottom cord hooks� Fasten the plug to the
wrapped cord using the channel on the plug� When not in use, store the vacuum
indoors in a clean, dry area where it cannot be damaged or cause injury�
Commercial Model
On/Off 2 Speed Switch
The switch, located on the vacuum handle, is a three-way switch� The middle position
is the Off setting, the rear position is the On setting and the forward position is for
maximum power�
Use the maximum power setting for carpet cleaning and the On setting for cleaning bare
floors and throw rugs�
Pull the switch backward to turn the vacuum on� Push the switch halfway back to turn
the vacuum off� Push the switch all the way forward to use the maximum power setting�
The vacuum cleaner should be turned off before returning the handle to its full upright
position� Always turn the vacuum cleaner off before unplugging it from the electrical
outlet�
Household Model
On/Off Single Speed Switch
The switch, located on the handle is a single speed switch� Push the switch forward to
turn the machine on� Push the switch back to turn the machine off�
Fig. 6

66
How to Change the Vacuum Bag
How to Replace the Headlight Bulb
How to Remove/Install the Bottom Plate
CAUTION: First, unplug the vacuum cleaner from the electrical outlet�
1� Unzip the outer cloth bag (figure 7)�
2� Remove the used bag by pressing the bag holder tab and pulling the bag off the
vacuum (figure 8)� Discard used bag�
3� To install the new bag, position the bottom of the bag collar into the bag collar
holder (figure 9)�
4� Push the top of the bag collar inward and secure it under the bag holder tab�
5� Zip the outer cloth bag closed�
CAUTION: First, unplug the vacuum cleaner from the electrical outlet�
To remove the bottom plate:
1� After unplugging the power cord, turn the vacuum cleaner over, exposing
the underside�
2� Press the two holding tabs inward (figure 10) releasing the bottom plate�
Remove the bottom plate�
To install the bottom plate:
1� Align the bottom plate hinges with the corresponding grooves (figure 11)�
2� Press plate into position until the plate “clicks” on both sides�
Fig. 11
Fig. 9
Fig. 8
Fig. 10
Household Model
CAUTION: First, unplug the vacuum cleaner from the electrical outlet�
1� First remove the nozzle housing� Turn the unit over to expose the underside� Locate the two main nozzle screws and remove both� Turn
the unit right side up� Locate the two nozzle tabs on the back of the unit and unlatch the nozzle housing� (Note: It is easier to remove
the nozzle when the vacuum is lying flat on its back�) Lift the nozzle housing off the unit to expose the light bulb�
2� Remove bulb by pulling it straight out of the light socket�
3� To install new bulb, simply reinsert the bulb into the light socket�
4� Place nozzle housing back onto unit with the front side of the nozzle set into place first then press the nozzle downward until nozzle
“clicks” into place on both sides� Turn unit over and reinsert main nozzle screws�
Fig. 7

7

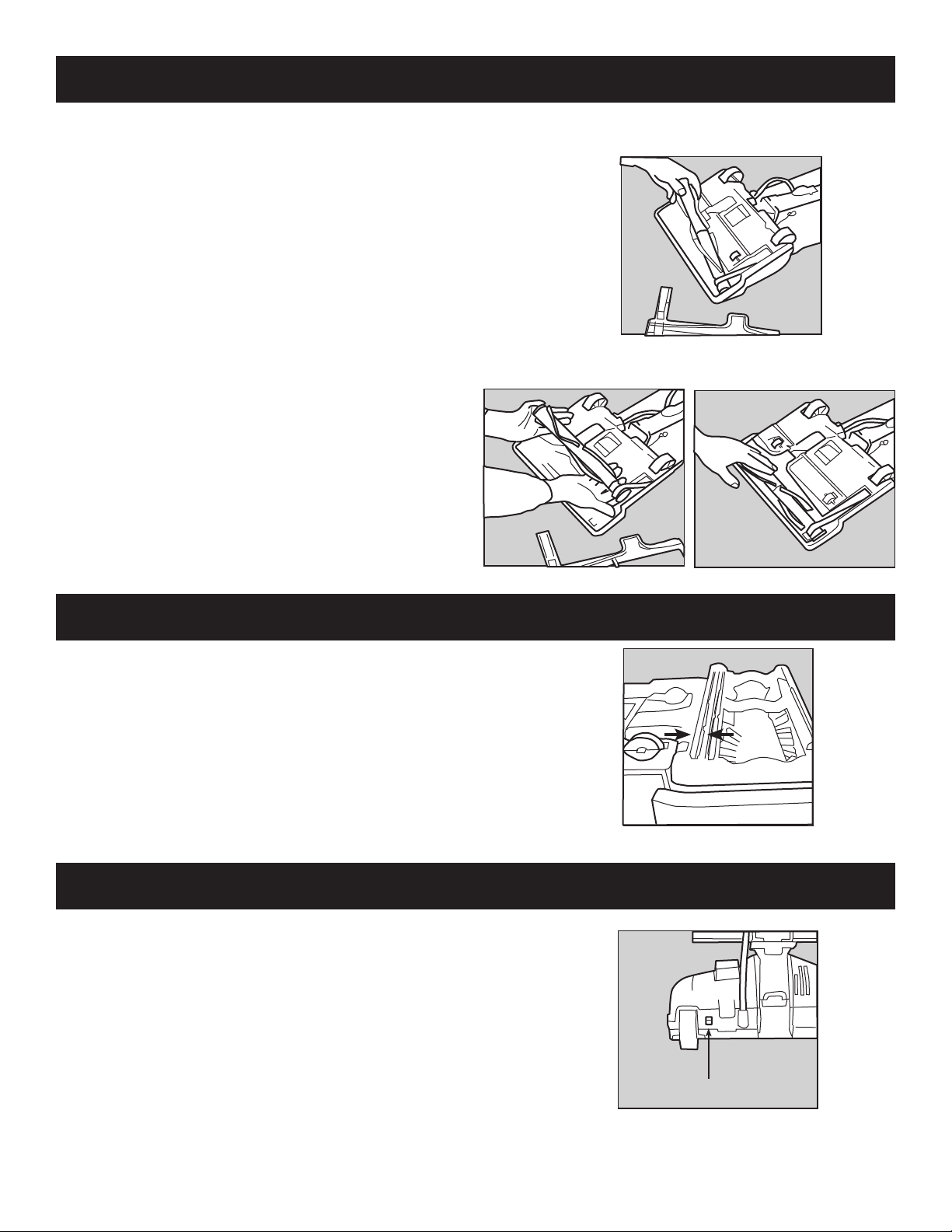

How to Change the Belt
How to Replace the Squeegee
How to Reset the Circuit Breaker
CAUTION: First, unplug the vacuum cleaner from the electrical outlet�
1� Turn the unit over and remove the bottom plate (see “How to
Remove the Bottom Plate”)�
2� Remove the brushroll and the worn or broken belt from the brushroll
pulley and the motor drive shaft (figure 12)�
3� Loop the new belt around the motor drive shaft and the brushroll
(figure 13)�
4� Reinstall the brushroll back into the nozzle� Turn the brushroll by
hand, making sure the belt is not twisted and all rotating parts
move smoothly (figure 14)�
5� Reinstall the bottom plate (see “How to Install the Bottom Plate”)�
NOTE: To ensure maximum cleaning efficiency, the belt should be
checked regularly to be sure it is in good condition� Check to see
if the belt is stretched, cracked, or if excessive slipping is occurring�
Replace if needed�
Commercial Model
If your squeegee splits or begins to look worn, simply remove the
worn squeegee from its track and slide a new one into the track
(figure 15)� If you have trouble installing the new squeegee, please
visit a Carpet Pro vacuum service center�
Your vacuum features a circuit breaker to protect the machine against
damage due to a surge in the electrical current� Electrical surging
can be a result of, though not limited to, a jammed brushroll (i�e�
vacuuming up a sock or throw rug) or a jammed motor fan�
Should your Carpet Pro vacuum cleaner experience a jammed
brushroll with the circuit breaker tripping, first press the On/Off
button to the Off position and unplug the unit� Inspect the brushroll by
removing the bottom plate (see “How to Remove the Bottom Plate”)
and remove any debris that may be causing the jam� Reinstall the
bottom plate (see “How to Install the Bottom Plate”), reset the circuit
breaker by pressing the Circuit Breaker Reset Button (figure 16), plug
in the power cord, and turn the unit on� If the unit fails to turn on, visit
a Carpet Pro vacuum service center�
Fig. 16
Circuit breaker
reset button
Fig. 15
Fig. 12
Fig. 13 Fig. 14

8
Troubleshooting Guide
For Best Performance
• Keep your vacuum clean and in good operating condition�
• Change vacuum bags when the bags are 2/3 full to maximize cleaning performance�
• Always use genuine Carpet Pro vacuum bags and replacement parts� Use of other products may result in poor cleaning
performance, potential vacuum cleaner damage and may void vacuum warranty� Genuine products are designed for maximum
cleaning performance�
• Have your vacuum cleaner checked periodically by a qualified vacuum technician�
• Store your machine carefully in a dry area�
• For optimum cleaning performance and safety, follow your owner’s manual instructions�
PROBLEM POSSIBLE REASON POSSIBLE SOLUTION
Vacuum won’t turn on� • Power cord not firmly plugged in
• Blown fuse or tripped breaker
• Needs service
• Plug unit in firmly
• Check house fuse or breaker�
Replace fuse/reset breaker�
• Visit a Carpet Pro service
center
Vacuum won’t pick up or low
suction�
• Vacuum bag full
• Broken belt
• Worn brushroll
• Install new bag
• Replace belt
• Replace brushroll
Dust escaping from vacuum� • Vacuum bag not installed
properly
• Install bag properly� Review
bag installation (page 6)
All other service should be performed at a Carpet Pro vacuum service center�

9
What is Covered:
This warranty covers any defects in material and workmanship in your new Carpet Pro
vacuum.
How Long Coverage Lasts:
Warranty coverage for your Carpet Pro Commercial and Household models lasts one year.
Household models used commercially are only warranted for 90 days.
What is Not Covered:
• Damage to the vacuum which occurs from neglect, abuse, alterations, accident, misuse
or improper maintenance.
• Normal replacement items: disposable bags, belts, squeegees and agitator brush strips.
What Carpet Pro Will Do:
This warranty provides, at no cost to you, all labor and parts to keep this vacuum in correct
operating condition during the warranted period.
How to Get Service:
Warranty service can only be obtained by presenting the vacuum to a Carpet Pro vacuum
service center. A proof-of-purchase and product serial number will be required before
service is rendered.
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER WARRANTIES
WHETHER WRITTEN, ORAL, EXPRESSED OR IMPLIED, (INCLUDING ANY WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE). THIS WARRANTY
DISCLAIMS LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
How State Law Applies:
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Warranty
Carpet Pro Vacuum Cleaners
PO Box 730
Fenton, MO 63026

10

B503-0400
10�16
Carpet Pro Vacuum Cleaners
PO Box 730
Fenton, MO 63026
©2016 Carpet Pro Vacuum Cleaners
