CARRARO Agricube User manual
Nuova gamma trattori Carraro
New Carraro Tractors Range
Stage IIIB
Manuale dell’operatore
Operator’s Manual
1
revision 2 date: 07/19 doc. AG475426
Speciali
1.1 NOTE GENERALI
1.1 GENERAL NOTES
Carefully READ THIS MANUAL to learn how to
correctly operate and service your machine. You can
hence avoid incidents or damage to the equipment.
THIS MANUAL SHALL BE CONSIDERED part of the
machine and shall accompany it whenever sold.
RIGHT-HAND (RH) and LEFT-HAND (LH) sides are
determined by facing in the direction the machine will
travel when going forward.
PRODUCT IDENTIFICATION NUMBERS shall
be written under the Specications sections or
Identication Numbers section. Carefully take note of
all numbers to help machine research in case of theft.
They are also useful for the Dealer for ordering spare
parts. Store the identication numbers in the manual,
at machine board.
SETTING FUEL DELIVERY BEYOND PUBLISHED
FACTORY SPECIFICATIONS or otherwise
overpowering will result in loss of warranty protection
for this machine.
BEFORE DELIVERING THIS MACHINE, your dealer
performed a pre-delivery inspection to ensure best
performance.
After the rst 50 working hours, arrange for an
inspection at a Dealer in order to ensure trouble-free
operation and top performance.
THIS TRACTOR IS DESIGNED SOLELY for use in
agricultural or similar use (“INTENDED USE”). Use in
any other way is considered as contrary to the intended
use (“unintended use”). The manufacturer accepts no
liability for damage or injury resulting from this misuse,
and these risks must be borne solely by the user.
Compliance with and strict adherence to the conditions
of operation, service and repair as specied by the
manufacturer also constitute essential elements for the
intended use.
THIS TRACTOR SHALL BE OPERATED, serviced and
repaired only by persons familiar with all its particular
characteristics and acquainted with the relevant safety
rules (accident prevention). Accident prevention
regulations, all other generally recognised regulations
on safety and occupational medicine and road trac
regulations must be observed at all times.
Warranty lasts for ........ months from date of
delivery of the vehicle.
Date of delivery of tractor
Dealer's stamp
revision 2 date: 07/19 doc. AG475426 1
Speciali
ATTENZIONE! SIATE ATTENTI
NE VA DELLA VOSTRA SICUREZZA!
1.2 GARANZIA
Any arbitrary modication carried out on this machine
will relieve the manufacturer of all liability for any
resulting damage or injury.
CAUTION! AVOID INJURY
SAFETY WARNING!
This symbol is used to draw your attention to the safety
rules the operator shall heed in order to avoid any
injury. When you see this symbol, pay attention to the
text nearby.
IN CASE THE TRACTOR IS RESOLD, MAKE SURE
THIS MANUAL ACCOMPANIES IT AT ALL TIMES.
This manual was laid out based on the most updated
information about the product as available when
this manual was being printed. The Company reserves
the right to make modications without prior notice and
without being obliged to any notice, at any time. The
indicated specications, dimensions and weights are
not binding and are no obligation for the Manufacturer.
Said instructions might contain mistakes.
1.2 WARRANTY
All brand new tractors are covered by a warranty
according to the regulations specied in the warranty
certicate released to the buyer when the machine is
delivered. Strictly heed the instructions in the warranty
certicate or the warranty will become null and void.
1
4revision 2 date: 07/19 doc. AG475426
Speciali
Norme di garazia:
Warranty Policy:
Correct operation is guaranteed for the duration of
the warranty period from the date of delivery. During
this period Carraro Agritalia will replace or repair free
of charge, excluding travel expenses, transportation
and labour, all parts of its production which may prove
useless due to materials or construction defects.
The warranty excludes all parts subject to normal wear
and ageing, and those parts manufactured by third
parties such as tires and engine, as their warranty is
the responsibility of their respective manufacturers
authorised services.
The warranty commitment is contingent upon receipt
of the certicate of delivery within 30 days from date of
purchase and of regular warranty slips execution.
This will not be valid if the machine has been tampered
withbyunauthorisedpersonnel;ifnotsuitablelubricants
or fuels have been used (see relevant section) or if
non-original spare parts have been tted. Also if use
and maintenance of the machine do not correspond
to those prescribed by Carraro Agritalia and those
reported on the use and maintenance manual, or
otherwise if carelessness or negligence is evident.
During the warranty period any replacement request
should be made to the dealer. The customer must still
commit to pay the price of the material used if Carraro
Agritalia Technical Service does not recognise their
defects after analysing the replaced parts.
However, in no case will claims entitle the buyer to
terminate the contract, to defer the payment or to require
an extension of the warranty, to claim compensation
for resulting damage and for productivity loss. Carraro
Agritaliaanditsorganisationsarenotliablefordamages
that may be caused to persons or property during the
use of the machine even if the accident results from
materials or construction defects.
Engine maintenance and repair must be performed
at authorised FPT garages. Contact your dealer for
further information on this regard.
Engine warranty limits
The warranty is void if specied regulations and
revision 2 date: 07/19 doc. AG475426 1
Speciali
Limiti di garanzia sul motore
Parti utilizzate per l’assistenza
Assistenza terminato il periodo di garanzia
instructions for engine use and maintenance have not
been complied with.
Moreover, the warranty is terminated in the following
cases:
- repairs carried out at unauthorised workshops
- replacement of original parts with non-original
parts
- tampering with and / or modications on the
engine or injection system components
- changes in the installation of the engine not
authorised by FPT
- use of fuels and lubricants not conforming to the
specications of FPT
- Installation of unauthorised accessories
- failure to comply with the requirements and
maintenance intervals
Replacement parts
Non-genuine spare parts could have a poorer quality
than the set standards. The Company declines any
and all liability for damage, injury or assumption of
responsibility due to the use of said non-approved
parts. Using said parts could lead to Manufacturer
warranty becoming null and void.
The Client shall check the machine and replace or
repair any worn out or damaged parts whenever
continuous use could lead to parts damage or wear.
The Client is also responsible for taking the machine
to an authorised Dealer for servicing or replacing any
parts covered by the warranty.
Should the Client, for his own convenience, request the
Dealer to go to another centre, or to have the machine
overhauled at the Dealer's service centre for servicing
or inspections under warranty, all travel expenses are
at the Client's charge.
Servicing after warranty expiry
During the warranty period, all repairs and servicing
shall be performed by the authorised Dealer. This
assurescarefulinspectionofperformanceandprogress
throughout the tractor's life.
In order to obtain top performance from the tractor
you purchased, it is important to continue carrying out
suitable scheduled maintenance and servicing even
after the warranty has expired.
Apply to your local dealer for all key servicing
interventions required for the tractor; the presence
1
6revision 2 date: 07/19 doc. AG475426
Speciali
of an expert mechanic ensures spotting any possible
problems that might occur in-between two inspections.
Mechanics are continuously trained and updated about
product specications, servicing techniques and the
use of the modern service and diagnosis equipment.
Dealers regularly receive Service Bulletins, have the
Service Manuals and are aware of all information to
ensure that any repair or servicing complies with the
Manufacturer's standards.
2
revision 2 date: 07/19 doc. AG475426
Speciali
2.1 IDENTIFICAZIONE DEL VEICOLO
VIN Numero di identicazione veicolo
Targhette di identicazione
Numero di identicazione del prodotto
Numero di identicazione del prodotto
…………………………………
2.1 VEHICLE IDENTIFICATION
VIN Vehicle identication number
The vehicle identication number (1) is marked on front
axle support on rear side.
Nameplates
All tractors come with the following nameplates.
Letters and numbers on the nameplates identify a
component or an assembly. All these characters are
required when ordering spare parts and identifying a
tractor or a component. They are also essential by law
to nd the tractor in case of theft. Accurately take note
of these characters in the relevant spaces.
Product identication number
Nameplate (1) bearing the tractor identication number
is at the front end of the vehicle.
Identication plate location and dimensions can vary
according to the various regulations applicable in some
countries.
Product identication number
…………………………………
2
revision 2 date: 07/19 doc. AG475426
Speciali
Numero di identicazione della struttura di
protezione
Numero di identicazione della
struttura di protezione
………………………………
Protection structure identication number

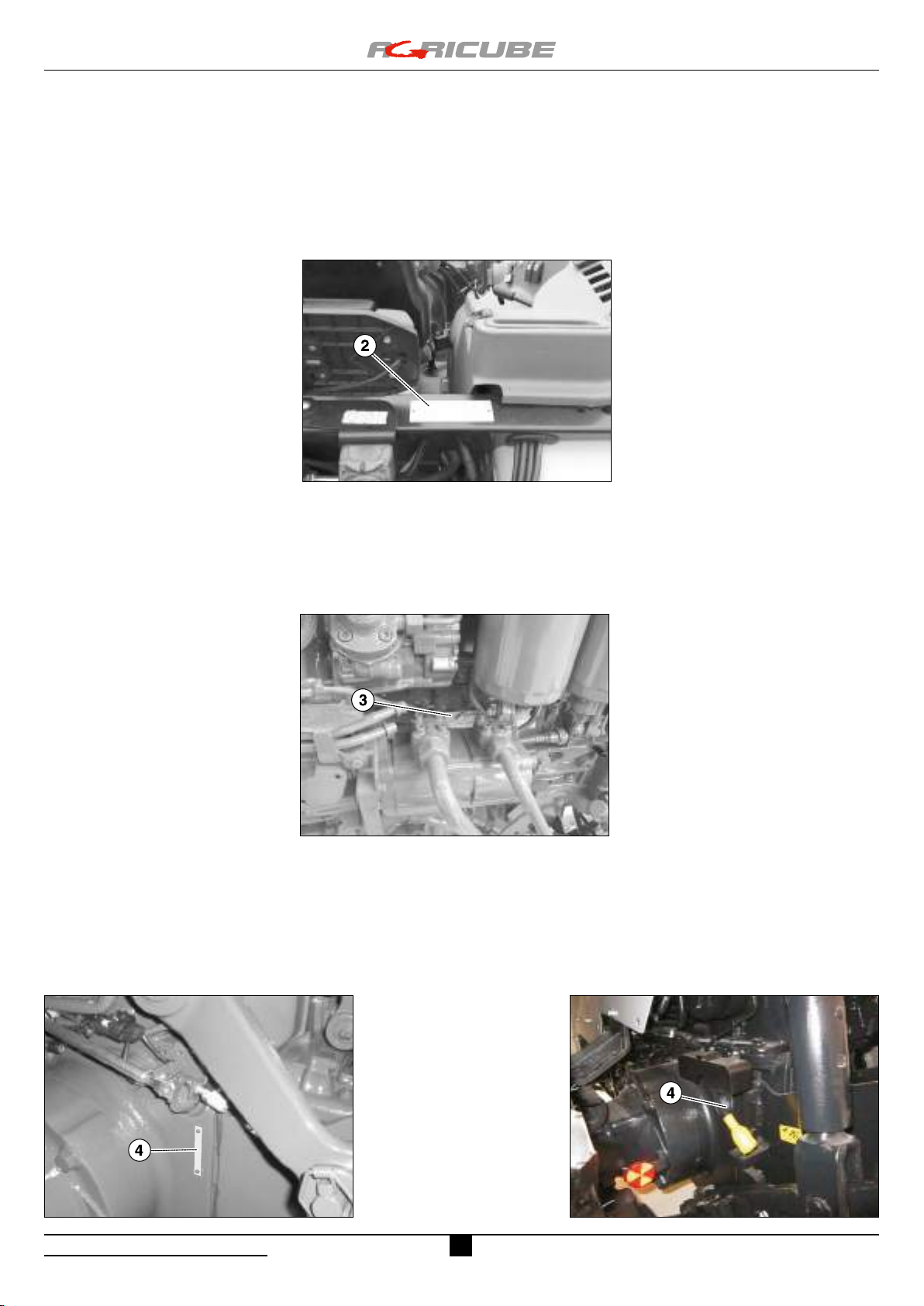

Nameplate (2) bearing the tractor identication number
is at the rear end of the vehicle.
Identication plate location and dimensions can vary
according to the various regulations applicable in some
countries.
Protection structure identication
number
…………………………………
Numero di serie motore
Numero di serie motore
……………………………………
Engine serial number
Nameplate (3) bearing the engine serial number is on
the engine LH side.
Engine serial number
…………………………………
Numero di serie della trasmissione
Numero di serie della trasmissione
………………………………
Transmission serial number
Nameplate (4) bearing the transmission serial number
is at the back of the machine, in the top LH corner of
the gearbox.
Transmission serial number
…………………………………
2
4revision 2 date: 07/19 doc. AG475426
Speciali
Numero di serie dell’assale
Numero di serie dell’assale
……………………………
Axle serial number

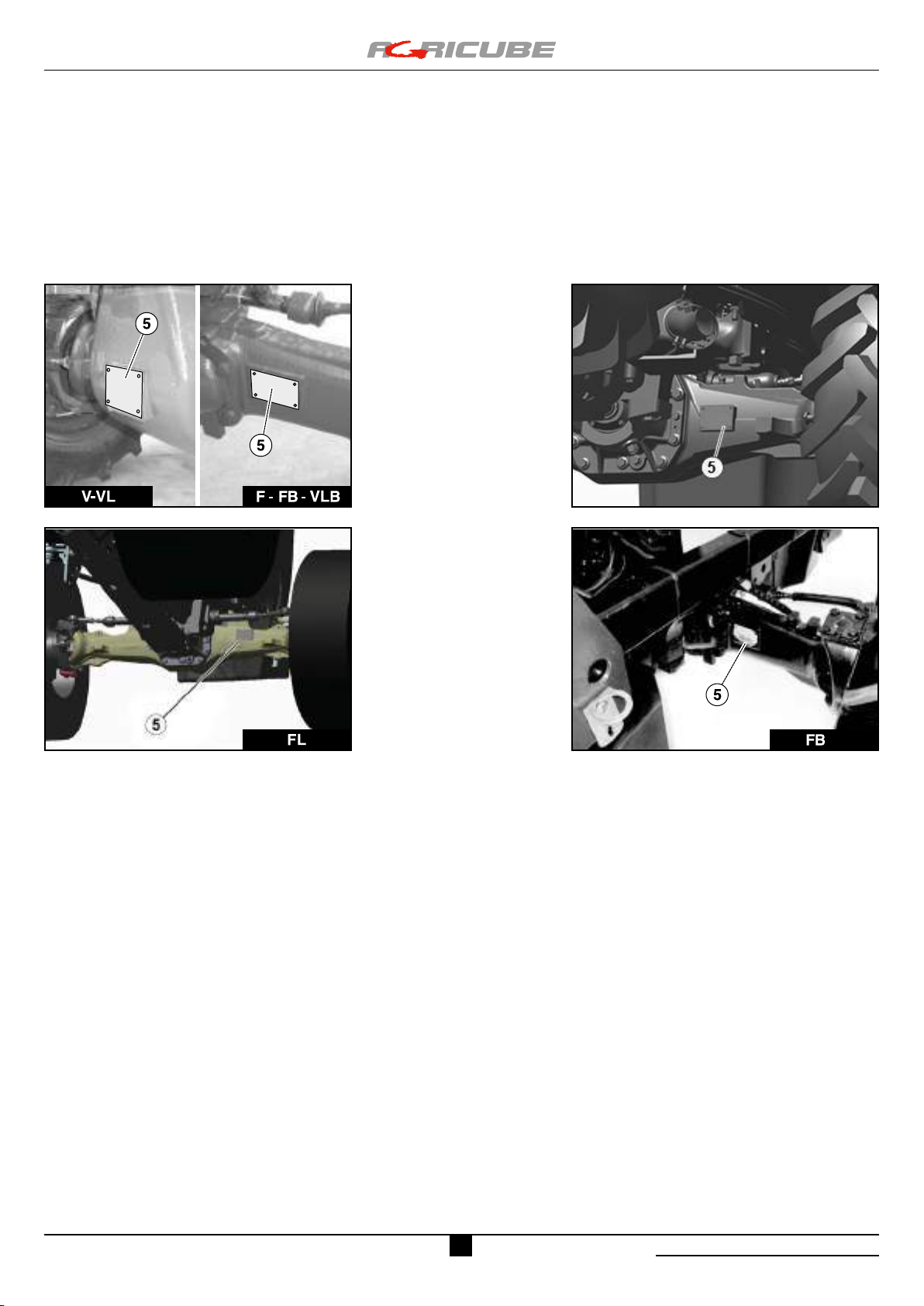

Nameplate (5) bearing front driving axle serial number
is at the rear RH side of the axle, or at the rear cetral
side.
Axle serial number
…………………………………
2
revision 2 date: 07/19 doc. AG475426
Speciali
Targhetta di identicazione dell’assale anteriore
sospeso
NDescrizione Description
1 Manufacturer model/type
Manufacturer reference
Manufacturer serial number
4 Manufacturer reference
Input shaft rotation direction
6 Gear ratio
Dierential type
Volume of oil in the dierential gearbox
Volume of oil in the nal drives
Suspended front axle identication plate

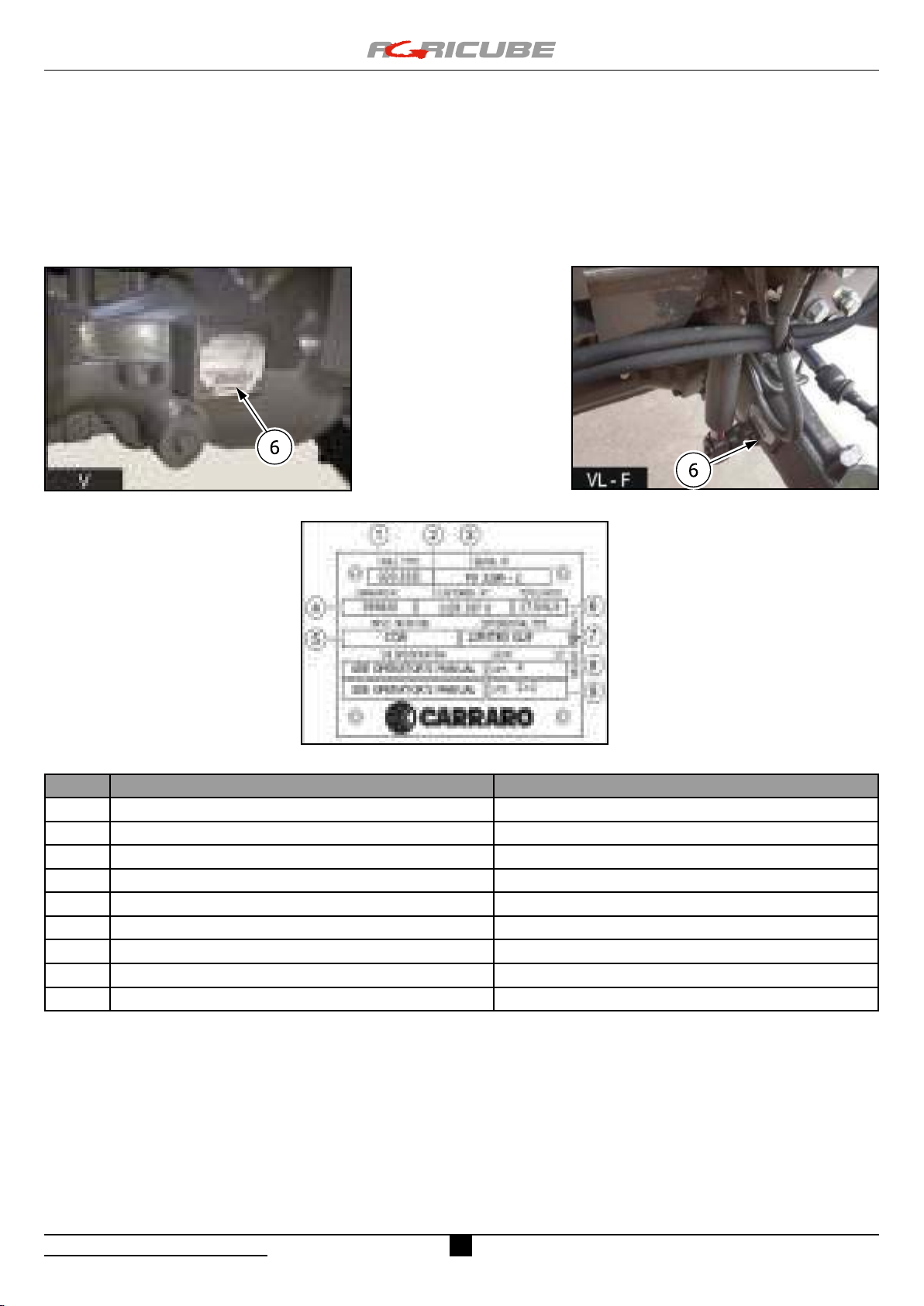

The suspended front axle identication plate (6) is
located on the front right-hand side (V model) or on
the rear right-hand side (VL and F models) of the
suspended front axle.
1
3
revision 2 date: 07/19 doc. AG475426
Speciali
3 MISURE DI SICUREZZA
3.1 Foreword 3
3.2 Forestry applications 5
3.3 Precautions before starting 5
3.4 Wear safety gear 6
3.5 Noise protections 6
3.6 Proper use of steps and hand grips 6
3.7 Tractor conditions 7
3.8 Adjustments or maintenance operations 7
3.9 Hydraulic system 8
3.10 Electrical system 9
3.11 Fuel 10
3.12 Safe maintenance of the cooling system 10
3.13 Setting the machine on supports 11
3.14 Road circulation 12
3.15 Road transport 13
3.16 Safe towing 13
3.17 Tractor track 13
3.18 Roll over protection structures (ROPS) 14
3.19 Falling objects protection structure (FOPS) 15
3.20 Using the front loader on tractors with cab 15
3.21 Using the front loader on tractors without cab 16
3.22 Using of HSC movement system 16
3.23 General precautions to implement when working
with a front loader 17
3.24 Protection structures against penetration of
objects (OPS) 18
3.25 Attachments and accessories 18
3.26 Stay clear of rotating drivelines 19
3.27 Using the safety belt 19
3.28 Passengers 19
3.29 Stationary jobs 20
3.30 Harmful products 20
3.31 Filtering rate 21
3.32 Air conditioning system 22
3.33 Fuel circuit 22
3.34 Handling waste product 23
3.35 Servicing tyres safely 24
3.36 Tightening wheel nuts and bolts 24
3.37 Parking the tractor safely 24
3.38 Towing the ehicle 24
3.39 Transporting the vehicle on a truck 25
3.40 Data sheet on tractor's vibration level - hazards
due to exposure to vibrations 26
3.41 Instruction and safety labels 27
3 SAFETY RULES
3
revision 2 date: 07/19 doc. AG475426
Speciali
353.42 Emergency exit
3.43 Emergency exit (Low Prole cab version) 36
3
revision 2 date: 07/19 doc. AG475426
Speciali
3.1 PREMESSA
AVVERTENZA
ATTENZIONE: I trattori Agricube VLB NON
sono dotati di struttura di protezione OPS
3.1 FOREWORD
CARRARO AGRICUBE tractors are designed and
manufactured to oer trouble-free performance for
many years. We developed them to oer the best
working conditions possible for both comfort and
safety. Agricultural work always involves various
hazards. Therefore it is better to be aware of them
and act accordingly. Please note the following points
requiring your utmost attention (not limited to these).
Please contact your dealer for any further information
about the tractor.
WARNING
This tractor is designed solely for use in customary
agricultural or similar use (“intended use”). Use in any
other way is considered as contrary to the intended
use (“unintended use”). The manufacturer accepts no
liability for damage or injury resulting from this misuse,
and these risks must be borne solely by the user.
The tractor is designed to drive, carry and activate
various attachments towed or mounted, however within
specic physical restraints. Use the tractor solely for the
specic operations it was designed for: push, pull, tow,
drive and carry various interchangeable attachments
conceived for agricultural works.
Use of tractors in forestry is limited to specic
applications such as transport, stationary works (such
as log splitting), propulsion or equipment with PTO,
electrical or hydraulic system. Normal operations for
these applications do not entail any risk of falling or
cutting objects. Any forestry application dierent from
the above, such as moving forward and loading, requires
adjustment of the specic components according to
application (FOPS, Falling Object Protection Structure
and/or OPS, Operative Protective Structures).
CAUTION: Agricube VLB tractors are NOT
equipped with OPS protection structure.
Working speed and performance might be aected by
several factors such as climate and soil conditions.
Even though the tractor is designed for use of various
equipment combinations, dierent factors might
considerably limit the tractor and or the mounted or
towed attachments performance.
3
4revision 2 date: 07/19 doc. AG475426
Speciali
Do not use the tractor for other purpose than the
manufacturer's intended one as specied in this
manual.
Before starting the engine or an operation, make sure
nobody is standing by the tractor, the attachments and
the work area. Never set your hands, feet and clothes
close to the moving components.
Failure to strictly abide by these precautions when
using the tractor or improper use could lead to serious
injury. Pay attention to the hazards deriving from tractor
use. Most common injury cases are due to:
• Tractor tipping over
• Collisions with motor vehicles
• Non-conforming starting procedures
• Entangling in PTO shafts
• Fall from the tractor
• Crushing and injury when mounting attachments
To avoid injury, take the precautions below:
• Never jump on or o the tractor while it is moving.
• Keep children and any unauthorised sta away
from the tractors and all attachments.
• Drive the tractor only using type-approved seats
with safety belt.
• Ensure all protections / covers are duly in place.
• Usesuitablevisualandacousticwarningindications
when working on public roads.
• Move to the side of the road before stopping.
• Decrease speed when steering, applying one
brake at a time or working on bumpy or dangerous
steep sloping ground.
• Couple brake pedals together when driving on the
road.
• Pump on brake pedal to stop on slippery ground.
• Pay attention when towing heavy loads and
stopping. Stopping distance increases with speed,
weight of towed load and downhill slope. Towed
load, with or without brakes, if too heavy for the
type of tractor or towed at too high a speed could
make you lose control of the tractor. Consider
overall equipment and load weight.
• Fix any towed load solely to the approved devices
or the vehicle might tip back.
3
revision 2 date: 07/19 doc. AG475426
Speciali
NOTA: Non è possibile elencare tutti i rischi
potenziali.
3.2 APPLICAZIONI FORESTALI
3.3 PRECAUZIONI DA OSSERVARE PRIMA
DELLA MESSA IN MOTO
• Engage the parking mechanism (e.g. parking pawl,
parking brake).
• Before getting o, stop the engine, move
attachment down to the ground and securely
engage the parking mechanism (e.g. parking pawl,
parking brake). After that, also remove the key
if leaving tractor unattended. If you leave a gear
engaged with engine stopped, tractor movement is
NOT inhibited.
• Disable all hydraulic distributors.
• Disengage the PTO.
• Keep away from the PTO or attachments in
operation.
• Before any maintenance intervention to the
machine, wait until all movements halt.
• This tractor is not designed for use as recreational
vehicle.
• The tractor can be equipped with various safety
control sensors. Tripping of these sensors
establishes safety operating conditions. Do not
try to disable these functions since this might lead
to serious danger and tractor might respond in an
unpredictable way.
NOTE: It is not possible to list all potential risks.
3.2 FORESTRY APPLICATIONS
Standard tractors do not oer sucient protection
against forestry application risks such as trees or
branches falling on the protection structure and
penetration of objects into the protection structure.
3.3 PRECAUTIONS BEFORE STARTING
Before starting the engine, make sure all controls
are set to neutral position, especially the power
take-o lever. Start the engine only in well ventilated
environment. Before starting the tractor, ensure that
nobody is standing nearby. Completely loosen the
hand brake before moving o. Do not approach any job
if tractor conditions are not satisfactory.
3
6revision 2 date: 07/19 doc. AG475426
Speciali
3.4 INDOSSARE GLI INDUMENTI DI
SICUREZZA
3.5 PROTEGGERSI DAL RUMORE
3.6 USO CORRETTO DEI GRADINI E DEGLI
APPIGLI PER LE MANI
ATTENZIONE:
Pericolo di caduta!
Salire o scendere dalla macchina potrebbe
causare infortuni. Utilizzare sempre scalini e
corrimano, girarsi con la faccia verso la cabina, e
salire e scendere lentamente. Mantenere sempre
un contatto con tre punti del corpo per evitare
cadute: entrambe le mani sui corrimano ed un
piede sullo scalino, oppure una mano sul corrimano
e due piedi sugli scalini. Il mancato rispetto
dell’avvertenza potrebbe causare seri infortuni o
morte.
Salire e scendere dalla macchina utilizzando
soltanto gli accessi specicati ed equipaggiati con
un corrimano, scalini o scaletta.
Non saltare dalla macchina.
Controllare che gli scalini, la scaletta e le
piattaforme rimangano pulite e libere da detriti e
materiale estraneo. Aree scivolose possono essere
causa di incidenti.
Non salire o scendere mai dalla macchina in
movimento. Non utilizzare il volante o altri controlli
della macchina come corrimano durante la salita o
la discesa dalla macchina.
3.4 WEAR SAFETY GEAR
Wear close tting clothing and safety equipment
appropriate for the job. Operator's full attention is
required to work in safety conditions. Do not wear
earphones for radio or music when operating the
machine. DO NOT wear loose clothes, jewels or other
objects and gather up your hair, if long, since it could
get entangled in the controls or other tractor parts.
3.5 NOISE PROTECTIONS
Prolongedexposuretoloudnoisecancauseimpairment
or loss of hearing. To protect yourself against loud
noise, use a suitable ear protector such as earmus
or ear plugs.
3.6 PROPER USE OF STEPS AND HAND GRIPS
To avoid any fall, always face the machine when
getting on and o. Keep 3 support points using steps
and handrail. Never hold onto machine controls. Be
extremely careful when mud, snow or humidity create
slippery conditions. Keep steps clean and free from oil
or grease. Never jump o the machine. Never jump on
or o the vehicle while it is moving.
WARNING:
Fall hazard!
Jumping on or o the machine could cause
an injury. Always face the machine, use the
handrails and steps, and get on or o slowly.
Maintain a three-point contact to avoid falling: both
hands on the handrails and one foot on the step, or
one hand on the handrail and both feet on the
steps. Failure to comply could result in death or
serious injury.
Get on and o the machine only by using the
speci c accesses equipped with a handrail, steps
or ladder.
Do not jump o the machine.
Check that the steps, ladders and platforms remain
clean and clear of debris and foreign matter.
Slippery areas can be a cause of accidents.
Never get on or o the machine while in movement.
Do not use the steering wheel or any other controls
oraccessories as a handrail when getting into or
out of the cab.
Table of contents
Other CARRARO Tractor manuals
Popular Tractor manuals by other brands
NMC-WOLLARD
NMC-WOLLARD MB-4 200-DF Operation, maintenance and parts manual
Wheel Horse
Wheel Horse 854 Operation and Service Manual with Parts List
Kubota
Kubota LA535 Assembly instructions
EP Equipment
EP Equipment QDD10L Operation manual
Husqvarna
Husqvarna DXR140 Operator's manual
Claas
Claas ARES 547 Use and maintenance
Simplicity
Simplicity 7016 parts manual
NMC-WOLLARD
NMC-WOLLARD 100 Operation, maintenance and parts manual
New Holland
New Holland Sidewinder II T7.230 AutoCommand Operator's manual
Taylor-Dunn
Taylor-Dunn TC-030-60L Operation, Maintenance, and Replacement Parts Manual
New Holland
New Holland T7.140 Service manual
Volvo
Volvo G970, G976, G990 Brochure & specs
