Carrier Taylor C300 NP User manual

Model C300 NP
Non-Pressurized
Slush Freezer
Operating Instructions
055072NP 9/22/06

Complete this page for quick reference when service is required:
Taylor Distributor:
Address:
Phone:
Fax:
E-mail:
Service:
Parts:
Date of Installation:
Information found on the data label:
Model Number:
Serial Number:
Electrical Specs: Voltage Cycle
Phase
Maximum Fuse Size: A
Minimum Wire Ampacity: A
ESeptembe
r
, 2006 Taylo
r
All rights reserved.
055072NP
The word Taylor and the Crown design
are registered trademarks in the United States
of America and certain other countries.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

Model C300 NP Table of Contents
Table of Contents
Section 1 To the Installer 1............................................
Air Cooled Units 1.......................................................
Water Cooled Refrigeration Units (Water Cooled Units Only) 1................
Water Connections 1....................................................
Electrical Connections 1.................................................
Section 2 To the Operator 3...........................................
Compressor Warranty Disclaimer 3.......................................
Section 3 Safety 4....................................................

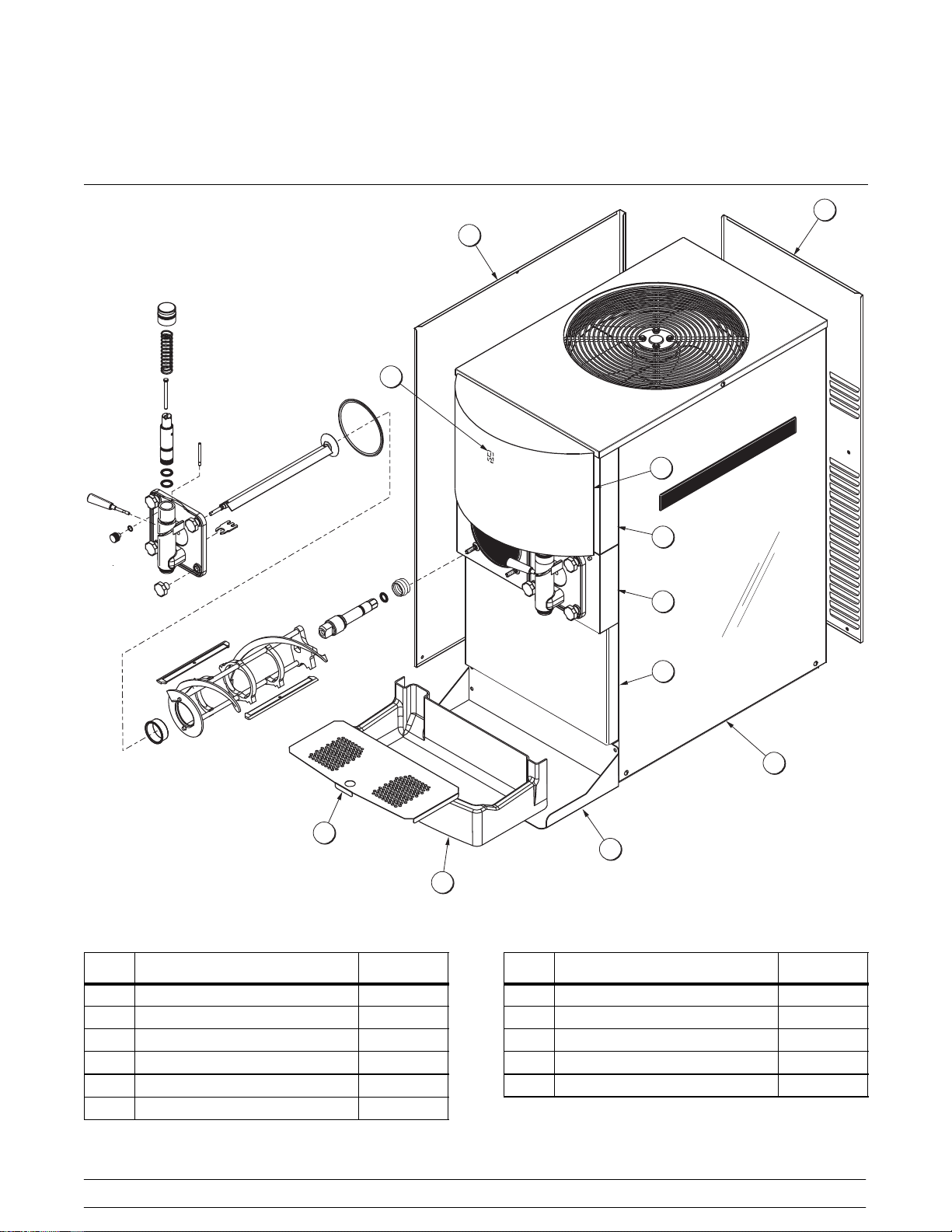

Section 4 Operator Parts Identification 6...............................
Beater Door Assembly 7.................................................
Accessories 8..........................................................
Section 5 Important: To the Operator 9.................................
Symbol Definitions 9....................................................
Control Switch 10........................................................
Liquid Crystal Display 10..................................................
Operational Mode Display 10..............................................
Operator Menu Display 10................................................
Syrup Out Indicator 15....................................................
CO2 Out Indicator 16.....................................................
Water Out Indicator 16....................................................
Audio Alarm Silencer 16..................................................
Product Light 16.........................................................
Sampling Valve 16.......................................................
Daily Procedures 16......................................................
Section 6 Operating Procedures 17.....................................
Assembly 17............................................................
Sanitizing 21............................................................
Priming/Brixing 23........................................................
120 Day Closing Procedure 25............................................
Draining Product From the Freezing Cylinder 25.............................
Rinsing 26..............................................................
Cleaning 26.............................................................
Disassembly 27..........................................................
Brush Cleaning 28.......................................................

Table of Contents Model C300 NP
Table of Contents - Page 2
Section 7 Important: Operator Checklist 29..............................
During Cleaning and Sanitizing 29.........................................
Troubleshooting Bacterial Count 29........................................
Regular Maintenance Checks 29...........................................
Winter Storage 30........................................................
Section 8 Troubleshooting Guide 31....................................
Section 9 Parts Replacement Schedule 33...............................
Section 10 Parts List 34.................................................
Wiring Diagrams 43......................................................
Note: Continuing research results in steady improvements; therefore, information
in this manual is subject to change without notice.
ESeptembe
r
, 2006 Taylo
r
All rights reserved.
055072NP
The word Taylor and the Crown design
are registered trademarks in the United States
of America and certain other countries.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

1
Model C300 NP To the Installer
071010
Section 1 To the Installer
The Model C300NP is designed for indoor use only.
DO NOT installthemachineinanarea
where a water jet could be used. Failure to follow
this instruction may result in serious electrical shock.
Air Cooled Units
Air cooled units require a minimum of 3” (76 mm) of
air space on the rear and left side to the top of the
unit, 0” on the right side, and 12” (305 mm) to the
ceiling. This is required to allow for adequate air flow
through the condenser(s). Failure to allow adequate
clearance can reduce the refrigeration capacity of
the freezer and possibly cause permanent damage
to the compressor(s).
Water Cooled Refrigeration Units
(Water Cooled Units Only)
On the back of the unit, two additional 3/8” (9.5 mm)
F.P.T. water connections for condenser inlet and
outlet have been provided for easy hook-up. 3/8”
(9.5 mm) inside diameter water lines should be
connected to the machine. Flexible lines are
recommended if local codes permit. Failure to use
adequate size water lines may cause the unit to go
on high head pressure and shut down.
Depending on local water conditions, it may be
advisable to install a water strainer to prevent
foreign substances from clogging the automatic
water valve.
DO NOT INSTALL A HAND SHUT-OFF VALVE ON
THE “OUT” LINE! Water cooled units are counter
flow and the water should flow in this order: First
through the automatic water valve. Second, through
the inlet located at the bottom of the condenser.
Third, through the outlet fitting located at the top of
the condenser toanopentrapdrain.
IMPORTANT: Water pressures are pre-set at the
factory. Do not adjust the water pressure.
Improper water adjustments may cause operation
discrepancies.
Water Connections
An adequate cold water supply must be provided
with a hand shut-off valve. On the back of the unit, a
3/8” (9.5 mm) male flare water connection has been
provided for easy hook-up. A flexible line is
recommended, if local codes permit. A minimum of
25 psi water pressure is required to avoid having the
unit cut out the low water pressure switch. A booster
pump must be provided if this pressure is not
available. It is always a good practice to have a filter
system to improve the quality of the water and to
avoid clogging the operating components.
Note: Water lines beyond 200 ft. (61 m) require 1/2”
(13 mm) water lines.
INSTALL POTABLE WATER CONNECTION
WITH ADEQUATE BACK-FLOW
PROTECTION TO COMPLY WITH
APPLICABLE NATIONAL, STATE AND
LOCAL CODES.
It is always a good practice to have a filter system to
improve the quality of the water and to avoid
clogging the operating components.

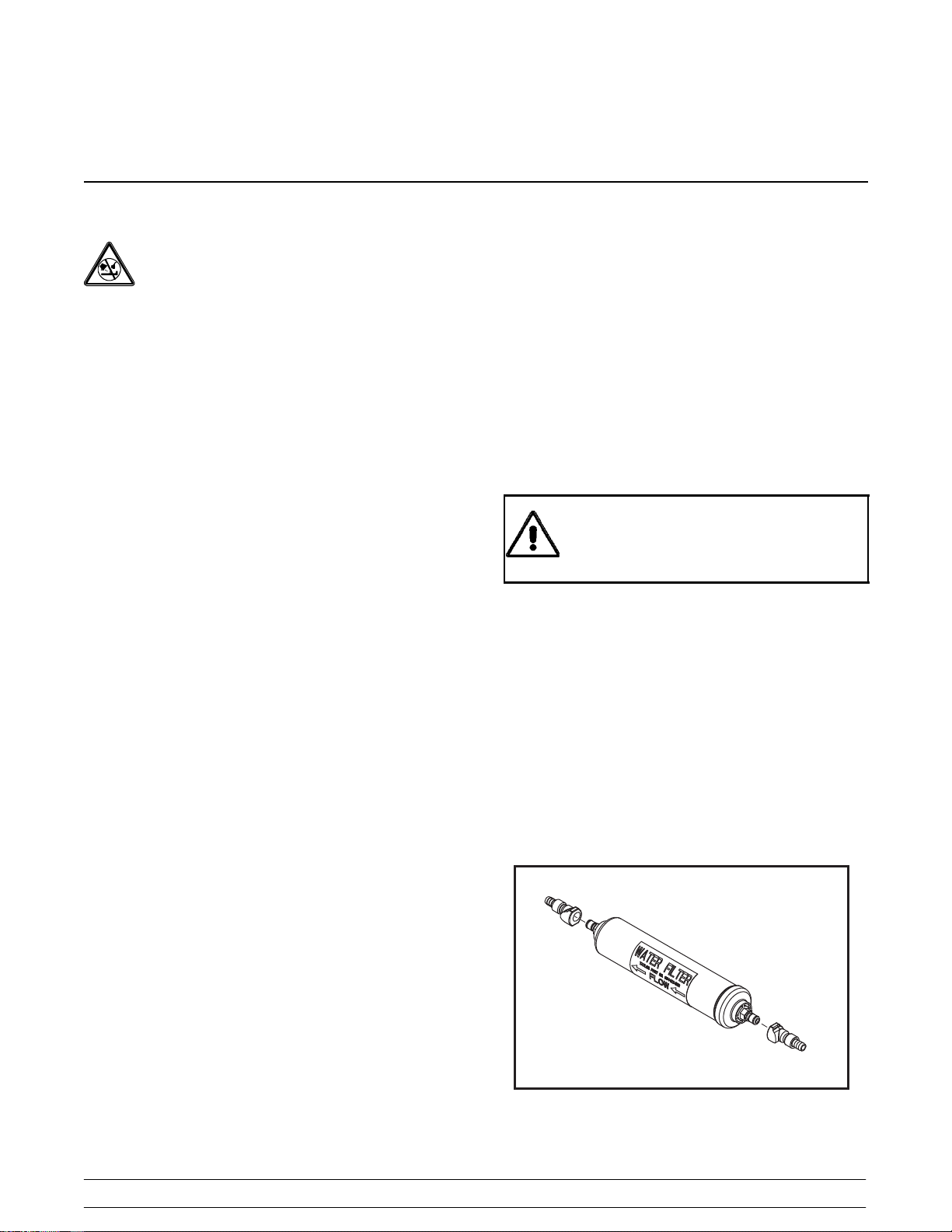

IMPORTANT: The water filter (064422-SER) must
be thoroughly flushed with water before connecting it
to the machine. This removes any loose particles
present from the manufacture of the filter that could
clog the flow control. To flush the filter, connect the
inlet end of the filter to the water supply. Position the
outlet end of the filter over an empty pail. Open the
water supply. Allow water to flow through the filter
until the water exiting the filter is clear. Close the
water supply. Attach the outlet end of the filter to the
machine. Reopen the water supply.
Figure 1

2Model C300 NPTo the Installer
Electrical Connections
Each freezer requires one power supply. Check the
data label on the freezer for fuse, circuit ampacity
and electrical specifications. Refer to the wiring
diagram provided inside of the control box, for
proper power connections.
In the United States, this equipment is intended to
be installed in accordance with the National
Electrical Code (NEC), ANSI/NFPA 70-1987. The
purpose of the NEC code is the practical
safeguarding of persons and property from hazards
arising from the use of electricity. This code contains
provisions considered necessary for safety.
Compliance therewith and proper maintenance will
result in an installation essentially free from hazard!
In all other areas of the world, equipment should be
installed in accordance with the existing local codes.
Please contact your local authorities.
Stationary appliances which are not equipped with a
power cord and a plug or other device to disconnect
the appliance from the power source must have an
all-pole disconnecting device with a contact gap of at
least 3 mm installed in the external installation.
CAUTION: THIS EQUIPMENT MUST BE
PROPERLY GROUNDED! FAILURE TO DO SO
CAN RESULT IN SEVERE PERSONAL INJURY
FROM ELECTRICAL SHOCK!

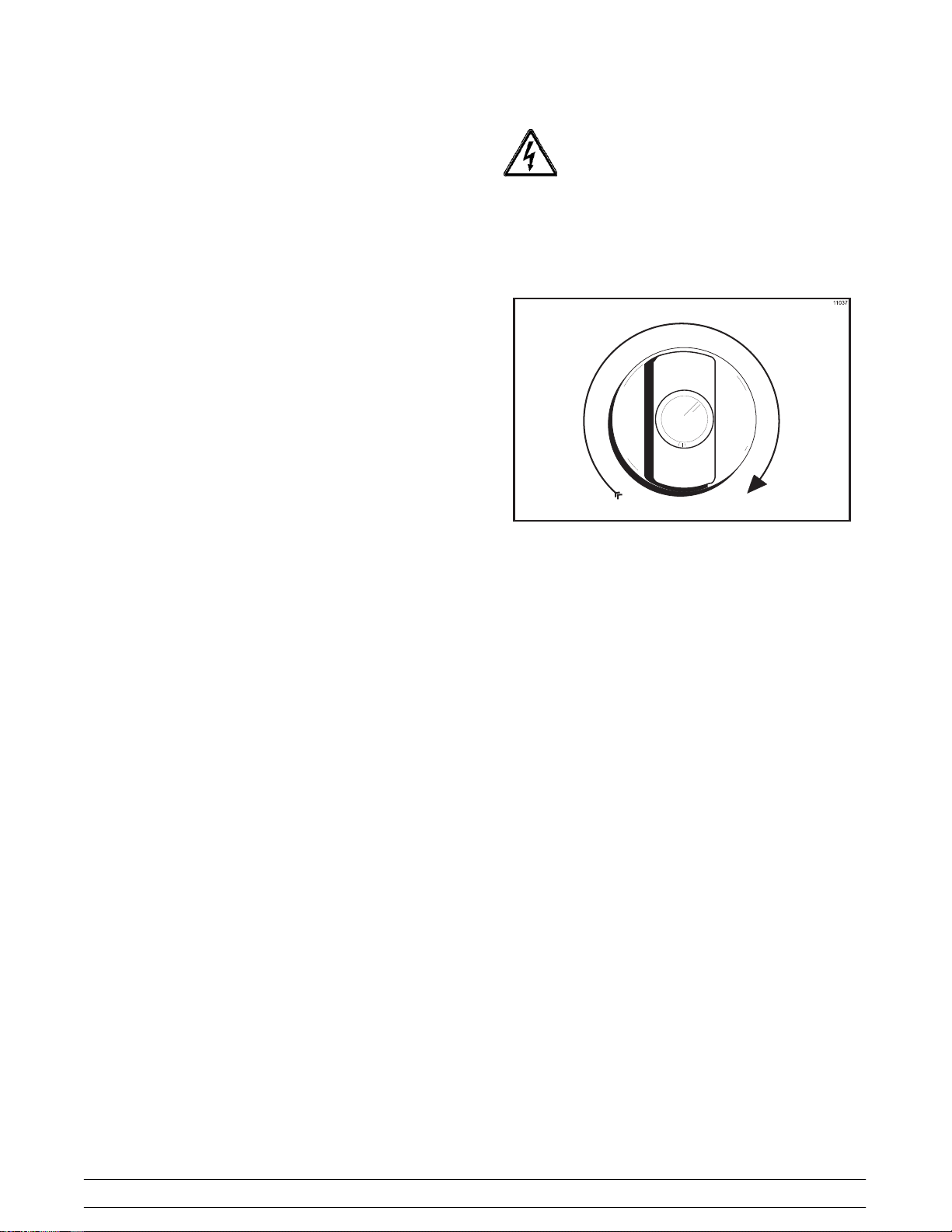

Beater rotation must be clockwise as viewed looking
into the freezing cylinder.
Figure 2
The following procedures should be performed by a
trained service technician:
To correct rotation on a single-phase unit, change
the leads inside the beater motor. Follow the
diagram printed on the motor. (Note: Three-phase
units have single-phase motors.)

3
Model C300 NP To the Operator
061128
Section 2 To the Operator
The freezer you have purchased has been carefully
engineered and manufactured to give you
dependable operation.
The Model C300NP, when properly operated and
cared for, will produce a consistent quality product.
Like all mechanical products, this machine will
require cleaning and scheduled maintenance. A
minimum amount of care and attention is necessary
if the operating procedures outlined in this manual
are followed closely.
This Operator’s Manual should be read before
operating or performing any maintenance on your
equipment.
Your freezer will NOT eventually compensate and
correct for any errors during the set-up or filling
operations. Thus, the initial assembly and priming
procedures are of extreme importance. It is strongly
recommended that all personnel responsible for the
equipment’s operation study these procedures
together in order to be properly trained and to make
sure that no misunderstandings exist.
In the event you should require technical assistance,
please contact your local authorized Taylor
Distributor for service.
If the crossed out wheeled bin symbol is
affixed to this product, it signifies that this product is
compliant with the EU Directive as well as other
similar legislation in effect after August 13, 2005.
Therefore, it must be collected separately after its
use is completed, and cannot be disposed as
unsorted municipal waste.
The user is responsible for returning the product to
the appropriate collection facility, as specified by
your local code.
For additional information regarding applicable local
laws, please contact the municipal facility and/or
local distributor.
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this machine are
warranted for the term indicated on the warranty
card accompanying this machine. However, due to
the Montreal Protocol and the U.S. Clean Air Act
Amendments of 1990, many new refrigerants are
being tested and developed, thus seeking their way
into the service industry. Some of these new
refrigerants are being advertised as drop-in
replacements for numerous applications. It should
be noted that, in the event of ordinary service to this
machine’s refrigeration system, only the refrigerant
specified on the affixed data label should be
used. The unauthorized use of alternate refrigerants
will void your compressor warranty. It will be the
owner’s responsibility to make this fact known to any
technician he employs.
It should also be noted that Taylor does not warrant
the refrigerant used in its equipment. For example, if
the refrigerant is lost during the course of ordinary
service to this machine, Taylor has no obligation to
either supply or provide its replacement either at
billable or unbillable terms. Taylor does have the
obligation to recommend a suitable replacement if
the original refrigerant is banned, obsoleted, or no
longer available during the five year warranty of the
compressor.
Taylor will continue to monitor the industry and test
new alternates as they are being developed. Should
a new alternate prove, through our testing, that it
would be accepted as a drop-in replacement, then
the above disclaimer would become null and void.
To find out the current status of an alternate
refrigerant as it relates to your compressor warranty,
call the local Taylor Distributor or the Taylor Factory.
Be prepared to provide the Model/Serial Number of
the unit in question.

4Model C300 NPSafety
061128
Section 3 Safety
We at Taylor are concerned about the safety of the
operator when he or she comes in contact with the
freezer and its parts. Taylor has gone to extreme
efforts to design and manufacture built-in safety
features to protect both you and the service
technician. As an example, warning labels have
been attached to the freezer to further point out
safety precautions to the operator.
IMPORTANT - Failure to adhere to the
following safety precautions may result in
severe personal injury or death. Failure to
comply with these warnings may damage the
machine and its components. Component
damage will result in part replacement expense
and service repair expense.
To Operate Safely:
DO NOT operate the freezer without reading this
operator’s manual. Failure to follow this instruction
may result in equipment damage, poor freezer
performance, health hazards, or personal injury.
SDO NOT operate the freezer unless it is
properly grounded.
SDO NOT attempt any repairs unless the
main power supply to the freezer has been
disconnected.
SDO NOT operate the freezer with larger
fuses than specified on the freezer data
label.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
Distributor for service.
DO NOT use a water jet to clean or rinse
the freezer. Failure to follow this instruction may
result in serious electrical shock.
SDO NOT allow untrained personnel to
operate this machine.
SDO NOT operate the freezer unless all
service panels and access doors are
restrained with screws.
SDO NOT remove the freezer door or beater
assembly unless the control switches are in
the “OFF” position.
Failure to follow these instructions may result in
severe personal injury from hazardous moving parts.
CAUTION: This unit is pressurized when
in operation. The control switch must be in the OFF
position until the unit is completely assembled. No
part should ever be removed from the machine while
it is in operation. No parts should be removed until
the control switch has been turned to the OFF
position. Failure to follow this instruction may result
in severe personal injury from hazardous moving
parts or from the impact of propelled parts.
SDO NOT put objects or fingers in door
spout.
SUSE EXTREME CAUTION when removing
the beater assembly.
Failure to follow these instructions may result in
contaminated product or personal injury from blade
contact.

5
Model C300 NP Safety
This freezer must be placed on a level
surface. Failure to comply may result in personal
injury or equipment damage.
DO NOT obstruct air intake and discharge openings:
Air cooled units require a minimum of 3” (76 mm) of
air space on the rear and left side to the top of the
unit, 0” on the right side, and a minimum of 12” (305
mm) air clearance to the ceiling. This is required to
allow for adequate air flow through the condenser(s).
Failure to follow this instruction may cause poor
freezer performance and damage to the machine.
This freezer is designed to operate indoors, under
normal ambient temperatures of 70°-75°F
(21°-24°C). The freezer has successfully performed
in high ambient temperatures of 104°F (40°C) at
reduced capacities.
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of
1.0 meter from the surface of the machine and at a
height of 1.6 meters from the floor.

6Model C300 NPOperator Parts Identification
Section 4 Operator Parts Identification
2
3
4
8
7
6
9
1
5
9
10
11
Figure 3
ITEM DESCRIPTION PART NO.
1PANEL-SIDE-LEFT 054676
2PANEL-REAR 054672
3PANEL-SIDE-RIGHT 054671
4DISPLAY-LIGHTED 054683-27
5PANEL-FRONT-UPPER 054669
6PANEL-FRONT-SHELL 054668
ITEM DESCRIPTION PART NO.
7PANEL-FRONT-LOWER 054670
8SHELF-DRIP TRAY 057938
9TRAY-DRIP 057738
10 SHIELD-SPLASH 057939
11 SWITCH-ROCKER-OFF-ON 078418

7
Model C300 NP Operator Parts Identification
081110
Beater Door Assembly
2
1a
3
4
12
12 5
6
7
8
1b
1c
1d
1e
1i
11
1g
1f
1h
1j
9
10
5
Figure 4
ITEM DESCRIPTION PART NO.
1DOOR A.-SLUSH-SLFCLOSE-
ICE BUSTER (COMPLETE) X57323 (1a-1j)
1a CAP A.-SPRING RETAINER X30591
1b SPRING-COMP.970X.082X3.87 030344
1c PIN-VALVE HANDLE 031974
1d VALVE-DRAW *SLUSH*SLFCL 047734-SP
1e O-RING-1”OD X .139W 032504
1f HANDLE A.-DRAW-SLUSH-BLK X47384
1g PLUG-PRIME*STNLS 050405
1h O-RING-.563 OD X .070W-#013 043758
1i DOOR A.-PARTIAL-SLUSH X57324-SER
1j BUSTER-ICE 047735
ITEM DESCRIPTION PART NO.
2GASKET-DOOR 5.109”ID 014030
3BEARING-FRONT 013116
4BEATER A.-7QT-1 PIN X46233
5BLADE-SCRAPER-PLASTIC
9-13/16L 046237
6SHAFT-BEATER 036412
7O-RING-7/8 OD X .139W 025307
8SEAL-DRIVE SHAFT 032560
9ARM-BAFFLE 047729
10 BAFFLE ASSEMBLY X47731
11 NUT-STUD 043666
12 CLIP-SCRAPER BLADE 8.75” 046238

8Model C300 NPOperator Parts Identification
Accessories
KAY-5
Sanitizer/Cleaner
®
CAUTION
KEEP OUT OF REACH OF CHILDREN
FOR INSTITUTIONAL USE ONLY
1 OZ (28.4 g)
2a
1
2b
2c
2d
5
4
3
048260
048260
R
Figure 5
ITEM DESCRIPTION PART NO.
1PAIL-MIX 10 QT 013163
2a BRUSH-MIX PUMP BODY-3”X7” 023316
2b BRUSH-DOUBLE ENDED 013072
2c BRUSH-REAR BRG 1”DX2“L 013071
ITEM DESCRIPTION PART NO.
2d BRUSH-DRAW VALVE 1-1/2”OD 014753
3KIT A.-TUNE UP X56829
4LUBRICANT-TAYLOR HI PERF 048232
5SANITIZER KAY-5 125 PACKETS 041082
*ITEMS 2a-2d ARE INCLUDED IN BRUSH
A.-PACKAGE, PART NO. X64275

9
Model C300 NP Important: To the Operator
Section 5 Important: To the Operator
4
35
1
2
6
PRIMEAUTO
ALARM
SILENCER
ALARM
SILENCER
OFF BEATER PRIMEAUTO MENUOFF BEATER
SELECT
Figure 6
ITEM DESCRIPTION
1PRODUCT LIGHT - LEFT SIDE
2CONTROL SWITCH
3KEYPAD - LEFT SIDE
4LIQUID CRYSTAL DISPLAY
5KEYPAD - RIGHT SIDE
6PRODUCT LIGHT - RIGHT SIDE
Symbol Definitions
To better communicate in the International arena,
symbols have replaced words on many of our
operator switches, function, and fault indicators.
Your Taylor equipment is designed with these
International symbols.
The following chart identifies the symbol definitions.
=OFF
=ON

10 Model C300 NPImportant: To the Operator
Control Switch
The control switch is located at the top left corner of
the control channel. When placed in the ON position,
allows SLUSHTECH operation.
Liquid Crystal Display
The Liquid Crystal Display (LCD) is located on the
front control panel. The LCD is used to show the
current operating mode of the freezing cylinders.
The LCD also indicates whether there is enough
syrup, CO2, and water being supplied to the freezer.
If an error in the machine operation occurs, a
warning tone will sound and the word “FAULT” will
flash on the third line of the display.
Operational Mode Display
The displays below illustrate the Operational Mode
Displays. This information appears on the LCD
during normal operation.
When the unit is plugged into the wall receptacle
and the control switch is in the ON position, this
screen appears.
SAFETY TIMEOUT
ANY KEY ABORT
This display will remain on the LCD for 60 seconds
unless a key is pressed. If any key is pressed (or 60
seconds passes) then the next screen appears.
OFF MODE OFF
OK SYRUP OK
CO2-OK WATER-OK
Note: Syrup, CO2and water are satisfied.
Pressing the AUTO (- ->) keys on both sides of the
unit will display this screen.
AUTO MODE AUTO
OK SYRUP OK
CO2-OK WATER-OK
Line 1 indicates the operating mode for each
freezing cylinder.
Line 2 indicates the status of the syrup systems in
each freezing cylinder. As long as syrup is available,
the word “OK” will appear on the LCD. When the
syrup supply is insufficient, the word “OUT” will flash
on the LCD. The same rules apply to the fourth line
which indicates the status of the CO2and the H2O.
The third line of this display is a fault indicator. If an
error in machine operation occurs, the word
“FAULT” will be displayed on the LCD.
BEATER MODE BEATER
OUT SYRUP OUT
- -FAULT- - - -FAULT- -
CO2-OUT H2O-OUT
Operator Menu Display
The OPERATOR MENU is used to enter into the
operating screens. To access the OPERATOR
MENU, simply press the MENU (SEL) key. The
cursor will flash under the letter “A”, indicating that
this is screen A. To select a different screen, use the
AUTO (- ->) and OFF (<- -) keys to move the cursor
to the desired screen selection and press the MENU
(SEL) key.
OPERATOR MENU
ABCDEFGHI
EXIT MENU
<- - - -> SEL

11
Model C300 NP Important: To the Operator
Operator Menu Timeout
If the display is left in the operator menu or any of
the operator menu selections, except for Current
Conditions, the display will return to the system
mode screen 60 seconds after the last keypress.
The Current Conditions screen will be displayed until
manually changed.
Finding Current Fault Conditions
Screen B is FAULT DESCRIPTION. The fault
description will indicate if there is a fault in one of the
freezing cylinders. When the actual fault is
corrected, the warning tone will stop. Only item 9
requires pressing the OFF (<- -) key to clear the
fault message and the warning tone.
Fault Messages
Beater Overload Beater is out on overload.
Chk Refrig Sys Psi Compressor is out on high
head pressure.
Thermistor Short Shorted thermistor probe.
Thermistor Open Open thermistor probe.
H2O Pressure Low Water pressure is low.
CO2 Pressure Low CO2pressure is low.
Syrup Pressure
Low Syrup is no longer present.
BRLTemp2High Freezing cylinder
temperature is above 120°F
(49°C).
BRL Not Cooling Freezing cylinder is not
cooling after 5 minutes.
No Fault Found No fault conditions are
apparent.
The following are explanations of the possible faults
and the display screens. Lines 2 and 3 indicate the
faults found in freezing cylinders 1 and 2
respectively.
1. NO FAULT FOUND - No fault conditions are
apparent.
FAULT DESCRIPTION
L: NO FAULT FOUND
R: NO FAULT FOUND
CLR +++ SEL
2. BEATER OVERLOAD - Beater motor is out on
overload. When this fault occurs, the machine
automatically turns off. The fault clears when
the condition is corrected.
FAULT DESCRIPTION
L: BEATER OVERLOAD
R: BEATER OVERLOAD
CLR +++ SEL
3. CHK REFRIG SYS PSI - Compressor is out on
high head pressure. When this fault occurs, the
machine automatically turns off. The fault
clears when the condition is corrected.
FAULT DESCRIPTION
L: CHK REFRIG SYS PSI
R: CHK REFRIG SYS PSI
CLR +++ SEL
4. THERMISTOR SHORT - One or both of the
barrel (freezing cylinder) thermistor probes are
faulty.
FAULT DESCRIPTION
L: THERMISTOR SHORT
R: NO FAULT FOUND
CLR +++ SEL
5. THERMISTOR OPEN - One or both of the
barrel (freezing cylinder) thermistor probes are
faulty.
FAULT DESCRIPTION
L: THERMISTOR OPEN
R: NO FAULT FOUND
CLR +++ SEL

12 Model C300 NPImportant: To the Operator
6. SYRUP PRESS LOW - When the syrup out
indicator displays a lack of syrup, the unit will
enter a HOLD mode. At this time, no
refrigeration or product flow from the flow
control will be allowed. Only the beater will
operate. When the syrup is satisfied, the unit
will refill the product tank, and then
automatically return to the AUTO mode. The
fault message and the warning tone will clear.
FAULT DESCRIPTION
L: NO FAULT FOUND
R: SYRUP PRESS LOW
CLR +++ SEL
7. CO2PRESSURE LOW - When the CO2out
indicator displays a lack of CO2, a 60 second
internal timer will start. If the CO2is not
replenished at the end of the 60 seconds, both
freezing cylinders will shut down and this fault
message will appear. Replenish the CO2and
the fault message and warning tone will clear.
FAULT DESCRIPTION
L: CO2 PRESSURE LOW
R: CO2 PRESSURE LOW
CLR +++ SEL
8. H2O PRESSURE LOW - When the water out
indicator displays a lack of water, a 60 second
internal timer will start. If the water is not
replenished at the end of the 60 seconds, all
freezing cylinders will shut down and this fault
message will appear. Replenish the water and
the fault message and warning tone will clear.
FAULT DESCRIPTION
L: H2O PRESSURE LOW
R: H2O PRESSURE LOW
CLR +++ SEL
9. BRL NOT COOLING - A freezing cylinder
check has been established for the AUTO
mode of operation. If a freezing cylinder enters
the AUTO mode, the control will check product
temperature. After five minutes, it will again
check product temperature. If product
temperature does not drop in that five minute
time span, the freezing cylinder will shut down
and this message will appear on the fault
screen. For this check to be valid, the product
temperature must be above 40_F(4.4_C).
FAULT DESCRIPTION
L: BARREL NOT COOLING
R: NO FAULT FOUND
CLR +++ SEL
10. BRL TEMP 2 HIGH - A maximum allowable
product temperature has been established to
prevent product from excessive heating. If the
product exceeds 120_F(49_C) temperature for
any reason (in any mode of operation), the
entire unit shuts down.
FAULT DESCRIPTION
L: BARREL TEMP 2 HIGH
R: NO FAULT FOUND
CLR +++ SEL
Faults, when corrected, are cleared from the fault
description screen, with the following exception:
BRL NOT COOLING. This fault requires the
operator to press the OFF (<- -) key (when in the
FAULT DESCRIPTION screen) in order for the fault
to discontinue.
To see if there is more than one fault in either
freezing cylinder, press the PRIME (+ + +) key. To
return to the OPERATOR MENU, press the MENU
(SEL) key once. To return to the Main Screen, use
the AUTO (- ->) key to cycle to MENU ITEM A, then
press the MENU (SEL) key.

13
Model C300 NP Important: To the Operator
Screen C is SET CLOCK.UsetheAUTO(-->)and
OFF (<- -) keys to place the cursor under the
element to be set (hours, minutes, month, day, or
year). Use the PRIME (+++) and BEATER (- - -)
keys to increment or decrement the value. Press the
MENU (SEL) key to advance to the Daylight Saving
Time screen.
Note: The clock is programmed with military time.
SET CLOCK
14:30 10/25/06
<-- --> +++ --- SEL
This screen will appear if an invalid date is entered.
(example: If the date entered exceeds the days of
that month.)
SET CLOCK
14:30 02/31/07
INVALID DATE SEL
This screen allows the Daylight Saving Time
options. If the Daylight Saving Time option is
enabled, then the time will be advanced by one hour
at 2:00 a.m. on the first Sunday in April, and will be
retarded by one hour at 2:00 a.m. on the last
Sunday in October.
DAYLIGHT SAVING TIME
ENABLE DISABLE
<- - - -> SEL
Screen D is MANUAL DEFROST. This screen
allows the operator to manually defrost the left side
of the unit.
Place the cursor under YES, press the MENU (SEL)
key, and the command will be executed.
MANUAL DEFROST
LEFT SIDE YES NO
<- - - -> SEL
Repeat the procedure for the right side of the unit.
MANUAL DEFROST
RIGHT SIDE YES NO
<- - - -> SEL
Note: Only one side of the unit may be placed in
the DEFROST mode at a given time. Attempting to
place a side of the unit into DEFROST while the
other side is defrosting, will result in the following
screen:
ALREADY IN DEFROST
Press the MENU (SEL) key to return the unit to the
OPERATOR MENU.
Screen E is SYSTEM INFORMATION.Itconsists
of 6 display features.
The first feature indicates the software version.
SYSTEM INFORMATION
C300 CONTROL UVC2
VERSION 1.03 SEL
The second feature indicates the bill of material
number and the serial number. It also indicates if the
unit is equipped with a water pressure switch.
B.O.M. C30027C000
S/N K0000000
WITH H20 PRESS SW SEL
The third feature indicates the version number of the
language and text.
SYSTEM INFORMATION
LANGUAGE
VERSION 1.09 ENGLISH 446 SEL

14 Model C300 NPImportant: To the Operator
The fourth feature will display the Power Saver
Mode, OFF, REST, or STANDBY status.
If the Power Saver Mode is OFF, the following
screen will be displayed.
POWER SAVER MODE
OFF
SEL
If a Power Saver Mode is programmed, one of the
following screens will appear.
POWER SAVER REST
CYCLE 1 SUN 01:00
SUN 08:30
+++ --- SEL
POWER SAVER STANDBY
CYCLE 1 SUN 01:00
SUN 08:30
+++ --- SEL
The fifth feature will indicate the left side defrost time
and which day(s) the defrost will occur.
DEFROST TIME LEFT
CYCLE 1 ALL 09:00
+++ --- SEL
DEFROST TIME LEFT
CYCLE 1 SUN 09:00
<-- --> +++ --- SEL
The sixth feature will indicate the right side defrost
time and which day(s) the defrost will occur.
DEFROST TIME RIGHT
CYCLE 1 ALL 10:00
+++ --- SEL
DEFROST TIME RIGHT
CYCLE 1 SUN 10:00
<-- --> +++ --- SEL
Press the MENU (SEL) key to return to the
OPERATOR MENU.
Screen F is CURRENT CONDITIONS. This screen
displays the current viscosity, product temperature,
and pressure for each freezing cylinder. An asterisk
will indicate which side is refrigerating. Press the
MENU (SEL) key to return to the OPERATOR
MENU.
Note: Viscosity is checked only when product
temperature is below 40_F/4.4_C.
CURRENT CONDITIONS
L*1200Hd 27.3F
R*1200Hd 27.3F SEL
Screen G is FAULT HISTORY. This option
provides a record of the last 20 faults. The display
also indicates the date and time each fault occurs.
FAULT HISTORY 1
10/25/06 08:34
NO FAULT FOUND
<-- --> +++ --- SEL
Press the AUTO (- ->) and OFF (<- -) keys to
increase or decrease the fault page.
Page numbers are located in the upper right hand
corner of the display. The most recently recorded
fault will appear on page 1. The fault description is
listed on the third line of the fault page.
FAULT HISTORY 2
10/25/06
R SYRUP PRESS LOW 08:33
<-- --> +++ --- SEL

15
Model C300 NP Important: To the Operator
Press the AUTO (- ->) key to move to the next
screen. The next screen will indicate when the fault
was satisfied.
FAULT HISTORY 2
10/25/06 14:06:19
RESTORED FROM FAULT
PAGE 2 + + + - - - SEL
Press the MENU (SEL) key to return to the
OPERATOR MENU.
Screen H is RINSE/SANITIZE. This screen allows
the operator to rinse or sanitize the freezing
cylinder(s).
RINSE / SANITIZE
RINSE SANITIZE EXIT
---
<- - - -> SEL
Use the AUTO (- ->) and OFF (<- -) keys to select
either RINSE or SANITIZE, and then press the
MENU (SEL) key.
SANITIZE
LEFT SIDE YES NO
---
<- - - -> SEL
Use the cursor keys to select YES or NO, then
press the MENU (SEL) key.
SANITIZE
RIGHT SIDE YES NO
---
<- - - -> SEL
Repeat for the right side of the unit.
Screen I is SERVICE MENU. This screen allows
the authorized service technician to access service
information. Press the MENU (SEL) key to return to
the OPERATOR MENU.
OPERATOR MENU
ABCDEFGHI
SERVICE MENU
<- - - -> SEL
Syrup Out Indicator
AUTO MODE AUTO
OUT SYRUP OK
CO2-OK WATER-OK
If the word “OUT” appears in one of the columns
next to the word “SYRUP”, it indicates a lack of
syrup or syrup pressure being supplied for the
indicated freezing cylinder. If the unit is in the AUTO
or PRIME modes, the PRODUCT NOT READY light
will illuminate and a warning tone will sound for that
freezing cylinder. At this time, replace the
appropriate bag-in-the-box. As a safety feature, the
refrigeration system automatically stops to prevent a
freeze-up in the freezing cylinder.
If a syrup out condition occurs on one side, that side
will enter the HOLD mode at which time the
refrigeration remains off and the beater continues to
run. The opposite side will not be affected. When the
syrup is satisfied, the unit will refill the product tank,
and then automatically return to the AUTO mode.

16 Model C300 NPImportant: To the Operator
CO2Out Indicator
AUTO MODE AUTO
OK SYRUP OK
CO2-OUT WATER-OK
On the LCD, if the word “OUT” appears next to the
word “CO2” it indicates a lack of CO2being supplied
to the freezer. The product light will also illuminate
and a warning tone will sound. This will continue
until the CO2is replaced. If the CO2is not replaced
within one minute, the machine will shut down and a
fault message will appear.
Water Out Indicator
AUTO MODE AUTO
OK SYRUP OK
CO2-OK WATER-OUT
On the LCD, if the word “OUT” appears next to the
word “WATER”, it indicates a lack of water being
supplied to the freezer. In addition, the product light
will illuminate and a warning tone will sound. This
will continue until the proper amount of water is
supplied to the freezer. If the water is not supplied
within one minute, the machine will shut down and a
fault message will appear.
Audio Alarm Silencer
The audio alarm will be disabled if the ALARM
SILENCE key is pressed. If a new fault or fault
condition occurs or the system mode changes, the
audio alarm will be re-enabled automatically. If the
audio alarm is silenced for greater than 30 minutes
without correcting the fault, it will be re-enabled
automatically.
Product Light
When the light is continuously lit (not flashing) it
indicates that there is an “OUT” condition for syrup,
water, or CO2.
When the light is flashing, it indicates that the
product is not at serving viscosity. This will occur
during the initial freeze down, a defrost cycle and a
FAULT condition and during power saver modes.
Sampling Valve
The sampling valve is located behind the lower front
panel. The sampling valve is used to obtain a brix
reading.
Daily Procedures
The following procedure should be performed daily.
Remove the splash shield and front drip tray. Take
these parts to the sink and brush-clean them.
Re-install the parts onto the freezer. Use a clean,
sanitized towel and wipe down the front of the
machine, including the doors and spouts.
