Carrier UPC Open Quick setup guide

U
UP PC C O Op pe en n
I
In ns st ta al ll la at ti io on n a an nd d I In nt te eg gr ra at ti io on n G Gu ui id de e
CARRIER CORPORATION ©2011
A member of the United Technologies Corporation family · Stock symbol UTX · Catalog No. 11-808-468-01 · 1/12/2012

UPC Open i
Table of Contents
Introduction.................................................................................................................................................................. 1
What is the UPC Open?........................................................................................................................................1
Specifications ........................................................................................................................................................2
Installation ................................................................................................................................................................... 4
To mount the UPC Open ......................................................................................................................................4
Wiring the UPC Open for power..........................................................................................................................5
To wire for power................................................................................................................................... 5
To address the UPC Open....................................................................................................................................5
Configuring the BAS Port for BACnet MS/TP ...................................................................................................6
Wiring the UPC Open to the MS/TP network....................................................................................................7
Wiring specifications ............................................................................................................................. 7
To wire the UPC Open to the BAS network........................................................................................... 8
Wiring the UPC Open to the CCN network ........................................................................................................8
Wiring specifications for CCN ............................................................................................................... 9
To wire the CCN equipment to the UPC Open...................................................................................... 9
Select or create a custom control program and graphic for the UPC Open .........................................................10
Local access to the UPC Open..................................................................................................................................11
Start-up.......................................................................................................................................................................12
Configuring the UPC Open's properties.......................................................................................................... 12
Troubleshooting .........................................................................................................................................................14
The UPC Open LED's.......................................................................................................................................... 14
Serial number..................................................................................................................................................... 15
Replacing the UPC Open's battery .................................................................................................................. 15
Appendix A: Single Point Linkage and Device Address Binding............................................................................16
Single Point Linkage ......................................................................................................................................... 16
Device Address Binding .................................................................................................................................... 17
Compliance ................................................................................................................................................................18
FCC Compliance................................................................................................................................................. 18
CE Compliance ................................................................................................................................................... 18
BACnet Compliance........................................................................................................................................... 18

UPC Open 1

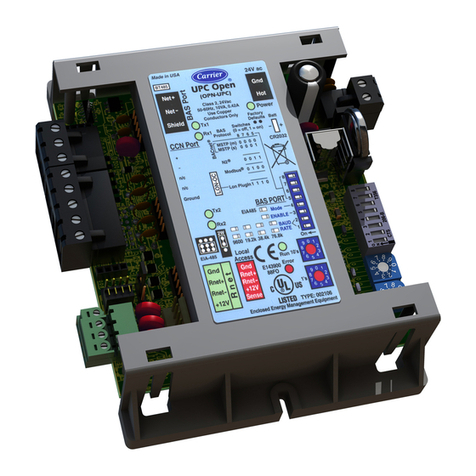

What is the UPC Open?
The UPC Open (Universal Protocol Card) is a general purpose protocol converter. The UPC Open can convert
proprietary equipment data into open protocol data, enabling a stand-alone, single piece of equipment to
reside on a BACnet network, where it can be monitored or controlled by a Building Automation System (BAS).
NOTE A future release of the UPC Open will support installation on a Modbus, N2, or LonWorks network.
Introduction

Introduction
2 UPC Open
Specifications
Driver DRV_UPC
Maximum number of control
programs
2
Maximum number of
BACnet objects*
1050
* Depends on available
memory
Total available memory for application is 551244 bytes.
Obtain available memory information by viewing a module status
report after the control program is loaded.
Power 24 Vac ±10%, 50–60 Hz
10 VA power consumption (16 VA with BACview attached)
26 Vdc (25 V min, 30 V max)
Single Class 2 source only, 100 VA or less
We highly recommend using a dedicated transformer to power the
UPC Open.
BAS port (Port 1a) 3-pin port supports EIA-485 2-wire communications.
Protocols supported (DIP switch selectable):
○BACnet MS/TP
○Modbus (RTU) (future)
○Johnson N2 (future)
This port must be configured as a BAS port.
NOTE
Port 1a or LON-OC port can be used, but not both.
LON-OC port 14-pin communication port supports the LonWorks Option Card
(future)
CCN port (Port 2) 5-pin port supports EIA-485 3-wire connection to a single Carrier
CCN controller
Rnet port For SPT sensors and a BACview6in any of the following
combinations, wired in a daisy-chain configuration:
•1 SPT Plus or SPT Pro
•1–4 SPT Standards
•1–4 SPT Standards, and 1 SPT Plus or SPT Pro
Any of the above combinations, plus a BACview6, but no more than
6 devices total
Local Access port For system start-up and controller troubleshooting, use a PC with
Virtual BACview, Field Assistant, or BACview6 (115.2 kbps)
Battery 10-year Lithium CR2032 battery provides a minimum of 10,000
hours of data retention during power outages
Protection Built-in surge and transient protection circuitry - internal solid state
Polyswitches on the incoming power and network connections.
Real time clock Battery-backed real time clock keeps track of time in the event of a
power failure
Status indicators LED's indicate status of communications, running, errors, and
power.

UPC Open 3
Environmental operating
range
-22 to 150°F (-30 to 66°C), 0 to 90% relative humidity, non-
condensing
Storage temperature range -24 to 140°F (-30 to 60°C), 0 to 90% relative humidity, non-
condensing
Physical Rugged GE C2950HF Cycoloy plastic
Overall dimensions A:
B:
5-3/16 in. (13.2 cm)
4-1/8 in. (10.5 cm)
Mounting hole dimensions C:
D:
E:
4-7/8 in. (12.4 cm)
2-1/20 in. (5.2 cm)
3/16 in. (.5 cm)
Panel depth 2 in. (5.1 cm)
Weight .44 lbs (.2 kg)
BACnet support Conforms to the Advanced Application Controller (B-AAC) Standard
Device Profile as defined in ANSI/ASHRAE Standard 135-2004
(BACnet) Annex L
Listed by UL-916, (Canadian Std C22.2 No. 205-M1983), CE, FCC Part 15-
Subpart B-Class A

Installation
4 UPC Open
To install the UPC Open:
1 Mount the controller (page 4).
2 Wire the controller for power. (page 5)
3 Set the controller's address. (page 5)
4 Configure the BAS port for BACnet MS/TP. (page 6)
5 Wire the controller to the MS/TP network. (page 7)
6 Wire the controller to the CCN network. (page 8)
To mount the UPC Open
When you handle the UPC Open:
•Do not contaminate the printed circuit board with fingerprints, moisture, or any foreign material.
•Do not touch components or leads.
•Handle the board by its edges.
•Isolate from high voltage or electrostatic discharge.
•Ensure that you are properly grounded.
Screw the UPC Open into an enclosed panel using the mounting slots on the coverplate. Leave about 2 in. (5
cm) on each side of the controller for wiring. Mounting hole dimensions 4.8 in. (12.2 cm) between mounting
slot center lines.
Installation

UPC Open 5
Wiring the UPC Open for power
The UPC Open is powered by a Class 2 power source. Take appropriate isolation measures when mounting
it in a control panel where non-Class 2 circuits are present. The UPC Open is a half wave device. Half wave
and full wave devices cannot share power. Examples of a full wave device are a CVC or ICVC in an applied
chiller.
Carrier controllers can share a power supply as long as you:
• Maintain the same polarity
• Use the power supply only for Carrier Open controllers
To wire for power
1 Remove power from the power supply.
2 Pull the screw terminal connector from the controller's power terminals labeled Gnd and Hot.
3 Connect the transformer wires to the screw terminal connector.
NOTE If using a grounded transformer, connect the ungrounded lead to the Hot terminal to avoid
damaging the transformer.
4 Apply power to the power supply.
5 Measure the voltage at the UPC Open’s power input terminals to verify that the voltage is within the
operating range of 21.6–26.4 Vac.
6 Insert the screw terminal connector into the UPC Open's power terminals.
7 Verify that the Power LED is on and the Run LED is blinking.
To address the UPC Open
You must give the UPC Open a MAC address that is unique on the MS/TP network. You can address the UPC
Open before or after you wire it for power
1 If the UPC Open has been wired for power, pull the screw terminal connector from the controller's power
terminals labeled Gnd and Hot. The controller reads the address each time you apply power to it.
2 Using the rotary switches, set the controller's address. Set the Tens (10's) switch to the tens digit of the
address, and set the Ones (1's) switch to the ones digit.
EXAMPLE If the controller’s address is 25, point the arrow on the Tens (10's) switch to 2 and the arrow
on the Ones (1's) switch to 5.
10's
1's
1
3
4
5
2
7
8
9
6
0
1
3
4
5
2
7
8
9
6
0
CAUTION The factory default setting is 00 and must be changed to successfully install your UPC Open.

Installation
6 UPC Open
BACnet Device Instance Address
The UPC Open also has a BACnet Device Instance address. This Device Instance MUST be unique for the
complete BACnet system in which the UPC Open is installed. The Device Instance is auto-generated by default
and is derived by adding the MAC address to the end of the Network Number. The Network Number of a new
UPC Open is 16101A. Thus, a controller with a MAC address of 20 results in a Device Instance of 16101 +
20, which is a Device Instance of 1610120. Also, using i-Vu Tools or BACView, you can configure a specific
address for the Device Instance.
Configuring the BAS Port for BACnet MS/TP
Use the same baud rate and communication settings for all controllers on the network segment. The UPC
Open is fixed at 8 data bits, No Parity, and 1 Stop bit for this protocol's communications.
1 If the UPC Open has been wired for power, pull the screw terminal connector from the controller's power
terminals labeled Gnd and Hot. The controller reads the DIP Switches and jumpers each time you apply
power to it.
2 Leave DS7 and DS8 in the OFF position. These switches are not applicable to MS/TP.
3 Set the BAS Port DIP Switches DS4 through DS6 for BACnet MS/TP. See table and example below.
Protocol DIP switch settings for MS/TP
DS8
DS7
DS6
DS5
DS4
DS3
Off Off Off Off On Off
NOTE DIP Switch DS3 is not used in i-Vu Open Control Systems.
4 Set the BAS Port DIP Switches DS1 and DS2 for the appropriate communications speed of the MS/TP
network (9600, 19.2k, 38.4k, or 76.8k bps).
Baud Selection Table
Baud Rate
DS2
DS1
9,600
Off Off
19,200
On Off
38,400
Off On
76,800
On On
5 Verify that the EIA-485 jumpers below the CCN Port are set to EIA-485 and 2W.

UPC Open 7
The following example shows the BAS Port DIP Switches set for 76.8k (Carrier default), and MS/TP.
Wiring the UPC Open to the MS/TP network
The UPC Open communicates using BACnet on an MS/TP network segment communications at 9600 bps,
19.2 kbps, 38.4 kbps, or 76.8 kbps.
Wire the controllers on an MS/TP network segment in a daisy-chain configuration.
Install a BT485 on the first and last controller on a network segment to add bias and prevent signal
distortions due to echoing.
See the MS/TP Networking and Wiring Installation Guide for more details.
Wiring specifications
Cable: 22 AWG or 24 AWG, low-capacitance, twisted, stranded, shielded copper wire
Maximum length: 2000 feet (610 meters)

Installation
8 UPC Open
To wire the UPC Open to the BAS network
1 Pull the screw terminal connector from the controller's BAS Port.
2 Check the communications wiring for shorts and grounds.
3 Connect the communications wiring to the BAS port’s screw terminals labeled Net +, Net -, and Shield.
NOTE Use the same polarity throughout the network segment.
4 Insert the power screw terminal connector into the UPC Open's power terminals if they are not currently
connected.
5 Verify communication with the network by viewing a module status report.
Wiring the UPC Open to the CCN network
The UPC Open's CCN Port communicates using EIA RS-485 and supports 9600 bps. Future versions will
support baud rates of 19.2 and 38.4 kbps.
NOTES
•The UPC Open is intended to be wired directly to one piece of Carrier equipment.
NOTE The exception is a Multiple Chiller Application, which consists of two or three chillers configured
for Lead/Lag, with a potential third chiller as a standby chiller. In this application, wire the CCN network
between the UPC Open and chillers in a daisy-chain configuration. All other applications have one
network segment between the UPC Open and the interfaced Carrier equipment.
•Refer to the CCN Installation and Start-up Guide for more details on wiring the CCN bus.
Multiple chiller application only (Lead/Lag, and, possibly, a standby chiller)

UPC Open 9
Single unit application
Wiring specifications for CCN
Cable: 20 AWG, general purpose, 3-conductor, foil shielded copper wire
Maximum length: 1000 feet (305 meters)
To wire the CCN equipment to the UPC Open
1 Pull the screw terminal connector from the UPC Open's CCN Port.
2 Check the communications wiring for shorts and grounds.
3 Connect the communications wiring to the CCN Port’s screw terminals labeled Net +, Net -, and Shield.
NOTE Maintain the same polarity.
4 Insert the power screw terminal connector into the UPC Open's CCN Port's terminals.
5 Verify the LED lights TX2 and RX2 are flashing to indicate the UPC Open is communicating on the CCN
Port.
NOTE If the CCN target address differs from what the UPC Open is configured for (default 0, 1), then only
the transmit LED flashes about 1 time per second.

Select or create a custom control program and graphic for the UPC Open
10 UPC Open
The field-installed UPC Open does not come from the factory with a control program or graphic. You must load
a control program and graphic as part of the installation/commissioning of the UPC Open. You can select a
control program and graphic from ApplicationBuilder that has all the configurations that are currently
available on a factory-installed UPC Open. You can also create a custom control program using Snap. See the
Snap Help files for details.
NOTE Third party mapping information for current Carrier PIC products, whether on a factory-installed UPC
Open or selected from ApplicationBuilder, can be found on the Carrier Control Systems Support Site
http://www.hvacpartners.com/ under Control System Support > i-Vu Open System > UPC Open.
Consider the following before creating your program in Snap:
•Is the equipment already available in ApplicationBuilder?
•Which points from the Carrier equipment are to be mapped in the UPC Open?
•The type of Carrier microblock does each point require?
•Do you need to create custom Property pages for the equipment?
•Are there any special microblocks you may need, such as Communication Device, Schedule, Alarms?
To create your control program in Snap, you must:
•Obtain your CCN points list from the equipment or CCN database.
•Know what points need to be mapped in the control program to the equipment.
•Load a separate control program if Airside Linkage is needed and the UPC Open is used on a rooftop
unit. An Airside Linkage equipment file can be selected in ApplicationBuilder.
After creating your control program, save and download it to the controller. If desired, create a custom graphic
using ViewBuilder. See ViewBuilder Help files for details.
Select or create a custom control program and graphic for the UPC Open

UPC Open 11
You can use the following items as a local user interface to an Open controller. These items let you access the
controller information, read sensor values, and test the controller.
NOTE At the present time, Field Assistant is the required local access user interface for UPC Open start-up,
commissioning, operation, and troubleshooting. The 3 versions of BACview only provide rudimentary driver
information.
Connect...
To the controller's...
For...
BACview6 Handheld
keypad/display unit
Local Access port Temporary user interface for driver
parameter access
Virtual BACview
software
running on a laptop
Local Access port* Temporary user interface for driver
parameter access
BACview6
keypad/display unit
Rnet port Permanent user interface for driver
parameter access
Field Assistant
Local Access port* Temporary user interface for start-up,
commissioning, troubleshooting, etc..
* Requires a USB Link (USB-L)
These are accessory items that do not come with the controller.
See the BACview Installation and User Guide for instructions on connecting and using the BACview display.
Local access to the UPC Open

Start-up
12 UPC Open
To start up the UPC Open, use one of the following interfaces. They allow you to access and configure
controller information, read sensor values, and test the controller.
This interface...
Provides a...
i-Vu Open
software Permanent interface
Field Assistant
software -
runs on a laptop connected to controller's Local Access port 1
Temporary interface
1Requires a USB Link (USB-L).
Configuring the UPC Open's properties
To start up the UPC Open, set the following properties:
Navigation:
i-Vu / Field Assistant:
BACview:
Properties
>
Equipment
>
Status
CCN
Point Name/Description
Default/Range
Element Comm Stat
- The UPC Open's current status of communication to the CCN
equipment. Click the
Element Comm Stat
microblock link to change the CCN
equipment target address - bus and element number.
NOTE
If more than one UPC Open is connected to a CCN bus for a Multiple Chiller
Application, you must change the CCN controller's address in this object's
Summary
tab.
D:
R:
0, 1
Bus: 0.1 - 239
Element: 1 - 239
Navigation:
i-Vu / Field Assistant:
Driver Properties
>
Communications
>
CCN
Point Name/Description
Default/Range
CCN Address
- Configuration of the UPC Open's CCN element number. D:
R:
0, 200
1 - 239
NOTES
If the UPC Open is used in a Multiple Chiller Application, then you must change the address of the chillers and
the CCN address of all the UPC Open controllers to ensure they are all unique. In this application, the
maximum number of UPC Open controllers allowed on the CCN bus is 3.
•CCN Alarm Acknowledger – The UPC Open defaults as the CCN Acknowledger. In a Multiple Chiller
Application, you must configure only one of the UPC Open controllers as the CCN Acknowledger.
•CCN Time Broadcaster – The UPC Open can be a CCN Time Broadcaster. In a Multiple Chiller Application,
you must configure only one of the UPC Open controllers as the CCN Time Broadcaster.
Start-up

UPC Open 13
•In chiller applications, verify the chiller is configured in CCN mode. If the chiller is not in CCN mode, then
the UPC Open is not able to force points or write to the chiller. Refer to the specific chiller's
documentation for information on how to setup the chiller to be in CCN mode.

Troubleshooting
14 UPC Open
If you have problems mounting, wiring, or addressing the UPC Open, contact Carrier Technical Support.
The UPC Open LED's
The LED’s indicate if the controller is speaking to the devices on the network. The LED’s should reflect
communication traffic based on the baud rate set. The higher the baud rate the more solid the LED’s become.
LEDs
Status
Power Lights when power is being supplied to the controller.
NOTE
The UPC Open is protected by internal solid state Polyswitches on the
incoming power and network connections. These Polyswitches are not replaceable,
but they will reset themselves if the condition that caused the fault returns to
normal.
Rx Lights when the controller receives data from the network segment; there is an Rx
LED for Ports 1 and 2.
Tx Lights when the controller transits data from the network segment; there is an Rx
LED for Ports 1 and 2.
Run Lights based on controller health.
Error Lights based on controller health.
The Run and Error LED's indicate controller and network status.
If Run LED shows...
And Error LED shows...
Status is...
1 flash per second 1 flash per second, alternating
with the
Run
LED
The controller files are archiving.
Archive is complete when
Error
LED stops flashing.
2 flashes per second Off Normal
2 flashes per second 2 flashes,
alternating with
Run
LED
Five minute auto-restart delay
after system error
2 flashes per second 3 flashes,
then off
The controller has just been
formatted
2 flashes per second On Two or more devices on this
network have the same MS/TP
network address
2 flashes per second 1 flash per second The controller is alone on the
network
Troubleshooting

UPC Open 15
If Run LED shows...
And Error LED shows...
Status is...
2 flashes per second On Exec halted after frequent system
errors, due to:
•Controller halted
•Program memory corrupted
•Address conflicts - duplicate
MS/TP MAC addresses
•One or more programs
stopped
5 flashes per second On Exec start-up aborted, Boot is
running
5 flashes per second Off Firmware transfer in progress,
Boot is running
7 flashes per second 7 flashes per second,
alternating with
Run
LED
Ten second recovery period after
brownout
14 flashes per second 14 flashes per second,
alternating with
Run
LED
Brownout
On On Failure. Try the following solutions:
•Turn the UPC Open off, then
on.
•Download memory to the UPC
Open.
•Replace the UPC Open.
Serial number
If you need the UPC Open's serial number when troubleshooting, the number is on:
•a sticker on the back of the main controller board
•a Module Status report (modstat) from your user interface
Replacing the UPC Open's battery
The UPC Open's 10-year Lithium CR2032 battery provides a minimum of 10,000 hours of data retention
during power outages.
CAUTION Power must be ON to the UPC Open when replacing the battery, or your date, time, and trend data
will be lost.
1 Remove the battery from the controller, making note of the battery's polarity.
2 Insert the new battery, matching the battery's polarity with the polarity indicated on the UPC Open.

Appendix A: Single Point Linkage and Device Address Binding
16 UPC Open
Single Point Linkage
The UPC Open receives data from other Open controllers when they are installed as part of an Open system.
The data transfer may take the form of Single Point Linkage (SPL), which is automatic, or Device Address
Binding, which you must configure.
Currently, the UPC Open implements Single Point Linkage (SPL) for 3 variables:
•System Cool Demand Level
•System Heat Demand Level
•System Outside Air Temperature
Network Points for which SPL has been implemented are displayed in i-Vu and Field Assistant on the
Properties page > Network Points tab.
The following example involves outside air temperature. System Heat & Cool Demand Level behaves
similarly, except that their usage involves a specific application loaded on a Universal Controller Open. See UC
Open Installation Guide for additional information. In either case, note that the BACnet type and instance
numbers specified in the Address field of these variables have been predefined.
Network variables for which SPL is used are easily identified on the Properties page > Network Points tab.
The asterisk in the BACnet address invokes the SPL function. These addresses cause the controller to issue a
BACnet “who has” command for this variable. The controller binds to the closest of the first 5 devices from
which it receives a valid response.
Appendix A: Single Point Linkage and Device Address Binding
