Carrier Infinity SYSTXCCWIC01-B User manual

SYSTXCCITC01---B, SYSTXCCWIC01---B,
SYSTXCCICF01---B, SYSTXCCWIF01 ---B
InfinityrSystem Control
Installation Instructions
A170203 A180218C
NOTE: Read the entire instruction manual before starting the installation.
NOTE:Please refer to the literature provided with the connected HVAC equipment
for more details on system operations with specific pieces of equipment.
The features and functions outlined in the Installation Instructions reflect Version
1.3 or later software. Occupancy sensing compatibility is only available with Series
B Infinity System Controls. See the Infinity System Control product page on the
HVACPartners.com website or the Downloads section of the
www.MyInfinityTouch.Carrier.com website for the latest software release and
literature.

US Patents: CarrierrU.S. Pat No. 7,243,004, CarrierrU.S. Pat No. 7,775,452,
pointSETtU.S. Pat No. 7,415,102

TABLE OF CONTENTS
PAGE
1.Safety Considerations 1.............................................
2.Introduction 2.....................................................
3.Quick Start 2......................................................
3.1. Set Time and Date 3............................................
3.1.1. Manually Adjust Time and Date 3............................
3.1.2. Setup Time Zone 4........................................
3.1.3. Enable Time Synchronization 4..............................
3.2. Set Dealer Information 5........................................
4.Installation 6......................................................
4.1. Overview 6...................................................
4.2. Check Equipment 7............................................
4.3. Location 7....................................................
4.3.1. Wall Control 7...........................................
4.3.2. Remote Room Sensors 8...................................
4.3.2.1.Remote Room Sensor Averaging 8...........................
4.3.3. Smart Sensors (for zoning applications) 9......................
4.4. Wiring Considerations 9.........................................
4.4.1. Shielded Wire and Communication Bus Configuration 11..........
4.4.2. Damper Control Module 12.................................

TABLE OF CONTENTS (cont.)
PAGE
4.5. Decorative Trim Plate 13........................................
4.5.1. Mounting 13.............................................
4.5.2 System Control Mounting 14................................
4.6. Humidifier Connections 16......................................
4.6.1. Bypass Humidifier 16......................................
4.6.2. Fan Powered Humidifiers 16................................
5.Commissioning 16.................................................
5.1. Searching for Indoor Unit 17.....................................
5.2. Searching for Outdoor Unit 18....................................
5.3. Indoor Evaporator Selection 19...................................
5.4. Electric Heater Selection 19......................................
5.4.1. Hydronic Heat Application 20...............................
5.5. Searching SAM Module (If Applicable) 21..........................
5.6. Searching for Zones (If Applicable) 21.............................
5.7. Filter Type Selection 22.........................................
5.8. Humidifier Installation 22........................................
5.9. Ultraviolet Lights Installation 22..................................
5.10.Equipment Summary 22........................................
5.11.Airflow Verification Check 23....................................
5.12.Duct Assessment (zoned systems only) 24..........................

TABLE OF CONTENTS (cont.)
PAGE
6.Service Menu 26...................................................
6.1. Equipment Summary 27.........................................
6.2. Installation 28.................................................
6.3. Set up 29.....................................................
6.3.1. Thermostat 31............................................
6.3.1.1.Auto Mode set up 31......................................
6.3.1.2.Heat/Cool Deadband 33...................................
6.3.1.3.Offsets 33..............................................
6.3.1.4.Reset factory defaults 35...................................
6.3.1.5.Scheduling On/Off 35.....................................
6.3.1.6.Smart Recovery On/Off 36.................................
6.3.2. Fan Coil 37..............................................
6.3.2.1.Airflow 37..............................................
6.3.2.2.Altitude 38.............................................
6.3.2.3.Dehumidification Options 38...............................
6.3.2.4.Fan Coil G--Terminal 39...................................
6.3.2.5.Fan Coil G--Terminal Alert 40...............................
6.3.2.6.Fan Coil G--Terminal Label 41..............................

TABLE OF CONTENTS (cont.)
PAGE
6.3.3. Furnace 42..............................................
6.3.3.1.Furnace Airflow 42.......................................
6.3.3.2.AC/HP Airflow 43.......................................
6.3.3.3.Furnace Staging 44.......................................
6.3.3.4.Furnace Airflow Limits (modulating furnace only) 44............
6.3.3.5.Furnace Off Delay 45.....................................
6.3.3.6.Altitude 45.............................................
6.3.3.7.Furnace Dehumidifier Drain 45.............................
6.3.3.8.Furnace G Terminal 46....................................
6.3.3.9.Furnace G Terminal Alert 46...............................
6.3.3.10.Furnace G Terminal Alert Label 47.........................
6.3.4. AC/Heat Pump 48........................................
6.3.4.1.Latching 48.............................................
6.3.4.2.Cooling Lockout 50......................................
6.3.4.3.Defrost Interval 50.......................................
6.3.4.4.Low Ambient Cooling 50..................................
6.3.4.5.Quiet Shift 51...........................................
6.3.4.6.AC/Heat Pump RPM Max 51...............................
6.3.4.7.Defrost Fan Delay 51.....................................
6.3.4.8.Brownout Disable 51.....................................

TABLE OF CONTENTS (cont.)
PAGE
6.3.4.9.Low Air Multiplier 52.....................................
6.3.4.10.Energy Efficiency 52.....................................
6.3.5. Heat Source Lockout 52....................................
6.3.6. Stages / Latch for 18VS 53..................................
6.3.7. Geo HP 53..............................................
6.3.7.1.Freeze Limits 55.........................................
6.3.7.2.Lockout Count 56........................................
6.3.7.3.Brownout Override 57....................................
6.3.7.4.Geothermal HP Energy Tracking 57..........................
6.3.8. Zoning (If Applicable) 58...................................
6.3.8.1.Zoning Disable 58........................................
6.3.8.2.Zone Offsets 59..........................................
6.3.8.3.Zone Airflow Limits 59....................................
6.3.8.4.Duct Assessment Time 60..................................
6.3.9. Accessories 60...........................................
6.3.9.1.Filter 60................................................
6.3.9.2.Humidifier 61...........................................
6.3.9.3.Ultraviolet Lights 61......................................
6.3.9.4.Ventilator 62............................................

TABLE OF CONTENTS (cont.)
PAGE
6.3.10. Utility Curtailment 62......................................
6.3.11. Hydronic Airflow 64......................................
6.4. Check out 65.................................................
6.4.1. Electric Heat 66..........................................
6.4.2. Furnace 66..............................................
6.4.3. Hydronic 67.............................................
6.4.4. Air Conditioning 67.......................................
6.4.5. Heat Pump Heating 68.....................................
6.4.6. Heat Pump Cooling 69.....................................
6.4.7. Humidifier 69............................................
6.4.8. Ventilator 70.............................................
6.4.9. Zoning (If Applicable) 70...................................
6.4.9.1.Airflow Limits 70........................................
6.4.9.2.Damper/Sensor Check 70..................................
6.4.9.3.Zone Duct Assessment 71..................................
6.4.9.4.Sensor Type 71..........................................

TABLE OF CONTENTS (cont.)
PAGE
6.5. Service Information 72..........................................
6.5.1. Advanced Diagnostics 73...................................
6.5.2. Fan Coil Status 73........................................
6.5.3. Furnace Status 74.........................................
6.5.4. AC Status 74.............................................
6.5.5. Heat Pump Status 75......................................
6.5.6. Geo HP Status 75.........................................
6.5.7. Zoning Status 76..........................................
6.5.8. Last 10 System Events 77...................................
6.5.9. Run/Fault History 78......................................
6.5.10. Model/Serial Numbers 79...................................
6.5.11. Service Phone Number 79..................................
6.5.12. Energy Tracking 80.......................................
6.6. Refrigerant Charging: Greenspeed, 18VS, 19VS Systems 80.............
6.6.1. Charging 81.............................................
6.6.2. Pump down 83...........................................
6.6.3. Evacuation 83............................................
6.6.4. EXV Position 84..........................................

TABLE OF CONTENTS (cont.)
PAGE
6.7. Dealer Logo 84................................................
6.8. Utility Event Setup 86..........................................
7.Wireless Setup 87..................................................
7.1. Setup and Status Information (Homeowner’s Router) 88................
7.2. Setup and Status Information (Dealer--provided Router) 91..............
8.Wiring Diagrams 96................................................
9.Statement Information 107...........................................
9.1. FCC Interference Statement 107...................................
NOTE: See the Owner’s Manual for information regarding software upgrades.

1
1. Safety Considerations
Improper installation, adjustment, alteration, service, maintenance, or use can cause
explosion, fire, electrical shock, or other conditions which may cause death,
personal injury or property damage. Consult a qualified installer, service agency or
your distributor or branch for information or assistance. The qualified installer or
agency must use factory--authorized kits or accessories when modifying this HVAC
system. Refer to the individual instructions packaged with the kits or accessories
when installing.
Follow all safety codes. Wear safety glasses, protective clothing, and work gloves.
Have a fire extinguisher available. Read these instructions thoroughly and follow
all warnings and cautions included in literature and attached to the unit. Consult
local building codes and the current edition of the National Electrical Code (NEC)
NFPA 70. In Canada, refer to the current editions of the Canadian Electrical Code
CSA C22.1.
Recognize safety information. When you see this symbol on the unit and in
instructions or manuals, be alert to the potential for personal injury. Understand the
signal words DANGER,WARNING,andCAUTION. These words are used with
the safety--alert symbol. DANGER identifies the most serious hazards, which will
result in severe personal injury or death. WARNING signifies hazards, which could
result in personal injury or death. CAUTION is used to identify unsafe practices,
which may result in minor personal injury or product and property damage. NOTE
is used to highlight suggestions which will result in enhanced installation,
reliability, or operation.

2
2. Introduction
The InfinityRSystem consists of several intelligent communicating components
which include the Infinity System Control (or User Interface), variable speed
furnace or FE fan coil, 2--stage AC and HP, (including Geothermal units),
multi--stage AC and HP, variable capacity HP and AC units, and Infinity System
Package units which continually communicate with each other via a four--wire
connection called the ABCD bus. Commands, operating conditions, and other data
are passed continually between components over the ABCD bus. The result is a
new level of comfort, versatility, and simplicity.
All Infinity System furnaces or fan coils are variable--speed and multi stage for
maximum flexibility, efficiency, and comfort. They support controlled ventilation,
humidification, dehumidification, and air quality control. Either an Infinity System
(communicating), or a standard single--stage 24VAC controlled outdoor unit may be
used.
When using conventional single--stage outdoor units, the Infinity System furnace or
fan coil provides the 24 volt signals needed to control them. When using
multi--stage conventional outdoor units or heat pumps, an Infinity System Network
Interface Module or ”NIM” (P/N SYSTXCCNIM01) may be required to provide
additional control outputs. Also, the NIM allows connection of a Carrier HRV or
ERV without the need for separate wall control.
When using a Carrier HRV or ERV with a zoned system, the Infinity System Zone
board allows connection of a Carrier HRV or ERV without the need for separate
wall control or NIM.
All system components are controlled through the wall mounted Infinity System
Control, which replaces the conventional thermostat and provides the homeowner
with a single wall control for all features of the system.
3. Quick Start
NOTE: See Section 4 for installation instructions.

3
3.1. Set Time and Date
The time and date can either be set manually or can be synchronized with the web

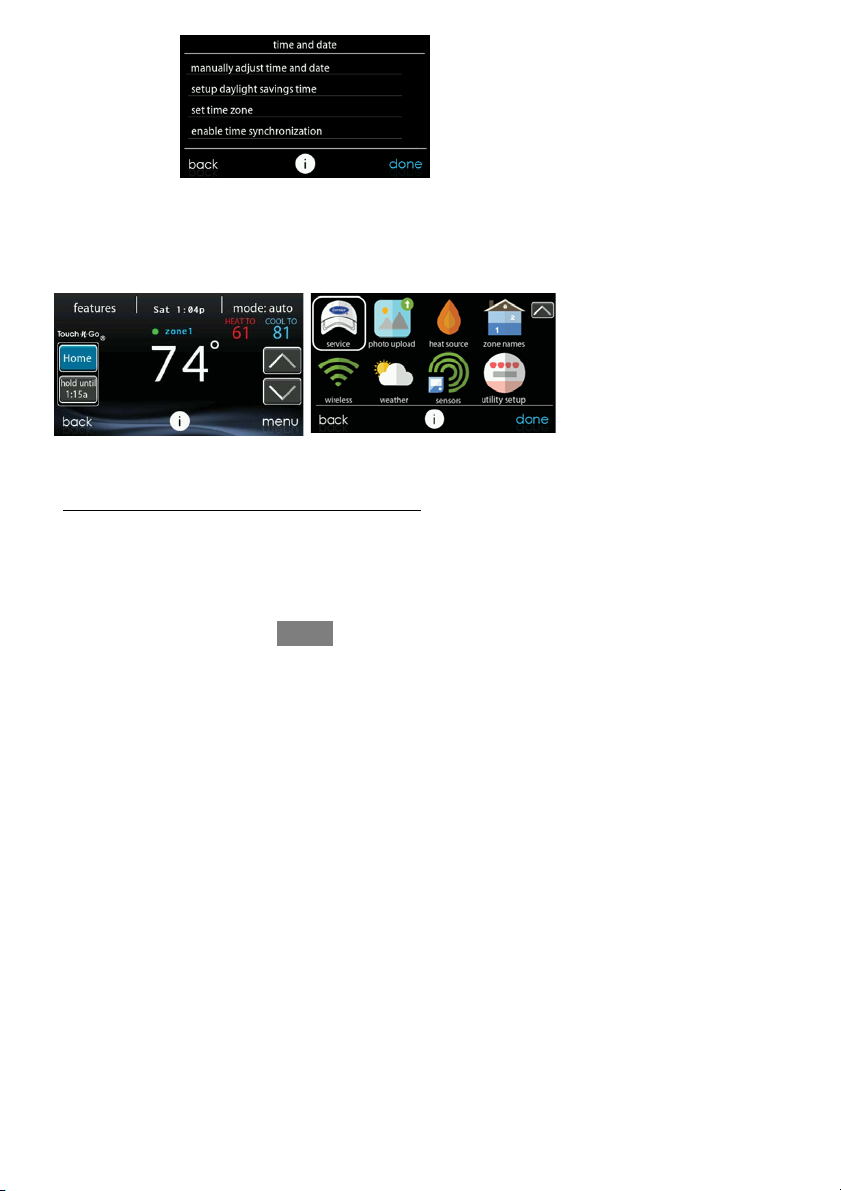

server. From the main screen, touch MENU, on the bottom of the control. The
TIME/DATE icon will bring up the time and date menu.
A14215
3.1.1. Manually Adjust Time and Date

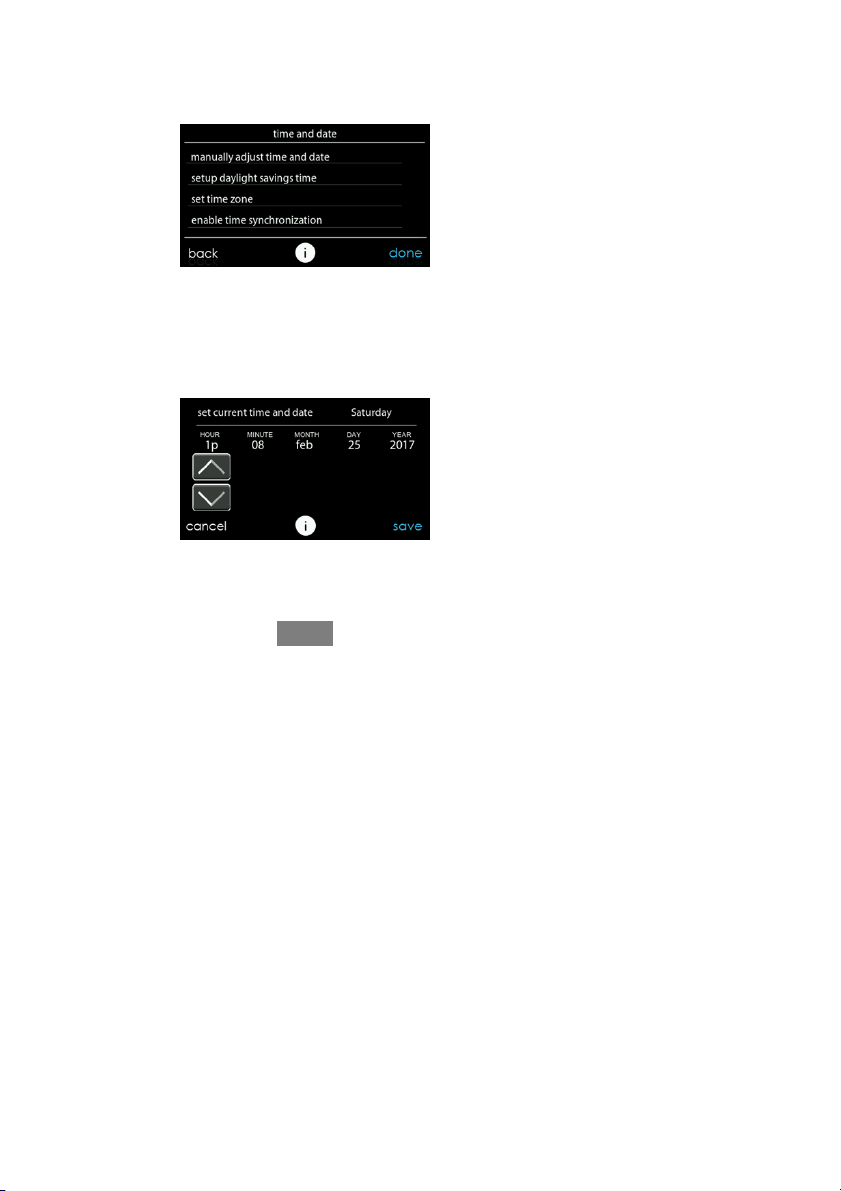

dTo set the HOUR, MINUTE, MONTH, DAY, or YEAR touch the feature
you wish to change.
dUse the Up (Y) and Down (B) buttons to make the appropriate changes.
dWhen you have completed all of the settings touch SAVE.
A14216

4
3.1.2. Setup Time Zone

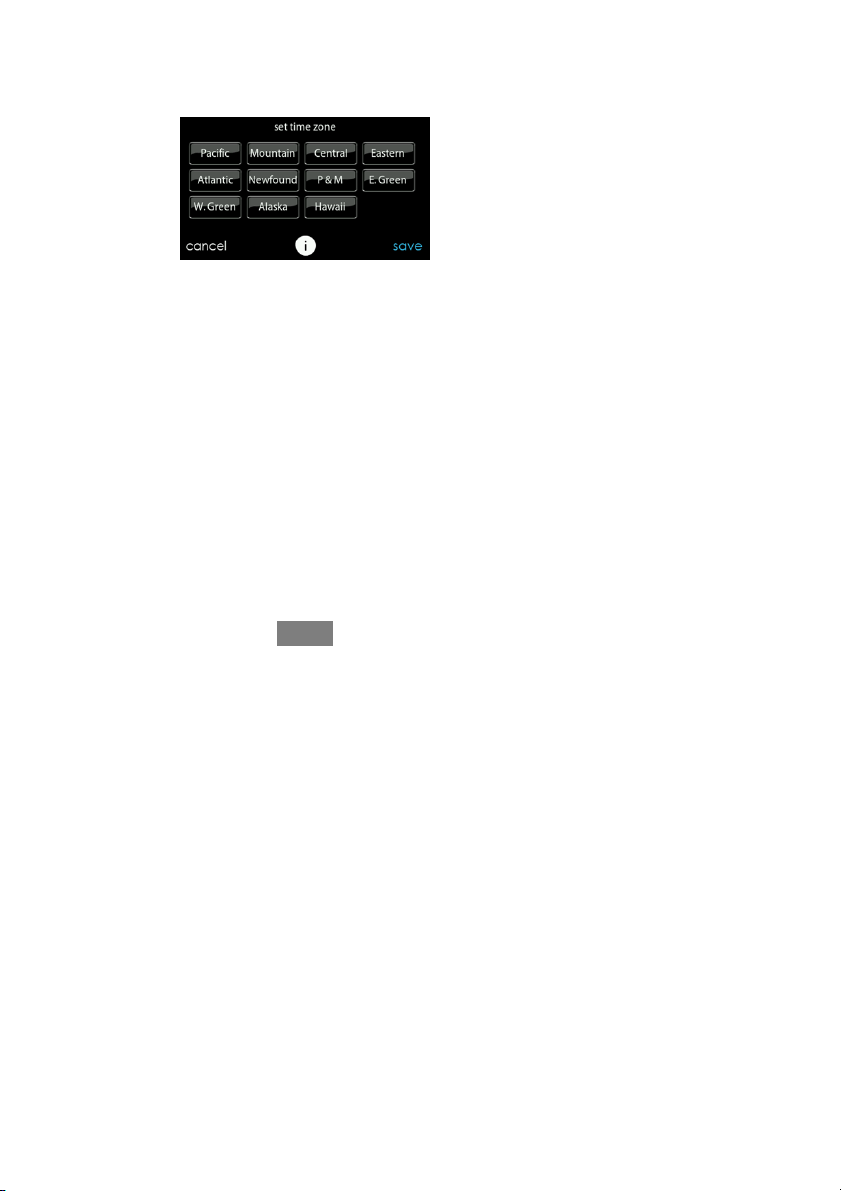

The time zone can be selected by selecting the set time zone from the menu. Then
select the time zone for the location. Time zones for both US and Canada are
included.
A14217
3.1.3. Enable Time Synchronization
After setting up the time zone, the time synchronization can then be done, after
connection to the Internet server. Both setting the time zone and enabling time
synchronization must be done in order to enable time synchronization.

5
3.2. Set Dealer Information
From the main screen, touch MENU, on the bottom of the control, then Down (B)
button so that the SERVICE icon is shown. The SERVICE icon allows you to
upload your contact information into the Infinity System Control.
A170243C
SFormat your contact information and logo (if applicable) using the PC/MAC
Desktop application available at
www.MyInfinityTouch.Carrier.com/Infinity/Downloads, and save it to a
standard micro SD card. See Section 6.7 for more information.
STouch the SERVICE icon for about 10 seconds, touch DEALER LOGO
UPLOAD.
SPlace the micro SD card into the micro SD card slot on the bottom of the

6
Infinity System Control and follow the on screen prompts.
SMore detailed information can be found on HVACPartners.com under: Products
and Dashboards > Product Catalog > Residential Controls > Systems Controls
> SYSTXCCITC01--B> Documents > Marketing > Miscellaneous> Infinity
System Control Dealer Logo Application -- Instructions.
4. Installation
4.1. Overview
This instruction covers installation of the Infinity System Control and the Infinity
Wireless Access Point only. Physical installation instructions for the indoor and
outdoor equipment, and accessories are provided with each unit.
Setup, commissioning, operation, and troubleshooting of the Infinity System are
covered in this installation instruction at a high level. More detailed information
may be available in the Infinity System HVAC equipment Installation Instructions.
This is the guide to connecting the system components and commissioning the
system once all physical components are installed. Special screen prompts and
start--up capabilities are provided in the Infinity System to simplify and automate
the initial commissioning of the system.
SInstall the Infinity System Control according to this instruction.
SInstall indoor unit, outdoor unit, and accessories according to their instructions.
SWire complete system according to this instruction.
SSetup, commission, and operate system according to this instruction, and as
supplemented in the HVAC equipment Installation Instructions, to assure a
smooth and trouble free start--up.
SNote that some detailed equipment configuration and service information may
be included with the equipment instructions. Please refer to the equipment
installation instruction manuals, and applicable technical training materials, for
all devices for complete information.

7
4.2. Check Equipment
Inspect equipment. File a claim with shipping company prior to installation if
shipment is damaged or incomplete.
4.3. Location
ELECTRICAL OPERATION HAZARD
Failure to follow this warning could result in personal injury
or death.
Disconnect power before routing control wiring.
!WARNING
All wiring must comply with national, state, and local codes.
4.3.1. Wall Control
The Infinity System Control is the command center for the Infinity System. It
should be located where it is easily accessible and visible to the adult homeowner
or end user. For accurate temperature measurement, the following guidelines should
be followed:
The Infinity System Control, Remote Room Sensors and Smart Sensors SHOULD
be mounted:
SApproximately 5--ft (1.5 m) from the floor.
SClose to or in a frequently used room, preferably on an inside partitioning wall.
SOn a section of wall without pipes or ductwork.
The Infinity System Control and Sensors SHOULD NOT be mounted:
SClose to a window, on an outside wall, or next to a door leading to the outside.

8
SExposed to direct light or heat from a lamp, sun, fireplace, or other
temperature--radiating objects which could cause a false reading.
SClose to or in direct airflow from supply registers.
SIn areas with poor air circulation, such as behind a door or in an alcove.
4.3.2. Wired Remote Room Sensors
A Remote Room Sensor can be used with the Infinity System Control to take the
place of the control’s internal temperature sensor. This allows the Infinity System
Control to be mounted in areas with less than optimal airflow (such as near an
exterior door, window or in a closet). The remote sensor can be wired to the
terminal block connectors labeled S1 and S2 at the control’s backplate, or the ZS1
and ZS1C connection at the Damper Control Module. In either case, the Infinity
System Control will automatically detect the Remote Room Sensor and ignore its
internal temperature sensor.
NOTE: Humidity sensing will occur ONLY at the Infinity System Control. The
wired Remote Room Sensor does NOT have humidity sensing capability.
4.3.2.1. Wired Remote Room Sensor Averaging
Typically, one wired remote sensor is used but, multiple wired sensors may be used
and averaged in some applications. Averaging requires a special series--parallel

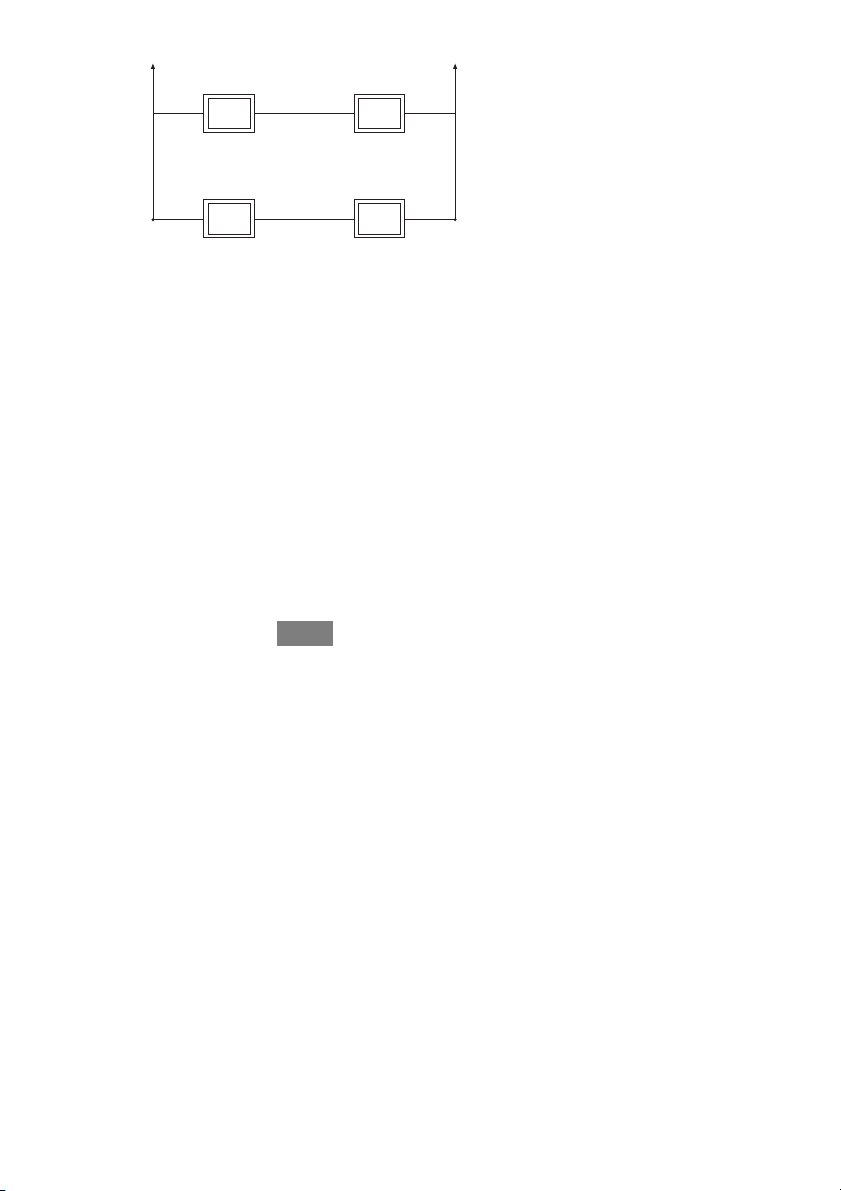

wiring method with a specific number of sensors. See figure below. It is also
important to note the humidity sensor cannot be remotely located, so do not locate
the Infinity System Control in an area where humidity sensing may not be accurate.

9
Sensor 1 Sensor 2
Sensor 3 Sensor 4
Damper Control
Module
ZS_
Damper Control
Module
ZS_C
A03233
4.3.3. Smart Sensors (for zoning applications)
Any zone may use a Smart Zone Sensor (SYSTXCCSMS01). It provides a
temperature display and buttons to adjust the desired temperature in that zone only.
It also displays outdoor temperature and indoor humidity sensed at the Zone 1
Infinity System Control. Only one Smart Sensor may be used per zone. They cannot
be averaged like Remote Room Sensors. If a Smart Sensor is used in a zone, one
wired Remote Room Sensor may also be used in the same zone. The wired Remote
Room Sensor has priority over the Smart Sensor; the Smart Sensor will display the
wired Remote Room Sensor temperature, when used.
NOTE: Smart Sensors must be addressed to identify which zone it will control. See
Smart Sensor Installation Instructions for details.
4.4. Wiring Considerations
Ordinary thermostat wire is recommended. See Section 4.4.1 for notes on shielded
wire. Continuous wire lengths over 25 ft. should use 18 AWG wiring.

10
NOTE: ABCD bus wiring only requires a four--wire connection; however, it is
good practice to run thermostat cable having more than four wires in the event of a
damaged or broken wire during installation.

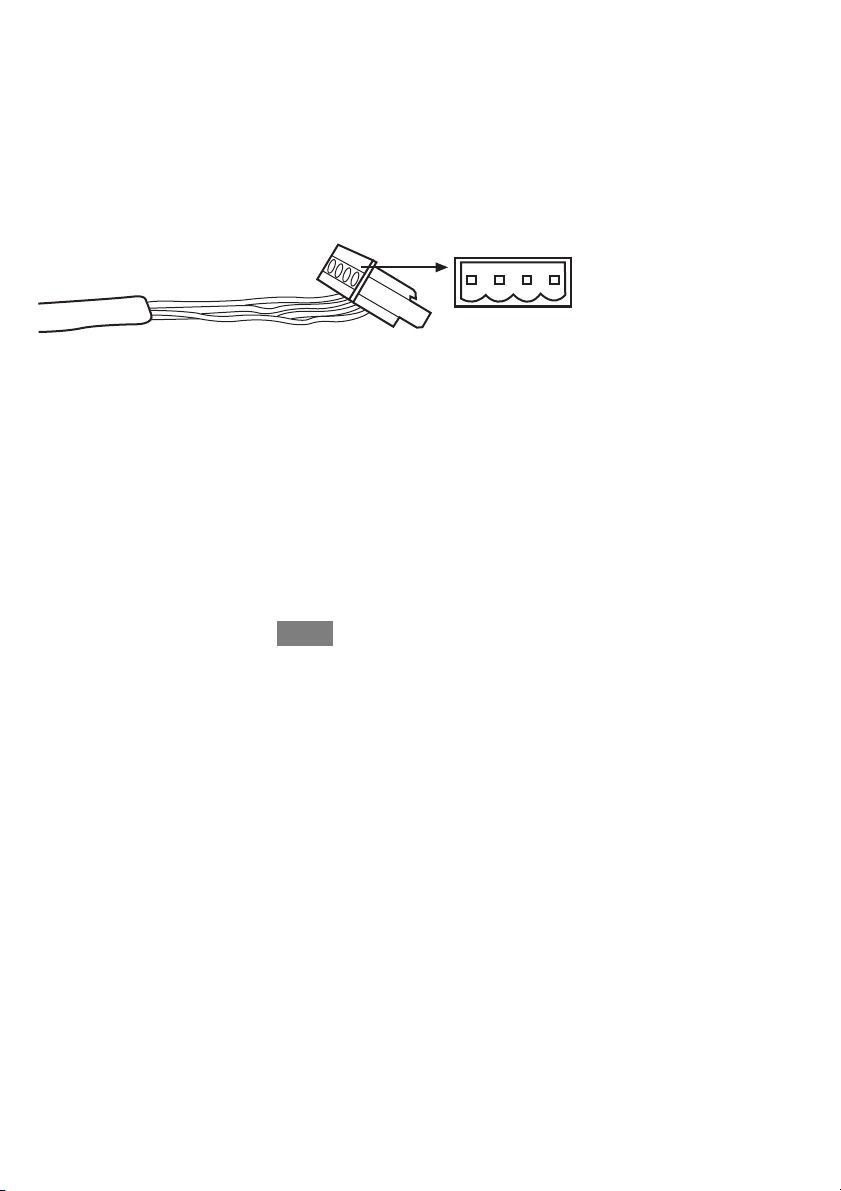

Each communicating device in the Infinity Zone System has a four--pin connector
labeled ABCD. It is recommended that the following color code be used when
wiring each device:
A — Green = Data A+
B — Yellow = Data B--
C — White = 24VAC (Com)
D — Red = 24VAC (Hot)
ABCD
A03193
It is not mandatory that the above color code be used, but each ABCD connector in
the system MUST be wired consistently.
NOTE: Some outdoor units, typically those with multiple compressor stages,
provide their own low--voltage power source and do not require the “C” (24VAC
common) and “D” (24VAC power) connections. See the outdoor unit installation
instructions for more information.
