CCTR-630 GPS Watch Tracker User Manual ---V1
Welcome to use this mini GPS watch tracker. This product is with GPS module and GSM module, that has
many new and unique functions, such as super power saving technology, LBS locate technology (without GPS
signal), real time uploading current location to server (user can control working mode), check current location
or playing back history tracking on website or mobile phone etc. It contains high capacity rechargeable polymer
battery (450mAH), standby time can reach 5-7 days (working mode 4), 5 minutes interval upload LBS location
working time can reach 3-4days (working mode 3), 5 minutes interval upload GPS location working time can
reach 1-2days (working mode 2). This GPS watch is mini size, and easy to use, it is suit for kids, old parents,
pets and outdoor workers tracking.
This tracker also have LBS locating function (mobile phone base station CELL ID), if no GPS signal in
some place, such as underground park, indoor room, or around high building with bad GPS signal, the tracker
will locate with LBS (normally the LBS CELL ID locating precision is about 50-500m in the city, and the GPS
locating precision is about 10m).
Using the unique username and password, you can check the history track max to 6-12 months, the real
time location, and set the over speed alarm, the geo-fence alarm and so on. The website is www.999gps.net. It
is suit for personal user or fleet user, and it can locate object by visiting website, wap visiting by phone, Android
App or iOS iPhone App on mobile phone, WeChat on mobile phone (Android,iPhone,Symbian,Windows
phone,Blackberry), sending sms to get location Google map link etc.
Scan the following QR code or click the following link can download or read online the manual in Word or
Pdf format.
Word Version: http://www.999gps.org/en/CCTR-630-GPSTracker-en-V1.doc
Pdf Version: http://www.999gps.org/en/CCTR-630-GPSTracker-en-V1.pdf
QR-Manual Download (Word) QR-Manual Download (Pdf)
iPhone App Download Android App Download Wechat Official Account

-2-
Product:
CCTR-630 Watch 1 set, Mini USB Charging Wire, Manual (CD or Print), AC Charger (Optional), Water-proof
Bag for Pets Belt(Optional).
GPS Watch Tracker Mini USB Charging Wire AC Charger (Optional)
Function Specification:
Portable Design,No installation,Easy using;
Standby time up to 7 days (working mode 4);
Listen, SOS, Geo-Fence Alarm;
SMS/Calling/App/Web/Wechat Locate;
GPS + LBS can be used indoor locate;
Universal 4 Band GSM module;
Auto configure APN;
Low Battery Alarm.
Display indicator:
Symbol Description
GPS is ON but not located(No symbol means GPS is Off)
GPS is ON and Located (No symbol means GPS is Off)
GSM Signal Level(0,1,2,3,4)
No SIM Card
Battery Power Level(1 to 3)
Charging
Watch Power off & Battery is Charging
Watch Power off & Battery is Full
SOS Send SOS SMS & Calling SOS number
Before Using:
1. Power On/Off
Power On: If the GPS watch is powered OFF, press and hold the Button ON/OFF over 5 seconds and then
the LCD will display “WELCOME”, then release the button ,and the GPS watch is powered ON.
SOS
ON/OFF
Charging

-3-
Power Off: If the GPS watch is powered ON, press and hold the ON/OFF button over 5 seconds and then
the LCD will display “BYE BYE”, then release the button ,and the GPS watch is powered OFF.
2. SIM Card Installation(Micro card): This GPS watch need a micro SIM card (every month need about
10M GPRS data according the different working mode, order an data package can save money), Open the

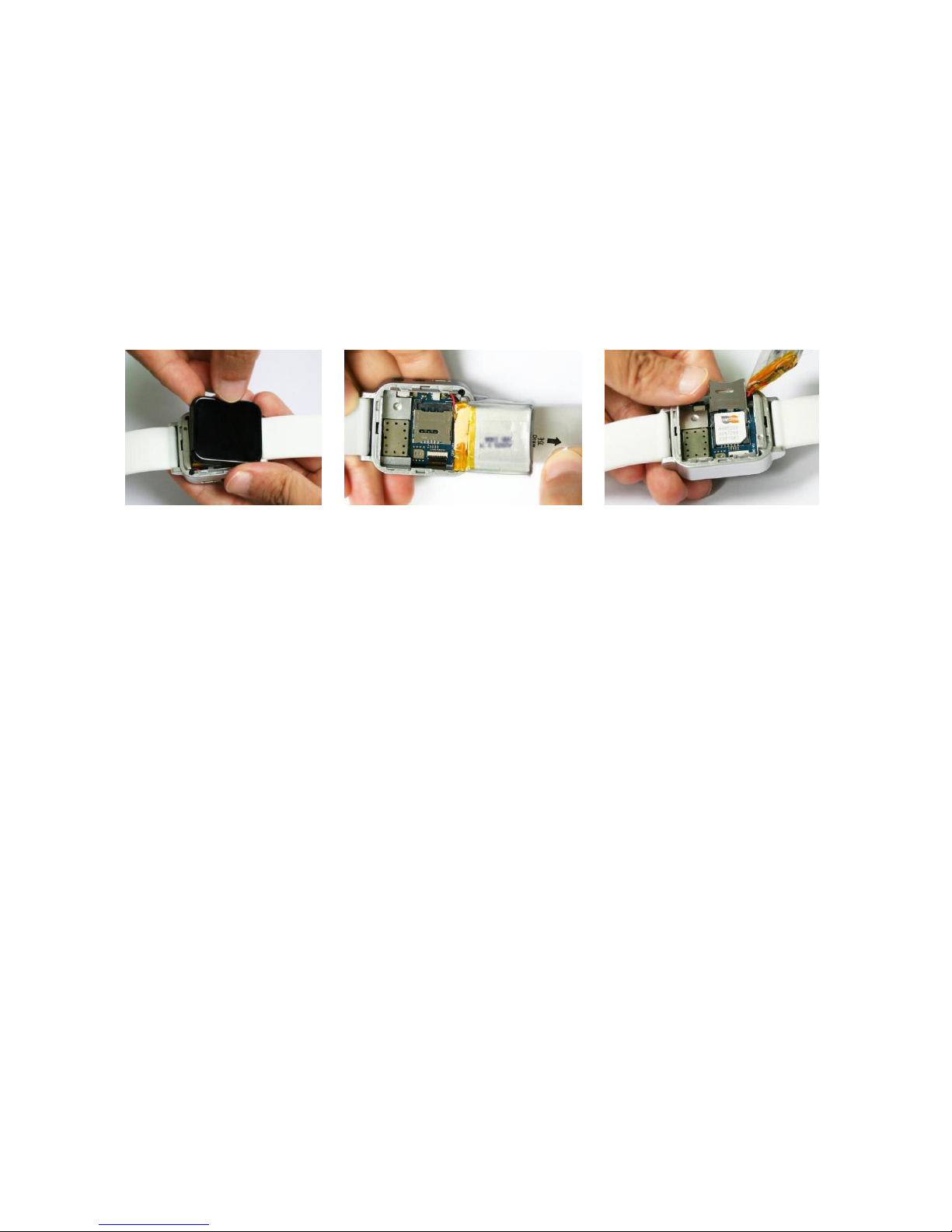

back battery cover with finger like the following diagram, pull the battery out, and the SIM card socket can be
seen, pull the SIM card metal cover to “OPEN” direction, and the cover can be opened up, and put the SIM
card in the holder (Metal pin face to down), close the metal cover and push the metal cover to “LOCK” direction,
after a sound of lock the SIM card has been locked and installed.
Note:
A. This GPS watch use 2G GSM network, and it upload tracking only through GPRS, it can not work in
CDMA network or 3G(WCDMA or CDMA2000) network. (Some 3G & 4G SIM card can use in 2G GSM network,
this kind of 3G & 4G SIM card can use in this tracker)
B. This GPS watch use micro SIM card (Cut the standard SIM card can get Micro SIM Card, this SIM card
size is same with iPhone 4/4S, not the iPhone 5/5S/6 Nano SIM Card).
C. Please confirm the PIN code of the SIM card is disabled (insert the SIM card to mobile phone and can
be disabled in mobile phone setting menu).
D. Enable the SIM card GPRS data service and Caller ID Function (Some card maybe need using mobile
phone to send SMS to service hot line to enable the GPRS data service).
E. Before installing or uninstalling the SIM card, please power off the tracker.
3. Using
This GPS tracker is no installation, wear on the arm or put in the bag and power on is OK, for better
hidden, drop in the bag will be better.
4. Recharging
This GPS watch uses the 5V DC voltage to recharge, connect the watch charging micro USB socket to the AC
charger or PC USB, the GPS watch will begin to recharge, about 1-2 hours, the battery will be full, press once
any button of the GPS watch tracker, the LCD will display the battery level.
5. Low Battery Alarm
When the tracker battery voltage is low than 10%, the watch will send battery low information SMS to the
authorized phone number. maybe a few hours later, the watch will turn off after the battery is gone out.
6. Reset to Factory Configure
Send the SMS command to the tracker can reset to the factory configuration. The SMS command is
factory#. the tracker will delete all user setting and back to factory configuration and repower on.

-4-
Notes: After back to default set, all IP / APN / GPRS / Language / Timezone / Alarm Setting etc are
deleted and back to factory setting, just like a new product, all authorized phone number are deleted
and password change to 123456, all the alarm setting is canceled, if the IP/APN/GPRS name &
password/TIMEZONE are changed, and you need set these again by sending SMS.
7、GPS & GSM Antenna
The Antenna of GSM and GPS are built in the GPS watch.if can not locate please change a place to try
again.
8. Using Condition
The working temperature is -20℃to 60℃, over this range the specification maybe can not reach the
standard level. the storage temperature can reach to -40℃to 80℃.
Simply Using Step
1. First to buy a 2G GSM phone SIM card and enable GPRS service, order a data package (Normally will
use about 10M GPRS data every month), install in the tracker, please refer the above Before Using 2.
2. Press any ON/OFF button till the watch power on, first time using please put the tracker outdoor for
easy get GPS & GSM signal.
3. Please add authorized phone number first, send SMS to tracker to set your mobile phone number as
center or slave center number (pw,123456,center,yourphonenumber#) , then you can use your mobile phone
to send SMS to change the setting of the tracker or control the tracker. please refer the following Locate
Operation & Setting 1. (Only the center or slave center number can send SMS or call the tracker to
change the setting of the tracker or control the tracker)
4. Send SMS “123#” or “url#” to the tracker with authorized phone, a few minutes later, the watch will reply
the tracker location with location description or Google map link by SMS. Please refer the following Locate
Operation & Setting 3 & 4.
5. Send SMS “lang,0,zone,-5#” to tracker with authorized phone to set your local time, Please refer the
following Locate Operation & Setting 2.
6. Send SMS “m,4#” to tracker with authorized phone to set change the working mode, Please refer the
following Locate Operation & Setting 11.
7. Visit & login the tracking platform www.999gps.net, display current location, playback history tracking
etc can be operated, platform user name and password is the last 7 digital numbers of the tracker’s ID (the ID
is print on the battery, for example ID is : 1456301688, and then the user name is : 6301688, password
is :6301688, user can change the password).
8. iPhone Android App,Wap,WeChat also use the same user name and password with website login,
downloading & installation please refer the platform operation guide.
9. This tracker can auto download & configure APN & GPRS user name & password, if the auto configure

-5-
is not right, the tracker can not upload location to server, then you need send SMS to tracker to change the
APN & GPRS manually, and send “test#” to tracker can check the tracker setting, call the tracker SIM card
supplier to confirm the APN & GPRS is right, please refer Locate Operation & Setting 16 to set APN & GPRS
username and password.
Locate Operation & Setting
Only center or slave center number can send SMS to control or change the setting of the the
tracker, the alarm SMS will send to center and slave center number, but the alarm calling only call to
center number, so please send SMS to tracker to set the center or slave center number first. Adding
country code before the center or slave center number will be better.
1. Add authorized phone number (Set center and slave center number)
Send SMS “pw,123456,center,13987654321#” to the tracker to set center number, Send SMS
“pw,123456,slave,13912345678#” to the tracker to set slave center number,123456 is the tracker default
password, 13987654321 and 13912345678 are the mobile phone number, the tracker will reply set center or
slave number OK. If the tracker has no reply, please check the tracker work properly and confirm the SMS
command is right. Set new center or slave center number will overwrite the old center or slave center number.
Send SMS “pw,123456,center,d#” or “pw,123456,slave,d#” to the tracker can delete the old center or
slave center number.
The center or slave center number all can control the tracker, but the alarm information only can be sent to
the center number by SMS or calling.
2. Set the local time zone
Send SMS “lang,0,zone,z#” to the tracker with authorized number (center or slave center number), the “z”
is the customer local time zone, for example NewYork time zone is -5, then z is -5, Tokyo time zone is +9,so the
z is 9, the watch time is corrected by GPS time, so normally the watch display time is GMT time, you need set
the time zone, and then the watch display time will change to your local time.
3. Sending SMS to Locate with Google map link
Send SMS “url#” to the tracker with authorized number (center or slave center number), the tracker will
reply a google link of current location to user by SMS, user click the link to visit website, the current location will
display on the google map. If the tracker has no reply, please check the tracker work properly and confirm the
SMS command is right.
The “url#” command will reply the following SMS:
http://maps.google.com/maps?q=N22.6775,E114.1518
Click the above link, the map like following will display on mobile phone.

-6-
4. Sending SMS to Locate with location description in text:
Send SMS “123#” to the tracker with authorized number (center or slave center number), the tracker will
reply text description of current location to user by SMS, If the tracker has no reply, please check the tracker
work properly and confirm the SMS command is right.
The “123#” command will reply the following SMS:
Some time the location description can not get, then the watch will change to reply location Google map
link like above.
5. LBS Locate (Cell ID Locate without GPS Signal)
When send SMS “123#” or “url#” to the tracker with authorized number (center or slave center number) to
trigger the tracker to locate , if the tracker is indoor and has not GPS signal, the tracker will change to locate
with LBS method (locate with GSM network base location), and reply the location with Google map link, the
following SMS is an example.
url: [No Locate]
http://maps.google.com/maps?q=N40.756441,W73.986378
Note: The LBS location precision is not very high, in the city maybe 30-50 meters, in country side maybe
over 300 meters according the GSM base station density. So this location only can be used as a reference
location.

-7-
6. Set Listen & Monitor Phone Number
Send SMS “monitor,13712345678#” to the tracker with authorized number (center or slave center
number) , the tracker will set 13712345678 this number as listen monitor number, only use this number call the
watch tracker, the watch will pick up the calling and go to the listen monitor mode, in this mode, you can listen
the sound around the watch tracker, but the watch tracker has not any response. Hang up the calling, the listen
monitor mode will terminate.
Note: Only listen monitor number calling can trigger the watch tracker go to the listen monitor mode, set
the new listen monitor number will overwrite the old the listen monitor number.
7. Listen & Monitor Sound
Making a call to watch tracker number with listen monitor number, the watch will pick up the calling and
then you can listen the sound around the watch tracker, the watch tracker has not any response. Hang up the
calling, the listen monitor mode will terminate.
Note: Set the listen monitor number first, and the SIM card in the watch tracker need enable caller ID
display function.
8. Set SOS phone number
Send SMS “sos1,[phone]#” or “sos2,[phone]#” or “sos3,[phone]#” to the
tracker to set SOS alarm phone number, 13612345678 or 13512345678 or 13412345678 are the SOS phone
number, total 3 SOS numbers can be set, the tracker will reply set sos(1,2,3) number OK. If the tracker has no
reply, please check the tracker work properly and confirm the SMS command is right.
Set new SOS number will overwrite the old SOS number. Also send SMS “sos1#” or “sos2#” or “sos3#” to
the tracker can delete the old SOS number.
9. Press SOS Button to Send SOS Information
Press SOS button over 6 seconds till the LCD display “SOS”, release the SOS button, the watch tracker
will send SOS information SMS to the SOS1, SOS2 and SOS3 number, and then call the SOS1, if the SOS1
no response, then call the SOS2, and also if no response call SOS3, If all SOS number no response then stop
the calling. If the calling is picked up by the SOS number, then the watch will go to listen monitor mode, the
SOS number can listen the sound around the tracker.
If the SOS number receive SOS information, please confirm people is safety.
10. Change Watch Tracker Password
Send SMS “pw,112233#” to the tracker with authorized number (center or slave center number), the
“112233” is an sample of the new password of the watch tracker, this command will change the tracker
password to new password 112233, the tracker will reply “Password 112233 set success!”, If the tracker has no
reply, please check the tracker work properly and confirm the SMS command is right.
Note: the tracker password (Default password is 123456) is not the password login the tracking platform,

-8-
this password is used to add authorized number by SMS, for better security please change the tracker
password after begin to use the watch tracker.
11. Change Watch Tracker Working Mode
This watch tracker has 4 working mode, default working mode is 2, sending SMS to watch tracker can
change the working mode, the working mode description as follow:
1. Mode 1 (Real Time Mode): GPS and GSM module will work continuously, tracker will upload the
location to server according the interval time setting, under this mode, the battery exhaust will be very fast
(30 seconds upload 1 location the battery only can be used 2-3 hours). and the location update on App &
Web maybe have 30 seconds delay (The delay time is decide by setting time interval).
Send SMS “m1,60#” to the tracker with authorized number (center or slave center number), the “60”
is the upload time interval (min is 30 & max is 65535), unit is seconds, this command will set the watch
tracker working mode is mode 1, and the upload time interval is 60 seconds.
2. Mode 2 (Power Saving Mode): This working mode is default working mode, under this mode,
GPS will turn on & locate every 300 seconds (5 minutes), after located upload the location to the sever,
and then turn off the GPS & GPRS, under this mode, the battery can be used longer (1-2 days). and the
location update on App & Web maybe have 300 seconds delay (The delay time is decide by setting time
interval).
Send SMS “m2,600#” to the tracker with authorized number (center or slave center number), the
“600” is the upload time interval (min is 300 & max is 65535), unit is seconds, this command will set the
watch tracker working mode is mode 2, and the upload time interval is 600 seconds.
3. Mode 3 (LBS Locate Mode): Under this mode, watch tracker will not turn on GPS to locate, it only
use LBS (Mobile phone base station locate technology) to locate tracker every 300 seconds (Can be
changed), after located upload the location to the sever, under this mode, the battery can be used more
longer (3-4 days). and the location update on App & Web maybe have 300 seconds delay (The delay time
is decide by setting time interval), and the location precision is not very high (City maybe 30-50 meters,
and country side maybe over a few hundreds meters), but the tracker can be confirmed around a area. In
this working mode the GPS module is turned off all the time, but sending SMS (123# & url#) can triggered
the tracker turn on the GPS to locate one time.
Send SMS “m3,300#” to the tracker with authorized number (center or slave center number), the
“600” is the upload time interval (min is 30 & max is 65535), unit is seconds, this command will set the
watch tracker working mode is mode 3, and the upload time interval is 300 seconds.
4. Mode 4 (Standby Mode): Under this mode, watch tracker will not use GPS or LBS to locate, it only
can be located by SMS (123# or url#), no platform necessary, and it will not upload location to server,
under this mode, the battery can be used more & more longer (5-7 days). and the location update on App
& Web will not updated. In this working mode the GPS module is turned off all the time, but sending SMS

-9-
(123# & url#) can triggered the tracker turn on the GPS to locate one time.
Send SMS “m4#” to the tracker with authorized number (center or slave center number), this
command will set the watch tracker working mode is mode 4.
12. Set the Upload Time Interval
Send SMS “upload,60#” to the tracker with authorized number (center or slave center number), the “60” is
an sample of the upload time interval (min is 30 & max is 65535,mode 2 min is 300), unit is seconds, this
command will change the tracker upload time interval, the tracker will reply “Set upload 300s !”, If the tracker
has no reply, please check the tracker work properly and confirm the SMS command is right.
13. Set LCD Display Time
Send SMS “displaytime,5#” to the tracker with authorized number (center or slave center number), the “5”
is an sample of the LCD display time, unit is seconds, this command will change the watch display time, the
tracker will reply “Set display time 5s !”, If the tracker has no reply, please check the tracker work properly and
confirm the SMS command is right.
Every pressing the button ON/OFF or SOS, the watch LCD will display time a while and then turn off the
LCD to save battery power, too long display time will reduce the battery working time.
14. Set Sleep Time to Save Battery Power
Send SMS “sleep,x,y#” to the tracker with authorized number (center or slave center number), the “x” is
the time tracker begin to go to sleep, and the “y” is the time tracker stop sleep and weak up from sleep, the
format is HH (24 hours), if the y is smaller than x, it means the weak time is the second day, for example,
sending SMS “sleep,22,8” to tracker, the tracker will begin to sleep from 22:00 o’clock, and weak up from 08:00
o’clock, the tracker will reply “Set sleep 22,8 ”, If the tracker has no reply, please check the tracker work
properly and confirm the SMS command is right.
Set sleep time can extend the battery time, for example set the sleep time from 22:00 to 08:00 can extend
the battery time even up to 50%.
15. Low Battery Alarm
The battery power has 4 levels, when the battery power reach to level 1, the watch will send a battery low
alarm information SMS to center number, if the battery power is too low, the watch will turn off automatically.
16. Set APN & GPRS Username and Password
This watch tracker can auto download the APN & GPRS setting according the SIM card, if the auto
configure of the APN & GPRS are not right, you can send SMS to watch to set the the APN & GPRS.
Send SMS “apn,xxx#” or “apn,xxx,plmn,yyy#” or “apn,xxx,user,uuu,pd,ppp,plmn,yyy,#” to the tracker with
authorized number (center or slave center number), the xxx is apn name, yyy is the tracker SIM card mobile
company code, uuu is GPRS user name, ppp is GPRS password, if you can not confirm this, please search on
internet or call your tracker SIM card mobile company to confirm.
Some SIM card need GPRS user name & password, some SIM card do not need, please call the SIM card

-10-
supplier to confirm. If sending SMS can locate, but the location can not check on the app or web, please
confirm the APN setting is right.
17. Check Watch Current Setting
Send SMS “test#” to the tracker with authorized number (center or slave center number), the tracker will
reply current setting to user by SMS, this command can be used to check the watch working status, and to
adjust the watch is working well or not. The following is an example:
ver:TQ-v0.1-2014/09/28-22:51;ID:1456301688;ip:58.64.155.133;port:8500;center:13987654321;slave:138765
43210;upload:300s;work mode:1;bat level:3;signal level:100; GPS:OK(7); GPRS:OK(100); LED:OFF;
Ver: Software version time
ID: Tracker ID number
Ip,port: Platform IP & port
Center: Cneter number
Slave: Slave number
Upload: Upload time interval
Workmode: Working mode
Bat level: Battery Level
Signal level:100: GSM signal level
GPS: Satellite number
GPRS: GPRS signal level
LED: LED ON or OFF
18. Reset Watch Tracker
Send SMS “reset#” to the tracker with authorized number (center or slave center number), the tracker will
power off and power on again, some time the tracker can not online, send the reset command, the tracker will
re-power on a few minutes later.
19. Restore to Factory Setting (Back to Default)
Send SMS “factory#” to the tracker with authorized number (center or slave center number), the tracker
will delete all user setting, and restore all setting to factory mode, just like a new tracker, and the tracker will
repower on after delete user setting. If the user have changed the setting, such as APN, IP, center number, etc,
you need set this again after back to factory mode
20. Upgrade Firmware
Send SMS “upgrade,address#” to the tracker with authorized number (center or slave center number),
address is the internet address of the new software, the tracker will upgrade the firmware with the internet
software, after the upgrading, all the user setting will be deleted, this command is used to upgrade future
function for special user.
Platform Operation
The platform operation please refer the platform operation guide, scan the following QR code or click the
website link to download the platform manual, visit website www.999gps.net and click the Manual icon also can
