Carson CAMEDIAXES User manual

>> assembly instructions
carson
media stand
espresso
style # CAMEDIAXES
dpci # 249-14-0035
ebony
style # CAMEDIAXEB
dpci # 249-14-0036
cherry
style # CAMEDIAXMT
dpci # 249-10-0318
white
style # CAMEDIAXWH
dpci # 249-10-0319

2
Congratulations on your latest Target purchase.
Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you.
All you need to do is follow our simple instructions and you’ll be on your way to transforming your
room in no time. Good luck—though we’re condent you won’t need it.
tools needed
before you begin
1. Check for damaged or missing parts. Call 1-855-MYTGTHOME (855-698-4846) to order missing supplies.
2. Use the carton as a working surface to prevent product damage during assembly.
3. Gather all tools prior to assembly.

3
2
4
5
6
7-13
QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
table of contents
introduction
hardware
parts list
how to use the cam lock system
assembly

4
hardware
(H1) x 14
wooden dowel
(H4) x 14
cam
(H9) x 1
wall anchor
(H2) x 12
at-head screw
(H7) x 1
15mm truss head screw
(H5) x 19
12mm pan-head screw
(H10) x 1
wall screw
(H3) x 14
cam bolt
(H8) x 1
wall strap
(H6) x 8
shelf pin
(H11) x 2
5/8” washer

5
ITEM DESCRIPTION QUANTITY
A
B
C
D
E
F
G
H
I
J
Top Panel
Bottom Assembly
Left Side Assembly
Right Side Assembly
Center Assembly
Adjustable Shelf
Back Panel
Front Beam
Side Trim
Front Trim
1
1
1
1
1
2
1
1
2
1

6
4. 5.
180º
1. 2. 3.
4. 5.
how to use the cam lock system

7
1. Carefully tap wooden dowels into place. Leave 1/2” of the dowels sticking out.
2. Do not over tighten screws.
step 1.
(H1) x 2
wooden dowel
(H2) x 2
at-head screw
grooved front rail should face up

8
1. Carefully tap wooden dowels into place. Leave 1/2” of the dowels sticking out.
2. Screw-In cam bolts must be screwed down ush.
3. Refer to page 6 for instructions on how to use the cam lock system.
4. Do not over tighten bolts.
step 2.
(H1) x 6
wooden dowel
(H2) x 6
cam bolt
(H3) x 6
cam

9
step 3.
1. Do not over tighten screws.
(H2) x 10
at-head screw

10
1. Carefully tap wooden dowels into place. Leave 1/2” of the dowels sticking out.
2. Screw-In cam bolts must be screwed down ush.
3. Refer to page 6 for instructions on how to use the cam lock system.
4. Do not over tighten bolts.
step 4.
(H1) x 6
wooden dowel
(H2) x 8
cam bolt
(H3) x 8
cam

11

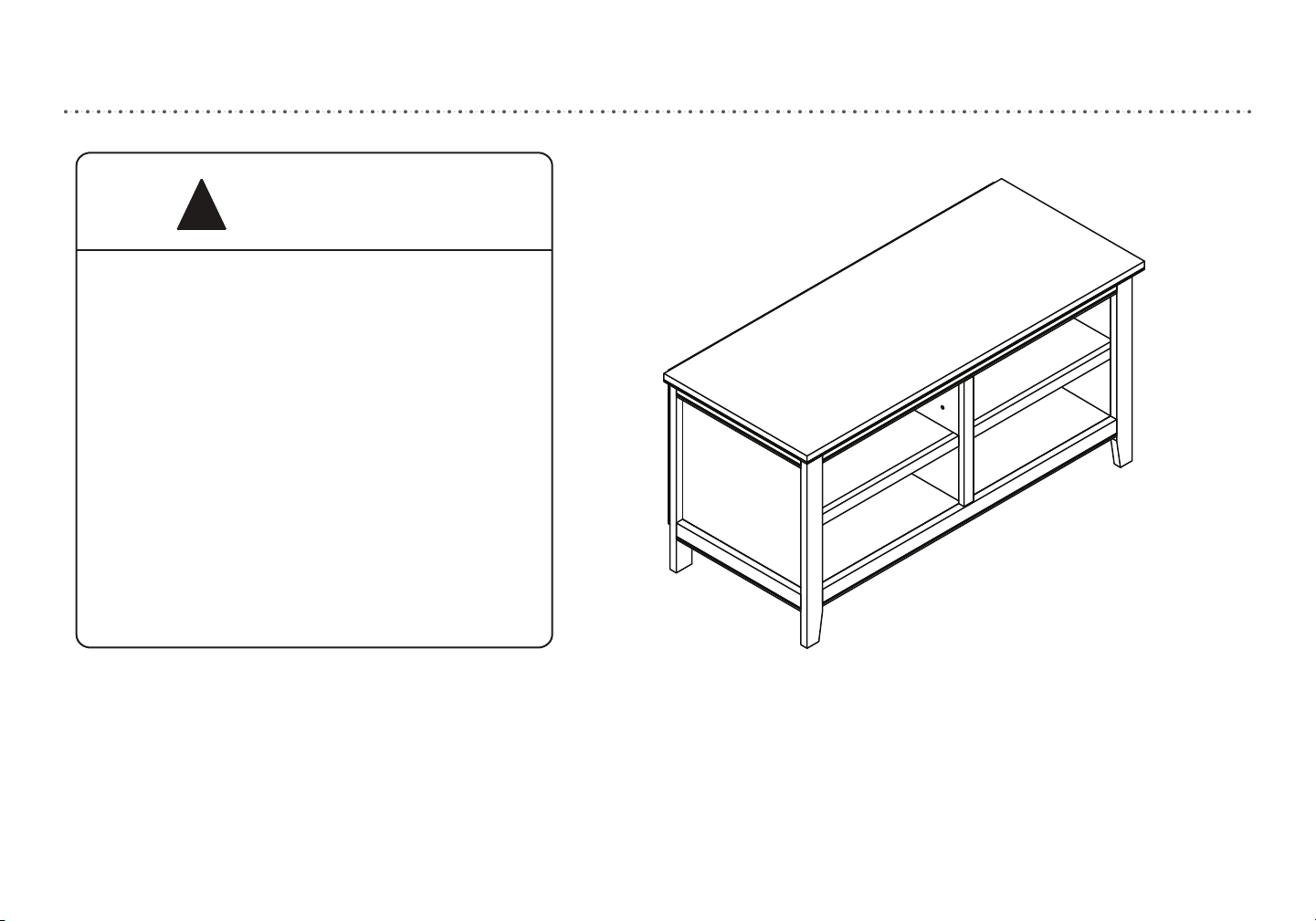

For use with televisions weighing 100
pounds (45.3 kg) or less. Use with
heavier televisions may result in
instability causing tip over resulting
in death or serious injury.
Use of anti-tip restraints may only
reduce, but not eliminate, the risk
of tip-over.
! WARNING
(H5) x 19
pan-head screw
1. Do not over tighten screws.
step 5.
Begin by installing all of the screws along one
edge of the back panel. Next, using a square
or tape measure, make sure that the cabinet is
square. (If using a tape measure, the distance
from one corner, diagonally to the other corner
should be the same in both directions.) Install
the remaining screws, starting with the corners.
hole for anti-tip

12
step 6.
(H6) x 8
shelf pin
1. Insert pins into desired height location.
2. Place shelves onto the pins.

13
step 7.
For use with televisions weighing 100
pounds (45.3 kg) or less. Use with
heavier televisions may result in
instability causing tip over resulting
in death or serious injury.
Use of anti-tip restraints may only
reduce, but not eliminate, the risk
of tip-over.
! WARNING
Fasten anti-tip strap
with at-head screw provided
Position against wall
Mark position of strap hole on
wall
Drill 1/4’’ hole
Tap in wall anchor
(H10) (H11)
(H9)
(H9) x 1
wall anchor
(H10) x 1
wall screw
(H8) x 1
wall strap
(H11) x 2
5/8” washer
(H7) x 1
15mm truss head screw
(H8)
(H11)
(H7)

14 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for service. For faster service, have the style number and DPCI number ready when calling.
For use with televisions weighing 100
pounds (45.3 kg) or less. Use with
heavier televisions may result in
instability causing tip over resulting
in death or serious injury.
Use of anti-tip restraints may only
reduce, but not eliminate, the risk
of tip-over.
! WARNING
Manufactured by: BDDMI
Factory #: 16840041
holds at panel tvs
up to 42” or 100 lbs.
45 lbs.
per shelf
1. WARNING - Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed
on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
2. WARNING - Relocating audio and/or video equipment to furniture not specically designed to support audio and/or video equipment may result
in death or serious injury due to the furnishing collapsing or over turning onto a child.
3. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme
overloading can cause failure of the top and possible injury.
4. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed.
