CONGRATULATIONS on your purchase of Carvin’s PA800, PA1200 or PA1200R Series
mixer! The "R" version is a non-power rack model designed for your own power amp while the
PA800 and PA1200 models included built-in high power amplifiers for direct hook-up to your
speakers. Please read this manual carefully to take all the advantages of your new mixer.
SUPERB SOUND is derived from the extremely low distortion, high "Headroom" design.
A state-of-the art, low noise, high headroom, balanced XLR preamp for each channel features
a common mode rejection of better than 78 dB, which means that any possible noise that may
come over your cables is virtually eliminated. Even the balanced XLR output connectors guard
your system from cable noise for professional recordings or external power amp connections.
Distortion is nearly non-existent with THD below .1%, which guarantees the purity of your
sound. Hear the difference - your sound will not seem "sterile" or "processed". It will be
dynamically open and transparent just like it was meant to be!
LIGHT WEIGHT and EASY TO USE everything is logically laid out making the PA
Series simple to use, which helps to eliminate operator error. Its compact size and weight of
28 lbs. makes it the lightest, most powerful mixer of its kind. No other competitor in the
industry offers a higher performance to weight ratio!
3 HIGH CURRENT AMPLIFIERS deliver 333 watts RMS each. A total of 666 watts is
delivered to your main speakers (333 watts each for the R/L if played in stereo), plus a 333
watt amp to drive your stage monitors for a total of 1000 watts. This is the kind of output
required for today’s professionals to maintain purity and integrity of sound. Six output jacks,
two from each amp, deliver full power into 4 ohms, making these mixers more powerful than
most amplifiers rated at 2 ohms. A peak indicator for every amp and a protect LED gives you
a visual monitor.
A HIGH CURRENT POWER SUPPLY is provided by a beefy toroid transformer to
assure continuous high amperage DC voltage to all three power amplifiers, eliminating "overload"
or shutdown. 20,000 mfd capacitors offer a large power reservoir for bass thumping output.
The PA1200R features a 125k Hz switching power supply for operating your mixer at any volt-
age from 90 VAC to 240VAC. Like a laptop computer, you can go anywhere in the world and
not worry about power adapters.
2 INDEPENDENT 24-Bit STEREO DSP EFFECTS allow you to assign each chan-
nel to your choice of effects. You can dedicate chorus/rev to the acoustic guitar channel and
reverb to the vocals, etc. Both effects are adjustable to your stage monitors so you can hear
yourself with full effects. The effects processors with 256 effects each, include reverbs, cho-
ruses, flanging and echoes, with parameters fully adjustable for; damping, decay, depth,
speed, regeneration and time.
ACTIVE 3 BAND CHANNEL EQ provides easy adjustment for the tone you want. The
LO frequency controls starts at 20 Hz and continues through 80 Hz for a solid non-flabby bass.
A simple adjustment with the MID band, gives you the best sound for vocals or guitar in the
very important 750Hz frequency range. The 11.5k Hz HI treble control adds sparkle to your
top-end without adding harshness. Both the LO and HI are "shelving", which means they are
effective from 20Hz up to 20k Hz.
TWO 9 BAND EQUALIZERS provide precise 1 octave adjustments to fine tune your
over all sound and to help control feedback. Unlike one stereo graphic equalizer, two inde-
pendent 9 bands give you total flexibility. At the push of a button, you can assign both equal-
izers to the main and monitor speakers or to the L and R outputs.
ENGINEERED TO LAST Every PA Series mixer incorporates a rugged reinforced steel
chassis. Continuous full power is assured from a 370 sq inch, high-grade 6063-T5-aluminum
heat sink cooled by a quiet dual-speed fan. You’ll never have to worry about protect or power
reduction modes.
THREE BAND
CHANNEL TONE
CONTROLS
PAD
20dB
GAIN SWITCH
HI LOW
MIC
PRE
CHANNEL
LEVEL CHANNEL
EFF SND
1 or 2
CHANNEL
MONITOR
LEVEL
RIGHT
MON
EFF x 2
EFFECTS
SUMMING AMP x 2
LEFT
SUMMING AMP
MAIN LEVEL NINE BAND
GRAPHIC
EQUALIZER
INTERNAL
DSP SEND
x 2
GAIN
REDUCTION
FOR DSP
STEREO
DSP RETURN
LEVEL x 2
TAPE INPUT
STEREO
RETURN FROM
INTERNAL DSP
x 2
TAPE OUT
TO INTERNAL
POWER AMP #1
DSP 1+2 TO
MONITOR
CHANNEL
LINE IN PAD
(-20dB bal.)
(-26dB unbal.)
MONITOR
SUMMING AMP
AND LEVEL
MID
LEFT
#1
L
R
RIGHT
SUMMING AMP
MAIN LEVEL
LEFT
BAL XLR OUT
RIGHT
BAL XLR OUT
NINE BAND
GRAPHIC
EQUALIZER
#2 TO INTERNAL
POWER AMP #2
MON
BAL XLR OUT
TO INTERNAL
POWER AMP #3
STEREO
TAPE IN
LEVEL
STEREO
RETURN
LEVEL
L-R
RETURN
PRE EQ
INSERT #2
TIP-SEND
PRE EQ
INSERT #1
TIP-SEND
MONO
GRAPHIC EQ SWITCH
LEFT - RIGHT
or
MONO - MONITOR
EXTERNAL
SEND
DSP 2 ONLY
MIC
LINE
PAN
12340 World Trade Drive, San Diego, CA 92128
800.854.2235 www.carvin.com
76-01273A 0601
MODEL PA800, PA1200, PA1200R SPECIFICATIONS:
Frequency Response: Mic or Line Inputs: 20Hz-20kHz ±1dB
Total Harmonic Distortion: Less than .1% at nominal levels
Equivalent Input Noise: 150 ohm source: -117dBu
Output Noise: -90dBu Master Line Out
(All Levels Minimum)
Output Headroom: +26dB XLR bal, +20dB 1/4” unbal
Maximum Gain: Mic in to Master Line Out: 70dB
Crosstalk: Adjacent ch’s: -60db at 1KHz
Common Mode Rejection: -78db at 1KHz
Phantom Power: XLR Mic channels
Channel EQ 3-band active: LOW: 80Hz ±12dB
MID: 750Hz ±12dB
HI: 11.5KHz ±12dB
Power Output: 1000w @ 4Ω(8Ω: 200w x3, 4Ω: 333w x3)
Power Req.: 120VAC 60 Hz or optional 240VAC 50 Hz model
Size and Weight: 12.5”H x 20”W x 10”D, 28 lbs
PA1200R Power Req.: 90 - 240 VAC 50 - 60 Hz
Size and Weight: 11”H x 19.5”W x 4”D, 10 lbs
Remote Effects Controller: Optional FS22 footswitch
Vinyl Cover: CV1200
PA1200 BLOCK DIAGRAM
CARVIN ENGINEERING DATA OPERATING MANUAL
PA800, PA1200, PA1200R MIXERS
ENGINEERED TO LAST cont. Hidden deep in the heart of these mixers is the
“SMT” Surface Mount Technology construction that utilizes surface mounted com-
ponents to prevent parts from shaking or vibrating loose. Sealed controls and switch-
es guard against the outside elements while heavy-duty connectors provide a posi-
tive connection to your cables. Fire retardant FR-4 military spec circuit cards feature
double-sided copper construction to guard against noise and radio frequencies (RF).
Precision 1% tolerances guarantee that your settings will be accurate every time. The
multi-ply wood cabinet is not the typical heavy particleboard that can break or crack,
and the Duratuff covering is scratch and dent resistant. The PA Series is profession-
ally made in the USA for years of service!
RECEIVING INSPECTION—read before getting started
INSPECT YOUR MIXER FOR ANY DAMAGE which may have occurred during ship-
ping. If any damage is found, please notify the shipping company and CARVIN
immediately.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship
your unit, always use the original carton and packing material. This will provide the
best possible protection during shipment. CARVIN and the shipping company are
not liable for any damage caused by improper packing.
SAVE YOUR INVOICE. It will be required for warranty service if needed in the future.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped sep-
arately. Please allow several days for the rest of your order to arrive before inquir-
ing.
RECORD THE SERIAL NUMBER on the enclosed warranty card or below on this
manual for your records. Keep your portion of the card and return the portion with
your name and comments to us or register online at www.carvin.com/registration
For your records, you may wish to record the following information.
Serial No._____________________ Invoice Date_______________

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
SAFETY INSTRUCTIONS (EUROPEAN)
The conductors in the AC power cord are colored in accordance with the following code.
GREEN & YELLOW—Earth BLUE—Neutral BROWN—Live
U.K. MAIN PLUG WARNING: A molded main plug that has been cut off from the cord is
unsafe. NEVER UNDER ANY CIRCUMSTANCES SHOULD YOU INSERT A DAM-
AGED OR CUT MAIN PLUG INTO A POWER SOCKET.
IMPORTANT! FOR YOUR PROTECTION, PLEASE READ THE FOLLOWING:
WATER AND MOISTURE: Appliance should not be used near water (near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken
so that objects do not fall and liquids are not spilled into the enclosure through openings.
POWER SOURCES: The appliance should be connected to a power supply only of the type
described in the operating instructions or as marked on the appliance.
GROUNDING OR POLARIZATION: Precautions should be taken so that the grounding or polar-
ization means of an appliance is not defeated.
POWER CORD PROTECTION: Power supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them, paying particular attention to
cords at plugs, convenience receptacles, and the point where they exit from the appliance.
SERVICING: The user should not attempt to service the appliance beyond that described in the
operating instructions. All other servicing should be referred to qualified service personnel.
FUSING: If your unit is equipped with a fuse receptacle, replace only with the same type fuse.
Refer to replacement text on the unit for correct fuse type.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL! THIS UNIT CONTAINS HIGH
VOLTAGE INSIDE!
CAUTION
RISK OF ELECTRIC SHOCK
This symbol is intended to
alert the user to the pres-
ence of uninsulated “dan-
gerous voltage” within the
product’s enclosure that may be of suf-
ficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intend-
ed to alert the user to
the presence of impor-
tant operating and
maintenance (servicing) instructions
in the literature accompanying the
appliance.
LIMITED WARRANTY
Your Carvin product is guaranteed against failure for 1 YEAR unless otherwise stated.
Carvin will service and supply all parts at no charge to the customer providing the unit is
under warranty. Shipping costs are the responsibility of the customer. CARVIN DOES NOT
PAY FOR PARTS OR SERVICING OTHER THAN OUR OWN. A COPY OF THE ORIGINAL
INVOICE IS REQUIRED TO VERIFY YOUR WARRANTY. Carvin assumes no responsibility
for horn drivers or speakers damaged by this unit. This warranty does not cover, and no
liability is assumed, for damage due to: natural disasters, accidents, abuse, loss of parts,
lack of reasonable care, incorrect use, or failure to follow instructions. This warranty is in
lieu of all other warranties, expressed or implied. No representative or person is authorized
to represent or assume for Carvin any liability in connection with the sale or servicing of
Carvin products. CARVIN SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES.
When RETURNING merchandise to the factory, you may call for a return authorization
number. Describe in writing each problem. If your unit is out of warranty, you will be
charged the current FLAT RATE for parts and labor to bring your unit up to factory spec-
ifications.
MAINTAINING YOUR EQUIPMENT
Avoid spilling liquids or allowing any other foreign matter inside the unit. The panel of
your unit can be wiped from time to time with a dry or slightly damp cloth in order to
remove dust and bring back the new look. As with all pro gear, avoid prolonged use in
caustic environments (salt air). When used in such an environment, be sure the mixer
is adequately protected by a cover.
P/N QTY DESCRIPTION LOCATION
03-50135 2 STANDOFF LED .500 X .135 T1 D6, D7
03-92521 6 STANDOFF LED .925 x .215 T1
D1, D2, D4, D5, D8, D9
06-40060 1 TERMINAL 90dg MALE PC MTG .250 QC1
07-01603 1 KNOB "6L" 6x6x17.4mm GREY CAP S4
07-01602 1 KNOB "6" 6x6x9.7mm GREY CAP S1
21-40000 12 XLR FEMALE CONNECTOR W/O GRND J11-J121
21-40001 3 XLR MALE CONNECTOR J2, J7, J9
21-40022 1 JACK RCA QUAD PC VERTICAL MTG J5
21-52545 17 JACK .250 PHONE STEREO STEEL J1, J3, J6, J10
J8, J12-J122
23-11004 1 CONNECT HEADER 4 PIN STRAIGHT H12
23-11010 2 CONNECT HEADER 10 PIN STRAIGHT H1, H11
23-40008 1 CONNECT HEADER .400 IN 8 PIN H2
23-92995 2 SHUNT JUMPER UNPLATED MIDDLE PINS ON H2
25-02201 1 SWITCH DPDT PUSH PC MTG LOCKNG S4
25-02201-1 12 ASSEMBLED SWITCH AND CAP S11-S121
25-04201 1 SWITCH 4PDT PUSH PC MTG LOCKNG S1
30-12734D 1 PCB CARD MAIN 1000W PA1200 MIX
46-22461 1 CAP MYLR .2200UF 63VOLT 10% C250
49-10212 33 0.001UF SMT 10% FILM 0805 50V C49, C51, C53,
C71, C117, C128, C130, C146, C111, C123, C211, C223,
C311, C323, C411, C423, C511, C523, C611, C623, C711,
C723, C811, C167, C911, C923, C1011, C1023, C1111,
C1123, C1211, C1223
49-10312 2 0.01UF SMT 10% FILM 080550V C43, C89
49-10412 38 0.1UF SMT 5% CERAMIC 0805 C3, C4, C6, C7,
C8, C9, C10, C11, C12, C13, C14, C15, C24, C35, C39, C60,
C65, C74, C75, C76, C77, C78, C79, C80, C137, C138, C140,
C142, C151, C152, C155, C165, C166
49-10451 16 0.1 uF SMT 10% FILM 1206 50V C5, C16, C27,
C42, C44, C81, C83, C86, C88, C91, C94, C95, C96, C97,
C98, C99
49-22035 116 SMT CAP 22uF 35v ELECTROLITIC C1, C2, C19, C20,
C21, C26, C29, C31, C33, C59, C62, C63, C64, C66, C67,
C68, C72, C73, C93, C103, C104, C105, C108, C110, C114,
C115, C120, C149, C153, C154, C157, C158, C161, C162,
C168, C169, C172, C173, C203, C204, C205, C208, C210,
C214, C303, C304, C305, C308, C310, C314, C403, C404,
C405, C408, C410, C414, C503, C504, C505, C508, C510,
C514, C603, C604, C605, C608, C610, C614, C703, C704,
C705, C708, C710, C714, C803, C840, C805, C808, C810,
C814, C903, C904, C905, C908, C910, C914, C1003, C1004,
C1005, C1008, C1010, C1014, C1103, C1104, C1105, C1108,
C1110, C1114, C1203, C1204, C1205, C1208, C1210, C1214,
C170, C270, C370, C470, C570, C670, C770, C870, C970,
C1070, C1170, C1270
49-22212 4 0.0022UF SMT 10% FILM 0805 50V C56, C132, C135,
C139
49-22312 18 0.022UF SMT 10% FILM 0805 50V C41, C50, C85,
C125, C129, C134, C112, C212, C312, C412, C512, C612,
C712, C812, C912, C1012, C1112, C1212
49-25152 4 220PF SMT 5% CERAMIC 0805 C57, C141, C69,
C118
49-27052 2 27 PF SMT 5% CERAMIC 0805 C36, C37
49-33152 2 330PF SMT 5% CERAMIC 0805 C55, C136
49-33212 2 0.0033UF SMT 10% FILM 0805 50 C47, C126
49-33312 2 0.033UF SMT 10% FILM 0805 50V C48, C127
49-39052 62 39PF SMT 5% CERAMIC 0805 C34, C40, C156,
C17, C18, C22, C23, C25, C28, C30, C32, C58, C82, C84,
C90, C92, C100, C113, C118, C119, C122, C124, C143,
C144, C145, C147, C159, C160, C163, C164, C213, C247,
C313, C347, C413, C447, C513, C547, C613, C647, C713,
C747, C813, C847, C913, C947, C1013, C1047, C1113,
C1147, C1213, C1247, C148, C248, C348, C448, C548,
C648, C748, C848, C948, C1048, C1148, C1248
49-47212 6 0.0047uF SMT FILM 0805 50V C45, C52, C54,
C116, C131, C133
49-47312 2 0.047UF SMT 10% FILM 0805 50V C46, C121
49-56152 29 560PF SMT 5% CERAMIC 0805 C70, C119, C87,
C171, C174, C106, C107, C206, C207, C306, C307,
C406, C407, C506, C507, C606, C607, C706, C707, C806,
C807, C906, C907,
C1006, C1007, C1106, C1107, C1206, C1207
49-82052 36 82PF SMT 5% CERAMIC 0805 C101, C102,
C201, C202, C301, C302, C401, C402, C501, C502, C601,
C602, C701, C702, C801, C802, C901, C902, C1001, C1002,
C1101, C1102, C1201, C1202, C109, C209, C309, C409,
C509, C609, C709, C809, C909, C1009, C1109, C1209
58-00035 1 0.0 SMT JUMPER 1206 R187
58-10025 2 100.5 SMT .25W 1206 1% R40, R157
58-10035 7 1K SMT .25W 1206 1% R48, R81, R99,
R129, R178, R181, R188
58-10045 55 10K SMT .25W 1206 1% R1, R11, R12,
R14, R15, R16, R27, R28, R31, R35, R36, R37, R39, R46,
R47, R54, R55, R59, R78, R83, R125, R126, R137, R139,
R140, R142, R149, R151, R154, R155, R159, R160, R163,
R164, R171, R192, R198, R211, R220, R230, R231, R227,
R228, R123, R223, R323, R423, R523, R623, R723, R183,
R923, R1023, R1123, R1223
58-10055 3 100K SMT .25W 1206 1% R52, R71, R90
58-15035 36 1.5K SMT .25W 1206 1% R110, R210,
R310, R410, R510, R610, R710, R810, R910, R1010, R1110,
R1210, R112, R212, R312, R412, R512, R612, R712, R812,
R912, R1012, R1112, R1212, R115, R215, R315, R415,
R515, R615, R715, R815, R915, R1015, R1115, R1215
58-15045 16 15K SMT .25W 1206 1% R4, R5, R127,
R128, R108, R208, R308, R408, R508, R608, R708, R808,
R908, R1008, R1108, R1208
58-15055 18 150K SMT .25W 1206 1% R2, R8, R10, R41,
R44, R49, R61, R65, R66, R67, R79, R85, R86, R89, R143,
R145, R156, R172
58-22035 46 2.2K SMT .25W 1206 1% R21, R24, R25,
R32, R60, R62, R64, R68, R72, R74, R87, R94, R97, R134,
R33, R53, R56, R57, R58, R165, R168, R169, R103, R203,
R303, R403, R503, R603, R104, R204, R304, R404, R504,
R604, R703, R803, R903, R1003, R1103, R1203, R704,
R804, R904, R1004, R1104, R1204
58-22045 101 22K SMT .25W 1206 1% R135, R136,
R190, R191, R34, R105, R205, R305, R405, R505, R605,
R705, R805, R905, R1005, R1105, R1205, R152, R252,
R352, R452, R552, R652, R752, R852, R952, R1052, R1152,
R1252, R109, R209, R309, R409, R509, R609, R709, R809,
R909, R1009, R1109, R1209, R113, R213, R313, R413,
R513, R613, R713, R813, R913, R1013, R1113, R1213,
R147, R247, R347, R447, R547, R647, R747, R847, R947,
R1047, R1147, R1247, R148, R248, R348, R448, R548,
R648, R748, R848, R948, R1048, R1148, R1248, R150,
R250, R350, R450, R550, R650, R750, R850, R950, R1050,
R1150, R1250, R119, R219, R319, R419, R519, R619, R719,
R819, R919, R1019, R1119, R1219
58-22055 12 220K SMT .25W 1206 1% R20, R22, R26,
R63, R69, R73, R75, R88, R95, R96, R100, R111
58-33025 4 330.5 SMT .25W 1206 1% R77, R82, R161,
R162
58-33035 14 3.3K SMT .25W 1206 1% R70, R133,
R116, R216, R316, R416, R516, R616, R716, R816, R916,
R1016, R1116, R1216
58-33045 5 33K SMT .25W 1206 1% R3, R9, R91,
R121, R124
58-39035 4 3.9K SMT .25W 1206 1% R19, R76, R92,
R93
58-43045 2 43K SMT .25W 1206 1% R18, R131
58-47005 4 4.7 SMT .25W 1206 1% R996, R997,
R998, R999
58-47025 6 470.5 SMT .25W 1206 1% R38, R138, R42,
R43, R45, R50, R80, R98, R179, R182, R189, R144, R146,
R153, R229, R232
58-47035 49 4.7K SMT .25W 1206 1% R29, R158,
R6, R7, R13, R17, R30, R84, R120, R122, R132, R166, R170,
R106, R206, R306, R406, R506, R606, R706, R806, R906,
R1006, R1106, R1206, R107, R207, R307, R407, R507,
R607, R707, R807, R907, R1007, R1107, R1207, R180,
R280, R380, R480, R580, R680, R780, R880, R980, R1080,
R1180, R1280
58-47045 14 47K SMT .25W 1206 1% R23, R130, R114,
R214, R314, R414, R514, R614, R714, R814, R914, R1014,
R1114, R1214
58-56025 2 560.5 SMT .25W 1206 1% R233, R234
58-56035 48 5.6K SMT .25W 1206 1% R101, R102,
R201, R202, R301, R302, R401, R402, R501, R502, R601,
R602, R701, R702, R801, R802, R901, R902, R1001, R1002,
R1101, R1102, R1201, R1202, R117, R118, R217, R218,
R317, R318, R417, R418, R517, R518, R617, R618, R717,
R718, R817, R818, R917, R918, R1017, R1018, R1117,
R1118, R1217, R1218
58-68025 1 680 SMT .25W 1206 1% R51
58-92201 3 22 SMT 1W 2512 20% R174, R175, R176
60-71024 1 CMOS STATIC RAM 1MEG 20NS U3
60-75320 5 LED RED DIFFUSED 3MM T-1.00 D4, D6, D7, D8,
D9
60-75330 1 LED GREEN DIFFUSED 3MM T-1.00 D1
60-75340 2 LED YELLOW DIFFUSED 3MM T-1.00 D2, D5
60-78050 1 REGULATOR VOLTAGE 5 +V 1 AMP Q27 LAY FLAT
62-07712 1 IC DSP W/CODEC AKM7712 U1
62-16400 1 CRYSTAL CERAMIC SMT 16.4mHz Y1
62-19140 1 1N914 HI SPD SMT 250mW DIODE D3
62-20430 15 NJM2043SMT(TESTED) DUAL HFREQ A10, A14, A19,
A11, A21, A31, A41, A51, A61, A71, A81, A91, A93, A95, A97
62-45650 39 NJM4565 SMT DUAL HI FREQ A1, A2, A3, A4,
A5, A6, A7, A8, A9, A13, A15, A16, A17, A18, A20, A23, A24,
A25, A28, A30, A12, A22, A32, A42, A52, A62, A72, A82,
A92, A93, A95, A97, A27, A26, A46, A66, A86, A88, A99
62-87764 1 MICRO CONTROLLER SOIC PACKAGE U2
71-09252 36 POT 9 "D-P" 25F B50K-CC {P11, P12, P13}-
{P121, P122, P123}
71-09253A 30 POT 9 "D-P" 25F B50K- P1, P2, P3, P5,
P6, P18, {P16 - P126} {P14 - P124}
71-10320 18 ORDER 20MM SL20V3-B10K-L15D(G) P171 THRU P179,
P181 THRU P189
72-12552 12 POT 12 "D-P" 25F 1B50Kx2-C NOB {P19 - P129}
72-12553 5 POT 12 "D-P" 25F 1B50Kx2 NOB P4, P7, P8, P9,
P10
72-12554A 12 POT 12 "D-P" 25FS 1BM50K-C TAP {P17 - P127}
77-10005 1 LABEL PCB ASSY TRACK "R-S-T"
REPLACEMENT PARTS LIST FOR
PA800/1200/1200R MIXERS

QUICK START UP
If you’re like most new owners, you’re probably in a hurry to
plug your mixer in and use it. Here are some brief instruc-
tions to get you going quickly. With the mixer unplugged and
the unit turned off, complete the following procedures:
A. CONNECTING AC POWER TO YOUR MIXER
• Be sure to plug your mixer into the proper voltage for your
country, either 120V-60Hz or 240V-50Hz. The PA1200R
accepts both voltages listed.
• Use only a grounded (3 prong) power outlet to prevent a
shock hazard. This gives the quietest grounding for your
mixer.
B. CONNECTING INPUTS TO YOUR MIXER
• For balanced microphones, use a shielded cable and plug
into the XLR MIC inputs.
• For high output devices like instruments & keyboards, plug
into the LINE input jacks using a shielded cable. Depress
the GAIN switch “IN” for mic or “OUT” for instruments.
C. TURNING YOUR MIXER ON
• Set all channel and master LEVEL controls to their OFF
positions
• Set all HI, MID, and BASS controls and the graphic equal-
izers to their center “flat - no boost or cut” position.
• Adjust all channel “PAN” controls to their center position.
• Connect your speakers and monitors at the rear panel.
• Turn the mixer on by the rear POWER SWITCH and watch
for the front POWER LED to come on. Your mixer is now
ready to operate by turning the levels up.

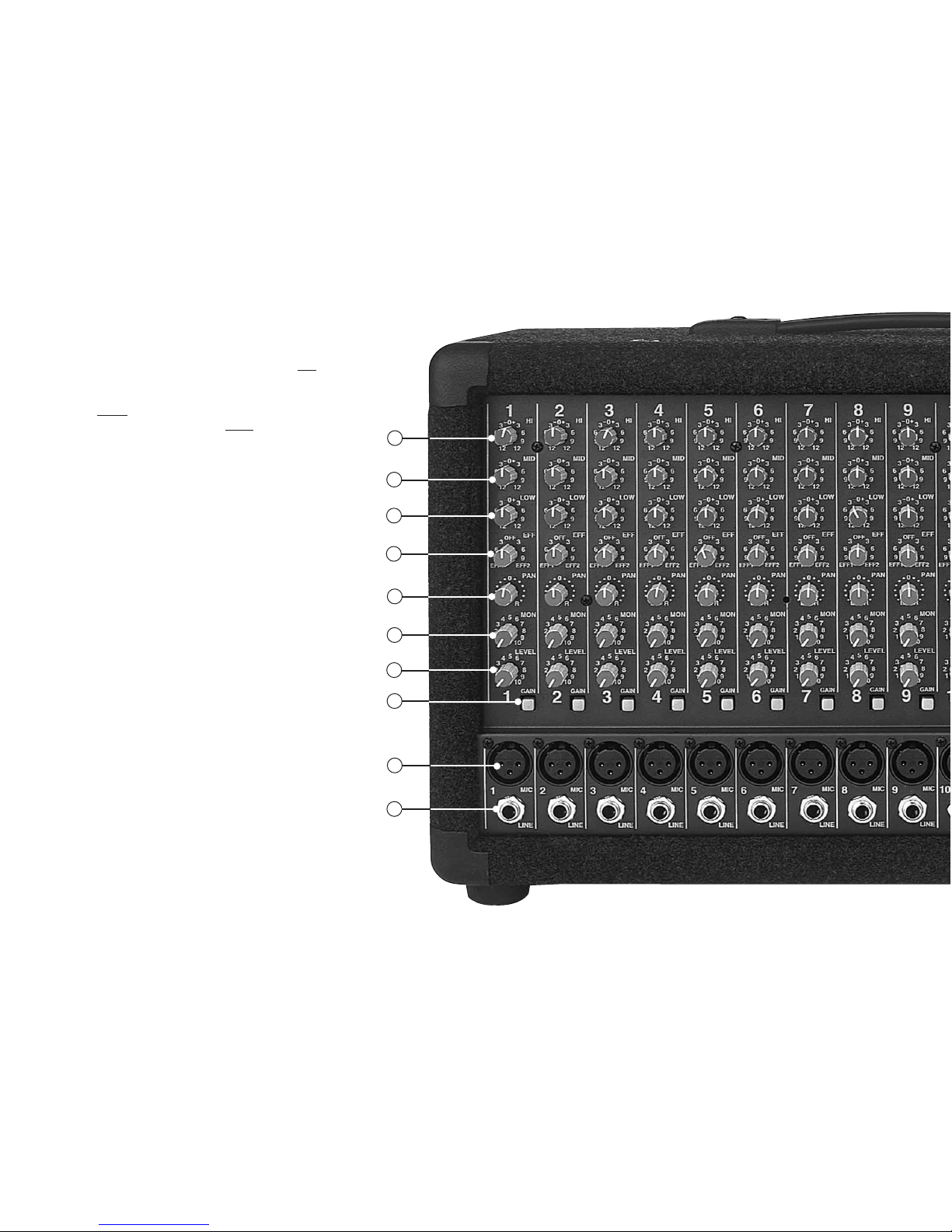

MIC CHANNEL FEATURES
1. LINE INPUT JACK
The LINE input is a 1/4” phone jack designed for balanced or
unbalanced line or instruments. Examples of these inputs
would be guitar, keyboard or CD player. The line input can be
used at the same time the mic input is being used.
2. XLR MICROPHONE INPUT
The XLR MIC input is designed for balanced low impedance
microphones. The high performance, low noise preamps do
a superb job of noise reduction. The XLR connector is wired
as per the industry standard, pin 1 is ground, pin 2 is non-
inverting (positive), and pin 3 is inverting (negative). Note:
Make sure the phantom power is switched off before con-
necting or disconnecting microphones to the mixer. It is rec-
ommended to allow 5 seconds for the phantom power to dis-
charge before making any microphone connections.
3. GAIN SWITCH
The GAIN switch increases the input sensitivity on both the
LINE and MIC input jacks by 20dB. Depress the GAIN switch
“IN” for mic or “OUT” for instruments. If distortion is heard,
the input source is overdriving the input stage. Disengage
the GAIN switch to the “OUT” position.
4. CHANNEL LEVEL CONTROL
The LEVEL control adjusts the volume of the channel before
going to the PAN control. Here is where the individual chan-
nel volumes are adjusted to make up the desired mix at the
main outputs. A general rule to prevent internal overdriving,
is to keep the MAIN master LEVEL the same or higher than
the channel LEVEL.
5. MONITOR LEVEL CONTROL
The MON level control adjusts the volume of the channel
going to the master monitor send. The monitor level control
is a pre-channel level control. This means it is unaffected by
adjustments from the channel level. The purpose for this is
the main mix adjustments can be made without disturbing
the monitor mix.
6. CHANNEL PAN CONTROL
The PAN control puts the channel into the LEFT, RIGHT or
CENTER in the stereo main outputs. If stereo placement is
needed, set the PAN control to the full RIGHT or LEFT position.
7. CHANNEL EFFECTS 1&2 LEVEL
The EFF 1&2 adjusts the level sent to the dual effects proces-
sors and to the EFF SND 2 jack. The effects control is post-
channel level, which automatically tracks the channel’s
LEVEL & tone controls. Turning this control to the left will
send to the internal effects processor 1. Turning to the right
will send to the internal effects processor 2 (and the external
EFF 2 SND jack). Reduce these levels if PEAK LEDs are flash-
ing on the effects processors.
8-10. CHANNEL TONE CONTROLS
Each channel features active 3-band tone controls LO, MID,
and HI. All three function as boost (clockwise) & cut
(counter-clockwise) controls. The center 0is the “flat” or no
effect position. The LO and HI controls are shelving type
with corner frequencies at 80Hz and 11.5k Hz respectively.
The MID control is a band pass type centered at 750Hz.
Recommended setting: LO & HI +4, MID at -4. For electric
guitar, set the MID at -6 to -12 to add clarity.
MASTER SECTION FEATURES
11. MAIN MASTER LEVEL (AMPS 1&2)
The MAIN control is the master volume control for all chan-
nels. The MAIN signal is sent to the GRAPHIC EQ that feeds
the power amps and the RIGHT and LEFT XLR output jacks.
12. MONITOR MASTER LEVEL (AMP 3)
The MONITOR master level is sent to the GRAPHIC EQ (if
switched “IN”) and feeds the MONITOR power amp 3 and
XLR output jack.
13. EFF 2 SEND JACK
The EFF 2 SEND jack can send a signal to an external proces-
sor. This is the same signal sent to the internal EFF 2 processor.
14. RETURN LEVEL & L-R RETURN JACK
The RETURN level control and L-R jack provides another
input into your mixer. It is most commonly used for an out-
board effects processor returning the signal from the EFF 2
SND, or as another input from a stereo source or instru-
ment.
A stereo TRS (Tip, Ring, Sleeve) cable will send the Tip signal
to the Land the Ring signal to the R. Inserting a mono plug
partially (first "click") will send a mono signal to both L-R.
15. L-R XLR OUTPUT CONNECTORS
The L-R professional balanced XLR line outputs are post
graphic EQ connectors. Use these to feed additional power
amps or recording gear. Note: If the INSERT jacks are being
used for patching, the new signal will be present.
16. MONITOR XLR OUTPUT CONNECTOR
This line output is the same signal that feeds the internal
MONITOR AMP 3. Use this professional balanced XLR out-
put for additional power amps.
17. PRE EQ INSERTS 1 AND 2
These jacks allow you to inject a signal into the master sec-
tion of the mixer. This insert is before the GRAPHIC EQ
using a stereo (tip ring sleeve). The TIP is the SEND and the
RING is the RETURN. The typical use of these jacks are for
the insertion of a compressor or other outboard gear
between the master preamp and the EQ. If a mono plug is
inserted into these jacks, the channels are disconnected
from the power amps.
18. TAPE JACKS
The L-R TAPE IN RCA inputs are ideal for connecting a CD or
tape player. These TAPE IN jacks can also be used for returning
another stereo effects processor or instrument (keyboard).
PA800, PA1200, PA1200R CONTROLS
1
4
5
6
3
2
7
8
9
10

18. TAPE JACKS CONT. The L-R TAPE OUT RCA
jacks sends the MAIN signal (pre graphic EQ) for recording.
If the TAPE OUT is being used to record, make sure the
TAPE IN control is turned OFF to avoid feedback. The TAPE
OUT jacks are another way to access the output of the mas-
ter section if the INSERT jacks are being used.
19. DSP PROCESSORS
Two 24-Bit proces-
sors provide a host of
great sounding
effects including
Flange, Reverb, Echo,
& Chorus. The chan-
nel EFF 1&2 send
controls delivers the
signals to the dual processors. Note: Reduce these levels if
the red PEAK LEDs are flashing on the processors.
Turn up the EFFECTS control to 5 on the processor(s) to add
your effects, while at the same time adjust the SELECT and the
PARAMETER controls to get the desired effect. Note: An audi-
ble noise will be heard while adjusting the effects.
EFFECT PARAMETERS
Each of the four effects has a variable parameter that can be easily
adjusted. Each “SELECT” & “PARAMETER” is described below.
A) ECHO: SELECT the amount of the regeneration (repeat-
ing). Now select the PARAMETER control for the shortest or
longest delay time between the original signal and the echo.
B) REVERB: SELECT the amount of presence (high frequen-
cies) in the reverb. Now turn the PARAMETER control to pro-
vide the minimum or maximum decay.
C) CHORUS: SELECT the amount of reverb with your chorus.
Now turn the PARAMETER control to increase the depth.
19. DSP PROCESSORS CONT. D) FLANGE: SELECT
the amount of speed with your flange (phasing effect). Now
turn the PARAMETER control to increase the depth.
20. DSP PK 1, PK 2 LED’s
The DSP PEAK LED indicates that the signal level to the
processor is too high. To prevent distortion, turn the EFF 1-2
control towards the center (off) position until the PEAK LED
stops flashing.
21. EFF TO MONITOR CONTROL
The EFFECTS TO MONITOR level controls the amount of the
effects that goes into your monitors.
22. TAPE IN LEVEL
You may use the TAPE IN level as another input into your
mixer using the RCA TAPE IN jacks.
23. AMP “CLIP” LED’s
The amp CLIP LEDs indicate when the power amps are
starting to distort (clip). Reduce the MAIN 1-2 and/or
MONITOR 3 master volumes to prevent distortion.
24. POWER LED
The Power LED indicates when the mixer is powered up.
25. PROTECT LED
The mixer will “protect”, engaging relays to mute the speak-
ers if: a) impedance is below 4Ωon any amplifier b) short-
ed speaker cables, or c) ventalation problems. If this LED
comes on, shut the mixer “OFF” and check for cable prob-
lems, proper impedance and obstructed rear cooling vents.
If you encounter an over-heat problem, leave the mixer
“ON” allowing the fan to cool down the internal compo-
nents. The mixer will auto-reset. If a problem persists,
please contact Carvin’s service dept. 800-854-2235.
26. GRAPHIC EQUALIZER SWITCH
The EQ button will switch the EQ’s from LEFT-RIGHT to
MONO/MONITOR. The “OUT” position puts both EQ’s in the
L-R MAIN mix only. EQ1 is for the LEFT amp and EQ2 is for
the RIGHT amp. The “IN” position will combine the L-R mix
into EQ1 as a mono mix. Then the monitor mix is routed
through EQ2 for use with the MONITOR 3 amp to help control
stage feedback.
27. ADJUSTING THE GRAPHIC EQUALIZER
When the EQ sliders are in their center position, they do not
affect the audio signal. When EQ sliders are raised or low-
ered from this position, they boost or cut respectively a nar-
row frequency band. To reduce feedback in the low fre-
quency range, try lowering one of the 63, 125 or 250 Hz
sliders. High frequency feedback is reduced by lowering
one of the 2k or 4k Hz sliders.
To help with feedback reduction, the main speaker should
always be placed in front of the microphones.
For tone enhancement you may want to raise the 63, 125 (for
deeper bass)
and the 4, 8 and
16k (for crisper
highs) forming
a “smile” curve
as shown.
28. EFFECTS FOOT SWITCH JACK
The optional FS22 will remotely
shut off EFFECTS 1 or 2.
29. PHANTOM POWER SWITCH AND LED
The PHANTOM power switch turns on the microphone
phantom power in the channel XLR jacks. This power is
used for supplying a voltage to condenser microphones.
The LED indicates the phantom power is turned on. The
phantom power will not damage conventional dynamic
microphones. Note: Make sure the phantom power is
switched off before connecting or disconnecting micro-
phones to the mixer. It is recommended to allow 5 seconds
for the phantom power to discharge before making any
microphone connections.
REAR PANEL-POWER/SPEAKER CONNECTIONS
The rear panel contains the POWER SWITCH and AC power
cable connection. For the PA800 and PA1200, there are 3
groups of 1/4” speaker jacks. Each group has two 1/4” out-
puts (wired in parallel). AMPS 1 and 2are for the LEFT and
RIGHT speakers. AMP 3 is for the MONITOR speakers.
NOTE: 4ΩMIN IMPEDANCE PER AMPLIFIER (Maximum one
4Ωor two 8Ωspeakers per amp). MAKE ALL SPEAKER
CONNECTIONS BEFORE TURNING THE MIXER ON .
125 25063
GRAPHIC EQ
500 1K
0
8
4
4
8
12
12
+
-
4K 15K8K2K
0
8
4
4
8
12
12+
-

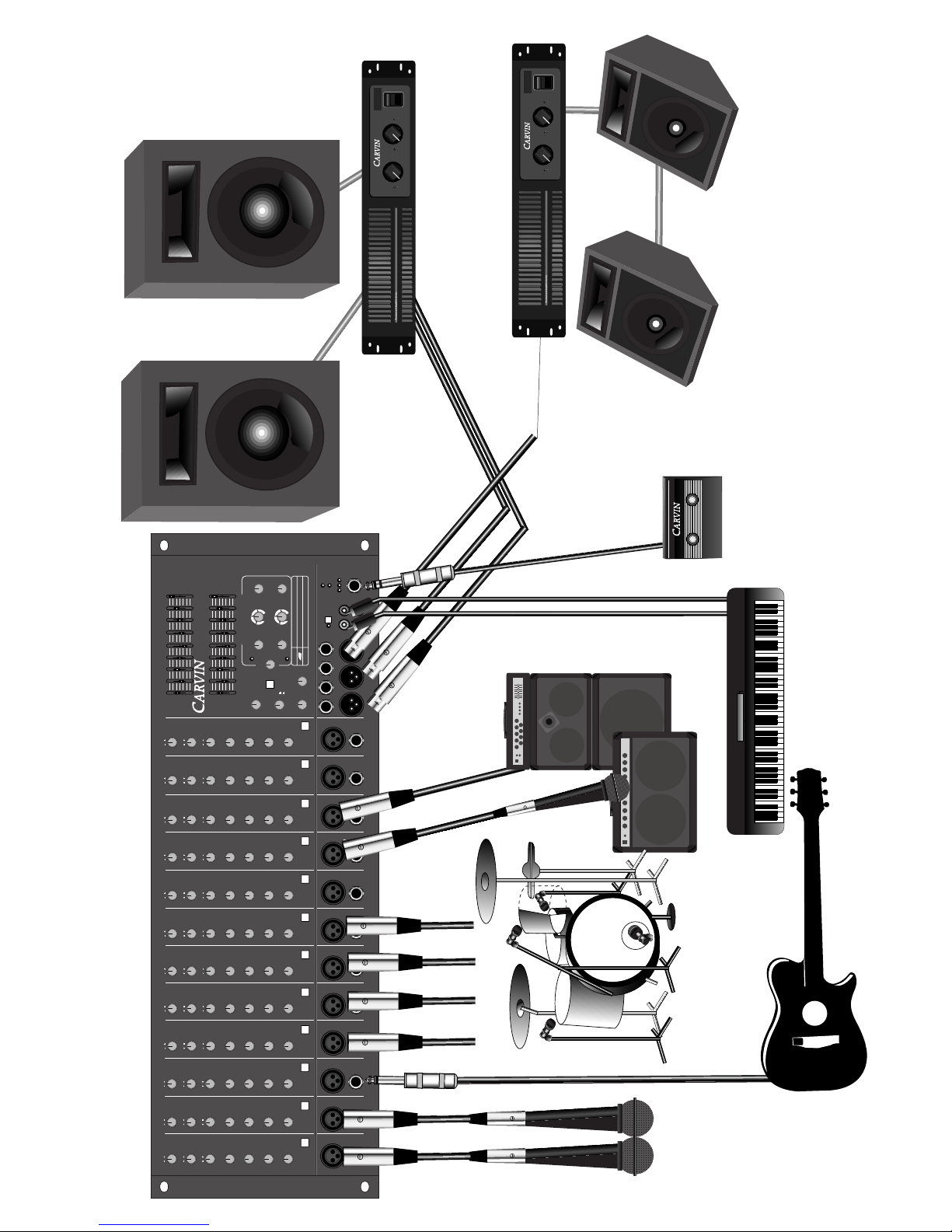

PA1200R LIVE SET UP
0
1
2
34567
8
9
10
0
1
2
34567
8
9
10
MONITOR 3
TAPE IN
EFF FOOT SW
POWER
AMP CLIP
1 2 3
PROTECT
L-R
RTN SND
LEFT RIGHT MON
PARAM
ECHO
REGEN
TIME
REVERB
DAMPING
DECAY
FLANGE
SPEED DEPTH
CHORUS
REV LEVEL
DEPTH
SELECT
EQ 1
LEFT AMP 1
or MONO 1 +2
EQ 2
RIGHT AMP 2
or MONITOR 3
0
1
2
34567
8
9
10
MAIN 1/2
0
1
2
34567
8
9
10
RETURN
PK2
0
1
2
34567
8
9
10
PARAMETER
110
2
3456
78
9
SELECTEFFECT
FLANGE
REVERB
ECHO
CHORUS
PK1
0
1
2
34567
8
9
10
PARAMETER
110
2
3456
78
9
SELECTEFFECT
FLANGE
REVERB
ECHO
CHORUS
0 8 4 4 8
±12
+12
32 125 250 500 1K 8K 16K
0 8 4 4 8 12-
12+
4K2K
0 8 4 4 8
±12
+12
32 125 250 500 1K 8K 16K
0 8 4 4 8 12-
12+
4K2K
GAIN
2
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
1
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
3
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
4
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
5
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
6
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
7
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
8
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
9
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
10
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
11
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
12
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
PA1200
PHANTOM
POWER
EQUALIZER LEFT-RIGHT MONO-MONITOR
24-BIT EFFECTS PROCESSING
0
1
2
34567
8
9
10
TAPE IN
E
F F
212
INSERTS
P
R
E
EQ
OUT
TAPE IN
LR
Floor Tom Snare
Tom
Drum Mics
Guitar Amp
L-R Main Out
Monitor Out
Right Main Speaker
Stereo Keyboard
Bass Amp
Direct Out
Monitors (mono)
Optional FS22
Footswitch
Vocal Mics
PROTECT
∞
50
30
22
19
17
15
13
12 11 10 98
7
6
5
4
3
2
1
0 dB
DCM1000
1000Watt PowerAmp
CLIP
SIGNAL
∞
50
30
22
19
17
15
13
12 11 10 98
7
6
5
4
3
2
1
0 dB
POWER
CHANNEL ONE CHANNEL TWO
CLIP
SIGNAL
PROTECT
∞
50
30
22
19
17
15
13
12 11 10 98
7
6
5
4
3
2
1
0 dB
DCM1000
1000Watt PowerAmp
CLIP
SIGNAL
∞
50
30
22
1919
1717
15
13
12 11 10 98
7
6
5
4
3
2
1
0 dB0 dB
POWER
CHANNEL ONE CHANNEL TWO
CLIP
SIGNAL

0
1
2
34567
8
9
10
0
1
2
34567
8
9
10
MONITOR 3
TAPE IN
EFF FOOT SW
POWER
AMP CLIP
1 2 3
PROTECT
L-R
RTN SND
LEFT RIGHT MON
PARAM
ECHO
REGEN
TIME
REVERB
DAMPING
DECAY
FLANGE
SPEED DEPTH
CHORUS
REV LEVEL
DEPTH
SELECT
EQ 1
LEFT AMP 1
or MONO 1 +2
EQ 2
RIGHT AMP 2
or MONITOR 3
0
1
2
34567
8
9
10
MAIN 1/2
0
1
2
34567
8
9
10
RETURN
PK2
0
1
2
34567
8
9
10
PARAMETER
110
2
3456
78
9
SELECTEFFECT
FLANGE
REVERB
ECHO
CHORUS
PK1
0
1
2
34567
8
9
10
PARAMETER
110
2
3456
78
9
SELECTEFFECT
FLANGE
REVERB
ECHO
CHORUS
0 8 4 4 8
±12
+12
32 125 250 500 1K 8K 16K
0 8 4 4 8 12-
12+
4K2K
0 8 4 4 8
±12
+12
32 125 250 500 1K 8K 16K
0 8 4 4 8 12-
12+
4K2K
GAIN
1
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
2
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
3
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
4
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
5
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
6
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
7
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
GAIN
8
LEVEL
LOW
MON
0
3
6
12
36
99
12
5
4
3
2
1010
9
8
7
6
5
4
3
2
1010
9
8
7
6
HI
0
3
6
12
36
99
12
MID
0
3
6
12
36
99
12
EFF
OFF
3
6
99
6
3
PAN
0
•
•
••LR
•• •
•
MIC
LINE
EFF2EFF1
PA800
PHANTOM
POWER
EQUALIZER LEFT-RIGHT MONO-MONITOR
24-BIT EFFECTS PROCESSING
0
1
2
34567
8
9
10
TAPE IN
E
F F
212
INSERTS
P
R
E
EQ
OUT
TAPE IN
LR
LEFT / MONO RIGHT / MONO MONITOR
AMP 3AMP 2AMP 1
4 OHM
Min 4 OHM
Min 4 OHM
Min
Floor Tom Snare
Tom
Drum Mics
Guitar Amp
Left Main Speaker Right Main Speaker
Stereo Keyboard
Bass Amp
Direct Out PA800 Rear Panel
Monitors (mono)
Optional FS22
Footswitch
Vocal Mic
Power Output
333w / 333w / 333w @ 4Ω
PA800, PA1200, LIVE SET UP
