OWNER’SMANUAL
ooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooo
ooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooo
Cinema 11
Digital Surround Sound Processor
NOTE: Before installing your new component, please read this manual carefully
as it will inform you of the product specifications, proper installation and correct
operating procedures for your unit. Also included in this manual are guidelines
on how to service and care for your new Cary Audio Design product.

TABLE OF CONTENTS
1
Important Safety Instructions ......................................................... 2
Welcome
Thank You .............................................................................................. 5
Product Features .................................................................................... 6
Unpacking and Installation ..................................................................... 7
Format Descriptions ............................................................................... 7
Specifications
Audio Inputs / Audio Outputs .............................................................. 10
Analog Audio Section ........................................................................... 10
Digital Audio...........................................................................................11
Main Path...............................................................................................11
Zone 2 Paths..........................................................................................12
Control ...................................................................................................12
Power Requirements .............................................................................13
Controls & Displays
Front Panel ........................................................................................... 14
Rear Panel............................................................................................. 16
Remote Control ..................................................................................... 18
Zone 2 Remote Control......................................................................... 20
Installation
Location ................................................................................................ 21
Getting Started...................................................................................... 21
Connecting a Multi Channel Power Amplifier ....................................... 22
Second Zone (Zone 2) .......................................................................... 22
Power Control Connections .................................................................. 23
Remote Control .................................................................................... 23
Power Connection ................................................................................ 23
Auto Sound Setup
Speaker Check ..................................................................................... 25
Set Distance ......................................................................................... 25
Set Balance .......................................................................................... 25
Set Room EQ ........................................................................................ 26
Set Crossover Points ............................................................................ 26
Set Speaker Phase ............................................................................... 26
Manual Sound Setup
Set Distance ......................................................................................... 29
Set Balance .......................................................................................... 30
Set Crossover Points ............................................................................ 31
Set Acoustic Calibration Room EQ ........................................................ 32
Setup Menu
Input .................................................................................................... 34
Set Analog IN Level Settings ................................................................ 36
Set Analog IN Config ............................................................................ 36
Radio .................................................................................................... 37
Zone 2 .................................................................................................. 41
Other .................................................................................................... 42
Service and Care
Care and Cleaning ................................................................................ 45
Factory Service ..................................................................................... 45
Non-Warranty Repairs .......................................................................... 45
United States Limited Warranty .................................................... 46

IMPORTANT SAFETY INSTRUCTIONS
2
WARNING: To reduce the risk of fire or electric shock, do
not expose this appliance to rain or moisture. The lightning
flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of un-insulated
dangerous voltage within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric
shock to persons.
CAUTION: To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside.
Please refer to qualified personnel for service.
ALERT: The exclamation point within an equilateral triangle is intended to alert the user of the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the component.
1. READ ALL INSTRUCTIONS: All the safety and operating instructions of your Cary Audio equipment should be read
before power is applied to the equipment.
2. RETAIN OWNER'S MANUAL: These safety and operating instructions should be retained for future reference.
3. HEED WARNING: All warnings on the unit and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS: All operating and use instructions should be followed.
5. CLEANING: Unplug the unit from the wall outlet before cleaning. The unit should be cleaned only as recommended
by the manufacturer.
6. ATTACHMENTS: Do not use attachments not recommended by the unit manufacturer as they may cause hazards.
7. WATER AND MOISTURE: Do not use the unit near water - for example, near a bath tub, wash bowl, kitchen sink,
or laundry tub; in a wet basement; or near a swimming pool.
8. ACCESSORIES: Do not place the unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall,
causing serious injury to a child, an adult, or damage to the unit. Mounting of the unit should follow the
manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.
9. VENTILATION: Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the
unit and to protect it from overheating. These openings must not be blocked or covered. The top or bottom panel
openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. The unit should
not be installed in a built-in location such as a bookcase or rack unless proper ventilation is provided. There should
be free space of at least 6 inches (16cm) above the unit and an opening behind the unit.
10. GROUNDING OR POLARIZATION: The unit may be equipped with a polarized alternating current line plug (a
plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety
feature. If you cannot insert the plug fully into the outlet, try reversing the plug. If the plug should fail to fit, contact
a licensed electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
11. POWER SOURCES: The unit should be operated only from the type of power source indicated on the marking
label. If you are not sure of the type of power supplied to your home, consult your unit dealer or local power
company.
12. POWER CORD PROTECTION: Power supply cords should be routed so that they are unlikely to be walked on or
pinched by items placed on or against them. Pay close attention to cords where they enter a plug, or a convenience
receptacle, and the point where they exit from the unit.

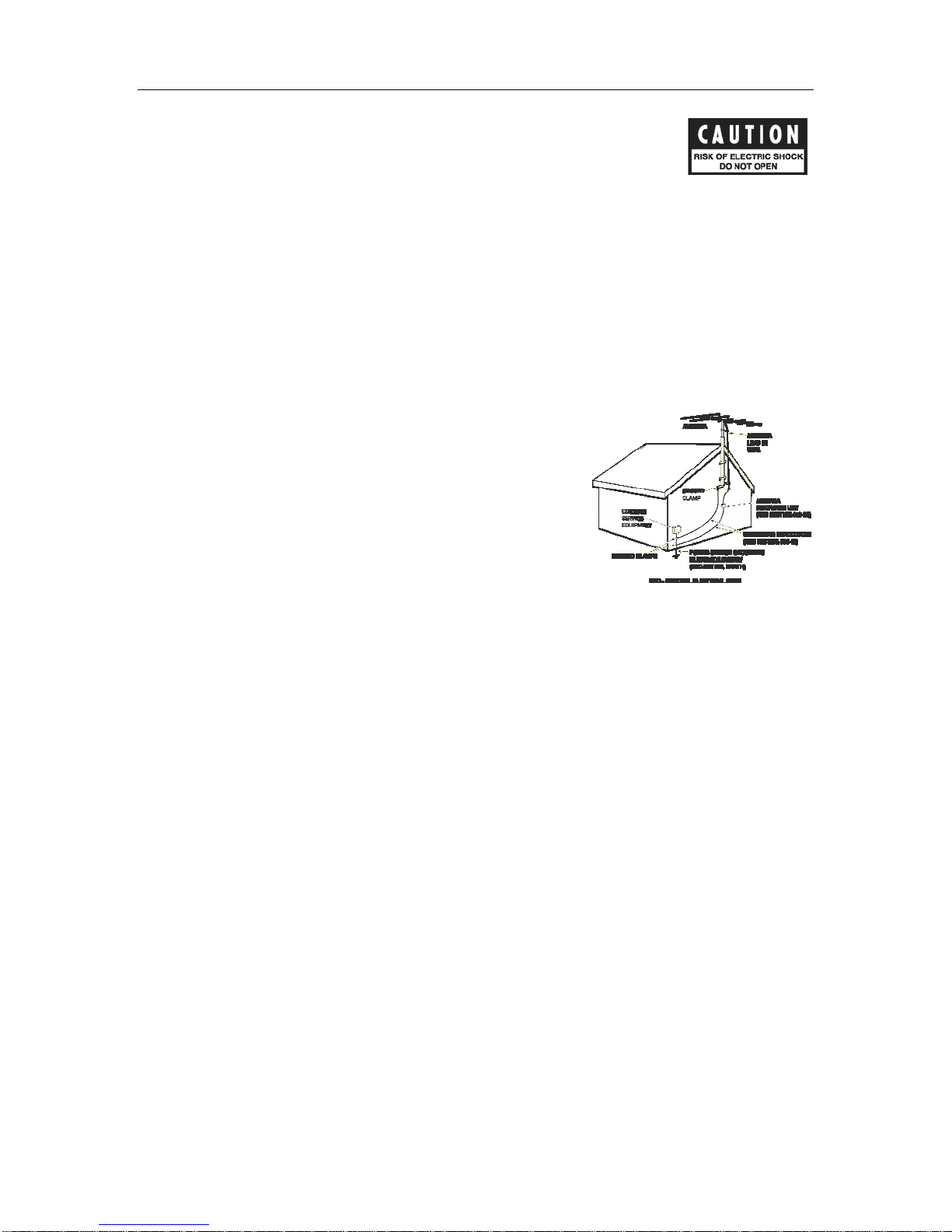

13. OUTDOOR ANTENNA GROUNDING: If an outside antenna or cable system is connected to the unit, be sure the
antenna or cable system is grounded so as to provide protection against voltage surges and built-up static charges.
Article 810 of the National Electrical Code, NSI/NFPA 70, provides information regarding proper grounding of the
mast and supporting structure, grounding of the lead-in wire to an Antenna-discharge unit, size of grounding
conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the
grounding electrode.

IMPORTANT SAFETY INSTRUCTIONS
3
14. LIGHTNING: For added protection for the unit during a lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent
damage to the unit due to lightning and power line surges.
15. POWER LINES: An outside antenna system should not be located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, take extreme care to keep from touching such power lines or circuits as contact with them might be
fatal.
16. OVERLOADING: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can
result in a risk of fire or electric shock.
17. OBJECT AND LIQUID ENTRY: Never push objects of any kind into the unit through openings as they may touch
dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind
on the unit.
18. SERVICING: Do not attempt to service the unit yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
19. REPLACEMENT PARTS: When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock or other hazards.
20. SAFETY CHECK: Upon completion of any service or repairs to the unit, ask the service technician to perform safety
checks to determine that the unit is in proper operating condition.
21. WALL OR CEILING MOUNTING: The unit should be mounted to a wall or ceiling only as recommended by the
manufacturer.
22. HEAT: The unit should be situated away from heat sources such as radiators, heat registers, stoves, or other units
(including amplifiers) that produce heat.
23. IMPORTANT SAFETY NOTE: Before connecting a new component such as the DVD 7 to your audio or home
theater system it is always good practice to make certain that all components are turned off, and preferably
unplugged from their AC power source. Many modern electronics products feature automatic turn-on circuits that
may be activated during an installation, causing the potential for damage to electronic components and/or speakers.
Such damage is not covered by product warranties and Cary Audio specifically disclaims responsibility for any such
damage.
Power Cord: The removable power cord that is shipped with the player is specifically designed to be used with this
product. Other AC cords may be used, so consult your dealer for advice on AC power cords and high quality wire in
your system.
AC Fuse: The fuse is located inside the chassis and is not user serviceable. If power does not
come on, contact your authorized service representative.
Wiring: Cables that run inside of walls should have the appropriate markings to indicate compliance with, and listing
by the UL, CSA or other standards required by the UL, CSA, NEC or your local building code. Questions about cables
inside of walls should be referred to a qualified custom installer, or a licensed electrician or low-voltage contractor.
Do Not Open the Cabinet: There are no user serviceable components inside this product. Opening the cabinet
may present a shock hazard, and any modification to the product will void your warranty. If water or any metal
object, such as a paper clip, coin, or staple accidentally falls inside the unit, disconnect it from the AC power source
immediately and contact Cary Audio for further instructions.
24. RECORDING COPYRIGHT: Recording of copyrighted material for other than personal use is illegal without
permission of the copyright holder.
25. NOTE TO CATV SYSTEM INSTALLER: This reminder is provided to call the CATV system installer's attention to
article 820-40 of the NEC, ANSI/NFPA 70, which provides guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry
as practical.

IMPORTANT SAFETY INSTRUCTIONS
4
26. FCC INFORMATION FOR USER:
CAUTION: ANY changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from where the receiver is connected.
27. OUTDOOR ANTENNA INSTALLATION/SAFE ANTENNA AND CABLE
CONNECTION: If an outside antenna or cable system is connected to
the equipment, be sure the antenna or cable system is grounded so as to
provide protection against built up static charges and voltage surges,
Section 810 of the national Electrical Code, ANSI/NFP A70 (in Canada,
part 1 of the Canadian Electrical Code) provides information with respect
to proper grounding of the mast and supporting structure, grounding of
the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit, connection to grounding
electrodes and requirements for the grounding electrode.
Keep Antenna Clear of High Voltage Power Lines or Circuits
An outside antenna system should be located well away from power lines, electric light or power circuits and where
it will never come into contact with these power sources if it should happen to fall. When installing an outside
antenna, extreme care should be taken to avoid touching power lines, circuits or other power sources as this could
be fatal. Because of the hazards involved, antenna installation should be left to a professional.

WELCOME
5
THANK YOU
Congratulations on becoming a Cinema 11 owner!
Thank you for purchasing the Cinema 11 Digital Surround Sound Processor. The Cinema 11 is our
fourth generation AV preamplifier design and it is meant to be a reference quality surround sound
audio control center with very sophisticated automatic or manual set up functions. We believe it
sonically surpasses all our previous designs! It is aimed at ease of use for normal home surround
systems or for use in custom installations. It has independent 2nd zone remote control as well so
you can enjoy surround sound in your home cinema main room and have 2nd zone stereo sound
in another part of the house. We have a separate remote handset for each zone so that control
of input source selection in each of the two zones is easy at the same time.
All of the Main Room audio output connectors have 24-bit/192 kHz D/A converters operating in
dual differential mode for excellent sound quality and high dynamic range. In addition, the
Cinema 11 includes 7.1 channel XLR balanced audio outputs for your main listening room if you
are using a power amplifier with balanced input connections.
The Cinema 11 is designed to remain viable in a future of rapidly emerging digital technologies.
It has a rear panel RS-232 serial port connector provided for home automation serial control and
allows us to perform flash-memory software upgrades with this connection. We have added an
unusual looking 'system link' connector to support digital future expansion for high definition
audio codecs included with the new higher definition video disks now being sold. The system link
connector is available for future new surround modes like Dolby True HD and DTS-HD, making it
possible to more than quadruple the Cinema 11’s tremendous processing power. This connector
is originally from the computer industry and features frequency bandwidth capabilities exceeding
2 gHz! We will make an adapter for video processing to access this connector and offer high
performance video switching and scaling to our users. (There will be more news about this later
on our web site - www.caryaudio.com)
We firmly believe in high performance audio designs that offer incredible value for the money.
With the Cinema 11 we have achieved our sonic and system control goals handily. It is an
unparalleled surround sound processor. The Cinema 11 represents a solid investment with
awesome processing power, highly flexible configuration setting possibilities and leading-edge
technological sophistication. Even the most demanding enthusiasts will be impressed with its
exceptional sonic performance. Add to this extensive expansion capabilities, and the Cinema 11 is
a 'must have' addition for any high-quality home theater.
Thank you for your continued support and enjoy your movies!
The Cary Audio Team

WELCOME
6
PRODUCT FEATURES
More than just an audio control center, the Cinema 11 features the latest version of CES 7.1
decoding, which derives 7.1 channel output from stereo, 5.1 and 6.1 channel sources. Unlike
other decoders, CES 7.1 is compatible with all input sources and requires no special encoding.
Because the improvement it provides is clearly audible, CES 7.1 decoding is widely regarded as
the finest available.
In addition to CES 7.1, the Cinema 11 is also equipped with Dolby Digital Surround EX, Dolby Pro
Logic II, Dolby Pro Logic IIx, dts 96/24, dts NEO:6, and dts-ES decoding.
With 32-bit audio digital signal processing (DSP) engines, the Cinema 11 offers unparalleled
processing power. These DSP engines perform custom Cary Audio processing such as auto sound
setup system, CES 7.1 decoding, bass enhancement, dialog enhancement, bass management,
high-precision digital crossover, and room EQ. This processing is available at sample rates up to
192 kHz, with 24-bit resolution to retain top performance from all input sources and listening
modes. A DSP engine is dedicated to decoding multi-channel compressed audio sources.
10 channels 24-bit/96 kHz A/D converters can be used to convert stereo analog audio input and
7.1 analog audio input signals to digital signals, allowing the Cinema 11 to provide the benefits of
precise digital signal processing without sacrificing signal integrity. Alternatively, stereo analog
XLR or 7.1 bypass signals and 7.1 analog signals can bypass A/D conversion and internal
processing to remain in the analog domain straight to the output connectors.
The Cinema 11 offers:
•8 inputs; one balanced and seven single ended with RCA connectors; including S/PDIF
coaxial, S/PDIF optical, and analog pairs
•7.1 channel analog audio input connections
•Analog bypass option for stereo and 7.1 channel analog audio input connectors
•Auto switching between digital and analog audio input connectors
•24-bit/192 kHz D/A converters for all Main Zone audio channels
•Automatic and manual calibration of speaker distances and output levels
•32-bit DSP engines
•CES 7.1 decoding
•Dolby Digital Surround EX, Dolby Pro Logic IIx and Dolby Pro Logic II decoding
•dts 96/24, dts-NEO:6 and dts-EX (discrete and matrix) decoding
•RS-232 connector for flash memory software upgrades and configuration tool downloads
•Optical digital audio output connector for Zone 2 (Toslink)
•3 12 volt output connections with 1/8” mini plug connectors
•2 IR input connections
•XLR microphone input connections
•7.1 Balanced audio output connectors for Main Zone

WELCOME
7
UNPACKING AND INSTALLATION
This section describes the unpacking and installation procedures for your new component.
Unpacking
All Cary Audio Design shipping cartons have been specially designed to protect their contents and
special care has been taken to prevent damage under normal shipping conditions. Mishandling
should be evident upon inspection of the shipping container. If shipping damage is found after
visual inspection, take care not to destroy the evidence. If necessary, document the damage with
photographs and contact the transport carrier immediately.
Carefully remove your new component from its packing carton and examine it closely for signs of
shipping damage. We strongly recommend saving all original packing cartons to protect your
component from damage should you wish to store it or ship it at a later date.
In the Box
When unpacking your Cinema 11 processor, make sure the following accessories are included.
You should find the following items:
•Power Cable
•2 Remote Controls (batteries already installed)
•Owner’s Manual
•Warranty Card
Warranty Card
If you are the original purchaser of this unit and you purchased it in the United States, you
should fill out the enclosed warranty registration card and return it to Cary Audio Design within
15 days of your purchase. Cary Audio Design also suggests that you keep your original packing
cartons in case you ever need to ship the unit when moving to a new home. Warranty
restrictions apply. Consult the warranty section of this manual for details. Please be certain to
keep a copy of the original sales receipt from your Authorized Cary Audio Design dealer to
validate the warranty if ever needed.
FORMAT DESCRIPTIONS
DTS was introduced in 1994 to provide 5.1 Channels of discrete digital audio into home theater
systems. DTS brings you premium quality discrete multi-channel digital sound to both movies and
music. DTS is a multi-channel sound system designed to create full range digital sound
reproduction. The no compromise DTS digital process sets the standard of quality for cinema
sound by delivering an exact copy of the studio master recordings to neighborhood and home
theaters. Now, every moviegoer can hear the sound exactly as the moviemaker intended.
DTS can be enjoyed in the home for either movies or music on DVD'S, LD'S, and CD'S.
"DTS" and "DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc.

WELCOME
8
The advantages of discrete multi-channel systems over matrix are well known. But even in
homes equipped for discrete multi-channel, there remains a need for high-quality matrix
decoding. This is because of the large library of matrix surround motion pictures available on
disc, VHS Hi Fi tape, and analog Stereo television broadcasts. The typical matrix decoder of today
derives a center channel and a mono surround channel from two-channel matrix stereo material.
It is better than a simple matrix in that it includes steering logic to improve separation, but
because of its mono, band-limited surround it can be disappointing to users accustomed to
discrete multi-channel sound.
Neo:6 offers several important improvements: Neo:6 provides up to six full-band channels of
matrix decoding from stereo matrix material. Users with 6.1 and 5.1 systems will derive six and
five separate channels, respectively, corresponding to the standard home-theater speaker
layouts. Neo:6 technology allows various sound elements within a channel or channels to be
steered separately, and in a way which follows naturally from the original presentation. Neo:6
offers a music mode to expand stereo or matrix recordings into the five or six channel layout, in a
way which does not diminish the subtlety and integrity of the original stereo recording.
DTS-ES Extended Surround is a new multi-channel digital signal format developed by Digital
Theater Systems Inc. While offering high compatibility with the conventional DTS Digital
Surround format, DTS-ES Extended Surround greatly improves the 360-degree surround
impression and space expression thanks to further expanded surround signals. This format has
been used professionally in movie theaters since 1999. In addition to the 5.1 surround channels
(FL, FR, C, SL, SR and LFE), DTS-ES Extended Surround also offers the SB (Surround Back)
channel for surround playback with a total of 6.1 channels. DTS-ES Extended Surround includes
two signal formats with different surround signal recording methods, as DTS-ES Discrete 6.1 and
DTS-ES Matrix 6.1. "DTS", "DTS-ES Extended Surround" and "Neo:6 are trademarks of Digital
Theater Systems, Inc.”
The stereo CD is a 16-bit medium with sampling at 44.1kHz. Professional audio has been 20- or
24-bit for some time, and there is increasing interest in higher sampling rates both for recording
and for delivery into the home. Greater bit depths provide extended dynamic range. Higher
sampling rates allow wider frequency response and the use of anti-alias and reconstruction filters
with more favorable aural characteristics. DTS 96/24 allows for 5.1channel sound tracks to be
encoded at a rate of 96kHz/24bits on DVD-Video titles. When DVD-video appeared, it became
possible to deliver 24-bit, 96 kHz audio into the home, but only in two channels, and with serious
limitations on picture. This capability has had little use. DVD-audio allows 96/24 in six channels,
but a new player is needed, and only analog outputs are provided, necessitating the use of the
D/A converters and the analog electronics provided in the player.

WELCOME
9
DTS 96/24 offers the following:
1. Sound quality transparent to the original 96/24 master.
2. Full backward compatibility with all existing decoders. (Existing decoders will output a 48
kHz signal)
3. No new player required: DTS 96/24 can be carried on DVD-video, or in the video zone of
DVD-audio, accessible to all DVD players.
4. 96/24 5.1 channel sound with full-quality full-motion video, for music programs and
motion picture soundtracks on DVD-video.
Dolby Digital identifies the use of Dolby Digital audio coding for such consumer formats as DVD
and DTV. As with film sound, Dolby Digital can provide up to five full-range channels for left,
center, and right screen channels, independent left and right surround channels, and a sixth
(".1") channel for low-frequency effects.
Dolby Surround Pro Logic II is an improved matrix decoding technology that provides better
spatiality and directionality on Dolby Surround program material. It provides a convincing three-
dimensional sound field on conventional stereo music recordings. While conventional surround
programming is fully compatible with Dolby Surround Pro Logic II decoders, soundtracks will be
able to be encoded specifically to take full advantage of Pro Logic II playback, including separate
left and right surround channels. (Such material is also compatible with conventional Pro Logic
decoders.)
Dolby Digital EX creates six full-bandwidth output channels from 5.1-channel sources. This is
done using a matrix decoder that derives three surround channels from the two in the original
recording. For best results, Dolby Digital EX should be used with movies soundtracks recorded
with Dolby Digital Surround EX.
About Dolby Pro Logic IIx
Dolby Pro Logic IIx is fully compatible with Dolby Surround Pro Logic technology and can
optimally decode the thousands of commercially available Dolby Surround encoded video
cassettes and television programs with enhanced depth and spatiality. It can also process any
high-quality stereo or Advanced Resolution 5.1 channel music content into a seamless 6.1 or 7.1
channel listening experience.
Dolby Pro Logic IIx technology delivers a natural and immersing 7.1-channel listening experience
to the home theater environment. A product of Dolby's expertise in surround sound and matrix
decoding technologies, Dolby Pro Logic IIx is a complete surround sound solution that maximizes
the entertainment experience from stereo as well as 5.1 channel encoded sources.
The Cinema 11 was manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic",
and the double-D symbol are trademarks of Dolby Laboratories.
*All trademarks belong to their original owners.

SPECIFICATIONS
10
The Cinema 11 is designed for long term stability in virtually any home operating situation.
However, if the unit is operated outside the parameters outlined in this owner's manual, damage
may result. Please read this manual carefully before putting your new Cinema 11 processor into
operation.
The following section describes the Cinema 11’s basic specifications. The specifications are
subject to change without notice or obligation.
AUDIO INPUTS / AUDIO OUTPUTS
...........................................................................................................................................................................
Audio Inputs 7 - Stereo Pairs with RCA connectors
1 - XLR pair
1 - 7.1 channel analog input with RCA connectors
...........................................................................................................................................................................
Digital Audio Inputs 7 - Coaxial (RCA) for the seven single ended inputs
7 - Toslink for the seven single ended inputs
1 - XLR for the balanced input
...........................................................................................................................................................................
Sample Rates 44.1, 48, 88.2, 96 or 192kHz
...........................................................................................................................................................................
Accepts 16-24 bits PCM audio, Dolby Digital, dts and dts-ES discrete
data formats
...........................................................................................................................................................................
Main Audio Outputs 7.1 RCA, L/R, Center, LFE (Subwoofer), Side L/R, Rear L/R 7.1
XLR, L/R, Center, LFE (Subwoofer), Side L/R, Rear L/R
...........................................................................................................................................................................
Zone 2 Audio Outputs 1 - RCA stereo pair
1 - Toslink digital
...........................................................................................................................................................................
ANALOG AUDIO SECTION
...........................................................................................................................................................................
Input Impedance 100 k Ohms
...........................................................................................................................................................................
Output Impedance Main - RCA 330
Main - XLR 660
Zones 2 - 220
...........................................................................................................................................................................
Rated Input 2.0 Vrms
...........................................................................................................................................................................
Maximum Input 6.0 Vrms
...........................................................................................................................................................................
Rated Output (100 k load) 2.0 Vrms
...........................................................................................................................................................................
Minimum Load 5k
...........................................................................................................................................................................
Maximum Output RCA - 8.0 Vrms
XLR - 16.0 Vrms
...........................................................................................................................................................................
Headphone Output 100mW into 32 Ohms at 0.2% THD+N
...........................................................................................................................................................................
Volume Control Range Main - -90.0 dB to +15.5 dB (1.0 dB increments)
Zone 2/Headphone - -90.0 dB to +15.5 dB (1.0 dB increments)

SPECIFICATIONS
11
...........................................................................................................................................................................
Channel Separation 89 dB (1 kHz)
...........................................................................................................................................................................
Total Crosstalk b/t Inputs 89 dB (1 kHz)
...........................................................................................................................................................................
XLR Pin Configuration Pin 1: Ground
Pin 2: Positive
Pin 3: Negative
...........................................................................................................................................................................
DIGITAL AUDIO
All digital audio inputs are to S/PDIF electrical (75 Ohms, 0.5 V p-p), S/P DIF optical (Toslink), or
AES/EBU (110 Ohms, 0.5 V p-p) standards, 44.1kHz to 192kHz regardless of input.
...........................................................................................................................................................................
Analog to Digital Converters Burr-Brown PCM 1802
...........................................................................................................................................................................
Input Receiver Cirrus CS 8416
...........................................................................................................................................................................
Processor 32 Bit Audio DSP at 516 MIPS
...........................................................................................................................................................................
Digital to Analog Converters Burr-Brown PCM 1796
...........................................................................................................................................................................
MAIN PATH
RCA and XLR Output, 48 kHz Sampling Rate for all Digital Signal Paths
...........................................................................................................................................................................
Frequency Response and Bandwidth
Analog - Direct Inputs 10 Hz to 20 kHz, 1 Hz to 120 kHz (-3 dB)
Analog - DSP Inputs at 24/96 10 Hz to 20 kHz, 2 Hz to 44 kHz (-3 dB)
Digital Inputs at 24/96 10 Hz to 20 kHz, 1 Hz to 44 kHz (-3 dB)
...........................................................................................................................................................................
THD+N (at Rated Input and Output)
Analog - Direct Inputs 0.005% (90 kHz BW)
Analog - DSP Inputs at 24/96 0.003% (AES17 filter)
Digital Inputs at 24/96 0.003% (AES17 filter)
...........................................................................................................................................................................
IMD (CCIF at 15 kHz)
Analog - Direct Inputs 0.001%
Analog - DSP Inputs at 24/48 0.001%
Digital Inputs at 24/48 0.001%
...........................................................................................................................................................................
S/N Ratio (ref 2.0 Vrms)
Analog - Direct Inputs 108 dB
Analog - DSP Inputs at 24/96 105 dB
Digital Inputs at 24/96 107 dB
...........................................................................................................................................................................
IMD (CCIF at 15 kHz)
Analog - Direct Inputs 0.001%

SPECIFICATIONS
12
Analog - DSP Inputs at 24/48 0.001%
Digital Inputs at 24/48 0.001%
...........................................................................................................................................................................
AM Tuner
Frequency Range When 10kHz step: 530kHz to 1,700kHz
When 9kHz step: 531kHz to 1,602kHz
Sensitivity 49 dB typical, 56dB max
S/N Ratio 50 dB typical, 43dB min
Distortion 0.7% typical, 2.0% max
One-Signal Selectivity (10kHz) 24 dB typical, 18dB min
...........................................................................................................................................................................
FM Tuner
Frequency Range 87.5MHz to 108MHz
Sensitivity Mono 15.3dBf, (1.6 V/75)
Stereo 37 dBf, (19.5 V/75)
Signal-to-Noise Ratio Mono 80dB (at 65 dBf)
Stereo 76dB (at 85 dBf)
Distortion Mono 0.08% (100 Hz)
0.08% (1 kHz)
0.2% (6 kHz)
Stereo 0.2% (100 Hz)
0.15% (1 kHz)
0.3% (6 kHz)
Capture Ratio 1.0 dB
Alternate Channel Selectivity 65 dB (400 kHz)
Stereo Separation 50 dB (1 kHz)
35 dB (30 Hz to 15 kHz)
Frequency Response 30 Hz to 15 kHz
Image Interference Ratio 50 dB
IF Interference Ratio 80 dB
AM Suppression Ratio 55 dB
Spurious Interference Ratio 70 dB
Antenna Input 75 Ohms unbalanced
...........................................................................................................................................................................
ZONE 2 PATHS
...........................................................................................................................................................................
Frequency Response/Bandwidth 20 Hz to 20 kHz, 3 Hz to 140 kHz (+0, -3 dB)
...........................................................................................................................................................................
THD+N (at Rated Input and Output) 0.06% (90 kHz BW)
...........................................................................................................................................................................
IMD (CCIF at 15 kHz) 0.06%
...........................................................................................................................................................................
S/N Ratio (ref 2.0 Vrms) 97 dB
...........................................................................................................................................................................
CONTROL
...........................................................................................................................................................................
RS-232 Interface
Connection DB-9F, straight-wired
Pinout (Statement DI side) Pin 2: Tx, Pin 3: Rx, Pin 5: Ground

SPECIFICATIONS
13
Baud Rate 9600
Configuration 8 data bits, 1 stop bit, no parity bits,
flow control (RTS, CTS, NONE)
...........................................................................................................................................................................
Trigger Outputs
Polarity 3.5 mm mono (tip positive), sleeve negative
Maximum Current at 12 VDC 150 mA (Triggers 1,2), 200 mA (Trigger 3)
Sequential Delay 100 ms
...........................................................................................................................................................................
POWER REQUIREMENTS
...........................................................................................................................................................................
Power Requirements 117VAC or 234VAC 50-60Hz
...........................................................................................................................................................................
Power Consumption Maximum 50 W
...........................................................................................................................................................................

CONTROLS AND DISPLAYS
14

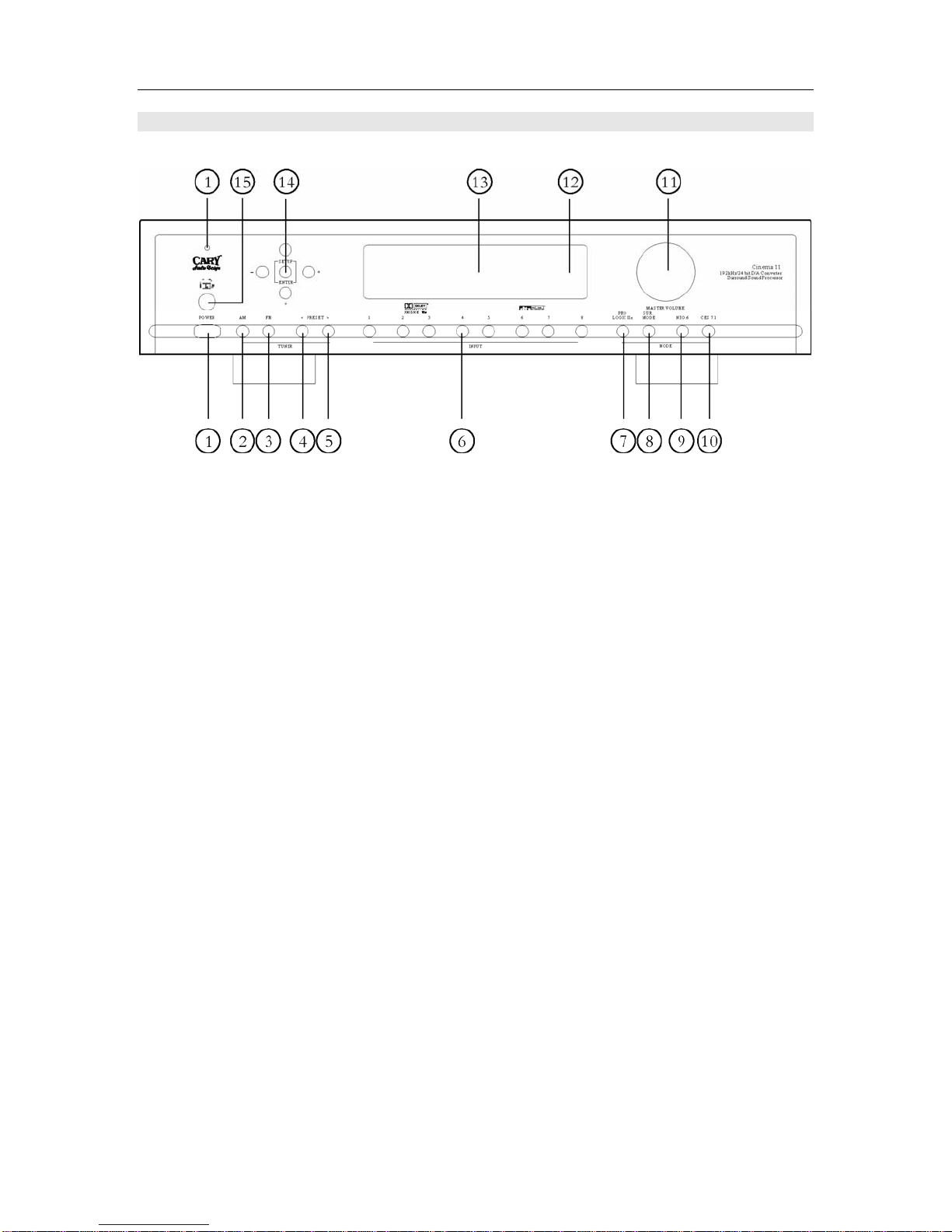

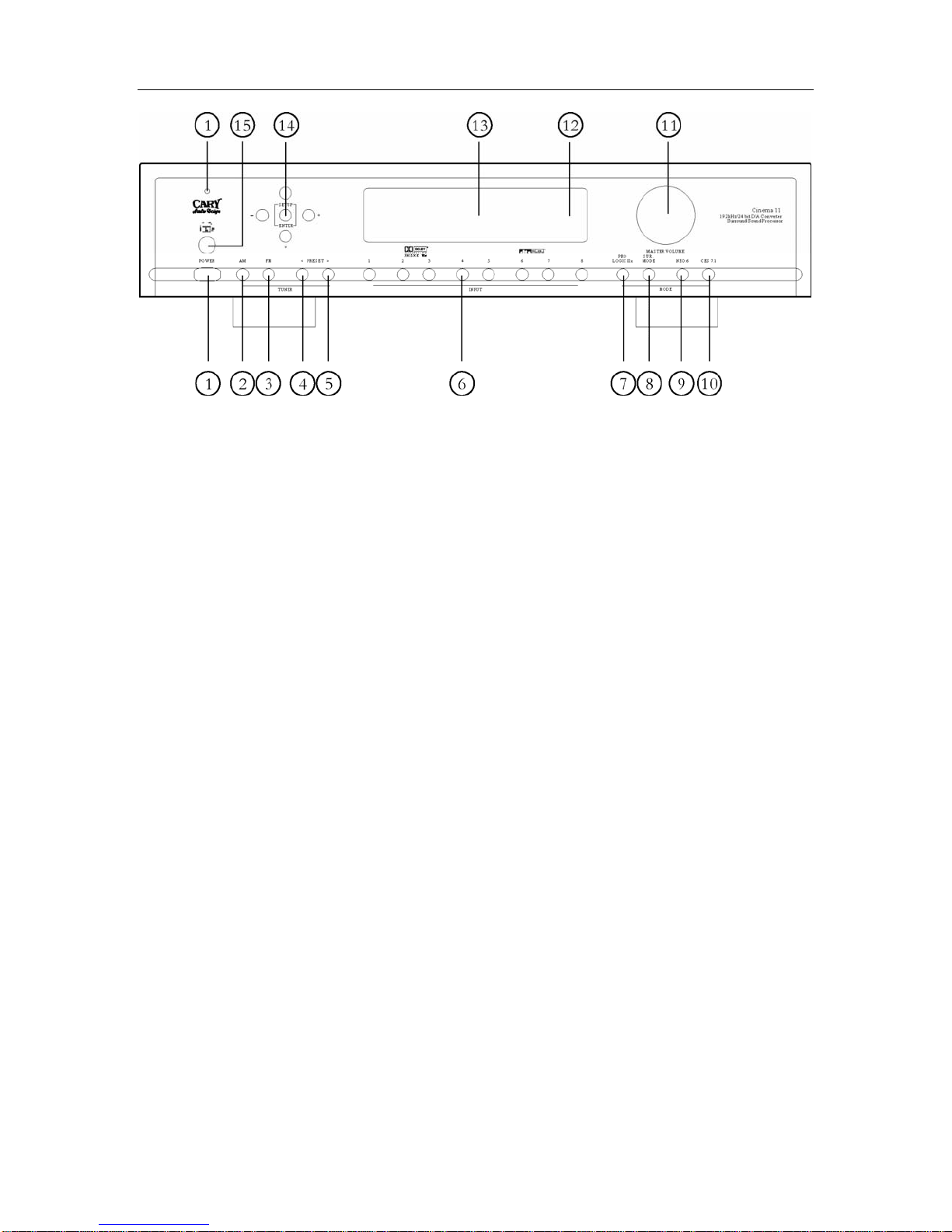

FRONT PANEL
1. POWER
•Press once to turn the power ON.
•Press again to turn the power OFF. The Cinema 11 will enter STANDBY and the blue
POWER LED will light.
2. BAND (AM)
•Press this button to select the AM frequency band reception.
3. BAND (FM)
•Press this button to select the FM frequency band reception.
4. PRESET
•Press this button to preset and recall desired broadcasting stations.
5. PRESET
•Press this button to preset and recall desired broadcasting stations.
6. INPUT SELECTOR
•Press one of these buttons to select the Audio input source.
7. PRO LOGIC IIx
•Press this button to select either the Pro Logic II decoding or Pro Logic IIx decoding
8. SUR. MODE
•Press this button to select the surround sound mode as a part of Dolby Digital or DTS
decoding; music or movie selections.
9. NEO:6
•Press this button to turn the NEO:6 mode ON or OFF.
10. CES 7.1
•Press this button to select DOLBY EX AUTO, DOLBY EX ON, or DOLBY EX OFF mode.

CONTROLS AND DISPLAYS
15
11. MASTER VOLUME KNOB
•Use this knob to adjust the overall sound level.
12. INFRARED RECEIVING SENSOR WINDOW
•This window receives infrared signals from the remote control.
13. ALPHANUMERIC DISPLAY
•This twenty-character display provides a wide range of information concerning the
operation of the Cinema 11.
14. NAVIGATION / ENTER
•Use the four navigation buttons to move through menu options shown on the Cinema
11 display. Use the ENTER button to confirm the selections made in the menus.
15. HEADPHONE JACK
•Use for Dolby Headphone playback of movies or personal listening to the AM/FM radio
section.

CONTROLS AND DISPLAYS
16

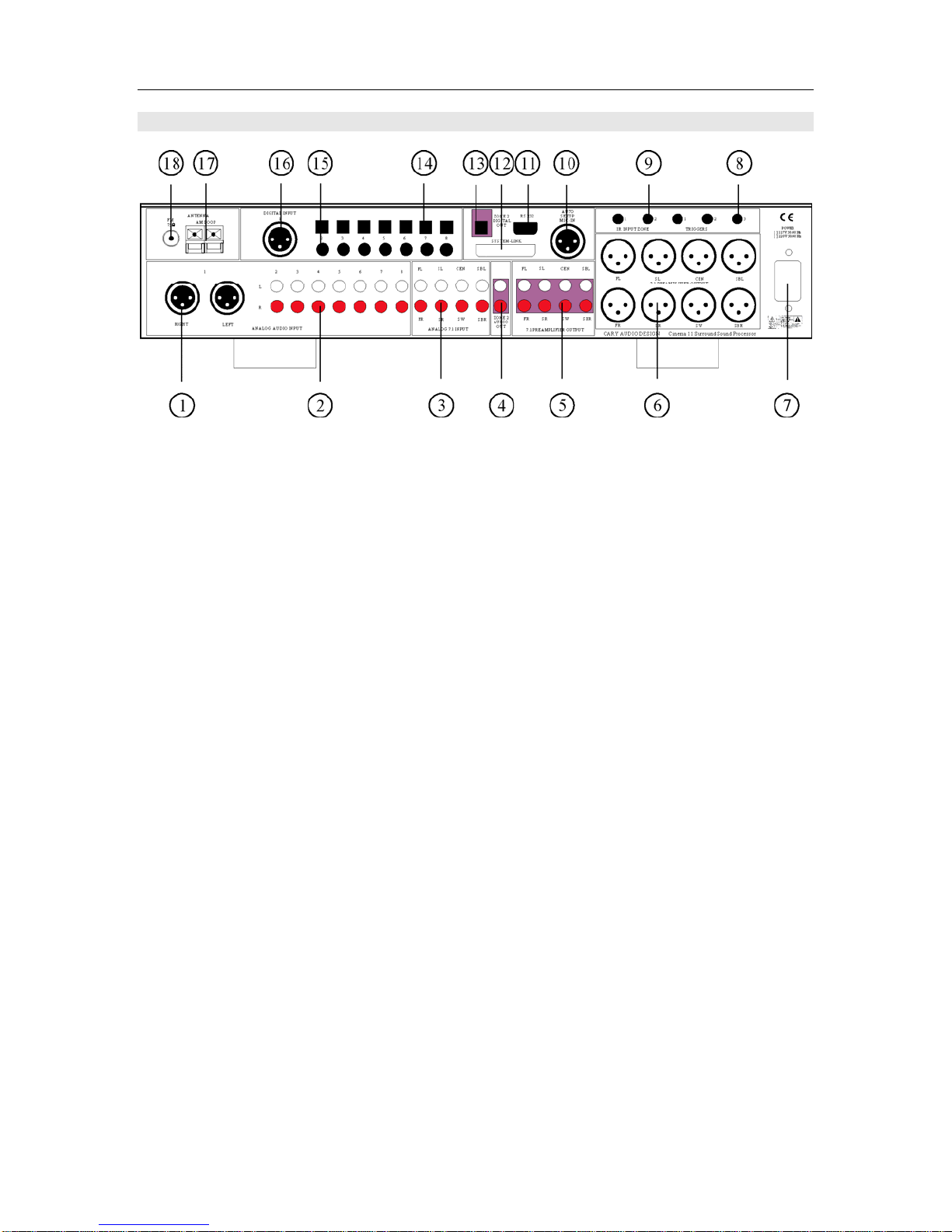

REAR PANEL
1. ANALOG AUDIO IN (INPUT 1) XLR (L + R)
•Use these jacks for connection to balanced CD or DVD player analog output
connections.
2. ANALOG AUDIO IN (INPUTS 2 THROUGH 8) RCA
•Use these jacks for connection to CD, DVD, TV, or VCR input options.
3. ANALOG AUDIO 7.1 INPUT
•By connecting a DVD audio player, SACD multi channel player, or other component
that has a multi-channel output, you can playback the analog audio with 5.1 channel or
7.1 channel outputs.
4. 2ND ZONE ANALOG AUDIO OUT
•These jacks supply the analog stereo audio outputs to an external audio amplifier used
to power the speakers in the remote zone.
5. 7.1 PREAMPLIFIER OUTPUTS
•Use these jacks to connect to the main five or seven channel power amplifiers.
6. 7.1 PREAMPLIFIER OUTPUTS XLR
•Use these jacks to connect to the main five or seven channel power amplifiers.
7. AC INLET CONNECTOR
•Plug the power cord into this AC inlet and then into the power outlet on the wall.
8. DC TRIGGER OUTPUT TERMINALS
•Connect devices that need to be triggered by DC + 12V. (Screen, curtains, lights, etc.)
9. IR INPUT
•Use the 1 and zone 2 Ext remote jacks to connect external IR sensors. When the unit
is installed where it is not otherwise visible to the remote, connect an optional, external
sensor and the 1 (Main) jack will be activated. The Cinema 11 should be used for
connections to the power amplifiers for the main room speaker. The device connected
to the zone trigger will only be activated when the Multi-Zone system is turned on.
Connect it to the amplifier used to power the speakers in the second zone (Zone 2).

CONTROLS AND DISPLAYS
17
10. AUTO SETUP MIC-IN
•Use to connect the supplied microphone for Auto Setup and Auto Room EQ functions
to work.
11. RS-232 PORT
•The RS-232 port is used in conjunction with an external controller to control the
operation of the Cinema 11 by using an external device. (
custom installation use only )
12. SYSTEM-LINK PORT
•Use this port for upgrade use only.
(reserved for future use)
13. ZONE 2 DIGITAL AUDIO OUT (TOSLINK OPTICAL)
•These jacks supply the digital audio outputs to an external surround sound processor
used to power the speakers in the remote zone.
14. DIGITAL INPUT (INPUTS 2 THROUGH 8) TOSLINK OPTICAL
•The digital inputs accept digital audio signal from a compact disc, DVD or other digital
source component.
15. DIGITAL INPUT (INPUTS 2 THROUGH 8) RCA COAXIAL
•The digital inputs accept digital audio signal from a compact disc, DVD or other digital
source component.
16. DIGITAL INPUT (INPUT 1) XLR
•This balanced digital input accepts digital audio signals from a compact disc, DVD or
other balanced digital source component.
17. AM ANTENNA TERMINALS
•Use to connect indoor or outdoor antennas for radio broadcasts.
18. FM ANTENNA TERMINALS
•Use to connect indoor or outdoor antennas for radio broadcasts.

CONTROLS AND DISPLAYS
18
REMOTE CONTROL
This section explains how best to use the remote control to set up and operate the Cinema 11.
1. POWER OFF: Press this button to turn
the Cinema 11 OFF.
2. TUNER SCAN: If INPUT is set to AM or
FM, use this button to scan frequencies
that have been PRESET. The scan will
cycle through the stations, starting with
the current station, one after another
with 5 second delays.
3. MEMORY: Press this button to store
the current broadcast band/reception
frequency into memory.
4. TUNER SEEK (UP/DOWN): Up:
Performs tuning in ascending frequency
order. Down: Performs tuning in
descending frequency order.
5. ROOM EQ: Press this button to turn the
Room Equalization ON or OFF.
6. NAVIGATION/ENTER: Use the four
NAVIGATION buttons to move through
menu options shown on the Cinema 11
display. Press the ENTER button in the
center to confirm selections made in the
menus.
7. TEST: Press this button to start an
AUTO SOUND SETUP test on your
system.
8. SETUP: Calls up the Setup Menu on the
Cinema 11 display, if active.
9. INPUT SELECTOR: Use these buttons
to select the desired source for your Cinema 11.
10. MUTE: Press this button to mute the main volume of the Cinema 11.
11. SURROUND/DATA FORMAT: Press the PLIIx, SUR. MODE, NEO:96/24, or CES 7.1 button once
to select a surround format. Press the same button again to cycle through the various processing
modes available for the selected format.
12. VOLUME: Press this button to adjust the volume up and down from -90dB to +15dB.
13. INPUT SEEK: Press this button to auto select the next active audio input source.

CONTROLS AND DISPLAYS
19
14. LATE (for Dolby Digital only): Cycles
through the various night dynamic range
compression modes. (Full, Half, No
compression)
15. BRIGHT: Press this button to change the
brightness of the display. (Off, Low, Medium,
High)
16. FM MODE: Press this button to select the
audio stereo mode or monaural mode when
listening to FM broadcasts. (mono/auto
stereo)
17. STATION CALL: These buttons are used to
preset the desired broadcasting stations.
18. BAND (FM/AM): Press this button to switch
between FM and AM frequency band
reception.
19. POWER ON: Press this button to turn the
Cinema 11 ON.
