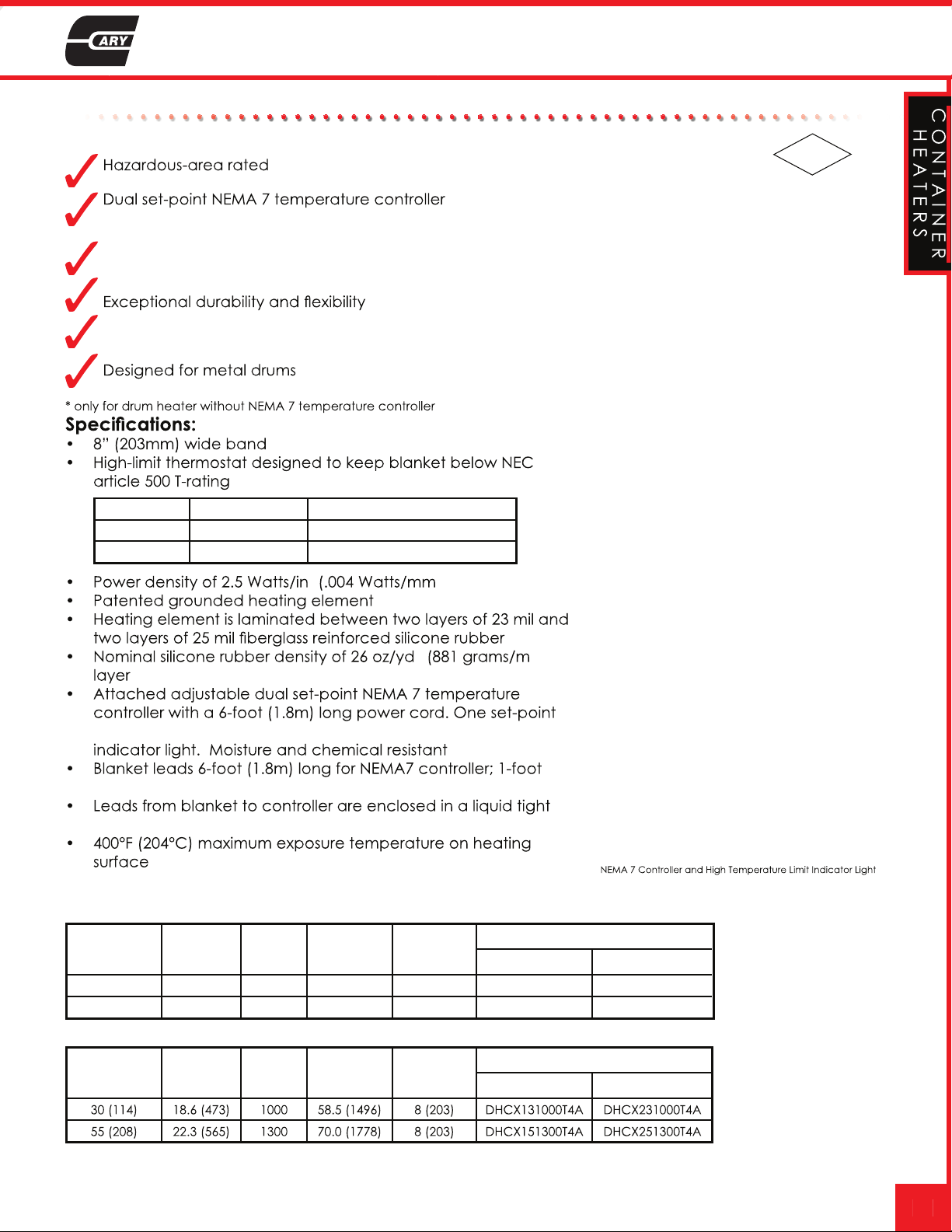

Cary DHCX Series User manual

Product Highlights
Ordering Information:
For T3 Environments
Ordering Option: Without controlling thermostat and pilot light. Replace “C” with “N” in part number. External control is required with this
option.
Gallon (Liter)
Size Diameter in (mm) Total Wattage Length in (mm) Width in (mm) Part Number
120VAC 240VAC
30 (114) 18.6 (473) 1000 58.5 (1496) 8 (203) DHCX131000T3 DHCX231000T3
55 (208) 22.3 (565) 1300 70.0 (1778) 8 (203) DHCX151300T3 DHCX251300T3
2 2)
2 2) per
is set at a high temperature limit and connected to a red
(0.3m) without controller
conduit
connected to a high temperature limit indicator
light
Extra wide 8” (203mm) coverage area
Grounded heating element meets NEC 427.23
For T4A Environments
Gallon (Liter)
Size Diameter in (mm) Total Wattage Length in (mm) Width in (mm) Part Number
120VAC 240VAC
T Rating NEC Temperature Actual High Limit Thermostat
T3 392°F (200°C) 292°F (145°C)
T4A 248°F (120°C) 158°F (70°C)
FM
APPROVED
Class I Division 2
Groups A*, B, C, and D
Class II Division 2,
Groups F and G
DHCX Hazardous-Area Rated Drum Heater
61
Supplied By: The Cary Company
Ph: 630-629-6600
www.thecarycompany.com

BriskHeat®Corporation/ Home of BriskHeat®Products
1055 Gibbard Ave, Columbus, OH 43201
Toll Free: 800-848-7673 Phone: [phone] Fax: [phone]
Email: [email protected]
Web site: www.briskheat.com PN:11663 Rev A
TROUBLESHOOTING GUIDE
Please read this guide prior to contacting BriskHeat®. This guide is designed to
answer the most commonly asked questions. If you are unable to identify the
problem or need additional assistance, please contact your local BriskHeat®
distributor or contact us toll free (U.S. / Canada only) at 1-800-848-7673 or
614-294-3376 or [email protected].
WARRANTY INFORMATION
BriskHeat®warrants to the original purchaser for the period of eighteen (18)
months from date of shipment or twelve (12) months from date of installation,
WHICHEVERCOMESlRST#ONTACTFACTORYATTOLLFREE53
Canada) or 614-294-3376 for complete details.
PROBLEM SOLUTION(S)
Does not heat Verify heater is connected to proper voltage. The
IDENTIlCATIONLABELLOCATEDONTHEPOWERCORDDISPLAYS
the heater’s voltage requirement.
Check to see if there is a resistance reading (not an
open circuit) in heater using an ohm meter.
Circuit breaker is tripping Validate that the circuit breaker is capable of handling
THEAMPREQUIREMENTOFHEATER4HEIDENTIlCATION
label located on the power cord displays the heater’s
amperage requirement.
Examine heater and cord for any damage.
$OESNOTlT #ONlRMTHATTHEHEATERPROVIDEDWASDESIGNEDTOlT
AROUNDYOURSPECIlEDDRUM
)FTHEHEATERWASDESIGNEDFORTHESPECIlEDDRUM
please call 1-800-848-7673 or 614-294-3376 for further
assistance.
Something has lightly spilled on exterior
or interior Apply any general household cleaner, that does not contain any silicone rubber dissolving type
ingredients, with a clean cloth fabric.
Silicone Rubber Band
Drum / Pail Heaters
Instruction Manual
Read and understand this material before operating or
servicing this drum heater. Failure to understand how to safely
operate this heater could result in an accident causing serious
injury or death. This heater should only be operated by
QUALIled personnel.
DHCX series
DHCH series
DPCH series ECONO series
DHCH, DHCS, DHCX, DHNH, DHNS, DHNX, DPCH,
DPCS, DPNH, DPNS, ECONO, and Custom Series
Supplied By: The Cary Company
Ph: 630-629-6600
www.thecarycompany.com
Supplied By: The Cary Company
Ph: 630-629-6600
www.thecarycompany.com

2
fi
7
fi
The drum heater is designed to work at a specifi
All electrical connections must be made by qualifi
Supplied By: The Cary Company
Ph: 630-629-6600
www.thecarycompany.com

© BriskHeat®Corporation. Home of BriskHeat®Products. All rights reserved.
Silicone Rubber Band Drum / Pail Heaters
6
1. Remove the two screws securing the metal plate opposite the temperature
sensor.
2. Remove the metal plate to expose the low and high limit set-point controls.
3. Adjust the high and low temperature set-points to an appropriate level for the
environment. The low temperature set-point is the process control. The high limit
set point is connected to the high temperature limit indicator light.
DHCX series
ADJUSTMENT OF TEMPERATURE SET-POINT
Do not operate the heater without a temperature controlling
device (if not installed). Failure to use such a device may result
in in-process damage or heater failure.
If the operating temperature is within 50ºF (10ºC) of the
maximum exposure temperature of the heater or if the
temperature sensor/ controller or thermostat is controlling a
process remote to the heater, an integral high-limit temperature
cut-out sensor/controller or thermostat is required to protect the
heater.
DHCH, DHCS, DPCH, DPCS, ECONO series
Adjust dial to desired setting. Drum heaters designed for metal drums (DHCH,
DHCS, and ECONO series) can be adjusted 50-425ºF (10-218ºC). Drum
heaters designed for poly drums (DPCH and DPCS series) can be adjusted 50-
160ºF (10-71ºC).
MOUNTING OF TEMPERATURE SENSOR (DHCX series)
1. Mount the temperature sensor as close as possible to the heater, on the
outside of the drum. It is best to mount the sensor vertically. Avoid bending or
coiling the capillary tube tighter than a 1/2” (13mm) radius.
Do not immerse the sensing bulb into the contents of the drum.
2. Once an appropriate location has been determined, secure the sensor to the
DRUMUSINGALUMINUMORlBERGLASSADHESIVETAPE
© BriskHeat®Corporation. Home of BriskHeat®Products. All rights reserved.
Silicone Rubber Band Drum / Pail Heaters
3
IMPORTANT SAFETY INSTRUCTIONS
A person who has not read and
understood all installation instructions
ISNOTQUALIlEDTOINSTALLTHISPRODUCT
x Never handle the heater while it is
in operation; always disconnect the
heater from the power source and
allow to cool prior to handling.
x Inspect heater before use.
x Never operate heater without a
temperature control device.
x Do not wrap the heater over itself
x If spillage of foreign matter onto
heater occurs, disconnect from
power source and clean after
heater is allowed to cool.
x Never operate a heater without an
appropriate heat sink (device being
heated is considered a heat sink).
x Do not operate heater above rated
temperature value.
x Fasten heater to device using
approved methods only.
x Do not repair damaged or faulty
heaters.
x Do not crush or apply severe
physical stress on heater or cord
assembly.
x Disconnect heater when not in use.
x 5SESPECIlEDSIZEDHEATERWITH
same sized drum. Do not use for
other applications.
x DHCX series: Never allow the full
weight of the thermal bulb controller
to hang from the heater.
x DHNX series: the metal enclosure
must not support more than 10lbs
(4.5kg).
Failure to observe these warnings may
result in personal injury or damage to the
heater.
Approvals valid only when installed in
accordance with all applicable
instructions, codes, and regulations.
Agency Approvals
DHCH, DHCS, DHNH, DHNS, DPCH,
DPCS, DPNS, DPNH, DPNS, ECONO,
and Custom series
End User Must Comply to the Following:
x /NLYQUALIlEDPERSONNELAREALLOWEDTOCONNECT
electrical wiring.
x Disconnect all supply power at the source before
making any power connections.
x All electrical wiring must follow local electrical
codes and highly recommend following NEC
Article 427.
x Final installation / wiring is to be inspected by the
authority who has jurisdiction in the area that the
heater is installed.
x The end-user is responsible for providing a
suitable disconnecting device.
x The end-user is responsible for providing
suitable electrical protection device. It is highly
recommended that a ground fault circuit breaker
is used.
x DHCX and DHNX series: A NRTL (National
Recognized Testing Laboratory) listed
temperature controller must be used to control
the surface temperature of the blankets. The
controller must be approved for the area where it
is located.
x DHCX and DHNX series: Heaters provide
surface heating, consult proper authorities
for information for safe heating of materials/
contents of any vessel heated by DHCX and
DHNX heaters.
Failure to observe these warnings may result in
personal injury or damage to the heater.
x Do not immerse heater in liquid.
x Keep volatile or combustible material away from
heater when in use.
x Use heater only in approved locations.
x Keep sharp metal objects away from heater.
x All DHCX and DHNX heaters have T ratings
described in Article 501 of the NEC code. The
heaters should not be used in an area with a
lower T rating than the heater. The T rating is
stated in marking on the heater.
Failure to observe these warnings may result in
ELECTRICSHOCKRISKOFlREANDPERSONALINJURY
73/23/EC (Low Voltage Directive)
FM
APPROVED
Hazardous Locations
Class I, Division 2, Groups A*, B,
C, & D
Class II, Division 2, Groups F & G
DHCX and DHNX series
* DHNX series only
Supplied By: The Cary Company
Ph: 630-629-6600
www.thecarycompany.com

© BriskHeat®Corporation. Home of BriskHeat®Products. All rights reserved.
Silicone Rubber Band Drum / Pail Heaters
4
1. Check for suspected damage to the heater like rips, punctures, etc.
2. Verify surface to be heated is free from all sharp edges, weld splatter, rust, oil,
etc.
3. Check that the desired placement of the heater will not cause damage to the
heater through impact shock, vibration, ambient temperature, or by neighboring
moving parts.
#ONlRMVOLTAGEWATTAGERATINGOFHEATERISAPPROPRIATEFORPOWERSUPPLY
DEVICEORTEMPERATURECONTROLLER4HEHEATERISDESIGNEDTOWORKATASPECIlC
voltage to heat properly. For additional information, contact your local distributor
or BriskHeat®.
PRIOR TO INSTALLATION
Read and understand this entire manual before operating this electric heater.
SUMMARY OF OPERATION
BriskHeat®Silicone Rubber Drum Heaters are designed to heat the contents
inside either metal or poly drums / pails. “DH..” and “ECONO” are
designed for metal drums / pails. “DP..” is designed for poly drums / pails.
DHCH, DHCS, DPCH, DPCS and ECONO series drum heaters are integrated
with an adjustable thermostat controller.
DHCX series drum heaters are integrated with a dual set-point NEMA 7
temperature controller and a high temperature limit indicator light designed to
maintain temperature at a given set-point. The temperature controller uses a
LIQUIDlLLEDSENSINGBULBTOMEASURETHEDRUMTEMPERATURE
Once installed, the sensing bulb is in constant contact with the drum. The
sensing bulb must be installed on the drum as close as possible to the actual
heater; this ensures safety as well as accurate measurement and control. When
the temperature of the drum reaches the temperature set-point, a “micro switch”
is acuated and power is shut off to the heater. Once the temperature decreases
below the set-point, power is supplied to the heater to raise the temperature. The
constant feedback from the sensing bulb, coupled with the controller, enables the
desired temperature control of the drum.
DHNH, DHNS, and DHNX series drum heaters DO NOT include a temperature
controller. These heaters must be connected to an external control device
approved for the desired location. These heaters must not be operated without
some form of temperature control.
© BriskHeat®Corporation. Home of BriskHeat®Products. All rights reserved.
Silicone Rubber Band Drum / Pail Heaters
5
INSTALLATION OF HEATER
1. Verify drum surface is clean, free of weld splatter, and not damaged in anyway.
2. Select a suitable location on the drum, below the lowest expected content
level. For almost all applications, the heater should be mounted on the bottom
1/3 of the drum.
3. Wrap the heater around the drum. Extend the spring attached to the metal tab;
latch the spring loop onto the hook on the opposite side as shown in Figure 1.
4. Verify there are no air gaps between the heater and the drum.
The heater MUST make continuous contact with the drum.
Do not overlap the drum heater onto itself or another heater.
FIGURE 1
Do not use metal tab as a handhold when extending the spring.
#ONlRMHEATERMAXIMUMEXPOSURETEMPERATURERATINGISSUITABLEFOR
environment. The temperature of the internal heating element may run up to
25% higher than the external surface of the heater. Use extreme caution for
applications that require a process temperature near the maximum exposure
temperature ratings of the drum heater.
- All Silicone rubber drum heaters except DHCX and DHNX exposure
temperature range: -60ºF to 450ºF (-51ºC to 232ºC)
- DHCX and DHNX exposure temperature range: -60ºF to 400ºF (-51ºC
to 204ºC)
T3: 292ºF (145ºC) high limit thermostat
T4A: 158ºF (70ºC) high limit thermostat
5. Do NOT connect toAC power until all installation steps are completed.
Supplied By: The Cary Company
Ph: 630-629-6600
www.thecarycompany.com
