Casa Systems CFW-4221 User manual

User Guide
CFW-4221/4222
Doc No. UG01433

2 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Important notice
This device, like any wireless device, operates using radio signals which cannot guarantee the transmission
and reception of data in all conditions. While the delay or loss of signal is rare, you should not rely solely on
any wireless device for emergency communications or otherwise use the device in situations where the
interruption of data connectivity could lead to death, personal injury, property damage, data loss, or other
loss. NetComm Wireless accepts no responsibility for any loss or damage resulting from errors or delays in
transmission or reception, or the failure of the Casa CFW-4221/4222 to transmit or receive such data.
Copyright
Copyright© 2022 Casa Systems. All rights reserved.
The information contained herein is proprietary to Casa Systems. No part of this document may be
translated, transcribed, reproduced, in any form, or by any means without prior written consent of Casa
Systems.
Trademarks and registered trademarks are the property of Casa Systems or their respective owners.
Specifications are subject to change without notice. Images shown may vary slightly from the actual product.
NetComm Wireless Limited was acquired by Casa Systems in 2019.
Note
– This document is subject to change without notice.
Document history
This document relates to the following product:
Casa Systems AurusGate (CFW-4221/4222)
Ver. Document description Date
v0.03 DRAFT n/a
Table i. – Document revision history

3 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Contents
Overview...................................................................................................................................................................................................6
Introduction ............................................................................................................................................................................................................................6
Prerequisites ..........................................................................................................................................................................................................................6
Notation ........................................................................................................................................................................................................................... 6
Product overview ....................................................................................................................................................................................7
Interfaces .................................................................................................................................................................................................8
Front view................................................................................................................................................................................................................................8
LED indicators.................................................................................................................................................................................................................8
Rear view .................................................................................................................................................................................................................................9
Bottom view..........................................................................................................................................................................................................................10
Safety and product care...................................................................................................................................................................... 10
Transport and handling ...................................................................................................................................................................... 11
Placement of your gateway ................................................................................................................................................................ 11
Avoiding obstacles and interference ..............................................................................................................................................................................11
Cordless phones..................................................................................................................................................................................................................11
Choose the “quietest” channel for your wireless network.........................................................................................................................................12
Advanced configuration...................................................................................................................................................................... 13
Dashboard ............................................................................................................................................................................................ 14
Learn More....................................................................................................................................................................................................................15
Wi-Fi details shortcut..........................................................................................................................................................................................................15
Network................................................................................................................................................................................................. 16
Mobile Settings ....................................................................................................................................................................................................................17
Edit APN Settings..........................................................................................................................................................................................................18
WiFi Settings .........................................................................................................................................................................................................................19
Select Band....................................................................................................................................................................................................................19
Wi-Fi Parameters..........................................................................................................................................................................................................20
Guest WiFi......................................................................................................................................................................................................................21
Set Guest WiFi...............................................................................................................................................................................................................22
Max Users......................................................................................................................................................................................................................22
Set WiFi Access Restrict..............................................................................................................................................................................................22
Connect a device with WPS .......................................................................................................................................................................................22
LAN Settings .........................................................................................................................................................................................................................22
Edit LAN Settings..........................................................................................................................................................................................................23
WAN Settings........................................................................................................................................................................................................................24
Static Route Settings...........................................................................................................................................................................................................25
IPv6 Settings .........................................................................................................................................................................................................................26
Quality of Service.................................................................................................................................................................................................................28
Parameters ....................................................................................................................................................................................................................28
Add New IP Address....................................................................................................................................................................................................29
Manual Net Search..............................................................................................................................................................................................................29

4 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Manual Net Settings – IP Address............................................................................................................................................................................29
Advanced Settings...............................................................................................................................................................................................................31
> link................................................................................................................................................................................................................................32
Edit (DMZ) ......................................................................................................................................................................................................................33
DDNS Settings......................................................................................................................................................................................................................33
Edit...................................................................................................................................................................................................................................34
Security.................................................................................................................................................................................................. 36
IP Filter ...................................................................................................................................................................................................................................36
Settings – IP filters........................................................................................................................................................................................................36
Port Filter...............................................................................................................................................................................................................................38
Edit Port Filter ...............................................................................................................................................................................................................38
Add Port .........................................................................................................................................................................................................................38
MAC Filter..............................................................................................................................................................................................................................39
URL Filter ...............................................................................................................................................................................................................................40
Add URL..........................................................................................................................................................................................................................41
ALG Setting ...........................................................................................................................................................................................................................41
Edit URL Filter................................................................................................................................................................................................................42
Add URL..........................................................................................................................................................................................................................42
Parental Control...................................................................................................................................................................................................................42
Change Model...............................................................................................................................................................................................................43
Add Device.....................................................................................................................................................................................................................43
Connected Devices .............................................................................................................................................................................. 45
Device Management............................................................................................................................................................................ 46
Edit password ...............................................................................................................................................................................................................46
Restart ............................................................................................................................................................................................................................47
Factory Reset.................................................................................................................................................................................................................47
SIM Security .......................................................................................................................................................................................... 48
System ................................................................................................................................................................................................... 49
NTP System Time.................................................................................................................................................................................................................49
Manual Firmware Update..................................................................................................................................................................................................50
Firmware Update .........................................................................................................................................................................................................51
Modem Update ............................................................................................................................................................................................................51
Backup/Restore ...................................................................................................................................................................................................................52
Backup............................................................................................................................................................................................................................52
Restore Default.............................................................................................................................................................................................................53
TR069 Configuration...........................................................................................................................................................................................................53
View details mode........................................................................................................................................................................................................54
Edit mode.......................................................................................................................................................................................................................54
EasyMesh Setting ................................................................................................................................................................................................................55
System Log............................................................................................................................................................................................................................57
Kernel Log .............................................................................................................................................................................................................................57
SPI Firewall Info....................................................................................................................................................................................................................58
WAN Ping URL ......................................................................................................................................................................................................................59
Ethernet Statistics ...............................................................................................................................................................................................................59

5 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
About ..................................................................................................................................................................................................... 61
Log out .................................................................................................................................................................................................. 61
Power off............................................................................................................................................................................................... 62
FCC regulation information ................................................................................................................................................................ 63
FCC Statement .....................................................................................................................................................................................................................63
CAUTION!...............................................................................................................................................................................................................................63
RF Exposure..........................................................................................................................................................................................................................63
Company contact details ...................................................................................................................................................................................................64

6 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Overview
Introduction
This document provides a detailed description of the device, including instructions on configuring and using
the CFw-4221 or CFW-4222 gateway.
Prerequisites
To configure your gateway, you will require a computing device with a web browser and either a wired or
wireless network adapter.
Notation
The following symbols may be used in this document:
Note
– This note contains useful information.
Important
–
This is important information that may require your attention.
Warning
– This is a warning that may require immediate action in order to avoid damage or injury.

7 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Product overview
Easy to install 5G/LTE WiFi 6 Indoor residential gateway
Installed by the consumer allowing fast time to customer fulfilment
Supporting a wide range of 3GPP Frequency Bands from 600MHz up to 4.2GHz, it is suitable for
deployment in the majority of regions globally
Includes an integrated 4x4 MIMO Low-Gain OMNI Directional Antenna
Remotely manageable (FM, CM, PM, SM) via BBF TR-069, SSH and HTTP/S
Additional consumer smartphone application available to provide efficient installation process suitable
for a non-technical consumer audience.

8 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Interfaces
The gateway is designed to be placed upright on a
table.
Its LED indicators and
WPS
button are on the on
the front of the gateway.
Cables exit from the rear for easy organization. The
power input is located below the data sockets.
The power
ON/OFF
switch and the
Reset
buttons
are on the bottom. The
SIM
slot is also located on
the bottom of the gateway.
Front view
The LED display visible on the front of the gateway
provides you with information about network
activity and the device status.
The WPS button allows you to easily pair a Wi-Fi
device with the gateway.
LED indicators
The following table contains an explanation of each
of the indicators on the front of the gateway.
Figure 1 - LED icons
LED Icon Colour Definition
All three LEDs
simultaneously
Red blinking Firmware upgrade in progress
4G / 5G
White solid Gateway is connected to 5G network
Blue solid Gateway is connected to 4G network
Red solid SIM PIN/PUK is locked

9 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
LED Icon Colour Definition
Orange solid No network
Orange blinking Gateway is powering up
Wi-Fi icon
White solid Wi-Fi is normal
White blinking Press the WPS button
Off Wi-Fi is unusual
Signal strength
White solid Signal strength is excellent
Blue solid Signal strength is good
Orange solid Signal strength is fair
Red solid Signal strength is poor
Ta bl e 1 - LED icon descriptions
Rear view
The following interfaces are located on the rear panel of the gateway:
Figure 2 – Gateway rear view
Interface Description
WAN/LAN1
The WAN/LAN1 port functions as a WAN port by
default and may be toggled to function as a LAN port
via the web user interface.
LAN2
The LAN2 port is a second LAN port. Connect a
device to this port using Ethernet cable to provide it
with internet access.
Power supply jack
Connect the supplied power supply to this jack.
Only use the power adaptor supplied with the
gateway.
Ta bl e 2 – Interfa ce descripti ons

10 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Bottom view
Figure 3 – Bottom view
Interface Description
Reset button
SIM Card slot
The SIM card slot is housed underneath a flap to prevent dust ingress. To
access the SIM card slot, first open the flap.
On/Off button
Toggles the power on and off.
Ta bl e 3 - Side buttons
Safety and product care
Your gateway is an electronic device that sends and receives radio signals. Please take the time to read this
list of precautions that should be taken when installing and using the router.
Do not disassemble the gateway. There are no user-serviceable parts.
Do not allow the gateway to come into contact with liquid or moisture at any time. To clean the device,
wipe it with a damp cloth.
Do not restrict airflow around the device. This can lead to the device overheating.
Do not place the device in direct sunlight or in hot areas.

11 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Transport and handling
When transporting the gateway, we recommend returning the product in its original packaging. This helps to
reduce the risk of damage to the product.
Attention
– In the event the product needs to be returned, ensure it is securely packaged with appropriate padding to prevent
damage during courier transport.
Placement of your gateway
The wireless connection between your gateway and your wireless devices will be strong when they are in
close proximity and have direct line of sight. As your client device moves further away from the gateway or
solid objects block direct line of sight to the router, your wireless connection and performance may degrade.
This may or may not be directly noticeable and is greatly affected by the individual installation environment.
If you have concerns about your network’s performance that might be related to range or obstruction
factors, try moving the computer to a position between three to five metres from the gateway to see if
distance is the problem.
Note
– While some of the items listed below can affect network performance, they will not prohibit your wireless network from
functioning; if you are concerned that your network is not operating at its maximum effectiveness, this check list may help
Try not to place the gateway near a cordless telephone that operates at the same radio frequency as the
gateway (2.4GHz/5GHz).
Avoiding obstacles and interference
Avoid placing your gateway near devices that may emit radio “noise,” such as microwave ovens. Dense
objects that can inhibit wireless communication include:
Refrigerators
Washers and/or dryers
Metal cabinets
Metallic-based, UV-tinted windows
If your wireless signal seems weak in some spots, make sure that objects such as those listed above are not
blocking the signal’s path (between your devices and the gateway).
Cordless phones
If the performance of your wireless network is impaired after considering the above issues, and you have a
cordless phone:

12 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Try moving cordless phones away from your gateway and your wireless-enabled computers.
Unplug and remove the battery from any cordless phone that operates on the 2.4GHz or 5GHz band (check
manufacturer’s information). If this fixes the problem, your phone may be interfering with the gateway.
If your phone supports channel selection, change the channel on the phone to the farthest channel from
your wireless network. For example, change the phone to channel 1 and move your gateway to channel 11.
See your phone’s user manual for detailed instructions.
If necessary, consider switching to a 900MHz or 1800MHz cordless phone.
Choose the “quietest” channel for your wireless
network
In locations where homes or offices are close together, such as apartment buildings or office complexes,
there may be wireless networks nearby that can conflict with your wireless network. Your wireless adapter
may include a utility to assist in scanning for the least congested network, otherwise you may be able to find
another piece of software that can be used. These tools display a graphical representation of the wireless
networks in range and the channels on which they are operating.
Try to find a channel which is not as busy and does not overlap with another one. Channels 1, 6 and 11 are
the only channels on 2.4GHz which do not overlap with one another, and you should ideally choose one of
these channels.
Experiment with more than one of the available channels to find the clearest connection and avoid
interference from neighbouring cordless phones or other wireless devices.

13 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Advanced configuration
The AurusGate will function out of the box simply by inserting a SIM card and connecting your devices to its
wireless network or local network ports. However, if you wish to change any of the default settings, you can
access the web interface.
1If the AurusGate has not been turned on, push the power button on the bottom of the gateway to
turn it on. Wait for about two minutes for it to complete starting up.
2Open a web browser and type 192.168.1.1 into the address bar, then press Enter.
3At the Enter Login Password screen:
aType admin into the Username field.
bType admin into the Password field.
cSelect the Log In button.

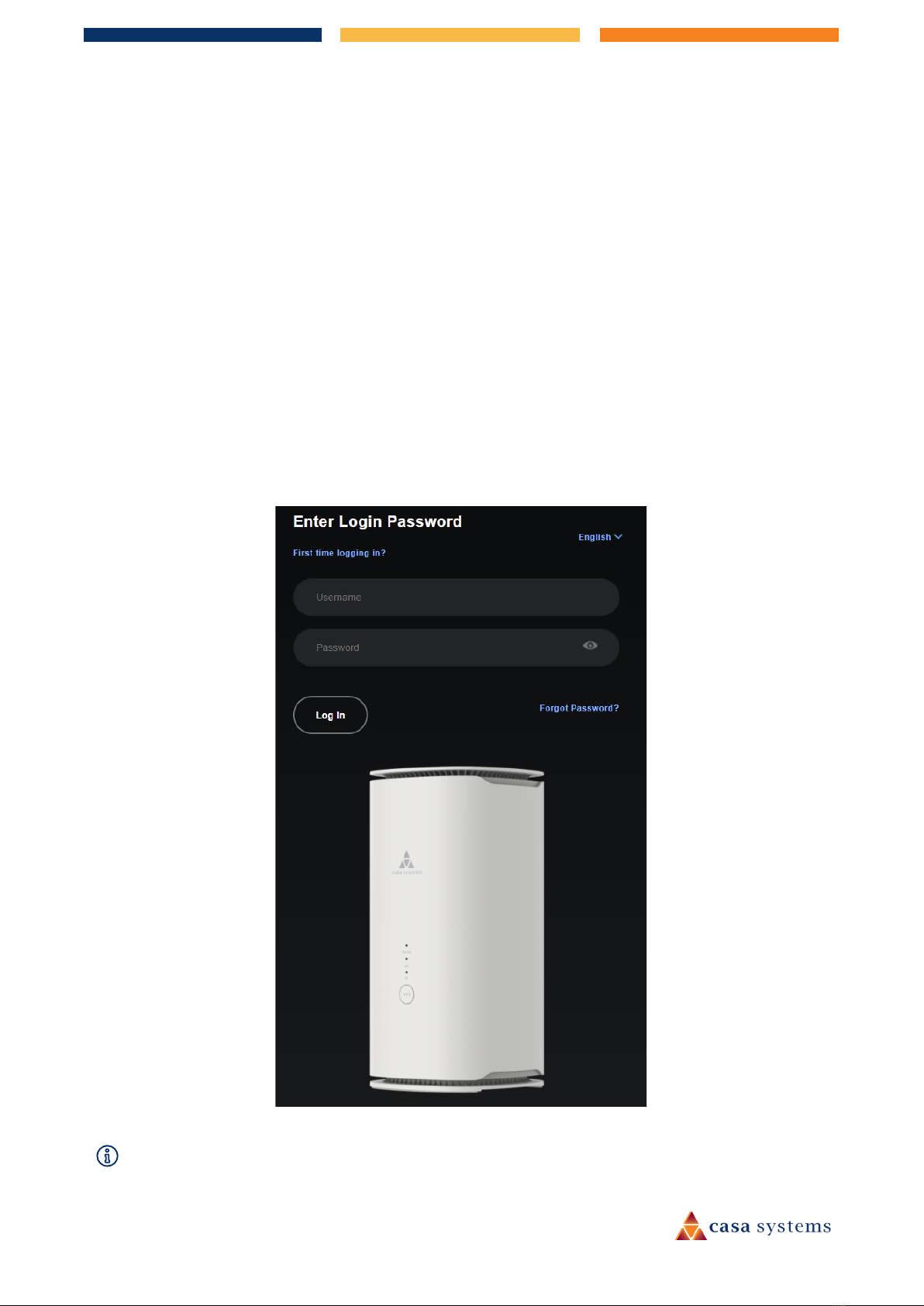

Figure 4 - Enter Login Password screen
Note
– If you have previously changed the password, enter your chosen password instead.

14 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Dashboard
The Dashboard page is first displayed after you have successfully logged into the gateway. This page gives
you an overview of important information regarding the gateway and the configuration of your WAN
connection.
Figure 5 - Devi ce Info page
The page provides an overview of
Field Description
Modem Connection
Wi-Fi link
Connection status
SIM status
Devices
Service Status
Data used this month
Data used this session
Ta bl e 4 – Dashboard display table

15 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Learn More
Figure 6 – Wi-Fi dashboard page
Click the Edit button to set the day of the month to begin the monthly report.
Wi-Fi details shortcut
At the top of the screen, select the Wi-Fi network name to view the status and credentials of your wireless
networks as well as a Details link to take you to the advanced wireless settings page.
Figure 7 – Wi-Fi details shortcut

16 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Network
Figure 8 – Network menu
This Network section of the menu on the left side of
the screen provides a variety of options for
configuring advanced network settings on the
gateway.
In most cases, you will not need to modify settings
under the Network menu and we recommend that
you do not change many of the settings unless you
are sure of the effect that the changes will have,
and have a backup of your current working
configuration.

17 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Mobile Settings
To view and make changes to the mobile service settings select Mobile Settings from the Network menu.
The Mobile Settings page opens:
Figure 9 – Mobile settings
The following options are available to configure:
Parameter Definition
Signal Strength
Parameters include:
OFFLINE
–
Date
Current Time
Connection Time
IP Address

18 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Parameter Definition
Gateway
Primary DNS Server
Secondary DNS Server
Phone Number
5G Network mode selection
Click the
Edit
link and select from the following options:
•
4G –
•
5G –
•
AUTO
–
APN Settings
Data Roaming
selector
switch
Ta bl e 5 – LAN settings table
Edit APN Settings
When you select the APN Settings Edit button, you are presented at the APN Settings configuration screen.
Here you can configure up to four profiles allowing multiple data connections on the mobile network.
Figure 10 - APN Settings

19 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
WiFi Settings
To view and make changes to both 2.4 GHz and 5 GHz Wi-Fi connections select WiFi Settings from the
Network menu. The Mobile Settings page opens.
Select Band
To view and edit the separate configurations click either 2.4 GHz or 5 GHz in the first set of buttons, this will
switch the display between the 2.4 GHz and 5 GHz Wi-Fi bands settings.

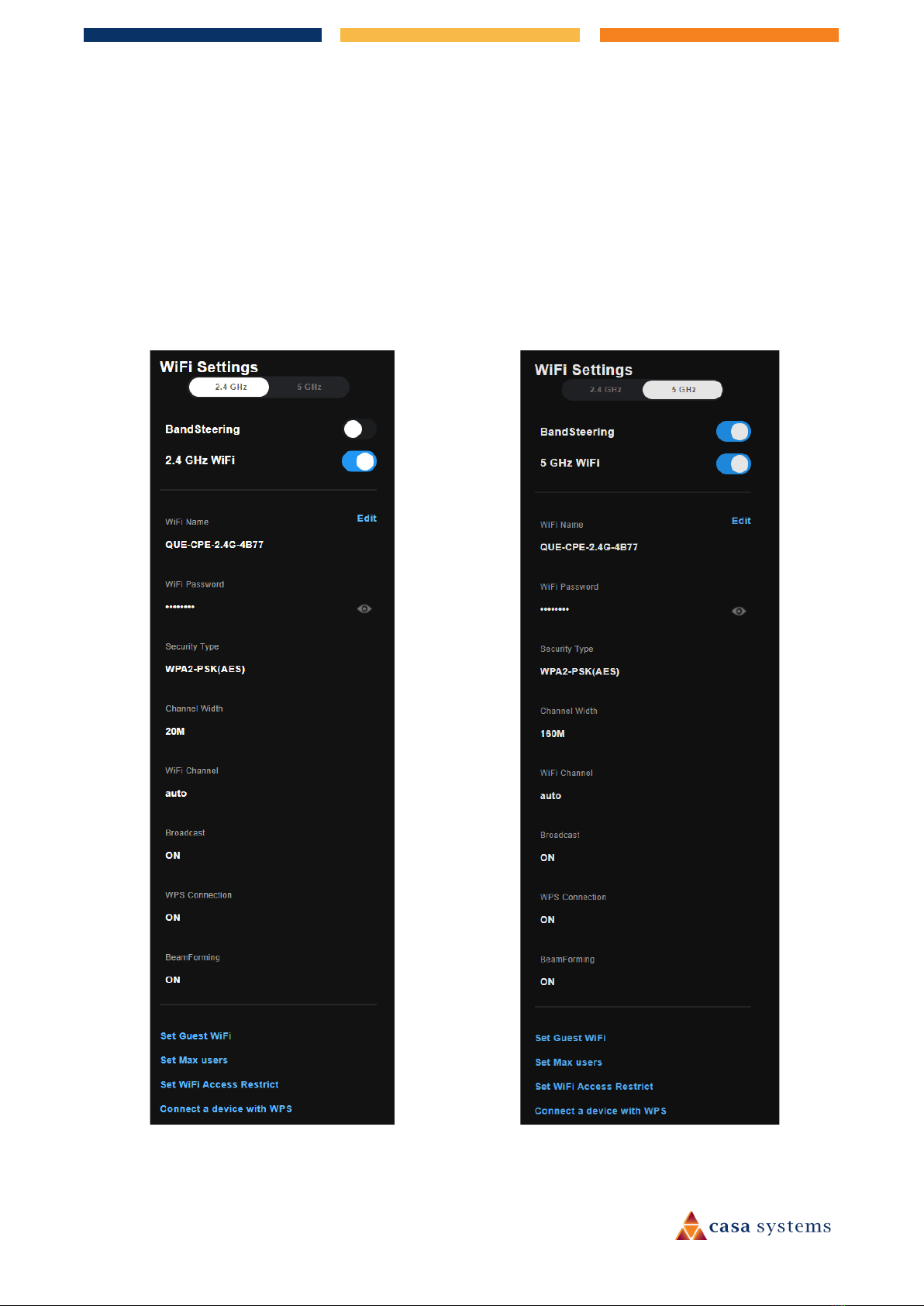

Figure 11 – 2.4 GHz WiFi settings
Figure 12 – 5 GHz WiFi settings

20 of 64
CFW-4221/4222 – User Guide
UG01433 v1.03 November 2022
© Casa Systems 2022
Wi-Fi Parameters
The following options are available to configure both bands:
Parameter 2.4 GHz settings 5 GHz settings
Band Steering
Move button to the right to enable
band steering.
Move to the left to disable it.
Move button to the right to enable
band steering.
Move to the left to disable it.
Enable WiFi
Move button to the right to enable
2.4 GHz Wi-Fi network.
Move to the left to disable it.
Move button to the right to enable 5
GHz Wi-Fi network.
Move to the left to disable it.
Note
–
2.4 GHz alone, 5 GHz alone, both bands, or neither can be selected to be
enabled or disabled.
WiFi Name
WiFi Password
Note
–
The names and password for both 2.4 GHz and 5 GHz can be the same
or different.
When the WiFi Name and Password are the same on both bands, your
devices can seamlessly roam between them for the best performance.
Security Type
Can be:
WPA2-PSK(AES)
Can be:
WPA2-PSK(AES)
Channel Width
Enter a range of: Enter a range of:
WiFi Channel
Enter or
Auto
Enter or
Auto
Broadcast
Select
On
in order to……. Select
On
in order to…….
WPS Connection
Select
On
in order to……. Select
On
in order to…….
Beam Forming
Select
On
in order to……. Select
On
in order to…….
Guest WiFi link
Click to view parameters and settings
for
Guest WiFi
.
Same as for 2.4 GHz
Max Users link
Click to set the maximum number of
users for this band.
Same as for 2.4 GHz
WiFi Access Restrict link
Click to view parameters and settings
for
WiFi access restrictions
.
Same as for 2.4 GHz
Connect a device with WPS
link
Click to connect to another device
using the WPS service.
Same as for 2.4 GHz
Ta bl e 6 – LAN settings table
