Case IH BC12000ER User manual

operation manual
BC12000ER

2
table of contents
Introduction
4 Using the Operators Manual
Product Identification
5 Generator
5 Engine
Safety
6 Safety Rules
6 Hazard Symbols and Meanings
9 Ground Fault Circuit Interrupter Protection
11 Important Safety Instructions
Glossary
13 Glossary
Generator Components

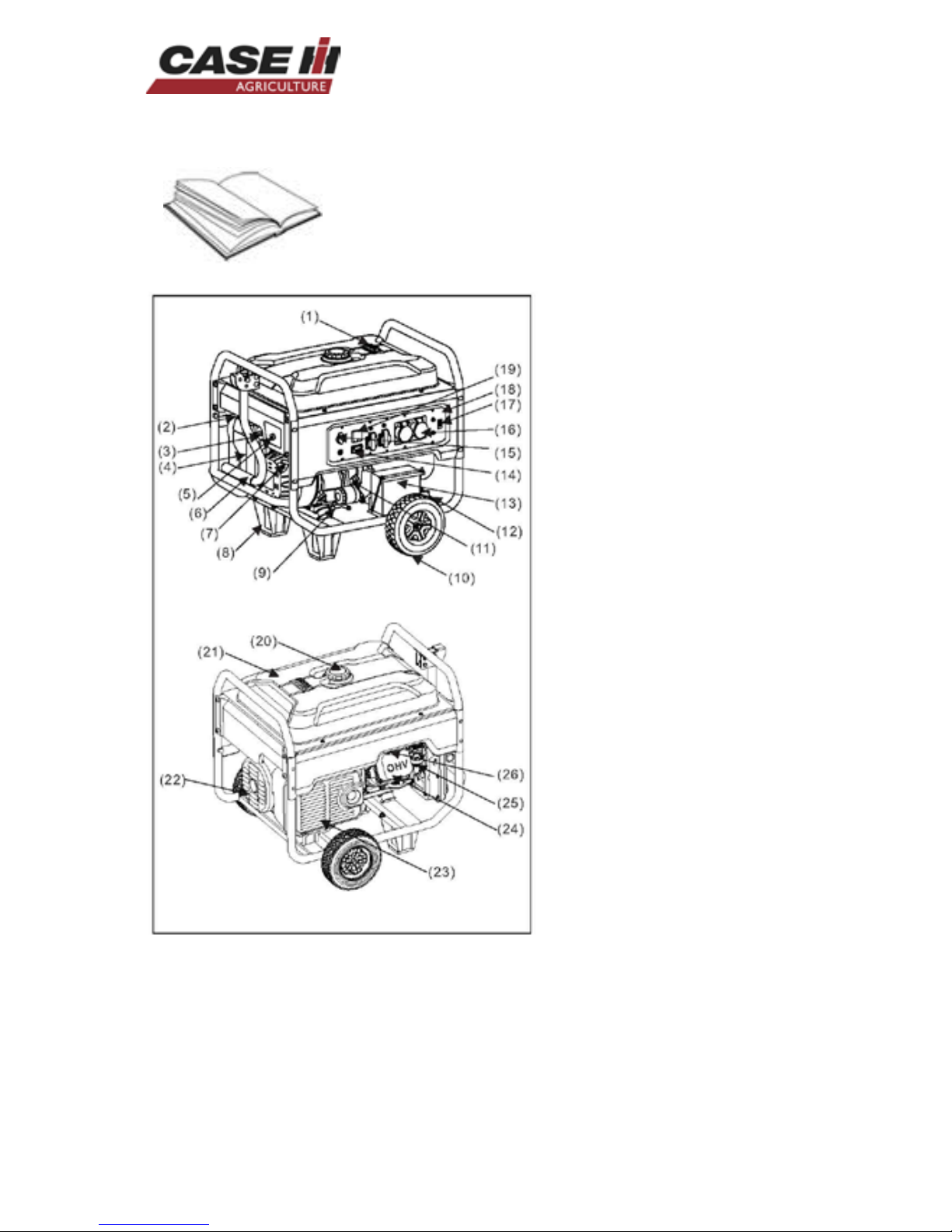

14 12000ER Component Chart
15 Spare Parts List

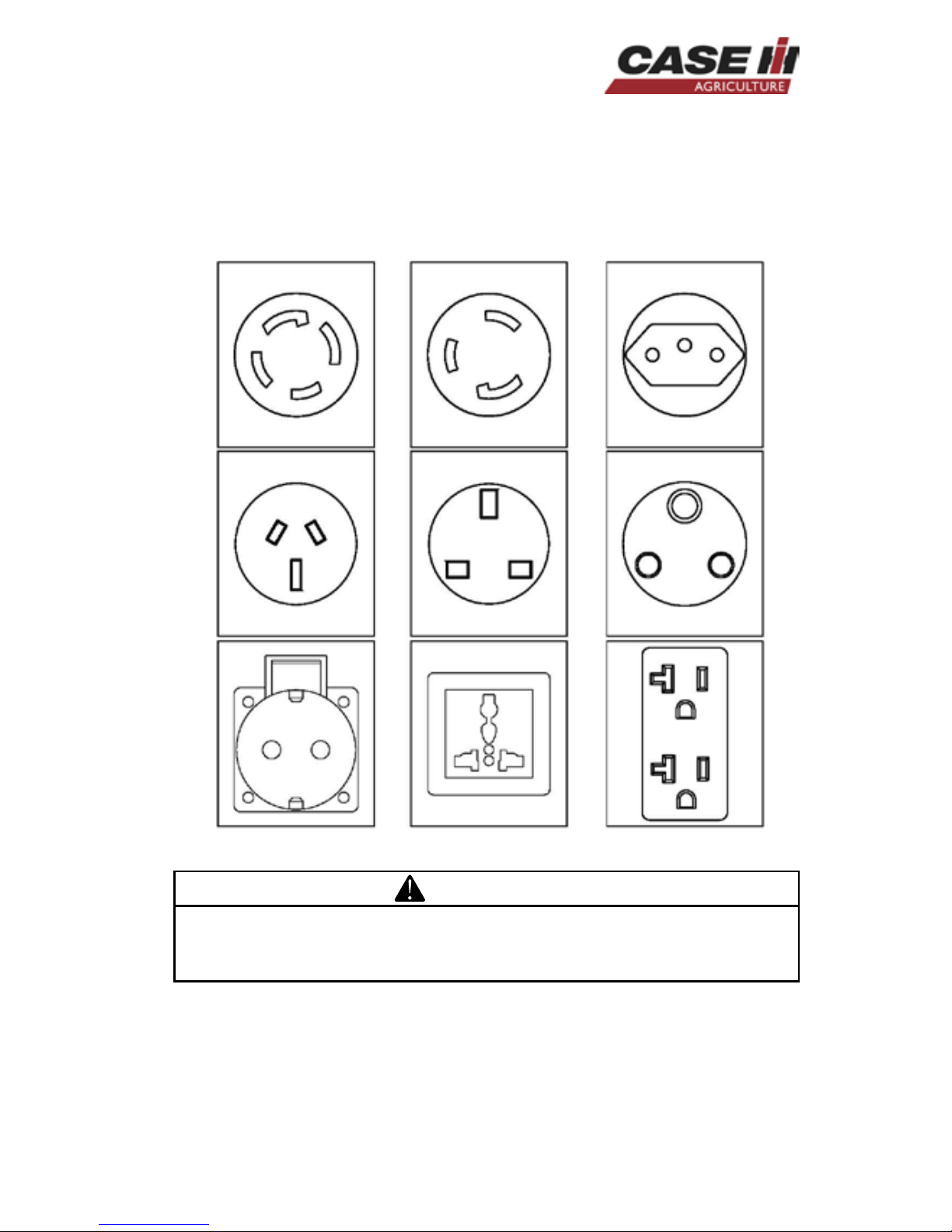

17 Sockets
Features
18 Features
Operation
19 Unit Grounding
Starting the Generator

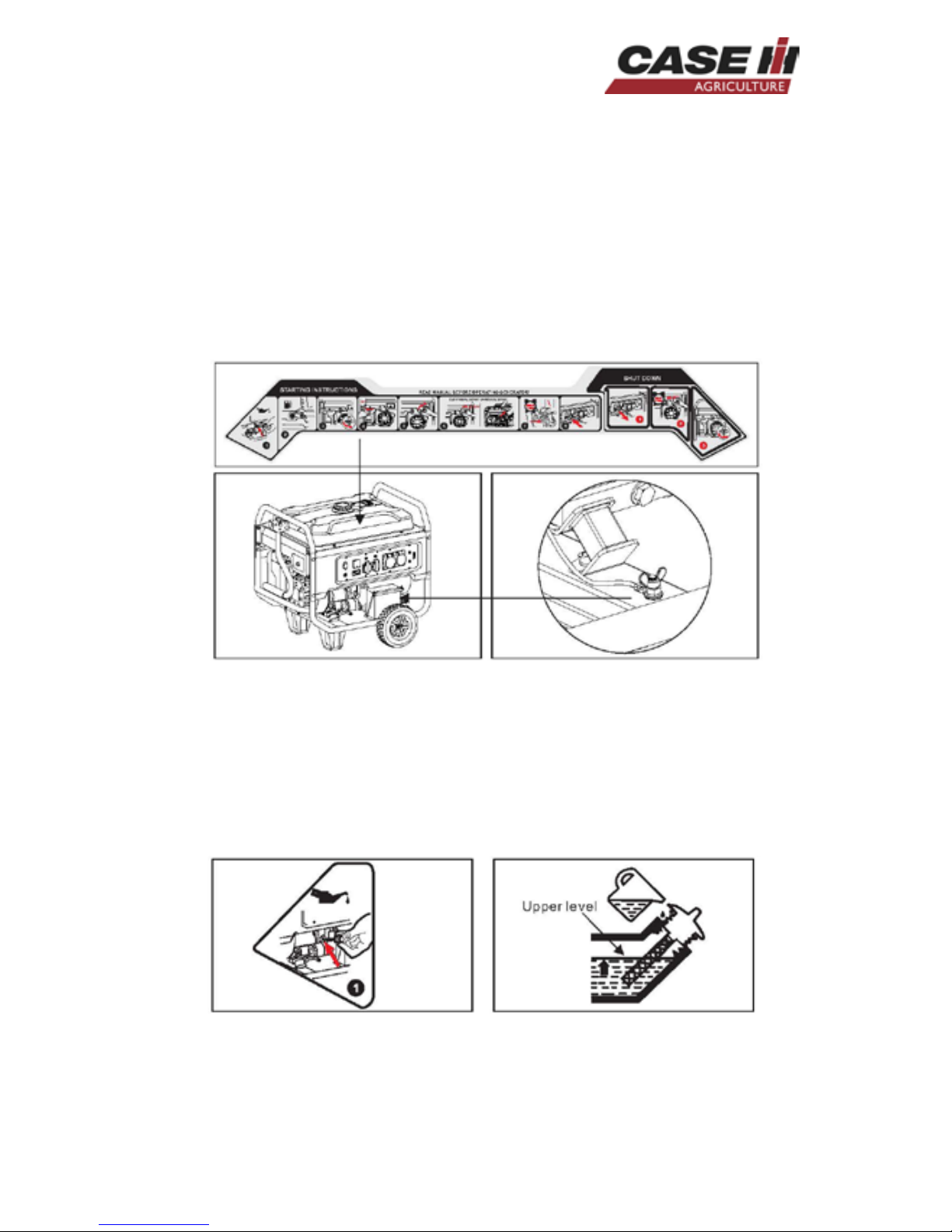

19 Filling Oil
20 Oil Specification Chart
20 Filling Fuel
21 Turn On The Fuel Valve Lever
21 Close The Choke Valve
21 Start The Generator
22 Start The Generator Recoil Start
22 Open The Choke Valve
23 Connect To Load

3
table of contents
Stopping the Generator
23 Disconnect Load
23 Turn Off The Engine Switch
24 Close The Fuel Valve Lever
Storage
24 Drain The Fuel
24 Protective Treatment
Transporting
25 Transporting
Accessories
26 Accessory Installation
26 Two-Wheel Short Axle
Maintenance
27 Maintenance Chart
28 Replace Engine Oil
28 Clean Air Cleaner
29 Clean The Fuel Valve Lever Sediment Cup
29 Clean The Spark Plug
30 Valve Clearance
Troubleshooting
31 Troubleshooting Chart
32 Troubleshooting Analysis
Diagrams
33 Electrical Schematic Diagram 1
34 Electrical Schematic Diagram 2

4
Using the Operator’s manual
The operating manual is an important part of your generator and should
be read thoroughly before initial use, and referred to often to make sure
adequate safety and service concerns are being addressed.
Reading the owner’s manual thoroughly will help avoid any personal
injury or damage to your machine. By knowing how best to operate this
machine you will be better positioned to show others who may also
operate the unit.
This manual contains information for the complete range of CASE
generators, and was written to take you from the safety requirements
to the operating functions of your machine. You can refer back to the
manual at any time to help troubleshoot any specific operating functions,
so store it with the machine at all times.
Attention: Read through the complete
manual prior to the initial use of your
generator.
introduction

5
product identification
Record Identification Numbers
Generator
If you need to contact an Authorized Dealer or Customer Service line
(1-855-850-6668) for information on servicing, always provide the
product model and identification numbers.
You will need to locate the model and serial number for the machine and
record the information in the places provided below.
Date of Purchase:
Dealer Name:
Dealer Phone:
Product Identification Numbers
Model Number:
Serial Number:

6
The safety alert symbol ( ) is used with a signal word (DANGER,
CAUTION, WARNING), a pictorial and/or a safety message to alert you
to hazards.
DANGER indicates a hazard which, if not avoided, will result in death or
serious injury.
WARNING indicates a hazard which, if not avoided, could result in death
or serious injury.
CAUTION indicates a hazard which, if not avoided, might result in minor
or moderate injury.
NOTICE indicates a situation that could result in equipment damage.
Follow safety messages to avoid or reduce the risk of injury or death.
HAZARD SYMBOLS AND MEANINGS
Save these Instructions
SAFETY RULES
safety
This is the safety alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible
injury or death.
explosion
kickback read manual
fire burning electric shock
toxic fumes

7
safety
WARNING
Generator exhaust contains carbon monoxide, a
poisonous gas that can kill you.
You CANNOT smell or see this gas.
• Use the generator outdoors, away from open windows, vents, or
doors that could allow the carbon monoxide gas to come indoors.
Keep the generator at least 1 meter (3 feet) away from any structure
or building during use.
• NEVER use a generator indoors, including in homes, garages,
basements, crawl spaces, and other enclosed or partially-enclosed
areas, even with ventilation. Opening doors and windows or using
fans will not prevent carbon monoxide build-up in the home.
• NEVER use a generator in enclosed or partially-enclosed spaces.
Generators can produce high levels of carbon monoxide very quickly.
When you use a portable generator, remember that you cannot smell
or see carbon monoxide. Even if you can’t smell exhaust fumes, you
may still be exposed to carbon monoxide.
• NEVER operate the generator in an explosive atmosphere, near
combustible materials or where ventilation is not sufficient to carry
away exhaust fumes. Exhaust fumes can cause serious injury or death.
• If you start to feel sick, dizzy, or weak while using a generator, get
to fresh air RIGHT AWAY. DO NOT DELAY. The carbon monoxide
from generators can rapidly lead to full incapacitation and death.
• If you experience serious symptoms, get medical attention
immediately. Inform medical staff that carbon monoxide poisoning
is suspected. If you experienced symptoms while indoors, have
someone call the fire department to determine when it is safe to
re-enter the building.

8
safety
WARNING
Fuel and its vapors are extremely flammable and
explosive.
Fire or explosion can cause severe burns or death.
When Adding or Draining Fuel
• Observe all safety regulations for the safe handling of fuel. Handle
fuel in safety containers. If the container does not have a spout, use
a funnel.
• Do not overfill the fuel tank, leave room for the fuel to expand.
• Do not refill fuel tank while the engine is running. Before refueling the
generator, turn it off and let it cool down. Gasoline spilled on hot
engine parts could ignite.
• Fill the tank only on an area of bare ground. While fueling the tank,
keep heat, sparks and open flame away. Carefully clean up any spilled
fuel before starting engine.
• Always fill fuel tank in an area with plenty of ventilation to avoid
inhaling dangerous fumes.
• NEVER store fuel for your generator in the home. Gasoline, propane,
kerosene, and other flammable liquids should be stored outside of
living areas in properly-labeled, non-glass safety containers. Do not
store them near a fuel-burning appliance, such as a natural gas water
heater in a garage. If the fuel is spilled or the container is not sealed
properly, invisible vapors from the fuel can travel along the ground and
can be ignited by the appliance’s pilot light or by arcing from electric
switches in the appliance.

9
safety
WARNING
The GFCI may not function unless the generator is properly
grounded. Follow the correct procedure specified in the section
labeled GROUNDING INSTRUCTIONS.
GROUND FAULT CIRCUIT INTERRUPTER PROTECTION
These generators are equipped with a GFCI (Ground Fault Circuit
Interrupters) 120V duplex receptacles for protection against the hazards
of electrical shock from defective attachments such as, tools, cords,
and cables.
A GFCI is a device that interrupts electricity from either the utility or
generator by means of a special type of circuit breaker that determines if
a current flow to the ground occurs.
A GFCI can be used only with generators that have the neutral wire
internally bonded to the frame, and the frame properly grounded to the
earth. A GFCI will not work on generators that do not have the neutral
wire bonded to the frame, or on generators which have not been properly
grounded. All Case generators have internally bonded ground wires.

10
safety
DANGER
Improper grounding can result in a risk of electrocu-
tion. Check with a qualified electrician for your local
requirements if you are in doubt as to whether the unit
is properly grounded.
This generator is equipped with a grounding terminal for added
protection. Using the ground path from the generator to an
external ground source as instructed in the section labeled “Grounding
Instructions” in the Preparation section of this manual can be
necessary. Please consult a qualified electrician for local regulations.
The generator is a potential source of electrical shock if not kept dry.
Keep the generator dry and do not use in rain or wet conditions. To
protect from moisture, operate it on a dry surface under an open,
canopy-like structure. Dry your hands if wet before touching the
generator.
Plug appliances directly into the generator. Or, use a heavy duty,
outdoor-rated extension cord that is rated (in watts or amps) at least
equal to the sum of the connected appliance loads. Check that the
entire cord is free of cuts or tears and that the plug has all three
prongs,especially a grounding pin.
NEVER try to power the house wiring by plugging the generator into
a wall outlet, a practice known as “back feeding”. This is an extremely
dangerous practice that presents an electrocution risk to utility workers
and neighbors served by the same utility transformer. It also bypasses
some of the built-in household circuit protection devices.
If you must connect the generator to the house wiring to power
appliances, have a qualified electrician install the appropriate
equipment in accordance with local electrical codes.
This product has been designed with internal grounding or floating
bonded neutral. If it should malfunction or breakdown, grounding pro-
vides a path of least resistance for electric current to reduce the risk of
electric shock.

11
safety
• Do not enclose the generator or cover it. The generator may become
overheated if it is enclosed. If generator has been covered to protect if
from the weather during non use, be sure to remove it and keep it well
away from the area during generator use.
• Operate the generator on a level surface. It is not necessary to prepare
a special foundation for the generator. However, the generator will
vibrate on an irregular surface, so choose a level place.
If the generator is tilted or moved during operation, fuel may spill and/or
the generator may tip over, causing a hazardous situation.
Proper lubrication cannot be expected if the generator is operated on a
steep incline or slope. In such a case, piston seizure may occur even if
the oil is above the upper level.
• Pay attention to the wiring or extension cords from the generator to the
connected device. If the wire is under the generator or in contact with
vibrating part, it may break and possibly cause a fire, generator burnout,
or electric shock hazard. Replace damaged or worn cords immediately.
• Do not operate in rain, in wet or damp conditions, or with wet hands.
The operator may suffer severe electric shock if the generator is wet due
to rain or snow. If wet, wipe and dry it well before starting. Do not pour
water directly over the generator, nor wash it with water.
• Be extremely careful that all necessary electrical grounding procedures
are followed during each and every use. Failure to do so can be fatal.
• DO NOT smoke while charging a battery. The battery emits flammable
hydrogen gas, which can explode if exposed to electric arcing or open
flame. Keep the area well ventilated and keep open flames / sparks away
when charging a battery.
• The engine becomes extremely hot during and for some time after
operation. Keep combustible materials well away from generator area.
Be very careful not to touch any parts of the hot engine especially the
muffler area or serious burns may result.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of injury, read this operator’s manual
completely before using.
When using this product, the following basic
precautions should always be followed.

12
safety
• Keep children and all bystanders at a safe distance from work area.
• It is absolutely essential that you know the safe and proper use of the
power tool or appliance that you intend to use. All operators must read,
understand and follow the tool / appliance owners manual. Tool and
appliance applications and limitations must be understood. Follow all
directions given on labels and warnings. Keep all instruction manuals
and literature in a safe place for future reference.
• Use only “LISTED” extension cords. When a tool or appliance is used
outdoors, use only extension cords marked “For Outdoor Use”.
Extension cords, when not in use should be stored in a dry and well
ventilated area.
• Always switch off generator’s AC circuit breaker and disconnect tools
or appliances when not in use, before servicing, adjusting, or installing
accessories and attachments.
• Make sure the engine is stopped before starting any maintenance,
servicing or repair.
NOTE: Make sure maintenance and repair of the generator are performed
by properly trained personnel only.
SAVE THESE INSTRUCTIONS

13
glossary
Glossary
SYMBOL NAME MEANING
VVolt Voltage
AAmpere Current
HzHertz Frequency (1Hz=60 r/min)
WWatt Power
RPM Revolutions per Minute Engine Speed
PF Power Factor Load transfer efficiency
G1 Performance Rate Generator output power perfor-
mance rate meat ISO8528G1
Following symbols are quoted on the machine or in this manual. Please
understand their meaning, which will make your operation easier and
safer.

14
generator components
Read this operator’s manual and safety
rules before operating your generator.
bc12000er 12000watt
1) Fuel Gauge
2) Chock Valve
3) Fuel Valve Lever
4) Air Cleaner
5) Engine Switch
6) Handrail Pipe
7) Starter Grip
8) Foot
9) Oil Drain Bolt
10) Wheel
11) Oil Filler Cap
12) Ground Terminal
13) Battery
14) Timer
15) DC Output
16) AC Output
17) AC Circuit Breaker
18) Panel Seat
19) Voltmeter
20) Fuel Tank Cap
21) Fuel Tank
22) Cover, Generator End
23) Muffler
24) Cylinder Head
25) Carburetor
26) Spark Plug

15
generator components
SPARE PARTS LIST
Fuel Tank It is used to hold fuel, gasoline is allowed only.
Fuel Tank Cap Screw the fuel injection port in use and do not
open it in equipment operation.
Fuel Gauge It is to indicate fuel level in the fuel tank.
AC Output
AC output socket provides the power supply.
Please refer to models parameter table for its
rated power. Load of each socket cannot exceed
its rated current and total power of electric device
cannot surpass rated power of the generator. Do
not start up several electric devices simultaneously,
but switch on another one after stable operation of
one electric device.
AC Circuit
Breaker
It will break to protect the electric device when
current is too heavy.
Output Indicator It is to indicate power supply status. The indicate
will brighten up when the equipment operation.
DC Output
The output DC is 12V with maximum of 8.3A. It
is only used for automotive battery charging with
rated 12V. Pay attention to connecting the positive
and negative electrode correctly.
Engine Switch
It is to start up (applicable to electrical starting
only) and switch off the engine. Turn to the off
state in non use.
Wheel (optional) It is for moving the generator in a short time.
Battery It is for starting up the generator. In case of non
use for three months, charge it.
Oil Filler Cap
It is for measurement of engine’s oil level. Make
sure engine’s oil level is between MIN and MAX in
the dipstick of oil filler cap before use. Oil can be
added after removing the oil filler cap,
Oil Drain Bolt
Unscrew this bolt when replacing the engine
oil. Drain out the old engine oil and dispose of it
properly according to local laws, avoiding damage
to the environment.
Foot It is to support the generator.

16
generator components
Grounding Ter-
minal
It is to make the generator realize safe grounding.
As to the grounding method, refer to the Page 19.
Make sure unobstructed grounding before use.
Handrail Pipe After lifted up, the pipe, with self-locking structure,
can be used to move the generator.
Starter Grip It is to start up the engine. For the method, refer to
Page 22.
Air Cleaner
It is to filter air and remove impurities in the air
entering cylinder. As to the maintenance method,
refer to Page 30.
Fuel Switch
It is to control fuel’s entering into the engine via the
fuel tank. During non use of the generator, leave
the switch off.
Chock Valve
It is to control air flow into the cylinder when
starting up the engine. As to the operating method,
refer to Page 22.
Muffler
It is to eliminate noise during equipment operation,
and discharge high temperature exhaust of
engine’s combustion. Do not touch it to avoid
burning.
Timer
The Timer records the running time of the
generator. Press conversion key to convert
between cumulative timing and single timing. The
Timer will prompt to change the engine oil at 20
hours for the first time and then prompt every 100
hours; and will prompt to clean the air cleaner
every 50 hours.

17
generator components
Sockets can be following patterns according to relevant regulations in
various areas:
SOCKETS
WARNING
When the rated current from one socket output is more than the
socket’s nominal rated current, you should simultaneously use two or
more sockets for power output.

18
features
Features
MODEL BC12000ER
AC OUTPUT
Frequency 60Hz
Voltage 120/240V
Rated Power (W) 9500
Max. Power (W) 12000
ENGINE
Specification Single cylinder, forced air cooling,
4 strokes
Rpm 3600r/min
Fuel Gasoline
Engine Oil Capacity 0.42 Gal /1.6L
Spark Plug Type F7TC/F7RTC (N9YC/RN9YC)
Spark Plug Clearance 0.7 mm
Valve Clearance (inlet/outlet) 0.05/0.07 mm
Igniting Mode T.C.I.
Starting Mode Recoild start/Electric start
Displacement 622cc
WEIGHT (only for reference)
Net Weight 315lb/143kg
OVERALL DIMENSIONS (excluding packing box)
L x W x H (mm) 800 x 620 x 650
Capacity of Fuel Tank 12 Gal / 48L
NOISE (according to European Directive 2000/14/EC with
amendment 2005/88/EC)
Measured Sound Pressure Level 78 dB (A)
Measured Sound Power Level 98 dB (A)
Uncertainty 2 dB (A)
Guaranteed Sound Power Level 100 dB (A)

19
operation
Operation
UNIT GROUNDING
Starting the Generator
FILLING OIL
Shift the machine outdoors, use wire of no less than 2.5mm to make the
machine and grounding terminal connected to the ground. One end of
the wire is pressed below the butterfly nut of the unit, screwed up tightly,
and the other end is connected with the metal rod shape article (such as
the iron nail and the opener), and inserted into soil.
Remove the oil filler cap fill oil of proper model As to dosage refer to
Page 18 Use the funnel for filling in case of careless spilling clean the
ground to avoid slipping.

20
operation
OIL SPECIFICATION TABLE
FILLING FUEL
Open the fuel tank cap and fill gasoline, the fuel leveler’s position will
display gasoline mass in the fuel tank and take care the maximum fuel
position shall not exceed the inner strainer of the tank when filling.
WARNING
When the rated current from one socket output is more than the
socket’s nominal rated current, you should simultaneously use two or
more sockets for power output.
