Operator’s Manual
CX14
MINI-EXCAVATOR
Bur 6-37900NA
CX14
MINI-EXCAVATOR
OPERATOR’S MANUAL
NOTE: Case, LLC reserves the right to make improvements in design or changes in specifications at
any time without incurring any obligation to install them on units previously sold.
CASE TECHNICAL MANUALS
Manuals are available from your Dealer for the operation, service, and repair of your machine. For
prompt convenient service, contact your Dealer for assistance in obtaining the manuals for your
machine.
Your Dealer can expedite your order for Operator’s Manuals, Parts Catalogs, Service Manuals, and
Maintenance records.
Always give the Machine Name, Model, and P.I.N. (Product Identification Number) or S.N. (Serial
Number) of your machine so your Dealer can provide the correct manuals for your machine.
Part Number: 6-37900NA
Find manuals at https://best-manuals.comFind manuals at https://best-manuals.com
CALIFORNIA
PROPOSITION 65 WARNING
Diesel engine exhaust and some of its constituents are known to the State of
California to cause cancer, birth defects, and other reproductive harm.
Battery post, terminals and related accessories contain lead and lead compounds.
Wash hands after handling.
Copyright © 2003 Case LLC. Bur 6-37900NA
All Rights Reserved Issued January, 2003
CASE is a registered trademark of Case, LLC.
M171D
Safety Decals on this machine use the words Danger, Warning, or Caution, which are defined as follows:
DANGER: Indicates an immediate hazardous situation that, if not avoided, will result in death or
serious injury. The color associated with Danger is RED.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or
serious injury. The color associated with Warning is ORANGE.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices. The color associated with
Caution is YELLOW.
If Safety Decals on this machine are ISO two panel Pictorial, decals are defined as follows:
The first panel indicates the nature of the hazard.
The second panel indicates the appropriate avoidance of the hazard.
Background color is YELLOW
Prohibition symbols such as and if used, are RED.
WARNING_01_NA
THIS SAFETY ALERT SYMBOL INDICATES IMPORTANT SAFETY MESSAGES IN THIS MANUAL.
WHEN YOU SEE THIS SYMBOL, CAREFULLY READ THE MESSAGE THAT FOLLOWS AND BE
ALERT TO THE POSSIBILITY OF DEATH OR SERIOUS INJURY
IMPROPER OPERATION OF THIS MACHINE CAN CAUSE DEATH OR SERIOUS INJURY. BEFORE
USING THIS MACHINE, MAKE CERTAIN THAT EVERY OPERATOR:
Is instructed in safe and proper use of the machine.
Reads and understands the Manual(s) pertaining to the machine.
Reads and understands ALL Safety Decals on the machine.
Clears the area of other persons.
Learns and practices safe use of machine controls in a safe, clear area before operating this
machine on a job site.
It is your responsibility to observe pertinent laws and regulations and follow CASE instructions on
machine operation and maintenance.
STOP
Find manuals at https://best-manuals.comFind manuals at https://best-manuals.com
I
TABLE OF CONTENTS
Safety Precautions ................................................................................................................. Section 1
Machine Familiarization ......................................................................................................... Section 2
Basic Machine Operation ....................................................................................................... Section 3
Maintenance ........................................................................................................................... Section 4
Transportation......................................................................................................................... Section 5
Specifications ......................................................................................................................... Section 6
Troubleshooting ...................................................................................................................... Section 7
Optional Equipment................................................................................................................ Section 8
Specifications (EPA Engine) .................................................................................................. Section 9
Find manuals at https://best-manuals.comFind manuals at https://best-manuals.com
II
GENERAL INFORMATION
Your machine has been designed and built to the highest standards of quality. It conforms to all current safety
regulations. See Official documents. However, the risk of accidents can never be completely e cluded. That is
why it is essential to observe elementary safety rules and precautions.
Read this manual carefully, paying particular attention to the instructions concerning safety, operation, and
maintenance so as to avoid the risk of injury while operating or servicing the machine.
The standard attachments and tools of this machine are designed to carry out all kinds of earthmoving and
rehandling operations. If you want to use this machine to handle a load (pipes, culverts, formwork, etc.), make
sure that it is designed to carry out this kind of work. For this type of application, the machine must be equipped
with safety valves, an overload indicator, a load handling chart corresponding to the type of machine and its
attachment and a load fi ing point. All legal requirements must also be strictly observed.
Do not use this machine for any application or purpose other than those described in this manual. If the machine
is to be used for work involving the use of special attachments, accessories, or equipment, consult your CASE
Dealer in order to make sure that any adaptations or modifications made are in keeping with the machines
technical specifications and with prevailing safety requirements.
Any modification or adaptation which is not approved by the manufacturer may invalidate the machines initial
conformity with safety requirements.
The machine must undergo regular inspections, the frequency of which varies according to the type of use.
Consult your CASE Dealer.
Before permitting a new operator on this machine, make sure:
1. That the operator has received the necessary training on how to operate the machine correctly and
safely in one of our training centres or from an approved organization.
2. That the operator has read and understood the instructions given in this manual.
Always keep this manual in the operators compartment. Make sure it is always complete and in good condition.
If you wish to obtain e tra copies, or copies in languages other than that of the country of use, consult your CASE
Dealer.
Your CASE Dealer is at your disposal for any further information. He will also provide any after-sales service you
may require, and genuine CASE spare parts, your guarantee of quality and match.
Materials and specifications are subject to change without notice.
Find manuals at https://best-manuals.comFind manuals at https://best-manuals.com
III

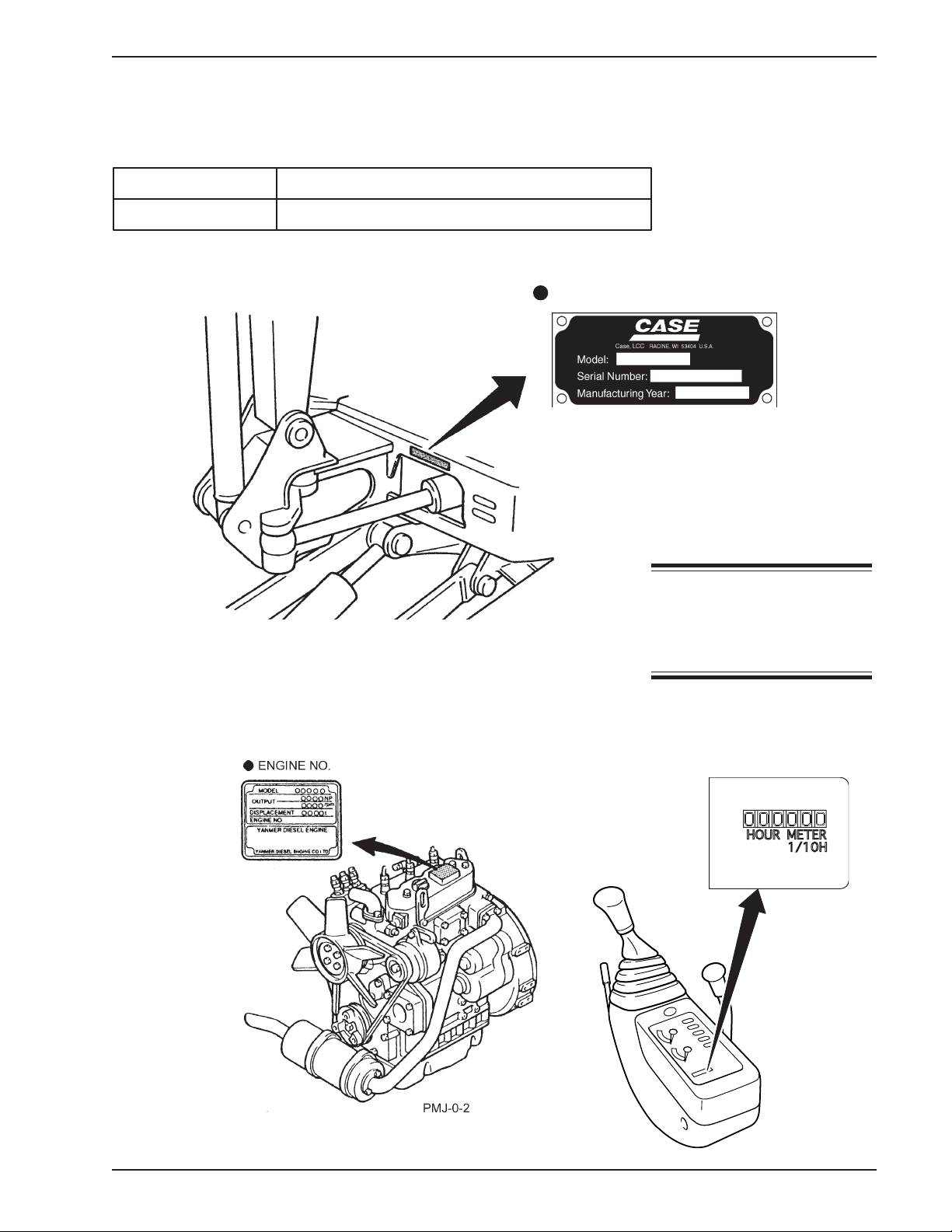

For ordering parts and service, inform an authorized dealer of your machines Serial Number and Engine Serial
Number stamped in the locations, and Hourmeter read, shown on the illustrations below. For future reference,
record these Serial Numbers in the spaces provided below:
NOTE
The numbers in the illustrations
are for explanation only and differ
from actual numbers.
FOR ORDERING
MACHINE NO.
MACHINE No.
ENGINE No.
Find manuals at https://best-manuals.comFind manuals at https://best-manuals.com
1-1
SECTION 1
SAFETY PRECAUTIONS
TABLE OF CONTENTS
1.1 GENERAL SAFETY INFORMATION .................................................................................................... 1-2
1.2 SAFETY PRECAUTIONS ..................................................................................................................... 1-3
1.3 PRE-START SAFETY ........................................................................................................................... 1-5
1.4 SAFETY DURING OPERATION ......................................................................................................... 1-11
1.5 INSPECTION & MAINTENANCE SAFETY ......................................................................................... 1-19
1.6 BATTERY SAFETY ............................................................................................................................. 1-26
1.7 WARNING LABELS & DECALS .......................................................................................................... 1-27
1.8 PROHIBITED MACHINE OPERATION ............................................................................................... 1-31
1.9 END OF WORK SHIFT SAFETY ........................................................................................................ 1-33
1.10 PRECAUTIONS FOR TRANSPORTATION ......................................................................................... 1-34
1.11 TOWING THE MACHINE .................................................................................................................... 1-35
Read, understand and follow all safety precautions and procedures found in this manual before
attempting any operation, inspection or maintenance of this machine, attachment or systems. CASE
cannot anticipate every possible circumstance that might involve a potential hazard. The warnings
in this publication and on the product are therefore not all inclusive. f a tool, procedure, work
method or operating technique not specifically recommended by CASE is used, you must satisfy
yourself that it is safe for you and others. You should also ensure that the product will not be
damaged or made unsafe by the operation, lubrication, maintenance and/or repair procedures you
choose.
Find manuals at https://best-manuals.comFind manuals at https://best-manuals.com
SECTION 1 - SAFETY PRECAUTIONS
1-2
1.1 GENERAL SAFETY NFORMAT ON
1. Most accidents, which occur during operation, are
due to neglect of precautionary measures and
safety rules. Sufficient care should be taken to
avoid these accidents. Erroneous operation, lubri-
cation or maintenance services are very danger-
ous and may cause injury or death of personnel.
herefore all precautionary measures, NO ES,
DANGERS, WARNINGS and CAU IONS con-
tained in this manual and on the machine should
be read and understood by all personnel before
starting any work with or on the machine.
2. Operation, inspection, and maintenance should
be carefully carried out, and safety must be given
the first priority. Messages of safety are indicated
with marks. he safety information contained in
this manual is intended only to supplement safety
codes, insurance requirements, local laws, rules
and regulations.
Do not operate or perform any maintenance on
this machine until all instructions found in this
manual have been thoroughly read and understood.
mproper operation or maintenance of this ma-
chine may cause accidents and could result in
serious injury or death.
Always keep this manual in the operators seat
pocket.
f it is missing or damaged, place an order with
an authorized dealer for a replacement.
f you have any questions, please consult an
authorized dealer.
3. Messages of safety appear in this manual and on
the machine. All messages of safety are identified
by the words DANGER, WARNING and CAU-
ION.
a. DANGER
-
Indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury and is represented as follows:
b. WARNING
-
Indicates a potentially hazardous
situation which, if not avoided, could result in death
or serious injury and is represented as follows:
c. CAU ION
-
Indicates a potentially hazardous
situation which, if not avoided, may result in mi-
nor or moderate injury. It may also be used to
alert against possible damage to the machine
and its components and is represented as fol-
lows:
4. It is very difficult to forecast every danger that may
occur during operation. However, safety can be en-
sured by fully understanding proper operating pro-
cedures for this machine according to methods rec-
ommended by CASE.
5. While operating the machine, be sure to perform
work with great care, so as not to damage the ma-
chine, or allow accidents to occur.
6. Continue studying this manual until all Safety, Op-
eration and Maintenance procedures are com-
pletely understood by all persons working with the
machine.
Find manuals at https://best-manuals.comFind manuals at https://best-manuals.com
SECTION 1 - SAFETY PRECAUTIONS
1-3
he following is a list of basic precautions that must
always be observed.
1. Read and understand all Warning plates and de-
cal on the machine before Operating, Maintaining
or Repairing this machine.
2. Always wear protective glasses and protective
shoes when working around machines. In particu-
lar, wear protective glasses when using hammers,
punches or drifts on any part of the machine or
attachments. Use welders gloves, hood/goggles,
apron and the protective clothing appropriate to the
welding job being performed. Do not wear loose
fitting or torn clothing. Remove all rings from fin-
gers, loose jewelry, confine long hair and loose
clothing before working on this machinery.
3. Disconnect the battery and hang a Do Not Oper-
ate tag in the Operators Compartment. Remove
ignition keys.
4. If possible, make all repairs with the machine
parked on a level, hard surface. Block the machine
so it does not roll while working on or under the
machine. Hang a Do Not Operate tag in the Op-
erators Compartment.
5. Do not work on any machine that is supported only
by lift, jacks or a hoist. Always use blocks or jack
stands, capable of supporting the machine, before
performing any disassembly.
6. Relieve all pressure in air, oil or water systems
before any lines, fittings or related items are dis-
connected or removed. Always make sure all
raised components are blocked correctly and be
alert for possible pressure when disconnecting any
device from a system that utilizes pressure.
7. Lower the bucket, blade, or other attachments to
the ground before performing any work on the ma-
chine. If this cannot be done, make sure the bucket,
blade or other attachment is blocked correctly to
prevent it from dropping unexpectedly.
Do not operate this machine unless you have read
and understand the instructions in this OPERA-
ORS MANUAL. Improper machine operation is
dangerous and could result in injury or death.
1.2 SAFETY PRECAUT ONS
The serviceman or mechanic may be unfamiliar
with many of the systems on this machine. This
makes it important to use caution when perform-
ing service work. A knowledge of the system and
or components is important before the removal or
disassembly of any component.
Because of the size of some of the machine com-
ponents, the serviceman or mechanic should
check the weights noted in this manual. Use proper
lifting procedures when removing any components.
Weight of components table is shown in Section
6, SPECIFICATIONS.
he proper and safe lubrication and maintenance
for this machine, recommended by CASE, is out-
lined in this OPERA ORS MANUAL for this machine.
Improper performance of lubrication or mainte-
nance procedures are dangerous and could result
in injury or death. Read and understand this OP-
ERA ORS MANUAL before performing any lubri-
cation or maintenance.
Find manuals at https://best-manuals.comFind manuals at https://best-manuals.com
SECTION 1 - SAFETY PRECAUTIONS
1-4
16. Do not damage wiring during removal opera-
tions. Reinstall the wiring so it is not damaged
nor will be damaged in operation of the machine
by contacting sharp corners, or by rubbing
against some object or hot surface. Do not con-
nect wiring to a line containing fluid.
17. Be sure all protective devices including guards
and shields are properly installed and function-
ing correctly before starting a repair. If a guard
or shield must be removed to perform the repair
work, use extra caution and replace the guard or
shield after repair is complete.
18. he maintenance and repair work while holding
the bucket raised is dangerous due to the possi-
bility of a falling attachment. Do not fail to lower
the attachment and place the bucket to the
ground before starting the work.
19. Loose or damaged fuel, lubricant and hydraulic
lines, tubes and hoses can cause fires. Do not
bend or strike high pressure lines or install ones
which have been bent or damaged. Inspect lines,
tubes and hoses carefully. Do not check for leaks
with your hands. Very small (pinhole) leaks can
result in a high velocity oil stream that will be
invisible close to the hose. his oil can penetrate
the skin and cause personal injury. Use card-
board or paper to locate pinhole leaks.
20. ighten connections to the correct torque. Make
sure that all heat shields, clamps and guards are
installed correctly to avoid excessive heat, vibra-
tion or rubbing against other parts during opera-
tion. Shields that protect against oil spray onto
hot exhaust components in event of a line, tube
or seal failure must be installed correctly.
21. Do not operate a machine if any rotating part is
damaged or contacts any other part during op-
eration. Any high speed rotating component that
has been damaged or altered should be checked
for balance before reusing.
22. Be careful when servicing or separating the
tracks (crawlers). Chips can fly when removing
or installing a track (crawlers) pin. Wear safety
glasses and long sleeve protective clothing.
racks (crawlers) can unroll very quickly when
separated. Keep away from front and rear of
machine. he machine can move unexpectedly
when both tracks (crawlers) are disengaged from
the sprockets. Block the machine to prevent it
from moving.
8. Use steps and grab handles when mounting or
dismounting a machine. Clean any mud, grease,
oil or debris from steps, walkways or work plat-
forms before using. Always face the machine
when using steps, ladders and walkways. When
it is not possible to use the designed access sys-
tem, provide ladders, scaffolds, or work platforms
to perform safe repair operations.
Refer to item L on page 1-7 .
9.o avoid back injury, use a hoist when lifting com-
ponents which weigh 20 kg (45 lb) or more. Make
sure all chains, hooks, slings, etc., are in good
condition and are the correct capacity. Be sure
hooks are positioned correctly. Lifting eyes are
not to be side loaded during a lifting operation.
10. o avoid burns, be alert for hot parts on ma-
chines which have just been stopped and hot
fluids in lines, tubes and compartments.
11. Be careful when removing cover plates. Gradu-
ally back off the last two capscrews or nuts lo-
cated at opposite ends of the cover or device and
carefully pry cover loose to relieve any spring or
other pressure, before removing the last two
capscrews or nuts completely.
12. Be careful when removing filler caps, breathers
and plugs on the machine. Hold a rag over the
cap or plug to prevent being sprayed or splashed
by liquids under pressure. he danger is even
greater if the machine has just been stopped be-
cause fluids can be hot.
13. Always use the proper tools that are in good con-
dition and that are suited for the job at hand. Be
sure you understand how to use them before per-
forming any service work.
14. Reinstall all fasteners with the same part num-
ber. Do not use a lesser quality fastener if re-
placements are necessary.
15. Repairs which require welding should be per-
formed only with the benefit of the appropriate
reference information and by personnel ad-
equately trained and knowledgeable in welding
procedures. Determine type of metal being
welded and select correct welding procedure and
electrodes, rods or wire to provide a weld metal
strength equivalent at least to that of the parent
metal. Make sure to disconnect battery before
any welding procedures are attempted.
SECTION 1 - SAFETY PRECAUTIONS
1-5
ZL11V04204
1.3 PRE-START SAFETY
Many failures that occur during machine operation or servicing result from neglecting fundamental safety
precautions. The following safety precautions are given to prevent such failures, but they are only a part of
what you must follow. Read, understand and follow all safety precautions found in this manual and on the
machine thoroughly before operating the machine.
A. OBSERVE SAFETY PRECAUTIONS
Follow all safety rules, precautions, and
operating procedures. If there are other
personnel and flagmen working in the area,
have them observe the specified signs.

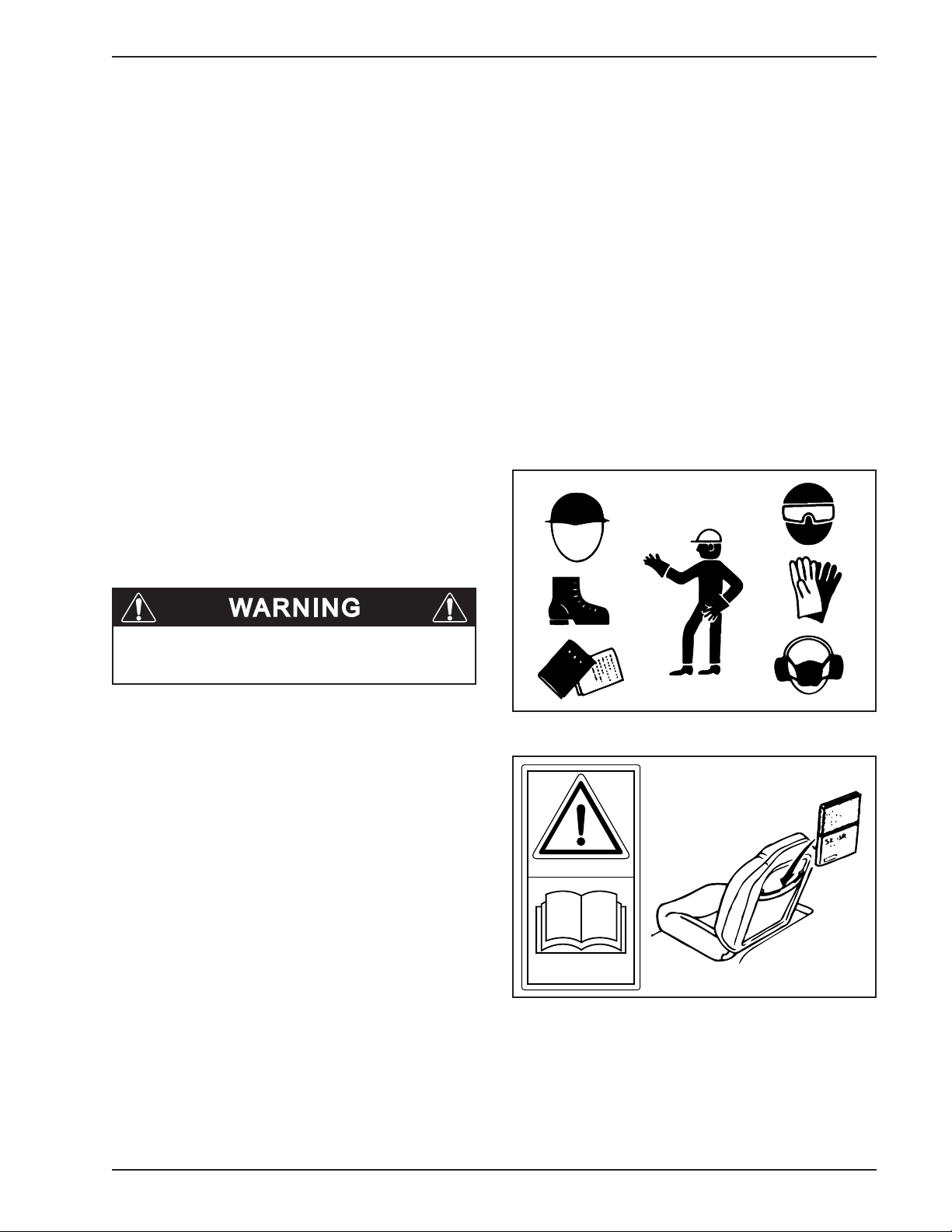

B. WEAR PROTECTIVE CLOTHING
Wear well fitting safety shoes, hard hat, and
working clothes, and put on protective glasses,
face shield, ear protection and gloves. When
necessary, wear reflective vest.
C. READ and UNDERSTAND THE OPERATION &
MAINTENANCE MANUAL
Before operating the machine, read and
understand this OPERATION & MAINTENANCE
MANUAL thoroughly in order to use the machine
effectively and safely.
D. KEEP OPERATION & MAINTENANCE MANUAL
IN STORAGE
Keep this MANUAL in the specified storage
located behind the operators seat for quick
reference. Should the OPERATION &
MAINTENANCE MANUAL become lost or
damaged, contact an authorized dealer to order
the OPERATION & MAINTENANCE MANUAL.
In the case of ROPS canopy, keep this manual
in the storage box of the roof.
PV1-02
WEAR PROTECT VE CLOTH NG
PM1-03
READ MANUAL / KEEP N STORAGE
Do not wear the working clothes with adhered
oil, since it is easy to catch fire.
SECTION 1 - SAFETY PRECAUTIONS
1-6

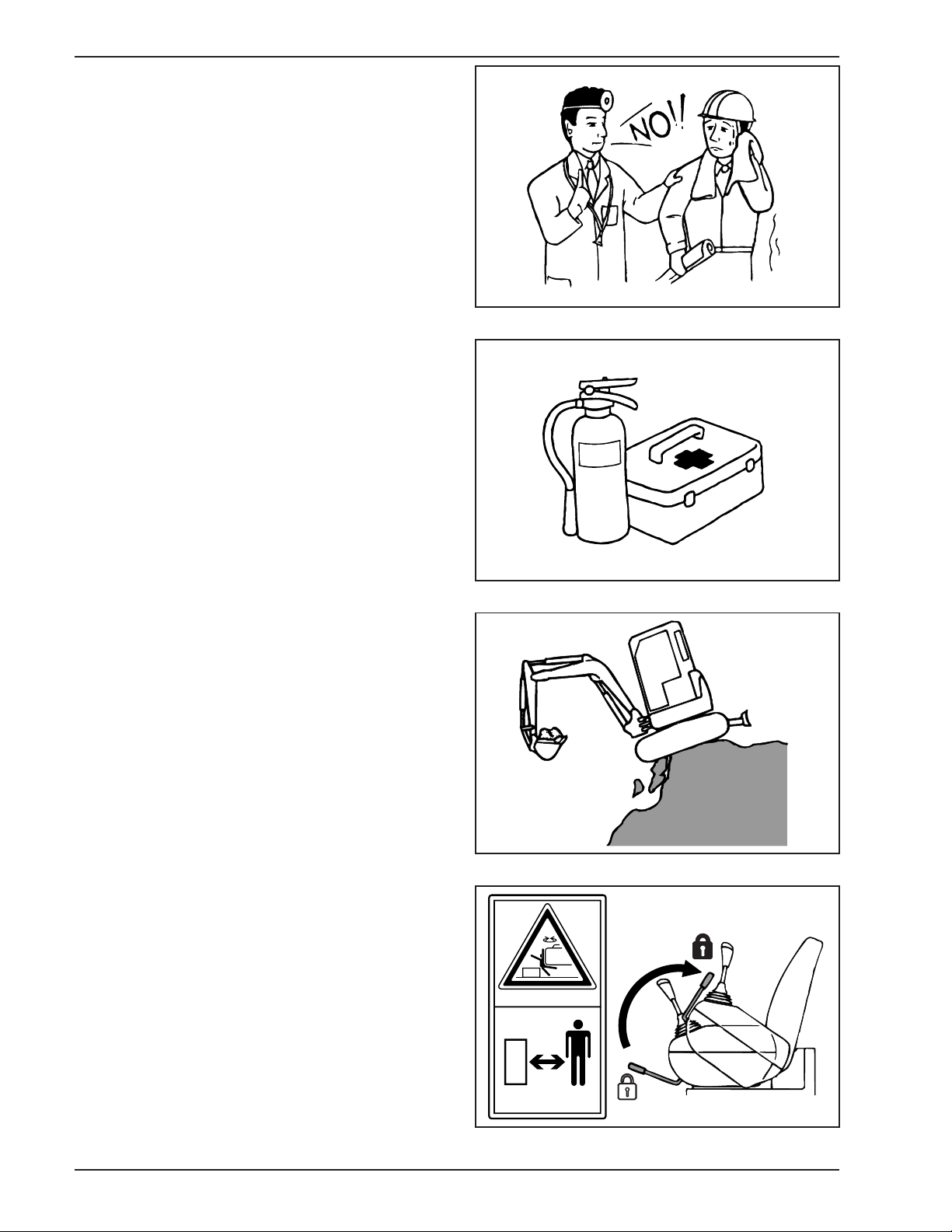

E. DO NOT OPERATE MACHINE EXCESSIVELY
TIRED OR UNDER THE INFLUENCE OF DRUGS
Your poor physical condition causes improper
reactions. Voluntarily refrain from operating the
machine when feeling excessively tired, and
never operate the machine under the influence
of drugs.
LOCKED (UP) POSITION
F. PREPARE FOR EMERGENCIES
Have a fire extinguisher and first aid kit ready
for emergencies. Know how to operate the fire
extinguisher and know where the first aid kit is
located for easy access in case of emergency.
Prepare beforehand the communication means
in case of any emergency, and take note of
telephone numbers for emergency contact.
G. ENSURE SAFETY AT THE WORK SITE
Know the work area! Before operating the
machine, carefully survey and record the land
and work site features to prevent the machine
from falling or the soil from caving in.
H. ENGAGE SAFETY LOCK LEVER BEFORE
LEAVING MACHINE
Before leaving the operator’s seat, move the
safety lock lever to the “LOCKED” (Up) position.
This will not allow operation of any hydraulic
controls should they be accidentally moved. If
the lever is not set to the "LOCKED" position
and hydraulic controls are touched accidentally,
the machine may move suddenly resulting in
serious injury.
Also before leaving the machine, lower the
bucket to the ground, place the safety lock lever
in the “LOCKED” (Up) position, stop the engine
and remove the starter switch key.
PV1-04
PV1-05
PV1-06
PV1-07
REFRA N POOR PHYS CAL COND T ON
PREPARE FOR EMERGENC ES
WORK S TE SAFETY-KNOW THE AREA
SAFETY LOCK LEVER
SECTION 1 - SAFETY PRECAUTIONS
1-7

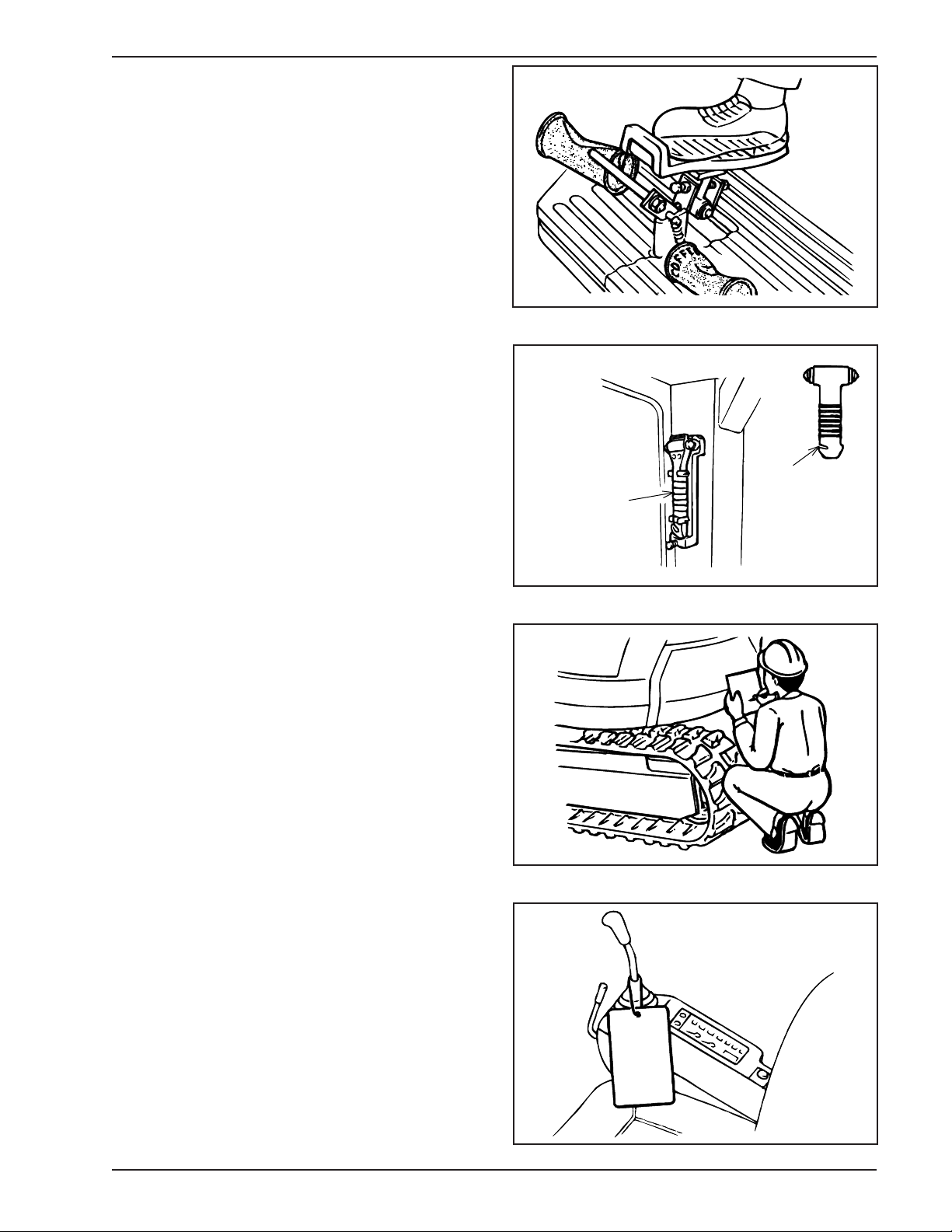

I . SIGNS, SIGNALS & FLAGMEN
Install signs on soft shoulders and ground
areas, have a flagman direct the operation if
necessary. The operator should note marks and
follow signals from the flagman. All personnel
should know the meaning of the signs, marks,
and signals. Only one flagman should give the
signs and signals.
J. KEEP FIRE AWAY FROM FUEL AND OIL
Oil, antifreeze, and especially fuel are highly
flammable. Never use fire near the machine.
Securely tighten all fuel and oil caps. Keep fuel
and oil in the designated storage areas.
Promptly clean up any all spills and dispose of
waste properly.
K. SURELY INSTALL SAFEGUARD
Confirm that all guards and covers are securely
and properly installed. If damaged, immediately
restore them to proper condition.
Do not operate the machine without guards or
covers. Make sure to maintain them in normal
condition.
L. MOUNTING & DISMOUNTING MACHINE
When getting on and off the machine, always
maintain three point contact by using the
handrails and step. Inspect and clean
handrails, step, and mounting parts. Remove
slippery materials, such as lubricants, and mud.
Always place the cab entrance parallel to the
tracks (crawlers) before stopping the engine
for dismounting.
PV1-08
PV1-10
S GNS, S GNALS & FLAGMEN
KEEP F RE AWAY FROM FUEL AND O L
SURELY NSTALL SAFEGUARD
MOUNT NG & D SMOUNT NG MACH NE
PVK1-11
PV1-09
SECTION 1 - SAFETY PRECAUTIONS
1-8
YN20T01089P1
PV1-12
PV1-13
PV1-14
PV1-15
PAY ATTENT ON TO WORK NG MACH NE
USE PROPER ATTACHMENT
PREVENT F RES-CLEAN UP SP LLS
CONF RM OPERAT NG PATTERNS

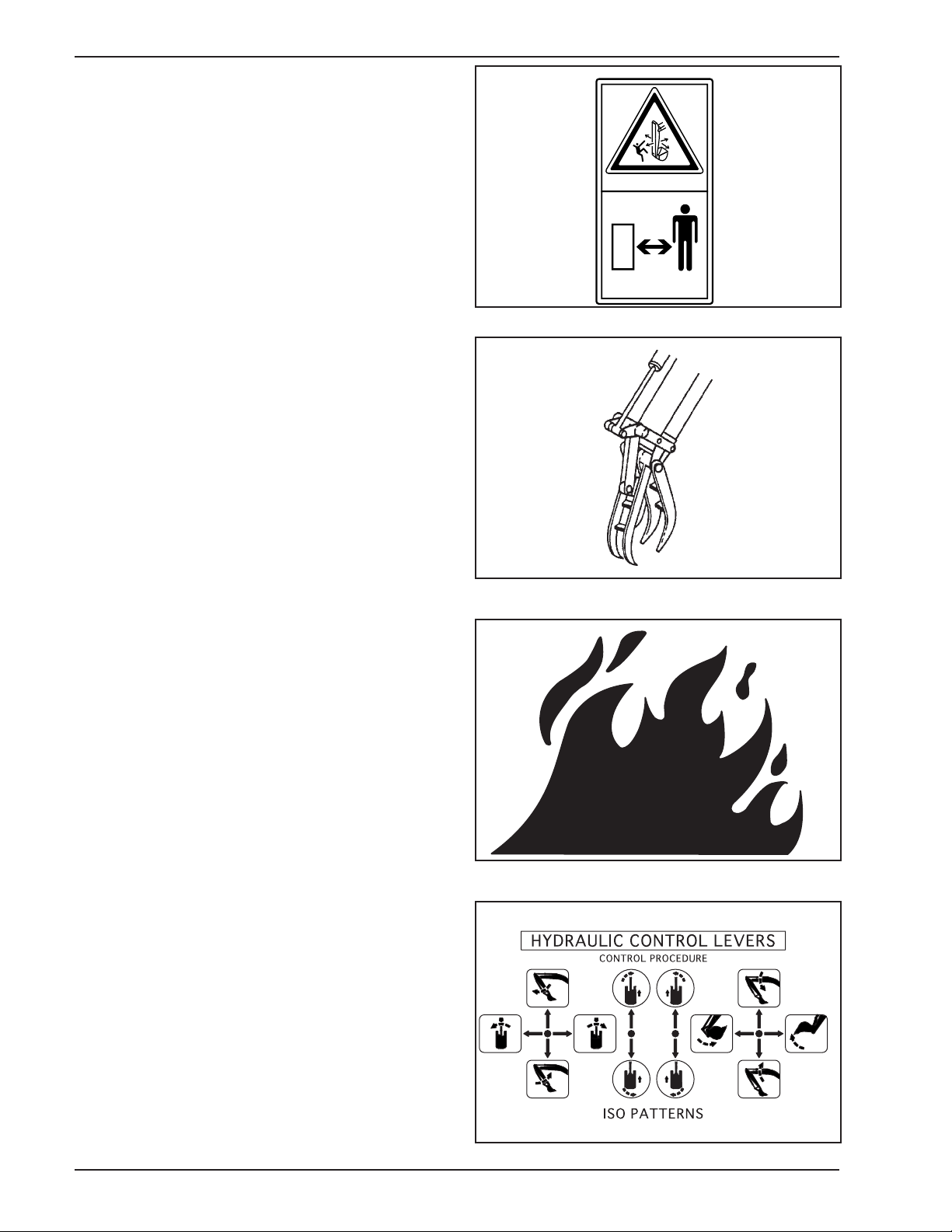

M. PAY ATTENTION TO WORKING MACHINE
Do not approach a working machine. Make
sure to make visual contact with the operator
before approaching a working machine.
N. USE THE PROPER OPTIONALATTACHMENT
Use only optional attachments designed for and
approved by CASE. Read, understand and
follow all instructions in the manual
accompanying the optional attachment. Use of
any optional attachment not approved by CASE
in writing, can cause serious injury to
personnel, damage to the machine and its
components and shorten the life of the
machine. Contact an authorized dealer for
optional attachments available for the machine.
O. PREVENT FIRES
Leaking or spilled fuel, lubricants and hydraulic
oil are fire hazards. Clean and properly dispose
of spills as they occur. Repair or replace all
leaking components to prevent fire. Also, clean
the machine regularly removing all debris to
help prevent fires, pay particular attention to
removal of leaves, sticks, paper etc. Keep fire
extinguisher in an accessible area and know
how to use the fire extinguisher should a fire
occur.
P. CONFIRM OPERATING LEVER PATTERNS
Slowly operate the control levers to confirm the
operating patterns in advance.
The figure shows the standard operating
system, specified in ISO.
Refer to page 2-9 for more details regarding
the different operating control functions.
SECTION 1 - SAFETY PRECAUTIONS
1-9
LIFE HAMMER
CUTTER
DO NOT
OPERATE
PV1-19
TAG-OUT MACH NE
PV1-18
PERFORM PRE-START NSPECT ON
PV1-17
HOW TO HANDLE L FE HAMMER-CAB ONLY
PV1-16
KEEP CLEAN AROUND DR VERS SEAT
Q. KEEP CLEAN CAB FLOOR AND DRIVER'S
SEAT
Do not place any parts and tools in the driver's
cabin to prevent injury due to slippage and
stumbling. Remove any debris from the cab
floor, control levers, handrails, etc. Make sure
to keep all operating controls clean at all times
R. HOW TO HANDLE LIFE HAMMER-CAB only
A life hammer is provided on the right side of
cab. In case of emergency, take the life
hammer, break the cab glass, and escape from
the cab. In addition, the life hammer is equipped
with a cutter on the lever side to cut the seat
belt, etc.
S. PERFORM PRE-START INSPECTION
Walk around the machine before starting the
machine, perform a PRESTART inspection of
the machine and make note of any abnormality.
If any problems are found, repair or replace
defective components immediately.
DO NOT
OPERATE THE MACHINE
until all problem
areas are properly repaired. Always keep the
windshield, working lamps, and mirrors clean
for good visibility.
T. TAG OUT MACHINE DURING MAINTENANCE
Before performing any inspection or
maintenance procedures to the machine, fill
out and post to the operators controls a DO
NOT OPERATE tag to warn persons not to start
the machine. Order tag Part No.
LC20T01001P1. Make sure to inform the
supervisor and all operators that the machine
is under inspection or maintenance and they
will be informed when the machine is ready for
normal operation.
SECTION 1 - SAFETY PRECAUTIONS
1-10
PV1-21
AVO D HOT SURFACES & AREAS
PV1-20
USE CAUT ON NEAR NO SE
U. USE CAUTION NEAR NOISE
If noise is high during operation, hearing loss
may result. Approved hearing protection should
be used if personnel will be exposed to high
noise levels for a long period of time.
V. AVOID HOT SURFACES & AREAS
Immediately after the machine is operated, the
temperature and pressure of the engine
coolant, engine oil, and hydraulic oil are very
high. Burns may result if caps are removed, or
oil, water, or filters are changed under these
conditions. Wait until the temperature goes
down, before attempting to check fluids or
change filters.
SECTION 1 - SAFETY PRECAUTIONS
1-11
HORN SWITCH
PV1-25
CHECK AFTER START NG ENG NE
PV1-24
SOUND HORN BEFORE START NG
PV1-23
DO NOT SHORT C RCU T
PV1-22

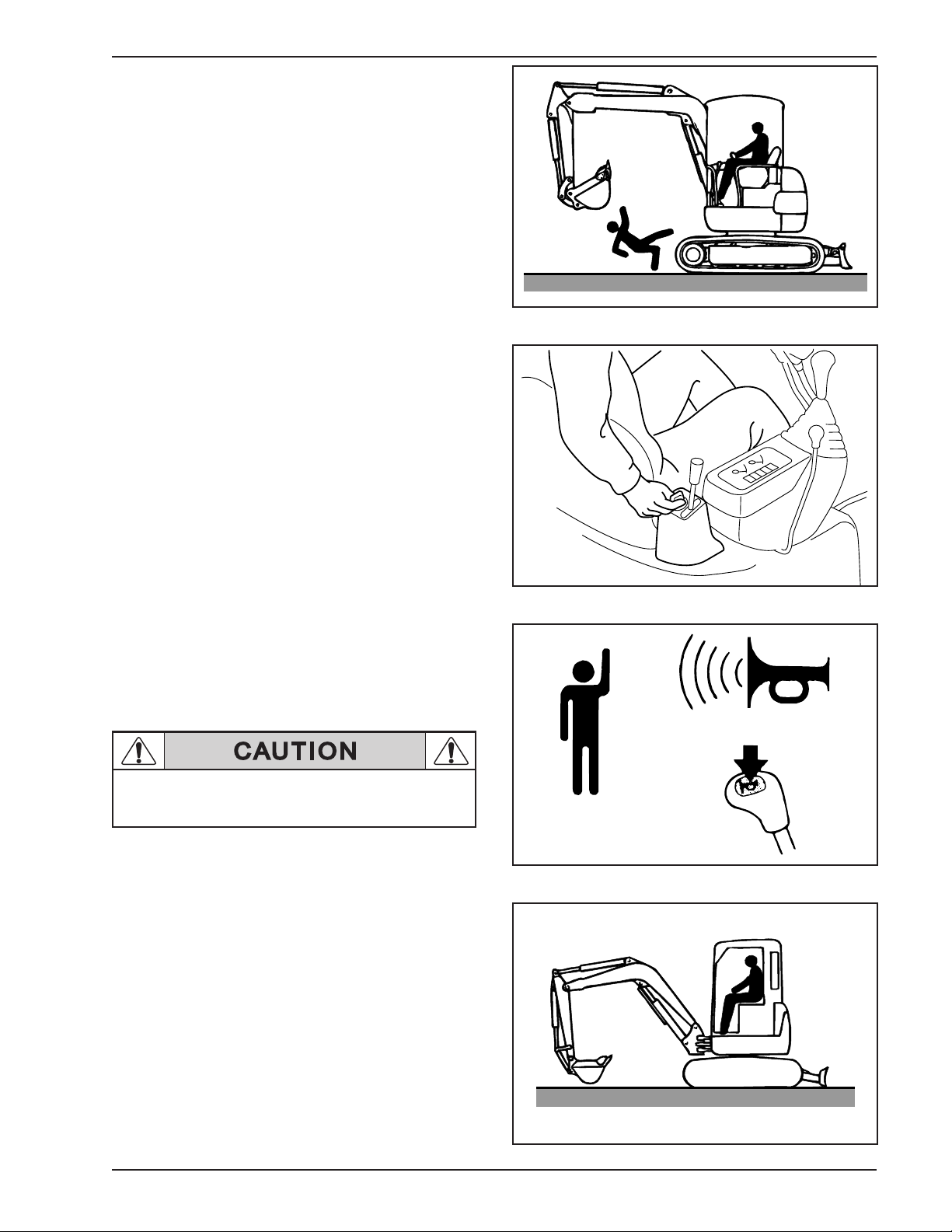

NO PASSENGERS
1.4 SAFETY DUR NG OPERAT ON
A. PASSENGERS
This equipment is not intended or designed for
the transportation of persons. Never allow
persons to ride on the machine. Serious injury
or death can result from allowing passengers
on or in the machine.
B. STARTING ENGINE
Start engine from the operator’s seat. Do not
short circuit the starter circuit or battery to start
the engine. This may cause serious injury or
cause damage to the electrical system.
C. HORN BEFORE STARTING ENGINE
Sound the horn before starting the engine to
alert people that the machine is being started.
Make sure no one is near the machine.
D. CHECK AFTER STARTING ENGINE
Make sure to check machine for proper
functioning after starting the engine. Slowly
cycle attachments, swing, and travel functions
in an area with sufficient space, without
obstacles, and personnel. Failure to do so could
result in injury or machine damage. Make note
of any abnormalities and repair as needed.
Do not start the engine if the machine has been
tagged out.
SECTION 1 - SAFETY PRECAUTIONS
1-12
CONDITION WHERE THE TRAVEL
DIRECTION IS REVERSED
TRAVEL
DIRECTION
TRAVEL
MOTOR
CAUTION FOR
INTERFERENCE
PV1-29
DO NOT H T CAB
PV1-28
KNOW TRAVEL MOTOR POS T ON
PV1-27
CONF RM OPERAT NG PATTERN

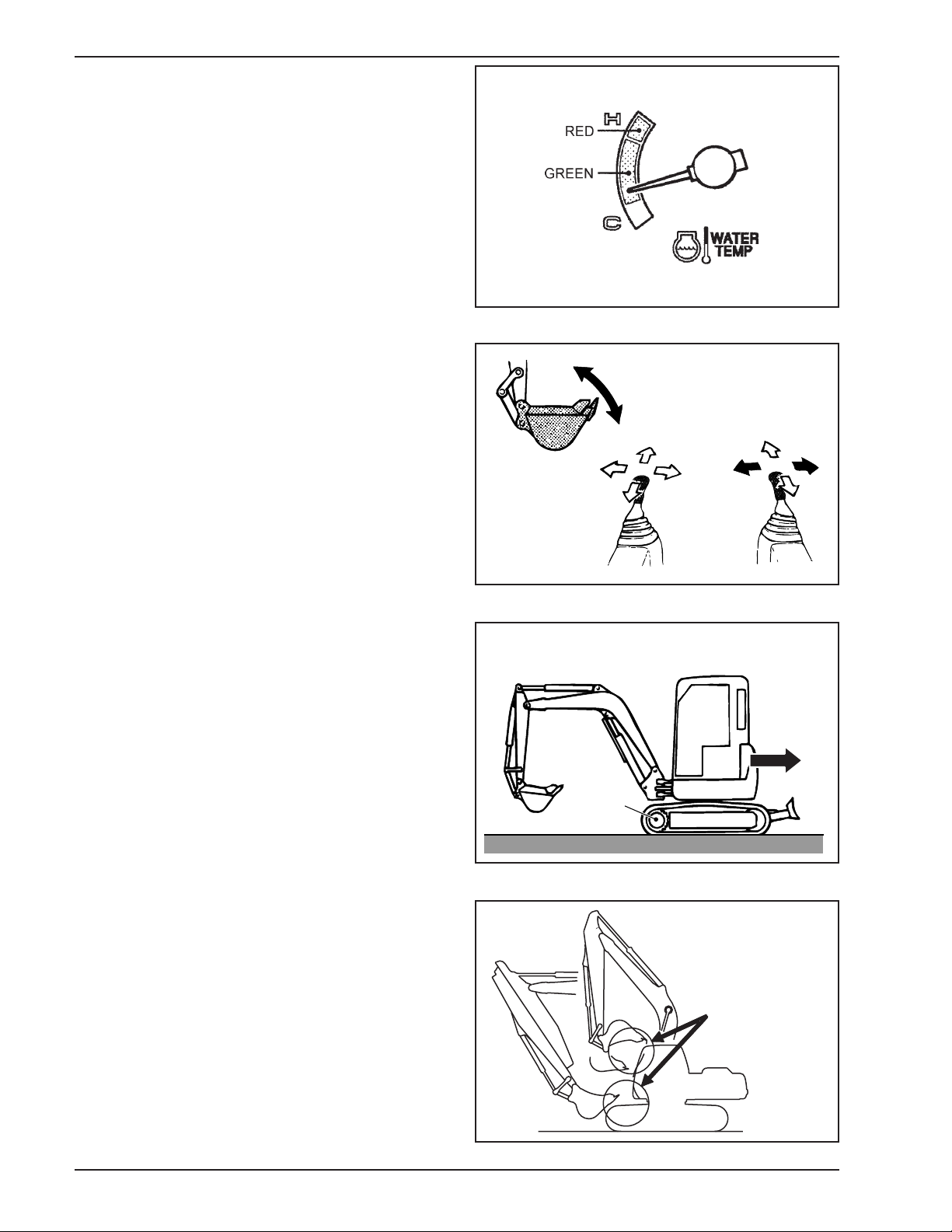

WARM NG UP OPERAT ON
E. WARM UP MACHINE BEFORE OPERATION
Take a sufficient time to warm up the machine,
especially at cold season, otherwise the
response of machine against the operation of
operating lever is delayed which may cause
injury and / or machine damage.
F. CONFIRM OPERATING CONTROL PATTERN
Slowly operate the control levers to confirm the
operating patterns in advance. Make sure the
operation control pattern is according to the
indication plate.
G. CONFIRM TRAVEL DIRECTION
Make certain of the location of the travel motors
before operating travel.
Pay attention that in the case where the travel
motors are in the front side, the travel function
is reversed.
Sound horn before moving the machine to
inform any personnel around the machine that
the machine is now in operation.
H. DO NOT HIT THE CAB WITH ATTACHMENT
Check clearance between bucket and cab
before operation. Slowly cycle bucket, check for
interference with arm and cab, particularly if a
lifting eye is welded on bucket bottom. Exercise
care when operating the bucket near the cab.
PAE-1-10
SECTION 1 - SAFETY PRECAUTIONS
1-13

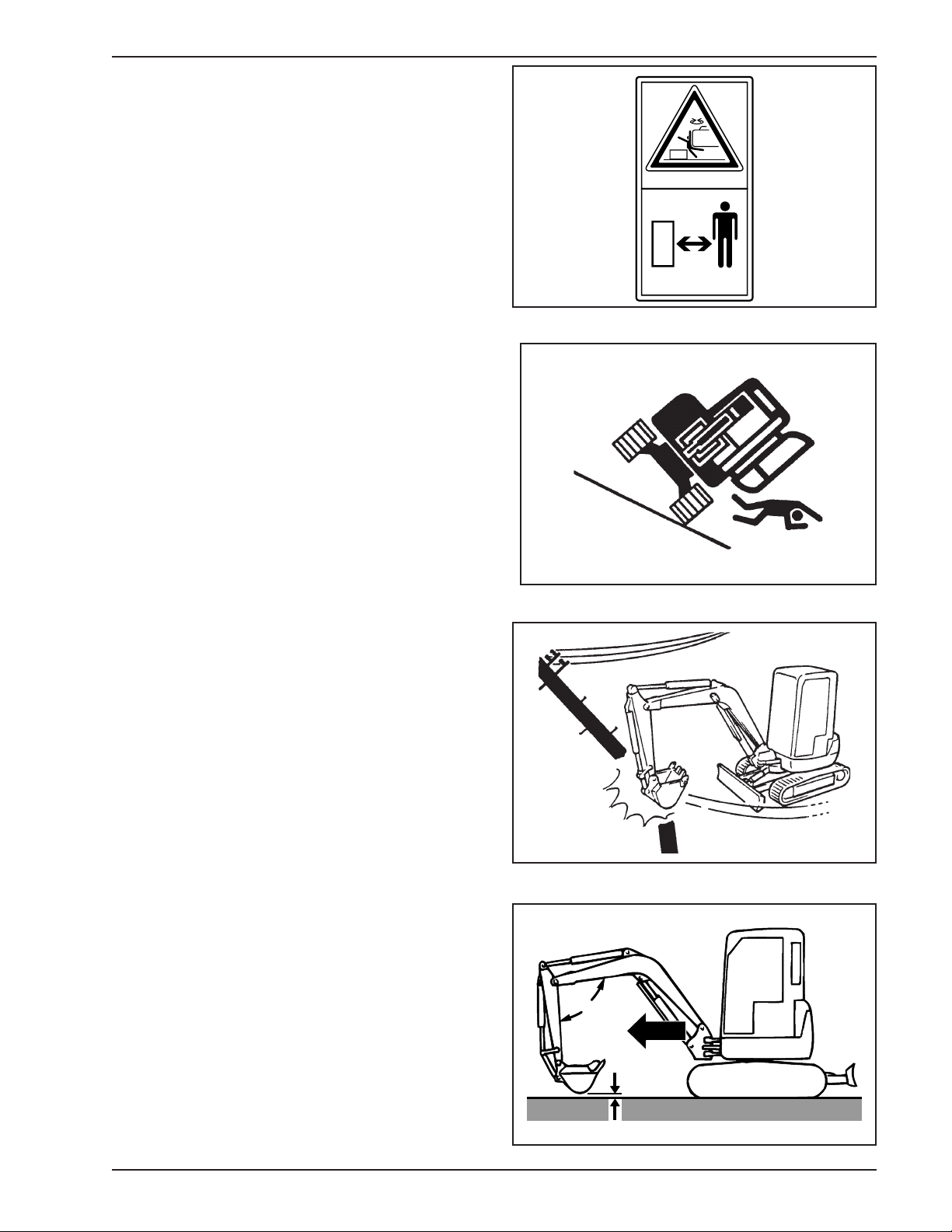

PV1-30
SLEW / SW NG / TRAVEL SAFETY
PV1-31
PAY ATTENT ON ON SLOPE
PV1-32
USE EXTREME CAUTION ON FROZEN
SURFACES OR SNOW
90˚~110˚
30cm~40cm
(12~16in)
PV1-33
TRAVEL POSTURE
I . SWINGING FUNCTION
Make certain the swing area of machine is clear
of all persons and obstacles before operating
swing controls. Sound horn before swinging
machine. If necessary, have a flagman signal
operator during operation to help prevent injury
to persons or damage to obstacles and
equipment.
J. TRAVELING ON SLOPE
Use extreme caution when traveling on slopes,
machine could turnover or slide causing injury
or machine damage.
Keep the bucket at the height 30 ~ 40 cm (12 ~
16 inch) above the ground level, and wear the
safety belt at all times.
Never make a change of direction on the slope
or cross over the slope.
K. FROZEN & SNOW COVERED WORK SITES
Use extreme caution when operating the
machine on frozen or snow covered work sites.
Operate all controls slowly and cautiously to
prevent sudden movements such as start/stop/
turn, that may cause the machine to
unexpectedly shift, slide or move. Even on the
slightest slope, when snow is present or work
area is frozen, it can allow a machine to
unexpectedly move. Snow on shoulders or snow
drifts can be much deeper than expected. The
machine can easily become buried under such
conditions. Use extreme caution while operating
the machine around or in snow.
Be careful for frozen ground that becomes soft
along with the increase of ambient temperature.
L. TRAVEL
Position the attachment as shown in illustration
before beginning travel. On rough terrain move
the machine at slow speeds, and do not turn
suddenly. Avoid travelling over obstacles.
Should it become necessary to travel over an
obstacle, keep the attachment low to the ground
and travel at extremely slow speed.
Table of contents
Other Case Excavator manuals
