Casio PRO TREK Smart User guide

Getting Ready to Use the Product
Press the Power
button on the watch.
●Activate the Bluetooth® connection on your smartphone.
●Place the smartphone to be paired close to the watch (1 m or closer recommended).
●This description shows typical screen transitions.
！●The “Wear OS by Google™” app
must be installed.
●
Ensure that the watch is fully charged.
Install the “Wear OS by Google” app.
1
1
Launch Wear OS
by Google on the
smartphone.
1
Tap the
screen.
2
Update the Google Play Developer service to the latest
version.
2
Update the Google app to the latest version.
3
Install the CASIO MOMENT SETTER+ app.
4
Procedures on the smartphone Procedures on the watch
* Android-only procedure. CASIO MOMENT SETTER+ is recommended,
but is not essential.
・Android™ 4.4 or later (excludes Go editions)
・iOS 9.3 or later Refer to the User's Guide for details.
* Some functions are not available when the phone is
connected to an iOS device.
(Use the latest version. Older versions for Android Wear™ 1.x cannot be used.)
Supported mobile phones
(as of December 2018)
＊
＊
＊
Select the
language to be
used.
3
On the watch On the watch
Pairing the watch with your smartphone
1
Tap “SET IT UP”. Tap “CASIO
WSD-F20”.
2 3
When the pair settings screen appears,
check the passkey and tap “PAIR”.
4
Getting your watch
details may continue
for some time.
The same passkey shown on
the smartphone screen appears
on the watch screen.
5
Set only the accounts to be
synchronized to ON and then
tap “Next”.
6
Tap “Copy”.
7
Enter the password
and tap “SIGN IN”.
8
Connection is
completed.
10
Tap “DONE”.
follow the instructions provided on the screen.
9
Always make copies of the accounts. Important
product auto updates will not function.
settings
on the watch in “Pairing the watch with your smartphone ”.
Android settings
！
Power
button
Important
！
Important
2

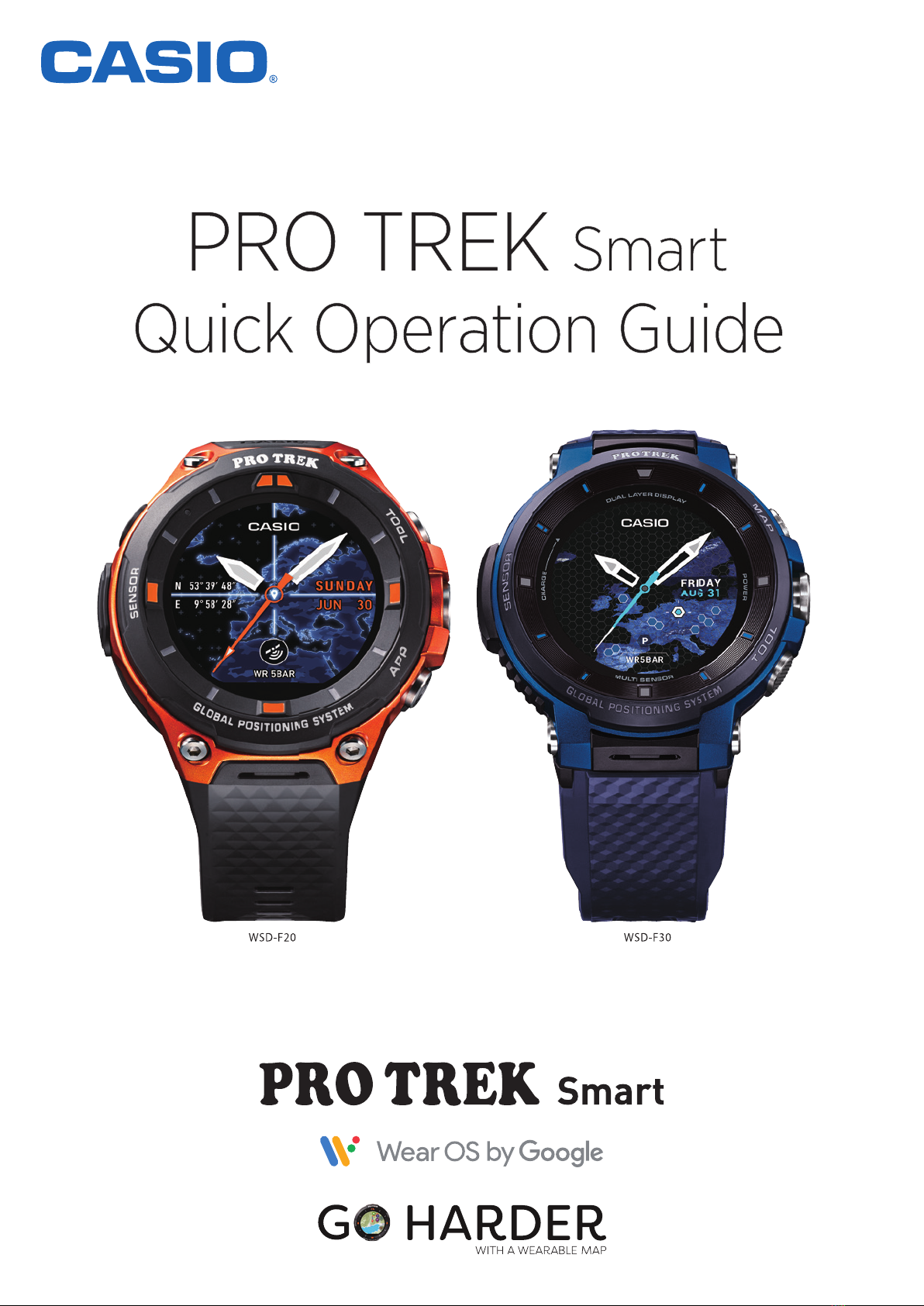

This Quick Operation Guide shows typical screen displays and operations.
* The image shows the WSD-F30.
Quick Operation Guide

●●●●●
●●●●●@gmail.com
●●●●●
●●●●●@gmail.com
●●●●●
●●●●●@gmail.com
Pairing the watch with your smartphone
1
iPhone settings
Launch Wear OS
by Googleon the
smartphone.
1
！
Tap “Start setup”.
2
Tap
“Accept”.
3
Tap
“Enable”.
4
Tap “OK”.
5
Tap
“WSD-F20”.
6
Tap “Pair”.
7
Once the same code to
connect shown on the
watch appears, tap “Conrm”.
8
18 19
Tap “Done”. Connection is
completed.
Getting your watch
information may continue
for several minutes.
9
Tap “Sign in”. If “Continue as
(account name)” is displayed,
proceed to step ⑮.
10
Tap “Use another
account”.
Tap
“More options”. Tap “Continue as
(account name)”.
Tap “ Create account ”.
Follow the on-screen instructions to
enter your data and create the account.
11 13
12 14 15
Enter the password for the created account and tap
“Sign in
follow the instructions provided on the screen.
16 17
To ensure that the
product is fully
functional,
settings on the
watch in “Pairing
the watch with
your smartphone”.
You must create a login account in Google.
Auto update will not function without account information.
●Activate the Bluetooth® connectionon your smartphone.
●Place the smartphone to be paired close to the watch (1 m or closer recommended).
！
Important
Quick Operation Guide

1
2
3Smartphone and watch”.
Unless you plan to use “Activity”, “Location Memory”, “Location” or “Traveler”, there is no need to set the “location information”.
Run the “Tutorial” displayed by Google.
●When the watch is paired with
aterminal and ready to use, a
tutorial appears several times
on the watch screen.
●You should follow the steps
in the tutorial at least once,
as it includes important steps
in preparing the OS. Swipe up
on the screen.
Swipe up
on the screen.
Follow the on-screen
instructions.
In the “Settings” screen, swipe
up and tap “Connectivity”.
Continue with step in “Pairing the watch with your smartphone”.
4
Swipe down
on the screen.
Check that “From phone
& watch” under
“Location” is enabled.
Pairing the watch with your smartphone
2
Watch settings
●To use an iPhone, a Wi-Fi connectionis required.
Update to the latest versions of the Casio apps.
Press the Power
button on the watch.
Tap “My Apps”.
A list of the apps that can be updated
appears. “CASIO MOMENT SETTER+”
must be updated. Updating the other
apps also is recommended.
Swipe down
on the screen.
Power
button
2
* After the software update, the “Tutorial” changes in the steps below.
* The software is automatically updated.
Tap “Settings”.
Tap “Learn more”. Swipe the screen to check the
display. Swipe back to return to
the watch display. Check the
display in all four directions.
Swipe down on the screen.
Tap “Play Store” in the App Menu.
Press the Power button to
display the App Menu. Use the
Power button to return to the
watch display.
Tap and hold the center of the
screen to open the watch face
selection screen. Tap to return to
the watch display.
Before the
software update
After the
software update
Quick Operation Guide
* The image shows the WSD-F30.

Pairing the watch with your smartphone
2
Watch settings
●
Unless you plan to use “Activity”, “Location Memory”, “Location” or “Traveler”, there is no need for “location information” permissions.
●If you do not plan to use “Location Memory”, there is no need for “Microphone” permissions.
●If you do not plan to use “Traveler”, there is no need for “Calendar” permissions.
4In “Apps”, enable all the “Permissions” for Casio apps.
5Enable the “Save daily activity records” setting.
If you omit this step, you will not be able to use “TOOL: My Graph”.
In the "Settings" screen, tap
“ ”.
This follows on from step in “Pairing the watch with your smartphone”.
3
Swipe down
on the screen.
Tap
“System Apps”.
Find and tap
“CASIO MOMENT SETTER+”.
In the app permissions screen, set “Calendar”,
“Contacts”,“Location”,“Microphone” and
“Receive complication data” to ON.
(Tap and slide the switch to the right.)
Swipe left
on the screen.
Tap
“Settings”.
Tap “Save daily activity
records” and set it to ON.Tap “I agree”.
6Enable the “Save Daily Location Info” setting.
If you omit this step, you will not be able to use the “Route Display”, “Check History” or “Revisit”
functions in “Location Notes”.
Swipe up
on the screen.
Tap
“Settings”.
Tap “Save Daily
Location Info”. Tap “Every 1 minute” or
“Every 6 minutes”.
Swipe up and tap
”App permissions”.
2
* “Microphone” is displayed after Auto Update.
Tap “Settings”.
Before the
software update
After the
software update
Quick Operation Guide
With a watch face displayed,
press the “TOOL” button.
With a watch face displayed, press
Lower button
WSD-F30
Upper button
WSD-F20
Upper “MAP” button
WSD-F30
Lower“APP” button
WSD-F20
* The image shows the WSD-F30.

the various
You can use this setting
“Brightness Adjust-
ment”, “Airplane Mode”,
“Settings” and “Silent
Mode”.
You can cancel
by swiping left
or right.
This screen displays a list
of the available apps.
Main Screen Transitions
Swipe up on
the watch face display.
Swipe down on
the watch face display.
Swipe right or left
on the watch face
display.
You can operate this smartwatch
Settings
Notifications
App Menu
The Voice Search screen
is displayed.
Google Assistant™
Watch face settings
Airplane Mode
Settings
Silent Mode
Brightness
Adjustment
Power
button
Touch
screen
Press
once
Holddown
for
2seconds
Watch face
display
*See “Changing/Adding
original watch faces” for
details.
* See “Launching/Adding apps”
for details.
* See “Basic voice operations”
for details.
Quick Operation Guide
* The image shows the WSD-F20.
These watches come
with Casio original
watch faces that you
can switch between
whenever you like.
Before the software update

Shows Google
Assistant information
Google Fit™
Sound the
ring tone
Battery Saver
Silent Mode
Brightness
Theater
Mode
the various
You can cancel
by
swiping left or right.
This screen displays a list
of the available apps.
Displays the screen
for switching to the
Google Fit app
Main Screen Transitions
Swipe up on
the watch face display.
Swipe down on
the watch face display.
Swipe right Swipe left.
Settings
Google Assistant information
App Menu
The Voice Search screen
is displayed.
Google Assistant
Watch face settings
Airplane Mode
Settings
Power
button
Tap and hold
the screen
Touch
screen
Press
once
Holddown
for
2seconds
Watch face display
*See “Changing/Adding original
watch faces” for details.
* See “Launching/Adding apps”
for details.
* See “Basic voice operations”
for details.
Notifications
Quick Operation Guide
These watches come
with Casio original
watch faces that you
can switch between
whenever you like.
* The image shows the WSD-F30.
After the software update

Basic voice operations
You can also do this without pressing any buttons by saying
“OK, Google”. (To use “OK Google
Settings > Personalization and enable “OK Google” detection.)
Watch face
display
depending on the platform, device and
country. You cannot use e-mail or send
SNS messages with an iPhone (iOS).
You can engage in activities
such as the following by holding
the watch up and giving spoken
instructions.
●Writingmemosandsetting
reminders,alarmsandthetimer
●Checkingyourschedule
●Replyingtoe-mailandSNS
messages
●Checkingforinformationonthe
weather,sport,movies,etc.
●Lookingupthemeaningsof
wordsandconvertingcurrency
To setan alarm <Only one alarm can be set at 7:00 am>
When the set time is reached, the
watch displays the alarm screen
and vibrates to let you know.
Set the alarm
at 7:00 am
*Thewatchalarmdoesnotemitasound.
Microphone
Press
once
Tap and
hold
With a watch face
displayed, press the
Power button once.
In the Play store
category screen, swipe
up and tap “Wear OS
by Google”.
Tap the app you
want to launch.
Holddown
(2seconds
orlonger)
Categories screen
Launching/Adding apps
L a unching an app
Procedure from the smartphone Procedure from the watch
1
1
1 2
3 4
2
Tap “Play Store” and
install your chosen app
on the watch.
With a watch face displayed, swipe right on the screen or
hold down the Power button for at least 2 seconds.
Tap the microphone icon.
Install your chosen
app.
2
Adding an a p p
To add an app, you need to install the app on both the
smartphone and the watch. (Installation on the smartphone
may not be necessary for some apps.)
By on the app
so that a star appears next to the app,
you can assign the highest priority to the app.
App
Quick Operation Guide
* The image shows the WSD-F30.

Watch face
display
Select an option
from the “Favorites”.

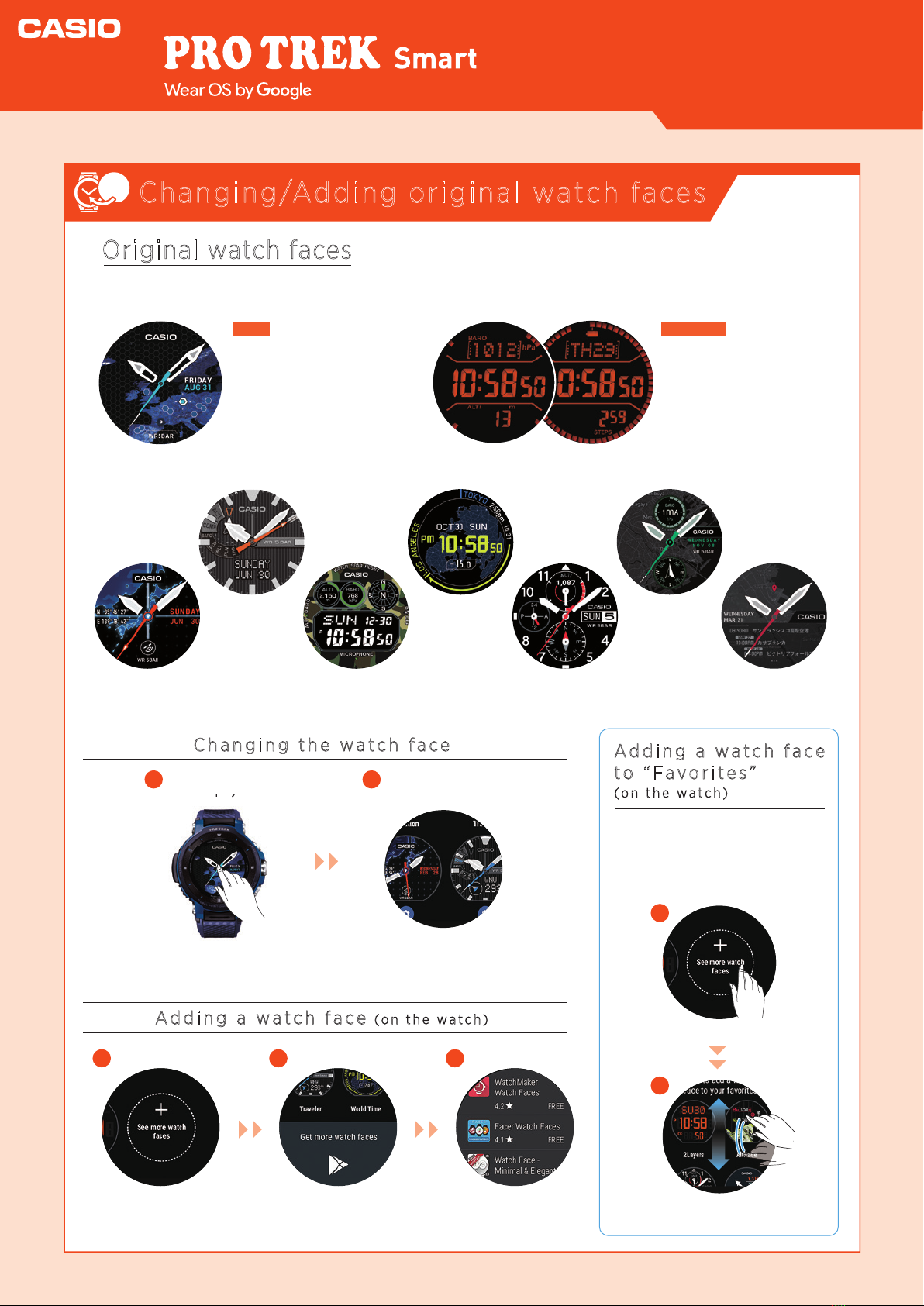

Changing/Adding original watch faces
Original watch faces
1
1
2
Changing the w a t c h f a c e Adding a w a t c h f a c e
t o “ F a v o rit e s ”
(on the w a t ch)
2
In the “Favorites” list, choose a
screen you like and tap to set it.
With a watch face displayed, tap
and hold the center of the screen.
Tap “See more watch faces”.
You can swipe up or down to
choose your preferred face.
You can adda watch face to
“Favorites” by selecting the
watch face from
See more watch faces.
1 2
Adding a w a t c h f a c e ( on the w a t ch)
Tap " See more watch faces ". Swipe up and tap “Get
more watch faces”.
3
Select the watch face you
want to add and install it.
watch
faces
Quick Operation Guide
These watches come with Casio original watch faces that you can switch between whenever you like.
Shows a map graphic as the time
display background, with colors
to indicate places you have
visited. It shows how much fun it
is to travel the world.
Choose between two styles:
Outdoor or Daily.
NEW UPDATE
* WSD-F30 only
* WSD-F30 screen
Daily
[2-layer]
［Frontier ］
[ Location ]
[ Traveler ]［World time］ [ Place ]
[ Multi ] [ Authentic ] [ Journey ]
Outdoor
* The image shows the WSD-F30.

Functions available without a smartphone connection
1
Press the Power button once
to display the App Menu.
2
Tap “Timepiece”.
3
Tap .
Press
once
Hold down
for about
2 seconds
4
The watch is set to
“Timepiece Mode”.
The functions shown below can still be used when the watch is not paired with a smartphone. (However, to
reset the watch so that it can be used, you will need a smartphone.)
* Only if a Bluetooth® headset is connected to the watch
Android, Android Wear, Wear OS by Google, Google, Google Fit, Google Assistant and other marks are trademarks of Google LLC.
・TOOL functions
・Checking the time and date
・Changing the watch face
・Setting the watch to Airplane Mode
・Listening to music on your watch
See “Wear OS by Google Help” for details. https://support.google.com/wearos/
Quick Operation Guide
(Compass, Altimeter, Barometer,
Sunrise/sunset time,
Tide Graph, My Graph)
・Setting an alarm
・Using the stopwatch
・Using the timer
・Counting the number of steps
Setting/Canceling
Timepiece Mode（WSD-F20）
Multi Timepiece Mode（WSD-F30）
These modes use a monochrome LCD to show the time. Because these modes disable the GPS and communica-
tion functions, they use only a tiny amount of power and are very useful when you want to conserve as much
battery power as possible but still display the time.
Swipe up and tap
“” for Start.
The watch is set to
“Multi Timepiece Mode”.
Canceling
the Modes
1 2
Hold down the Power button
for roughly 2 seconds.
The watch restarts.
3
The watch
displays a watch face.
Setting T i m epiece Mod e
Setting M u lti T i mepi e c e Mo d e
1 2
Press the Power
button once to
display the app list.
Tap
“Multi Timepiece”.
3
Tap to
select the style.
You can choose either Outdoor style, which shows the altitude and
atmospheric pressure, or Daily Style.
WSD-F20
WSD-F30
Press
once
［Outdoor Style ］
［Daily Style ］
