Casio QW-3367 Troubleshooting guide

SERVICE MANUAL
& PARTS LIST
(WITHOUT PRICE)
QW-3367
MODULE NO.
R
REF. NO. S/M-914
SEP. 2005
GW-1500J
Ver.1 : May. 2006

CONTENTS
Page
1. SPECIFICATIONS: MODULE QW-3367 .................................................... 1
2. OPERATION CHART: MODULE QW-3367 ............................................... 2
3. DRAWINGS: MODULE QW-3367

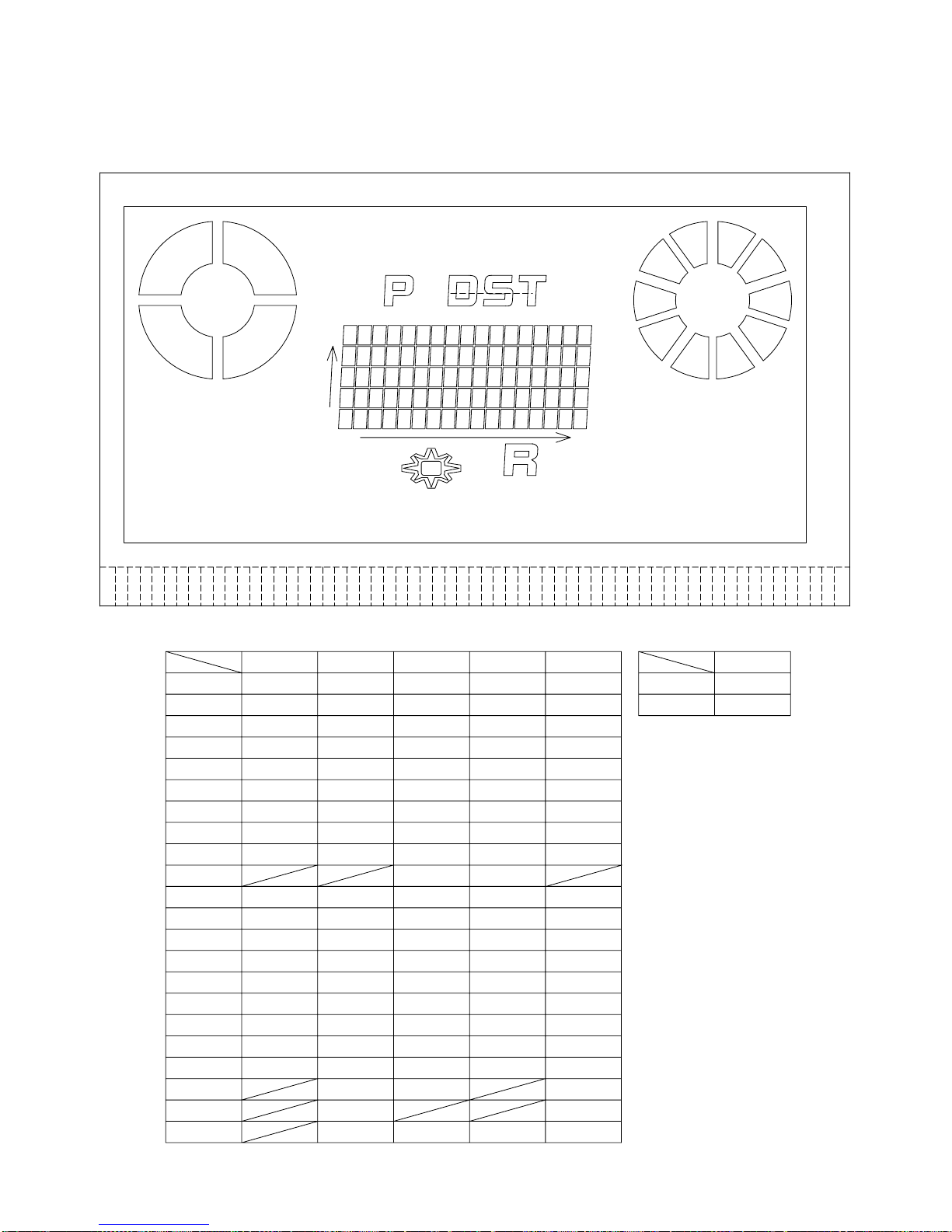

3-1. LCD DIAGRAM ............................................................................................10
3-2. CIRCUIT DIAGRAM ..................................................................................... 11
3-3. CHECKING TERMINALS AND COMPONENTS .........................................12
4. EXPLODED VIEW: MODULE QW-3367 ................................................... 13
5. PARTS LIST: MODULE QW-3367 ............................................................ 14
6. PRECAUTIONS FOR REPAIR: MODULE QW-3367
6-1. AC (ALL CLEAR) AND REMOVING OF MODULE ..................................... 15
6-2. ACCURACY CHECKING ............................................................................. 15
6-3. SOLAR CELL-PCB ASS'Y CONTACT CHECKING....................................16
6-4. HOW TO CHECK TILT SENSOR.................................................................17
6-5. TIME CALIBRATION SIGNAL TEST MODE ...............................................17
7. TROUBLESHOOTING: MODULE QW-3367.............................................18

— 1 —
1. SPECIFICATIONS: MODULE QW-3367
Battery CTL1616 (Storage battery)
Note: Use CTL1616 only. Other storage battery or CR1616 can cause
damage to the watch.
Battery life Approx. 10 months (from full charged condition)
Current consumption 0.563 µA maximum
Alarm system Piezo plate on Cover/Back
Accuracy ±15 sec./month
Accuracy setting system Trimmer capacitor
Accuracy checking See page 15
Functions • Tough Solar: large-capacity solar charging system
• Time calibration signal reception
Auto receive
Manual receive
Last date/time received display
• Time Calibration Signal
Receivable Time Calibration Signals
Fukushima, Japan (Call Sign: JJY, Frequency: 40kHz)
Fukuoka/Saga, Japan (Call Sign: JJY, Frequency: 60kHz)
Fort Collins, Colorado (Call Sign: WWVB, Frequency: 60kHz)
• World Time
29 time zones (30 cities), daylight saving time on/off
• 1/100-sec. stopwatch
Measuring capacity: 59’59.99"
Measuring modes: Split time
• Daily alarms
1 independent daily alarms, hourly time signal
•Battery power indicator (which can be switched to from the normal time-
keeping mode)
• Power Saving (Turns off the display when the watch is left in the dark)
• LED light (with full auto light function)
• Auto-calendar
• 12/24-hour format
• Regular timekeeping: Hour, minutes, seconds, pm, month, date, day
Item Detail

—2 —
2. OPERATION CHART: MODULE QW-3367
Each press of the CC
CC
Cbutton sounds a confirmation tone and cycles through available modes in the sequence shown below.
•The display will automatically revert to the Timekeeping screen if you leave the Battery Level, Alarm, or Hand Setting screen displayed
without performing any operation for about two or three minutes.
Timekeeping Mode
Hand Setting Mode
(Light)
(Screen Switching)
(Mode Switching)
Day of the Week
Graphic Display*
Seconds
Hour
PM Indicator (no indicator for AM)
Minutes
Seconds ScreenCurrent Time Screen
Month.Day
Date Screen
Day of the
Week Screen
Mode Indicator
Button
Button Button
Button
Changing Display Screen Contents Each press of the button cycles display contents in the following sequence: Day of the Week \Date \Seconds
\Current Time.
Days of the Week SUN: Sunday MON: Monday TUE: Tuesday WED: Wednesday THU: Thursday FRI: Friday SAT: Saturday *A segment appears with the passage of each second of
the current minute.
Battery Level Screen World Time Mode
Stopwatch Mode Alarm Mode
Level Indicator Current Time in
Selected City
City Code
Alarm
•
Alarm off
Hourly Time Signal
•
Hourly Time Signal off
Elapsed Time
Mode Indicator
Modes and Display Screens
■Start charging at Level 3! Battery Level 3 indicates that remaining battery power is very low. Be sure to expose the watch to light for recharging as soon as possible after the Level 3 indicator starts to flash. ■Flashing Recover Indicator If you use the light or alarm a number of times during a short period, a recover (R) indicator flashes on the display and the following operations become disabled as battery power recovers. •Face illumination, •Alarm and hourly time signal •Analog timekeeping •Time calibration signal reception Normal operation will return after the battery recovers. •If the battery drops to Level 3 while the recover indicator is flashing
on the display, the Battery Level Screen will show “”.
■Charging Precautions Avoid charging the watch in the following locations, and anywhere else where the watch may become very hot. •On the dashboard of an automobile parked in the sun •Very close to an incandescent light source or other sources of heat •In a location exposed to direct sunlight for long periods Note that the display panel may become black under very high temperatures. This is temporary, and the display will appear normal again at lower temperatures.
Depending on the light source you are using, the case of the watch may become quite hot during charging. Take care to guard against burn injury after charging.
■To charge the battery Point the solar panel (face) of the watch at a light source. •Remember that even a partial blockage of the solar cell reduces
charging efficiency.
Example: Positioning the watch
Solar Cell
•The illustration shows the resin band model.
The power supply of this watch uses a solar cell to generate electrical power, which is stored by a rechargeable battery. Using or storing the watch where it is not regularly exposed to light, or allowing it to be blocked from light by your sleeve for long periods as you are wearing it can cause the power of the rechargeable battery to run down. To ensure stable operation, be sure to allow the watch to be exposed to light as much as possible when you are wearing or storing it.
Important! Note that all data in memory and all settings are cleared whenever you allow the level of the rechargeable battery to drop to Level 4. ■Checking the Battery Level Use the Battery Level Screen to check the current level of the watch’s rechargeable battery. •In the Timekeeping Mode, press the Cbutton once to change to
the Battery Level Screen. To return to the Timekeeping Mode from the Battery Level Screen, press the Cbutton five times.
Level Indicator
Battery Level Screen
Timekeeping Mode
Normal operation enabled. Normal operation enabled.
Level 1 Level 2 Level 3 Level 4
Digital displays, face illumination, tones (alarm, hourly time signal), time calibration signal reception, and analog timekeeping disabled.
All functions, including timekeeping, disabled.
•Exposing the watch to direct sunlight or other strong light may
cause the battery level indicator to momentarily indicate a level that is higher than the actual battery level. Because of this, you should wait for a short while after charging to check the battery level indicator.
•When the battery level approaches Level 3, the display will start to
flash and the analog hands will move to the 12 o’clock position.
•Even after the battery drops to Level 4, you will be able to resume
normal operation by charging the battery.
•When charging from Level 4, the display will start operating when
the battery reaches Level 3. At this time, you will be able to configure digital time and date settings only. The analog hands will start to operate when the battery reaches Level 2. At that time, adjust the analog hand setting so it matches the digital time.
•When charging the battery, keep the watch exposed to light until
the battery reaches Level 2 or Level 1.
Power Supply
Recover Indicator

—3 —
■Charging Guide Starting from a full charge, the watch should be able to continue operating for about nine months without further charging under the conditions described below.
Daily Use (All time values are approximate.) •Face Illumination:
1.5 seconds
•Alarm: 10 seconds •Signal reception: 4 times
Making sure the watch is regularly exposed to light ensures stable operation. •Charge Times Required to Advance to a Higher Level
Approximate Exposure Time
Level 4 \Level 3 \Level 2 \Level 1
––––––
3 hours 12 hours41 hours 7 hours
11 hours
120 hours
43 hours155 hours 69 hours251 hours
Exposure Level
(Brightness)
Outdoor Sunlight
(50,000 lux)
Daylight Through a Window on
an Overcast Day (5,000 lux)
Indoor Fluorescent
Lighting (500 lux)
Sunlight Through a
Window (10,000 lux)
•Note that the above charging times are for reference only. Actual
charging time depends on a variety of environmental factors.
Required Daily Charging Time •
The following is the daily
amount of charging required each day to support the operations under “Daily Use”.
Exposure Level
(Brightness)
Outdoor Sunlight
(50,000 lux)
8 minutes
30 minutes 48 minutes
8 hours
Sunlight Through
a Window
(10,000 lux)
Daylight Through a
Window on an Overcast
Day (5,000 lux)
Indoor
Fluorescent
Lighting (500 lux)
Approximate
Exposure
Time
Power Saving
Power Saving causes the watch to automatically enter a sleep state and save power whenever the watch is left in the dark. The Power Saving feature of the watch is turned on at the factory. •Note that the watch may also enter the sleep state if the watch is blocked from light by your sleeve. •The watch will not enter the sleep state if it is in the Stopwatch Mode. ■How the sleep state works Display sleep state The display sleep state is triggered whenever the watch is left in the dark for about one hour between the times of 10:00 p.m. and 6:00 a.m. •The display sleep state causes the display to go blank, except for
a flashing Power Saving indicator. The alarm and the hourly time signal continue to operate normally while the watch is in the display sleep state. Even when the watch is in the sleep state, digital-analog time coordination and time calibration signal auto receive are both performed.
Function sleep state The function sleep state is triggered whenever the watch is left in the dark for six or seven days. •The alarm and the hourly time signal are disabled while the watch
is in the function sleep state. In the function sleep state, the analog hands remain stopped at the 12 o’clock position, and time
calibration signal auto receive is not performed.
•Digital timekeeping functions continue to operate normally in the
function sleep state.
Power Saving Indicator
■To recover from the sleep state Move the watch to a brightly lit location or press any button. The watch will also recover from the sleep state if you angle it towards your eyes for reading (see “Positioning Your Arm Correctly”).
•It can take up to two seconds before display figures re-appear
after you place the watch in a well-lit area.
■To turn Power Saving on and off Use the procedure under “To configure home time settings”to turn
Power Saving on or off.
Leaving the watch in a drawer or anywhere else it is dark can cause Power Saving to trigger in order to conserve battery power.
■Positioning Your Arm Correctly •You should be wearing the watch on the outside of your wrist
when using the auto light switch.
•Make sure that the left (9 o’clock) and
right (3 o’clock) sides of the watch are within ±15 degrees of being parallel
with the ground. The auto light switch may not operate properly if the angle is greater.
Important! •The light may be difficult to see if you turn it on under bright
sunlight.
•If you press the Bbutton or if an alarm operation starts while the
face is illuminated, illumination will turn off.
•Face illumination does not work while you are performing a time
calibration signal manual receive operation.
Auto Light Precautions •Frequent use of the auto light can run down the battery. •The auto light switch may cause the face to illuminate when your
sleeve covers the face of the watch.
•The face may not illuminate immediately when you angle the
watch towards your face. This does not indicate malfunction.
•The face remains illuminated for the currently set duration (1.5 or
3 seconds) only, even if you leave the watch angled towards your face.
•The auto light switch is automatically disabled whenever battery
power is at Level 3 or lower.
•The face may illuminate unintentionally when you wear the watch
on the inside of your wrist, when you shake your arm, or when you raise your arm. Be sure to turn off the auto light switch whenever you do not need face illumination.
•Keep the auto light switch turned off whenever you are wearing
the watch on the inside of your wrist.
•Electro-static charge and magnetism can interfere with auto light
operation and even make operation impossible. If this happens, lower your arm to the starting position and then raise it again. If you still have trouble with illumination, try lowering your arm down to your side and then raise it to your face for reading.
•The auto light switch is automatically disabled when the watch is
in the Hand Setting Mode.
Rotate your arm so the watch isangled at about 40degrees, so you can read its face.
With the watch on your wrist, position it level with the ground.
11 11
122
22
2
At least 40 degrees
An LED light is used to illuminate the face of the watch for easy reading in the dark. An auto light switch automatically illuminates the face when you angle the watch towards your eyes for reading.
■To illuminate the face manually
Press the BB
BB
Bbutton in any
mode to illuminate the face of the watch.
•You can use the procedure under
“To specify the illumination duration”to configure the illumination duration as approximately 1.5 seconds or 3 seconds.
•Pressing the Bbutton illuminates the face regardless of whether
the auto light switch is on or off.
You may hear a faint rattling sound when you move the watch around. This sound is caused by the movement of a metal bulb that controls operation of the auto light switch, and does not indicate malfunction.
■To illuminate the face with the auto light
switch
The auto light switch automatically illuminates the face whenever you angle the watch towards your eyes for reading, but only when it is dark. •The auto light switch does not illuminate the face when
surrounding light is bright.
You can use the procedure under “To specify the illumination duration”to configure the illumination duration as
approximately 1.5 seconds or 3 seconds.
■To turn the auto light switch on and off While a setting screen (one on which a setting is flashing) is on the display, hold down the Bbutton for about two seconds to toggle the auto light switch on (auto light switch on indicator displayed) and off (no indicator displayed).
Auto Light Switch On Indicator
Face Illumination

—4 —
To specify the illumination duration 1. In the Timekeeping Mode,
hold down the AA
AA
Abutton
for about two seconds.
•This will cause your city code
to flash on the display.
2. Press the CC
CC
Cbutton three
times to display the flashing seconds count.
3. Press the BB
BB
Bbutton to
toggle the illumination duration between about 1.5 seconds ( indicator)
and 3 seconds (indicator).
4. After the setting is the way you want, press the AA
AA
A
button to exit the setting screen.
•The watch will also exit the setting screen automatically if you
do not perform any operation for about two or three minutes.
City Code
(3 times) Seconds
What is a radio-controlled watch? Your radio-controlled watch is designed to receive a time calibration signal that contains standard time data, and adjust its current time setting accordingly.
Signal data
Cesium
atomic
clock
Transmitter
Internally
Decode
Watch
Time data
Signal is received using built-in antenna.
Watch decodes received data and converts it to time data. Time is adjusted according to time data.
Long- wave time calibration
signal
After the watch receives the Standard Time signal, it performs internal calculations to determine the current time. Because of this, there may be an error of up to one second in the displayed time.
Calibration Signal •The Japanese calibration signal (Call Sign: JJY) is maintained by
the National Institute of Information and Communications Technology (NICT). It is a long wave signal transmitted 24 hours a day from the Mt. Otakadoya transmitter (40kHz) located in Tamura-gun, Fukushima Prefecture, and from the Mt. Hagane transmitter (60kHz) located on the border between Saga Prefecture and Fukuoka Prefecture.
•The U.S. calibration signal (Call Sign: WWVB) is transmitted by
the National Institute of Standards and technology from Fort Collins, Colorado.
Note that transmission of the standard wave may be interrupted occasionally due to maintenance, lightening, etc.
How a Radio-controlled Watch Works
Location Reception is difficult and may even be impossible in the locations described below. Avoid such locations when performing signal reception. •You should think of your watch operating like a radio or TV when it
is receiving the calibration signal.
If you are experiencing problems with reception, move away from the types of locations described above to a location with better reception, and try again.
Near high-voltage lines
Among or near buildings
Receiving the Calibration Signal There are two methods you can use to receive the time calibration signal.
•Auto receive (Reception is performed automatically at
midnight, 1:00, 2:00, 3:00 and 4:00 each morning.)
•
Manual receive (You initiate reception using a button operation.)
•If reception is not successful for any of the normal auto receive
operations shown above, auto receive is performed one more time at 5:00 a.m.
•
The watch is set up for auto receive at the factory, so all you need to
do is to place it in a location that allows good reception each night.
■
To position the watch for optimum reception
Remove the watch from your wrist and place it somewhere so its top (12 o’clock side, where the antenna is located) is facing approximately in the direction of the signal transmitter. Keep the watch away from metal objects.
Resin band
Metal band
•Orienting the watch so it is sideways to the transmitter makes it
more difficult to receive the signal.
•Do not move the watch while it is receiving the calibration signal.
Near mountains
Inside a vehicle
(automobile, train, plane, etc.)
In a location where there is radio interference (construction site, airport, etc.)
Next to a household appliance or office equipment (TV, speaker, fax, computer, cell phone, etc.)
Reception Range This watch is designed to receive the standard time calibration signal of Japan (JJY) or of the United States (WWVB). The signal that is received depends on the current Home City setting. •For information about selecting a Home City, see “Configuring Home Time Settings”. For information about city codes, see the “World Time
City Code List”.
Home City
TYO
LAX, DEN, CHI, NYC
Transmitter
Either the Mt. Otakadoya signal (40kHz) or the Mt. Hagane signal (60kHz) Fort Collins, Colorado signal
1000km
Mt. Hagane
(60kHz)
Mt. Otakadoya
(40kHz)
500km
1000km
500km
Japan Transmitter Locations
•Under optimum conditions, the calibration signal should be
receivable up to 1,000 kilometers from the transmitter. Note that the wave is relatively weak at distances greater than 500km, so reception may be poor at long distances.
U.S. Transmitter Location
3000km
1000km
Fort Collins
•Under optimum conditions, the calibration signal should be
receivable up to 3,000 kilometers from the transmitter. Note that the wave is relatively weak at distances greater than 1,000km, so reception may be poor at long distances.
•Geographic contours, nearby buildings, seasonal conditions, the time of day, can even make reception impossible even when you are within
range of the transmitter.
•Best reception is possible late at night.

—5 —
Configuring Auto Receive Settings Use the procedure below to turn auto receive of the time calibration signal on or off. When TYO (Tokyo) is selected as your Home City, you can also specify the transmitter selection mode, which controls which Japanese transmitter signal should be used for time calibration. •For information about selecting your Home City, see “Configuring
Home Time Settings”.
•The initial factory default settings for auto receive are Home City =
TYO (Tokyo); Auto Receive = On; Transmitter = AUTO
•The following procedure can be performed only when TYO, LAX,
DEN, CHI, or NYC is selected as the Home City.
■To configure auto receive settings 1. In the Timekeeping Mode,
press the DD
DD
Dbutton.
•This causes the display to
start cycling through the last reception date and time screens.
•The watch will return to the Timekeeping Mode automatically if
you do not perform any operation for about one or two minutes.
2. Hold down the AA
AA
Abutton
for about two seconds.
•This will cause the current
auto receive setting to flash on the display.
■To view the last reception date and time
In the Timekeeping Mode, press the DD
DD
Dbutton.
•This causes the display to start cycling through the “”
screen, last reception date screen, and last reception time screen at two-second intervals.
•To return to the Timekeeping Mode, press the Dbutton again. •The watch will return to the Timekeeping Mode automatically if
you do not perform any operation for about one or two minutes.
Last reception date
Last reception time
■Time Required for Reception A calibration signal receive operation takes anywhere from about two to six minutes. •Note that when “AUTO”(Auto Select) is specified as the
transmitter selection mode, signal reception can take up to 12 minutes.
•See “Configuring Auto Receive Settings”for more information.
■To perform manual receive
In the Timekeeping Mode, hold down the DD
DD
Dbutton for about
two seconds.
•The watch will beep and
reception will start. An indicator will appear on the display to indicate reception conditions.
■To interrupt reception
Press the DD
DD
Dbutton.
•All other buttons besides Dare disabled during signal reception. When reception is successful The watch terminates reception and adjusts the current time. Next it beeps and then displays the date and time that the adjustment was performed. Reception Error (ERR Indicator) The watch does not adjust its current time setting, and displays “ERR”when signal reception is unsuccessful for some reason. •The watch will return to the Timekeeping Mode automatically if
you do not perform any operation for about one or two minutes.
■Receive Indicator The receive indicator cycles from “Unstable”through “Stable”as
shown below while reception is in progress. How far it cycles depends on the signal strength. Keep the watch in a location where reception is stable while reception is in progress.
Unstable Stable
•Even under optimum reception conditions, it can take about 10
seconds for reception to stabilize.
•Use the receive indicator to check reception status and to
determine the best location for signal reception.
•Note that weather, the time of day, surroundings, and other
factors can all affect reception.
Receive Indicator
Calibration Signal Reception Precautions •Auto reception can be performed while the watch is in the
Timekeeping Mode or World Time Mode only.
•When a time calibration signal is received, the watch corrects its
digital time setting first, and then adjusts the analog time setting accordingly. In order to ensure that the analog time matches the digital time, make sure you adjust the analog time to match the digital time before signal reception is performed.
•Pressing any button while auto reception is in progress will cause
the watch to beep and then exit the receive operation.
•Make sure you are within the range of the calibration signal
transmitter before performing the reception operation. Remember that geographic contours, nearby buildings, seasonal conditions, the time of day, can even make reception impossible even when you are within range of the transmitter.
•Proper reception may be impossible if there is something blocking
the signal. If reception is unsuccessful, try again.
•This watch is designed to adjust its current time setting in
accordance with the calibration signal transmitted in Japan and the United States only. It operates like a standard (non-radio controlled) watch outside of the range of the receivable time calibration signal transmitters.
•When the watch is unable to adjust its time signal using the
calibration signal for some reason, timekeeping accuracy is within ±15 seconds per month.
•Strong electrostatic charge can cause timekeeping error. •Signal reception is cancelled if the alarm starts to sound while it is
being performed.
•The watch’s calendar shows dates up to the year 2099.
Attempting a receive operation after that causes an error.
Auto Receive Settings when the Home City is TYO
•AUTO Auto receive turned on with automatic selection of either the Mt. Otakadoya signal (40kHz) or the Mt. Hagane signal (60kHz), whichever is strongest. •40
Auto receive turned on for the Mt. Otakadoya signal (40kHz). •60 Auto receive turned on for the Mt. Hagane signal (60kHz). •OFF Auto receive turned off.
Auto Receive Settings when the Home City is NYC, CHI, DEN, or LAX
•ON
Auto receive turned on for the Ft. Collins, Colorado signal. •OFF Auto receive turned off.
3. Press the DD
DD
Dbutton to
cycle through the available auto receive settings.
4. When the setting is the
way you want, press the
AA AA
Abutton.
•This will exit the setting
screen and return to the last reception date and time screens.
•To return to the Timekeeping
Mode, press the Dbutton
again.
•The watch will return to the
Timekeeping Mode automatically if you do not perform any operation for about one or two minutes.

—6 —
Troubleshooting The watch cannot receive the time calibration signal. •Is the signal being transmitted?
Though the Japanese calibration signal (Call Sign: JJY) is
continually transmitted by the National Institute of Information and Communications Technology (NICT) in theory, it may sometimes be interrupted for periodic maintenance work, or because of lightening or other problems.
•Are you within the reception range of a transmitter?
See “Reception Range”for information about areas where the
watch can receive the signal.
•Is there something in the immediate area that may be interfering
with reception?
Even if you are within the reception range of a transmitter, objects
between you and the transmitter or electrical noise can interfere with reception. Avoid such areas during signal reception. See “Location”for more information.
•Do you have the correct Home City code selected?
Remember that auto receive is not performed unless TYO
(Japan), NYC (New York), CHI (Chicago), DEN (Denver), or LAX
(Los Angeles) is selected as the Home City. Select the correct Home City code using the procedure under “To configure home time settings”.
•Is auto receive turned off (OFF)?
Use the procedure under “Configuring Auto Receive Settings”to
turn on auto receive.
•Is the watch in any mode other than the Timekeeping Mode or
World Time Mode during the auto receive times (midnight, 1:00 a.m., 2:00 a.m., 3:00 a.m., 4:00 a.m., and 5:00 a.m.)?
Auto receive is performed only when the watch is in the
Timekeeping Mode or World Time Mode. It is not performed if the watch is in any other mode.
Time calibration signal reception is successful, but the hourly
time signal and current time are slightly off. •After the watch receives the time calibration signal, it performs an
internal decoding process before updating its time setting. Because of this, the time setting may be slightly off (within one second).
Time calibration signal reception is successful, but the current time is one hour fast. •Do you have summer time (DST) turned on (ON)? Use the
procedure under “To configure home time settings”to turn off summer time.
Time calibration signal reception is successful, but the current time setting is wrong. •Is the correct city code selected for your Home City?
If you are in Japan, you should have TYO selected for your Home City. For other areas, select the correct Home City code using the procedure under “To configure home time settings”.
Using Summer Time (DST) Summer time, or Daylight Saving Time (DST) as it is known in some countries, calls for setting clocks ahead one hour during the summer season. Note that the use of summer time depends on the country and even the local area. ■To turn summer time on or off 1.
In the World Time Mode, use the DD
DD
Dbutton to
display the screen for the city code whose summer time setting you want to change.
2.
Hold down the AA
AA
Abutton
for about two seconds.
•This toggles summer time on
and off.
•The “DST”indicator appears
on the display and timekeeping is advanced by one hour when summer time is turned on.
•You can turn summer time on
or off independently for each World Time Mode city. Note, however, that you cannot turn on summer time for the “GMT” city code.
World Time City Code List
City
Code City Name
–––
HNL
ANC
LAX
DEN
CHI
NYC CCS
RIO
––– –––
GMT
LON
PAR
BER
ATH
CAI
Honolulu
Anchorage
Los Angeles
Denver
Chicago
New York
Caracas
Rio de Janeiro
Greenwich Mean Time
London
Paris
Berlin
Athens
Cairo
–11
–10
–9 –8 –7 –6 –5 –4 –3 –2 –1
+0 +0 +1 +1 +2 +2
GMT
Differential
City
Code City Name
GMT
Differential
JRS JED
THR
DXB
KBL
KHI
DEL
DAC
RGN
BKK
HKG
SEL
TYO
ADL
SYD
NOU
WLG
Jerusalem
Jeddah
Teheran
Dubai
Kabul
Karachi
Delhi
Dakar
Yangon
Bangkok
Hong Kong
Seoul
Tokyo
Adelaide
Sydney
Noumea
Wellington
+2 +3
+3.5
+4
+4.5
+5
+5.5
+6
+6.5
+7 +8 +9 +9
+9.5
+10
+11
+12
•The contents of the above table are current as of December 2003. •Time differentials in the above table are in accordance with
Universal Time Coordinated (UTC).
DST Indicator
World time lets you display the current time in any one of 30 cities (29 time zones) around the world. •When you enter the World Time Mode, the screen for the city that
was displayed when you last exited the mode appears first.
•The seconds count in the World Time Mode is linked with the
Timekeeping Mode seconds count.
•The same 12-hour/24-hour format you select for the Timekeeping
Mode time is also applied in the World Time Mode.
Important! •If the World Time Mode time is incorrect, check the current time
settings in the Timekeeping Mode and the World Time city settings.
•For more information, see “To configure home time settings”.
■To search for a city code
In the World Time Mode, press the DD
DD
Dbutton.
•This scrolls westward through the available city codes. Ashort
while after a city code appears, the display will change to show the current time in that city.
•Holding down the Dbutton scrolls at high speed.
(Scrolls Westward)
City Code
Current Time in Selected City
•Pressing the Abutton in the World Time Mode displays the city
code of the currently selected city for about two seconds.
•If a time zone does not have a city code assigned to it, the GMT
differential appears instead.
World Time Mode
The auto receive ON/OFF settings don’t appear when configuring auto receive settings. •Auto receive ON/OFF settings do not appear on the display
unless TYO (Japan), NYC (New York), CHI (Chicago), DEN (Denver), or LAX (Los Angeles) is selected as the Home City. Use the procedure under “To configure home time settings”to select
your correct Home City.
The auto receive AUTO, 40, and 60 settings do not appear when
configuring auto receive settings. •The AT, JP40, and JP60 transmitter selection mode options are
available only when TYO (Tokyo) is selected as the Home City code. Use the procedure under “To configure home time settings” to select your correct Home City.
What time is auto receive performed? •Auto receive is performed in the middle of the night, when
reception conditions are best. Before going to bed at night, place the watch near a window, with its 12 o’clock position facing in the
general direction of the transmitter.
How can I perform manual receive? •Hold down the lower right Dbutton for about two seconds. The
watch will beep to indicate that manual receive has started. Place it near a window, with its 12 o’clock position facing in the general
direction of the transmitter.
How can I view the last reception date and time? •In the Timekeeping Mode, press the lower right Dbutton. This
will display the date and time that the time calibration signal was last received successfully. To return to the Timekeeping Mode, press the Dbutton again. See “To view the last reception date and time”for more information.
•Check the auto signal reception setting whenever you have
problems with signal reception or when the time setting produced by signal reception is incorrect.
•The initial factory default configuration of the reception settings
are shown below. You do not need to change these settings if you use the watch in Japan.
Auto Receive Home City
Summer Time
Tokyo Auto Japan transmitter select
(40kHz/ 60kHz) Auto switching in accordance with signal data

—7 —
3.
Use the DD
DD
D(+) and BB
BB
B(–)
buttons to change the hour setting.
•Holding down either button
changes the setting at high speed.
•When setting the hour, make
sure you specify AM (no indicator) or PM (P) correctly when using 12-hour timekeeping, or that you specify the correct 24-hour time.
•The same 12-hour/24-hour
format you select for the Timekeeping Mode home time is also applied in the Alarm Mode.
4.
Press the CC
CC
Cbutton to
select the minute setting.
•This causes the minute digits
to flash.
5.
Use the DD
DD
D(+) and BB
BB
B(–)
buttons to change the minute setting.
•Each press of the B(+) or
D(–) button changes the minute setting in 1-minute increments.
•Holding down either button
changes the setting at high speed.
6.
When the setting is the way you want, press the AA
AA
A
button.
•This exits the setting screen. •The display also will exit the setting screen automatically if
you do not perform any operation for about two or three minutes.
(Increase)
(Decrease)
Minutes
(Increase)
(Decrease)
You can set the daily alarm in 1-minute increments. The watch beeps for 10 seconds when the current time in the Timekeeping Mode reaches the alarm time you set. The Hourly Time signal causes the watch to beep every hour on the hour. ■To display the alarm screen
In the Alarm Mode, press the DD
DD
Dbutton to toggle the display
between the alarm screen and the Hourly Time Signal screen.
Alarm Screen
•
Alarm off
Hourly Time Signal Screen
•
Hourly Time Signal off
■To set the alarm time 1.
In the Alarm Mode, press the DD
DD
Dbutton to display
the alarm screen.
•When you enter the Alarm
Mode, the screen that was displayed when you last exited the mode appears first.
2.
Hold down the AA
AA
Abutton
for about two seconds until the hour digits of the alarm time start to flash.
•Displaying the alarm setting
screen automatically turns on the alarm, which is indicated by the alarm indicator.
Hour
Alarm Indicator
Using the Alarm and Hourly Time Signal
■To turn the alarm on or off 1.
In the Alarm Mode, use the DD
DD
Dbutton to display the alarm
screen.
2.
Press the AA
AA
Abutton to toggle the alarm on (“ ”
displayed) or off (“ ” displayed).
Alarm Off
Alarm Time
Alarm Indicator
Alarm On
■To stop the alarm beeper Press any button. ■To test the alarm In the Alarm Mode, hold down the Dbutton to sound the alarm.
■To turn the hourly time signal on or off 1.
In the Alarm Mode, use the DD
DD
Dbutton to display the
Hourly Time Signal screen.
2.
Press the AA
AA
Abutton to toggle the Hourly Time Signal on
(“ ”) or off (“”).
Hourly Time Signal Off Hourly Time Signal On
Hourly Time Si
g
nal Indicator
■To perform elapsed time measurement
In the Stopwatch Mode, press the DD
DD
Dbutton to start and
stop elapsed time measurement.
(Split/Reset)
(Start/Stop)
■Stopwatch Mode Display Screens •Elapsed Time Screen The display shows the minutes and seconds.
Minutes
Seconds
•Paused Elapsed Time Measurement Screen When elapsed time measurement is paused, the display alternates between a minute/second screen and a 1/100 second screen at 2-second intervals.
2-second Intervals
Minutes
Seconds 1/100 Second
Stopwatch Mode
The stopwatch measures elapsed time in units of 1/100 second up to 59 minutes, 59.99 seconds (60 minutes total). When the maximum limit is reached, the elapsed time automatically returns to zero and timing continues from there.

—8 —
■Elapsed Time Measurement Start Stop Reset Pressing the Abutton while timing is stopped resets the stopwatch to all zeros. Cumulative Time Measurement Pressing the Dbutton to restart the stopwatch without resetting it to all zeros causes the elapsed time measurement to resume from where it was last stopped. ■Split Time Measurement Start Record Split Clear Split Stop Reset Pressing the Abutton while timing is being performed displays the split time screen, but timing continues internally. •Changing to another mode while a split time is displayed clears the split time operation. ■1st and 2nd Place Finishers Start 1st Finish
(Displays time of 1st finisher.) 2nd finish Displays time of 2nd finisher. Reset
Pressing the Dbutton while the split time screen is on the display stops elapsed time measurement, and leaves the split time screen on the display. Press the Abutton to exit the split time screen and display the elapsed time when the measurement was stopped.
Split Time Screen The split time screen cycles alternately cycle through the split indicator, a minute/second screen, and a 1/100 second screen.
Split Indicator Minutes Seconds 1/100 Second
Home time settings include your Home City (the city where you will normally use the watch), the current time and date in your Home City, and other settings. •Use the Timekeeping Mode to configure home time settings. •Also use the following procedure when you want to turn Power
Saving on or off.
If you are planning to manually adjust both the digital and analog settings, be sure to adjust the digital setting first.
■To configure home time settings 1. In the Timekeeping Mode,
hold down the AA
AA
Abutton
for about two seconds.
•This will cause the city code
currently selected as the Home City to flash on the display.
2. Press the DD
DD
Dbutton to
scroll westward through the city codes until the one you want to select is displayed.
•See the “World Time City
Code List”for information
about city codes.
•Holding down either button
scrolls at high speed.
3. When the city code you
want is displayed, press the CC
CC
Cbutton.
•This will display the summer
time (DST) setting screen.
City Code
TYO = Tokyo
(Scrolls Westward)
6. While the 12/24-hour
timekeeping setting is flashing, press the DD
DD
D
button to toggle between 12-hour (“12H”) and 24-hour (“24H”)
timekeeping.
7. While the seconds are
selected, press the DD
DD
D
button to reset them to 00 in accordance with the time signal on the radio, TV, etc.
•Pressing the Dbutton while
the seconds count is in the range of 30 to 59 resets it to 00 and also adds 1 to the minutes. Pressing the D button in the range of 00 to 29 resets the seconds count without changing the minutes.
•Pressing the Bbutton while
the seconds count is flashing changes the face illumination duration. See “To specify the illumination duration”for more
information.
8. While the hour, minutes,
year, month, or day setting is flashing, use the DD
DD
D(+)
button to change the setting.
•Holding down the Dbutton
changes the setting at high speed.
•When setting the hour, make
sure you specify AM (no indicator) or PM (P) correctly, or that you specify the correct 24-hour time.
•You can set a year in the range of 2000 to 2099. The day of
the week is set automatically in accordance with the date you set.
•The watch automatically makes adjustments for leap years
and month lengths.
9. While the Power Saving
setting is flashing, press the DD
DD
Dbutton to toggle it
on (ON) or off (OF).
•If you turn on Power Saving,
the Power Saving indicator will be on the display when you exit the setting screen.
Use the CC
CC
Cbutton to select each of the settings and the
DD DD
Dbutton to change them.
Indicates 12-hour or 24-hour timekeepin
g
.
Seconds reset to 00.
4. Press the DD
DD
Dbutton to
cycle the display through the available summer time (DST) settings until the one you want to select is displayed.
•AUTO This setting enables the auto summer time setting, which turns summer time on or off in accordance with the received time calibration signal. •This setting uses Japan summer time data when TYO is
selected as the Home City, and U.S. summer time data when NYC, CHI, DEN, or LAX is selected as the Home City.
•Note that “AUTO”can be selected only when TYO, LAX,
DEN, CHI, or NYC is selected as the Home City.
•OFF This setting turns off summer time and returns to normal
timekeeping. •ON This setting turns on summer time and advances the current time by one hour.
5. When the summer time
setting is the way you want, use the CC
CC
Cbutton to
cycle the display through the settings shown below.
Summer Time
Home City
Code
Power Saving
12/24-hour
Timekeeping
Hour
Minute
Month YearDay
Seconds
Configuring Home Time Settings
(Scrolls Forward)
Hour
Minutes

—9 —
High-speed Lock •While holding down the Dbutton to start high-speed clockwise
movement of the hands, press the Bbutton to lock the
high-speed hand movement. You can then release the buttons.
•High-speed hand movement will continue until it completes a
12-hour cycle, or until you press any button to stop it.
•High-speed hand movement will also stop momentarily if an alarm
starts to sound. High-speed hand movement will resume after the alarm stops.
3.
When the setting is the way you want, press the AA
AA
A
button.
•This exits the setting screen and automatically synchronizes
the minute hand with the current seconds count.
•The display also will exit the setting screen automatically if
you do not perform any operation for about two or three minutes.
10.
When all of the settings are the way you want, press the
AA AA
Abutton.
•This exits the setting screen. •The display also will exit the setting screen automatically if
you do not perform any operation for about two or three minutes.
Digital-Analog Synchronization After adjustment of the digital time, the watch automatically adjusts its analog setting to match. •When adjusting the analog time, the hands move clockwise. •Depending on how many hours different the digital and analog
time settings are, it may take some time for the analog hand setting procedure to be finished.
Adjusting the Analog Time Setting You can use the Hand Setting Mode to manually adjust the analog time when it does not match the digital time. 1.
In the Hand Setting Mode, hold down the AA
AA
Abutton
for about two seconds.
•This will cause the hour and
minute setting of the digital time to flash on the display.
2.
Use the DD
DD
Dbutton to
adjust the hour and minute hands so they match the digital time.
•Each press of the Dbutton
moves the hands 20 seconds clockwise.
•Holding down the Dbutton
moves the hands at high speed.
(Forward)

— 10 —
3. DRAWINGS: MODULE QW-3367
3-1. LCD DIAGRAM
SAVE
CHARGE
L30
X9Y4
X10Y4
X11Y4
X16Y4
X15Y4
X14Y4
X13Y4
X12Y4
X4Y4
X3Y4
X2Y4
X1Y4
X0Y4
X5Y4
X6Y4
X7Y4
DST1
RECOVER
X8Y4
PM
SEG COM LC1 LC5LC4LC3LC2
L26
L22
L25
L24
L23
L21
L20
L19
L18
L17
L16
L15
L14
L13
L12
L11
L10
L 9
L 8
L 7
L 6 L29
L28
L27
X9Y3
X10Y3
X11Y3
X16Y3
X15Y3
X14Y3
X13Y3
X12Y3
X4Y3
X3Y3
X2Y3
X1Y3
X0Y3
X5Y3
X6Y3
X7Y3
W8
W9
W0
W1
X8Y3
A. LIGHT
X9Y2
X10Y2
X11Y2
X16Y2
X15Y2
X14Y2
X13Y2
X12Y2
X4Y2
X3Y2
X2Y2
X1Y2
X0Y2
X5Y2
X6Y2
X7Y2
X8Y2 X9Y1
X10Y1
X11Y1
X16Y1
X15Y1
X14Y1
X13Y1
X12Y1
X4Y1
X3Y1
X2Y1
X1Y1
X0Y1
X5Y1
X6Y1
X7Y1
X8Y1 X9Y0
X10Y0
X11Y0
X16Y0
X15Y0
X14Y0
X13Y0
X12Y0
X4Y0
X3Y0
X2Y0
X1Y0
X0Y0
X5Y0
X6Y0
X7Y0
W6
W7
W2
W5
W3
W4
SIG
ALM
X8Y0 SEG COM
L 9 L 8 L10 L11 L12 L13 L14 L15 L16 L17 L18 L19 L20 L21 L22 L23 L24 L28 L29 L30 LC4 LC2 L 7 LC5 LC3 L 6 LC1 L25 L26 L27
RECOVER
A. LIGHT
DST1
PM
CHARGE SAVE
X0
Y0
Y4
X16
SIGALM W0 W1
W2
W3
W4W5
W6
W7
W8 W9

—11 —
3-2. CIRCUIT DIAGRAM
✽ 1. No bonding ✽ 2. GND-Kl5: Open (No Soldering) GND-Kl6: Open (No Soldering) GND-Kl7: Open (No Soldering) ✽ 3. Latch type key ✽ 4. Short (Soldering) (R trimming) ✽ 5. Short (Soldering) (N trimming) ✽ 6. GNDB is used for the bias on the back of the tip. ✽ 7. L28~L30 are used as the static drive pins. ✽ 8. Motor drive pins (01 and 02) are used in this module. ✽ 9. Normal Low ✽ 10. LD2 (Normal Low) is used in this module.
✽ 11. LD3 (Normal High) is used in this module. ✽ 12. Cxt is not mounted in the specification for dual transmitters. ✽ 13. Cc, Crl1, Crl2, Crl3, Rxt3 and Xtal3 are not mounted in the specification
for single transmitter. ✽ 14. Rpd is not mounted in the specification which includes signal reception. ✽ 15. Short here with a soldering short pad when three LEDs are mounted. ✽ 16. Mount Tr2 only when one LED is mounted. ✽ 17. Short here with a soldering short pad only when one LED is mounted. ✽ 18. Inclination sensor ✽ 19. No parts except Rpd are mounted within the area of the dotted line in
modules without signal reception function.
GND VDD2
BAT
VCH
VDD3
VC1 VC2
C3
C2C5
XTB
Xtal
L6 - - - L30 LC1 - - - LC5
CT
LCD ( 2.8V 1/3b 1/5d )
LD1
S2
VDD1
C1
BD
C8
LL1
Tr1
Tr2
XT
T1 T2 T3
KI1 KI2 KI3 KI4 KI7 KI5 KI6 KI8 KI9
S1
SCR SCIN
RP1RP2
Cp
PZ
VDSP
C4
VC3 VC4
Di1
VHF
C6
SDO SCK CSB
AC T4
KC4 KC3 KC2 KC1
R1
R2
VSC
C7
SC
C9
R3
Z
VPM
Di2 R1
Rb
GNDB
S4 S3
SDI
N1 N2
KS
An.B1 L32 - - L36
L3 - L5, L31,L37 - - - L55
L1 L2
Cxt
Rxt2
Ccp
Cbat
Rbat
Xtal2
ANT
Rcp
Rxt3
Xtal3
Cc
FET-S
GND4
Asel Pon
P3-2 Hold P14
FET-D
P1 P2
GND3 GND2
P3-1 P4 P5
GND5
P12 P13
GND1
TCO VCC
P9 P7
Crh1 Crh2 Crh3 Crl1 Crl2 Crl3
VOUT0
COILB
LED
DRIVER
5ENABLE 4(N.C.)
3GND
2(N.C.)
1LEDOUT (N.C.)A
(N.C.)9
VDD8
CE27
6CE1
LED1
Di LL2
R1
LED2R1 LED3R1 OP1 OP2
Cld1
Cld2
Rpd
✽9
✽6
✽15
✽16
✽17
✽4 ✽5
✽18
✽5 ✽4 ✽4
✽3 ✽3 ✽3 ✽3 ✽3 ✽3 ✽3
✽8✽8✽7
✽10 ✽13
✽13
✽19
✽13 ✽13
✽14
✽13✽12 ✽13
✽11
✽1✽1✽1✽1
✽1
✽3 ✽3
✽2
✽2 ✽2
ISB
LSI
TOTAL 106PINS
BONDING 79PINS

—12 —
3-3. CHECKING TERMINALS AND COMPONENTS
Short pad for R trimming
Short pad for N trimming
Short pad for switching modules
CUSHION 506
(72119631)
OSCILLATOR/CRYSTAL
(71106336)
CUSHION 466-A
(72119576)
TAPE/ADHESIVE
(10006652) CAPACITOR/TRIMMER (10097666)
SENSOR/TILT
(71055275)
CUSHION 506
(72119631)
R3
R2
R1
P9
Ccp
Ccp
GND
AC
L1
GND
GND
KI5
KI6
GND
KI7
GND
VC1
KI8
KI8
VDSP
P13
P1
P2
VSC
GNDB
GND
VCC
KI9
GND
VCC
GND
XT
XT
P2
GND
LL1
VDD2
GND
LL1
TR1
GND
N2
GND
GND
VDSP
VC2VC1
GND
VDD1
N1
GND
GND
GND
GND
FET-D
XTB
LL1
TR1
BD
VDD2
GND
TR1
LL1
VDD2
GND
VCH
VDD2
P14P12
FET-S
KI3
VDD2
KI2
GND
KI2
KI4
KI3 KI1
KI4
KI1
VHF
GND
VDD2 OP
LEDOUT
OP
KI8
KI1
VOUT
GND
LED2
LEDOUT
VOUT
COIL
LEDOUT
LED1
SCIN
SCR
SCIN
VSC
VDD2
COIL
GND
VOUT
GND
VDD2
GND
LEDOUT
GND
GND
LD1
CE1 CE2
VSC
L 9 L 8 L10 L11 L12 L13 L14 L15 L16 L17 L18 L19 L20 L21 L22 L23 L24 L25 L26 L27 L28 L29 L30
LED2
VOUT
LED1
VDD2
VOUT
COIL
P4P5P7
GND SCIN GND
GND
X3 X2P5
CE2CE1 GND VOUT
OP
LED3
LEDOUT
GND LD1
GND
VC4
VDD3
VC3
LC4 LC2 L 7
VSC
LC5 LC3 L 6 LC1
X2
P7
P7
X3 L1
L2
KI4 KI2
KI3
GND
LED3
17. PCB ASS'Y
(76408229)

— 13 —
4. EXPLODED VIEW: MODULE QW-3367
23 (10053572) 23 (10053572)
22 (72301025)
26 (72240652)
27 (10155787)
18 (72280511)
12 (10155789)
2 (10065657)
Battery storage (CTL1616)
15 (10157977)
Casing parts: SOLAR CELL
10 (10155782)
Casing parts: DIAL
SPACER
5 (10016598)
17 (76408229)
PCB Ass'y
8 (10014042)
21 (72019249)
13 (10155784)
8 (10014042)
9 (72311777)
14 (10065664)
8 (10014042)
1 (76407573)
4 (10130977)
18 (72280511)
11 (10016591)
24 (10155788)
8 (10014042)
19 (10123230)
19 (10123230)
19 (10123230)

5. PARTS LIST: MODULE QW-3367
Note: 1. Prices and specifications are subject to change without prior notice.
2. Spare parts are classified as follows according to their importance in after-sales service.
A Rank ---------------------------------------- Very Important
B Rank ---------------------------------------- Important
C Rank ---------------------------------------
-
Less important
3. Batteries in Bulk pack on the tray will be supplied from our Overseas Spare Parts Section under charge basis.
Batteries in Blister pack will be supplied from our Sales Department.
4. As for order/supply of spare parts, refer to the separate publication "GUIDE BOOK for spare parts supply".
Item Code No. Parts Name S
p
ecification A
pp
licable Q R
76408042 MODULE/WITH MOVEMENT QW-3367AT-01TK GW-1500J-1A 1 A
1 76407573 ANALOG BLOCK QW-3329MV-82TK QW-3367AT-01TK 1 A
2 10065657 BATTERY/STORAGE CTL1616 QW-3367AT-01TK 1 B
3 10097666 CAPACITOR/TRIMMER CTZ2E-25C-W2-P QW-3367AT-01TK 1 B
4 10130977 COIL ASS'Y RJQ513694*001V01 QW-3367AT-01TK 1 A
5 10016598 CONTACT/BATTERY(-) 2348 Q366836-1 QW-3367AT-01TK 1 C
6 72119576 CUSHION 466-A Q48342A-1 QW-3367AT-01TK 1 C
7 72119631 CUSHION 506 Q49364-1 QW-3367AT-01TK 2 C
8 10014042 CUSHION 2306-1 Q466421-1 QW-3367AT-01TK 2 C
9 72311777 HOLDER 1381 Q456843-1 QW-3367AT-01TK 1 C
10 10155782 HOLDER 3329 RJQ518016-001V02 QW-3367AT-01TK 1 C
11 10016591 HOLDER/BATTERY 2348 Q366808-1 QW-3367AT-01TK 1 C
12 10155789 HOLDER/HOUR WHEEL 3329 RJQ517854-001V01 QW-3367AT-01TK 1 C
13 10155784 INTERCONNECTOR/ 3329 RJQ518251-001V01 QW-3367AT-01TK 1 C
14 10065664 LABEL/ 2368 Q468543A-1 QW-3367AT-01TK 1 C
15 10157977 LCD K3364-01THP QW-3367AT-01TK 1 A
16 71106336 OSCILLATOR/CRYSTAL CFS-145LM07 QW-3367AT-01TK 1 B
17 76408229 PCB ASS'Y RJQ518658*003V01TK QW-3367AT-01TK 1 A
18 72280511 SCREW/FLAT 388 Q422638-1 QW-3367AT-01TK 2 B
19 10123230 SCREW/FLAT2730 RJQ513792-001V01 QW-3367AT-01TK 4 B
20 71055275 SENSOR/TILT TS-2418-P QW-3367AT-01TK 1 B
21 72019249 SPRING/COIL 675-3 Q413389A-1 QW-3367AT-01TK 1 B
22 72301025 SPRING/COIL 1510-1 Q459238-1 QW-3367AT-01TK 3 B
23 10053572 SPRING/COIL 2375-1 Q468078-1 QW-3367AT-01TK 4 B
24 10155788 SUPPORTER/PCB ASSY 3329 RJQ517852-001V01 QW-3367AT-01TK 1 C
25 10006652 TAPE/ADHESIVE Q465964-1 QW-3367AT-01TK 1 C
26 72240652 WASHER Q421691-1 QW-3367AT-01TK 1 C
27 10155787 WHEEL/HOUR 3329 RJQ517619-001V01 QW-3367AT-01TK 1 C
For the
p
rices and minimum order/su
pp
l
y
q
uantities of the above
p
arts, refer to the Parts Price List P.P.L.-622.
Notes: Q - Used quantity
R - Rank — 14 —

—15 —
6. PRECAUTIONS FOR REPAIR: MODULE QW-3367
6-1. AC (ALL CLEAR) AND REMOVING OF MODULE
1. Perform AC (ALL CLEAR) when inserting a new battery, or else the memories and/ or counters may give
erratic displays.
Touch the AC contact and the main plate with the metallic tweezers.
The contact should be made for about two seconds.
2. On removing of the module from the case, please insert the precision screw driver between the module and
the case pointed by arrows.
6-2. ACCURACY CHECKING
Check the accuracy of the module with the quartz timer after switching the module to “ACCURACY CHECKING
MODE”.
The operations are shown below:
A) SWITCHING TO “ACCURACY CHECKING MODE”
While pressing the D button, press Aand Cbuttons at the normal timekeeping mode.
Then all the segments are displayed and the LCD drive signals are changed to the static drive signal of “32
Hz”so that you can check the accuracy with the quartz timer.
B) CANCELLATION OF THE “ACCURACY CHECKING MODE”
Press any button.
Then the display is returned to its original state.
NOTE: The “ACCURACY CHECKING MODE”will
automatically return to the regular mode
in 1 ~ 2 hour(s) without any operation. QW-3367
A
C
B
D

— 16 —
6-3. SOLAR CELL-PCB ASS'Y CONTACT CHECKING
Check a Solar cell and PCB ass'y are contacted correctly by contact spring, when a module is
disassembled.
1. To enter TEST mode.
1) While pressing Dbutton, press Aand Bbuttons in the normal timekeeping mode.
2. Check a Solar cell and PCB ass'y contact in the following order.
1) Display side up and place the watch on the desk.
2) Check the display indicates as figure 2.
3) Display side down and place the watch on the desk more than two seconds.
Or go to a dark room and place the watch more than two seconds.
4) Check the display indicates as figure 3.
If “ ” is not appeared on the display, disassemble again the module and check the contact spring
between the Solar cell and PCB.
3. To exit from TEST mode
Press any button.
Figure 3
Figure 1 Figure 2
Press D, Aand Bbuttons
D
B
C
A
Place the watch in a dark
room more than two seconds.
“ ” appears on the display.

—17 —
6-4. HOW TO CHECK TILT SENSOR
1) Press A, Band Cbuttons at the normal timekeeping mode.
2) Check the display indicates as figure 4.
3) Tilt the watch towards you more than 40 degrees.
4) Check the display indicates as figure 5.
6-5. TIME CALIBRATION SIGNAL TEST MODE
1) Press B, Cand Dbutton at the same time to enter the test mode.
2) Press Abutton to switch from one signal source to another.
J4 : Fukushima, Japan (Call Sign: JJY, Frequency: 40kHz)
J6 : Fukuoka/Saga, Japan (Call Sign: JJY, Frequency: 60kHz)
U6: Fort Collins, Colorado (Call Sign: WWVB, Frequency: 60kHz)
3) Press Dbutton to start signal reception.
Figure 4 Figure 5
Tilt the watch towards you
more than 40°More than 40°
“TL”appears on the display.
“”appears on the display.

—18 —
7. TROUBLESHOOTING: MODULE QW-3367
This is a flow chart about signal reception.
Yes
No
Yes
No
Yes
No
Yes
No
START
Check whether the Home City
code is selected correctly.
To perform MANUAL time
calibration signal reception
OK
There is a possibility of location bad.
To perform AUTO time
calibration signal reception
Replace the PCB ass'y
Signal
reception OK?
Signal
reception OK?
Signal
reception OK?
Replace the Case center
ass'y with antenna
Signal
reception OK?
OK
OK
OK
