Cast Tec COUGAR INSET User manual

Cougar Inset Manual (Ref No: MI0405 V1)
COUGAR INSET
Multi-fuel stove
Ref No: MI 0405 V1
ECO 2022 Ready
Version 01 (23.01.2020)
Installation and Operating Instructions
The Cougar Inset stove must be installed by a suitably qualified engineer.
Instructions must be given to the user when installation is complete, and the installer must
instruct user of the correct use of the appliance and control operation.
The Cougar Inset is manufactured to EN13229:2006 for Cast Tec Ltd. East Side,
Tyne Dock, South Shields NE33 5SP
Website: www.casttec.co.uk Tel. [phone]
C a s t T e c

Cougar Inset Manual (Ref No: MI0405 V1)
2 Cast Tec Ltd
TABLE OF CONTENTS
INSTALLATION ESSENTIALS .............................................................. 3
PRE-INSTALLATION CHECKS ............................................................ 3
THE CLEAN AIR ACT 1993 AND SMOKE CONTROL AREAS ............ 4
TECHNICAL INFORMATION ................................................................ 5
INSTALLATION ..................................................................................... 6
FITTING INSTRUCTIONS .................................................................... 8
DOWN DRAUGHTS ............................................................................. 9
VENTILATION AND COMBUSTION AIR REQUIREMENTS ................ 9
EXTRACTOR FAN .............................................................................. 11
COMMISSIONING & HANDOVER ..................................................... 11
LOCATION .......................................................................................... 11
CLEARANCE TO COMBUSTIBLES ................................................... 11
FLOOR PROTECTION ....................................................................... 13
CHOICE OF FUEL .............................................................................. 13
USE .................................................................................................... 14
ASH REMOVAL .................................................................................. 17
MAINTENANCE .................................................................................. 18
SPARE PARTS ................................................................................... 19
OPERATIONAL PROBLEMS & TROUBLESHOOTING ..................... 22
ENERGY LABEL ................................................................................. 23

Cougar Inset Manual (Ref No: MI0405 V1)
3 Cast Tec Ltd
INSTALLATION ESSENTIALS
The installation of a fireplace or stove must be in accordance with local
codes and regulations in each country and other national and European
standards that apply.
Your Cougar Inset stove must be installed by a Competent Person registered
with a Government Approved Competent Person’s Scheme.
In the UK, Hetas is a qualified body that can assist with general advise,
regulation, installation, type of fuel usage and can provide a list of registered
Competent Persons: Website is www.hetas.co.uk
PRE-INSTALLATION CHECKS
Both an installation manual with technical data and a manual on general use
and maintenance are enclosed with the product. The installation can only be
used after it has been inspected by a qualified inspector. A name plate of
heat-resistant material is affixed to the product. This contains information
about identification and documentation for the product.

Cougar Inset Manual (Ref No: MI0405 V1)
4 Cast Tec Ltd
THE CLEAN AIR ACT 1993 AND SMOKE CONTROL AREAS
The CastTec Cougar Inset multi-fuel stove has been recommended for
exemption from UK smoke control areas when burning wood. Note that
authorised fuels can also be used in a Smoke Control Area, details of
authorised fuels can be found at https://smokecontrol.defra.gov.uk/fuels.php.
Under the Clean Air Act local authorities may declare the whole or part of the
district of the authority to be a smoke control area. It is an offence to emit
smoke from a chimney of a building, from a furnace or from a fixed boiler if
located in a designated smoke control area. It is also an offence to acquire an
“unauthorised fuel” for use within a smoke control area unless it is used in an
“exempt appliance (“exempted” from the controls which generally apply in the
smoke control area).
In England appliances are exempted by publication on a list by the Secretary
of State in accordance with changes made to sections 20 and 21 of the Clean
Air Act 1993 by section 15 of the Deregulation Act 2015. In Scotland
appliances are exempted by publication on a list by Scottish Ministers under
section 50 of the Regulatory Reform (Scotland) Act 2014. Similarly, in
Northern Ireland appliances are exempted by publication on a list by the
Department of Agriculture, Environment and Rural Affairs under Section 16 of
the Environmental Better Regulation Act (Northern Ireland) 2016. In Wales
appliances are exempted by regulations made by Welsh Ministers.
Further information on the requirements of the Clean Air Act can be found
here: https://www.gov.uk/smoke-control-area-rules
Your local authority is responsible for implementing the Clean Air Act 1993
including designation and supervision of smoke control areas and you can
contact them for details of Clean Air Act requirements.

Cougar Inset Manual (Ref No: MI0405 V1)
5 Cast Tec Ltd

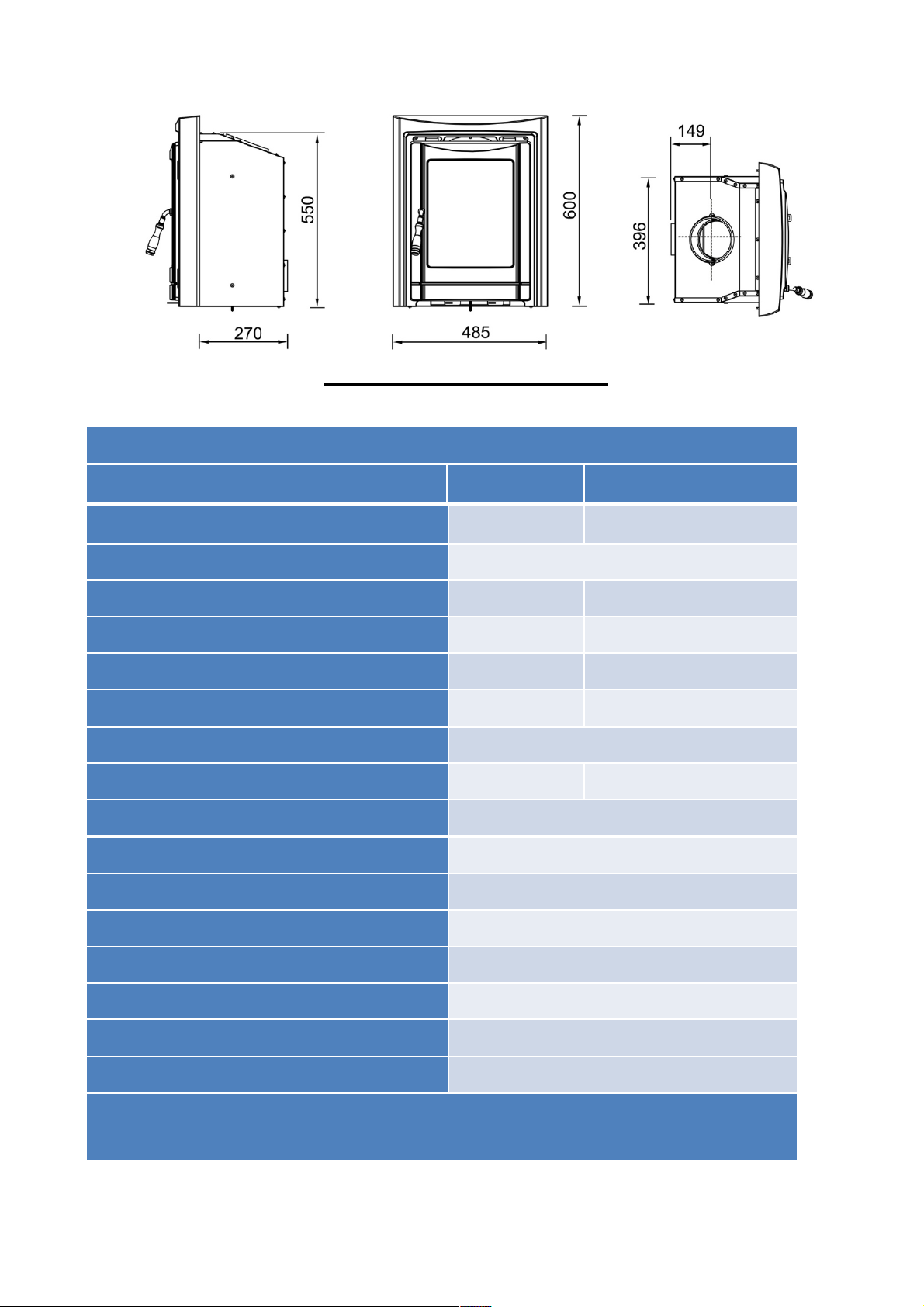

TECHNICAL INFORMATION
TECHNICAL DATA ACCORDING TO NEN EN 13229:2001 and NEN EN13229 - A2: 2004
COUGAR INSET
WOOD
MSF
NOMINAL HEAT OUTPUT kW
4.6
4.0
WEIGHT
75KG
TOTAL EFFICIENCY %
83.3%
83.8%
MEAN CO (at 13 % O2)
0.12
0.05
FLUE GAS MASS FLOW G/S
4.2
3.2
MEAN FLUE GAS TEMP. °C
194
221
MINIMUM FLUE SIZE
125MM
DIST. COMBUSTIBLES
350MM
Above:600MM
MATERIAL
CAST-IRON
FINISH
HIGH-TEMP. RESISTANCE PAINT
FUEL
MULTI-FUEL
LOG LENGTH
200MM
FLUE OUTLET
TOP
FLUE PIPE DIMENSION
125MM
RECOMMENDED CHIMNEY DRAUGHT
12PA
OPERATIONAL MODE
INTERMITTENT*
*Intermittent combustion in this context means normal use of the STOVE,
i.e. fuel is added as soon as the fuel has burnt down. This is not intending for overnight burning.

Cougar Inset Manual (Ref No: MI0405 V1)
6 Cast Tec Ltd
INSTALLATION
1. Unpacking the Stove
After removing the outer packaging. The door handle and operating tools can
be found inside the stove, remove these and attach the handle. Due to the
weight of the appliance, we recommend that two people perform the
assembly and installation procedure.
2. Installing this Stove
The stove and chimney installations MUST comply with all current National
and Local Building Regulations; your approved dealer or your local building
control officer can advise regarding this. Ultimately, it is you and your installer
who is responsible that the installation complies.
3. Pre-installation
After removing the stove from the packaging, open the fire door and remove
the loose packing. Prior to installation all the internal components of the stove
are removed to gain access to fixings and to
make it lighter for installation.
Remove the refractory fire bricks, these
bricks are loose and just need to be lifted
clear of the grate support plate before they
can be removed.
To remove the loose baffle, lift the front edge
until it hits the top and then slide it forward.
Then drop the rear edge and the baffle will
slide down. To remove the fixed baffle,
loosen the two screws and slide it forwards,
it will then drop down.
Next, remove the grate by pushing it from
underneath, the riddling bar is not fixed to
the grate. This will allow access to four M6
fixings which will attach the stove to the
outer casing. Remove the 4 fixings, allowing
the insert stove to be removed from the
external casing.

Cougar Inset Manual (Ref No: MI0405 V1)
7 Cast Tec Ltd
4. Chimney
THIS PRODUCT IS SUITABLE FOR
CHIMNEY INSTALLATION ONLY.
The stove is a radiant room heater and must
be connected to a chimney of the proper size
and type. The chimney must have a cross
sectional area of at least 124cm2 or a
diameter of at least 125mm. Never connect to
a smaller size chimney. Do not connect to a
chimney serving another appliance. Minimum
chimney height 4.5 meters from floor on
which stove is installed.
It is recommended that a flue liner of
diameter 125mm be used to line the chimney,
the liner should be approved for use with
solid fuel. (See Fig. 1).
It is permitted to connect using a closure
plate and a connection piece from the stove
to the closure plate (See Fig 2), provided that
the chimney is of sound construction with no leaks or cracks, a clay flue liner
has been used that can withstand up to 1000oC, the clay liner has a diameter
no greater than 200mm.
ALL FLUE INSTALLATIONS ARE THE RESPONSIBILITY OF THE
CUSTOMER.
The stove must be connected to a chimney with a minimum continuous
draught of 12 Pascal’s (.05” WG). Poor draught conditions will result in poor
performance.

Cougar Inset Manual (Ref No: MI0405 V1)
8 Cast Tec Ltd

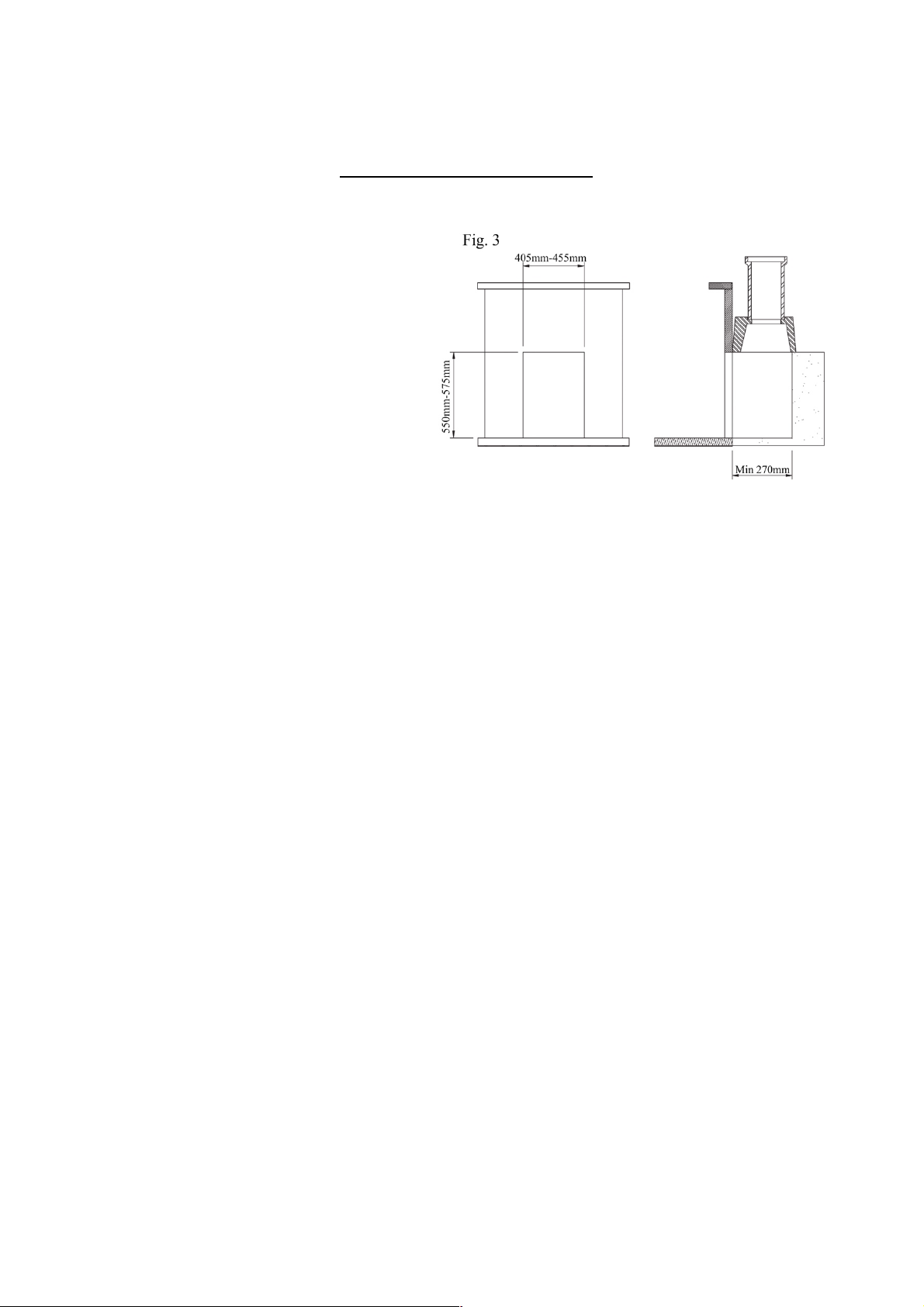

FITTING INSTRUCTIONS
Step 1. Prepare the fireplace area
with fireback or milner brick
removal. Ensure the
opening is suitable for fitting
of the inset stove opening
required, i.e. remove fire
surround trim if fitted. (See
Fig 3)
Step 2. Ensure the floor area is
level with the hearth, this
area needs to be level as
the insert fire is screw fixed
to the floor.
Step 3. Lay the external casing into the opening and position so that the front
edge protrudes 20mm past the front edge of the opening.
Step 4. Mark the drill location and drill the holes using a 4.5mm drill bit. Fix the
casing to the floor using the self-tapping screws provided.
Step 5. Lift the stove into the external casing. Remove all internal parts as per
pre-assembly instructions prior to lifting it. The stove can be lifted into
the casing approximately 125mm first and then it can be pushed into
the final position while taking care to lift the front edge to preserve the
hearth.
Step 6. Drop the flexi flue liner down through the chimney and into the stove.
Step 7. Lay the sealing gasket on to the flue spigot, and then fit the flue spigot
to the end of the flexi flue liner using the 2 grub screws provided.
Step 8. Then using the M6 screws secure the stove to the convection
chamber. Push the insert stove against the fireplace before fully
tightening these bolts.
Step 9. Push the flexi liner back up through the flue outlet and fix the flue
spigot into position using the M6 nuts provided. It may be necessary to
cut a prop to hold the spigot in place while the fixings are being
attached.
Step 10. Complete the installation of the flexi liner at the top of the chimney in
accordance with the manufacturer’s instructions.

Cougar Inset Manual (Ref No: MI0405 V1)
9 Cast Tec Ltd
DOWN DRAUGHTS
However well designed constructed and
positioned, the satisfactory performance of the
flue can be adversely affected by down
draught caused by nearby hills, adjacent tall
buildings or trees. These can deflect wind to
blow directly down the flue or create a zone of
low pressure over the terminal. A suitable anti-
down draught terminal or cowl will usually
effectively combat direct down blow but no
cowl is likely to prevent down draught due to a
low pressure zone. (See Fig.5)
VENTILATION AND COMBUSTION AIR
REQUIREMENTS
This appliance is rated less than 5kW,
therefore there is no mandatory requirements
for additional air unless a flue draught
stabiliser is fitted then the air requirement is
15cm
2
. However, we suggest that it is
advantageous to provide an air supply into the
room.
When calculating combustion air requirements
for this appliance use the following equation:
550mm
2
per each kW of rated output above 5
kW should be provided, where a flue draught
stabiliser is used the total free area shall be
increased by 300mm
2
for each kW of rated
output. If there is another appliance using air
fitted in the same or adjacent room, it will be
necessary to provide an additional air supply.
All materials used in the manufacture of air vents should be such that the
vent is dimensionally stable, corrosion resistant, and no provision for closure.
The effective free area of any vent should be ascertained before installation.
The effect of any grills should be allowed for when determining the effective
free area of any vent.

Cougar Inset Manual (Ref No: MI0405 V1)
10 Cast Tec Ltd
Air vents direct to the outside of the building should be located so that any air
current produced will not pass through normally occupied areas of the room.
An air vent outside the building should not be located less than the
dimensions specified within the Building Regulations and B.S. 8303: Part 1
from any part of any flue terminal. These air vents must also be satisfactorily
fireproofed as per Building Regulations and B.S. 8303: Part 1.
Air vents in internal walls should not communicate with bedrooms, bedsits,
toilets, bathrooms or rooms containing a shower.
Air vents traversing cavity walls should include a continuous duct across the
cavity. The duct should be installed in such a manner as not to impair the
weather resistance of the cavity.
Joints between air vents and outside walls should be sealed to prevent the
ingress of moisture. Existing air vents should be of the correct size and unob-
structed for the appliance in use. If there is an extraction fan fitted in adjacent
rooms where this appliance is fitted, additional air vents may be required to
alleviate the possibility of spillage of products of combustion from the
appliance/flue while the fan is in operation. Refer to B.S. 8303 Part 1.
Where such an installation exists, a test for spillage should be made with the
fan or fans and other appliances using air in operation at full rate, (i.e. extrac-
tion fans, tumble dryers) with all external doors and windows closed.
If spillage occurs following the above operation, an additional air vent of
sufficient size to prevent this occurrence should be installed.
Although the stove has provision for external air supply from
the rear, when this is not used. DO NOT REMOVE COVER
FROM THE BACK OUTLET. The stove can be flued like a
standard stove. Provided the Room is Sufficiently Ventilated.

Cougar Inset Manual (Ref No: MI0405 V1)
11 Cast Tec Ltd
EXTRACTOR FAN
There must not be an extractor fan fitted in the same room as the stove as
this can cause the stove to emit smoke and fumes into the room.
COMMISSIONING & HANDOVER
On completion of the installation allow a suitable period of time for any fire
cement and mortar to dry out, when a small fire may be lit and checked to
ensure the smoke and fumes are taken from the stove up the chimney and
emitted safely to the atmosphere. Do not run at full output for at least 24
hours.
On completion of the installation and commissioning ensure that the
operating instructions for the stove are left with the customer. Ensure to
advise the customer on the correct use of the appliance with the fuels likely to
be used on the stove and warn them to use only the recommended fuels for
the stove.
Advise the user what to do should smoke or fumes be emitted from the stove.
The customer should be warned to use a fire guard to BS 6539 in the pres-
ence of children, aged and/or infirm persons
LOCATION
There are several conditions to be considered in selecting a location for your
stove.
A. This product is designed to be installed into a fireplace.
B. Allowances for proper clearances to combustibles.
CLEARANCE TO COMBUSTIBLES
This appliance must be installed in a recess, the recess should not contain
any combustible materials. Wooden battens and plaster board should not be
used within the clearance to combustibles. The minimum clearance to
combustibles required is 600mm to the top, 350mm to the sides, 550mm
directly to the front and 350mm to any combustible flooring.
If the mantelpiece protrudes further than 100mm from the fireplace, then it will
be necessary to have further clearance to the top of the stove. The distance
the mantle protrudes past the 100mm should be added to the clearance.

Cougar Inset Manual (Ref No: MI0405 V1)
12 Cast Tec Ltd
For example, if the mantle protrudes 200mm, the clearance to the mantle
should be 650mm. (See-Fig 6).

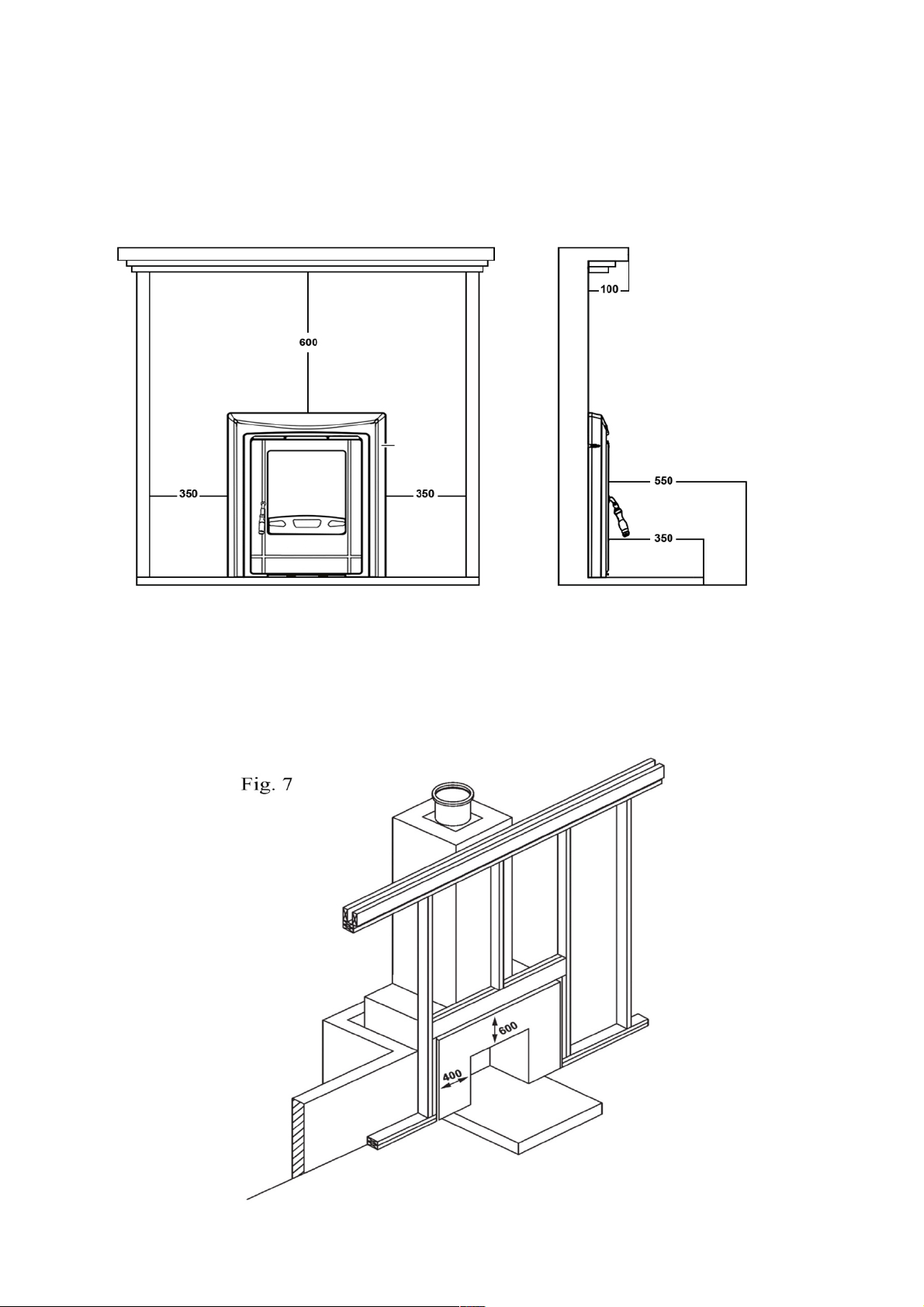

Fig. 6
If there is a studded wall surrounding the fireplace as in Fig.6, ensure the clearances
in this Fig7 are adhered to.

Cougar Inset Manual (Ref No: MI0405 V1)
13 Cast Tec Ltd
FLOOR PROTECTION
It is recommended that this appliance is installed on a solid, level, concrete
base, a non-combustible hearth conforming to current Building Regulations
must extend to the front of the appliance.
CHOICE OF FUEL
1. Recommended Fuel: Wood
o Use hard wood logs.
Although you can fire this product with almost all kinds of wood, you should
not fire with wet wood, or unseasoned wood. Wood ought to be stored under
a roof for at least 1 year, and preferably 2 years, with free access to wind.
Wood should be chopped as soon as possible after felling if it is to dry
quickly. The wood can be used once the moisture content is less than 20%.
During the EN test, all stoves are tested with wood with a moisture content of
(16 ± 4) %.
• Hardwood has a higher calorific value as the same volume (oak, ash,
maple, birch, elm, beech, etc.).
• Pieces of wood with a diameter greater than 10 cm should always be
chopped. The pieces of wood should be short enough to be able to lie
flat over the layer of embers, with air at both ends. The maximum length
of fuel in the stove is no more than 30cm.
2. Recommended Fuel: Solid Fuel
o Smokeless fuels, including coalite nuts, phurnacite, ancit and extracite.
Not Recommended as Fuel:
• “Green wood”. Green or damp wood reduces stove efficiency and soils
the glass, the internal walls and the flue (soot, tar, etc.).
• “used timbers”. Burning treated wood (railway sleepers, telegraph
poles, offcuts of plywood or chip board, pallets, etc.) quickly clogs the
flue ways (soot, tar, etc.), pollutes the environment (pollution and smell,
etc.) and cause the fire to burn too quickly and overheat.
• “Green wood” and “recovered wood” can eventually cause a chimney
fire.
• Prohibited fuel: plastic bags and any form of bituminous coal or
petroleum-based coke. This may harm the product and pollute the
atmosphere.

Cougar Inset Manual (Ref No: MI0405 V1)
14 Cast Tec Ltd
USE
Odours when using the fireplace for the first time
• Painted products: the fireplace may emit an irritating gas when used
for the first time, and it may smell a little. The gas is not toxic, but the
room should be thoroughly ventilated. Let the fire burn with a high
draught until all traces of the gas have disappeared and no smoke or
smells can be detected.
• Enameled products: Condensation may form on the surface of the
fireplace the first few times it is used. This must be wiped off to prevent
permanent stains forming when the surface heats up.
Air Control: Figure 8
The amount of heat emitted by the stove is regulated using two air controls.
The primary air supply, where air passes up through the riddling grate, is
controlled using the right-hand lever and the secondary air (airwash system),
which is supplied to the combustion over the glass, is controlled using the
left-hand air control.
1. USE WITH WOOD
Lighting - Figure 8
• Pull the Secondary left-hand air control to open. Pull the Primary right-
hand Air Control open.
• Lay firelighters or rolled up newspapers on the grate with a reasonable
quantity, if necessary, of dry kindling wood. Place 2 or 3 small logs on
top.
• Light the newspaper or firelighters using a long taper and close the
door.
• When the fire is burning fiercely, add further logs of a diameter up to 10
cm.
• When the stove body is very hot, Push in the right-hand primary Air
Control to close.
• The burning rate can now be lowered by moving the left-hand
secondary air control to smaller air inlet.

Cougar Inset Manual (Ref No: MI0405 V1)
15 Cast Tec Ltd
Re-fueling- Figure 8
● Pull the left-hand secondary air control open. Pull the right-hand
Primary air control open.
● Open the glass door and add logs. (To load fuel, the door should be
opened slowly, avoiding a sudden rush of intake air, so that smoke does
not escape into the room.)
● Leave the right-hand Primary air control open a few minutes to allow the
initial volatiles in the wood to burn.
● Push in the right-hand Primary air control to close air supply.
Very Important: Wood is a material that contains a great deal of gas
(approximately 75 %). The gases are released when the wood is lit and
heated up. For this reason, it is important that the gases are ignited quickly
after stoking. If the wood just lies smoldering, especially after re-stoking, a lot
of smoke is created, which, in the worst case, may cause an explosive
ignition of the gasses, resulting in damage to the stove.
In order to ignite the gases that are released from the wood, and to keep
clear, lasting flames during the combustion process, it is important to let in the
required quantity of oxygen (air supply) at all times. The setting of the air
supply, the method of ignition and the lighting intervals depend on the draught
in the chimney, the wind and weather, the amount of heat required the fuel,
etc. This means that it may take some time before you get to know the correct
functioning of the stove under any given circumstances.
2. USE WITH SOLID FUEL
Lighting - Figure 8
● Pull the Secondary left-hand air control to open. Pull the Primary right-
hand Air Control open.
● Lay firelighters or rolled up newspapers on the grate with a reasonable
quantity, if necessary, of dry kindling wood. Place a small quantity of
solid fuel on top.
● Light the newspaper or firelighters using a long taper and close the
door.
● When the fire is burning fiercely, add further fuel.
● When the stove body is hot, Push in the left-hand secondary Air Control
to close.

Cougar Inset Manual (Ref No: MI0405 V1)
16 Cast Tec Ltd
Re-fueling - Figure 8
● Pull the right-hand Primary air control open
● Open the glass door and add fuel. (To load fuel, the door should be
opened slowly, avoiding a sudden rush of intake air, so that smoke does
not escape into the room.)
● Leave the right-hand Primary air control open a few minutes to allow the
initial volatiles in the fuel to burn.
● The burning rate can now be adjusted by adjusting the right-hand
Primary air control lever.
1) CastTec stove appliances have air systems providing cleaner burning,
and greater efficiency and control. Please see diagram (Figure 8), to
view where the various air controls are located on your CastTec Stove
2) Primary Air (Right Hand Lever):
Pull this lever out opens the primary
air and allows air into the stove. You
would normally pull this lever when
starting a fire to allow air into the
stove for maximum combustion.
3) Secondary Air (Airwash) (Left
Hand Lever): Pulling this lever out
opens the secondary air control.
This allows a film of air to pass over
the glass which in turn keeps the
glass clean. Please note the glass
may become visibly darker when
the stove is cold.
DO NOT USE YOUR BARE HANDS
Stove Parts become very hot while the stove is
running so should not be touched with bare hands.
Special operating tools and or a glove are provided for
operation of the hot stove.
Pull out lever to open secondary air
Push in lever to close secondary air
Pull out lever to open primary air
Push in lever to close primary air
Fig. 8

Cougar Inset Manual (Ref No: MI0405 V1)
17 Cast Tec Ltd
Very Important: The stove door should never be opened when the stove
is being fired vigorously.
● We would strongly recommend that you do not leave your stove
alight at night. It harms the environment, and constitutes very poor
use of the wood, as the gases in the wood do not ignite at the low
temperature but settle as soot (unburned gases) in the chimney and
stove. Extreme conditions, such as poor draught in the chimney,
large quantities of wood or wet wood, may, in the worst-case
scenario, cause an explosive ignition.
● When firing in the summer period, when there is minimal need for
heat, the combustion will be poor. The stove provides too much
heat, so the combustion should be reduced. But always remember
to make sure that there are lasting flames until the wood becomes
charcoal. If you want a weaker fire, stoke up using less wood.
● If you fire the stove using wet wood, a lot of the fuel’s thermal energy
will be spent forcing the water out of the wood, without releasing
any heat to the stove. This incomplete combustion results in a layer
of soot being left in the stove, pipe and chimney.
ASH REMOVAL
Fig. 9 (Use of ashpan)
It is essential to keep the grate free
from a heavy buildup of ashes. This
product is equipped with a grate
riddling device which is used to
“shake” ashes off the grate into the
ash pan. Whenever the stove is
burning without life when the lower
control is open, use the riddling lever
to clear the grate of surplus ashes.
If burning solid fuel, always empty
the ash pan at least once a day or whenever it is full of ashes. Never allow
the ashpan to overfill allowing ash to be in contact with the underside of the
grate. If this condition is allowed, the grate will wear out pre-maturely.

Cougar Inset Manual (Ref No: MI0405 V1)
18 Cast Tec Ltd
MAINTENANCE
• Cleaning Glass
o This product is equipped with an air wash for the glass. Air is
sucked in through the air vent above the fireplace and down along
the inside of the glass.
o However, some soot will always stick to the glass, but the quantity
will depend on the local draught conditions and adjustment of the
air wash vent. Most of the soot layer will normally be burned off
when the air wash vent is opened all the way and a fire is burning
briskly in the fireplace.
o Good advice! For normal cleaning, moisten a paper towel with
warm water and add some ash from the burn chamber. Rub it
over the glass and then clean the glass with clean water. Dry well
and if it is necessary to clean the glass more thoroughly, we
recommend using a glass cleaner (follow the instructions on the
bottle).
• External Surface Cleaning
o The cast surface of the stove is painted with heat-resistant paint. It
is best maintained by simply vacuuming it with a soft brush
attachment or wiping it down with a dry, dust-free cloth.
o If the stove is used too vigorously, the painted surface may assume
a greyish tinge over time, but the stove can easily be freshened
up with spray paint, which is available from your local retailer.
• Gaskets
o The gaskets in the door will wear out over time and should be
replaced as required in order to prevent runaway combustion.

Cougar Inset Manual (Ref No: MI0405 V1)
19 Cast Tec Ltd
SPARE PARTS
Over time you may require replacement parts for your CastTec stove. Replacement parts are available through your local stockist.
Please use the below diagram to establish the part you require for your stove. Please ensure you quote model, name and also
serial number of stove when ordering spare parts.
ONLY USE GENUINE
CASTTEC APPROVED
REPLACEMENT PARTS
FOR YOUR STOVE.




















































Cougar Inset Manual (Ref No: MI0405 V1)
20 Cast Tec Ltd
SPARE PARTS TABLE
No.
Name
Code
Quantity
1
Fire bar
I1120V2
1
2
Ashpan handle
CA0105
1
3
Grate
MI040514
1
4
Door
I14U07
1
5
Frame
I17U03
1
6
Collar
125Y
1
7
Left & Right ash damper
MI04055758
2
8
Baffle
CA1911-I17U-02
1
9
Baffle part
CA1911-I17U-01
1
10
Glass Fibre Rope
CA0801
1
11
Glass Fibre Rope
CA0802-1
1
12
Bolt
CA0275-1
2
13
Stainless steel rivet
BXGMD-2
2
14
Bolt
CA02932
4
15
Bolt
CA02932-1
8
16
Spring
CA0707
4
17
Bottom air inlet cover
CA1910-I17U
1
18
Bottom air inlet fixing
plate
CA1103H
2
19
Bottom air inlet box
CA1909-I17U
1
20
Bottom air inlet plate
CA1912-I17UA
1
21
Bottom air inlet plate
CA1912-I17UB
1
22
Washer
CA0301
10
23
Hinge A
CA1605
2
24
Hinge B
CA1606
2
25
Hinge Axle
CA0614
2
26
Inside Frame
CANK20
1
