Castell SALUS20 User manual

While every effort has been made to ensure the accuracy of the information provided, no liability can be taken for any errors or omission.
Castell Safety International Limited reserves the right to alter specications and introduce improvements without prior notice.
www.castell.com
1 of 6
U-SALUS20-001-E Issue 3
Salus20 Key Isolator Switch
User Manual - Original Language Version
The Salus20 is a trapped key isolation switch capable of
switching up to 20 amps. It combines an integrated ush
mounted lock with sliding lock cover in a stainless steel sealed
enclosure rated to IP65. The stainless steel housing has an
ergonomic design that means the Salus20 has no potential areas
for dirt to collect and trap. The Salus20 is also tted with stainless
steel glands further enhancing its suitability for harsh or corrosive
environments and heavy use. Typical industries using the Salus20
are food, chemical, mining, steel and pharmaceutical.
1. While the power is on and machine is running, the key is trapped in the Salus key switch.
2. By turning and removing the key, the power will be shut off by changing the switch contacts in the Salus20.
3. The key can be taken to gain acces to machine area via a door interlock.
12
Operation
3
Key is trapped, power is on. Turn and remove key to change
the switch condition and switch
the power off.
Key is removed, power is off.
SALUS20
Salus20
The Castell Salus range is used in various applications to control access to hazardous areas, especially in harsh or corrosive
environments.

While every effort has been made to ensure the accuracy of the information provided, no liability can be taken for any errors or omission.
Castell Safety International Limited reserves the right to alter specications and introduce improvements without prior notice.
www.castell.com
2 of 6
U-SALUS20-001-E Issue 3
Salus20 Key Isolator Switch
User Manual - Original Language Version
The Salus20 is designed to be part of a safety system and is used to isolate the power releasing a key which is then used to gain
access to a hazardous area via an access interlock such as the Salus.
The Salus20 isolator key switch is not designed for security purposes or for switching loads greater than 20 amps.
No hazardous substances were used in the manufacture of this product. The product can be disposed of in standard waste.
Usage
Installation
The housing of the Salus20 should normally be mounted to a surface using suitable fasteners to x the mounting bracket (see
drawing on page 4 for more installation details).
The Salus20 key isolator switch must be installed by a competent and qualied person who has read and understood
these instructions. Please retain this document in your technical le.
Maintenance
Periodic visual checks should be carried out by the site manager / safety ofcer.
Do not lubricate lock barrel with oil or grease, use CK Dry Powder Graphite if necessary.
In case of defects being detected please contact your nearest Castell Support Department for further actions.
Please see Contact section for contact details.

While every effort has been made to ensure the accuracy of the information provided, no liability can be taken for any errors or omission.
Castell Safety International Limited reserves the right to alter specications and introduce improvements without prior notice.
www.castell.com
3 of 6
U-SALUS20-001-E Issue 3
Salus20 Key Isolator Switch
User Manual - Original Language Version
Technical Data
Temperature rating Minimum: -5°C [23°F] ice free
Maximum: 55°C [131°F]
Type of mounting Surface mount using suitable fasteners (please refer to drawing on page 4 for more
details). Fixings provided with the unit.
Weight 1,4 kg
Material Stainless steel
MTTF Certication Available on request
Ingress Protection IP65
We, the manufacturers, declare that the components, detailed herein and placed on the market, comply with all the essential
health and safety requirements applying to them.
Empowered signatory:
Mr T.C. Whelan
Managing Director
EC-Declaration

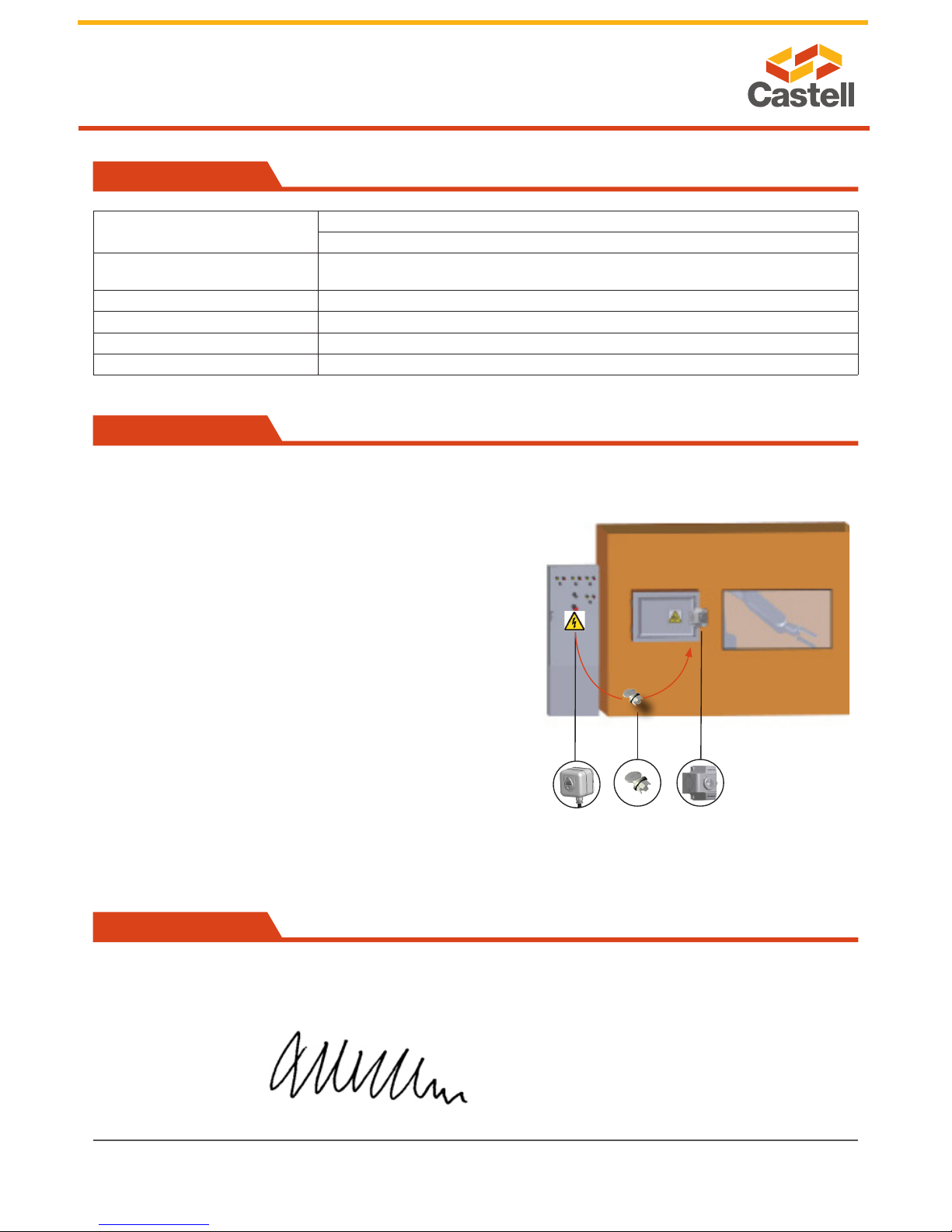

Application
A typical application of Salus20 isolator key switch is
machine guarding. It is usually used in combination with
an access interlock such as the Salus for part body
access or an acces interlock with an exchange key for
full body access control.
The Salus20 breaks the machine safety circuit, ensuring
a machine is shut down when the key is turned and
removed. The key can then be taken to the Salus
automatic access interlock to enable access to the
machine.
The machine cannot be restarted until the door is closed,
the bolt is trapped in the access interlock and the key is
removed and taken to the Salus20 key isolator switch.
Salus20 Key Switch Salus Access Interlock

While every effort has been made to ensure the accuracy of the information provided, no liability can be taken for any errors or omission.
Castell Safety International Limited reserves the right to alter specications and introduce improvements without prior notice.
www.castell.com
4 of 6
U-SALUS20-001-E Issue 3
Salus20 Key Isolator Switch
User Manual - Original Language Version
Drawing
Dimensions:
in mm
Note: For safe mounting, use security screws

While every effort has been made to ensure the accuracy of the information provided, no liability can be taken for any errors or omission.
Castell Safety International Limited reserves the right to alter specications and introduce improvements without prior notice.
www.castell.com
5 of 6
U-SALUS20-001-E Issue 3
Salus20 Key Isolator Switch
User Manual - Original Language Version
Wiring Diagram
Note: For safe mounting, use security screws
Key Free, Switch off
Key Free, 2 NO/2NC

While every effort has been made to ensure the accuracy of the information provided, no liability can be taken for any errors or omission.
Castell Safety International Limited reserves the right to alter specications and introduce improvements without prior notice.
www.castell.com
6 of 6
U-SALUS20-001-E Issue 3
Salus20 Key Isolator Switch
User Manual - Original Language Version
Contact Information
Order Information
Product Type 1
Part Number SALUS20 -
Example SALUS20 -C/O4
2
ABC
1Contacts arrangement C/O4 = 2 NO/2 NC
CC4 = 4NC
2Lock portion symbol Please advise (up to 3 characters)
Special construction available upon enquiry
