CCH YPV6 Series User manual

YPV6 Series Mobile Air Conditioner
Operation Manual
YPV6-12C&YPV6-14C
Thank you for your choice of this high-quality mobile air c r. Please read this manual
carefully before use. For problems if any, please contact professional servicemen.
• •

Table of Contents
User Instructions
Precautions..........................................................................................................................................1
Important Safety Tips..........................................................................................................................3
Special Remarks...................................................................................................................................6
Product Introduction
Components and Parts........................................................................................................................7
Control Panel and Remote Control......................................................................................................8
Use of Product
Storage and Installation.......................................................................................................................9
Operating Method.............................................................................................................................12
Cleaning and Maintenance
Drainage Method...............................................................................................................................13
Maintenance......................................................................................................................................13
Common Failures and Diagnosis
Intelligent Detection of Failures.........................................................................................................16
Failure Repair.....................................................................................................................................16
Some Technical Parameters of Machine
Fuse Parameters................................................................................................................................16

USER INSTRUCTIONS
Precautions
The meaning of icons used in this manual is as follows:
For your and your families’ health and safety, please do perform the following issues.
For your and your families’ health and safety, please do not perform such operaons.
Please do not pile up objects around this
machine in case that air exchange is blocked
This machine is only for household, please
do not use for other purposes.
Please do not place heavy objects on
this machine to prevent damage to the
machine.
Please use this machine indoor and put it in
dry environment. Do not use outdoor.

Please do not operate this machine with
wet hands or in humid environment.
Please clean strainer frequently, and once
per two weeks is recommended.
If this machine is not used for long time,
please disconnect power plug.
Please wipe this machine with soft cloth,
and waxes, diluents or irritant detergents
are prohibited for use.
For your health, please do not drink
condensate drained from this machine.
Laypeople are forbidden to disassemble
and assemble or repair this machine
without authorization
Irritant
Detergents
Diluents
1/2

Please do not damaged power lines or
plugs; please do not insert power line into
loose socket.
Do not modify and extend power line
without authorizaon.
Please do not insert and extract power
line plug with wet hands since such
operaon may cause electric shock.
Do not damage or use damaged and
type unknown power lines. Before use,
please make sure the voltage applied is in
compliance with the requirements.
Grounding socket is recommended
when running this machine.
When disconnecng power line, please
hold plug, and do not pull power line.
Important safety tips

Do not control on/off status of the machine
through insertion and extraction of power
plug.
Please do not share one power socket with
multiple large-power appliances.
On condition that the machine sends out
strong noise or smoke, please shut it down
immediately and disconnect plug and check
reasons.
Please shut down the machine before
extracting plug.
Please keep this machine away from direct
sunlight.
Please do not press heavy objects on power
line in case that power line is crushed to
cause the risk of electric shock.
3/4

Please do not insert fingers or hard objects
into air deflecng strip at the air
If water enters inside of the machine,
please shut it down immediately and
disconnect plug, and then contact
professional servicemen for maintenance.
When gas leakage occurs, please open
windows first to guarantee venlaon, and
then run this machine.
Please do not allow water to enterelectric
part of this machine.
If wiping, cleaning and moving the
machine or replacement of machine
components is required, please shut
down and disconnect power plug first.
Please do not let children or other special
populaons touch this machine to prevent
hurt to them, the operaon if necessary
must be under the custody of adults.

Place the air conditions on flat ground, and
keep vertical to guarantee normal
operation of compressor.
Please do not use this machine in the
vicinity of gasoline or other flammable
liquids.
A space of at least 50cm should be
maintained between the air conditioner
and surrounding objects, and meanwhile air
inlet and outlet should be kept unimpeded.
Do not use sprays or other solvents close to
this machine, otherwise plastic deformation
may be caused, and even the electric parts
of this machine are damaged.
Special Remarks
50cm
50cm
50cm
5/6

PRODUCT INTRODUCTION
Components and Parts
1
2
3
5
6
7
8
9
10
11
12
4
4
3
5
8
13
Heat
2. Control panel
3. Air outlet
4. Caster
5. Side plate
7. Air inlet
8. Remote control
10. Power cord
11. Drain cover
12. Exhaust pipe assembly
13. Installation kit assembly

Components and Parts
1
5
4
2
6
7
Power on/off key
Pressing this key can turn on/off the air conditioner.
Mode selection
Pressing this key can select refrigeration, air supply,
dehumidification and auto modes.
°C/°F Conversion key
Pressing this key can realize display conversion
between°C and°F.
Temperature and time UP/DOWN key
When running in refrigeration mode, pressing this
key can regulate setting temperature up and down;
in timer mode pressing this key can regulate turn on/
off time. In the meantime pressing up/down key can
realize display conversion between°C and°F.
Air speed selection key
Pressing this key can select high, medium and low air
speeds.
Timer function key
In standby state pressing this key can set timer startup
time; and in startup state pressing this key and set time
shutdown time.
Display window
This window displays the regulated temperature and
time.
1.
2.
3.
4.
5.
6.
7.
1
2
6
4
5
3
7/8

USE OF PRODUCT
Storage
Installation
- Place this machine on horizontal floor close to window;
- In order to maintain perfect venlaon and achieve the
best performance, a space of at least 50cm around the
machine should be reserved;
Step 1:
1. Measure dimensions of window;
2. Adjust the length of window seal plate to make it
fit dimensions of window;
3. Aer determinaon of the length of window seal
plate, fix its length dimension with screw.
Step 2:
Install the fixed window seal plate on window.
Exhaust pipe assembly Installation kit assembly Screw

Step 3:
Screw exhaust pipe assembly (exhaust joint end)
into the air outlet on rear panel (in anti-clockwise
direction).
Step 4:
Click exhaust pipe assembly (exhaust flat nozzle end)
into installation kit assembly and fix with screw.
Incorrect installation
• Keeping exhaust pipe is of great importance, and
incorrect installation will affect normal operation of
the air conditioner;
• During installation substantial bend of exhaust pipe
is prohibited;
• Guarantee smooth air flow inside the pipe.
Overall effect diagram after assembly
Small notch
Then slide and lock
First insert
Screw
9/10

Warning:
Attention:
Remote Control
Attention:
Warning:
The length of exhaust pipe is especially designed for this type and should not be replaced or
extended without permission, otherwise failure may be caused.
The max spread length of exhaust pipe is 1500mm, please reduce the length as much as
possible during use, and remaining exhaust pipe level as much as possible during installaon is
recommended.

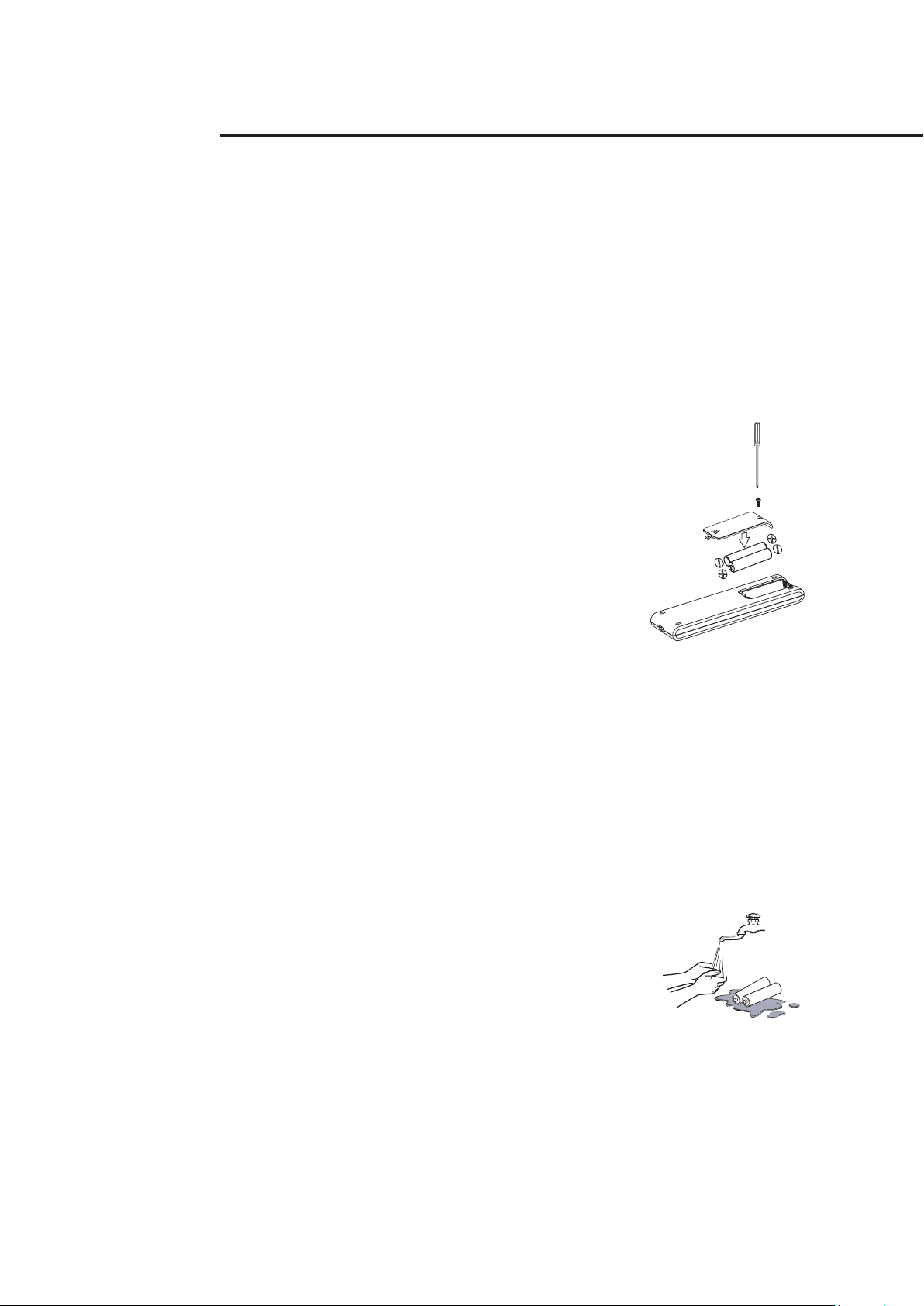

Before use of remote control, please install cells in correct
way. The specific steps are as follows:
1. Slide the cell cover on the back of remote control open;
2. Insert two new "AAA"alkaline cells, and make sure that the
polarity is correct.
3. Click the cell cover in place.
1. Only No.7 alkaline cells can be used for remote control of this machine, and rechargeable cells or
other models are not allowed for use;
2. Two cells should be replaced simultaneously, and mixing of new and old cells is prohibited.
3. If the air condioner is in idle for long me, please take the cells out of remote control.
1. Please do not use the cells if leakage is found;
2. Chemical substances inside the cells may cause burn or
other health hazards. If fluid flows on skin or clothes carelessly,
please wash with fresh water immediately; if eang by mistake,
please gargle with fresh water immediately, and then go to a
doctor for further inspecon.

Refrigeration mode
• After power-on startup take refrigeration mode as default or press mode key to select
refrigeration mode, and refrigeration indicator lamp is on.
• Pressing UP/DOWN key can regulate setting temperature (17°C~30°C).
• Pressing air speed key can select high, medium or low air speed.
Air supply mode
• Pressing air speed key can select high or medium or low air speed.
• Temperature cannot be set.
Dehumidification mode
• Select dehumidification mode by pressing mode key or by means of remote control; and
humidification indicator lamp is on.
• At the beginning of entry into dehumidification mode, if the room temperature is 15°C (or 59°F),
compressor starts. After that control as the following rules: when the room temperature is 13°C
(or 55 °F), compressor shuts down; as the temperature rises again to the room temperature 15°C,
compressor restarts (3min time-delay protective function must be satisfied).
•In dehumidification mode, the fan runs at low speed in default and air speed cannot be regulated.
•Temperature cannot be set.
(Usage tip: for use of dehumidification function, exhaust pipe assembly should be removed,
otherwise the dehumidification effect becomes less obvious and flash alarm display of “FL” full
water appears.)
Auto mode
•Select auto mode by pressing mode key or by remote control; and auto indicator lamp is on.
•After selection of auto mode, the running states are determined in accordance with ambient
temperature: When the ambient temperature is over 25°C, the running state is the same as that in
refrigeration mode; while the ambient temperature is less than 25°C; the running state is the same
as that in air supply mode.
Timer mode
• In standby state, pressing TIMER key can set timer startup. Press UP/DOWN key to set timer
startup time (0~24h), and timer indicator lamp is on.
• In startup state, pressing TIMER key can set timer shutdown. Press UP/DOWN key to set timer
shutdown time (0~24h), and timer indicator lamp is on.
Operating method
11/12

CLEANING AND MAINTENANCE
Drainage method
Maintenance
This product is provided with automac water evaporaon system. Condensate circulaon cools
condenser. This not only improves refrigerang efficiency, but also saves energy.
If water container inside the machine is full of water, the display screen will flash show “FL” with
sound alarm, compressor stops operaon automacally. At the moment water should be drained,
and the specific steps are as follows:
Attention:
To prevent electric shock, please turn of the air condioner and disconnect plug before
maintenance or repair.

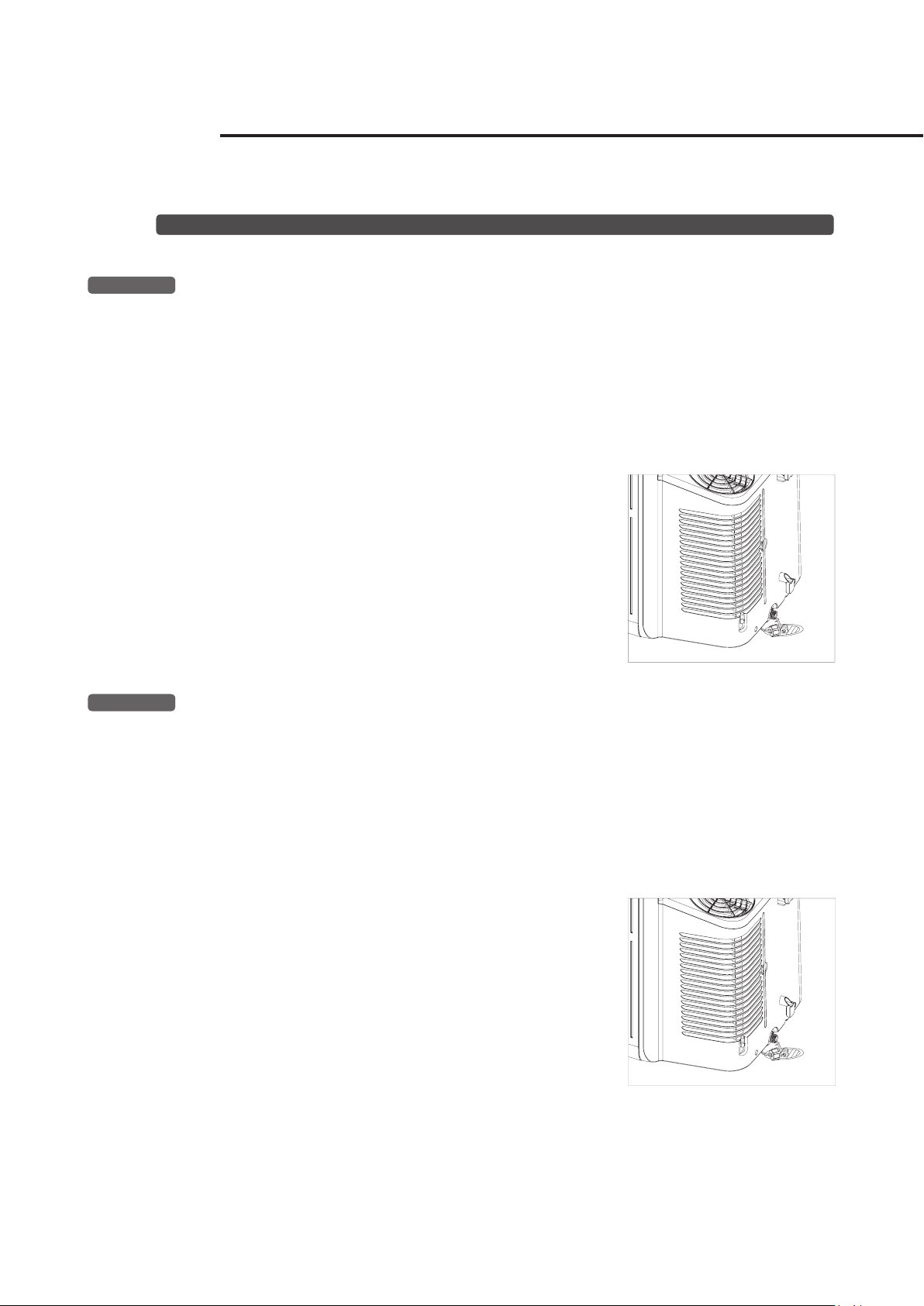

1. Disconnect power line plug, and remove exhaust pipe assembly;
2. Move the air condioner to an appropriate locaon;
3. Pull out water plug at water outlet to drain all the water inside the
machine;
4. Stuffup water plug again;
5. Re-install exhaust pipe assembly, and start the machine.
Cleaning off machine body
1. Please disconnect plug before cleaning.
2. Scrub with so semi-dry cleaning cloth. Do not use chemical
reagents, such as benzene, alcohol and gasoline, etc., otherwise, the
surface of the air condioner, and even the whole machine will be
damaged.
3. Do not splash water into the air condioner.

Attention:
1. Please do not clean strainer with over-temperature water (suitable temperature is approximate
40°C ) or irritant detergents (such as alcohol, gasoline and benzene, etc.);
2. To prevent deformation, the cleaned strainer should be kept far away from heat sources and put
in dry air for natural drying;
3. Do not run the machine without strainer in any case.
Filters
Cleaning of strainer once per two weeks is recommended, and the cleaning frequency should be
properly increased if indoor air quality is bad. Jamming of strainer by dust will reduce efficacy of
the air conditioner. The specific cleaning steps are as follows:
1. As per the direction shown in figure below, first remove air-inlet grille, and then remove strainer;
2. Put strainer into fresh water or warm water (approximate 40°C) added with neutral detergent to
clean up, and then keep it in cool place to dry;
3. Re-install the cleaned and dried strainer;
4. Restart the machine into normal operation.
13/14

Seasonal maintenance
If this machine is in idle for long me, please maintain it as per the
following steps:
1. Extract water plug at the water outlet to drain water.
2. Keep the air condioner running in air supply mode or 2h ll the
inside is blown dry.
3. Shut down and disconnect plug.
4. Clean strainer and re-install.
5. Dismantle accessories including exhaust pipe, etc. and keep
properly.
6. Take the cells out of remote control.
7. Load the air condioner into plasc bag and put in cool and dry
place.
If the machine is reused aer being idle for long me, please noce a few points as follows:
1. Confirm whether water plug and strainer are installed or not.
2. Check whether power line is perfect or not, if damaged, do not use.
3. Re-install cells of remote control.
4. Re-install other parts as per installaon instrucons.

Breakdown maintenance
The table below lists common failures of this series mobile air conditioner and repair methods.
When the machine is in abnormal operation, simple diagnosis and repair can be conducted based
on the following table, if failures still cannot be eliminated, please contact professional servicemen.
Fuse parameters
Size: φ5X20mm
Voltage: 250VAC
Current: 3.15A
SOME TECHNICAL PARAMETERS OF MACHINE
Detection codes Multifunction detection
E1 Failure of coil temperature sensor
E2 Failure of indoor temperature sensor
E4
Anti-freeze protection: when coil temperature is lower than 0℃, shut down
whole machine. As coil temperature rises again above 8℃, the protection is
relieved and the original operating state is resumed.
Failures Possible causes Solutions
The air conditioner does not
operate
Power supply is not connected Connect power supply
Display screen flash shows “FL” Deenergize and drain water, and then restart to
recover normal operation
Timer shutdown function starts Shut down for 3min and restart
The refrigeration effect of
the air conditioner is not
good
Exposure to direct sunlight Draw window curtain
Doors and windows open, and there
are many people or heat sources in
the room.
Close doors or windows, and remove
heat sources
Filters is too dirty Clean or replace filters
Air inlet or outlet is blocked Remove blockage
Noise in the air conditioner
is big The air conditioner is not laid flat Place on smooth and solid surface, and avoid shake as much as possible
Compressor does not
operate
Time-delay protection of compressor
has been enabled.
Wait for 3min, and start the air conditioner after
reduction of temperature
15/16
COMMON FAILURES AND DIAGNOSIS
Intelligent Detection of Failures
Failure Repair
