CCH YPS3-14H User manual

YPS3-14H
Portable Air Conditioner
User Manual
Thank you for selecting this super quality air conditioner. Please be sure to read this
manual carefully before using it.

Page: 2/14
Content
I. Notes................................................................................................. 3
II. Featuresand Components......................................................... 4
III. Installation and Adjustment.......................................................6
IV. Control Setting.............................................................. .…... . 8
V. Drainage Instructions....................................................................... 10
VI. Maintenance………………………………………………… 11
VII. Troubleshooting............................................................................ 12
VIII. Appendix................................................................................. 13

Page: 3/14
Thank you for choosing the luxurious and elegant mobile air conditioning. Please
keep the manual for later review, and read the manual carefully before use.
I. Notes
Notes:
*The air conditioning is only suitable for indoor use, and is not suitable for other applications.
* Follow local grid interconnection rules while installing the air conditioning and ensure that it is
properly grounded. If you have any question on electrical installation, follow the instructions of
the manufacturer, and if necessary, ask a professional electrician to install it.
* Place the machine in a flat and dry place and keep a distance of above 50cm between the
machine and the surrounding objects or walls.
*After the air conditioning is installed, ensure that the power plug is intact and firmly plugged
into the power outlet, and place the power cord orderly to prevent someone from being tripped or
pulling out the plug.
*Do not put any object into the air inlet and outlet of the air conditioning. Keep the air inlet and
outlet free from obstructions.
* When drainage pipes are installed, ensure that the drainage pipes are properly connected, and
are not distorted or bended.
* While adjusting the upper and lower wind-guide strips of the air outlet, pluck it with hands
gently to avoid damaging wind-guide strips.
*When moving the machine, make sure that it is in an upright position.
* The machine should stay away from gasoline, flammable gas, stoves and other heat sources.
* Don't disassemble, overhaul and modify the machine arbitrarily, otherwise it will cause a
machine malfunction or even bring harm to persons and properties. To avoid danger, if a machine
failure occurs, ask the manufacturer or professionals to repair it.
*Do not install and use the air conditioning in the bathroom or other humid environments.
* Do not pull the plug to turn off the machine.
* Do not place cups or other objects on the body to prevent water or other liquids from spilling
into the air conditioning.
*Do not use insecticide sprays or other flammable substances near the air conditioning.
* Do not wipe or wash the air conditioning with chemical solvents such as gasoline and alcohol.
When you need to clean the air conditioning, you must disconnect the power supply, and clean it
with a half-wet soft cloth. If the machine is really dirty, scrub with a mild detergent.
*The appliance can be used by children aged from 8 years and above and persons with reduced

Page: 4/14
physical, sensory or mental capabilities if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and maintenance shall not be made by children
without supervision.

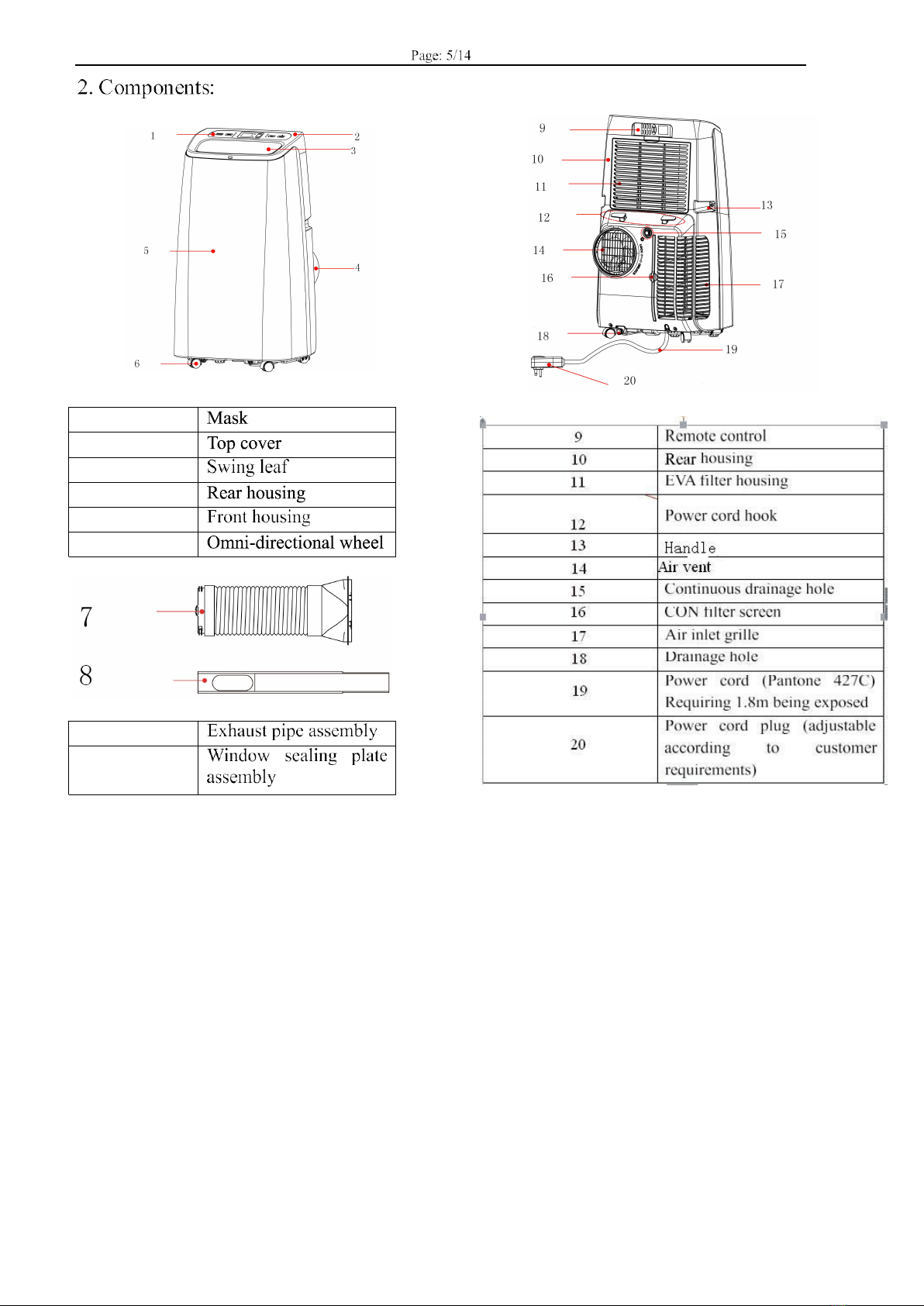

II. Features and Components
1. Features
•New look, compact structure, streamlined machine, aristocratic atmosphere.
•With cooling, heating (single cold with no such function), dehumidification and air supply
function.
•Automatic swing leaf in the outlet has automatic air swing function, and the outlet can be
covered when the machine is turned off to prevent dust from entering the body.
•LCD displays the control panel. The machine is beautiful and elegant. High-quality LCD
remote control is equipped to facilitate operation. The remote control can be placed on the back
of the body. It adopts a user-friendly remote control storage design.
• Handles on both sides adopt dividing point design, so that it is easer to carry it and the body
design is more humane.
•The structure of wrapping the power cord on the back facilitates users to hang the power cord
without hanging itot dthoewgnround and staining and damaging the power cord.
•Outdoor interface is set high to facility assembly and keep the smooth flow of the heat pipe.
•Air filtration capability.
• Timing switch function, unique switching machine music.
•Protection function of automatically restarting the compressor after three minutes, a variety of
other protection functions.
•Patented product, patent No.: CN201330444908.8.

1
2
3
4
5
6
7
8

Figure 4
Page: 7/14

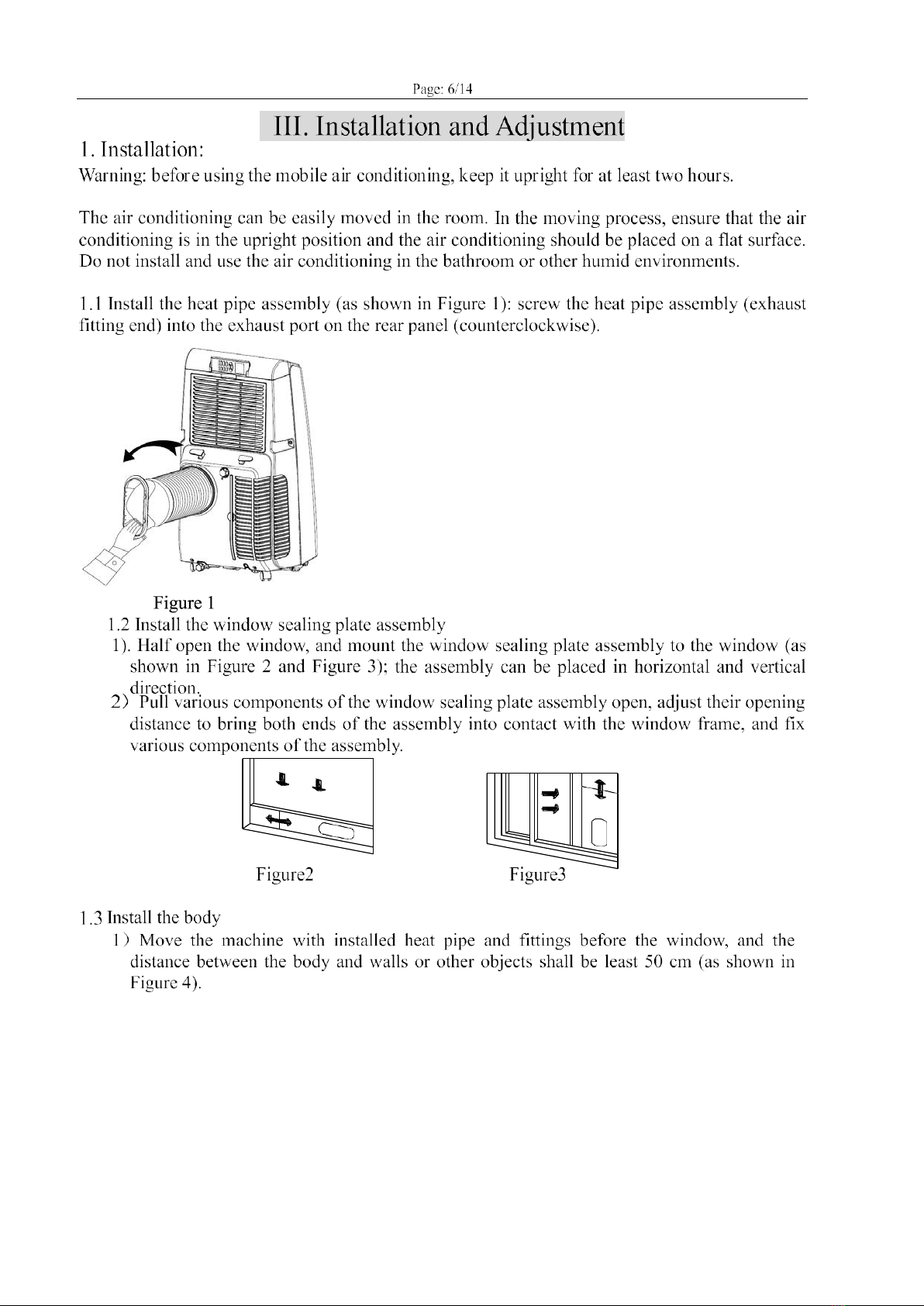

2）Elongate the heat pipe and snap the flat end of the heat pipe joints into the elliptical hole
of the window sealing plate assembly (as shown in Figure 5 and Figure 6) .
Notes: 1. the flat end of the heat pipe joints must be snapped into place.
2. The pipe cannot be distorted nor has substantial turning (greater than 45 °). Keep
the ventilation of the heat pipe unobstructed.
Figure5 Figure 6
Important Notice
The length of the exhaust hose shall be 280~1,500mm, and this length is based on the
specifications of the air conditioning. Do not use extension tubes or replace it with other different
hoses, or this may cause a malfunction. Exhaust must be unobstructed; otherwise it may cause
overheating.

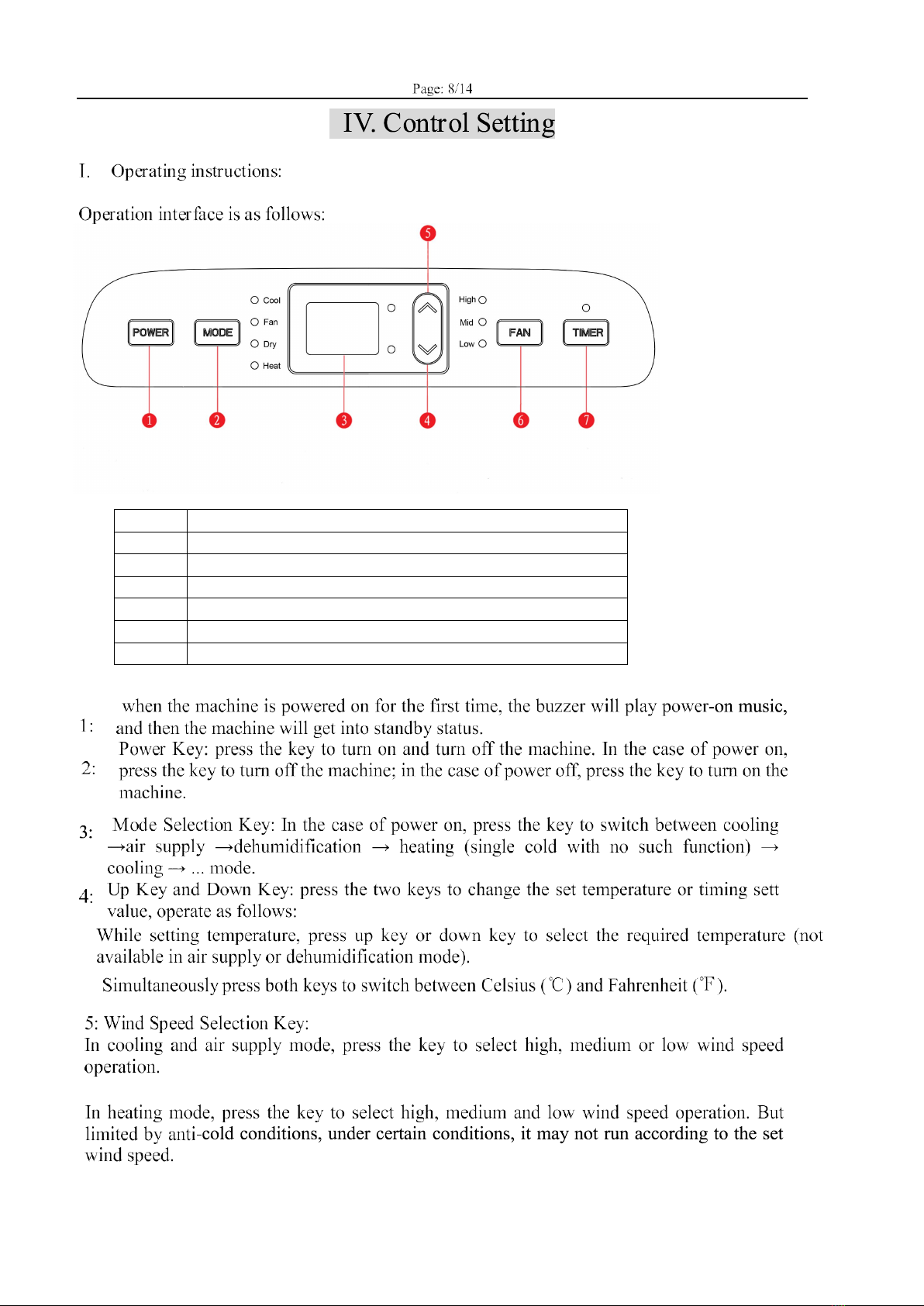

1
Power key
2
Mode selection key
3
Window display
4
Down key
5
Up key
6
Wind speed selection key
7
Timing key

Page: 10/14
8. : press the key to switch between Celsius and Fahrenheit.
III. A Variety of Protection Functions
3.1 Frost Protection Function:
In cooling, dehumidification or economic power saving mode, if the temperature
of the exhaust pipe is too low, the machine will automatically enter protection
status; if the temperature of the exhaust pipe rises to a certain temperature, it can
automatically revert to normal operation.
3.2 Overflow Protection Function:
When water in the water pan exceeds the warning level, the machine will
automatically sound an alarm, and the LDC temperature display area will show
"FL". At this point, you need to move the drainage pipe connecting the machine
or the water outlet to sewer or other drainage area to empty the water (details
see Drainage Instructions at the end of this chapter). After the water is emptied,
the machine will automatically return to the original state.
3.3 Automatic Defrosting (heating and cooling models have this function):
The machine has automatic defrosting function: during defrosting, heating symbol
on the display screen will flash.
3.4. Automatic Thermal Protection:
To protect the service life of the machine, the machine has automatic thermal
protection in heating mode. During the protection period, the compressor and the
lower motor will stop operation and will automatically return to normal heating state
after the temperature of the machine recovers.
3.5 Protection Function of the Compressor
To increase the service life of the compressor, it has a 3-minute delay booting
protection function after the compressor is turned off.

Page: 11/14
V.DrainageInstructions

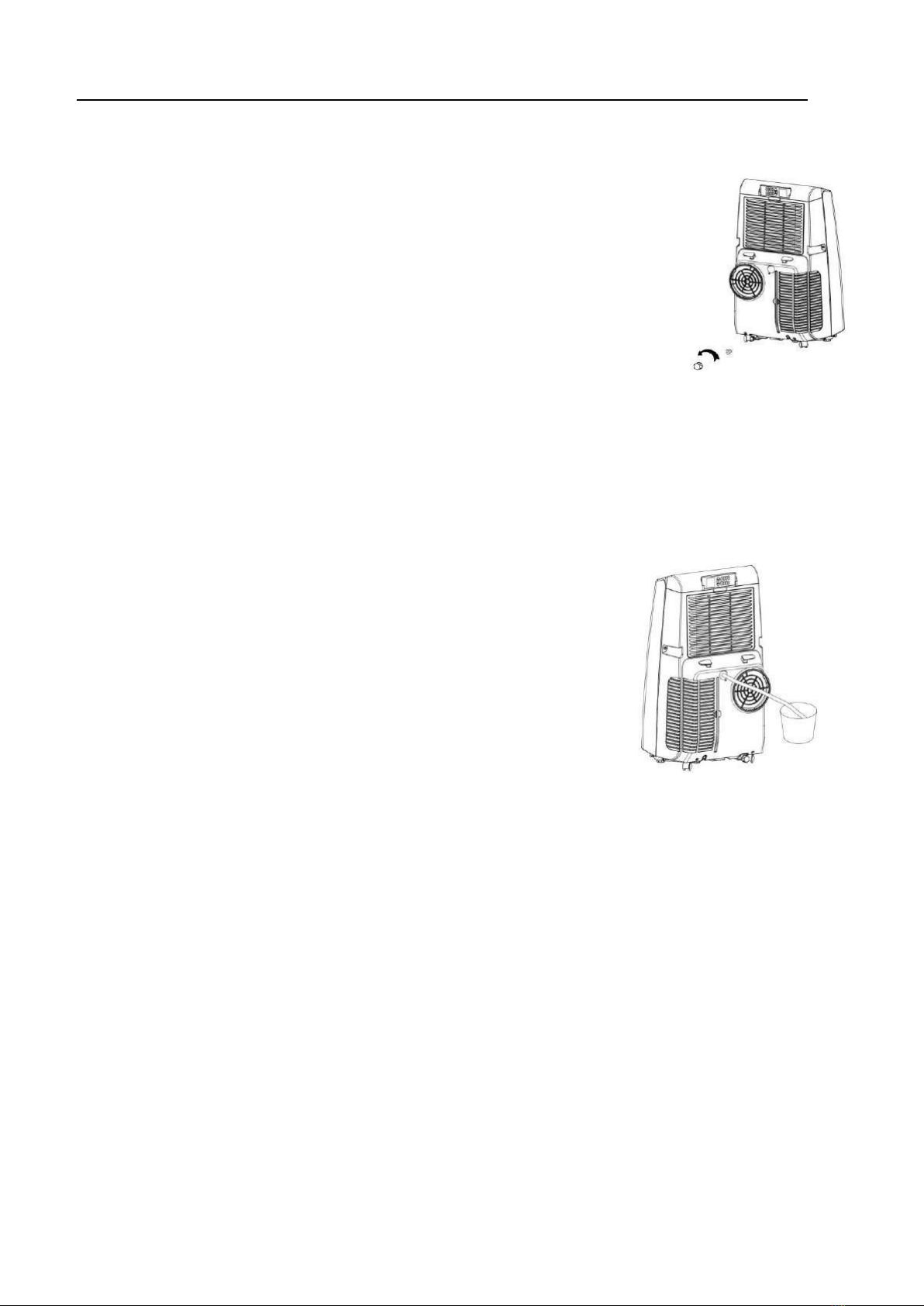

1. Manual drainage:
1)When the machine stops after the water is full, turn off the
machine power and unplug the power plug.
Notes: Please move the machine carefully, so as not to spill the water in the
water pan at the bottom of the body.
2)Place the water container below the side water outlet behind the body.
3)Unscrew the drainage cover and unplug the water plug, the water will
automatically flow into the water container.
Notes: 1. Keep the drainage cover and the water plug properly.
2. During drainage, the body can be tilted slightly backwards.
3. If the water container cannot hold all the water, before the water container is full,
stuff the water outlet with the water plug as soon as possible to prevent water
from flowing to the floor or the carpet.
4）When the water is discharged, stuff the water plug, and tighten the drainage cover.
Notes: 1. Restart the machine after the water plug and drainage cover are installed,
otherwise condensate water of the machine will flow to the floor or the carpet.
2. Continuous drainage (only applicable to cooling and dehumidification mode), as shown in
figure:
1)Unscrew the drainage cover, and unplug the water plug.
2)Set the drainage pipe into the water outlet.
3)Connect the drainage pipe to the bucket.

1
2
3

Page: 13/14
5: Cover the air conditioning with a plastic bag. Put the air conditioning in a dry place, keep it
out of the reach of children, and take dust control measures.
6: Remove batteries of the remote control and keep them properly.
Note: ensure that the body is placed in a dry place and keep all machine components properly.
VII. Troubleshooting
Do not repair or disassemble the air conditioning by yourself. Unqualified repair will lead to
failure of the warranty card, and may cause damage to users or their properties.
Problems
Reasons
Solutions
The air
conditioning
does not work.
There is no electricity.
Turn it on after connecting it to a socket with
electricity.
The overflow indicator displays "FL".
Discharge the water inside.
The ambient temperature is too low or
too high?
Recommend to use the machine in at the
temperature of 7-35 ℃(44-95 ℉).
In cooling mode, the room
temperature is lower than the set
temperature; in heating mode, the
room temperature is higher than the
set temperature.
Change the set temperature.
In dehumidification mode, the
ambient temperature is low.
The machine is placed in a room with an
ambient temperature of greater than 17 ℃
(62 ℉).
The cooling or
heating effect is
not good
There is direct sunlight.
Pull the Curtain.
Doors or windows are open; there are
a lot of people; or in cooling mode,
there are other sources of heat.
Close doors and windows, and add new air
conditioning.
The filter screen is dirty.
Clean or replace the filter screen.
The air inlet or outlet is blocked.
Clear obstructions.
Big Noise
The air conditioning is not placed on a
flat surface.
Put the air conditioning on a flat and hard
place (to reduce noise).
The compressor
does not work.
Overheat protection starts.
Wait for 3 minutes until the temperature is
lowered, and then restart the machine.
The remote
control does not
work.
。
The distance between the machine and
the remote control is too far.
Let the remote control get close to the air
conditioning, and make sure that the remote
control directly faces to the direction of the
remote control receiver.
。
The remote control is not aligned with
the direction of the remote control
receiver.
Batteries are dead.
Replace batteries.
Displays 'E1'.
The pipe
abnormal.
temperature
sensor
is
Check the pipe
related circuitry.
temperature
sensor
and
Displays 'E2'
The room
abnormal.
temperature
sensor
is
Check the room temperature sensor and
related circuitry.
If problems not listed in the table occur or recommended solutions do not work, please contact the
professional service organization.
Intelligent detection function
Code
Meaning
E1
The pipe temperature sensor is abnormal
E2
The room temperature sensor is
abnormal
E4
Anti-freeze protection
FL
Full water

Page: 14/14
4
3
1
VIII.Appendix
Fuse Parameters
Type: FSD or 50F
Voltage: 250V
Current: 3.15A

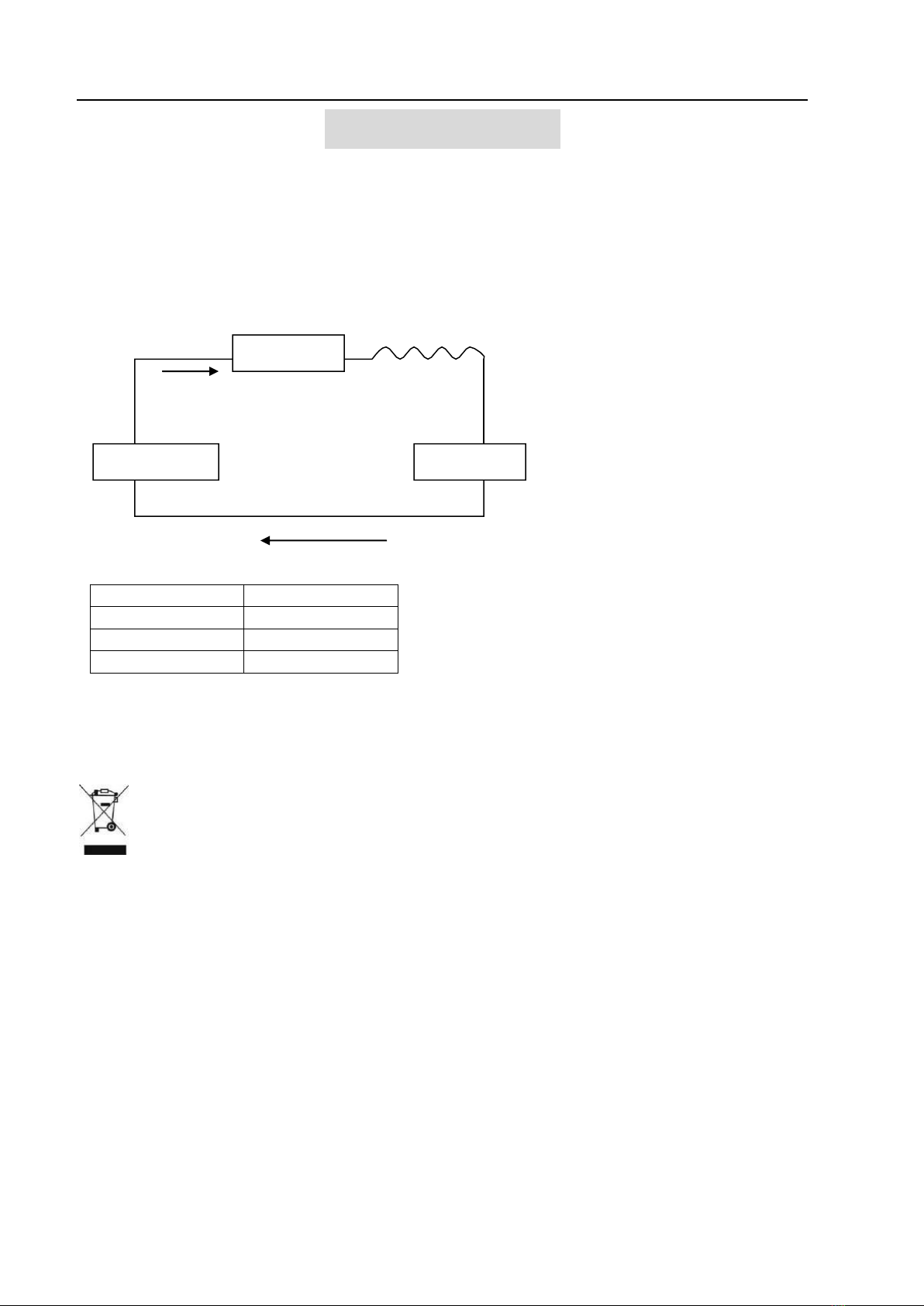

Schematic Diagram
2
1
Condenser
2
Capillary
3
Compressor
4
Evaporator
For model, technology and specific parameters please refer to product nameplate.
Treatment: Don't put the abandoned machine with other unsorted waste together. Such waste shall be
placed separately for other special use.

Tel : [phone]
Fax: [phone]
Hours : 8: 30AM -5: 00PM PST
Contact CCH Technical Support
Email:[email protected]
Phone:[phone]
From 8:30AM to 5:00PM Monday through Friday Pacific Time.
