CDA FLORENCE Service manual

1
www.cda.co.uk
06.2023ISSUE-001www.cda.co.uk
FLORENCE
FREE-STANDING
REFRIGERATOR
/FREEZER
INSTALLATION,
USE AND
MAINTENANCE
MANUAL
COMPATIBLE WITH COLOURS: BARLEY, MEADOW, SEA HOLLY & TEA ROSE

2
www.cda.co.uk
EN - Table of contents
UKCA & EU Declaration of Conformity
Before First Use
Fridge Use
Freezer Use
Storage
Control Panel & Temperature Settings
Defrosting the Fridge / Freezer
Troubleshooting
Installation & Ventilation
Electrical Information
Climate Range
Practical Tips
Product Dimensions
Warranty & Service
4
6
7
8
9
11
13
14
15
16
18
19
20
21

3
www.cda.co.uk
Important
The manufacturer cannot be held responsible for injuries or losses caused by
incorrect use or installation of this product. Please note that we reserve the
right to invalidate the guarantee supplied with this product following incorrect
installation or misuse of the appliance.
This appliance is not designed to be used by people (including children) with
reduced physical, sensorial or mental capacity, or who lack experience or
knowledge about it, unless they have had supervision or instructions on
how to use the appliance by someone who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
Appliance Information
Please enter the details on the appliance rating plate below for reference, to assist
CDA Customer Care in the event of a fault with your appliance and to register your
appliance for guarantee purposes.
Appliance Model
Serial Number

4
www.cda.co.uk
UKCA & EU Declarations of Conformity
This appliance has been designed, constructed and marketed in compliance with
safety requirements of EU Directive 2014/35/EU (Low voltage) and requirements
of EU Directive 2014/30/EU (EMC).
This appliance has been manufactured to the strictest standards and complies
with all applicable legislation, including Electrical safety (LVD) and Electromagnetic
interference compatibility (EMC). Parts intended to come into contact with food
conform to 1935/2004/EC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN
ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.
At the end of its working life, the product must not be disposed of as urban waste.
The refrigeration system contains insulating gases and refrigerants, which require
specialised waste disposal. The valuable materials contained in this appliance
can be recycled. It must be taken to a special local authority dierentiated waste
collection centre or to a dealer providing this service. Before disposing of an old
appliance, remove the door seals, latch or bolt lock to avoid the risk of child
entrapment. Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be recovered to
obtain significant savings in energy and resources. As a reminder of the need
to dispose of household appliances separately, the product is marked with a
crossed-out wheeled dustbin.

5
www.cda.co.uk
Important
Never store inflammable or explosive items and strong corrosive acids or alkalis in
the appliance.
This is a household appliance, which is produced in accordance with the national
standard. It is intended for food storage only, not for storage of blood, medicine
and biological products.
To prevent risk of fire, keep the appliance away from petrol or any
other inflammables.
To prevent risk of electromagnetic interference or other accidents, do not
place a microwave oven on top of the refrigerator or use any electric
appliance inside the refrigerator.
Do not allow children to play with or near the appliance.
The internal surface of freezer compartment is very cold when the appliance is
running. Do not touch the surface especially when hands are wet.
Do not splash water onto the appliance. Keep it away from places of high humidity
that may have adverse eect on the electric insulation performance.
This appliance is designed to be used in ambient temperatures between 10 and
32˚C. Use outside of this range may cause the appliance to fail.
Ensure this free-standing fridge freezer is positioned away from heat sources like
ovens to ensure the product is running eciently.

6
www.cda.co.uk
Before First Use
You must allow the fridge to settle for at least twenty-four hours prior to
switching the power on.
It is recommended that you clean the interior of the appliance prior to first use,
using a solution of bicarbonate of soda and warm water and then thoroughly
drying the interior.
The fridge may have an odour to it at first use. This will disappear as the
appliance cools.
When first switching the appliance on the fridge will default to 5°C and the freezer
to -18°C. The figure in the digital display for freezer temperature will flash until the
temperature drops below 0°C.
Please note:
The appliance will work continuously until it comes down to the
correct temperature.
If the appliance is switched o, you should allow five minutes before switching
it on again to prevent unnecessary damage to the compressor.
Never store inflammable or explosive items and strong corrosive acids or
alkalis in the appliance.
This fridge cools your food by making the inside back of the cavity cold.
It is normal for frost to build up on this surface; it then dissipates and drains
through a small drain at the bottom, where it evaporates harmlessly.
The presence of frosting at the back is not a malfunction of the fridge.
The fridge freezer is likely to make all manner of noises such as bubbling, clicking,
cracking and hissing which is all quite normal in the running of this model.

7
www.cda.co.uk
Fridge Use
• Never put liquids in the refrigerator uncovered.
• Never put hot foods in the refrigerator. Warm food should be allowed
to cool to room temperature before being put into the refrigerator.
• Nothing should rest against the rear wall of the refrigerator, as this will cause
frost and possible condensation problems which will be dicult to remove.
• Make sure food is clean and any extra water is wiped away before putting
into the fridge.
• Wrap or cover food before putting into the fridge. This will help prevent the
loss of moisture, keep food fresh and avoid unpleasant odours.
• Sort foods prior to storing. Any foods to be used soon should be stored at
the front of the shelf to prevent deterioration caused by the door being open
for prolonged periods.
• Do not overfill the fridge. There should be sucient space between the foods
to allow the cool air to circulate.
• Thawing frozen foods in the fridge compartment will help to keep the
temperature low and save energy.

8
www.cda.co.uk
Freezer Use
• The freezer compartments are designed to store only frozen food.
• Never put hot or warm foods in the freezer, allow them to cool fully
before putting them into the freezer.
• Follow the instructions on the food packaging for storage of frozen food.
If no information is provided, foods should not be stored for more than
three months after the purchase date.
• Store food in small packages (ideally less than 2.5kg). This reduces the
freezing time and improves the quality of the food after thawing.
• Wrap food before putting into the freezer. To stop the wrapping
sticking together, ensure it is dry.
• Label the food before freezing with information including type of
food and dates of storage and expiry.
• Once food is thawed, it must not be refrozen unless it has been
completely cooked. Only defrost as much food as is required, to
prevent wastage.
• Bottled or canned drinks should not be stored in the freezer
compartments as they could explode.
• Check the rating plate to confirm the maximum amount of fresh food
that can be frozen within a 24 hour period.
• Do not attempt to freeze more than the maximum amount.
• To freeze fresh food more quickly, switch on the super freeze function
a few hours prior to placing the food in the freezer.
• Do not use the quick freeze function for more than 24 hours. Use over
the recommended time will place unnecessary strain on the
refrigeration system.

9
www.cda.co.uk
Storage
The fridge section is for short term food storage. Although the temperature
can be maintained between 0-10˚C, extended periods of food storage
is not recommended.
As the cold air circulates within the fridge, the temperature can vary between the
dierent sections. As such, foods should be stored in dierent sections according
to type. Section 3 is the coldest part of the fridge.
1. Cooked food
2. Yogurts and cheese
3. Fresh meat and fish
4. Fruit and vegetables
5. Butter
6. Food in jars and bottles
7. Drinks, e.g. milk
5
6
7
1
2
3
4

10
www.cda.co.uk
The fridge shelves can be moved according to the storage requirements within
the fridge section. To move the shelf, lift up the front section and then pull it
outwards. To replace, slide the shelf back into the slot, and the lower the front
section. If storing wine (75cl Bordeaux bottles) on the bottle rack, then it should
be placed with the bottle neck facing the rear wall of the appliance.

11
www.cda.co.uk

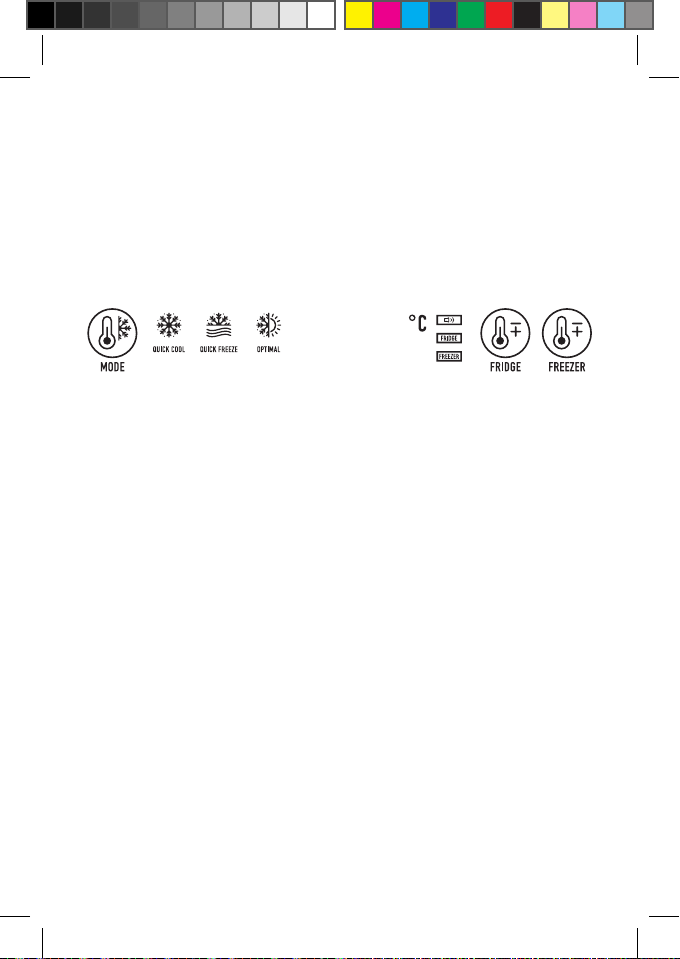

Control Panel
This fridge freezer is an energy saving frost-free appliance which uses an
intelligent control system. It can be plugged in and will find the optimal working
temperatures, or you can manually set the temperature. The LED will turn o
when not in use. To activate the control panel, press any key.
Temperature Settings
To adjust the fridge or freezer temperature, press ‘fridge’ or ‘freezer’ button and
the temperature will be adjusted in 1°c increments each time the button is pressed.
The temperature range for the fridge is 2°c to 8°c.
The temperature range for the freezer is -16°c to -24°c.
When you have selected the required temperature, the number will flash 5 times
to confirm and if you press ‘mode’ while it is flashing, the new temperature will be
set immediately.
Quick Cool
Using this mode, the fridge will automatically work at 2°c for 12 hours. This mode
will be disabled if you change to another mode or re-set the fridge temperature.
Press ‘mode’ button and select ‘Quick Cool’ by pressing until this mode is
reached on the cycle. When reached, this mode will flash 5 times to confirm
before the mode starts.

12
www.cda.co.uk
Quick Freeze
Using this mode, the freezer will automatically operate at -24°c for 24 hours.
This mode will be disabled if you change to another mode or re-set the freezer
temperature.
Press ‘mode’ button and select ‘Quick Freeze’ by pressing until this mode is
reached on the cycle. When reached, this mode will flash 5 times to confirm
before the mode starts.
Optimal Mode
Under optimal mode, the temperature of the fridge compartment will be 5°c and
the freezer compartment will be -18°c. To disable this mode, select a temperature
or other mode.
To activate this mode, press ‘mode’ button and select ‘Optimal mode’ by pressing
until this mode is reached on the cycle. When reached, this mode will flash 5 times
to confirm before the mode starts.
Care and Cleaning
Always disconnect the appliance from the power supply before any
cleaning or maintenance.
The fridge and freezer sections should be cleaned using a solution of bicarbonate
of soda and lukewarm water. Do not use abrasive products or detergents. After
washing, rinse and dry thoroughly.
Clean the shelves and balconies separately by hand with a mild solution of
washing up liquid and water. Do not put them in the dishwasher.
If the appliance is not to be used for prolonged periods of time, unplug and clean
the appliance. The doors should be left slightly ajar to prevent the formation of
mildew and unpleasant odours.

13
www.cda.co.uk
Defrosting the Fridge
The fridge is self-defrosting.
The defrosted water is collected in the evaporating tray at the back
of the appliance and dissipated by evaporation.
Defrosting the Freezer
The freezer is self-defrosting. The food is frozen in the cooled circulation air and
the moisture from the freezer chamber is discharged outside. As a result no ice
and frost is produced in the freezer and the products do not freeze on each other.

14
www.cda.co.uk
Troubleshooting
If you have any problems with your appliance, you should check the
troubleshooting prior to calling CDA Customer Care to prevent
unnecessary service calls and potential cost.
If the appliance is not working
• Check there is power to the appliance.
• The house fuses are intact and the fuse in the plug has not blown.
• The on/o switch is not set to o.
• The plug socket is functioning fine. To check this, plug another electrical
appliance in to see if the socket is faulty. The appliance is working,
but not very well.
• The appliance is not overloaded.
• The thermostat is set to an appropriate temperature.
• The doors are closing properly.
• The cooling system at the rear of the appliance is clean and free of dust,
and not touching the rear wall.
• There is enough ventilation at the side and rear walls. The appliance is noisy.
• The appliance is level and stable.
• The side and rear walls are clear, and there is nothing resting on the appliance.
• Note: The cooling gas in the refrigerator may make a slight bubbling or
gurgling noise, even when the compressor is not running.

15
www.cda.co.uk
Ice has formed on the back wall of the fridge
• It is normal for some ice droplets to form on the back wall of the fridge.
This does not constitute a fault with the appliance.
• Ensure that no items inside the fridge are in contact with the back wall.
Installation and Ventilation
This appliance must never be installed close to heat sources, e.g. heating
elements, cookers or in damp places.

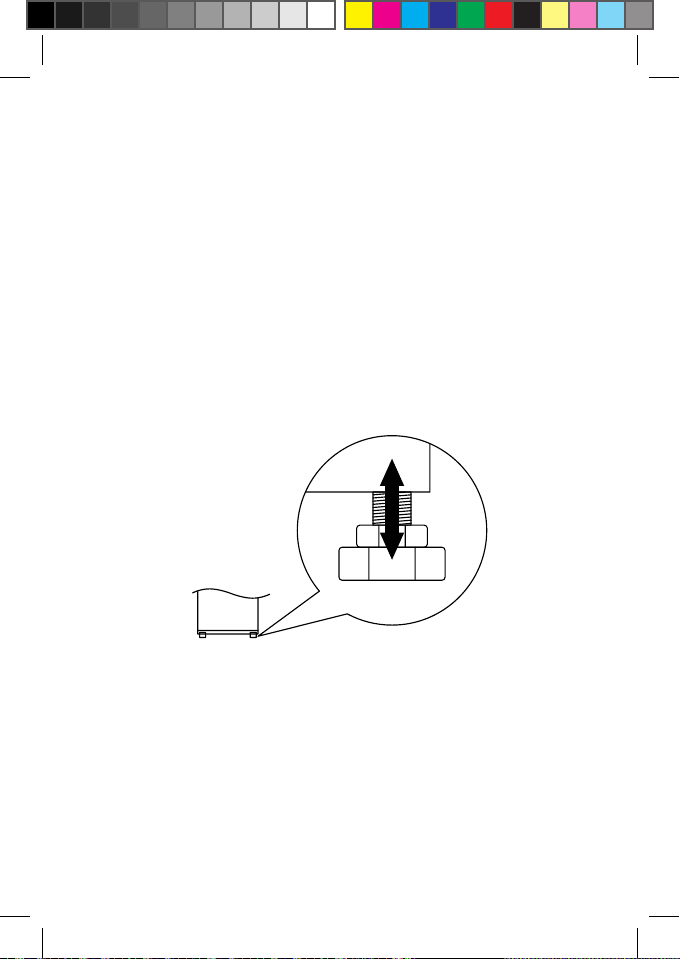

• To ensure the appliance is level, you should use the height adjustable
feet at the front of the appliance.
• The cooling system at the rear of the appliance must not touch the rear wall.
• The appliance must be installed with adequate ventilation. Ensure that there
is clearance above the appliance to allow air to escape and that there is
space between the rear of the appliance and the wall.

16
www.cda.co.uk
Electrical Information
Warning! This appliance must be earthed.

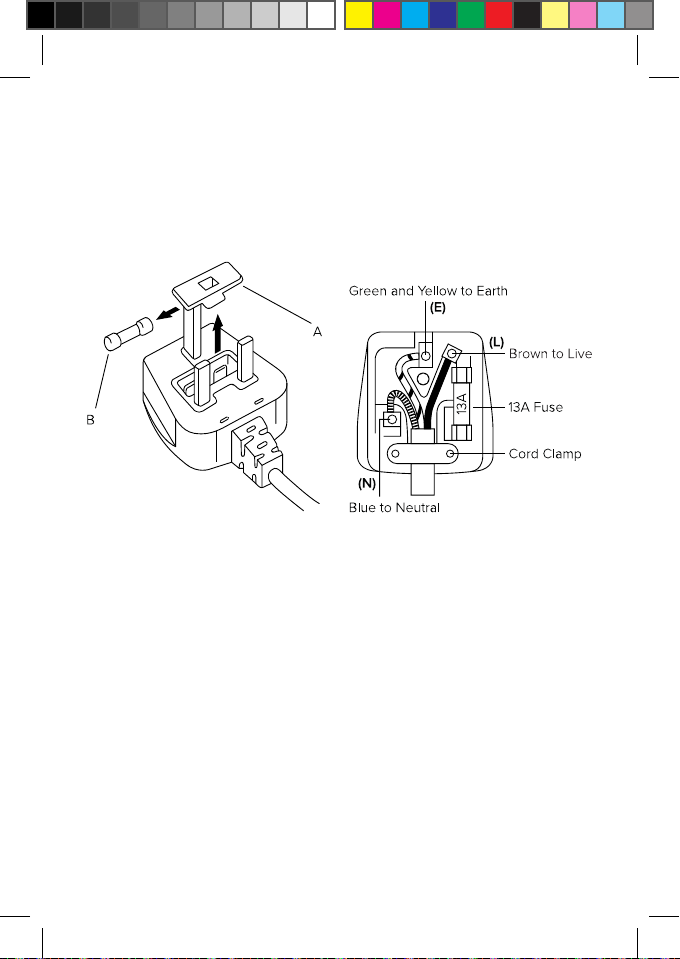

The mains lead of this appliance has been fitted with a BS 1363A 13Amp fused
plug. To change a fuse in this type of plug, follow the steps below:
1. Remove the fuse cover (shown as A above) and fuse (shown as B above).
2. Fit replacement 13A fuse, ASTA approved to BS 1362 type, into the fuse cover.
3. Replace fuse cover.
Important: Do not use the appliance without the fuse cover in position.

17
www.cda.co.uk
How to connect an alternative plug
If the fitted plug is not suitable for your socket outlet, then it should be cut o and
disposed of safely to avoid possible shock hazard. A suitable alternative plug of at
least 13 Amp rating to BS 1363 should be used.
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in
your plug, proceed as follows:-
• The wire which is coloured GREEN and YELLOW must be connected to the
terminal which is marked with letter (E) or by the Earth symbol or coloured
GREEN and YELLOW.
• The wire which is coloured BLUE must be connected to the terminal which is
marked with the letter (N) or coloured BLACK.
• The wire which is coloured BROWN must be connected to the terminal which
is marked with the letter (L) or coloured RED.
If in doubt regarding the electrical connection of this appliance, consult a qualified
electrician. Do not shorten the supply cable, the appliance may require removing
for servicing.
N.B. Ensure that the plug socket is situated in an easily accessible place
after installation.
E & O E. All instructions, dimensions and illustrations are provided for
guidance only.
CDA reserve the right to change specifications without prior notice.
Do not connect the appliance to mains supply through an extension lead.

18
www.cda.co.uk
Climate Range
The information about the climate range of the appliance is provided on the rating
plate. It indicates at which ambient temperature (that is room temperature in which
the appliance is working) is optimal for the operation of the appliance.
Climate Class Allowable ambient temperature
SN Extended
Temperate
This refrigeration appliance is intended
for use at an ambient temperature
ranging between 10C and 32C
N Temperate This refrigeration appliance is intended
for use at an ambient temperature
ranging between 16C and 32C
ST Sub Tropical This refrigeration appliance is intended
for use at an ambient temperature
ranging between 16C and 38C
T Tropical This refrigeration appliance is intended
for use at an ambient temperature
ranging between 16C and 43C

19
www.cda.co.uk
Practical Tips
Due to the natural circulation of the air in the appliance, there are dierent
temperature zones in the refrigerator chamber. The coldest area is directly
above the vegetable drawers. Use this area for all delicate and highly
perishable food such as:
• Fish, meat, poultry
• Sausage products, ready meals
• Dishes or baked goods containing eggs or cream
• Fresh dough, cake mixtures
• Pre-packed vegetables and other fresh food with a label stating it should be
stored at a temperature of approximately 4°C
The warmest area is in the top section of the door. Use this area for
storing butter and cheese.
To achieve the most eective food preservation for the longest possible time and
to avoid wasting any food, position the products as shown on page 9. In addition,
this figure illustrates the layout of drawers, baskets and shelves, which allows
the most ecient use of energy. Optimal temperature and storage conditions will
extend product shelf life and optimise electricity consumption. Optimal storage
temperature range should be stated on the food packaging.

20
www.cda.co.uk
Product Dimensions
1900mm
599mm
694mm 744mm
1018mm
