CDI Commrider 7050 User manual

Product
Instructions
The Commrider7050 Helmet Bluetooth headset
enables you to answer phone calls, enjoy music
in your phone, and keep clear inter communication
with riders under safe and comfortable condition
when driving a motorcycle, snowmobile, ATV or
on the bicycle.
Without mobile phone you can also have crystal
clear full-duplex driver to passenger (driver to driver)
voice inter-communication.
1- MFB : Multi «Function» button
Click once to answer incoming call
and again to terminate the call.
Quick double click the button
to cancel a incoming call.
Double clic k to switch freely between
the three functions :
Music play • FM radio • AUX-in
2- Volume +
Increase volume / Track forward / Voice dial
3- Control Button
Power / Pairing / Intercom

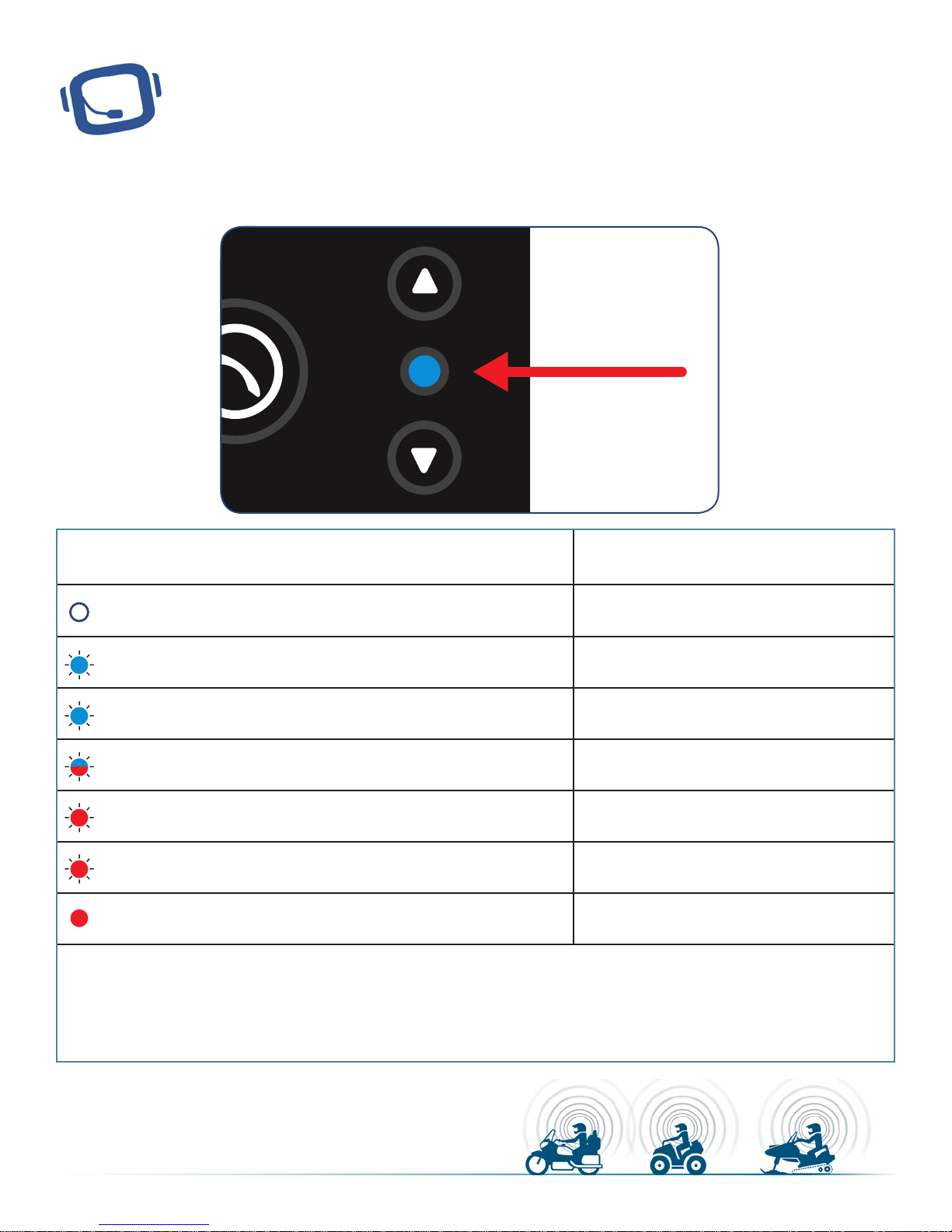

4- Led indicator
5- Volume -
Decrease volume / Track backward / Last number redial
The Commrider 7050 box
with all included elements.
1
2
3
45

Main Features
Mobile phone functions
• Bluetooth® Hands-free. Automatically switch seamlessly among
Bluetooth® mobile phone, Intercom and stereo sources
• Support voice dial
• Support the last number redial
• Call Answer, reject and hang up functions supported
• Hands-free Volume Control
• Mobile phone highest priority.
Intercom functions
• Rider to rider (Support 900m max range full duplex intercom).
• With DSP wind noise suppression to ensure the crystal clear voice quality
when speeding along the highway.
• Intercom states prompts.
• Independent intercom volume control
• Voice volume adjusting automatically according to the motorcycle speed
and ambient noise.
• Note: actual range will depend on weather conditions, terrain and presence of obstacles.
Stereo functions
• Bluetooth® A2DP music Play
• Sharing the music from the mobile phone or other music sources with A2DP.
• Support music play, pause, playback and forward control with AVRCP
• Independent volume control
• Volume memorizing.
GPS functions
• Support connecting with the GPS Navigation
• Sharing the audio from the GPS Navigation
• Support music play, pause, playback and forward control with AVRCP
• Independent Volume control
FM Radio functions
• Frequency covers 76@108MHz
• FM audio station auto searching function
• FM audio station memorize function
• Independent FM volume control
• Mobile phone highest priority
AUX-in function(Optional)
• Power on to use AUX-IN function
• Independent AUX-IN volume control
• Aux-in volume memorizing.
• Mobile phone highest priority.

Power On/Off
Power on the Bluetooth headset
In power off state, press Control Button and hold it for about 2 seconds, until hear
a “di” tone, release the button, blue indicator will ash to indicate power on
successfully..
Power off the Bluetooth headset
In power on state, press Control Button and hold it for about 8 seconds, until hear a
long “di” tone, all LED indicators will be shut off to indicate the headset is been
powered off.
Intercom operation
Pairing between the Commrider7050 Bluetooth
headset and Mobile.
1- Place the mobile phone and the Bluetooth Headset together within 1 meter.
2- Make sure the Bluetooth Headset is off.
3- Press and hold Control Button for about 8 seconds, release until hear a “dudu”
tone, and the Blue LED and the Red LED ashing alternately, then the Bluetooth
Helmet Intercom headset is in pairing state now.
4- Initiate the Bluetooth function of the mobile phone and search the Bluetooth
Headset according to your mobile user manual.
5- From the found devices in your mobile phone, select the device named
“96-7050-00”, and then connect to pair with it, when it prompts to enter password,
enter password <0000>.
Once paired successful, LED Indicator will change from Blue/Red alternately to
Blue ashing, and with a “di” tone to note that the Bluetooth Helmet Intercom
headset has connected with your mobile phone. Now you can use the headset to
answer you phone call, or enjoy the music from your mobile phone.
Note :
Pairing password may not necessary for some mobile.

Intercom operation
Pairing Two Intercom Headsets
To conduct duplex talkback between two helmet Bluetooth headset, they need to
pair with each other for using at the first time, and the pair info will be saved for
using next time (it pairs each other automatically).
Follow the instruction below:
1- Place two Bluetooth headsets in a visible area together (distance less than 1
meter range), and make sure there is no other Bluetooth headsets in pairing state
within 10M around, and both of the Bluetooth Helmet Intercom headsets are in
power off state.
2- Press and hold Control Button of both Bluetooth Helmet Intercom headsets for
about 8 seconds, until hear a “dudu” tone, the Blue LED and the Red LED ashing
alternately, release both buttons, and both Bluetooth Helmet Intercom headsets
are in pairing state then.
3- While the Blue LED and the Red LED ashing alternately (Pairing state), short press
either of control bottons .
4- The pressed Bluetooth Helmet Intercom headset will search another in pairing state
one and try to pair with it.
5- Once paired success, both Bluetooth Helmet Intercom headsets indicators will exit
the Blue/Red ashing state simultaneously, and shift to only Blue LED ashing state
same time.
Note :
The Commrider 7050 Bluetooth headset can only assure to successfully pair with the same series
product of CDI Inc. Bluetooth headset turn to intercom state automatically after the rst pairing
succeed.

Commrider7050 Phone call
operation
Answering incoming calls
When there is an incoming phone call, short press MFB button to manual answer
the call.
Automatically answer incoming calls
The Bluetooth Helmet headset has the automatically answer function, after 2 incoming
call ring ones played (about 8 seconds), and if there is not any operations on the head
set, the Bluetooth Helmet headset will answer the phone call automatically.
Rejecting incoming calls
Once hear the ring tone, just press and hold the MFB button for 3 seconds till hear
a “du” tone, release the button, the call will be rejected.
Hang up
In call active state, a short press MFB button can hang up the call.
Last number redial
Quick double press Vol- Button then the Mobile phone will dial out the last call out
number. (only if headset is in standby state, or music play paused state.)
Voice Dial
Quick double press Vol+ Button, then the mobile will prompt you to speak out your
desired name. (only if headset is in standby state, or music play paused state.)
Audio transfer
In call active state, press and hold the MFB button for 3 seconds, after an “du” tone,
the call audio will transfer from the helmet.
Note :
The above function requires the mobile phone supports Bluetooth® A2DP and AVRCP, and please
make sure your Mobile Phone supports Voice Dial before activate Voice Dial function

Intercom operation
1- Turn on Bluetooth Intercom talking function
The Commrider7050 Bluetooth Intercom headset has memory function. When they
paired successfully once, they will remember each other. Just short press either of
MFB Button while in power on state, the Intercom Function will be activated.
2- Turn off Bluetooth Intercom talking function
Either of Bluetooth Helmet Intercom headset users want to turn off the Intercom
talking function, just short press MFB Button, then the Intercom call can be ended.
3- Tripartite Interphone Function
1- For the rst, the three Bluetooth headsets must pair with each other. For
example, there are three Commrider7050 units, such as A, B, C unit, A-B, A- C,
B-C all of pair successfully, and not respond to any request of any other headset.
2- When the three Bluetooth headsets all of pair successfully, but without any
intercom :
2a- Any one presses Control Button (Intercom ) once, it will connect
the last intercom partner and begin to intercom.
2b- If pressing Control Button (Intercom ) twice, it will connect the third one
(the one before the last intercom partner) and begin to intercom.
3- During any two units intercoms, the third one who is on standby state presses
Control Button (Intercom ) once, it will send a connection request signal
to the last intercom partner. The being requested one will hear connection request
sound of “ring ring”, and then it must ends the current intercom and just double click
Control Button (Intercom ), it will begin to intercom, or just do nothing to ignore the
request.
4- During any two units intercoms, the third one who is on standby state double
presses Control Button (Intercom ) twice, it will send a connection request signal
to the one of before the last intercom partner. The being requested one will hear
connection request sound of “ring ring” , and then it must ends the current intercom
and just double clicks Control Button (Intercom ), it will begin to intercom, or just
do nothing to ignore the request.
5- If the either one of the two talking Riders wants to talk to the third one who is on
standby state , just double clicks Control Button (Intercom ) to initiate intercom.
Note :
In the non-intercom mode and on the power-on state, long press Multi-function Button and Volume
down Button at the same time for 3 seconds till the red light on , and then release the two buttons,
modules will recall the intercom memory, and it will be back to power-on state and LED light ash blue.

Stereo Music Operation
Play/Forward
Short Press the VOL - Button to select next music
Play/Backward
Short Press the VOL + Button to select previous music or song playback
Note : above functions require the mobile phone to support the Bluetooth A2DP and AVRCP protocol.
Volume control
To adjusting voice volume during the phone call state, Music playing state and FM
radio playing state ,Press and hold VOL + Button to turn up the volume; Press and
hold VOL - Button to turn down the volume. Release the Button till you feel good.
When reaching the maximum or minimum volume, a “DiDong” tone will be played.
Automatically switch function
1- While in Bluetooth music playback or Bluetooth intercom talk state, if there is an
incoming call or out going call, the audio will auto switch to mobile phone call, after
phone call ended, the audio will automatically restore back to previous music
playback or intercom talk sate.
2- During music playback state, short press the MFB button, the music will be
stopped, and enter the intercom talk state, after intercom talk ended, music playback
will automatically restored.
Note : From the phone call ended to restore back to Intercom talk state may need 5 seconds or more
time, this depends on the mobile phone, the time may be varied.
FM Radio Operation
Turn On/Off FM
Quick double press the MFB can turn On/Off the FM Radio receiver.
Channel Searching
Short click the VOL + Button to enter into the higher frequency station.
Short click the VOL - Button to enter into the lower frequency station.
(A “dudu” tone means that the frequency station is reached).
Station save and replace
Save the station you are Listen-in by double pressing V+/V- accessing to Station Save
mode, keeping single press V+/V- to search station, when you searched a station you
want to save, then short press MFB and a short “di” prompt tone means station saved
successfully. Maximun of 8 stations can be saved. After that, the saved station you
was listening at the last time will be replaced by a new station saving.
Switchover the FM radio searching direction:
Double click MFB to start listen the FM radio station you listened last time . Double
click Volume + or Volume - to switchover listening within the saved FM radio station.

AUX-IN Operation
Plug in/pull out AUX
During none phone call and duplex talkback state, just connect the Bluetooth and
AUX with cable to play, it will turn automatically to play A2DP music( being silence
if A2DP unconnected)
Manual switchover the AUX-IN function
Double click MFB to switchover among FM radio, AUX-IN, and mobile music play.
GPS navigator Operation
1- Make sure the GPS have the Bluetooth function. And after pairing and connecting,
the voice or music can be shared from the GPS navigator.
2- Mobile phone or intercom calls have higher priority than GPS audio. Mobile phone/
Intercom call will pause the GPS audio. The audio will be restored automatically after
call /intercom ended.
All Functions Priority Sequence
Phone call highest, Duplex talkback after, FM radio, A2DP music and Aux-in end
with equal priority.
Automatic shutdown function
The Bluetooth will turn off automatically after disconnect with any other device for
10 minutes .
Device Initiating to Factory state
1- Reset to factory settings : in power on state, press both MFB and Volume+ for 10 seconds till the
led indicator ashes red twice to reset the Bluetooth headset to factory state.
ALL PARING INFO WILL BE CLEANED UP AND ENTER TO AUTO PAIRING STATE.
2- Bottom Testing mould: in power off state, press both control botton and MFB for 10 seconds till the
led indicator ashes red/blue at same time and short press Volume+ to set the Bluetooth headset to
Botton testing state. Then the Led indicator will ash alternately according to every press/click .
3- MIC and speaker testing mould: in power off state, press both control botton and MFB for
10 seconds till the led indicator ashes red/blue at same time and short press Volume- to set the
Bluetooth headset to MIC AND SPEAKER testing state. Talk forward the microphone, the voice
comes out from the two speaker.

Commrider7050 Bluetooth
Helmet Headset LED Indicator
Function
LED indicator flash mode State of indication
LED indicators off Power off
Blue LED indicator ashes once shortly every 3sec Standby
Blue LED indicator ashes once long every 3sec Connected
Blue/red LED indicators ash alternately Pairing mode
Red Led ash 2 times every 60 minutes Battery Level Low
Red LED indicator ashing rapidly Charging
Red LED solid Charging completed
Note :
1. Solid red light will turn off once charging is complete.Charging the battery to full may takes about 5 hours.
2. Communication time can reach about 8 hours and stand by time can up to 160 hours (depends on different usage
environment).
LED light
Indicator
