CDN NIKA-S3MCL2030L User manual

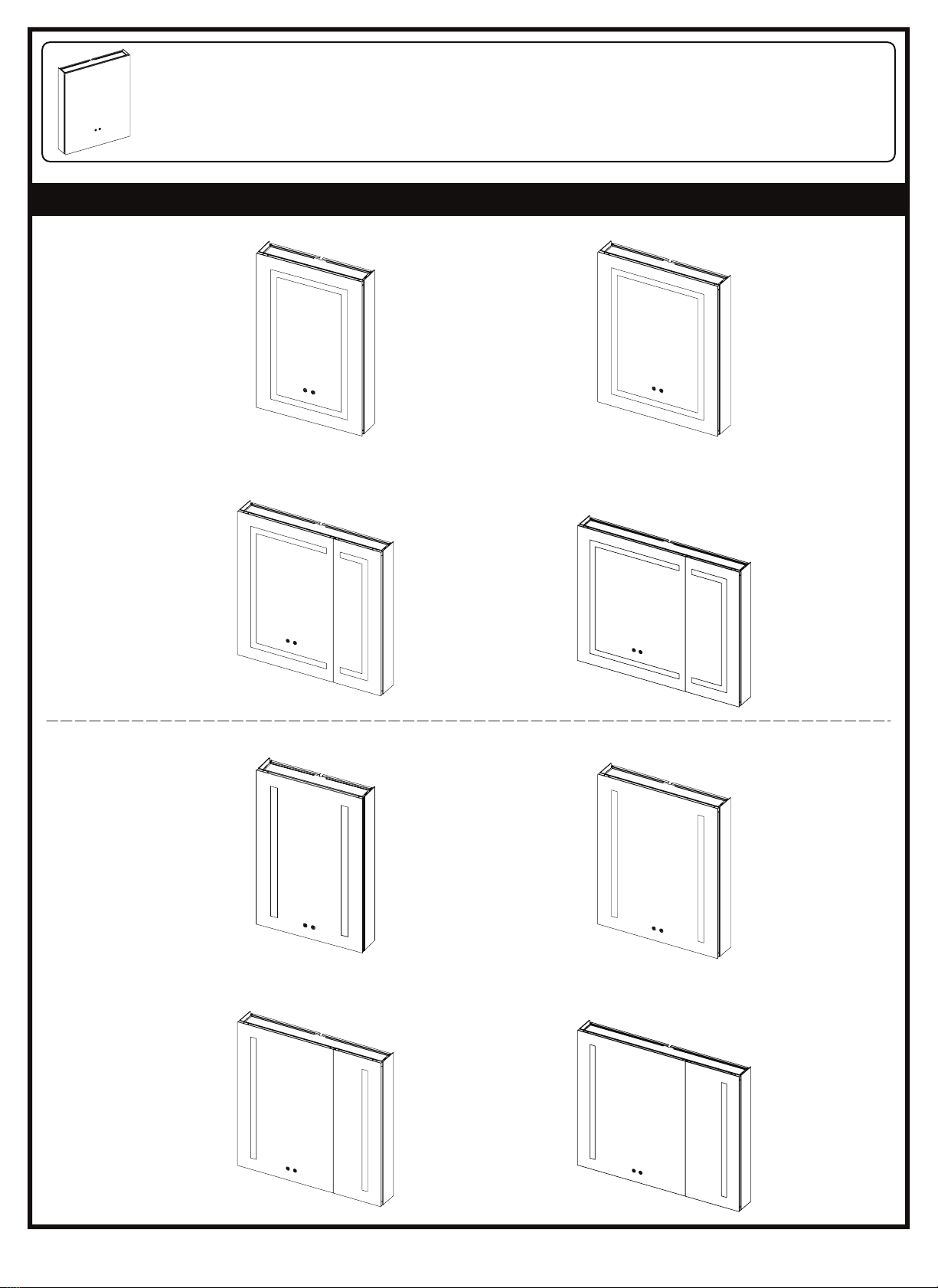

PRODUCT SERIES INFORMATION




S3MCL2030(L/R）

S3MCL3030

S3MCL3630

S4MCL3030

S4MCL3630

S3MCL2430(L/R）

S4MCL2030(L/R）

S4MCL2430(L/R）
*Style and shape may vary from the picture above. Instructional purpose only*



     
     





IMPORTANT SAFETY INSTRUCTIONS
When using an electrical furnishing, basic precautions should
always be followed,Requires two(2) person in installation.
DANGER
READ AND FOLLOW ALL INSTRUCTIONS
BEFORE USING THIS MIRROR CABINET

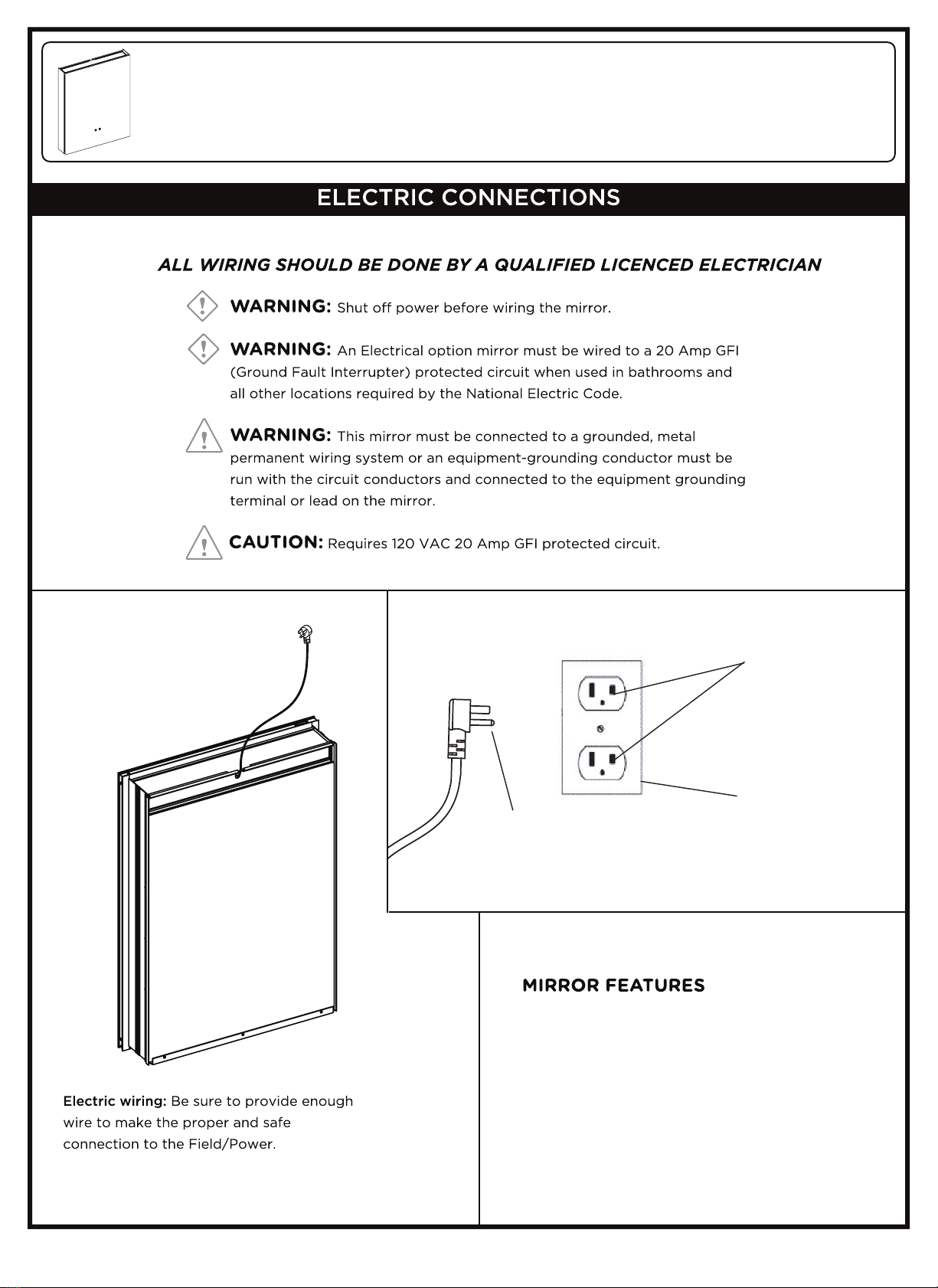

GROUNDING INSTRUCTIONS:
WARNING
WARNING
WARNING
To reduce the risk of burns, fire, electric shock or injury to
persons. Use this furnishing only for its intended use as
described in these instructions. Do not use attachments not
recommended by the manufacturer. Never drop or insert any
object into any opening. Do not use outdoors.
This product must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead
on the product.
An Electrical option cabinet must be wired to a 20 Amp GFI
(Ground Fault Interrupter) protected circuit when used in
bathrooms and all other locations required by the National
Electric Code.
Risk of electric shock. Connect this
furnishing to a properly grounded
circuit only. See Grounding instructions.



     
     
ALL RIGHTS RESERVED



 





Grounded outlet
Grounded pin
Grounded
outlet box



     
     



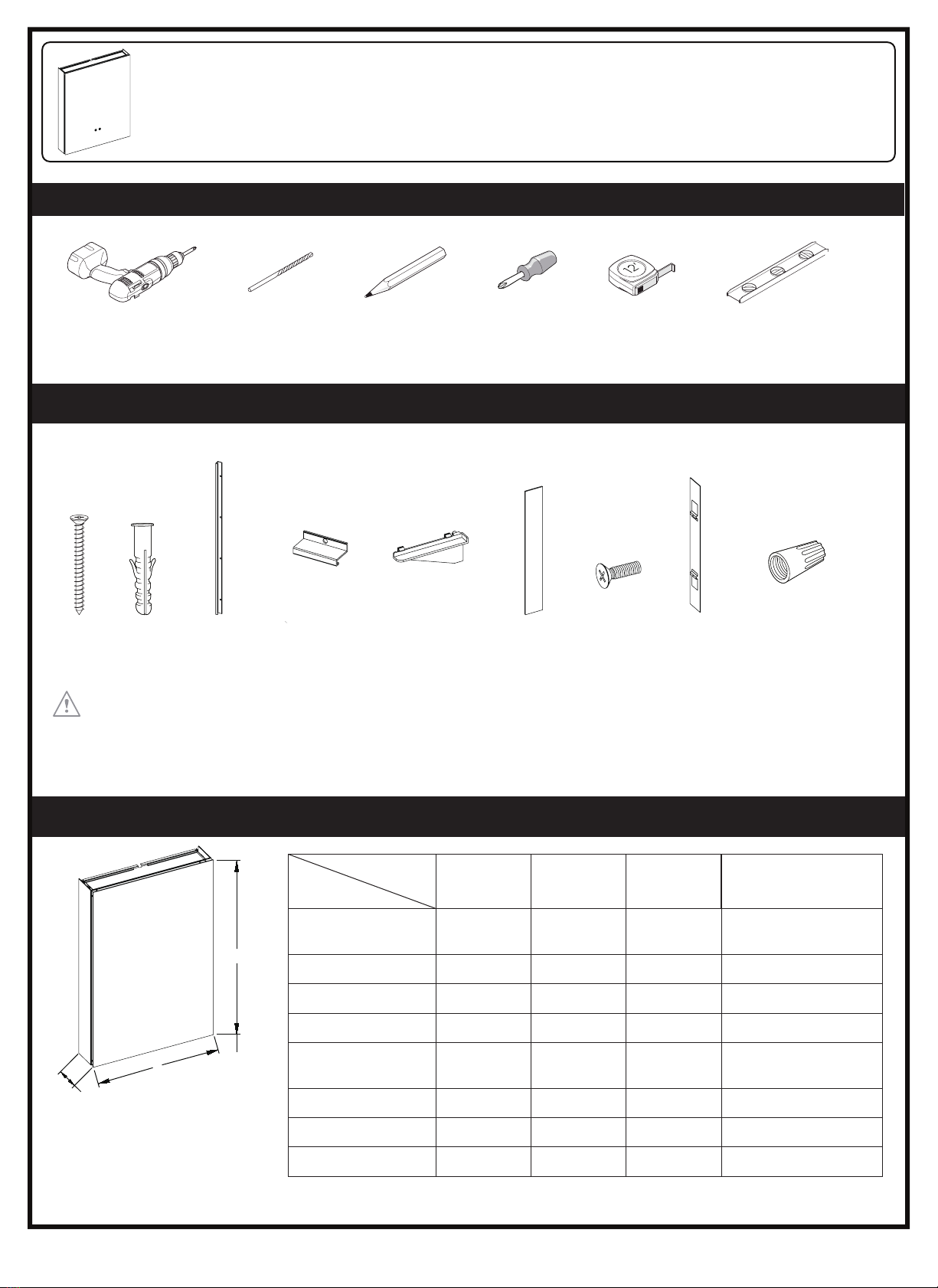

TOOLS REQUIRED FOR ASSEMBLY
PARTS INCLUDED
DIMENSIONS
Electrical Drill 1/8” Drill Bit Pencil Phillips
Screwdriver Tape Measure
NOTE: Determine overall mirror dimensions before installation.
Requires two(2) person in installation.
*Accessories and parts may vary from the picture above.Depends on the product model and size.*
Level
SCREW
(x6~x8)
WALL
PLUG
(x6~x8)
GLASS SHELF
(x3)
GLASS SIDE
PANEL
(x2)
GLASS SIDE
PANEL
SCREW
(x4)
BOTTOM
MOUNTING
BRACKET
(x1)
TOP MOUNTING
BRACKET
(x2~x4)
SHELF SUPPORT
BRACKET
(x6)
WIRE
CONNECTOR
(x3)
S3MCL2030L
S3MCL2030R
A B C
Model
Number
Item
S3MCL2430(L/R)
S3MCL3030
S3MCL3630
S4MCL2030L
S4MCL2030R
S4MCL2430(L/R)
S4MCL3030
S4MCL3630
20" 19-1/4"x29-1/4"x3-3/4"
29-1/4"x29-1/4"x3-3/4"
35-1/4"x29-1/4"x3-3/4"
19-1/4"x29-1/4"x3-3/4"
23-1/4"x29-1/4"x3-3/4"
29-1/4"x29-1/4"x3-3/4"
35-1/4"x29-1/4"x3-3/4"
23-1/4"x29-1/4"x3-3/4"
20"
24"
24"
30"
30"
36"
36"
30"
30"
30"
30"
30"
30"
30"
30"
4-5/8"
4-5/8"
4-5/8"
4-5/8"
4-5/8"
4-5/8"
4-5/8"
4-5/8"
Rough in size
A- Cabinet Width
B- Cabinet Height
C- Cabinet Depth
NOTE: All rough-in dimensions for reference only!
A
B
C
NOTE: Please use rough in size for
recess mounting installation(wall cut-out).
All dimensions and specifications are
nominal and may vary.Use actual products
for accuracy in critical situations.



     
     

1 2
3 4
PRIOR TO MOUNTING
Carefully remove side mirror panels for
recess mount installation.
Remove door(s) prior to mounting your
cabinet.Start with unplugging the door from
the cabinet.
While supporting the door release(the
lever under the hinge arm),slide the door
off the frame.
Take off the door(s) carefully and lay it down
on a safe area.
Remove the Door(s) prior to mounting your cabinet(s)


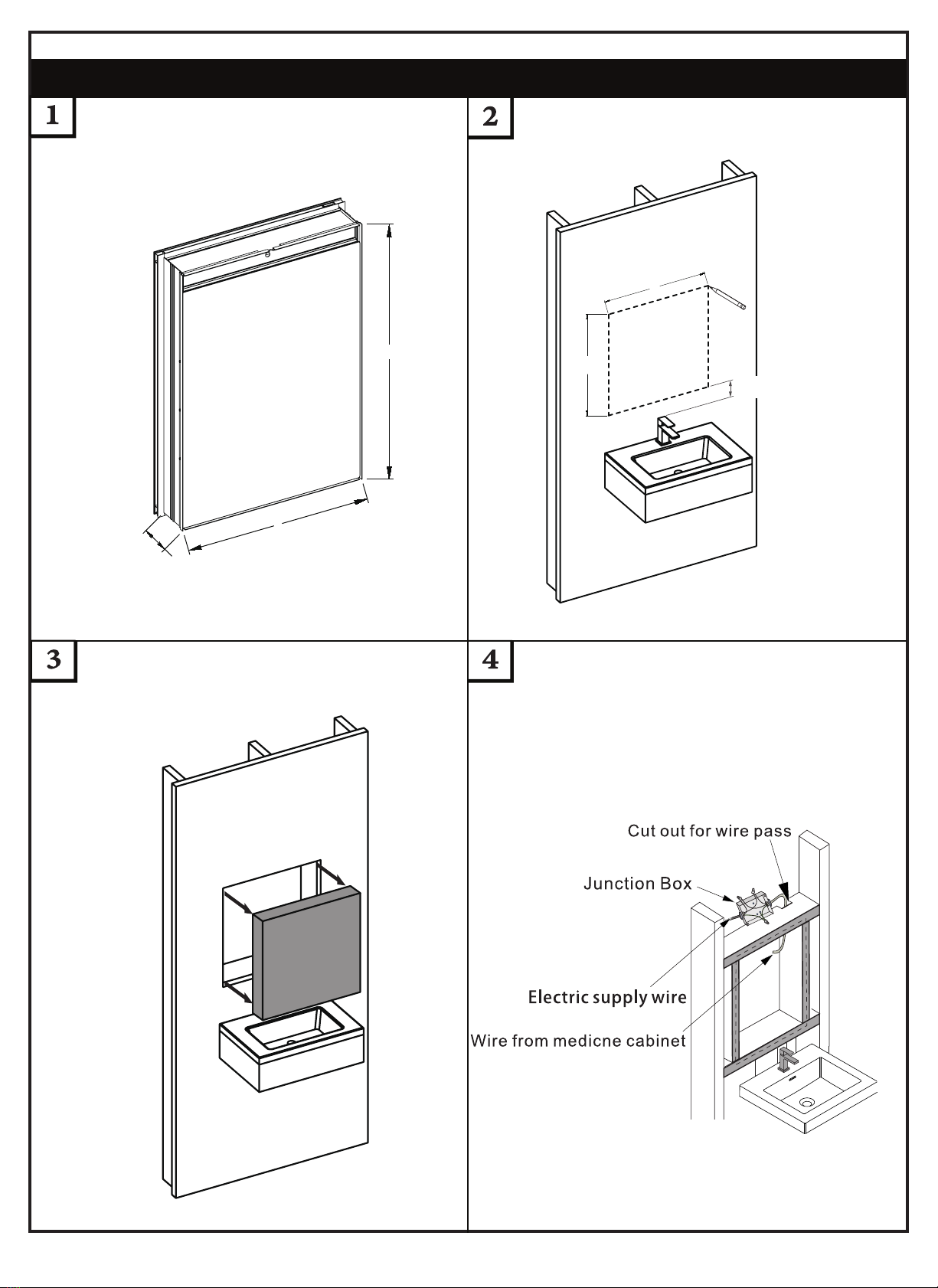

RECESS INSTALLATION
3” minimum
Draw the perimeter of the cabinet on the wall.
Refer to "dimensions" on page 4 to measure
Rough in size.
Cut the hole as marked dimension with suitable
tool.
A
B
C
B
A
Frame the opening for the cabinet based on the
measurements.
NOTE:To recess mount, the wall cavity must
be framed and the cabinet secured to framing
studs. Reroute electrical or water supply lines
from the cavity. Consult a professional if drain
or vent piping is encountered, or if the wall is
load-bearing.


Affix using hardware screws into the studs.Connect electrical wires and then place the
cabinet between the wall studs.
Be Careful to avoid
squeezing the wiring
while insert the
cabinet
NOTE:For wood stud wall,you need to use screw to fix the cabinet.
For brick/concrete/stone/tile wall, you need to use wall plug and
screw together to fix the cabinet.
Position cabinet in cut out opening.
RECESS INSTALLATION
WARNING:Turn off the power before wire connection!
First cut off the power plug , then use the WIRE
CONNECTOR connect to external power supply.
Neutral to white
Live to black
Ground to green.
Make connections
Live / Black
Ground / Green
Neutral / White
*Junction box is not included*

x4

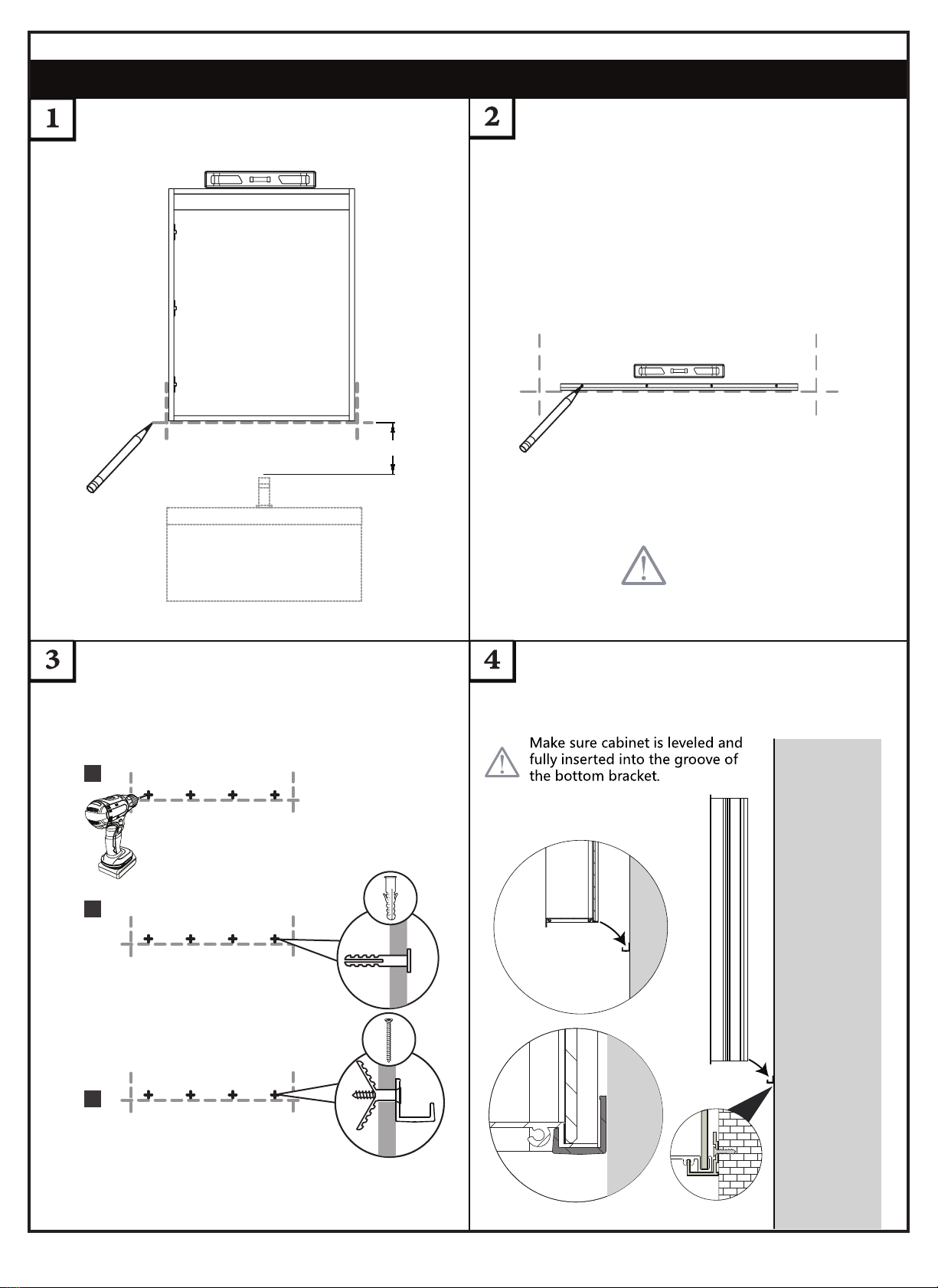

SURFACE-MOUNTED INSTALLATION
A
B
C
3” minimum
Level and mark the cabinet's location on the wall. Mark the position of the Bottom Mounting
Bracket and Punch.
Punch holes in the mark, put in Wall Plug, fix
Bottom Mounting Bracket to the wall with Screw.
Attach bottom bracket to wall.
Wall
Wall
With assistance, to rest the cabinet on the
mounting bracket and hold in place.
Wall

Bottom mounting brackets
must be attached to furring
strip/channel or wall studs

Make sure top brackets are locked in the
grooves.
Insert top mounting bracket into the top of
the cabinet.
SURFACE-MOUNTED INSTALLATION

Adjust the position of Top Mounting Bracket
and mark the holes with a pencil
Remove the cabinet, drill holes according
to the marked position, and put in Wall Plugs.
Put the cabinet down first, then drill
the top bracket holes, electric drill bit
vibrations will damage the cabinet top
surface.

Test the fit of the cabinet before Final assembly.
Put the cabinet on the bottom mounting bracket
and hold the place, then insert the top mounting
bracket into the top of cabinet, fix the top mounting
brackets to the holes with screw.(repeat step 4-6 )
NOTE: Vibrations occur in the electric drill,
use Philips Screwdriver to protect your
cabinet top surface.
Install the side mirrors
Put the plug into the socket
Grounded pin
Grounded outlet
Grounded
outlet box
SURFACE-MOUNTED INSTALLATION

x4
Top mounting brackets must
attached to furring strip/channel or wall
studs.

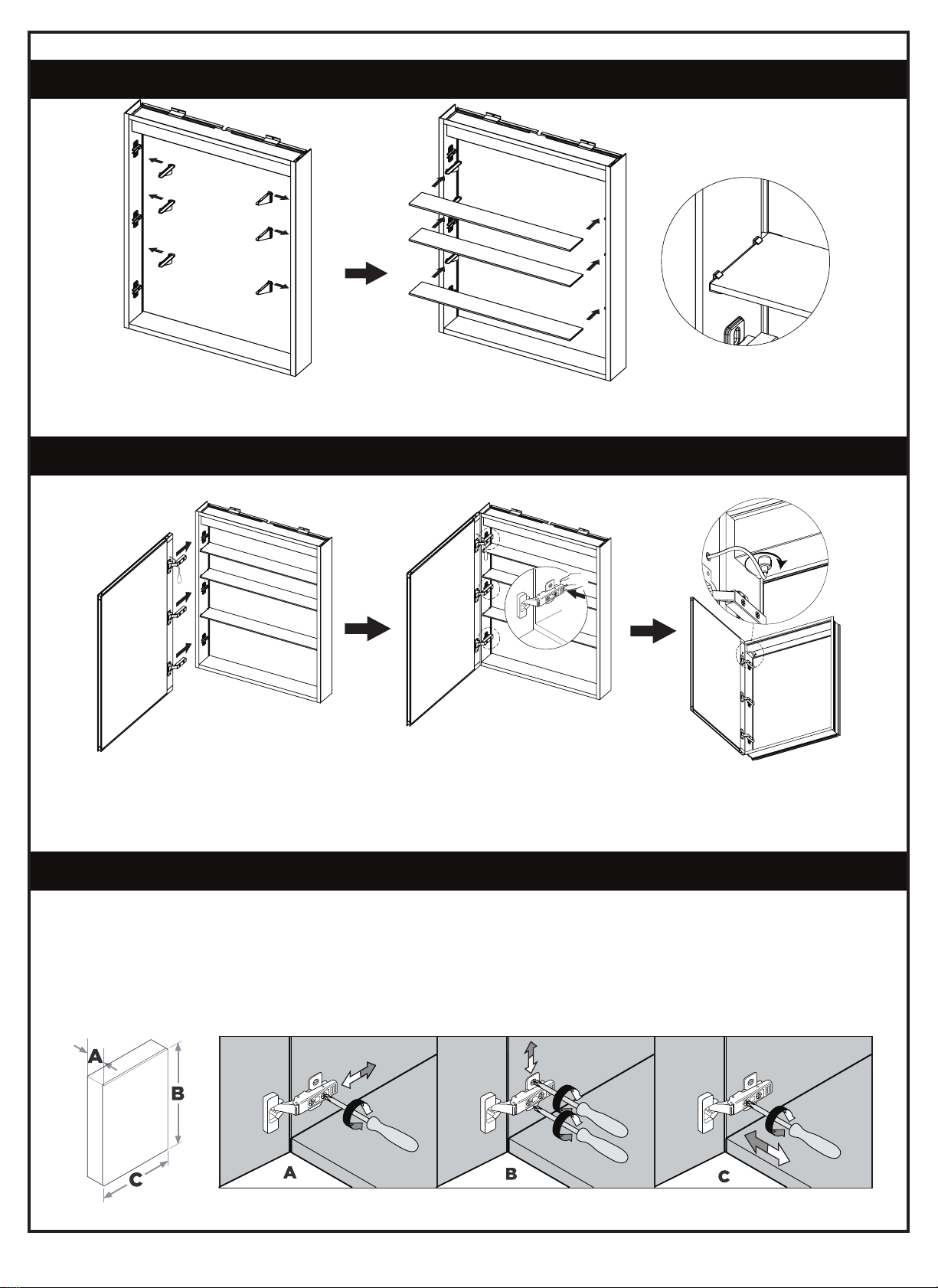

GLASS SHELF INSTALLATION
Insert clear snap in shelf clips into
holes on the sides of the cabinet.
1. Slide the doors into place by
pinching the end of the hinges.
2.Plug the door into the cabinet.
Press the end of the hinge to match
the hinge seat
Insert the Glass Shelf along the
board clip slot
Installing wiring terminals
Door Adjustment / Door Removal
OPTIONAL DOOR ADJUSTMENT
Doors may need to be adjusted after the initial shipping of the cabinet. The cabinet doors have a three-way
adjustment feature. Height, side-to side, level and depth can be adjusted. With the hinge slightly closed you
can access the middle screw for up/down adjustment.
With the hinge fully extended you can access the front and back screws.These screws will move the door
side to side and in and out.
MIRROR DOOR INSTALLATION


TOUCH BUTTON AND OUTLET CHARGER


























USE AND MAINTENANCE






1
2
3
ABRASIVES
ABRASIVES
CLEANING
MAINTENANCE
2. Do NOT clean the mirror cabinet with caustic cleaner.
Do NOT wipe the mirror cabinet with Bristle brush;
3. For daily maintenance, please use soft cloth and mild
cleaner to clean the mirror cabinet.
1. To avoid damage, do NOT knock the mirror cabinet with
any hard objects;



LIMITED WARRANTY

WELLFOR warrants to the original purchaser that, it will, at its election repair,re-
place, or make appropriate adjustment to products made by this company shown
to have significant defects in material or workmanship which are reported to
WELLFOR in writing within two (2)years from the date of delivery.WELLFOR is
not responsible for installation costs. The warranty is void in the event the product
is damaged in transit, or if damage or failure is caused by abuse, misuse, abnor-
mal usage, faulty installation, damage in an accident,improper maintenance,or
any repairs other than those authorized by WELLFOR.At the expiration of the two
years warranty period,WELLFOR shall be under no further obligation under any
warranty, expressed or implied,including the implied warranty of merchantability.
WELLFOR shall not be liable for any consequential damages arising out of or in
connection with the use or performance of its products. Some states do not allow
limitations on how long an implied warranty lasts or do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or ex-
clusion may not apply to you.Any liability against WELLFOR under any implied
warranty, including the warranty of merchantability, is expressly limited to the
terms of this warranty. Permission to return any merchandise under this warranty
must be authorized by WELLFOR and returned prepaid by the purchaser. Claims
under this warranty should be sent directly to your dealer.
For customer support please call 206.809.0093 weekdays 9:00 to 6:00 PST, or by email: [e-mail].
ALL RIGHTS RESERVED
For more information: www.wellfor.com

