Cdp korea N-gene User manual

Model : N-gene (Color LCD)

1+1 Pocket Multi-currency Banknote Counter

User manual

2012 ⓒCDP Korea INC.

N-gene CDP Korea Inc.

User Manual Rev 3.0 [2]

Contents

1. Instruction ……………………………………………………………………....... 3

2. Safety Instructions………………………………………………………………… 4

3. Specifications……………………………………………………………………... 5

4. Machine Overview…………………………………………………………..…… 6

Sensor Location Diagram …………………………………………………….… 7

5. Display Control Panel …………………………………………………….…… 8

6. Operating Mode ……………………………………………………………..... 12

7. Setup Mode ………………………………………………………….............. 17

8. FUNC Mode ………………………………………………………………........ 19

9. Print Mode……………………………………………………………………… 20

10. Selection of CURRENCY………………………………………………….… 21

11. Connectivity …………………………………………………………………….. 21

12. Feed Gap Adjustment ……………………………………………………….… 22

13. Note Jam Clearing …………………………………………….……………… 22

14. Cleaning ……………………………………………………………………….. 23

16. Trouble-Shooting ……………………………………………………………… 25

17. Warranty……………………………………………………………………….. 26

N-gene CDP Korea Inc.

User Manual Rev 3.0 [3]

1. Instruction

Dear Customers,

Thank you for using N-gene, 1+1 pocket banknote counter. This machine is designed to

maximize productivity with high-end technology of detection and authentication for cashiers.

N-gene is cost effective, convenient and easy to use for your cash processing in any places.

Please read carefully this user manual for safe operation. As we provide service and support

though our authorized partner, kindly contact them for any inquiry or requirement about our

product N-gene.

Sincerely yours,

CDP KOREA INC.

This document must not be re-published or transmitted without the consent of the publisher.

,, ,

Declaration of conformity / Certifications

Address: #1001, Suntech 1 building, 513-15, Sangdaewon-dong, Jungwon-gu, Seongnam-si,

Kyounggi-do, Republic of Korea

Post code: 462-725

Tel +82 31 732 3633 Fax+82 31 731 3633

Email: cdp@cdpkor.co.kr

N-gene CDP Korea Inc.

User Manual Rev 3.0 [4]

2. Safety Instructions

To install the product

Make sure to apply proper grounding, using the plug. Short-circuit may cause electric shock.

Allow space from peripheral walls and place Product as shown in the following Figure. Keep

sufficient operation space for filling of bills, opening and closing of covers, as well as

maintenance.

[ Minimum Operation space ]

When you operate the product

- Do not insert banknotes severely damaged, wet or mixed with alien substances.

- Please keep your hands away from Hopper or Stacker while counting.

- Banknotes should be properly arranged, and then put on the hopper as shown below:

N-gene CDP Korea Inc.

User Manual Rev 3.0 [5]

To maximize the durability of the product

- Please have the check-up service by service personnel on regular basis.

- Using soft brush or cloth, clean the sensor module parts (inside of the open cover on

back side) daily.

- Do not place the product in a dusty space, making sure that the product stays free of

dusts or alien substances.

- Keep and use the product under the optimal conditions as follows:

Temperature: 0-40

℃

(For use) Humidity: 20-90 %RH

NOTICE

Please place the product away from heat sources or direct sun rays.

Do not try to disassemble or repair the product by yourself.

Do not open or operate the product by force.

Make sure to shut its power off before putting your hands inside the product

(for cleaning or clearing note jamming only).

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BYAN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTION

3. Specifications

ITEM UNIT SPECIFICATION

1 Size (W x D x H) mm 300[W] x 280[D] x 304[H]

2 Weight Kg 11

3 Hopper Capacity notes 500

4 Stacker Capacity notes Max. 200

5 Reject Pocket Capacity notes Max. 50

6 Display Type dot 3 inch TFT Color LCD

7 Connectivity Interfaces 9Pin D-SUB / 6Pin Modular Jack /

Micro SD Card

8 CurrenciesAvailable 1 (Available up to 5 currencies)

9 Banknote Size Range mm [W] 100 ~ 185 / [D] 60 ~ 90

10 Banknote Thickness Range mm 0.08 ~ 0.12

11 Counting Speed notes/min 600/800/1000

12 Discrimination Mode Single / Mixed Mode

13 Preset Batch Number 1 ~ 200

14 Counterfeit Detection CIS / UV / MG / US

15 Power Requirements V AC100-240V~ 50/60Hz 1.5A

16 Power Consumption W Standby: 6 / Operation: 90

17 Operating Conditions Temperature (0~40°C) /

Humidity (20~90%)

N-gene CDP Korea Inc.

User Manual Rev 3.0 [6]

4. Machine Overview

Front view

Place notes to count

& sort Choose functions &

Navigate menu

Counted notes to be

stacked Rejected notes to be

stacked

Counting result, Error

code or Setup detail etc

are shown

Guide plates for feeding

notes

Back view

Cooling Fan

Used to connect a

computer or a printer.

Program stored for

Product operation

This is the plate for

inserting the power

cord.

Lift up latch to

Open transfer path

Adjustment screw to

Help the counting

Smooth.(The Adjustment

is factory defaulted.)

N-gene CDP Korea Inc.

User Manual Rev 3.0 [7]

Sensor Location Diagram

This product has sensors as shown in the figure below. When a sensor error occurs, check

the sensor which is designated on LCD and clean the area if necessary

Serial Cable for connection between N-Gene and P.C spec.

1) Prepare Serial Cable (RS-232C, 9 pin Female to Female)

<9 pin Female to Female Serial Cable>

N-gene CDP Korea Inc.

User Manual Rev 3.0 [8]

Pin1ChassisGround

Pin2 Pin3

Pin3 Pin2

Pin5 Pin5

5. Display Control Panel

Operational Key

①:Select VAL, Free, F&O (Face & ORT), FIT, Serial No. Mode

(V Mode Machine)

(F Mode Machine)

[ Changing Mode ]

②: Select Denom Option (Only Working VAL and FIT Mode)

단추

MODE

단추

DENOM

N-gene CDP Korea Inc.

User Manual Rev 3.0 [9]

[ Changing Denom Option ]

③: Select Face/ORT Option (Only Working F&O Mode)

[ Changing FACE/ORT Option ]

④: When notes are rejected, user can receive Error

report on LCD display

⑤: You can select 3 kinds of Batch Mode

All Denomination Batch Mode

Preset Batch Mode

Amount Batch Mode

If you select All Denomination Batch Mode, All denominations are

have same batch number

When you press Down Arrow Key, you can select Preset batch

mode and you can select a specific denomination Batch number, and preset

단추

FACE/ORT

단추

REJECT

단추

BATCH

N-gene CDP Korea Inc.

User Manual Rev 3.0

[10]

batch number will operate when you select “Auto” Function. Also if you

press Down arrow key, you can see other denomination.

When you press Down arrow key until last denomination, next

display is Amount Batch Mode. If you want to select Amount Batch, please

input amount you want, than Machine will stop when counting amount is

reached Amount batch.

⑥: Count Notes’ value and pieces inAccumulation

[ Change ACC ]

⑦:Print the counting information

⑧:SETUP Mode is for Time setting, LCD Contrast,

Communication and Parameter

⑨:FUNTION Mode is for Basic and Sensors setting

⑩:Changed Currencies menu

[ Change Currency ]

⑪:Clear Counting Value, Quit Function or go to Previous

Mode

OFF ACC

단추

ACC

단추

PRINT

단추

SETUP

단추

FUNC

단추

CURRENCY

단추

CLEAR

LOCAL CURR2

CURR1 CURR3 …

N-gene CDP Korea Inc.

User Manual Rev 3.0

[11]

LOCAL CURR2

CURR1 CURR3 ...

⑫:Save Selected Function or Mode

⑬:Navigation keys for cursor moving Up and Down

⑭:Navigation keys for cursor moving Left and Right

LCD Display

①Selected VAL(Value), Free(Count), F&O(Face& Orient), Fitness and

Serial(Serial No.) Mode

②Selected MIX and Auto Function (※Only available in Value and Fitness)

③When Auto Function is selected, display selected denomination

④When Machine detected Rejects notes, display quantity

⑤Currency

To change Currency, press Currency key and select currency using Up

and Down navigation keys and press OK key (If your machine has only one

Currency, this key will be not worked)

[ Changed Currency ]

⑥Display selected Batch Count Number

⑦Counted banknotes quantity

⑧Counted total amount of banknotes

⑨In fitness mode, machine show current operation 2nd run mode

단추

◀단추

▶

단추

▲단추

▼

단추

OK START

STOP

N-gene CDP Korea Inc.

User Manual Rev 3.0

[12]

⑩Accumulate Mode is on

⑪Machine detected Counterfeit

6. Operating Mode

1) Mode Change

Select Value, Free, F&O, Fitness or Serial Mode

[Change Mode ]

2) Value Mode (Value Count)

[Value Mode – Simple Mode]

Value Mode recognizes the denomination and sort out banknotes by denomination.

: Value Mode has optional function of DENOM.

Mixed mode. : Recognizes and counts all kind of Denomination

Auto mode : Recognizes and counts only one Denomination which is fed first note

The machine will be rejected other DENOM as “Other DENOM”

The machine will be selected first banknote on hopper automatically

withemptyPocket.

Mixed F-A mode : Recognizes and counts all kind of Denominations with one Face

and detecting Counterfeit notes

(Other faces will go to reject pocket as OTHER-FACE or ORT)

Auto F-A mode : Recognizes and counts only one Denomination which is fed first

note with one face and detecting Counterfeit notes

By Pressing the Denom key, the Denom Option changes MIX or AUTO and when

you turn on Machine or re-select Value Mode, Machine will select AUTO Function.

N-gene CDP Korea Inc.

User Manual Rev 3.0

[13]

[ Change MIX and AUTO Option ]

Detail Mode Function

By Pressing Left navigation key, the machine will be displayed Detail DENOM in

VAL and FIT Mode and press Left Arrow key, the machine will be displayed Default

mode

If you want to see other DENOMs which are not displayed LCD, using Up and

Down navigation keys. (Display will be scroll up or down)

If you want to comeback simple Mode, please press RightArrow Key

[ Detail Mode]

Reject Reason

By pressing “REJECT ” Key, you can check the reason of rejected notes in Reject

pocket by following:

In “Reject History” display, press button to check the reject reasons in detail.

[ Reject Reason Display ]

⋇In Reject History, press CLEAR key to exit

ACC Function

By Pressing ACC key, the LCD is displayed ACC and the current counting result is

단추

▲

N-gene CDP Korea Inc.

User Manual Rev 3.0

[14]

added on next counting.

To clear ACC Mode, press “ACC” key once more

[ACC Mode turned on Display]

[ Change ACC ]

Batch Function

Pressing BATCH Key, you can select 4 kinds of Batch Mode –All Batch, Reject

Pocket Batch, Preset batch and Amount Batch

Please refer to Explain of Operational Key ⑤

3) FACE/ORT Optional Function

By Pressing the MODE Key and select F&O mode and the Face/ORT key

changes to Face or Orient mode.

This mode sort only directions of note without detecting Counterfeit Notes.

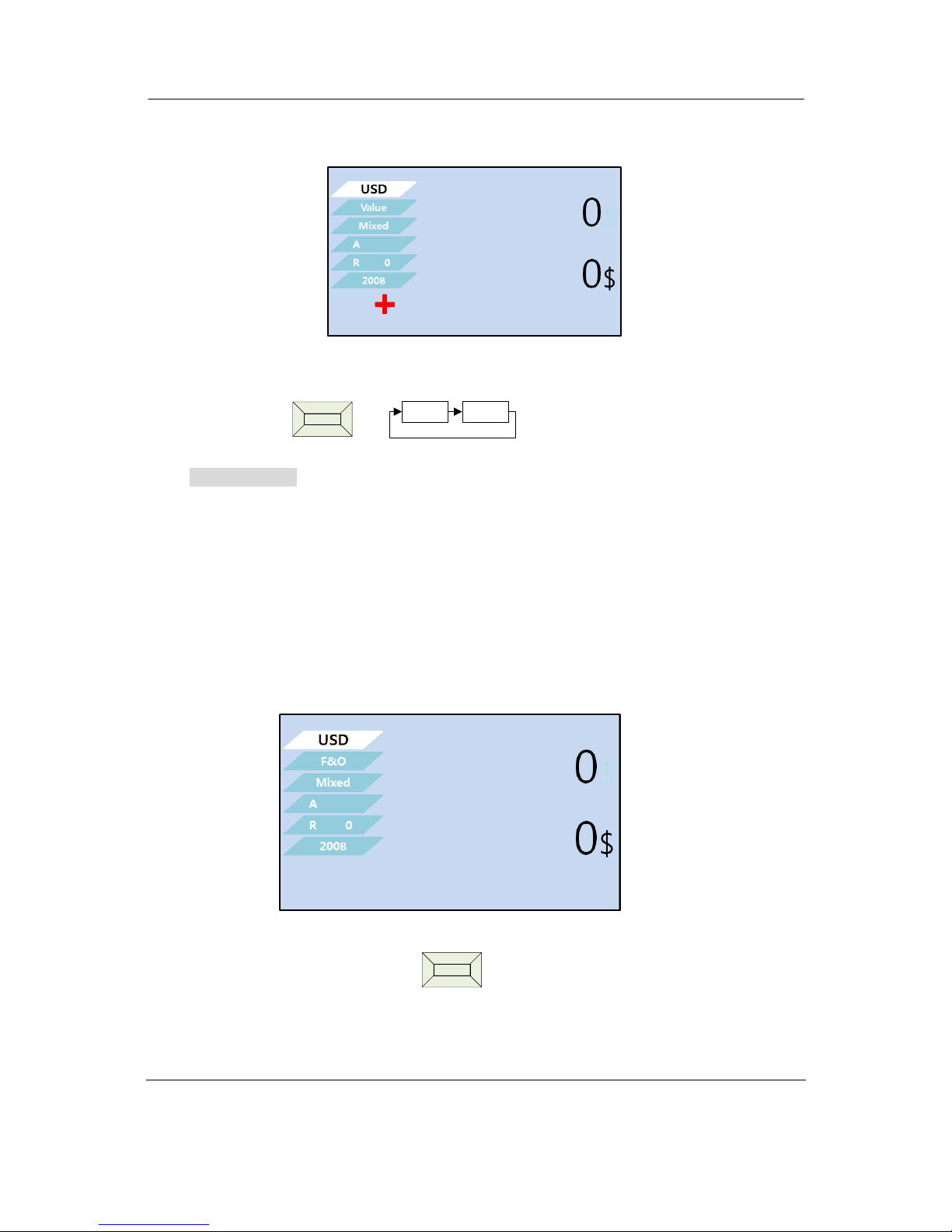

[ FACE/ORT Mode ]

[SelectFaceorOrientOptionKey]

단추

FACE/ORT

OFF ACC

단추

ACC

N-gene CDP Korea Inc.

User Manual Rev 3.0

[15]

※ N-gene Recognize Direction for Banknotes

[ Face A ] [ Face B ]

[ Face C ] [ Face D ]

If you select “FACE” Mode, the machine will be sorted [Face A] and [Face B] or

[Face C] or [Face D]

If you select “ORT” Mode, the machine will be selected [FaceA] and [Face C] or

[Face B] and [Face D]

In the F&O Mode, MIX means all kind of DEMON and AUTO means one kind of

DEMON which is selected first banknote.

The machine is selected first banknote of Face automatically.

The F&O Mode supports ACC, BATCH and REJECT Functions same as VAL Mode

and don’t support Detail Function.

4) Free Mode (Count)

In Free Mode, it counts only pieces of notes.

[ Free Mode Display ]

ACC Function and Batch Function

In Fee Mode, ACC and BATCH Function will be worked same as VAL Mode

5) FIT Mode (Fitness Mode, F Machine only )

By pressing “MODE” key, you can select FIT Mode.

N-gene CDP Korea Inc.

User Manual Rev 3.0

[16]

[Fitness Mode]

The Fitness Mode supports MIX and AUTO, ACC, BATCH, Detail Functions same as VAL

Mode

If the machine found the reject banknotes during feeding banknotes, pop up “NEED 2nd

RUN” Message and 2nd Run” Function is for distinguishing counterfeits and unfit banknotes

from the banknotes in the Reject pocket.

[2

nd RUN message Pop up]

When you remove banknotes from Pocket and Reject pocket, machine is ready to

operate 2nd Run and 2nd RUN mark will displayed on Left-bottom of LCD

In 2nd RUN Function, Counterfeit banknotes will be gone to pocket and unfit banknotes will

be gone to Reject Pocket.

N-gene CDP Korea Inc.

User Manual Rev 3.0

[17]

[2

nd RUN Operation Display]

The 2nd RUN Function will be operated until machine doesn’t detect Counterfeit or

Miss Image anymore and machine doesn’t detect CF or Miss Image, 2nd RUN Function will

be terminated automatically.

2

nd RUN Function can enable or disable selecting “ON/OFF” in the FUNCTION” Mode

setting. (Please refer to “8.Function Mode”)

7. Setup Mode

1) Set up Mode

In Setup Mode(By pressing “SETUP”), 4 kinds of settings can be done as following

[ Setup Mode Display ]

(1) TIME SET, you can set local or your wanting time

[TimesetDisplay]

N-gene CDP Korea Inc.

User Manual Rev 3.0

[18]

Pressing by Up and Down navigation keys, you can select SECOND, MINUTE,

HOUR….YEAR.

After selected you want item, press Numeric keys(Left Key pad) and set you want

time and date.

(2) LCD Contrast, you can adjust LCD contrast

[LCDContrastDisplay]

LCD Contrast is fixed and LCD brightness will not change even through you

change value.

(3) Communication, you can select communication device with the machine by

pressing Left and RightArrow keys.

If you select LAN through pressing Right Key and Machine doesn’t connect LAN,

Machine will be stopping operation to searching IP address. If you encounter this

symptom, please turn off and on machine

[CommunicationDisplay]

So, if you want to use machine without connecting LAN, and want to use Printer,

please select “SERIAL”.

“PRINTER” option will be use CMS program

N-gene CDP Korea Inc.

User Manual Rev 3.0

[19]

(4) Language, you can select Language in Setup mode

If you select 4) LANGUAGE, than languages you can select are displayed on next

display.

{ Selectable Language Display }

Please select a language you want to, and please press OK key

8. FUNC Mode

By pressing “FUNC” key, you can enter Function Menu.

If you want to change each Option, press Left or Right Arrow key and O.K key

1) OLD&NEW : You can select ALL, OLD and NEW issued Banknotes

2) Auto Start : You can select Auto Start or Manual Start

3) Beep CF : When machine detect CF, warning beep sound or not

4) Version Info : You can see the machine S/W version

5) Machine ID : You can input Machine ID

6) 2

nd RUN : Enable or Disable 2nd RUN

[Function Mode Display]

N-gene CDP Korea Inc.

User Manual Rev 3.0

[20]

9. Print Mode

To print the feeding result, you press “PRINT” Key.

[ Print Mode Display ]

1) Total

: Printing counting and amount each denomination and Total amount of current

feeding.

After finished printing, machine will ask “Do you want to Clear to Total Print?”

If you press YES(OK), the counting result will be transfer to Sub Total and

counting data will be clear, or press No(Clear) the counting result will not transfer

to Sub total and remains the result in machine memory until next counting.

If machine does next counting the previous result will be disappeared.

2) Sub Total

: Print the accumulative result of the Total. It also transfers the count to the

Grand Total.

After finished printing, machine will ask “Do you want to Clear to Grand Total?”.

If you “YES”, Machine will transfer sub total result to Gran Total and clear sub

total result, or sub total result will be not transferred to Grand Total and keep sub total

CDP Korea N-gene User manual

Popular Banknote Counter manuals by other brands
