Cedar 801 User manual

1
1
Panel & Shelf Identification
ITEM
DESCRIPTION
QTY

Wall Panel
2

Tower Panel
2

24” Shelf with Rafix
2

18” Tower Shelf with Rafix
3

18” Tower Shelf
3

51” Max Adjustable Shelf (33”~ 51”)
1
PLEASE READ INSTALLATION
INSTRUCTIONS BEFORE ASSEMBLING
Rev. D
IF YOU ARE MISSING PARTS OR HAVE
QUESTIONS PLEASE CONTACT:
[e-mail]
4’ to 8’ Aromatic Cedar Closet
Model # 801
Tools Required:
24”
18”
33” ~ 51”
72”
7”above floor

2
Hardware Identification Sheet
ITEM
DESCRIPTION
QTY
A
Rafix Connector Bolt
24
B
Wardrobe Tube
Support
3 pairs
C
Dry Wall Anchor
12
D
Flathead Phillips Screw
#6 x 1/2"
8
E
Panhead Phillips Screw
#8 x 1"
12
F
Flathead Phillips Screw
#8 x 3/4"
14
G
Wall Rail 44"
1
H
Wall Rail 18"
1
I
Wall Rail Covering Strip
43"
1
J
Wall Rail Covering Strip
53"
1
K
Wardrobe Tube 24"
2
L
Wardrobe Tube 51"
1
M
Panel Bracket
4
N
Shelf Support
14
O
Left Panel
Hanger
2
P
Right Panel Hanger
2
Q
Rafix Connector
24

3
BEFORE YOU BEGIN ASSEMBLY:
Read your instruction manual fully. Check all parts and hardware. If anything is missing or not satisfactory, please DO
NOT call the store or return the product to them. Please email to [e-mail] for assistance. Most
problems are resolved promptly without you needing to leave home.
Installation Steps
Using a level draw a horizontal line across back of closet, 74” above floor.
Locate studs by using a stud finder, lightly mark wall 1/4” below horizontal line to
reference stud locations.
Mark vertical panel locations: using left wall as starting point; mark X at 25”for left
Tower Panel (2); mark X at 44”for right Tower Panel (2); mark X at right end for
right Wall Panel (1).
Hint:
- 74” above floor is just a recommendation, horizontal line could be set higher (e.g. 78”) if
more hanging space is desired.
- Closet has to be at least 78”wide in order to fit all three sections of the system. Less than
three sections can be installed for smaller closet.

4
Mount WALL RAIL (G) from left to right on top of the Horizontal Line. To secure the
wall rail onto the wall –Use Panhead Screws (E) on stud reference marks. Mark
the screw locations then drill pilot holes using a 1/8” drill bit.
If any of the Panels are not within 3”of a stud, Dry Wall Anchor (C) are needed.
Mount Wall Rail (H) from right end to left. Using Panhead Phillips Screw (E) and
Dry Wall Anchor (C).
Cover long Wall Rail 44” (G) with Wall Rail Covering Strip (I). Snap fit the cover
from top to bottom. Narrow side fits the top and the bottom will snap in.
Measure and cut Wall Rail Covering Strip (J) to fit remaining area of wall rails and
the gap between two wall rails.
Hint:
- Wall rails must be mounted on studs behind wall. This is very important.

5
Attach the Left Panel Hangers (O) onto the left Wall Panel (1) and left Tower
panel (2) by using Flathead Phillips Screws (F), put the Left Panel Hanger (O) at
the ½ circle Indent at the top of the Panel, locate the Two pre-drilled Holes just
below the Indent. The bottom screw Holes of the Left Panel Hanger (O) should
match the pre-drilled ones.
Repeat the steps to attach the two Right Panel Hangers (P) onto the right Tower
Panel (2) and the right Wall Panel (1).
Add Panel Bracket (M) onto the bottom of the Wall Panels and Tower Panels (1 &
2) using Flathead Phillips Screws (F).
Hang left Wall Panel (1) onto Wall Rail (G).
Hang left Tower Panel (2) onto Wall Rail (G) at marked X location.
Hang right Tower Panel (2) onto Wall Rail (G) at marked X location.
Hang right Wall Panel (1) onto right end of Wall Rail (H).
Hint:
- You can level the Wall and Tower Panels(1 & 2) using the vertical and depth adjustment
screws on the Panel Hangers (O & P).

6
Insert Rafix Connector (Q) into shelf holes with the openings facing outward. Do
this for all shelves (3), (4) and (6).
Mount Rafix Connector Bolt (A) on the first holes from top of left Wall Panel (1)
and left Tower Panel (2) using Phillips or Power screwdriver. Top holes are used for
flat top shelving.
Place one 24” Shelf (3) onto the Rafix Connector Bolts. Lock the Rafix Connector
Bolt (A) with Rafix Connectors (Q)by inserting the screwdriver into the Rafix
connector Hole and turning Clockwise.
Repeat the steps for all shelves with Rafix Connectors:
- Mount the 2nd 24” shelf (3) 6 holes from bottom up on left Wall Panel (1);
- Mount the Top 18”Shelf with Rafix Connector (4) on the first holes from top
between both Tower Panels (2);
- Mount 2nd 18”Shelf with Rafix Connector (4) at the same level of 2nd 24”
shelf (3);
- Mount the 3rd 18”Shelf with Rafix Connector (4) 2 holes from bottom up;
- Mount the Adjustable Shelf (6) between right Tower Panel (2) and right Wall
Panel (1), pull or push to adjust the shelf width to the desired Length.
Hint:
- Rafix Connector Bolt (A) can be mounted in different holes depending on customer’s desired
shelf locations.

7
Mount Wardrobe Tube Support (B) in left wardrobe section, 2 holes down from
both 24”shelf (3), with Flathead Phillips Screw (D). Do same for both end pieces.
Set both Wardrobe Tube 24” (K) in 24”shelving sections.
Mount Wardrobe Tube Support (B) in right wardrobe section 2 holes down from
Adjustable Shelf (6).
Measure distance between two ends of Wardrobe Tube Support (B), mark
Wardrobe Tube 51” (L) and cut with Hacksaw or a Tube Cutter.
Set Wardrobe Tube (L) in adjustable shelf section.
With Shelf Support (N) add three 18”Tower Shelf (5) to desired locations in the
middle/tower section.
Position all Wall and Tower Panels (1 & 2),mount Panel Bracket (M) onto back
wall using Panhead Phillips Screw (E) and Dry Wall Anchor (C) if necessary.
Hint:
- Suggested Shelf and Wardrobe Tube locations can be changed
- Customize you closet to meet your need.
Now your beautiful new cedar closet is finished, enjoy the aromatic scent.

8

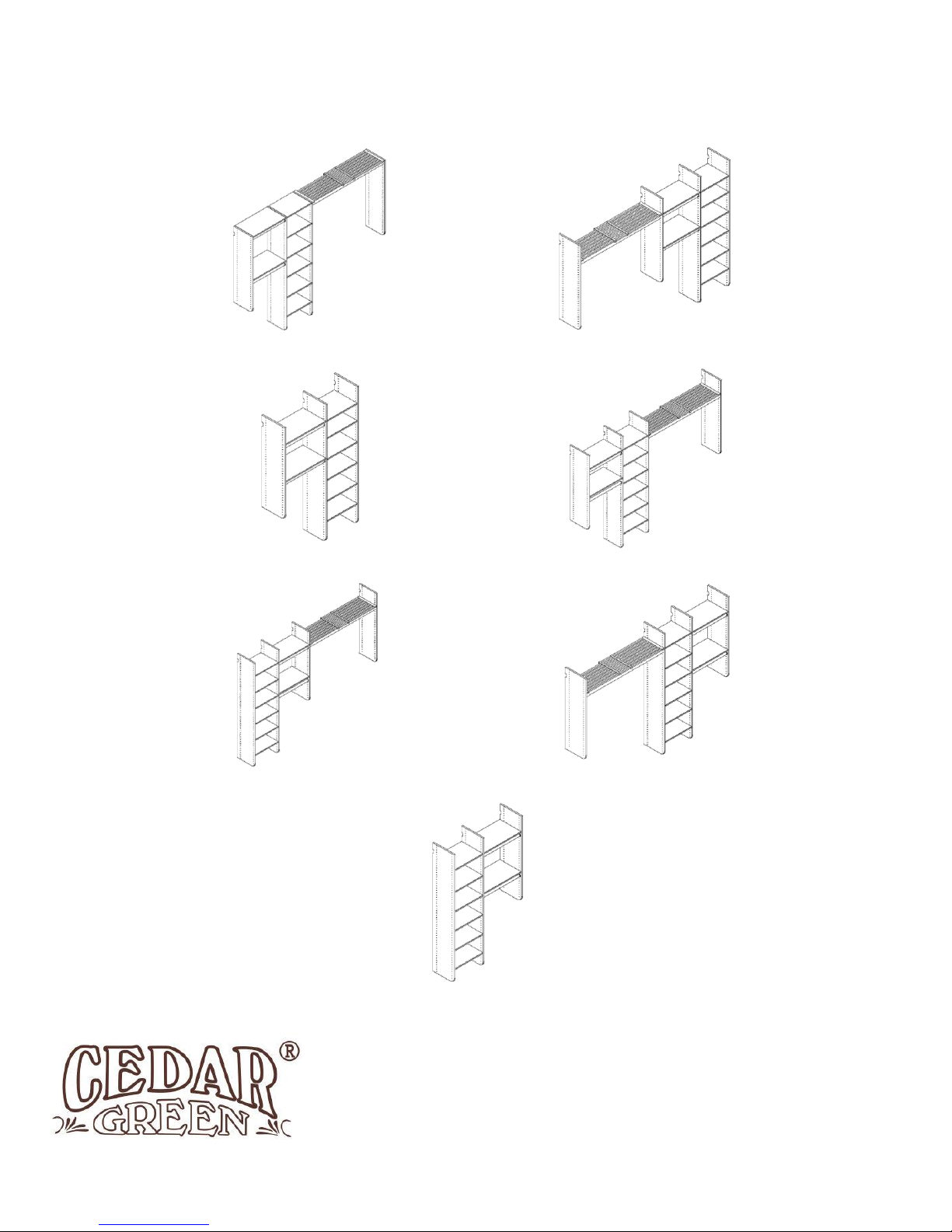

Be creative with your Cedar Closet System, suggested combinations:
Item No.: 801
Aromatic Cedar Closet System
by Cedar Green
800-336-4690
www.cedargreen.net
