Celegon COMPACK LIVING 90 Instructions for use

CELEGON S.r.l. - Via G. Galilei, 6 - 30035 Mirano (Venezia) - T [phone] - F [phone]
www.compackliving.com - [e-mail]
MTCL90EN - Rev. 01-12/2017
TECHNICAL CONSTRUCTION MANUAL
COMPACK LIVING 90° system

2
MTCL90EN - Rev. 01-12/2017
COMPACK LIVING 90° patented
The company reserved the right to make, at any time, without prior notice, all technical changes it considers appro-
priate to improve the quality and the correct functionality of the products.
All contents of this manual are covered by copyright.
It’s forbidden even partial reproduction of text and drawings, without prior written permission of Celegon s.r.l.. Any
abuse will be prosecuted according to law.
All right reserved - Duplication or divulgation without autorization is strictly forbidden.
CONTENTS
1. INTRODUCTION ........................................................................... 3
2. COMPATIBILITY OF THE COMPACK LIVING SYSTEM ................................. 4
3. VARIANTS OF USE ........................................................................ 5
3.1 Hardware.................................................................................................. 6
3.2 Vertical section .......................................................................................... 7
3.3 Horizontal section left door ........................................................................... 8
3.4 Dimensional diagram of the door - symmetric leaves ............................................ 9
3.5 Dimensional diagram of the door - asymmetric leaves ........................................ 10
4. DIMENSIONAL SUMMARIES ............................................................ 12
4.1 Single opening door ................................................................................... 12
4.2 Dimensional diagram of the double opening door .............................................. 13

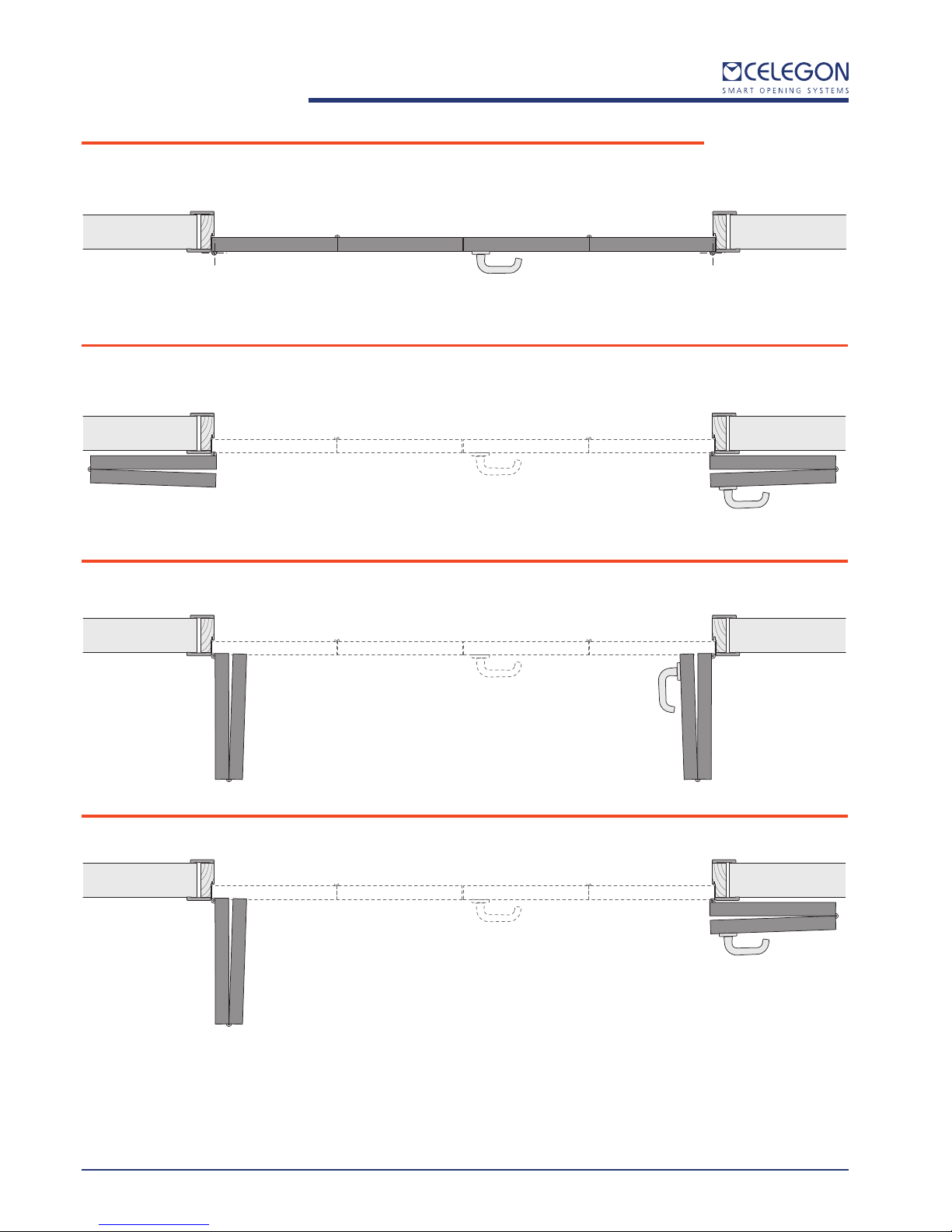

4.3 COMPACK LIVING 180° - 90° combination possibilities on double doors .................. 14
4.4 Double opening door.................................................................................. 15
5. COMPONENTS ........................................................................... 16

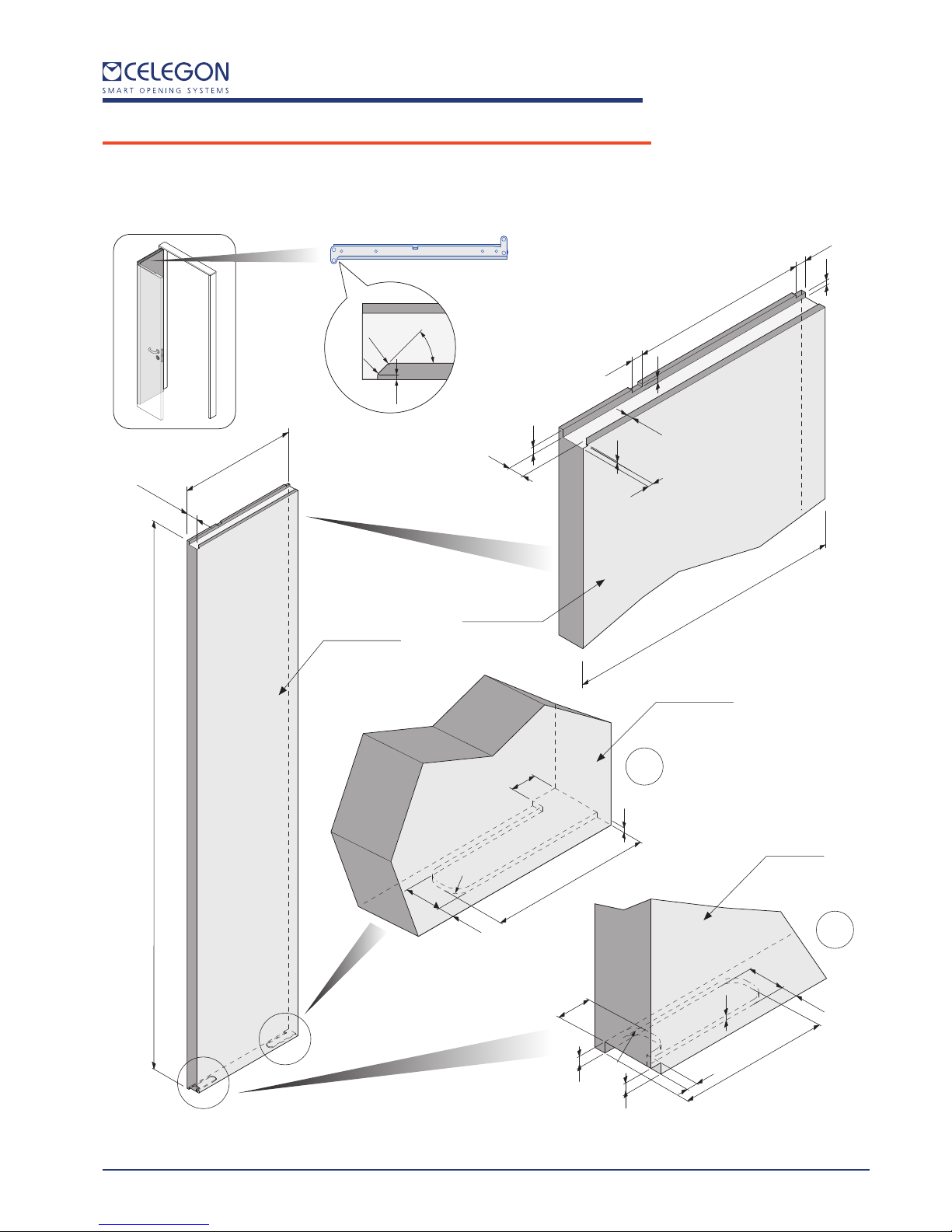

5.1 Wood components compatible with COMPACK LIVING 180° .................................. 16
5.2 Door leaf hinge side (compatible with COMPACK LIVING 180°) .............................. 17
5.3 Door leaf handle side (compatible with COMPACK LIVING 180°) ............................ 18
5.4 Workings for accessories (compatible with COMPACK LIVING 180°) ........................ 19
5.5 Door hardware mounting hole diagrams (compatible with COMPACK LIVING 180°) ..... 20
5.6 Hinge side door jamb (compatible with COMPACK LIVING 180°) ............................ 21
5.7 Handle side door jamb (compatible with COMPACK LIVING 180°)........................... 22
5.8 Upper crossbeam (compatible with COMPACK LIVING 180°) ................................. 23
6. ASSEMBLY ................................................................................ 24
6.1 Assembling the hardware on the leaf ............................................................. 24
6.2 Assembling the hardware on the jamb............................................................ 25
6.3 Installation door leaf on the jambs ................................................................ 26
7. SPECIAL COMPACK LIVING MAGNETIC LATCH...................................... 27

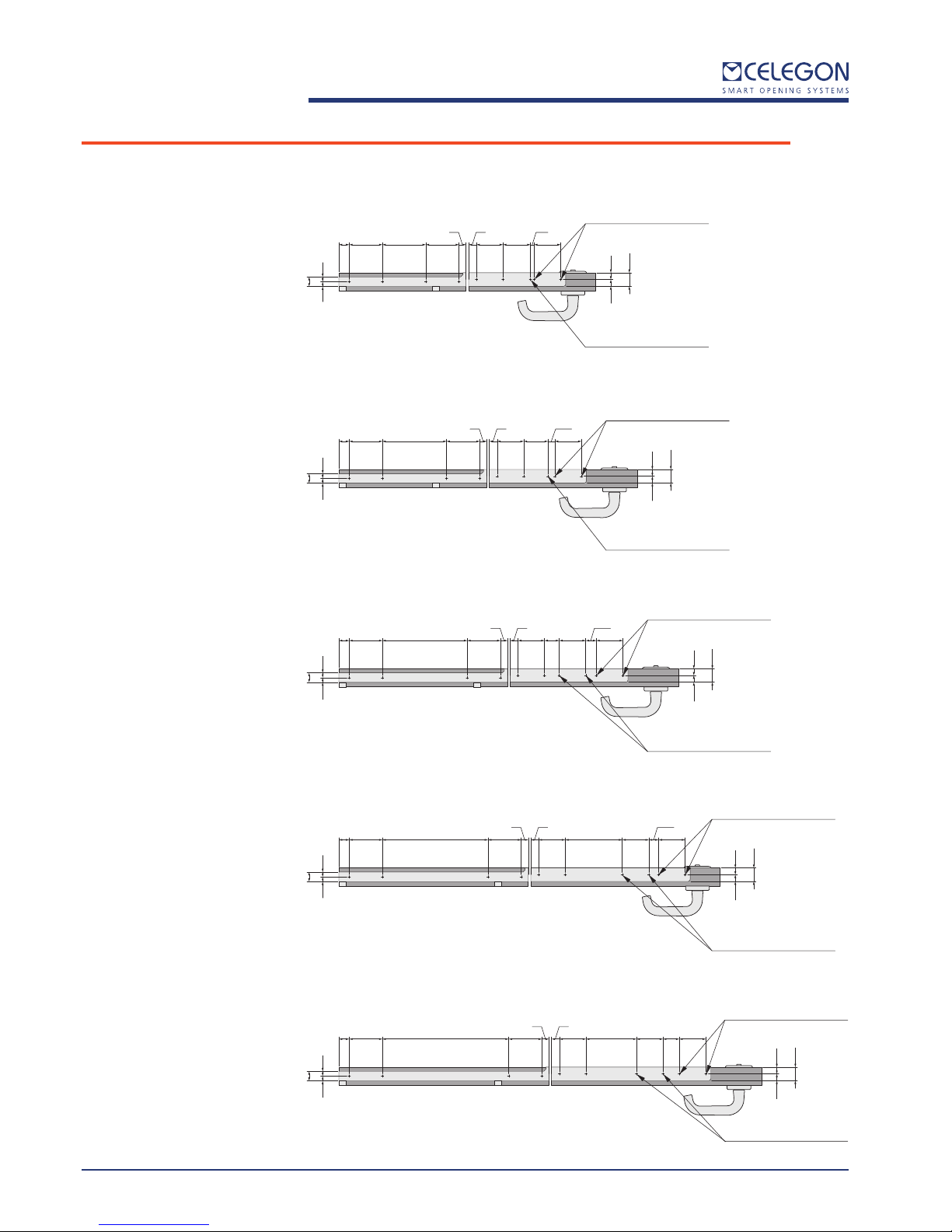

7.1 Examples for using the special COMPACK LIVING lock ......................................... 28

MTCL90EN - Rev. 01-12/2017
3
COMPACK LIVING 90° patented
1. INTRODUCTION
The COMPACK LIVING 90° system is part of the new generation hardware for folding hinged doors
that do not use a track or hanger, similar to the tried and proven COMPACK LIVING 180° hardware
(ush opening folding doors). The two COMPACK LIVING systems both use panels and doorframes
that are identical in terms of dimensions and design.
The 90° opening is obtained by using an innovative hinge that allows the door leaf to: move silent-
ly, use a traditional lever handle, close against stops on three sides. These functional characteri-
stics represent a clear innovation with respect to traditional systems. The COMPACK LIVING 90°
hinge can be used for closet doors or other furnishing applications.
The COMPACK LIVING systems are designed for extreme simplicity and speed of installation.
There are no height or width constraints for the COMPACK LIVING systems. The combined weight
limit for the two leaves is 50 kg.
COMPACK LIVING 90° uses the special COMPACK magnetic latch with a lever handle on one side
and a recessed handle on the other. With the COMPACK latch the recessed handle can be used to
operate the latch. This system provides 180° rotation (see Section 7. SPECIAL COMPACK MAGNETIC
LATCH).
The COMPACK LIVING systems provide stable, silent and ergonomic door operation. Stop on three
sides ensures excellent acoustic insulation when the door is closed.
These systems leave maximum technical and aesthetic freedom in designing the door. Doors can
be constructed in various versions to respond to the countless customer needs and to t oversized
dimensions.
The COMPACK LIVING systems are composed of steel plates and arms connected together by steel
pins and plastic O-rings.
The door leaves are prepared in the same way for 90° or 180° opening. The same stock of semi--
nished materials (doors leaves) and same preparatory work (milling, drilling) allow installation
either of the COMPACK LIVING 90° hinge for a door opening to 90° or the COMPACK LIVING 180°
hinge for a door opening to 180°.
The hardware is cleaned using a soft cloth being careful not to move the door during
the cleaning process to prevent injury.
Never put your hands in among the moving arms when installing or operating the door.
Give the information sheets including in the package to the nal user.
Bonetti Massimo Design

COMPACK 180°COMPACK 90°
COMPACK 180°COMPACK 90°
4
MTCL90EN - Rev. 01-12/2017
COMPACK LIVING 90° patented

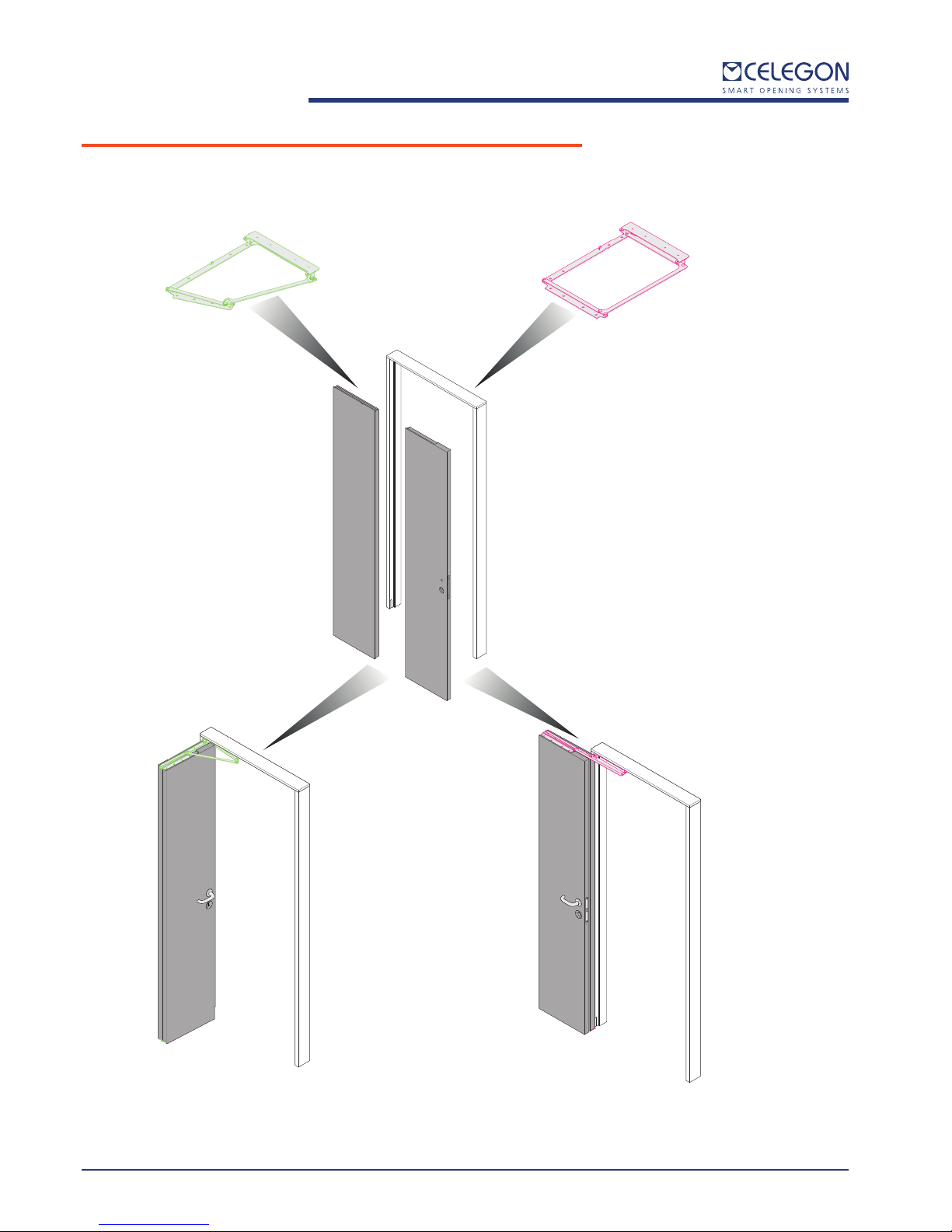

2. COMPATIBILITY OF THE COMPACK LIVING SYSTEM
SAME DOOR LEAVES
Identical size and design

MTCL90EN - Rev. 01-12/2017
5
COMPACK LIVING 90° patented
3. VARIANTS OF USE
To get the most out of the variants illustrated on this page, see the specications for using the COM-
PACK latch (see Section 7. SPECIAL COMPACK LIVING MAGNETIC LATCH).
· Version 1
With symmetric door leaves
By using the handle only on one side and the recessed handle on the other, is necessary to apply
the magnetic lock COMPACK.
Version possible with all available items RIGHT/LEFT.
· Version 2
With asymmetric door leaves with handle leaf from -100 to 0 lower
By using the handle only on one side and the recessed handle on the other, is necessary to apply
the magnetic lock COMPACK.
Version possible with all available items RIGHT/LEFT.
WAY OF OPENING
1 - Left opening 2 - Right opening

570
505 540
510
530520
550
560
550
6
MTCL90EN - Rev. 01-12/2017
COMPACK LIVING 90° patented
3.1 Hardware
Part list
Ref. Q.ty Description
505 1 Compack Living system RH or LH
510 1 Central hinge lower
520 1 Lateral hinge lower for leaf RH or LH
530 1 Lateral hinge lower for jamb RH or LH
540 4 Screw TSP trx ø 4x20
550 16 Screw TSP trx ø 4x30
560 1 Invisible hinge for alignment leaves
570 1 Magnetic lock Compack Living with strikers
and special square spindle

e
40
56
5
36 ÷ 45
HA = HFM-35
HP = HFM-50
HFM
505
530520
MTCL90EN - Rev. 01-12/2017
7
COMPACK LIVING 90° patented

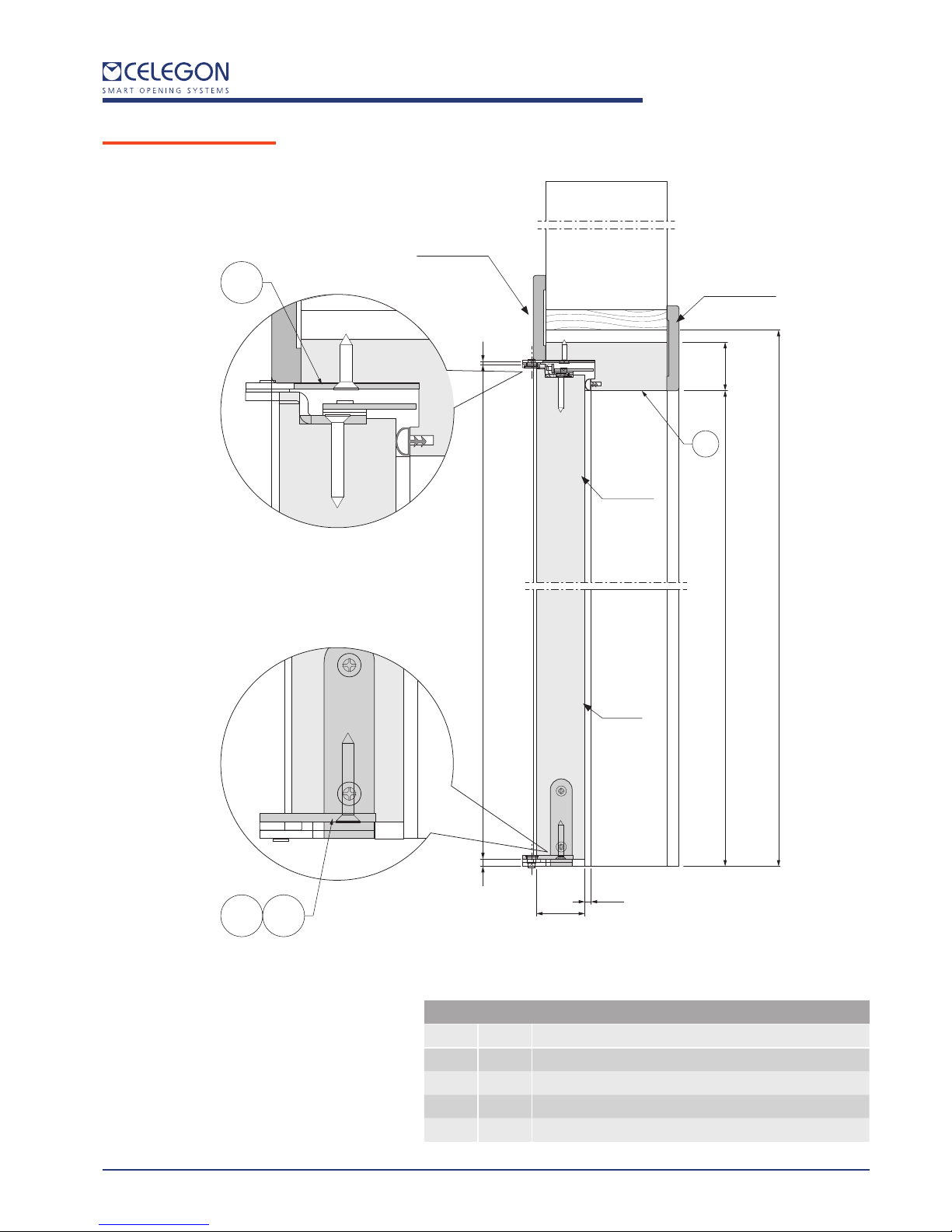

3.2 Vertical section
HFM = Wall Hole Height
HP = Passage Dimension
HA = Leaf Height
Part list
Ref. Q.ty Description
505 1 Compack Living system 90 RH or LH
520 1 Lateral hinge lower for leaf RH or LH
530 1 Lateral hinge lower for jamb RH or LH
e1 Upper crossbeam
mm seal gap
Door
jamb
rabbet
side
leaf
at casing
at casing

4040
ES = LFM-20
LS = LFM-100
LFM
3
1
3
5
36 ÷ 45
LA = LFM-86
50
510
c
ab
d
570
530520
8
MTCL90EN - Rev. 01-12/2017
COMPACK LIVING 90° patented
3.3 Horizontal section left door
Example of Left Door (Right door is symmetric)
LFM = Wall Hole Width
ES = Outer Jamb
LS = Door Jamb Opening
LA = Leaf Width
Part list
Ref. Q.ty Description
510 1 Central hinge lower
520 1 Lateral hinge lower for leaf RH or LH
530 1 Lateral hinge lower for jamb RH or LH
570 1 Magnetic lock Compack Living with strikers
and special square spindle
a1 Hinge leaf
b1 Handle leaf
c1 Hinge side door jamb
d1 Handle side door jamb
(= length of the upper crossbeam)
L hinge leaf L handle leaf
Door jamb
rabbet side
Door jamb
rabbet side
at casing
at casing

LP=LFM -198 #
LFM
Z
V
40 ÷ 45
16 1
MTCL90EN - Rev. 01-12/2017
9
COMPACK LIVING 90° patented
3.4 Dimensional diagram of the door - symmetric leaves
Version 1 - symmetric leaves
LFM LP L** hinge leaf L** handle leaf Z V art. COMPACK
700 502 306,5 306,5 347 15 900F60DX 900F60SX
800 602 356,5 356,5 397 0 900F70DX 900F70SX
900 702 406,5 406,5 447 20 900A80DX 900A80SX
1000 802 456,5 456,5 497 110 900B90DX 900B90SX
1100 902 506,5 506,5 547 60 900B100DX 900B100SX
Upper hardware seat diagram (see chapter 4. DIMENSIONAL SUMMARIES)
Version 1 - symmetric leaves
art. COMPACK L** hinge leaf dimension X L** handle leaf dimension Y
900F60DX 900F60SX 306,5 208 306,5 234
900F70DX 900F70SX 356,5 208 356,5 234
900A80DX 900A80SX 406,5 258 406,5 284
900B90DX 900B90SX 456,5 358 456,5 384
900B100DX 900B100SX 506,5 358 506,5 384
LFM = Wall Hole Width
LP = Passage Dimension
Z= Encumbrance in opening
V= Maximum lateral space
requirement when opening door
(**) Hinge leaf and handle leaf widths are calculated with a reciprocal distance of 1 mm.
Example of Left Door
(Right door is symmetric)
# with leaves thickness 40
open door
closed door
L** leaf
Y (compatible with 180°)
X (compatible with 180°)
L** handle leafL** hinge leaf

LP=LFM -198 #
LFM
Z
V
10
MTCL90EN - Rev. 01-12/2017
COMPACK LIVING 90° patented
3.5 Dimensional diagram of the door - asymmetric leaves
Handle leaf from -100 to 0 lower
Version 2 - asymmetric leaves (handle leaf from -100 to 0 lower)
LFM LP L** hinge leaf L** handle leaf Z V art. COMPACK
600 ÷ 700 402 ÷ 502 306,5 206,5 ÷ 306,5 347 15 900F60DX 900F60SX
700 ÷ 800 502 ÷ 602 356,5 256,5 ÷ 356,5 397 0 900F70DX 900F70SX
800 ÷ 900 602 ÷ 702 406,5 306,5 ÷ 406,5 447 20 900A80DX 900A80SX
900 ÷ 1000 702 ÷ 802 456,5 356,5 ÷ 456,5 497 110 900B90DX 900B90SX
1000 ÷ 1100 802 ÷ 902 506,5 406,5 ÷ 506,5 547 60 900B100DX 900B100SX
LFM = Wall Hole Width
LP = Passage Dimension
Z= Encumbrance in opening
V= Maximum lateral space
requirement when opening door
Example of Left Door
(Right door is symmetric)
L** handle leaf
L** hinge leaf
# with leaves thickness 40
open door
closed door

40 ÷ 45
16 1
40 ÷ 45
16 1
40 ÷ 45
16 1
MTCL90EN - Rev. 01-12/2017
11
COMPACK LIVING 90° patented
Upper hardware seat diagram (see chapter 4. DIMENSIONAL SUMMARIES)
Version 2 - asymmetric leaves (handle leaf from -100 to 0 lower)
art. COMPACK L** hinge leaf dimension X L** handle leaf dimension Y
900F60DX 900F60SX 306,5 208 (1) 206,5 ÷ 306,5 (2) 234
(*) WARNING: if the handle leaf (1) is less than 240 mm wide, Y (2) must also be reduced (A)
900F70DX 900F70SX 356,5 208 256,5 ÷ 356,5 234
900A80DX 900A80SX 406,5 258 306,5 ÷ 406,5 284
900B90DX 900B90SX 456,5 358 (1) 356,5 ÷ 456,5 (2) 384
(*) WARNING: if the handle leaf (1) is less than 390 mm wide, Y (2) must also be reduced (B)
900B100DX 900B100SX 506,5 358 406,5 ÷ 506,5 384
(*) (A) and (B): Cases of incompatibility with COMPACK LIVING 180°.
(**) Hinge leaf and handle leaf widths are calculated with a reciprocal distance of 1 mm.
(A): if the handle leaf(1) is less than 240 mm wide, Y(2) must also be reduced.
(B): if the handle leaf(1) is less than 390 mm wide, Y(2) must also be reduced.
Y (compatible with 180°)
not compatible with 180°
not compatible with 180°
Y (reduce measurement)
Y (reduce measurement)
L** handle leaf
L** handle leaf < 240
L** handle leaf < 390
L** hinge leaf
L** hinge leaf
L** L** hinge leaf
X (compatible with 180°)
X (compatible with 180°)
X (compatible with 180°)

12
MTCL90EN - Rev. 01-12/2017
COMPACK LIVING 90° patented
4. DIMENSIONAL SUMMARIES
4.1 Single opening door
The following form is a summary all of possible realizable dimensions with the measurements.
The COMPACK LIVING 90° system foresee a minimum wall opening (LFM) of 700 mm with symme-
tric leaves and of 650 mm with asymmetric leaves.
The maximum wall opening (LFM) with symmetric and asymmetric leaves is 1100 mm.
For intermediate measurements the handle leaf (version with asymmetrical door leaves) can be
shortened.
Summary dimensions for single opening door with symmetric leaves
Wall Hole
Width
LFM
Handle Leaf
Dierence
Passage
Dimension
LP
Fix
Dimension
L** hinge
leaf
Working
dimension x
Fix
Dimension
L** handle
leaf
Working
dimension y
Encumbrance
in opening
Z
Encumbrance
movement
V
art. COMPACK
700 symmetric
0502 306,5 208 306,5 234 347 15 900F60DX 900F60SX
800 symmetric
0602 356,5 208 356,5 234 397 0 900F70DX 900F70SX
900 symmetric
0702 406,5 258 406,5 284 447 20 900A80DX 900A80SX
1000 symmetric
0802 456,5 358 456,5 384 497 110 900B90DX 900B90SX
1100 symmetric
0902 506,5 358 506,5 384 547 60 900B100DX 900B100SX
Summary dimensions for single opening door with asymmetric leaves
Wall Hole
Width
LFM
Handle Leaf
Dierence
Passage
Dimension
LP
Fix
Dimension
L** hinge
leaf
Working
dimension x
Variable
Dimension
L** handle
leaf
Working
dimension y
Encumbrance
in opening
Z
Encumbrance
movement
V
art. COMPACK
600÷700
asymmetric
from -100 to 0
402÷502 306,5 208
(1)
206,5÷306,5
(2)
234 347 15 900F60DX 900F60SX
(*) WARNING: if the handle leaf (1) is less than 240 mm wide, Y (2) must also be reduced
700÷800
asymmetric
from -100 to 0
502÷602 356,5 208 256,6÷356,5 234 397 0 900F70DX 900F70SX
800÷900
asymmetric
from -100 to 0
602÷702 406,5 258 306,5÷406,5 284 447 20 900A80DX 900A80SX
900÷1000
asymmetric
from -100 to 0
702÷802 456,5 358
(1)
356,5÷456,5
(2)
384 497 110 900B90DX 900B90SX
(*) WARNING: if the handle leaf (1) is less than 390 mm wide, Y (2) must also be reduced
1000÷1100
asymmetric
from -100 to 0
802÷902 506,5 358 406,5÷506,5 384 547 60 900B100DX 900B100SX
(*) Cases of incompatibility with COMPACK LIVING 180°.

506,5 446,5
1
446,5 506,5
1
33 3
88
LFMD 2000
ESD=LFMD-23 (1977)
ESD=LFMD-103 (1897)
LPD=LFM-296 # (1704)
40 40
MTCL90EN - Rev. 01-12/2017
13
COMPACK LIVING 90° patented
4.2 Dimensional diagram of the double opening door
Dimensional example
Attention: you need to use two hardwares COMPACK LIVING, one right and one left.
LFMD = Double Wall Opening Width
ESD = External Jamb Double (LFMD-23)
LSD = Light Jamb Double (LFMD-103)
LPD = Width Passagge Double Door Leaf (LFM -296 #)
# with leaves thickness 40
Art. COMPACK 900B100SX Art. COMPACK 900B100DX
hinge leaf hinge leafhandle leaf
dierence between handle door leafwidth and hinge door leaf
handle leaf

180°180°
180°
90°90°
90°
14
MTCL90EN - Rev. 01-12/2017
COMPACK LIVING 90° patented
- Possible combinations using the same components in wood
4.3 COMPACK LIVING 180° - 90° combination possibilities on double doors

MTCL90EN - Rev. 01-12/2017
15
COMPACK LIVING 90° patented
4.4 Double opening door
The following form is a summary all of possible realizable dimensions with the measurements.
The COMPACK LIVING 90° system foresee a minimum wall opening (LFM) of 1320 mm with sym-
metric leaves and of 1120 mm with asymmetric leaves.
The maximum wall opening (LFM) with symmetric and asymmetric leaves is 2120 mm.
For intermediate measurements the handle leaf (version with asymmetrical door leaves) can be
shortened.
Summary dimensions for double opening door with symmetric leaves
Wall Hole
Width
LFM
Handle Leaf
Dierence
Passage
Dimension
LP
Fix
Dimension
L** hinge
leaf
Working
dimension x
Fix
Dimension
L** handle
leaf
Working
dimension y
Encumbrance
in opening
Z
Encumbrance
movement
V
art. COMPACK
1320 symmetric
01024 306,5 208 306,5 234 347 15 900F60DX 900F60SX
1520 symmetric
01224 356,5 208 356,5 234 397 0 900F70DX 900F70SX
1720 symmetric
01424 406,5 258 406,5 284 447 20 900A80DX 900A80SX
1920 symmetric
01624 456,5 358 456,5 384 497 110 900B90DX 900B90SX
2120 symmetric
01824 506,5 358 506,5 384 547 60 900B100DX 900B100SX
Summary dimensions for double opening door with asymmetric leaves
Wall Hole
Width
LFM
Handle Leaf
Dierence
Passage
Dimension
LP
Fix
Dimension
L** hinge
leaf
Working
dimension x
Variable
Dimension
L** handle
leaf
Working
dimension y
Encumbrance
in opening
Z
Encumbrance
movement
V
art. COMPACK
1120÷1320
asymmetric
from -100 to 0
864÷1024 306,5 208
(1)
206,5÷306,5
(2)
234 347 15 900F60DX 900F60SX
(*) WARNING: if the handle leaf (1) is less than 240 mm wide, Y (2) must also be reduced
1320÷1520
asymmetric
from -100 to 0
1064÷1224 356,5 208 256,6÷356,5 234 397 0 900F70DX 900F70SX
1520÷1720
asymmetric
from -100 to 0
1264÷1424 406,5 258 306,5÷406,5 284 447 20 900A80DX 900A80SX
1720÷1920
asymmetric
from -100 to 0
1464÷1624 456,5 358
(1)
356,5÷456,5
(2)
384 497 110 900B90DX 900B90SX
(*) WARNING: if the handle leaf (1) is less than 390 mm wide, Y (2) must also be reduced
1920÷2120
asymmetric
from -100 to 0
1664÷1824 506,5 358 406,5÷506,5 384 547 60 900B100DX 900B100SX
(*) Cases of incompatibility with COMPACK LIVING 180°.

e
d
c
b
a
16
MTCL90EN - Rev. 01-12/2017
COMPACK LIVING 90° patented
5. COMPONENTS
5.1 Wood components compatible with COMPACK LIVING 180°
Part list
Ref. Q.ty Description
a1 Hinge leaf
b1 Handle leaf
c1 Hinge side door jamb
d1 Handle side door jamb
e1 Upper crossbeam

16
17
9,5
8
23
X **
9
2
7
7
40 ÷ 45
A
B
45°
4
R1
R1
HA = HFM - 35
R9
3
23 9,5
86
16
B
A
R9
92,5
23
7
7
7
23 9,5
3
MTCL90EN - Rev. 01-12/2017
17
COMPACK LIVING 90° patented
5.2 Door leaf hinge side (compatible with COMPACK LIVING 180°)
Left leaf door hinge side (Right door is symmetric)
(**) For dimensions see sections 3.4, 3.5
HFM = Wall Hole Height
HA = Leaf Height
L** hinge leaf
L** hinge leaf
Upper edge detail
door jamb
rabbet side
door jamb
rabbet side
door jamb
rabbet side
door jamb
rabbet side

R9
R9
Y **
9
5
11
8
32,5
R9
7
23
92,5
9,5 23
3
7
7
A
HA = HFM - 35
A
40÷45
18
MTCL90EN - Rev. 01-12/2017
COMPACK LIVING 90° patented
5.3 Door leaf handle side (compatible with COMPACK LIVING 180°)
Left leaf door handle side (Right door is symmetric)
(**) For dimensions see sections 3.4, 3.5
HFM = Wall Hole Height
HA = Leaf Height
L** handle leaf
L** handle leaf
Upper edge detail
door jamb
rabbet side
door jamb
rabbet side
door jamb
rabbet side

570
3
80
50
18
16
145
196
19
16
80
18
19
50
85
50
3
145
196
560
MTCL90EN - Rev. 01-12/2017
19
COMPACK LIVING 90° patented
5.4 Workings for accessories (compatible with COMPACK LIVING 180°)
The following work is necessary when installing the special COMPACK LIVING magnetic latch.
Part list
Ref. Q.ty Description
560 1 Invisible hinge for alignment leaves
570 1 Magnetic lock Compack Living with strikers
and special square spindle
Seat for invisible hinge
COMPACK
LIVING
magnetic
lock seat
door jamb
rabbet side
door jamb
rabbet side
door jamb
rabbet side

25
23
= =
17 19
64 64
32.5
==
66.380 80 104.5
8.7
25
23
= =
17 19
64 64
32.5
==
58.280 80154.5
16.8
25
23
= =
17 19
64 64
32.5
==
6435.480 80204.5
25.6
25
23
= =
17 19
64 64
32.5
==
64137.480 80254.5
23.6
25
23
= =
17 19
64 64
32.5
==
64 39.2121.780 80304.5
20
MTCL90EN - Rev. 01-12/2017
COMPACK LIVING 90° patented
5.5 Door hardware mounting hole diagrams (compatible with COMPACK LIVING 180°)
Door hardware mounting holes for both door systems: 90° and 180°
Hardware group F60
Art. 800F60SX - 800F60DX
Art. 900F60SX - 900F60DX
Hardware group F70
Art. 800F70SX - 800F70DX
Art. 900F70SX - 900F70DX
Hardware group A80
Art. 800A80SX - 800A80DX
Art. 900A80SX - 900A80DX
Hardware group B90
Art. 800B90SX - 800B90DX
Art. 900B90SX - 900B90DX
Hardware group B100
Art. 800B100SX - 800B100DX
Art. 900B100SX - 900B100DX
Only for Compack
Living 90°
Only for Compack
Living 90°
Only for Compack
Living 90°
Only for Compack
Living 90°
Only for Compack
Living 90°
Only for Compack
Living 180°
Only for Compack
Living 180°
Only for Compack
Living 180°
Only for Compack
Living 180°
Only for Compack
Living 180°
