INSTRUCTION MANUAL
MODEL 44308–B

2IENGLISH
A. IN THE BOX
1. INTRODUCTION
Thank you for purchasing the Celestron Handheld Digital Microscope Pro with a 5MP sensor and professional
stand. Your microscope is a precision optical instrument, made of the highest quality materials to ensure durability
and long life. It is designed to give you a lifetime of pleasure with a minimal amount of maintenance.
Before attempting to use your microscope, please read
through the instructions and reference the diagrams
below. Familiarizing yourself with the many features
of the Handheld Digital Microscope Pro will go a long
way to making your experience an enjoyable one. The
Handheld Digital Microscope Pro provides low powers
from 20x up to 200x and connects to your Macintosh
or Windows PC via USB 2.0. This microscope is a
low magnification power microscope, mainly suited
for examining specimens like coins, stamps, rocks,
electronics, insects, and other 3D objects. Specimens
on slides can be viewed, but this microscope is not ideal
for this purpose. You can see some of our biological
microscopes more suited to this type of viewing at
celestron.com.
The Celestron Handheld Digital Microscope Pro does
not use an eyepiece like a traditional microscope.
Instead, the camera sensor “sees” the specimen with
10x magnification, and the image is displayed on your
computer screen. This makes viewing fun, cuts down
on eye and neck strain, and allows for easy sharing with
others. You can hold the microscope in your hand while
observing large surfaces away from a normal lab setting,
or use the included professional stand for more precise,
hands-free viewing. Recording still images and video
is a snap. You can save, transfer, and share your image
files quickly and easily with the included Celestron Micro
Capture Pro software.
Take some time to read the simple care and
maintenance tips in this manual to ensure that your
Handheld Digital Microscope Pro provides you with
years of quality performance.

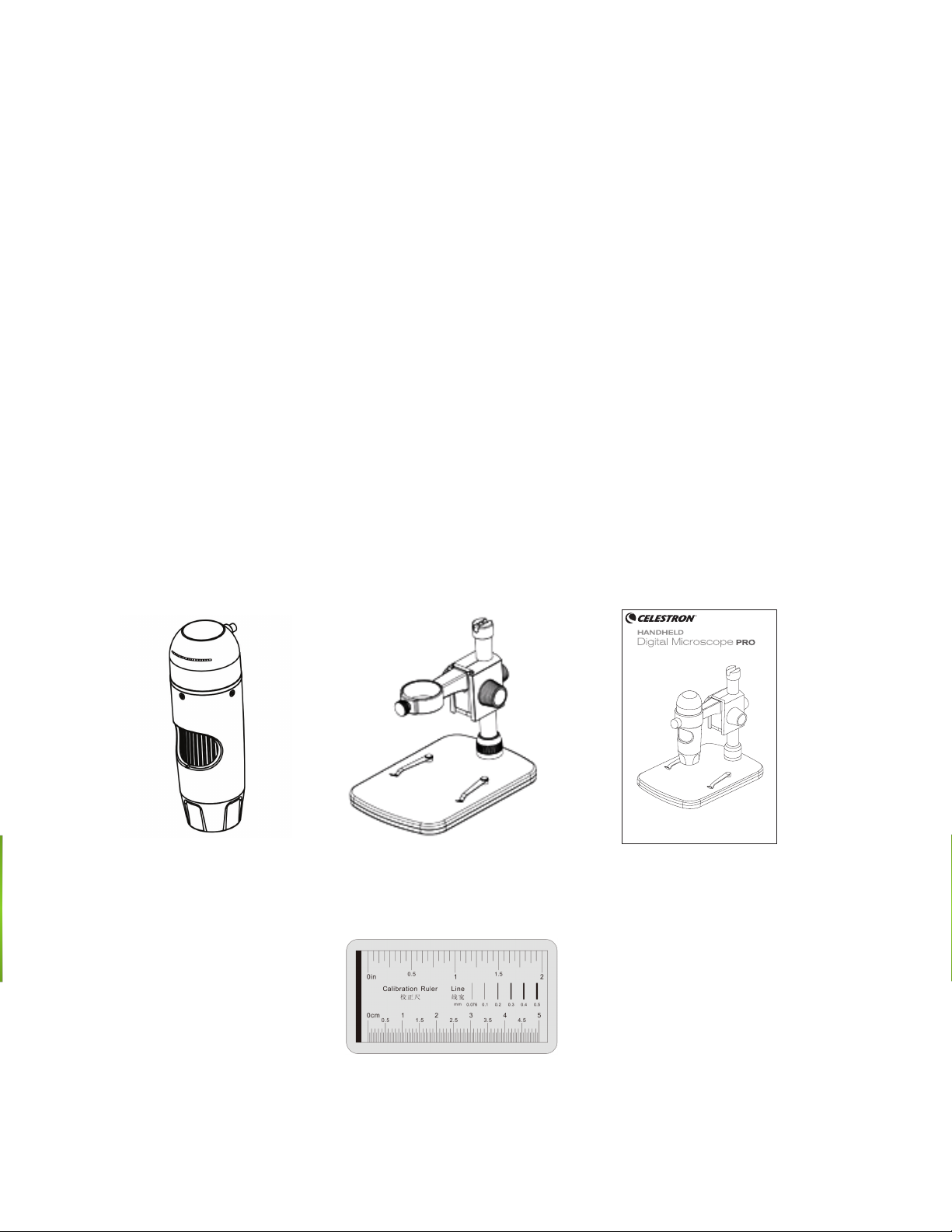

Microscope (1) Professional Stand (1) Quick Setup Guide (1)
Calibration Ruler (1)
QUICK START GUIDE
MODEL #44308

ENGLISH 3
B. PARTS
NO. FUNCTION
1. Lock Wheel
2. Height Adjustment Wheel
3. Focus Wheel
4. Height Adjustment Lock Nut
5. Microscope Holder Lock Nut
6. Shaft Connection Lock Collar
7. Illuminator Adjustment Wheel
8. USB Plug
9. Stage Base
10. Support Shaft

4IENGLISH
C. SPECIFICATIONS
SKU 44308-B
Camera sensor size 5 MP | 1/3.2”
Stand Professional stand with adjustable height
Lens 5 element IR cut , high quality GLASS /EFL(Equivalent Focal Length): 15.8 mm /FOV: 13.0”
Focuser range 10 mm to infinity
Illuminator Upper ring- 8 bright white adjustable LEDs
Magnification 20x to 200x
Shutter trigger In software
Still Image resolution 2592x1944 (5MP), 2320x1744 (4MP), 2048x1536 (3MP), 1920x1080 (2MP),
1280x1024 (1.3MP)
Video resolution Min. 1280x1024 @15fps; Max. 2592x1944 @10fps
Computer interface 2.0 USB
Software Celestron Micro Capture Pro (with measuring and note taking features)
Operating systems supported Windows: Windows 7/8/10
Mac: 10.14 and higher
Software languages (12) English, German, French, Spanish, Russian, Italian, Portuguese, Dutch, Polish,
Japanese, Korean and Chinese
Minimum system requirements 512MB RAM/ 64M Video Memory/ Open USB port/ CD-ROM Drive
Dimensions Microscope: 110x35 mm (4.33”x1.38”)
Stand: 175x140x110 mm (6.90”x5.51”x4.33”)
Weight 2 lbs. ( 907 grams) {including base and packaging}
2. SETUP
A. ASSEMBLE THE MICROSCOPE STAND
+Carefully remove all components from the box.
+Slide the Shaft Connection Lock Collar (6) onto the Support Shaft (10).
+Attach the Shaft Connection Lock Collar (6) to base threads and tighten.
10.
6.
NOTE: Software operating systems change quickly. Refer to the web page for latest software downloads and compatibility

ENGLISH 5
B. ATTACH MICROSCOPE
+Insert the microscope in the Microscope Holder
and tighten the Lock Nut (5) to secure it in place.
5.
C. INSTALL SOFTWARE —
WINDOWS
+Install the latest Windows software by downloading from the
website and following the on-screen prompts. This ensures the
latest version of the software is being downloaded.
+Click the “Install Capture Pro” button and follow the Setup
Wizard as it guides you through the installation.
D. INSTALL SOFTWARE —
MACINTOSH
+Install the latest Mac software by downloading from the website
and following the on-screen prompts. This ensures the latest
version of the software is being downloaded.
+Plug in the Handheld Digital Microscope Pro and open the
Celestron Micro Capture Pro software. Your microscope is
now ready to use.
NOTE: The software install wizard will differ slightly from Windows to Mac.

6IENGLISH
A. CONNECTING
+Connect the microscope to your computer via the USB
2.0 cable.
+Click on the Micro Capture Pro desktop icon
to launch the software.
+Your microscope should automatically connect and begin
streaming images.
NOTE: If the microscope is not connected to the USB port, the following error
message will be displayed: “No device detected. Please connect your
microscope directly to an open USB port.”
B. FOCUSING
+Now, rotate the Focus Wheel (3) to set the fine focus.
3. USING YOUR MICROSCOPE
1.
1.
3.
4.
4.
2.
2.
+Turn the Height Adjustment Wheel (2) to set the coarse focus. +To focus on an image using the included stand:
+Adjust the height of the carriage holding the microscope.
+Tighten the Carriage Height Adjustment Lock Nut (4) to
hold in place.
+Once satisfied with the position, tighten the Lock Wheel
(1), securing the carriage in place.

ENGLISH 7
4. USING THE SOFTWARE
+When using the microscope in handheld mode, adjust
the coarse focus by changing the distance between the
microscope and your subject. Adjust fine focus with the
Focus Wheel (3).
A. CAPTURE A PHOTO/VIDEO
+
To capture a photo, click on the Capture menu and scroll down to Photo.
+
To begin recording video, click on the Capture menu and scroll down to Video. Repeat to stop recording.
3.
B. OTHER MENU ITEMS
FILE: Under the File menu item, you will find:
1. Photos Directory: Directs you to designate a folder on your hard drive for photo storage.
2. Videos Directory: Directs you to designate a folder on your hard drive for video storage.
3. Exit: Closes the Micro Capture Pro software.

8IENGLISH
OPTIONS: Under the Options menu item, you will find:
1. Resolution: Sets the sensor image resolution.
Choose from 4 resolution settings:
- 1280 x 960 (1.3 MP)
- 1600 x 1200 (2 MP)
- 2048 x 1536 (3 MP)
- 2592 x 1944 (5 MP)
2. Date/Time: Turns the Date and Time stamp on or off.
3. Language: Changes the language setting. Choose from 12 languages:
- English, German, French, Spanish, Russian, Italian, Portuguese,
Dutch, Polish, Japanese, Korean and Chinese
4. X,Y Guide: Turns the reticle guide on the preview screen on or off.
5. Full Screen Mode: Enters full screen mode. Press
ESC to exit.
ICONS: Along with the menu items, there are icons which mean the following:
A. Take Snap Shot
B. Start Video. Stop Video
C. Set Time Lapse Intervals
D. Full Screen Mode (press ESC to go back to main screen)

ENGLISH 9
+
The Celestron Micro Capture Pro software includes a
measurement feature. To use this feature, you must first
perform a measurement calibration.
+
Make sure the X,Y Guide is set to “On” by selecting it in
the Options Menu.
+
Double click the saved image to open it in the Image
Preview screen.
+
Take a still image. The image will be displayed in the
column on the right side of the screen.
+ Click on the Calibration icon
+
Click and drag a line across a “known value” on the ruler image.
Try to keep the line as perpendicular to the lines on the ruler as
possible.
+
The “Adjust magnification” window will pop up as shown here.
+
In the box “Actual Dimension”, enter the “known value” from the
calibration ruler.
+
Set the height of the microscope and focus on your
specimen. Then, replace your specimen with the
calibration ruler.
+
Re-adjust the focus and align the calibration ruler so that
the lines on the ruler are parallel with the vertical line on
the X,Y Guide.
C. CALIBRATION AND MEASUREMENT

10 IENGLISH
+ To ensure that calibration was successful, go back to the Image
Capture screen.
+ Click the ruler icon and from the dropdown menu
select the option “Any Angle Line.”
+ Click and drag a line across the same “known value” as before.
+ If the calibration was successful, the distance you measured
should be exact to the “known value.”
+ To capture images without changing the height or magnification,
click on the Calibration icon. In the dropdown menu, select “Set
Magnification,” then “Set Capture Magnification.”
+ A pop-up window will appear. Type in the magnification shown in
the upper right corner of the main window.
D. MEASURING TOOLS
You will notice in the measuring drop down menu there are many
tools. Here is the list of measurements you can take:
MAIN
1. Any Angle: Measures from point A to point B in a
straight line.
2. Continuous Line: Measures the total distance between
multiple points. Start by measuring a straight line from
point A to point B. Then, click and drag to continue
measuring from point B to point C. (Can be repeated
as many times as you like.)
3. Radius Circle: Measures a circle’s radius. Starting at
the center, drag the cursor out to any edge.
4. Diameter Circle: Measures a circle’s diameter. Starting
at one outside edge, drag the cursor across to the
opposite edge.
5. Three Point Angle: Measures an angle between two
points, starting from a radius point or an intersection
point. Click on point A, (radius point) drag and click on
point B, then click on point C. The angle will be drawn
and the angle degree will be displayed.
SETTINGS
1. Line Properties: Changes the settings for line type,
width, size and color.
2. Text Properties: Changes the settings for font type,
size, style and color.
3. Set Units: Changes the units setting. Choose from
millimeters, centimeters, pixels or inches.
