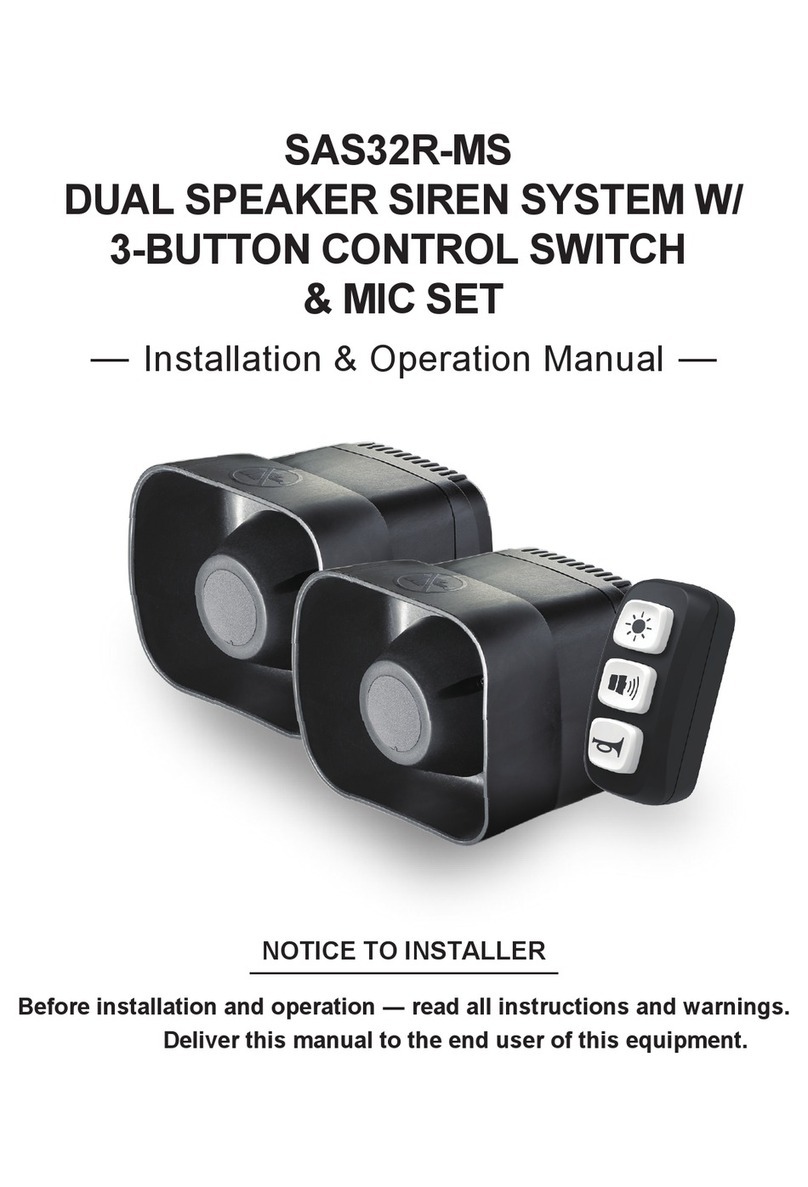

Cell2 SAS32R User manual

SAS32R SPEAKER SIREN SYSTEM W/
SW300 CONTROL SWITCH & MIC SET
NOTICE TO INSTALLER
Before installation and operation -- read all instructions and warnings.
Deliver this manual to the end user of this equipment.
Installation & Operation Manual

INSTALLATION............................................................................................................2
MOUNTING..................................................................................................................3
WIRING........................................................................................................................ 5
CONTROLLER FUNCTION.........................................................................................6
PA BROADCAST......................................................................................................... 7
LOW VOLTAGE PROTECTION MODE.......................................................................7
TABLE OF CONTENTS
- 1 -

INSTALLATION
Proper installation of the product requires the installer to have a good understanding of
automotive electronics, systems and procedures. It is essential to install the unit
properly to ensure safe and reliable operation.
Please read through all instructions thoroughly and carefully before installing the unit.
Failure to follow these instructions could result in serious damage to the unit or vehicle
and may void warranties.
The correct mounting and wiring is the key to the effectiveness of SAS32R & SW300.
Installers must read and follow installation instructions and warnings in the manual from
the original manufacturer.
The operator should verify the siren system is fastened to the vehicle securely and is
functioning properly. Failure to follow all safety precautions and instructions may cause
property damage, injury, or death.
Ensure that any switch control panel is located in an area that allows both the vehicle
and the control panel to be operated safely in any driving condition.
WARNING Sound Hazard - Sound level from siren speaker (109dB at 2M) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
CONTENTS: The installer must have good knowledge of electricity, vehicle electrical
systems and emergency equipment. Always seek professional assistance if in doubt.
- 2 -

MOUNTING
Speaker Siren Unit
Secure the mounting bracket to an appropriate and suitable area.
RUBBER PAD
BRACKET
FLAT WASHER
SPRING WASHER
M6 HEX HEAD NACHIRE BOLT
RUBBER
MOUNTING BRACKET
FLAT WASHER
SPRING WASHER
0.590" Maximum
0.511" Minimum
Permanent mounting of this product may require drilling. It is necessary to make
sure that no other vehicle components could be damaged by this process.
Check both sides of the mounting surface before drilling.
Siren Speaker must only be mounted horizontally to the ground. Fail to follow
may cause undesired water to ingress into speaker, damage to the product and
void the warranty.
WARNING
- 3 -
Note: Please only mount the horn facing
out horizontally to the ground.

When installing surface mount, make sure to consider the thickness of the mounting
surface and washer. The installer must use the supplied screws to match the rear
threaded insert of the Switch Panel. Fail to do so may cause damage to the product and
void the warranty.
Surface Mount:
Handlebar Mount:
Suggested Sheet Metal Thickness: 0.059"(1.5mm)
0.83"
(21mm)
Screw (1/4 in)
Spring Washer
Flat Washer
Mounting Surface
- 4 -
Switch Panel
Select a mounting location that will not interfere or impede the operation and/or function
of any existing equipment. Securely mount the switch using the provided handlebar
clamp.
Handlebar Diameter Ø0.87"~Ø1.26" (Ø22mm~Ø32mm)

WIRING
IGN
White
POWER -GND
Black
POWER +VDC
Red
POWER +VDC
Red
Light Outupt #1
Yellow
Light Output #2
Orange
Ground
White-Black
Voice Signal
Purple
PTT
Blue
Ground
White-Black
To SW300 +VDC
Green
Siren Button Output
Pink
MAN Button Output
Brown
Light Button Output
Grey
Cable 1
(Power & Light Output)
- 5 -
Cable 2
(Switch & Mic Signal)
Mic Set
Control
Switch
Car Ignition Key
Power Source
Device #1
Device #2
(Max Output Amperage @ 5A)
(Max Output Amperage @ 5A)
(Fuse Rating:
15A @ 13.6VDC)

CONTROLLER FUNCTION
Light Output
Siren Tone
Manual
1. At any moment, short press once to activate or inactivate all
Light output #1 & #2 together.
2. While all light outputs are activated, long press to activate only
Light output #1.
3. While only front output is activated, long press again to activate
only Light output #2.
4. While only rear output is activated, long press again to activate
both Light output #1 & #2 together.
1. Press once to turn the siren on in WAIL tone.
2. While siren is activated, press again once to cycle through all available tones.
3. While siren is activated, long press to disable siren tone.
1. If siren tone is not activated, press and hold for Manual WAIL tone. WAIL tone will ramp
up to peak and hold till button is released (or cut-off before it peaks).
2. If a siren tone is activated, press and hold for “Tone-Change”. The Siren will return back
to the previous tone when button is released.
- 6 -
Siren Tone “ToneChange”
WAIL
YELP
YELP PHASER
PHASER HILO
HILO PHASER
#Standard Tone
1 WAIL
2 YELP
3 PHASER
4 HILO

PA BROADCAST
PA Activation
Press “Push-to-Talk” button on the side of the Mic to activate
PA broadcasting. PA broadcasting will override all current
Siren Tone. Action will resume when PTT is released.
Mic Volume Adjustment Knob
(available on selected mic model only)
The knob located on the top right corner of the controller will
adjust mic volume (high or low). Turn clockwise for high
volume; turn anticlockwise for low volume.
While unit is in operation, whenever power voltage drops under 11.6VDC for over 10
seconds, SW300 controller will blink to notify Low Voltage issue is at presence; all controller
function will be disabled.
LOW VOLTAGE PROTECTION MODE
If Low Voltage issue continued for another 10 seconds, all Siren function will be disabled
automatically and entre Low Voltage Protection Mode.
While unit is in Low Voltage Protection Mode, if power voltage resumes back to 13VDC and
above for over 10 seconds, Siren unit will exit Low Voltage Protection Mode and back to its
default standby.
- 7 -
Mic Volume
Adjustment Knob
PTT
PTT Clip-on Mic
Handheld Mic
