Cellar Cool CM9000 TWIN-S User manual

CM9000 TWIN-S
TECHNICIAN’S MANUAL

101017
Copyright © 2012. CellarCool. All rights reserved.
CellarCool copyrights this manual, the product design, and the design concepts, with all rights reserved. Your rights with
regard to the hardware and manual are subject to the restrictions and limitations imposed by the copyright laws of the
USA. Under copyright laws, this manual may not be copied, reproduced, translated, transmitted, or reduced to any printed
or electronic medium or to any machine-readable form, for any purpose, in whole or in part, without the written consent
of CellarCool.
Every effort has been made to ensure that the information in this manual is accurate. CellarCool is not responsible for
printing or clerical errors.
CellarCool reserves the right to make corrections or improvements to the information provided and to the related
hardware at any time, without notice.
Vinothèque and CellarCool are registered trademarks, and ECE is a trademark of CellarCool. All rights reserved.
Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a
recommendation. CellarCool assumes no liability with regard to the performance or use of these products.
01.04.2017
We manufacture, test and certify 100% of our wine cooling units in
the USA. By sourcing the best components and closely controlling our
manufacturing processes, we can assure the highest-quality,
lowest defect manufacturing rates in the industry.
Conforms to ANSI/UL Std 427
Certied to CAN/CSA Std C22.2 No. 120

TABLE OF CONTENTS
Introduction ...................................................... 3
Quick Start Guide ................................................. 4
Before You Start .................................................. 5
Receiving & Inspecting the System ............................... 6
Quick Reference Guide

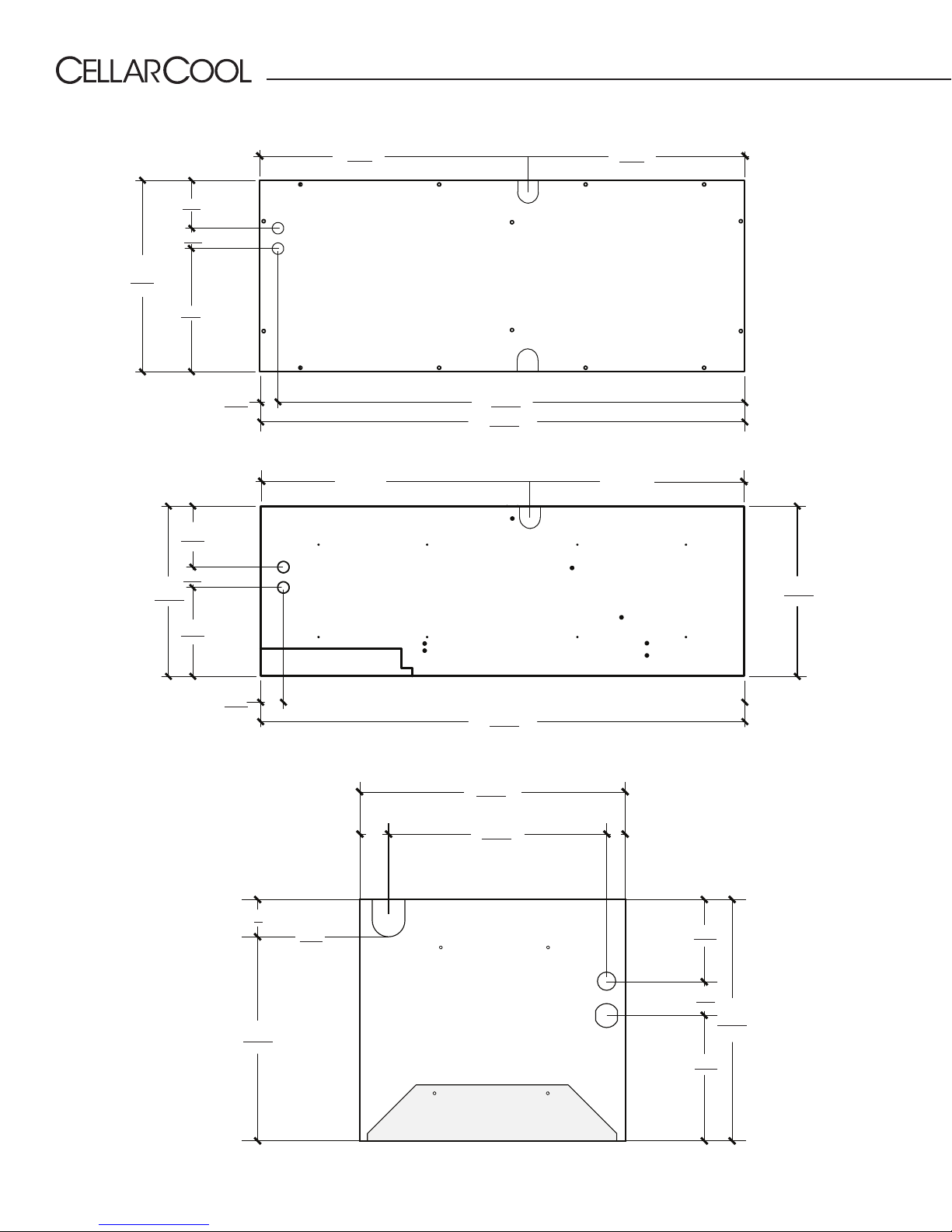

Knockout Locations............................................ 8
Display Layout & Unit Specications............................ 9
Condensing Unit .............................................. 11
Evaporator Unit Installation
Items to Route before Installing the Evaporator Units ........... 13
Selecting Mounting Option .................................... 14
Mounting the Evaporator Units ................................ 15
Evaporator Unit Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installing the Evaporator Units ................................. 17
Insulation Blanket Installation .................................. 19
Drain Line......................................................... 21
Liquid-Measuring Thermostat (Bottle Probe)..................... 22
Remote Display Installation ...................................... 23
Wiring Diagrams
CM9000 Twin-S ................................................ 29
CM9000 Twin Master Evaporator ............................... 30
CM9000 Twin Slave Evaporator ................................. 31
CM9000 Condensing Unit...................................... 32
Preparing the Condensing Unit................................... 33
Line Set Piping Diagrams ......................................... 34
Installing the Condensing Unit ................................... 35
System Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Controller Functions .............................................. 39
Troubleshooting Guide ........................................... 44
Maintenance Schedule ........................................... 46
Bypass Test Procedure ............................................ 47
Technical Assistance & Accessories ............................... 48
Installation Terms and Conditions ................................ 49

Page 2 | 1-800-343-9463 CCM9000 101017
WARNING
The evaporator unit (fan coil unit) must be insulated using the insulation blanket provided in
accordance with this manual. Refer to the insulation blanket installation instructions.
Failure to follow the instructions provided will result in a poor vapor barrier, water
damage, rust, and system corrosion which will void the warranty on your unit.
The evaporator unit (fan coil unit) must be insulated using berglass insulation (R13 or higher)
in addition to the provided insulation blanket. This includes the cavity between the ceiling
joists. A warm attic environment will reduce the capacity of the cooling system, as the system
will absorb heat from the attic in addition to the heat load from the wine cellar. This, in eect,
will signicantly reduce the cooling system’s ability to cool the wine cellar.
Failure to properly insulate the evaporator unit may cause condensation to form on the
surface of the housing and water damage to the surrounding structure, the cooling unit, and
possibly the wine cellar.
To avoid these issues, install the insulation kit and insulate the surface of the evaporator unit
that is located outside of the wine cellar using berglass insulation.
*Additional insulation is required!

www.cellarcool.com | Page 3
CM9000 Twin-S
Mail to:
CellarCool
ATTN: Warranty Registration
1738 E. Alpine Avenue
Stockton, CA 95205-2505
USA
Fax to:
209-466-4606
Scan and email to:
[e-mail]
INTRODUCTION
Customer Service
Thank you for purchasing a CellarCool cooling system. We strive to provide the highest-quality products and the best possible
customer service. If you have any questions about your system, please call us at 1-855-235-5271 or visit cellarcool.com.
Using the Manual
This owner’s manual is intended to assist in the proper maintenance of the cooling system. In order to ensure the longevity of
your cooling unit, the equipment should be installed as outlined in the technician’s manual. It is also vital to establish a proper
care and maintenance schedule. Please read and review this manual carefully and keep it for future reference.
What is the CellarCool Cooling System?
The CellarCool cooling system is a specialized refrigeration system designed for one purpose only: to maintain the optimal
temperature and humidity levels conducive to the proper storage and aging of ne wines. This system produces minimal in-cellar
noise and has the most lenient exhaust requirements. An exterior housing is required for outdoor condensing unit installations.
How Does the Cooling System Work?
Similar to the air conditioning systems used for homes, the evaporator unit (fan coil unit) and condensing units are installed
in separate locations and are connected by a refrigerant line set. The evaporator portion is commonly installed in the wine
cellar, with the condensing unit is located either outside or in a remote indoor location that is ventilated. An exterior housing is
required for outdoor condensing unit installations.
Temperature Setting
The system is designed to maintain a cellar temperature of 55°F as long as the ambient temperature does not exceed 110°F.
WARRANTY REGISTRATION
In order to activate the warranty of your system, the verication and operational
documentation must be completed by the certied refrigeration technician
installing your system and submitted via mail, fax, or e-mail.

Page 4 | 1-800-343-9463 CCM9000 101017
Pump Down Cycle
CellarCool’s twin split systems operate on a pump down cycle which diers from traditional air conditioners. As such, there is no
wiring between the condensing unit and evaporator units. CellarCool twin systems utilize a solenoid valve on the liquid line in
each evaporator unit and a low-pressure switch on the suction line at the condensing unit. When the thermostat calls for cooling,
the solenoid valve opens, permitting the ow of refrigerant to each of the evaporator coils. Once the pressure of the low side of
the system rises above 20 psig, the low-pressure switch then signals the compressor to cycle on.
When the cellar reaches the desired temperature and the thermostat is satised, the solenoid will close, stopping the liquid
refrigerant ow to the TXV valve. The compressor will continue to operate until most of the refrigerant on the low side boils o
and is pumped through the compressor into the condenser coil and receiver. As the suction pressure falls below the pressure
control setting, the low-pressure switch will signal the compressor to cycle o. Most of the refrigerant is now stored between the
condensing unit and receiver.
…………………………………………………………………………………………………
WARNING: Do not utilize a ground fault interrupter, as it will prevent
the unit from drawing the necessary amperage to start the unit.
QUICK START GUIDE*
*Further system operation information is available on page 37.

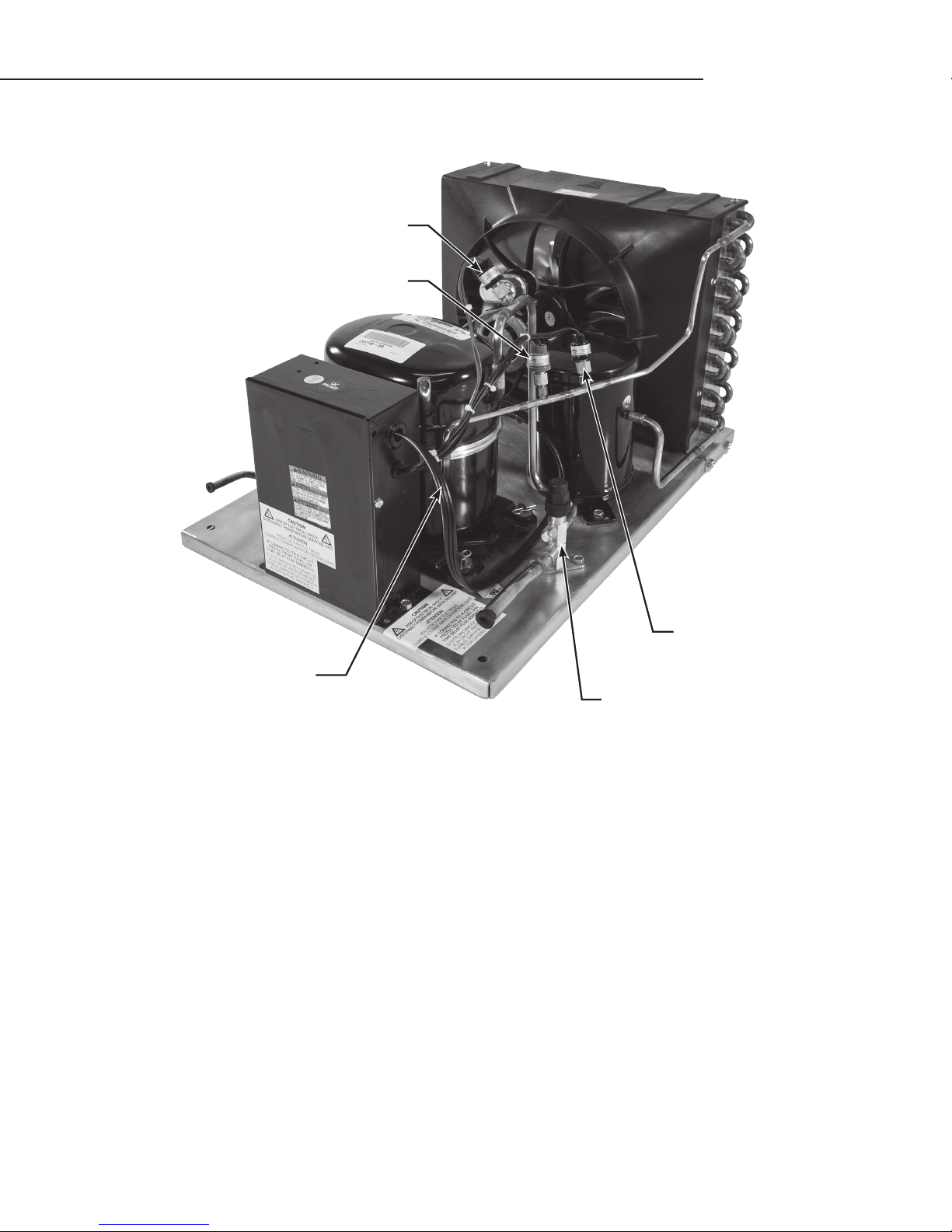

Liquid Line King Valve
This location is used to charge the system with liquid refrigerant
and identify the high side pressure of the system.
Calculating Subcooling
To determine the subcooling of the system, calculate the dierence
between the high side pressure of the system (converted to
temperature) and the temperature of the liquid line. The temperature
of the liquid line will be taken at the outlet of the receiver.
*Saturation temp — liquid line temp
5-9°F SUBCOOLING REQUIRED FOR WARRANTY APPROVAL
TXV
The TXV is preadjusted at the factory. If the superheat is not
within 8-12°F, the TXV will need to be adjusted.
ADJUSTING THE TXV
Use a ⁄”hex key to remove the cap from the TXV superheat
adjustment port. With the cap removed, insert the hex key into
the superheat adjustment port. Increase superheat by turning
the hex key clockwise. Decrease superheat by turning the hex
key counterclockwise.
TXV Adjustments
A. A TXV adjustment may be necessary based on ambient temperatures in the cellar and at the condensing unit.
B. Superheat must be measured at EACH evaporator.
C. Adjust the TXVs for EACH unit until the superheat is 8-12°F. (Total superheat should be 20-30°F.)
D. Under normal operation, with the wine cellar at 55°F and the ambient temperature at 85°F, the low side pressure should be
between 78-82 psig and the high side should be between 300-330 psig.

www.cellarcool.com | Page 5
CM9000 Twin-S
BEFORE YOU START
1-800-343-9463
1. Inspect all components prior to installation. If damage is found, please contact your distributor or CellarCool Customer
Service at 1-800-343-9463.
2. The evaporator units and condensing unit each require a dedicated 115V, 20-amp circuit. Use a surge protector with the
system. Do not use a GFI (ground fault interrupter) line.
3. You are REQUIRED to install a drain line to remove condensation from the evaporator units.
4. The warranty is not active until a warranty checklist has been received, reviewed, and approved.
5. The system is intended for use in properly designed and constructed wine cellars. Hire a professional wine storage
consultant with a valid contractor’s license to build your wine cellar.
6. CellarCool requires that all split systems be installed by a certified HVAC-R technician only. NATE or equivalent is recommended.
7. It is vital that the units be set apart and oriented so that the return air from one unit does not recirculate into the supply air of
the other unit.
If you encounter a problem with your CellarCool system, please refer to the Troubleshooting Guide. If you have any further
questions or concerns, or need assistance, please contact CellarCool’s Customer Service at 1-800-343-9463. Please be sure all
testing has been completed prior to contacting Customer Service. Please have your results ready for your representative.

Page 6 | 1-800-343-9463 CCM9000 101017
RECEIVING & INSPECTING THE SYSTEM
• Use caution when lifting and check package for damage.
• Lift only at the designated hand-hold locations on the shipping container, or fully support the container from
underneath. A shipment may include one or more boxes containing accessories.
• Before opening the container, inspect the packaging for any obvious signs of damage or mishandling.
• Write any discrepancy or visual damage on the bill of lading before signing.
• Allow the condensing unit to sit for 24 hours prior to startup. The condensing unit can be placed in the
installation location, piped and evacuated during this time.
Note: CellarCool units are manufactured in the USA and tested prior to shipment.
• Review the packing slip to verify contents.
• Check the model number to ensure it is correct.
• Check that all factory options ordered are listed.
If any items listed on the packing slip do not match your order information,
contact CellarCool Customer Service immediately.

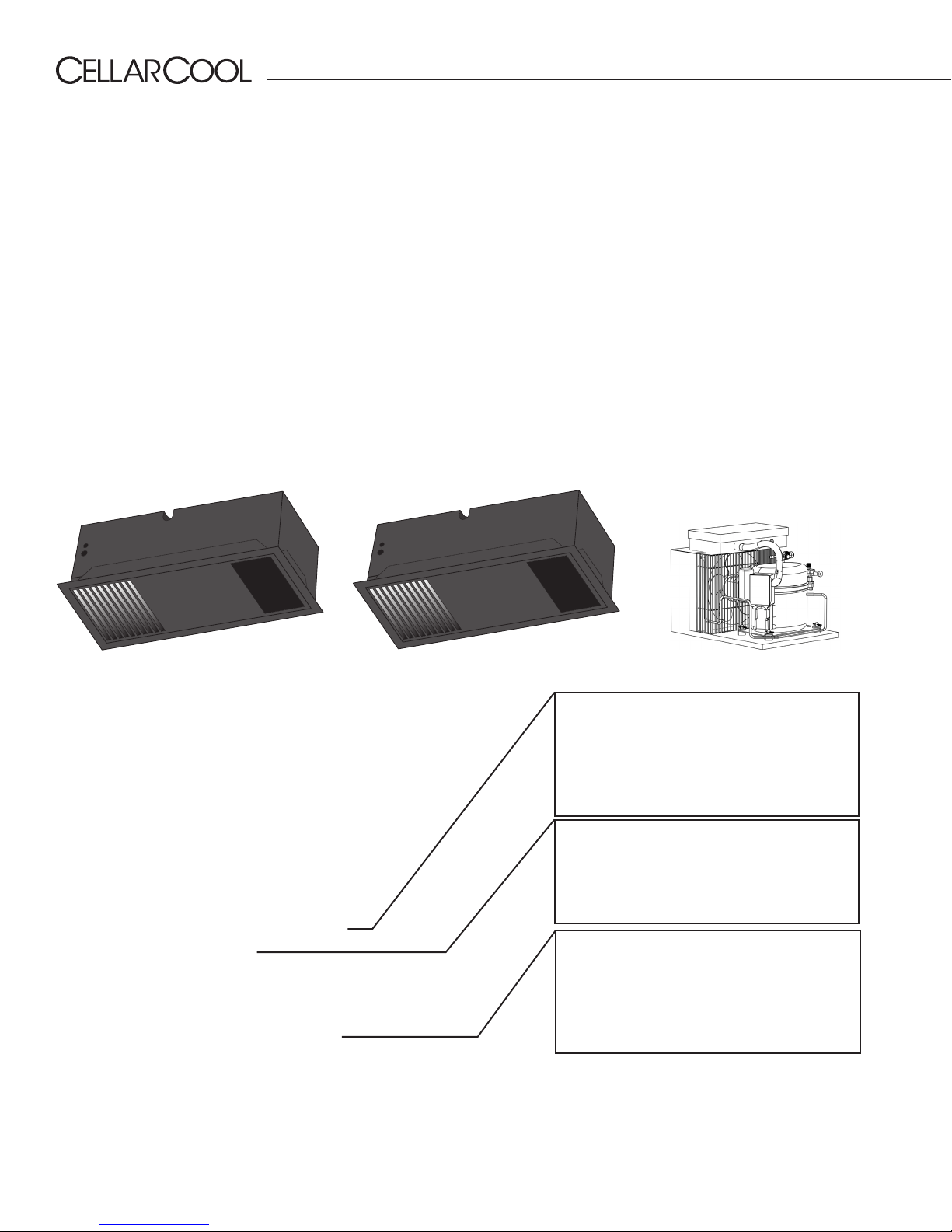

Check all shipped boxes for the following contents:
Please leave the system in its original box until you are ready for installation. This will allow you to move the product safely
without damaging it. When you are ready to remove the product from the box, refer to the installation instructions.
TIP: Save your box and all packaging materials. They provide the only safe means of transporting/shipping the system.
Evaporator Unit Box 1 Condensing Unit Box
(1) Master evaporator unit
Evaporator installation hardware bag (master):
• (12) 2½” Phillips wood screws
• (12) #8 ⁄” Phillips pan-head screws
• (1) Bypass plug
• (1) ¼” barbed coupling
• (2) 3” strips of cork tape
Documentation bag (master):
• CM9000 Twin owner’s manual
• CM9000 Twin technician’s manual
• R-404a split system warranty checklist
(1) CM9000 condensing unit
KDT Plus hardware bag:
• (1) ⁄” OD grommet
• (2) ½” nylon hole plugs
• (4) #6 x 1” Phillips zinc Type A screws
• (4) 8-10 x ⁄” blue plastic screw anchors
Accessory kit bag (master):
• Stainless steel probe (50 feet)
• KDT Plus display cable (50 feet)
• KDT Plus wall mount bracket assembly
• KDT Plus ush mount bracket assembly
• KDT Plus display assembly
• Flush mount template
• Evaporator installation hardware bag
• KDT Plus hardware bag
Insulation blanket bag (master):
• (1) CM9000 insulation blanket
Condensing unit accessory kit:
• (1) Filter drier
• (1) Sight glass
Evaporator Unit Box 2
(1) Slave evaporator unit
Evaporator installation hardware bag (slave)
Insulation blanket bag (slave):
• (1) CM9000 insulation blanket
Evaporator installation hardware bag (slave):
• (12) 2½” Phillips wood screws
• (12) #8 ⁄” Phillips pan-head screws
• (1) Bypass plug
• (1) ¼” barbed coupling
• (2) 3” strips of cork tape

www.cellarcool.com | Page 7
CM9000 Twin-S
QUICK REFERENCE GUIDE
Top View
Bottom View
Mounting Bracket (Paintable)
Supply and Return Grille (Paintable)
Evaporator Unit (Fan Coil Unit)
Electrical Knockouts
Line Set Knockout (x6)
Note: The unit comes in black. The mounting bracket and front grille
are paintable, enabling you to match your desired color.
Top Panel
Electrical Knockout
Options
Line Set Knockout
Options

Page 8 | 1-800-343-9463 CCM9000 101017
5
6
7
8
PROPRIETARY AND CONFIDENTIAL
NEXT ASSY
KNOCKOUT LOCATIONS
Side View of Evaporator Unit
Top View of Evaporator Unit
1.5”
8.05”
14.1”
4.55”
1.75”
1.75”
34.25”
35.75”
35.75”
12.65”
6.58”
1.5”
4.57”
12.65”
20.4” 15.35”
20.4” 15.35”
Front View of Evaporator Unit
14.10”
12.65”
10.65”
12.65”
1.5”
4.58”
6.58”
1.45”
2”

www.cellarcool.com | Page 9
CM9000 Twin-S
QUICK REFERENCE GUIDE
Display Layout
CM9000 SPECIFICATIONS
Model 9000 Evaporator
(Fan Coil Unit)
Cellar Size (cu. ft.) Approx. 3000
Dimensions 12.75”H x 14.5”W x 35.75”D x 2
BTUh with 90° air entering
the Condenser Coil* 8500
CFM 308
Refrigerant R-404a
Voltage Rating 115V (20-amp dedicated circuit required)
Weight (lbs) 80
AMPS (Starting/Running) 2/1
dBA 58.5
Drain Line ¼” ID clear plastic tubing (not provided)
Installation Evaporator units are installed through the cellar ceiling. Condensing unit is installed outside
in a protective enclosure.
Thermostat Remote digital display
Temp. Delta
55°F max temperature dierential between the cellar temperature and condensing unit air intake
temperature
Warranty 2 years (parts and labor)
Compressor is on
Fan is on
Anti-Frost Cycle
running
Alarm is present
°
F
°
F
View/Change Set Point
Enter User Menu
Unlock Button
(hold for 1 sec)
Scroll Button
Change Set Point
55°F
Power On/O
(hold for 5 sec)
Scroll Button
Change Set Point
Return to Previous
Menu

Page 10 | 1-800-343-9463 CCM9000 101017
CM9000 SPECIFICATIONS
* Sizing the System to the Room
There are several factors such as glass, stone, and concrete which will change the required amount of BTUs needed to
properly cool your wine room. We strongly recommend utilizing the cellar wizard on the CellarCool website in order to
ensure you are selecting the proper cooling system for your application. Under-sizing your cooling system can lead to
premature failure and/or prevent the system from reaching the desired set temperature.
Model 9000 Condensing Unit
Cellar Size (cu. ft.)* Approx. 3000
Dimensions 24”L x 17.5”W x 13.4”H
BTUh with 90° air entering
the Condenser Coil 8500
CFM 270
Refrigerant R-404a
Condensing Unit HP 3/4
Nominal Volts Hz-Ph 208/230-60-1
Weight (lbs) 67
Amps (Starting/Running) 27, 7.3
Installation Evaporator units are installed through the cellar ceiling. Condensing unit is installed outside
in a protective enclosure.
Temp. Delta 55°F max temperature dierential between the cellar and condensing unit intake tempera-
ture
Warranty 2 years (parts and labor)

www.cellarcool.com | Page 11
CM9000 Twin-S
CONDENSING UNIT QUICK REFERENCE GUIDE
SUCTION LINE
SERVICE VALVE
FAN CYCLE
SWITCH
Opens at 210 psig
Closes at 275 psig
POWER CORD
HIGH-PRESSURE SWITCH
Opens at 425 psig
Closes at 300 psig
LOW-PRESSURE SWITCH
Opens at 5 psig
Closes at 20 psig
9000 Condensing Unit

Page 12 | 1-800-343-9463 CCM9000 101017
SPLIT SYSTEM CHECKLIST
In order to activate the warranty for this product, the information here must be complete and accurate. Any
incorrect or omitted information will result in a return trip by the installing technician at their cost.
Note: All readings need to be taken while the compressor is running.
DATA RECORDINGS
Line Set Information
A. Line set length:
B. Suction line OD:
C. Liquid Line OD:
Sub Cooling
A. Measure head pressure at liquid line king valve. Convert pressure to temp using conversion chart.
B. Temp of liquid line at king valve:
C. Complete sub cooling calculation: A – B =
Superheat Master
A. Measure suction pressure at the suction line service valve, convert to temp.
B. Measure the temperature of the suction line at the outlet of the evaporator.
C. Complete superheat calculation: A – B =
NOTE: There may be a need to adjust the TXV to get the correct superheat levels.
Bottle Probe
A. Install probe in bottle of warm water to keep system operating.
Temperature Dierential at the Evaporator
A. Measure return air and supply air temperatures at the evaporator to ensure adequate cooling of air in cellar.
Voltage and Amp Draw
A. Measure voltage to compressor and amp draw.
Charging the System
A. Fill system until bubbles dissipate from sight glass.
NOTE: Be careful not to overcharge the system.
Compressor Temperature
A. Measure temperature at bottom of compressor.
NOTE: Cool temp may indicate liquid in the compressor.
Condensation Drain Test
A. Pour water into the drain pan to assure it drains properly.
Superheat Slave
A. Measure suction pressure at the suction line service valve, convert to temp.
B. Measure the temperature of the suction line at the outlet of the evaporator.
C. Complete superheat calculation: A – B =
NOTE: There may be a need to adjust the TXV to get the correct superheat levels.

www.cellarcool.com | Page 13
CM9000 Twin-S
F
ITEMS TO ROUTE BEFORE INSTALLING THE EVAPORATOR UNITS
1. Route the refrigerant lines from each evaporator unit toward each other using ⁄” OD copper tubing for the suction line and ¼” OD
tubing for the liquid lines.
2. Join both suction lines together using a T-tting. Install a ⁄” to ⁄” reducer at the outlet of the T-tting. The remainder of the suction
line from the T-tting to the condensing unit will need to be ⁄” OD copper tubing. (See page 34 for detailed piping diagram.)
3. Join both liquid lines together using a T-tting. Install a ⁄”to ¼”reducer at the inlet of the T-tting. The remainder of the liquid line
from the T-tting to the condensing unit will need to be ⁄” OD copper tubing. (See page 34 for detailed piping diagram.)
4. Route the display cable from the desired location to the desired master evaporator unit installation location (see page 23 for more
display information).
5. Route the bottle probe cable from the desired thermostat bottle location to desired master evaporator unit installation location (see
page 22 for more bottle probe information).
6. Route the drain lines from a proper discharge location to desired evaporator unit installation locations (see page 21 for more drain
line information).
7. Route the power cable wiring to the desired evaporator unit installation locations.
8. Route an 18-5 thermostat wire between the desired evaporator unit installation locations.
⁄” suction line
SLAVE EVAPORATOR UNIT
POWER CABLE
DISCHARGE LOCATION
CONDENSING UNIT
BOTTLE PROBE
DISPLAY CABLE
MASTER EVAPORATOR UNIT
DISCHARGE LOCATION
POWER CABLE
18-5 THERMOSTAT
WIRE
55°F
⁄” suction line ⁄” liquid line
¼” liquid line
⁄” suction line
¼” liquid line
55°F
RED
WHITE
BLUE
GREEN
YELLOW

Page 14 | 1-800-343-9463 CCM9000 101017
1. Locate the desired installation location. Using a stud nder, locate the ceiling joists
on either side of the center point. Cut and frame 14.5” x 36” openings in the ceiling
for each evaporator unit. Make sure the framing is sucient to support the weight of
the cooling unit. Use only the mounting locations provided. These locations ensure
that the installer will not drill into any critical components within the system.
2. Determine which orientation the evaporator units will be installed in (inside the
cellar or with attic access). Mounting options are listed below:
Minimum Tools Needed:
Fully exposed mounting option
Flush mount option
Choose a mounting
option suitable
for the installation
location.
Partially recessed mounting option
Hammer Saw
#2 Phillips-head screwdriver
SELECTING MOUNTING OPTIONS
T-square
1
2
3
4
12.65”
12.65”
5.75”
6.9”
6.9”
5.75”

www.cellarcool.com | Page 15
CM9000 Twin-S
MOUNTING THE EVAPORATOR UNITS
NOTE: You are REQUIRED to use only the mounting locations provided. These locations
ensure that the installer will not drill into any copper or electrical wiring within the system.
It is vital that the units be set apart and oriented so that the return air
from one unit does not recirculate into the supply air of the other unit.
NOTE: If installing the units without attic access, perform steps 5-23 prior to steps 3-4.
1. Display cable
2. Power and thermostat wires
3. Drain line
4. Line set
Routed Items:
Line Set / Drain Line
Display, Power. and
Thermostat Wires
3. Secure the mounting bracket to the master evaporator unit using the twelve (12) supplied ⁄”Phillips pan-head
screws.
4. Secure the master evaporator unit’s mounting bracket to the opening using the twelve (12) supplied 2½”Phillips-
head screws.

Page 16 | 1-800-343-9463 CCM9000 101017
EVAPORATOR UNIT PREPARATION
Figure 1
TOP PANEL
6. Remove the knockout(s) that you will be using to route
the line set, power wires, display cable, bottle probe,
and drain line. For ease of installation, see Figure 2 for
recommended orientation (with attic access).
8. Pull tubing out of housing to allow room for brazing.
Make sure tubing protrudes out of the housing and
the drain line is moved out of the way as shown.
7. Locate the white zip tie securing the drain line tube to
the suction line and cut it. Direct the end of the drain
line away from refrigerant lines.
Figure 2
CUT THIS ZIP TIE DO NOT CUT
ELECTRICAL
ACCESS
PANEL
NOTE: If installing the unit with attic access, perform steps
5-8 after the unit has been mounted.
5. Unscrew the twenty-two (22) screws and remove the
top and electrical access panels.

www.cellarcool.com | Page 17
CM9000 Twin-S
INSTALLING THE EVAPORATOR UNITS
NOTE: You are REQUIRED to use only the mounting locations provided. These locations
ensure that the installer will not drill into any copper or electrical wiring within the system.
LINE SET
MOUNTING BRACKET
DRAIN LINE
POWER &
THERMOSTAT WIRE
KNOCKOUT
BOTTLE PROBE &
DISPLAY CABLE
KNOCKOUT
9. Remove the protective caps from the liquid and suction line connection tubes.
10. Using copper tubing per line set sizing chart, route the liquid and suction lines to the tubing coming from the
master evaporator unit.
11. Place a wet rag around the suction and liquid lines approximately 4”from the braze joints. This will prevent excess
heat from damaging components.
12. To prevent oxidation, purge the system with nitrogen.
13. Braze the copper tubing to the connections on the master evaporator unit.
14. Insulate the suction line using Armaex or similar insulation.
15. Route the drain line out of the master evaporator unit with the line set. Connect using the supplied ¼” barb
coupling.
16. Route the power wire, bottle probe, and display cable through the knockouts in the electrical panel as shown below.

Page 18 | 1-800-343-9463 CCM9000 101017
17. Slide the electrical panel up and out of the master
evaporator unit.
18. Connect the green wire to the green wire, the black
wire to the black wire, and the white wire to the
white wire.
19. Locate the thermostat wire connections inside of
the master unit.
20. Connect the 18-5 wire for the slave unit according
to color (yellow to yellow, red to red, green to
green, blue to blue, and white to white).
21. Connect the male circular connector on the bottle
probe cable to the female circular connector on the
exterior of the electrical box.
22. Connect the end of the display cable labeled
“UNIT” to the wire labeled “UNIT” coming from the
electrical box.
23. Slide the electrical panel back down into the master
evaporator unit.
24. Reinstall the top access panel and fasten the
twenty-two (22) screws into place.
25. Install the supplied three-inch pieces of cork tape
around the display cable, bottle probe cable, and
power wires.
26. Repeat Steps 1-18 with the slave evaporator unit.
UNIT
UNIT
INSTALLING THE EVAPORATOR UNITS WITH ATTIC ACCESS
NOTE: The units come in black. The mounting brackets
and front grilles are paintable, enabling you to match
your desired color.
