Hendi 226865 User manual

You should read this user manual carefully before
using the appliance
Przed uruchomieniem urządzenia należy koniecznie
dokładnie przeczytać niniejszą instrukcję obsługi
User manual
Instrukcja obsługi
Item: 226865
226872
226667
226674
220726
220733
226889
226896
226773
226780
226902
226919
226926
226933
226940
226957
226964
226971
226988
226995
227046
227053
226766
226759
226735
226742
PIZZA OVEN
ELEKTRYCZNY PIEC DO PIZZY

Keep this manual with the appliance.
Zachowaj instrukcję urządzenia.
For indoor use only.
Do użytku wewnątrz pomieszczeń.
CONTENTS
1. SAFETY REGULATIONS ........................................... 3
2. “CE” MARKING........................................................5
3. TECHNICAL DESCRIPTIONS ...................................5
4. INSTALLATION ........................................................ 7
5. USE AND FUNCTIONING ....................................... 10
6. MAINTENANCE...................................................... 13
7. WARRANTY............................................................ 14
8. DISCARDING & ENVIRONMENT ............................ 14
9. SPARE PARTS........................................................ 14

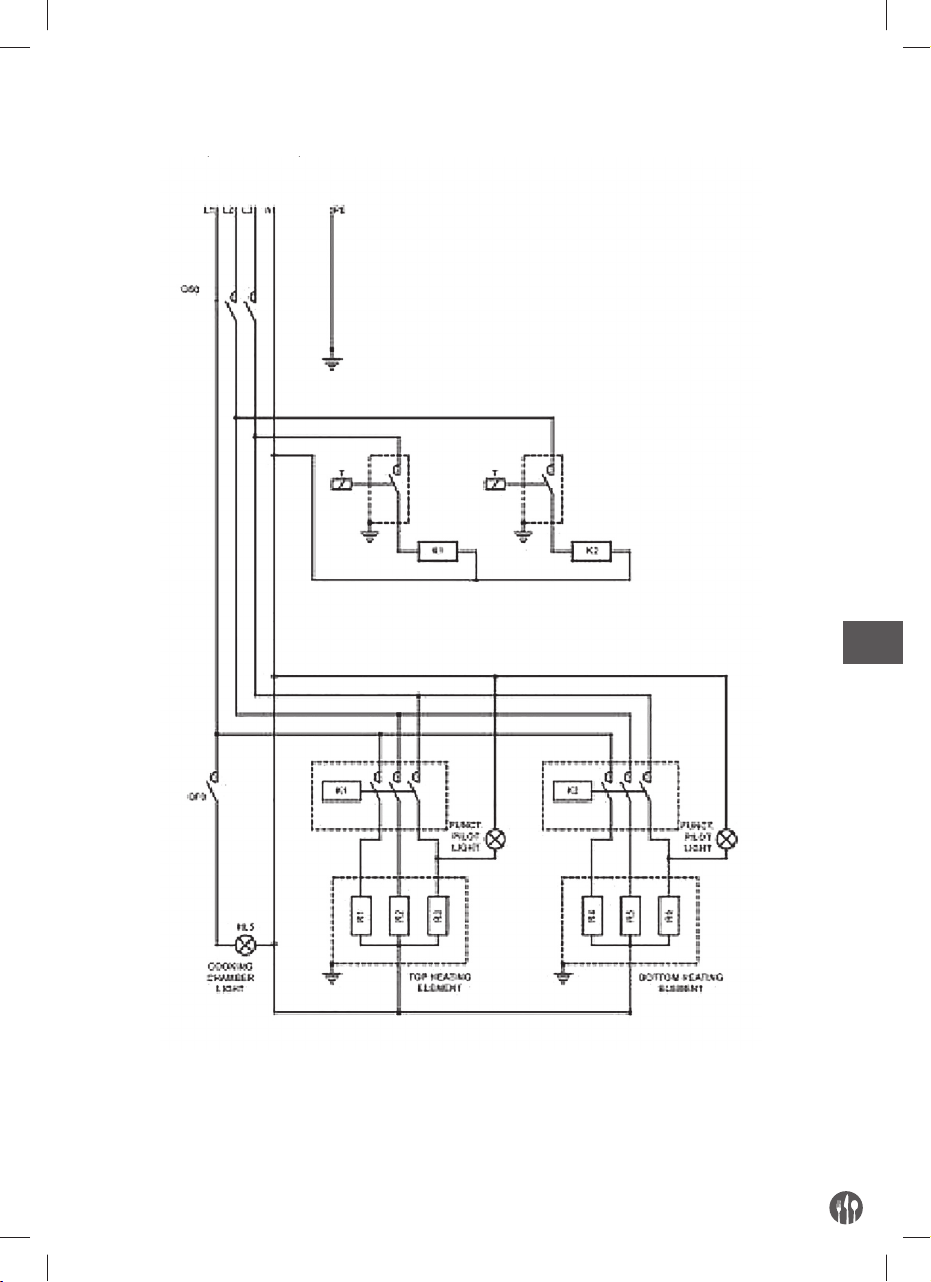

10. ELECTRICAL DRAWINGS....................................... 15
WARNING!
BEFORE SWITCHING ON THE OVEN:
REMOVE THE POLYSTYRENE.

3
EN
Dear Customer,
Thank you for purchasing this HENDI appliance. Please read this manual carefully before connecting the
appliance in order to prevent damage due to incorrect use. Read the safety regulations in particular very
carefully.
1. SAFETY REGULATIONS
• This appliance is intended for commercial use only and must not be used for
household use.
• The appliance must only be used for the purpose for which it was intended and
designed. The manufacturer is not liable for any damage caused by incorrect
operation and improper use.
• Keep the appliance and electrical plug away from water and any other liquids. In
the event that the appliance should fall into water, immediately remove plug from
the socket and do not use until the appliance has been checked by a certified
technician. Failure to follow these instructions could cause a risk to lives.
• Never attempt to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not touch the plug with wet or damp hands.
• Danger of electric shock! Do not attempt to repair the appliance yourself. In case
of malfunctions, repairs are to be conducted by qualified personnel only.
• Never use a damaged appliance! Disconnect the appliance from the electrical
outlet and contact the retailer if it is damaged.
• Warning! Do not immerse the electrical parts of the appliance in water or other
liquids. Never hold the appliance under running water.
• Regularly check the power plug and cord for any damage. If the power plug or power
cord is damaged, it must be replaced by a service agent or similarly qualified
persons in order to avoid danger or injury.
• Make sure the cord does not come in contact with sharp or hot objects and keep
it away from open fire. To pull the plug out of the socket, always pull on the plug
and not on the cord.
• Ensure that the cord (or extension cord) is positioned so that it will not cause
a trip hazard.
• Always keep an eye on the appliance when in use.
• Warning! As long as the plug is in the socket the appliance is connected to the
power source.
• Turn off the appliance before pulling the plug out of the socket.

4
EN
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied along with the appliance.
• Only connect the appliance to an electrical outlet with the voltage and frequency
mentioned on the appliance label.
• Connect the power plug to an easily accessible electrical outlet so that in case of
emergency the appliance can be unplugged immediately. To completely switch off
the appliance pull the power plug out of the electrical outlet.
• Always turn the appliance off before disconnecting the plug.
• Never use accessories other than those recommended by the manufacturer. Fail-
ure to do so could pose a safety risk to the user and could damage the appliance.
Only use original parts and accessories.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge.
• This appliance must not be used by children under any circumstances.
• Keep the appliance and its cord out of reach of children.
• Always disconnect the appliance from the mains if it is left unattended or is not in
use, and before assembly, disassembly or cleaning.
• Never leave the appliance unattended during use.
• Before carrying out any kind of maintenance and/or adjustment intervention, it
is compulsory to disconnect the power supply by disconnecting the power supply
plug from the main socket verifying that the oven is effectively turned off and
cooled.

5
EN
2. “CE” MARKING
The “CE” marking consists of a gray lable applied on the back of the oven. The rating plate bears in a readable
and indelible way the following data:
3. TECHNICAL DESCRIPTIONS
The manufacturer and dealer is not liable for any
inaccuracies due to printing errors or transcrip-
tion, in this manual. In line with our policy of con-
tinuous improvement products, we reserve the
right to make modification of the product, packag-
ing and specifications contained in the Documen-
tation without prior notice.
3.1 TECHNICAL DATA OVENS BASIC
Code Working
temperature
[˚C)
Power
supply
[V]
Chamber Power
[kW]
Power of top
heating
element
[kW]
Power of bottom
heating
element
[kW]
External
dimentions
without handles
[mm]
Internal
dimentions
[mm]
226865 50 | 320 230 1 1,6 800x1 800x1 567x427,5x(H)281 410x360x(H)90
226872 50 | 320 230 2 2,4 800x2 800x1 567x427,5x(H)428 410x360x(H)90
226667 50 | 320 230 1 1600 800x1 800x1 567x427,5x(H)281 410x360x(H)90
226674 50 | 320 230 2 2400 800x2 800x1 567x427,5x(H)428 2x 410x360x(H)90
220726 50 | 500 400 1 5000 2500x1 2500x1 915x621x(H)357 620x500x(H)120
220733 50 | 500 400 2 7500 2500x2 2500x1 915x621x(H)527 2x 620x500x(H)120
226889 50 | 500 230 | 400 1 5 2500x1 2500x1 915x621x(H)357 620x500x(H)120
226896 50 | 500 230 | 400 2 7,5 2500x2 2500x1 915x621x(H)527 620x500x(H)120
226773 50 | 500 230 | 400 1 4,7 2350x1 2350x1 975x924x(H)413 660x660x(H)140
226780 50 | 500 230 | 400 2 9,4 2350x2 2350x2 975x924x(H)745 660x660x(H)140
226902 50 | 500 230 | 400 1 7,2 1200x3 1200x3 975x1104x(H)413 660x990x(H)140
226919 50 | 500 230 | 400 2 14,4 1200x6 1200x6 975x1104x(H)745 660x990x(H)140

6
EN
3.2 TECHNICAL DATA OVENS BASIC XL
Code Working
temperature
[˚C)
Power
supply
[V]
Chamber Power
[kW]
Power of top
heating
element
[kW]
Power of bottom
heating
element
[kW]
External
dimentions
without handles
[mm]
Internal
dimentions
[mm]
226926 50 | 500 230 | 400 1 4,4 2200x1 2200x1 1305x489x(H)413 1080x435x(H)140
226933 50 | 500 230 | 400 2 8,8 2200x2 2200x2 1305x489x(H)745 1080x435x(H)140
226940 50 | 500 230 | 400 1 6 3000x1 3000x1 1000x844x(H)413 720x720x(H)140
226957 50 | 500 230 | 400 2 12 3000x2 3000x2 1000x844x(H)745 720x720x(H)140
226964 50 | 500 230 | 400 1 9 1500x3 1500x3 1000x1204x(H)413 720x1080x(H)140
226971 50 | 500 230 | 400 2 18 1500x6 1500x6 1000x1204x(H)745 720x1080x(H)140
226988 50 | 500 230 | 400 1 9 1500x3 1500x3 1360x844x(H)413 1080x720x(H)140
226995 50 | 500 230 | 400 2 18 1500x6 1500x6 1360x844x(H)745 1080x720x(H)140
227046 50 | 500 230 | 400 1 13,2 2200x3 2200x3 1360x1204x(H)413 1080x1080x(H)140
227053 50 | 500 230 | 400 2 26,4 2200x6 2200x6 1360x1204x(H)745 1080x1080x(H)140
226766 50 | 500 400 1 6000 1000x3 1000x3 1000x844x(H)413 720x720x(H)140
226759 50 | 500 400 2 12000 1000x6 1000x6 1000x844x(H)745 2x 720x720x(H)140
226735 50 | 500 400 1 9000 1500x3 500x3 1000x1204x(H)413 720x1080x(H)140
226742 50 | 500 400 2 18000 1500x6 1500x6 1000x1204x(H)745 2x 720x1080x(H)140
3.3 DESTINATION OF USE
The oven has been designed and produced only for the following use:
• PIZZA BAKING, GRATINATING OF GASTRONOMY PRODUCTS AND HEATING OF
• FOODSTUFF IN BAKING PANS.
• THE OVEN CAN BE USED EXCLUSIVELY BY AUTHORIZED OPERATORS (USER).
• THIS APPLIANCE IS NOT INTENDED FOR USE BY PEOPLE (INCLUDING CHIL-
DREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR
LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN
SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY
A PERSON RESPONSIBLE FOR THEIR SAFETY.
• CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT
PLAY WITH THE APPLIANCE

7
EN
3.4 LIMITS OF USE
This oven has been designed and manufactured exclusively for the destination of use described in Par. 3.3,
therefore, any other use is strictly forbidden in order to assure, at any time, the safety of the authorized operators,
as well as the efficiency of the oven itself.
4. INSTALLATION
4.1 INSTRUCTIONS FOR THE USER
The place where the oven is installed must have the
following enviromental features:
• To be dry;
• Water sources at safe distance;
• Adequate ventilation and lighting corresponding
to hygene and security rules following the exist-
ing laws.
THE OVEN MUST NOT BE INSTALLED IN PROXIMITY OF THE FLAMMABLE MA-
TERIALS (WOODS, PLASTIC, COMBUSTIBLE, GAS, ETC.). AVOID THE CONTACT OF
FLAMMABLE OBJECTS WITH THE HOT SURFACES OF THE OVEN. ALWAYS ASSURE
THE SAFETY FIREPROOF CONDITIONS. MAINTAIN A FREE SPACE AROUND THE
OVEN OF AT LEAST 30 CM.
Check that the electrical data of the user’s electric system corresponds to the equipment requirements
stated on the rating plate and on the above technical characteristics Par. 3.1, 3.2, The characteristics
of the electric socket must be compatible with the plug installed on the cable.
4.2 ELECTRIC CONNECTION
THE CONNECTION TO THE POWER SUPPLY MUST BE EXCLUSIVELY CARRIED OUT
BY AN AUTHORIZED TECHNICIAN (ELECTRICIAN) SATISFYING THE TECHNICAL
AND PROFESSIONAL REQUIREMENTS STATED BY THE REGULATIONS IN FORCE
IN THE COUNTRY OF USE , THIS TECHNICIAN MUST ISSUE A DECLARATION OF
CONFORMITY FOR THE INTERVENTION PERFORMED.
THE MAIN LINE SHOULD BE EQUIPPED WITH SAFETY DEVICES BY A DIFFEREN-
TIAL SWITCH / CICUIT BRAKER, CO-ORDINATED WITH THE GENERAL EARTH IN-
STALLATION, IN CONFORMITY WITH THE LOCAL AND NATIONAL LAWS.

8
EN
To connect the machine to the electric network it is
necessary to proceed as follows:
• connect to the wires to the terminals L1—L2—
L3—N — of power cord type H07RNF 3G X “x” mm²
unsheathed with ferule;
• put together the other end of the cable and a plug,
which is normalised and polarised (the distinction
between phase and neutral must be unequivocal.
• to connect the oven to 230 V single phase is suf-
ficient to make a bridge between L1-L2-L3 with
the special plates present in the terminal box
L1 Clamp N.1
L2 Clamp N.2
L3 Clamp N.3
N Clamp N. 4 o N. 5
Clamp N. 6
ONCE THE ELECTRIC CONNECTION HAS BEEN COMPLETED, THE AUTHORIZED
TECHNICIAN (ELECTRICIAN) MUST ISSUE A DECLARATION CERTIFYING THE
MEASUREMENT OF THE CONTINUITY OF THE EQUIPOTENTIAL PROTECTION
CIRCUIT.
THE APPLIANCE IS TO BE SUPPLIED THROUGH A RESIDUAL CURRENT DEVICE
(RCD) HAVING A RATED RESIDUAL OPERATING CURRENT NOT EXCEEDING 30 MA
4.3 TERMINAL
The terminal box is placed externally on the back of the oven.
Single phase
yellow/green yellow/green
blue blue
brown brown

9
EN
Three phase
yellow/green yellow/green
blue blue
grey
black
brown brown
Oven type N. of cables Section (mm²)
Single phase, one chamber 3 4
Single phase, two chambers and versions 9 single phase 3 6
Three phase one chamber and two chambers 5 4
Three phase from versions 9 and up 5 6
Model N. of cables Section (mm²)
BASIC 1/40; BASIC 2/40 3 2,5
BASIC 1/50; BASIC 2/50 5 4
BASIC 4-44; BASIC 6-66 5 4
BASIC XL 4-44; BASIC XL 6-66;
BASIC XL 6L-66L; BASIC XL 9-99 55

10
EN
4.5 EQUIPOTENTIAL
The equipment must be connected with an equi-potential device the connection terminal is located near the
terminal box. The bonding wire must have a minimal section of 10 mm².
5. USE AND FUNCTIONING
5.1 CONTROL PANEL
The control panel is installed on the front of the oven as shown in FIG. 1,2,3.
PIC. 1
226865
oven’s control panel
PIC. 2
226872
oven’s control panel
LEGEND PIC.1 - PIC.2
REF. DENOMINATION FUNCTION
1 Warning light If lighted, the heating elements are working
1/a Warning light If lighted, timer is on
2 Thermostat • Pos. 0: the heating elements are off
• Pos. 50-320°C: temperature regulation
6 Timer It adjusts the cooking time
7 General switch Turns all the devices off
