Cellini MICA CMH20 User manual

USER MANUAL 產品說明書
MICA HEATER 360°環迴快熱防水電暖爐
Model No.型號: CMH20
Before using your product for the first time, please read this
instruction manual and keep it for future reference.
請於使用此產品前細閱本說明書並加以保存。

Contents
1. Cautions & Warning
2. Product Diagram
3. Operating Instruction
4. Maintenance
5. Product Specifications

Cautions & Warning
Please read this section of "Cautions & Warning" carefully
before using this heater
● This heater’s heat generation is for general home heating,
please avoid for other purposes use.
※ We will not take any responsible if not correctly using,
maintenance with this heater.
Warning
1. Pay attention of the surrounding environment when using
the heater if you are sleeping, to prevent the occurrence of
fire and unconscious moving the mica heater that will occur
dangerous.
2. Do not use this heater near flammable materials such as
curtains or unstable place to prevent the risk of fire.
3. Please separately use higher than the rated current of 10A
socket, do not share electrical products in one socket to
prevent any overloading and caused fire.
4. When children, the elderly, disables and patient are using
this heater, there must have a guardian or adults for their

safety guiding.
5. Prohibits unauthorized disassembly, modification, repair the
machine, to prevent electrical shock and caused by fire.
When in need of repair, please contact the agent service
provider or manufacturer.
6. Please do not put spray cans near the heater to prevent the
cause of explosions and fires.
7. If the socket is loose or the power cord and plug are
damaged, please do not use in order to prevent electric
shock, short circuit, fire and other accidents.
8. Do not touch the power cord connector and operate with wet
hands; otherwise it will lead to electric shock accidents.
9. Do not bundle the power cord, pull the power cord, do not
place heavy objects on the power cord, do not heat or
modify the power cord, prevent damaged power lines cause
electric shock, fire and other accidents.
10. Voltage of this product is 230-240V~ AC, too low or too high
will cause damage to the heater or cause a fire.
11. Do not block the filters or put other metal objects nearby in
order to avoid any electric shock or fire.

12. Do not move the heater when operating.
13. Indoor use only with the specified voltage marked.
14. The heater only can be used for free standing, shall not be
installed on the ceiling or wall.
15. Do not put flammable materials around the heater, and do
not place near combustible gas and dusty place to use,
keep the product away from the heating element.
16. Prohibited any object or instrument to cover or block the air
vent of the heater, periodically check the air vent and
ensure no blocking during operating.
17. Do not extend the cable by using the heater.
18. Children should be supervised to ensure that they do not
play with the heater, to avoid accidents.
19. This heater is only available for family use, may not be used
for commercial purposes.
Cautions
1. Please do not let your pet using this heater and damage the
power, it may cause the fire accident.
2. Please do not touch the heater when operating, the
continuous heat increase will burn the skin.

3. When maintenance, be sure to unplug from the power outlet
to prevent electric shock.
4. When the socket unplugged, please hand grasp the plug, not
to seize power cord removed to prevent electric shock, short
circuit, fire and other accidents.
5. Do not spray pesticides, hair spray, cleaning conditioner and
any other similar product near the heater, to prevent resin or
spray painted appear deterioration and damage.
6. If there is a burning smell, please stop using and unplug the
power cord, contact with the retailer. Do not use during the
heater is strictly prohibited abnormal state, to prevent
accidents.
7. Please do not cover the heater with towels or clothes or other
flammable items, to prevent the overheating and cause fire.
8. Please do not use for drying clothes, to prevent the risk of
fire.
9. The mica heater shall be placed directly below the power
socket.
10. The mica heater shall not be around bathtubs, sprinklers or
pool use any contact with any liquid, to prevent the risk of

electric shock and avoid accidents.
11. If not long-term use, be sure to unplug the power socket.
12. This heater cannot be forced to tap or shake the body when
using.
13. When no one using, the heater must be shut down.
14. Do not allow children to play with this heater.
15. Some parts of this heater can become very hot and cause
burns. Particular attention has to be given where children
and vulnerable people are present.
16. Please do not put any objects especially the remote
controller at the top recess area and surrounding hot
surface of the heater.

Product Diagram
Operating Instruction
1. Remove the heater from packaging, take out from the
packaging plastic bags, land on a dry, flat and secure ground.
2. Plug the heater's power cord, by using the specified connect
230-240V~ 50Hz power output.
3. Turn on the heater by pressing the On/Off button (above

Product Diagram - 4).

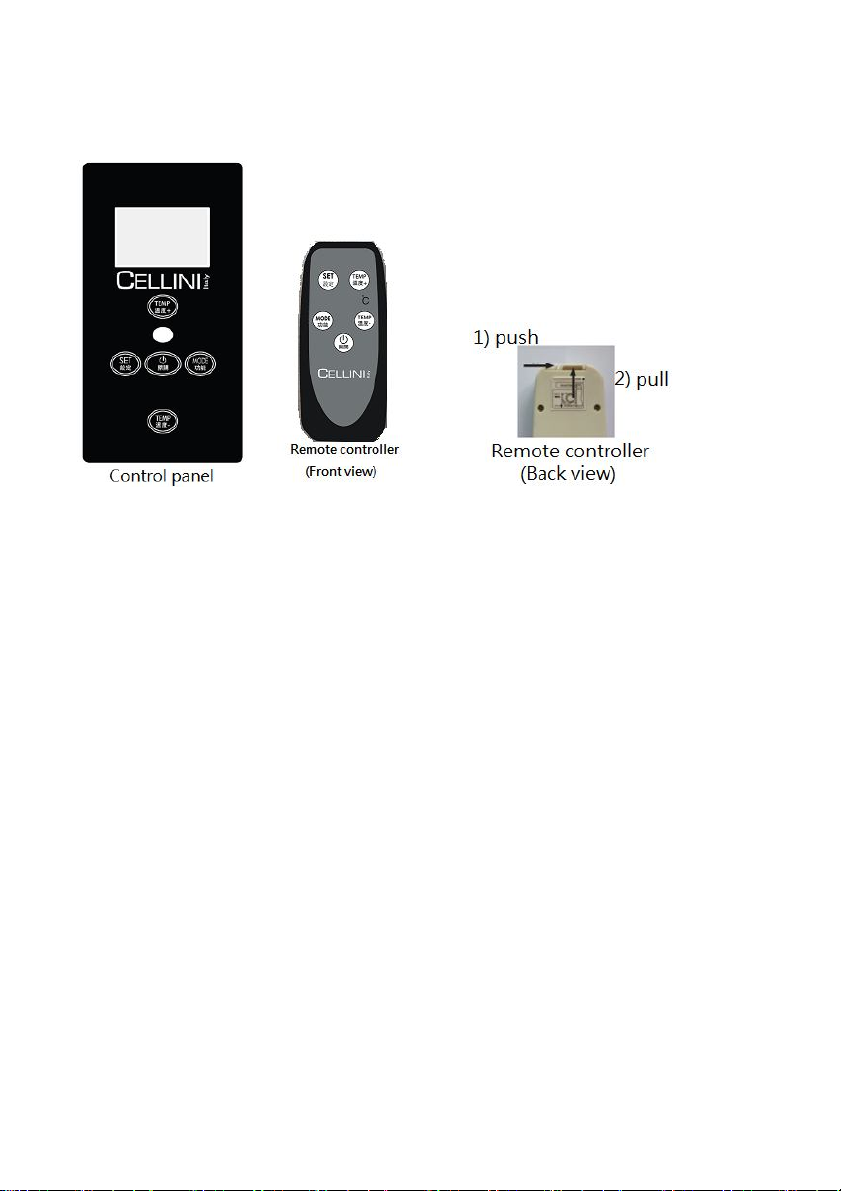

1. To activate the remote controller, move out the battery
housing by 1) Hold the gate and push to the right 2) pull out the
battery tray at same time (see the above back view of remote
controller).
2. Insert the battery with correct positive and negative pole then
close the battery tray.
 Buttons on Remote Controller:

 Buttons on Control Panel:
1. Power on
Plug in the power supply, press the ON button , the LCD
screen displays all the icons in two seconds . Then
entering into the standby mode, the heater will show the
ambient temperature (0-50 degrees) and a time digit 00:00
( ) on the screen, 00:00 will keep flashing, the Mica

heater is ready for operation.
2. Operation mode setting:
Press button on control panel or remote controller to enter
the power saving mode the display gives a default
temperature 38 degrees (flashing 2-3 seconds), then it will
significantly show the ambient temperature, indicator light turns
into red . Press button to select the modes, there are
four operating modes: A) Power saving mode , B)
Sleeping mode , C) Standard mode , D)
Frosting mode ; be displayed when the mode is set
conversion temperature in 5 seconds.
3. Temperature setting:
Press button once to enter the temperature setting: The

temperature digit flashes, press (Temperature increase
setting) and (Temperature decrease setting) to adjust the
temperature.
A) Power Saving mode : the default setting is 38
degrees and can be set the temperature range from 5 ℃ to
38 ℃;
B) Sleeping mode : the default setting is 38 degrees,
can be set the temperature range from 5 ℃ to 38 ℃;
C) Standard mode : the default setting is 38 degrees
and can be set the temperature range from 5 ℃ to 38 ℃;
D) Frosting mode : the constant temperature is 7-10
degrees, the temperature cannot be adjusted; When the room
temperature is ≤ 7 ℃, heater will run automatic to increase
up to 10℃; When the room temperature ≥ 10℃, it will stop
running automatically.

All mode setting will be automatically set after five seconds.
In Standard mode; When the ambient temperature = set
temperature or ≤1 ℃, the heat will increase; when the
ambient temperature ≥ set temperature degree 2 ℃, the
heating will be stopped. In the Power saving mode; when the
ambient temperature ≤ set temperature 4 ℃, the heater
begins to increase heat; when the ambient temperature same
as the set temperature, the heater will not operate. In Sleeping
mode; when the ambient temperature is ≤ 2 ℃ of set
temperature, heater will increase the heat; when the ambient
temperature ≥ 1℃ of set temperature, heater will be stopped.

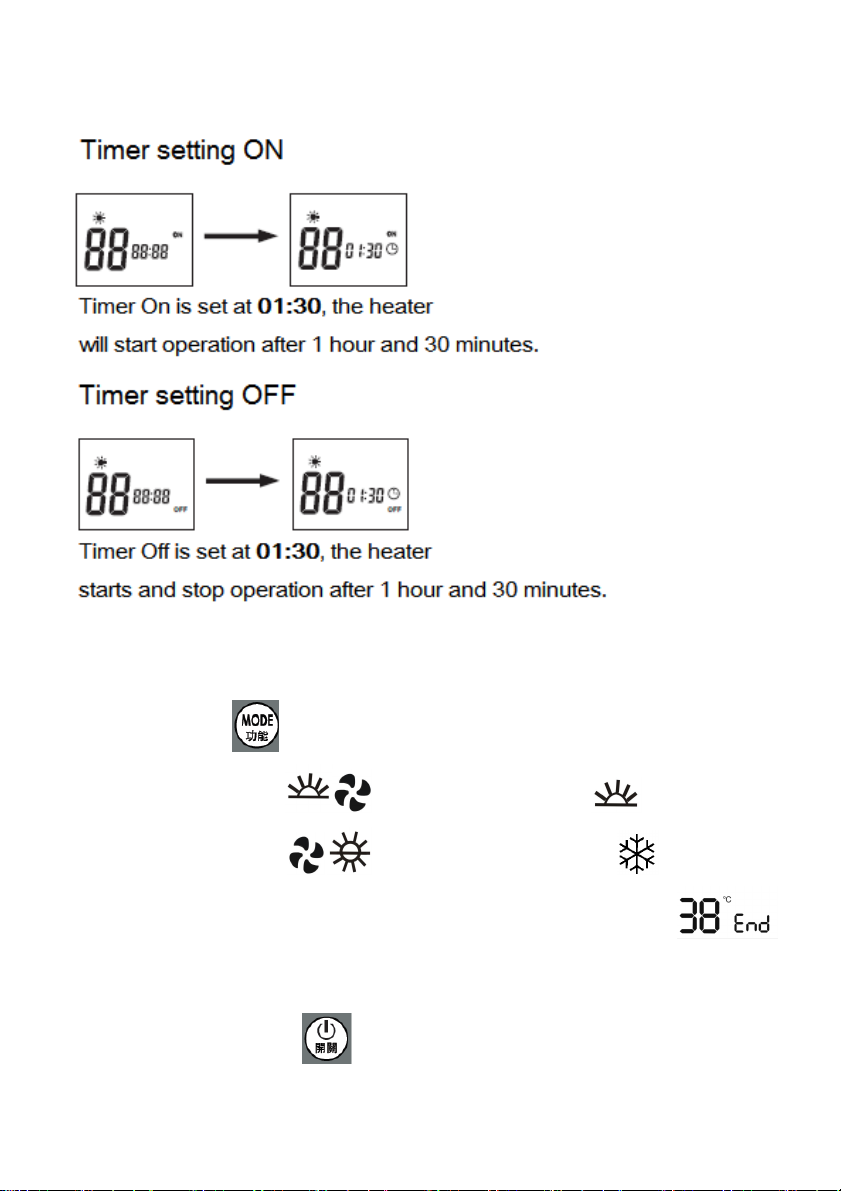

4. Timer settings:
Press button twice to enter the pre-set Timer On setting
mode, the time digit flashes. Or press the button three

times to enter the pre-set Timer Off setting mode, the time digit
flashes. The setting time can be from (00:01) 1 minute to (23:59)
23 Hours and 59 minutes. Press button for setting the
Hour increase (1 – 23 Hours) and press button for setting
the Minute increase ( 1 – 59 Minutes). After five seconds, the
counting will be started automatically. After set Timer On mode,
heater will not operate until the set time started.

In the process of pre-set Timer On or Off setting mode, we can
always press button to change the heating mode A)
Power saving mode , B) Sleeping mode ,
C) Standard mode , D) Frosting mode ; time out
working is completed after the screen display “End” ,
and the heater will be stopped. We can always cancel the timer
setting by pressing button on control panel or remote

controller.
Overheating Protection
Heater is equipped with a safety system for overheating, it will
be shuttled down and also when machine occur due to blocked
air intake, or covered by cloth with other reasons, overheating
protection settings will play a role automatically to shut it down,
press off button and unplug the product to wait 15
minutes after the reset, then you can re-plug and turn it on
again.
If you cannot properly turn on the heater after 15 minutes, turn
off the heater again and send the heater to customer service or
retailer for repairing.
Automatic power-off
Heater has a protection safety switch built-in, when the heater

fall off or tip-over, the unit will be switched off automatically
Maintenance
1. For repairing or maintenance, please be sure to unplug the
power cord and do not unplug the heater with wet hands or
insert the plug.
2. Perform maintenance only after the heater’s body was cool
down completely.
3. During the time of maintenance, please do not put the
machine on the water soak, or watering to prevent short
circuiting.
4. Gently wipe the dirt on the housing with a soft cloth. If the
stain is serious, please put a cloth soaked in warm water or
neutral detergent, please wipe clean with a damp cloth, then
wipe with a dry cloth,
5. When cleaning the cable and socket, please unplug the
machine, then wipe clean with a dry cloth.
If the product is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.

Before contacting the service center, check possible remedial
actions in the table below. If the problem is not resolved, contact
the service center.
Problem Remedial Actions
Even the
turn on
and press
operations
Indication,
it will not
heat.
1. Check whether the correct power output for the
product is applied
2. Power plug is properly inserted into the socket
3. Place on not flatted surface.
4. Check if the set temperature is higher than
room temperature.
Remote
control
without
reaction
1. Remote control with low battery level
2. Out of range
3. Obstructions affecting the reception

Product Specifications
Product name: Mica Heater
Model No.: CMH20
Rated Voltage: 230-240V~
Rated Frequency: 50Hz
Rated Power: 2000W
Product Dimension: 298(L) x 280(W) x 548(H)mm
