Cello OMNI User manual

Cello Lighting, Inc. 888-588-8849 [e-mail]
CELLO OMNI
4-IN-1 300W
USER MANUAL
ANYTIME, ANYWHERE, BY ALL MEANS
Cello OMNI integrates UVC Surface Disinfection, UVC
Air Disinfection, HEPA Filtering and Needlepoint
Bipolar Ionizers (NPBI) into one single product. With
the blessing of IoT (Internet of Thing) technology to
allow remote scheduling, control and working log over
the Cello Cloud.
Cello Lighting, Inc.
Palo Alto, CA 94303
CELLO's patent-pending multifunctional mobile
cart brings together H13 HEPA air filtration,
ionization, and ultraviolet C technology into
one system to filter and deactivate
microorganisms quickly and effectively.
• UVC Surface Disinfection
• UVC Air Disinfection
• Needlepoint Bipolar Ionization (NPBI)
• HEPA Filtration
• FDA Class II Medical Device
• Remote Controlled
• User Friendly

User Manual of Cello OMNI 4-in-1 300W
06/16/2020 1
Table of Contents
I. Overview.................................................................................................................................. 2
II. Disinfection Guidelines............................................................................................................ 3
III. Technical Specifications....................................................................................................... 4
IV. Quick Start Guide................................................................................................................. 5
V. Cello Cloud Services (CelloVira.com)....................................................................................... 6
VI. Scheduling of Cello OMNI Disinfection................................................................................ 8
VII. Safety Instructions.................................................................................................................. 10
Surface Mode: Safe Tips..........................................................................................................................10
Air Mode: Tips to Replace the HEPA Filter..............................................................................................11

User Manual of Cello OMNI 4-in-1 300W
06/16/2020 2

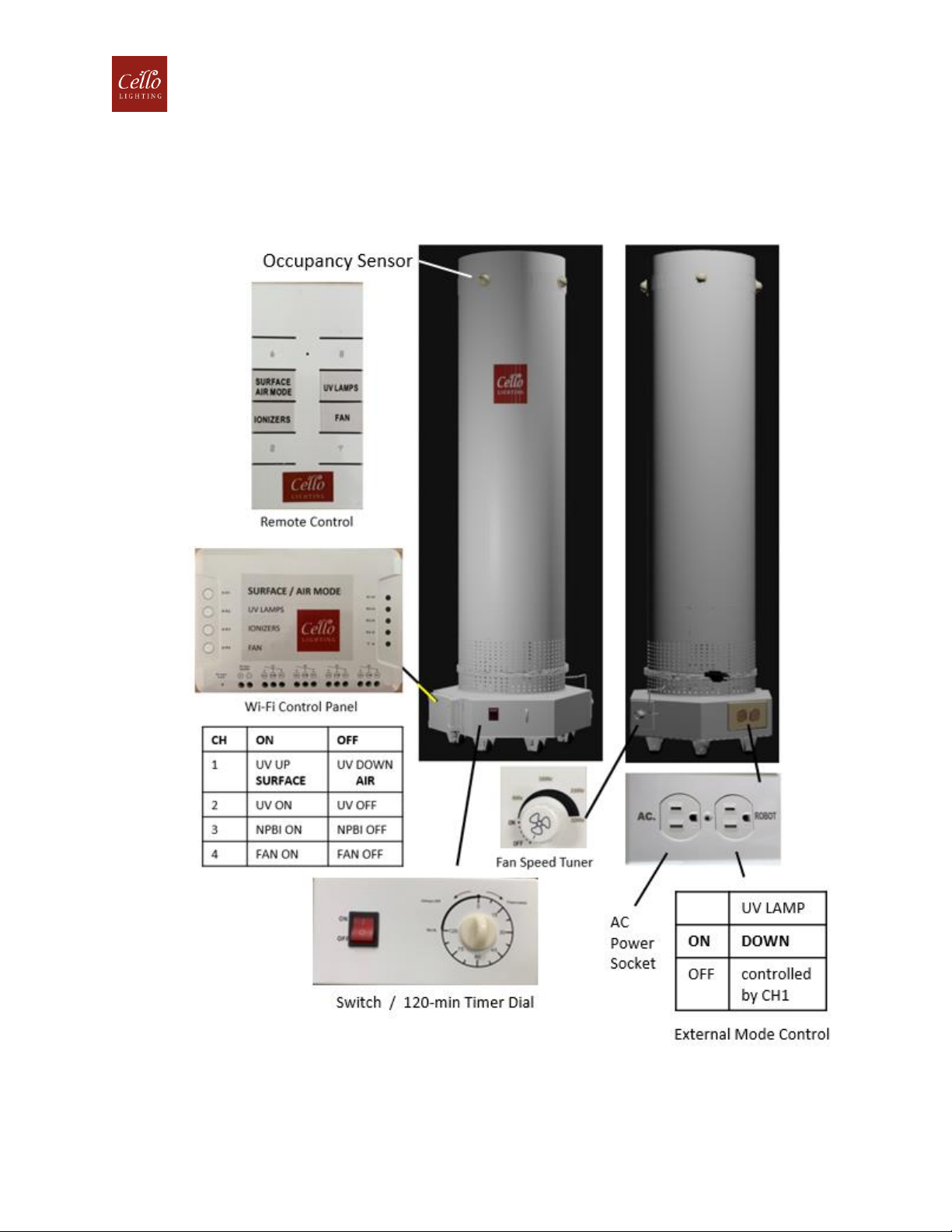

I. Overview

User Manual of Cello OMNI 4-in-1 300W
06/16/2020 3
II. Disinfection Guidelines
Surface Mode UVC Disinfection
Area
400 sq. ft.
800 sq. ft.
1200 sq. ft.
1600 sq. ft.
2400 sq. ft.
4800 sq. ft.
Time*
10 min
20 min
30 min
40 min
60 min
120 min
*Suggested time to operate for 99.9% disinfection rate.
** The UVC cart needs to navigate around the area to achieve the claimed disinfection rate.
Air Mode UVC Disinfection
CFM
Disinfection
500 sq. ft.*
1000 sq. ft
2000 sq. ft.
4000 sq. ft.
5000 sq. ft.
200
99.9999%
20 min**
40 min
80 min
160 min
200 min
400
99.99%
10 min
20 min
40 min
80 min
100 min
600
99.95%
7 min
14 min
27 min
54 min
68 min
800
99.9%
5 min
10 min
20 min
40 min
50 min
1000
99.8%
4 min
8 min
16 min
32 min
40 min
* Height = 8 ft. tall.
** Time to exchange 100% of air.

User Manual of Cello OMNI 4-in-1 300W
06/16/2020 4

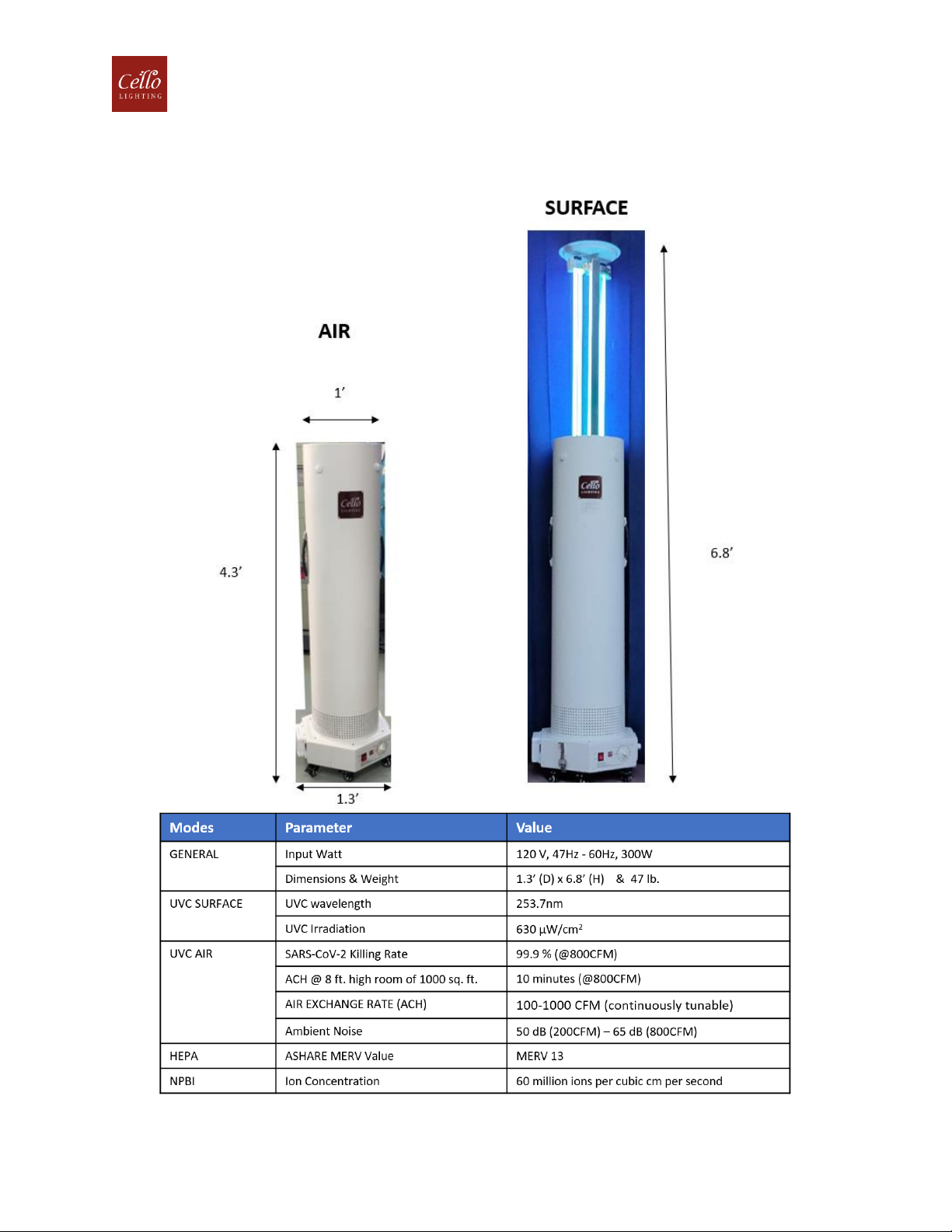

III. Technical Specifications

User Manual of Cello OMNI 4-in-1 300W
06/16/2020 5
IV. Quick Start Guide
1. Turn on Power Switch
2. Turn the Timer Dial to “Always On”
(or 1-120 minutes)
3. Tune Fan Speed
4. Hold remote to control the Wi-Fi Panel:
5. Turn on CH2 (Turn on UVC lamps)
6. Turn on CH3 (Turn on NPBI)
7. Turn on CH4 (Turn on FAN)
8. Turn on CH1 to enter SURFACE Mode (UV lamps UP)
9. Turn off CH1 to enter AIR Mode (UV lamps DOWN)

User Manual of Cello OMNI 4-in-1 300W
06/16/2020 6
V. Cello Cloud Services (CelloVira.com)
In order to enjoy the powerful Cello Cloud Services at CelloVira.com, please do the following:
3. Once you received your user/password, follow instructions to connect Cello OMNI 4-in-1 to
Internet through your existing Wi-Fi networks:
1. Identify the APP ID on your Cello OMNI.
2. Email your APP ID to: [e-mail]
SUBJECT: APP ID = 100109ce70 (your own ID)
CONTENT: Contact Name
Organization Name
Address
Phone Number
ID 100109ce70

User Manual of Cello OMNI 4-in-1 300W
06/16/2020 7

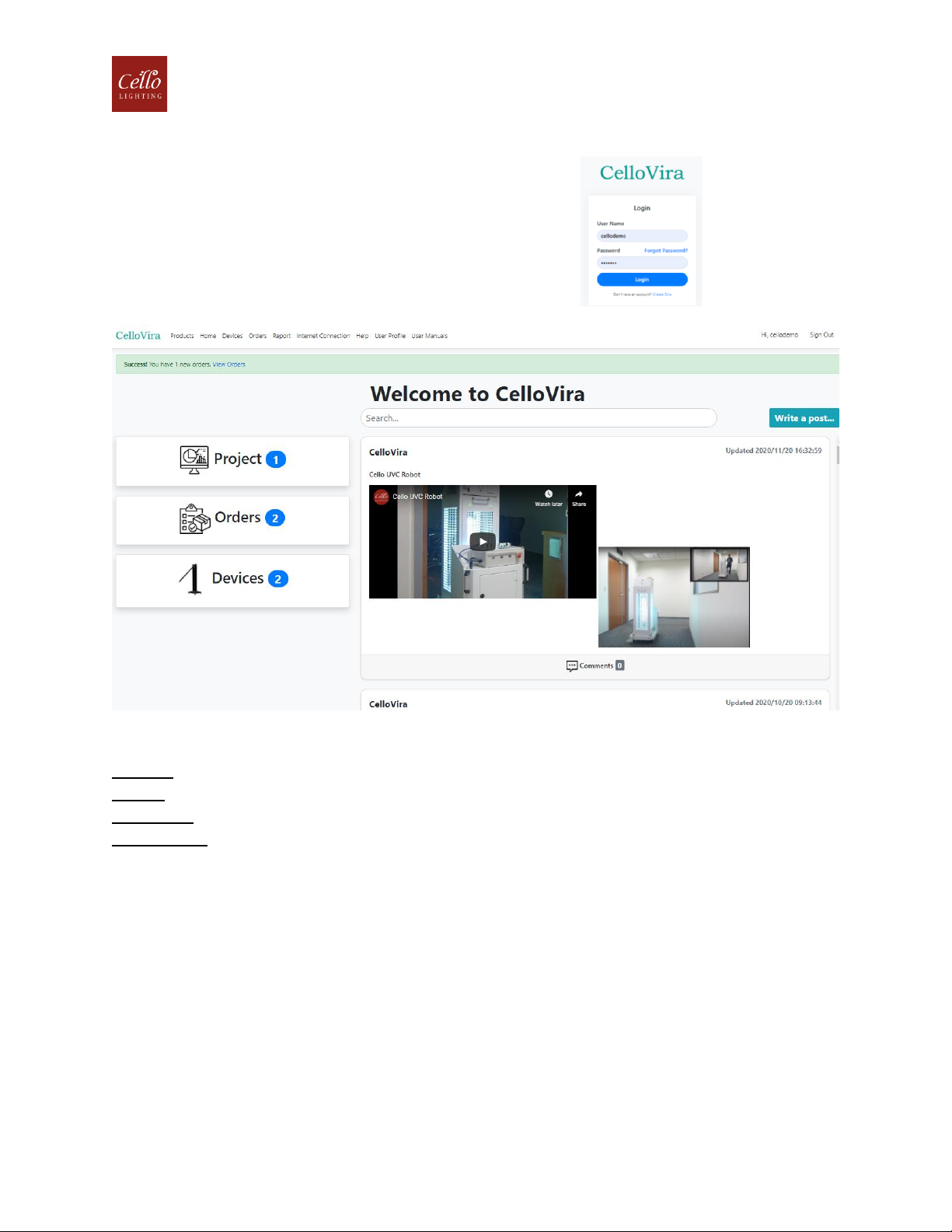

The top Menu includes the following:
Products: Specifications sheets of Products
Devices: Managing your Cello UV devices
User Profile: Update your profile
User Manuals: User manuals of Cello UV products.
Use your new CelloVira USER/PASS to log in at:
CelloVira.com
Once logged in, you will see the following home page:

User Manual of Cello OMNI 4-in-1 300W
06/16/2020 8

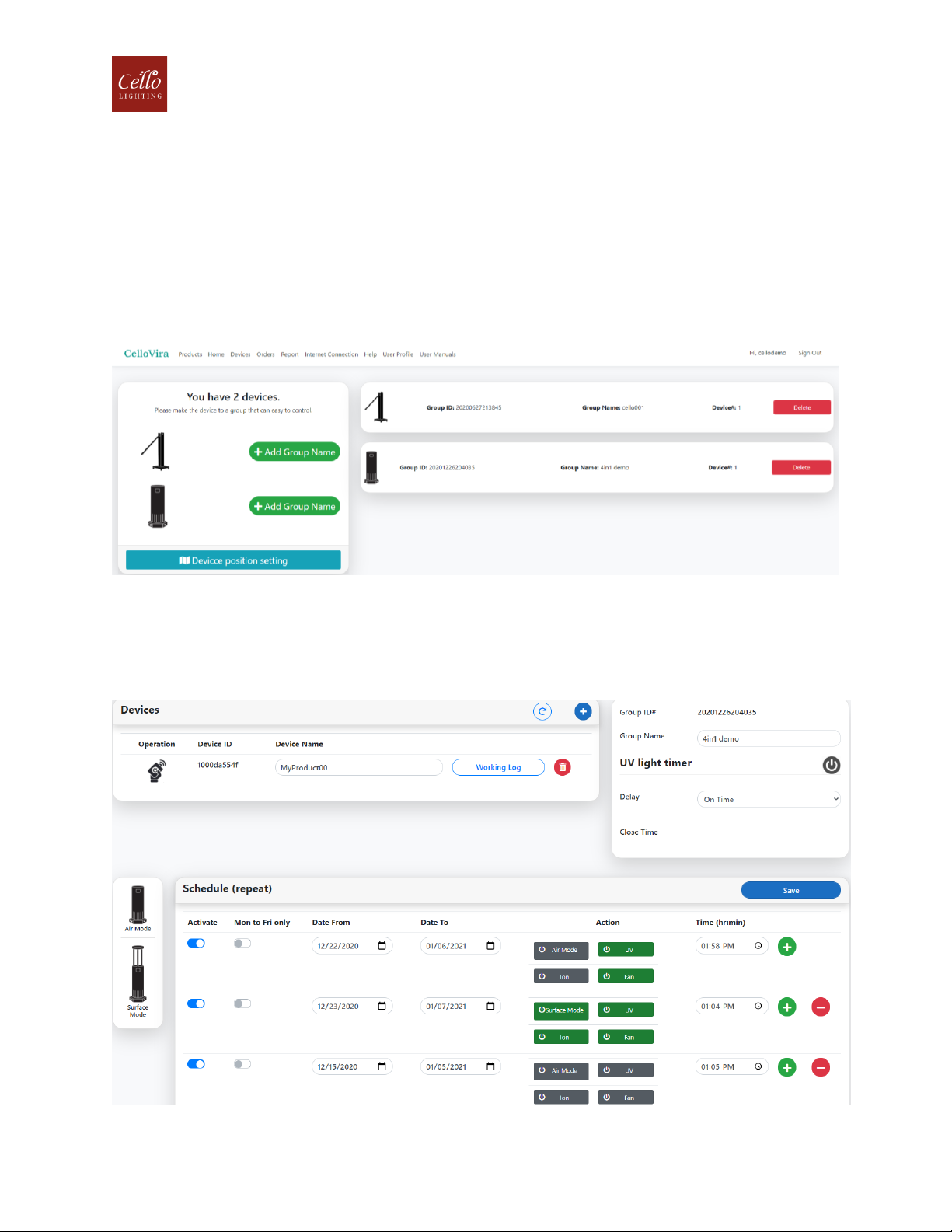

VI. Scheduling of Cello OMNI Disinfection
Please visit CelloVira.com, log in the portal with your USER/PASS.
Then Click <DEVICES>
Click <Group Name>

User Manual of Cello OMNI 4-in-1 300W
06/16/2020 9

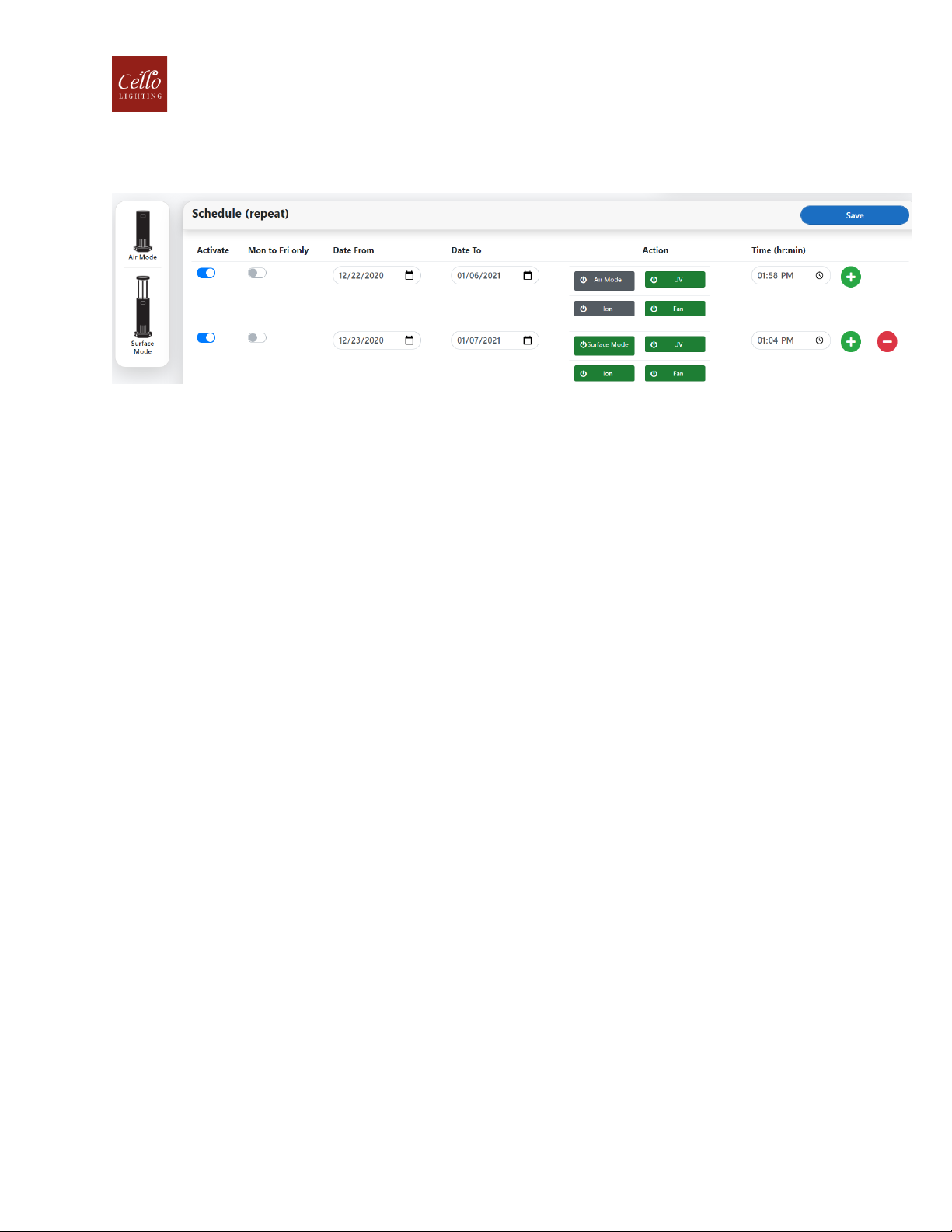

For instance, in this example:
Cello OMNI status at 01:04 PM is: (Valid from 12/22/2020 to 01/06/2021)
CH1 is turned ON: SURFACE MODE (Lamps are UP)
CH2 is turned ON: UVC Lamps ON
CH3 is turned ON: ION ON
CH4 is turned ON: FAN ON
Cello OMNI status at 01:58 PM is: (Valid from 12/23/2020 to 01/07/2021)
CH1 is turned OFF:AIR MODE (Lamps are DOWN)
CH2 is turned ON: UVC Lamps ON
CH3 is turned OFF: ION OFF
CH4 is turned on: FAN ON

User Manual of Cello OMNI 4-in-1 300W
06/16/2020 10
VII. Safety Instructions
Surface Mode: Safe Tips
What is UV-C Disinfection Lamps?
UV-C disinfection lamps emit radiation in the UV-C portion of the ultraviolet (UV) spectrum, which
includes wavelengths between 100 and 280 nanometers (nm). The lamps are used in a variety of
applications where disinfection is the primary concern, including air and water purification, food and
beverage protection, and sterilization of sensitive tools such as medical instruments. Germicidal light
destroys the ability of bacteria, viruses, and other pathogens to multiply by deactivating their
reproductive capabilities. The average bacteria may be killed in 10 seconds at a distance of 6 inches from
the lamp. The wavelength with the greatest effectiveness is 253.7 nm, which defines the germicidal
lamp category with optimized wavelength for maximum absorption by nucleic acids.
Hazard and Risks from UV-C Disinfection Lamp Radiation
UV-C radiation (UVR) used in most disinfection bulbs is harmful to both skin and eyes.
UVR is not felt immediately; in fact, the user may not realize the danger until after the exposure has
caused damage. Symptoms typically occur 4 to 24 hours after exposure.
The effects on skin are of two types: acute and chronic. Acute effects appear within a few hours of
exposure, while chronic effects are long-lasting and cumulative and may not appear for years. An acute
effect of UVR is redness of the skin called erythema (similar to sunburn). Chronic effects include
accelerated skin aging and skin cancer.
UVR is absorbed in the outer layers of the eye –the cornea and conjunctiva. Acute overexposure leads
to a painful temporary inflammation, mainly of the cornea, known as photokeratitis. Subsequent
overexposure to the UV is unlikely because of the pain involved. Chronic exposure leads to an increased
risk of certain types of ocular cataracts.
Working unprotected for even a few minutes can cause injury. It is possible to calculate the threshold
for acute effects and to set exposure limits. It is not possible, however, to calculate threshold for chronic
effects; therefore, because no exposure level is safe, exposure should be reduced as much as possible.
10 CFR 851 mandates the use of the threshold limit value (TLV) exposure limits established by the
American Conference of Governmental Industrial Hygienists (ACGIH). The exposure limit for a germicidal
lamp is 6 millijoules per square centimeter. At this level, detectable molecular damage appears to be
fully repaired within 24 hours. For the case of continuous exposure for longer than 8 hours, special care
needs to be taken.
Do not remove the cover of the AIR unit when the power is on
Due to the potential danger of UVC, do not remove the cover of this machine when the power is on.

User Manual of Cello OMNI 4-in-1 300W
06/16/2020 11
Air Mode: Tips to Replace the HEPA Filter
The current pandemic has raised awareness and questions centered around best practices to follow for
air filter replacement. Here are some recommended steps to replace an air filter:
1. TURN OFF THE POWER for safety. Also, turn off any fans in the area at least 20 minutes prior to
servicing a filter.
2. Wear personal protective equipment (PPE): This includes a face mask, nitrile gloves, and shoe
covers.
3. Remove the old filter. Simply slide it out of the slot that holds it in place.
4. Check the condition of the filter. Does it look clogged with dirt and dust? Many factors
can impact how fast a filter will become clogged, shortening the life of the filter.
5. Replace the filter. Immediately place the old filter into a plastic bag being careful not to shake
or drop it. Sudden movements can cause microscopic particles to be released into the air. Twist
or tie the bag shut and consider taping it to create a seal. NOTE: If the filter has a permanent
frame, the media should be removed outside. Be sure to dispose of the old filter in an outdoor
trash can.
6. Insert the new filter right away. An arrow on the filter’s frame shows the direction that air
should flow through the filter, which is always away from the return air duct and toward the air
handler mechanism. When inserting the filter back in the housing, make sure that arrow points
away from the return and toward the air handler. Write down the date you replaced the filter.
To maintain healthy breathable indoor air, standard HVAC air filters should be changed at least every
three months. In some situations, the filter may need to be changed more frequently. Changing an air
filter on a regular maintenance schedule also keeps equipment in top working condition, prevents
breakdowns, reduces energy consumption, and limits expensive repairs.
Extra safety cushion provided by the internal UVC lamps
The HEPA filters in this AIR Unit are irradiated continuously by the UVC lamps above the HEPA filters.
So, in general, most of the dangerous pathogens trapped on the HEPA filters have been inactivated
before the technicians replace the HEPA filters. However, the UVC light can not penetrate the dust and
particles, so if some pathogens are hidden underneath the dust and particles and were not irradiated by
the UVC light, they might still be dangerous to technicians.
