Cellular Innovations HFBLU-LT100 User manual

Bluetoot HeadsetManual
Model# HFBLU-LT100

Contents
Introduction.....................................................................................
HFBLU-LT100 Bluetooth Headset Overview .......................................
Pair to your Bluetooth phone .............................................................
Charging the battery ........................................................................
Battery information...........................................................................
Turning headset on /off .....................................................................
Wearing your headset.......................................................................
Making a call ..................................................................................
Ending a call ...................................................................................
Reject an incoming call ....................................................................
Answering a call ..............................................................................
Transferring a call ...........................................................................
Call-waiting (Three-Way Calling) ......................................................
Volume control & Mute function .........................................................
Summary of button operation .............................................................
Safety and general information..........................................................
FCC & IC Statement ..........................................................................
EU ..................................................................................................
Warranty .........................................................................................
1
2
4
5
5
3
6
8
8
8
9
9
9
10
12
13
9
13
14

1
1
Introduction
The HFBLU-LT100 Bluetooth Headset is aBluetooth device developed withBluetooth
technology, whichcan connect to otherBluetooth devices such asmobile phone, PDA,
or notebook computer(with audiogate way profile supported)wirelessly to attain voice
transferred purpose within arange of 10 meters.
Introduction of Bluetoothwireless Technology
Bluetooth is a short-rangewireless communication technology. The Bluetoothwireless
technology makes it possibleto connect any compatibleportable and stationary
communications device without usingcables. The technologyis based on aradio link that
offers fast andreliable transmission of voiceand data information. Bluetoothrefers to a
worldwide standard designed tooperate in the intemationallyrecognized ISM (Industrial
Scientific and Medical) frequencyband. Within the ISMband(2.4GHz~2.485GHz),
Bluetooth transmissions hop between79 separate frequencies 1.600times every second,
and with a communicationrange of about 10meters.
Box Content
HFBLU-LT100 Bluetooth Headset
AC Charger
Ear Hook
Ear Gel
User Manual

2
HFBLU-LT100 Bluetooth Headset Overview
Front Back
Volume Up Button
Volume Down Button
Multi-function Button
Indicator Light
Speaker
Charging Socket
Microphone
Ear Hook
Ear Gel
2

3
3
Pair to your Bluetooth phone
Bluetoothdevices
HFBLU-LT100
IMPORTANT!
When the headset paired with
mobile phone, the indication
light will flash 1 time every
3 seconds. If failed, the blue
indicator light will flash 1
time every 5 seconds.
Scan results
Enter Bluetooth
Passkey
****
Before you use your headset for the first time, ensure that it is paired to use it with devices
such as your Bluetooth phone.
Ensure the
headset is off.
Press and hold the Multi-function
Button until you see blinking
blue and red light.(Approximately
6 seconds),then release.
Set your Bluetooth phone to "discover" the
,
headset by following your phones in struction
guide. Typically, "Bluetooth" menu on your
phone and then selecting the option to
"discover" a Bluetooth device.
Your phone will find your headset and
ask if you want to pair with it. Confirm
this by pressing "YES " or "OK".
Enter passkey or
PIN=0000 (4 zeros),
then press " YES or "OK"."
Once you pair the headset with a device, the headset will be automatically connected to
the device whenever you turn the headset on.

4
3
This device has an internal, nonremovable, rechargeable battery. Do not attempt to
remove the battery from the device as you may damage the device.
1. Connect the charger to the correct outlet.
2. While the charger is connected, the red indicator light is
displayed during charging. If charging does not start,
disconnect the charger, plug it in again, and retry.
Charging the battery fully may take up to 2 hours.
3. When the battery is fully charged, the red indicator light
turns off. Disconnect the charger from the headset and
the wall outlet.
The fully charged battery has power for up to 5 hours of talk-time or up to 150 hours of
standby time. However, the talk and standby times may vary when used with different
mobile phones or other compatible Bluetooth devices, usage settings, usage styles, and
environments.When battery power is low, the headset will remind you by beeps every 20
seconds, and the red indicator light will also flash.
1. For first time use, please charge the headset fully . If you cannot see the indicator
light when charging, please leave the headset charging for a while (Approx 15-35
Minutes), the indicator light will then illuminate.
2. If after a full charge, you cannot turn the headset on, please reconnect the headset
to the charger for a few seconds to activate it.
IMPORTANT NOTICE!
4Charging the battery

5
Battery information
Your device is powered by a chargeable battery. The full performance of a new battery is a
achieved only after two or three complete charge and discharge cycles. The battery can be
charged and discharged hundreds of times, but it will eventually wear out.
Unplug the charger from the electrical plug and the device when not in use. Do not leave a
fully charged battery connected to a charger ,since overcharging may shorten its lifetime .
If left unused, a fully charged battery will lose its charge over time.
If the headset is left unused for a long time ,please turn off and fully charge the headset.
To prevent over-dischage, which will endanger the battery, you are recommended to
charge the headset fully each month.
Never use a charger that is damaged.
Turning headset on /off
Turning on
the headset
Turning off
the headset
Press and hold the Multi-function Button for 2
seconds until you see a blue indicator flashing,
then release it.
6
Press and hold the Multi-function Button for 4
seconds until you see a red indicator flashing,
then release it.
Turn-ON
melody
Turn-Off
melody
The blue indicator will flash
indicating the power is on.
After red indicator flash,
it will be turned off.
How to act Tones Indicators
5
Please note: To conserve power, the headset will automatically turn off if it detects that it
is not connected to a device for more then 10 minutes.

6
7Wearing your headset
The headset isprovided with an ear hook thatyou can use for a betterfit on yourear.
Touse the headsetwithout the ear hook, plug the headset into your ear (1),and pointthe
headset toward yourmouth.
To usethe headset with theear hook, insert theear hook into thespeaker post at theback
of the headset(2). ,slide the earhook over your ear ,
and push or pullthe ear hook toset its length (3).Set the headset sothat it pointstoward
your mouth.
Towear the headset on the right ear
123

7

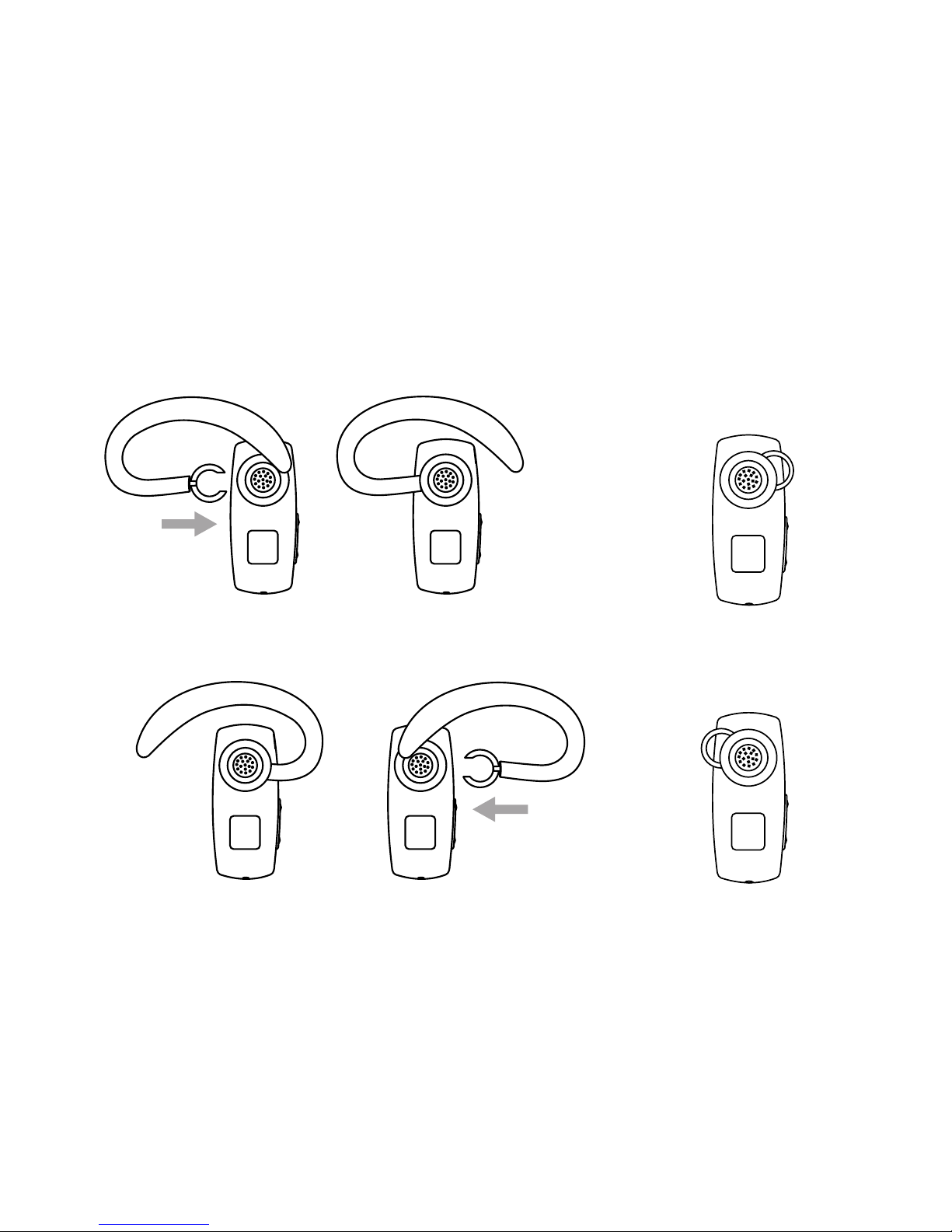

To adjustthe ear hook(eargel) for right-ear use
To adjustthe ear hook for left-ear use(ear gel)

8
8Making a call
Ending a call
Reject an incoming call
,
* Using phone s keypad
(1)Dial number on keypad.
,
(2)Press phone s "send"key.
* Using voice-activated dialing
Please check if your mobile phone supports voice dialing function. If your phone does
support this function, please follow your mobile phone manual instructions for set up.
(1)Press the Multi-function Button briefly, then you can hear a short beep.
(2)Say the name of person you wish to call.
(3)If the voice tags are paired to the related phone number stored in you mobile phone,
the number will be dialed.
* Last number dialing
Please check if your mobile phone supports the redial function.
(1)Press the Volume Down Button for 2 seconds.
(2)You can hear a short beep.
Press the Multi-function Button briefly from the headset while you are on the line. You can
also end call from your mobile.
9
10
When you receive an incoming call, press and hold the Multi-function Button for 2 seconds
and then release.

9
Answering a call
Transferring a call
Volume control & Mute function
Call-waiting (Three-Way Calling)
11
12
13
14
14
When you receive an incoming call, press the Multi-function Button briefly.
(1) Headset to phone: Press Volume Up Button for 2 seconds.
(2) Phone to headset: Press Volume Up Button for 2 seconds.
You can adjust the volume by pressing volume up and volume down button.
Press and hold the Volume Down Button for 2 seconds, you will hear short beeps low to high.
The headset MIC will then be muted and you will hear a remindful melody every 10 seconds.
Deactivate the mute function by pressing the Volume Down Button for 4 seconds, you will
hear short beeps, low to high first, and then hear short beeps, high to low, indicating the mute
function has been cancelled.
Before using 3 way calling with your headset, you must ensure that your phone supports
the Hands-free Profile and that the "call hold and/or multiparty" services are available in
the network.
(1)Press the Multi-function Button briefly to accept or receive waiting(incoming) call and
end active call.
(2)Press the Multi-function Button for 2 seconds to accept waiting(incoming) call and hold
active call.

10
Button ACTION Standby
(No Calls Active) Incoming Call 1 call Active
Volume
Down
Quick Press
HEADSET STATUS
Answer call End call
2 Seconds
Quick Press
Reject call
4 Seconds Turn headset OFF Turn headset OFF Turn headset OFF
Increase volume Increase volume Increase volume
2 Seconds
4 Seconds
Quick Press
2 Seconds
4 Seconds
__
_
__
Decrease volume Decrease volume Decrease volume
__
Microphone mute ON
__
Volume
Up
Multi-
function
Button
Initiate voice dialing
Transfer active call
to/from phone
_
_
Microphone mute OFF
15 Summary of button operation

Button ACTION 1 Call Active,
1 Incoming Call
1 Call Active,
1 Call on Hold
Quick Press
HEADSET STATUS
2 Seconds
Quick Press
4 Seconds Turn headset OFF Turn headset OFF
Increase volume
2 Seconds
4 Seconds
Quick Press
2 Seconds
4 Seconds
_
Decrease volume
_
_
Answer incoming, hold active
__
Answer incoming, end active End active, retrieve held call
Please note: The desired function is initiated only when the button is released. It is
important that the button is held for the correct period of time.
Transfer active Call to/from Phone
__
_
Swap Calls
Add held call to 3-way-calling
Volume
Down
Volume
Up
Multi-
function
Button
Add held call to 3-way-calling
11

1.Please read this guidebook carefully and follow the instructions.
2.To avoid any damage or malfunction of the device do not drop device from
high places.
3.Keep device away form humidity, water and any other liquid. If the device is
exposed to water, moisture and other liquid , do not operate it to avoid any
electrical shock, explosion and damage to the device or yourself.
4.Do not place or keep this device near any heat sources, such as, direct sun light,
radiators, stoves or other apparatus which produce heat. It may cause explosion,
degrade the performance and/or reduce battery life.
5.Do not modify, repair or disassemble device at discretion(Especially battery:
It may cause an explosion). Doing this will avoid the warranty.
6.Do not place the heavy objects on the device.
7.Use only supplied and approved charger.
8.Replacement or service must be done by qualified service center or
manufacturer.
9.Unplug this device when unused for long periods of time or during lightening
storms.
CAUTION: ELECTRIC SHOCK HAZARD
The battery used in this device may present a risk of fire or chemical burn
if mistreated.
!
16 Safety and general information
12

18
17 FCC & IC Statement
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Note: The manufacturer is not responsible for ANY interference, for example RADIO or TV
interference, caused by unauthorized modifications to this equipment.
Such modifications could void the user sauthority to operate the equipment.
EU
Please note that this product uses radio frequency bands not harmonized within EU.
Within the EU this product is intended to be used in Austria, Belgium, Denmark, Finland,
France, Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain,
Sweden, United Kingdom and within EFTA in Iceland, Norway and Switzerland.
This product is CE certified according to the provision of the R&TTE Directive (99/5/EC).
Declares that this product is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Bluetoothis a trademark owned by the BluetoothSIG, Inc.
13

19 Warranty
The condition of this warranty and our responsibilities under this warranty are as follows:
Warranty is non-transferable and is limited to the original purchaser only.
* You must be able to prove the date of original purchase of the unit with a dated receipt.
* The warranty is not applicable if the product has been subject to physical abuse,
improper installation, modification or repair by unauthorized third party.
,
* The responsibility of supplier s products shall be limited to the repair or replacement of
,
the product at it s sole discretion.
* Specifically exempt from any warranty are limited-life consumable components subject
to normal wear and tear such as batteries, decorates and other accessories.
* Supplier will not take any responsibility if the failure of the unit has resulted from
accident, abuse, misuse, or any unauthorized repair, modification or disassemble.
* Modification and repair of the unit should be done by authorized and qualified service
center or returned to the manufacturer
*This warranty gives you specific legal rights, and you may also have other rights which
vary under local laws.
14

MADE IN CHINA
Mizco International inc.
th
140 58 street
Building B, Suite1F
Brooklyn NY, 11220
TollFree: 800.266.4026
