Cengar PL905 User manual

AIR SAWS FOR THE PROFESSIONAL
PL905
operating instructions

CENGAR AIR SAW MODEL PL905
We recommend normal safe working practices should be followed as
per the Health and Safety at Work Act, or the appropriate National
and State Laws. We recommend that eye and ear protection be
worn when using Cengar Saws.
2 3
SPECIFICATIONS
Speed 2000 strokes per minute
Stroke 22mm
Air Compsumption 0.116m3/minute
Air Pressure 5-6 Bar
Weight 2.4Kgs
Length 300mm
Height 135mm
Width 40.6mm
Vibration Level Averaged 1.9m/s2
Sound Pressure Level 68.7db
Sound Power Level 69.8db
Atex Certification II 2G Ex h IIC T2 Gb
20 10 15
Month of construction
Year of constructionIdentier number
Each machine is marked with a serial number, which contains the
year and month of construction, along with an identifier number.
Serial number example:
Professionals in many Industries have relied on Cengar products for reliability,
low maintenance and operator safety for decades. Our Cengar Air Saws are
used Worldwide in many industries, where our quality saws are relied upon
and trusted for their cutting performance. Since 2016 our Pallet Spreader
has become the pallet repairer’s number one choice for helping to repair and
recycle used pallets. We are proud that we can help sustainability and the
environment. More recently Cengar has added impact sockets to its portfolio,
we are able to manufacture high-quality impact sockets for use on pneumatic,
hydraulic, petrol and battery Impact Wrenches.
WHO WE ARE

54
We the undersigned, declare under our sole responsibility that the following apparatus:
Machine Description Cengar Air Saw
Machine Type PL905
Is in conformity with the following relevant UK legislation:
Supply of Machinery (Safety) Regulations 2008 (as amended)
UKEX Regulations SI 2016:1107
Based on the following Harmonised Standards:
EN ISO 4414:2010 EN ISO 80079-36:2016
EN ISO 80079-37:2016 EN 60079-0:2018
ADDITIONAL INFORMATION
UKEX coding II 2G Ex h IIC T2 Gb
Approved Body
(UKEX holding technical file)
Element Materials Technology Warwick Ltd
Unit 1, Pendle Place, Skelmersdale, West Lancashire
WN8 9PN, United Kingdom.
Identification Number 0891
Certificate No. EMA21UKEX0011X
Authorised Signature
Date 10/05/2021
Title of Signatory Commercial Manager - Cengar Ltd.
Springfield Works, Saddleworth Road, Greetland, Halifax HX4 8LZ
Special Conditions
of Safe Use
(on the certificate)
1. Suitably approved static dissipating or conductive air hose only to be attached to the
equipment and terminated to the air supply.
2. Operator to ensure that there is less than 1 Ohm resistance between the
ground at the air source and any metallic object to be cut with the equipment.
3. The equipment shall be supplied from a clean air source in an area known to not contain a
potentially explosive atmosphere.
4. A lter must be tted to the supply compressor inlet to prevent dust airow
within the equipment.
5. To comply with UKEX certication regulations it is necessary to use Cengar
branded Blades with Cengar Saws.
1. Under normal working conditions can be used in a Zone 1 environment.
2. Classification based on tests cutting a selection of steels & composite materials (MB, MC, Yellow, JSZ ) Blades.
And therefore complies with the essential requirements of those directives.
The following ignition hazards have been identified when the equipment is in use, hot surfaces, mechanical sparks,
electrostatic charging. These are mitigated as the equipment was designed to meet the requirements of protection
concept constructional safety “c”.
UK DECLARATION OF CONFORMITY EU DECLARATION OF CONFORMITY
We the undersigned, declare under our sole responsibility that the following apparatus:
Machine Description Cengar Air Saw
Machine Type PL905
Is in conformity with the following relevant EC legislation:
Machinery Directive 2006/42/EC
Atex Directive 2014/34/EU
Based on the following Harmonised Standards:
EN ISO 4414:2010 EN ISO 80079-36:2016
EN ISO 80079-37:2016 EN 60079-0:2018
ADDITIONAL INFORMATION
ATEX Coding II 2G Ex h IIC T2 Gb
Notified Body
(Atex holding technical file)
Element Materials Technology Rotterdam B.V.
Voorerf 18, 4824 GN Breda, Netherlands
Identification Number 2812
Certificate No. EMT18ATEX 0032X
Authorised Signature
Date 06/02/2020
Title of Signatory Commercial Manager - Cengar Ltd.
Springfield Works, Saddleworth Road, Greetland, Halifax HX4 8LZ
Special Conditions
of Safe Use
(on the certificate)
1. Suitably approved static dissipating or conductive air hose only to be attached to the
equipment and terminated to the air supply.
2. Operator to ensure that there is less than 1 Ohm resistance between the
ground at the air source and any metallic object to be cut with the equipment.
3. The equipment shall be supplied from a clean air source in an area known to not contain a
potentially explosive atmosphere.
4. A lter must be tted to the supply compressor inlet to prevent dust airow
within the equipment.
5. To comply with ATEX certication regulations it is necessary to use Cengar
branded Blades with Cengar Saws.
1. Under normal working conditions can be used in a Zone 1 environment.
2. Classification based on tests cutting a selection of steels & composite materials (MB, MC, Yellow, JSZ ) Blades
And therefore complies with the essential requirements of those directives.
The following ignition hazards have been identified when the equipment is in use, hot surfaces, mechanical sparks,
electrostatic charging. These are mitigated as the equipment was designed to meet the requirements of protection
concept constructional safety “c”.

6 7
1. ALWAYS use Cengar green oil for best results. Keeping the saw clean and
well oiled will give excellent reliability, and a long life.
2. ALWAYS use Cengar Bi-Metal Shatterproof blades, for safety,
and best cutting performance.
3. ALWAYS isolate the air supply when changing blades.
4. ALWAYS wear eye protection when using saws.
5. ALWAYS keep the nosepiece hard against the work piece to
prevent excessive vibration.
6. ALWAYS isolate the machine when not in use.
7. ALWAYS keep others away from the saw blade to prevent injury or trapping.
8. ALWAYS have machines vibration tested annually to ensure exposure is
kept to the minimum.
1. NEVER t breakable “All-Hard” blades in Cengar saws, these can shatter causing
injury to the operator and others.
2. NEVER operate saw without wearing safety glasses.
3. NEVER operate saw whilst you, or others are near the saw blade,
which can cause serious injury or trapping.
4. NEVER use excessive force because this may increase vibration above safe levels.
5. NEVER hold the Cengar saw in a vice by the body. This will distort the bores,
rendering the tool inoperative.
6. NEVER screw nameplates to the body, as the screws may
penetrate an airway or bore.
7. NEVER operate the Cengar saw without lubrication.
8. NEVER be tempted to clean internal parts with anything other than a clean
lint free cloth or Cengar Green oil.
9. NEVER modify Cengar saws or use non Cengar parts. This will invalidate
ATEX approval and warranty.
1. Always read the instructions.
2. Always wear safety glasses.
3. Unscrew oil cap and ll with Cengar Green Oil.
Replace cap.
4. Isolate air supply before tting blade by pushing
stop button in.
5. Fit the blade with the teeth facing the machine.
Avoid handling the blade teeth.
6. Secure blade by tightening both grip screws
with supplied T key.
7. Connect to 5-6 bar air supply and pull out
stop button.
8. Ensure nosepiece is pressed against work
piece to be cut.
9. Press trigger and apply light downward pressure.
AIR SAWS FOR THE PROFESSIONAL
PL905
operating instructions
availablein other languages on-line
INSTRUCTIONS DO’S & DON’TS
Please refer to page 10 for the correct blade selection.

PL905 EXPLODED VIEW PL905FT EXPLODED VIEW
ITEM PART NO. DESCRIPTION NUMBER
PER TOOL ITEM PART
NO. DESCRIPTION NUMBER
PER TOOL
19550 Handle 119 9509 Piston with Blade Grip 2
29554 Isolator Body 120 1150 Link 1
39553 Oil Cap & Retainer 121 9512 Blade Grip 2
49555 Isolator Nozzle 1 22 5068 Blade Screw 2
59559 Oil Control Ball 123 9513 Pin-Blade Grip 2
69334A Spring 124 9519 Pin-Link 2
79561 ‘O’ Ring Large 225 9514 Locking Pin 2
89560 ‘O’ Ring Small 226 5056 Retaining Screw 2
99557 Détente Spring 127 9515 Connecting Ring 2
10 9556A Lock Screw 1 28 9516 Front End 1
2 to 10 9552 Isolator Assembly 29 5045 Nose Piece ½” 1
11 51834 Roll Pin-Trigger 230 5520 Screw 2
12 50034 Valve in Handle 131 54160 Screw 3
13 9502 Trigger 132 9517 Guide Bush 1
14 9506 Filter/Gauze 1 33 5540 Screw-Handle 6
15 9538 Gasket 2 34 9511 Pivot Pin 1
16 9507 Valve Unit 1 35 9564 ‘O’ Ring 1
17 9510 Piston Ring 2 36 W55 Serrated Washer 8
18 9508 Body 137 -Serial Number -
ITEM PART NO. DESCRIPTION NUMBER
PER TOOL ITEM PART
NO. DESCRIPTION NUMBER
PER TOOL
19550FT Handle 119 9509 Piston with Blade Grip 2
29554 Isolator Body 120 1150 Link 1
39553 Oil Cap & Retainer 121 9512 Blade Grip 2
49555 Isolator Nozzle 1 22 5068 Blade Screw 2
59559 Oil Control Ball 123 9513 Pin-Blade Grip 2
69334A Spring 124 9519 Pin-Link 2
79561 ‘O’ Ring Large 225 9514 Locking Pin 2
89560 ‘O’ Ring Small 226 5056 Retaining Screw 2
99557 Détente Spring 127 9515 Connecting Ring 2
10 9556A Lock Screw 1 28 9516 Front End 1
2 to 10 9552 Isolator Assembly 29 5045 Nose Piece ½” 1
11 51834 Roll Pin-Trigger 230 5520 Screw 2
12 50034 Valve in Handle 131 54160 Screw 3
13 9502FT Trigger 132 9517 Guide Bush 1
14 9506 Filter/Gauze 1 33 5540 Screw-Handle 6
15 9538 Gasket 2 34 9511 Pivot Pin 1
16 9507 Valve Unit 1 35 9564 ‘O’ Ring 1
17 9510 Piston Ring 2 36 W55 Serrated Washer 8
18 9508 Body 137 -Serial Number -
(LUB01)
14
14
(LUB01)
(9507CFA) (9507CFA)
8 9

10 11
CENGAR BLADE SELECTION FOR
CUTTING SOLID MATERIAL ADDITIONAL CENGAR SAWS AVAILABLEADDITIONAL CENGAR SAWS AVAILABLE
JP901
Thin metal up to 3mm and
GRP to 6mm thick.

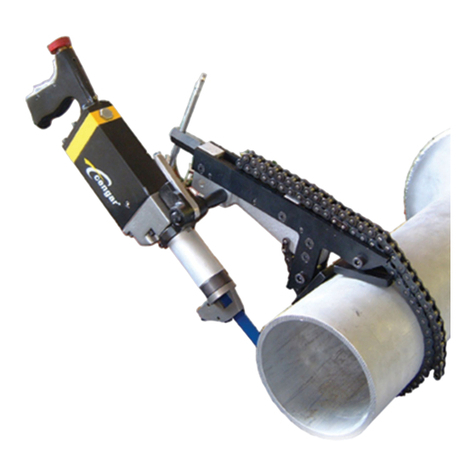

CS75 JSZ
High Quality Steel Pipe up to 150mm
dia and similar size sections.
Steel Pipe up to 300mm dia
and similar size sections.
AVAILABLE BLADE PITCHES
Thickness
(mm) 32 TPI 24 TPI 18 TPI 14 TPI 10 TPI
232111
565432
10 13 9 7 6 4
15 19 14 11 8 6
20 25 19 14 11 8
25 31 24 18 14 10
30 38 28 21 17 12
35 44 33 25 19 14
40 50 38 28 22 16
45 57 43 32 25 18
50 63 47 35 28 20
The numbers in the coloured boxes indicates the actual number of teeth which will be in contact with the work
GENERAL RULE:
No less that 3 teeth in contact
Ideally between 6 & 12
teeth in contact
No more than 24 teeth in contact
Visit our website www.cengar.com to view our range of blades, clamps and accessories.
PL905 GENERAL PURPOSE CUTTING USING 12MM (1/2”)
WIDE CENGAR SHATTERPROOF BLADE
Type Length mm TPI
Hand 300 14, 18, 24, 32
MC 220 10, 14, 18, 24
BLADE SELECTION
Pipe Diameter (mm) PL905
50 200mm blade
100 250mm blade
150 300mm blade
CL75
Steel Pipe up to 150mm dia
and similar size sections.

SERVICE
We offer a full factory repair
and refurbishment service for
Cengar Saws, normally within
5 working days. Quotations at
no charge can be given before
work is carried out.
DISTRIBUTOR
ADDRESS
Cengar Ltd.
Springfield Works,
Saddleworth Road,
Greetland, Halifax,
England HX4 8LZ
Tel: [phone]
Fax: [phone]
[e-mail]
www.cengar.com
Original Instructions Document No. MAN905ENG/01 Issue 13 (AUG 21)
