Central Machinery 93019 Installation manual

TRANSMISSION FLUID OIL
EXCHANGER
93019
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2008 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork contained
herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may
differ slightly from the product described herein. Tools required for assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
SET UP AND OPERATING INSTRUCTIONS

Page 2
SKU 93019 For technical questions, please call 1-800-444-3353
Specifications
Functions
Remove, clean and replace transmission fluid (ATF) from most types and
models of automatic transmissions, torque converters, and transmission
cooling systems.
Working Air Pressure 70 to 90 PSI
Air Inlet 1/4” male quick coupler fitting
Oil Inlet and Return Hoses 3 - (2x) 8’4” (L) x ½” (dia.) (1-red, 1-black)(1x) 8’4” (L) x ½” (dia.) (red);
All with male and female quick couplers, 300 PSI (max.) rated
Pressure Regulator Manual control dial, locking, 1-1/2 x 1-1/2 inches
Pressure Gauges Both 2-3/4” (dia.); 0~140 PSI, 20 PSI increments;
0~10 Bar, in 1 and 1/10 Bar increments
Save This Manual
You will need the manual for the safety warnings and precautions, assembly instructions,
operating and maintenance procedures, parts list and diagram. Keep your invoice with this
manual. Write the invoice number on the inside of the front cover. Keep the manual and
invoice in a safe and dry place for future reference.
Safety Warnings and Precautions
WARNING: When using tool, basic safety precautions should always be followed to
reduce the risk of personal injury and damage to equipment.
Read all instructions before using this tool!
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power tools in damp or wet
locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically
powered tools in the presence of flammable gases or liquids.
3. Keep children away. Children must never be allowed in the work area. Do not let
them handle machines, tools, or extension cords.
4. Store idle equipment. When not in use, tools must be stored in a dry location to
inhibit rust. Always lock up tools and keep out of reach of children.
5. Use the right tool for the job. Do not attempt to force a small tool or attachment to
do the work of a larger industrial tool. There are certain applications for which this
tool was designed. It will do the job better and more safely at the rate for which it was
intended. Do not modify this tool and do not use this tool for a purpose for which it
was not intended.
6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in
moving parts. Protective, electrically nonconductive clothes and nonskid footwear are
recommended when working. Wear restrictive hair covering to contain long hair.
REV 12/05

Page 3
SKU 93019 For technical questions, please call 1-800-444-3353
7. Use eye and ear protection. Always wear ANSI approved impact safety goggles.
Wear an ANSI approved dust mask or respirator when working around chemical dusts
and mists.
8. Do not overreach. Keep proper footing and balance at all times. Do not reach over or
across running machines.
9. Maintain tools with care. Inspect tool cords and hoses periodically and, if damaged,
have them replaced, or repaired by an authorized technician. The handles must be
kept clean, dry, and free from oil and grease at all times.
10. Remove adjusting keys and wrenches. Check that keys and adjusting wrenches
are removed from the tool or machine work surface before operating.
11. Avoid unintentional starting. Be sure the air pressure is in the Off position when not
in use and before making hose connections.
12. Stay alert. Watch what you are doing, use common sense. Do not operate any tool
when you are tired.
13. Check for damaged parts. Before using any tool, any part that appears damaged
should be carefully checked to determine that it will operate properly and perform its
intended function. Check for alignment and binding of moving parts; any broken parts
or mounting fixtures; and any other condition that may affect proper operation. Any
part that is damaged should be properly repaired or replaced by a qualified technician.
Do not use the tool if any control or switch does operate properly.
14. Replacement parts and accessories. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty. Only use accessories
intended for use with this tool. Approved accessories are available from Harbor Freight
Tools.
15. Do not operate tool if under the influence of alcohol or drugs. Read warning
labels if taking prescription medicine to determine if your judgment or reflexes are
impaired while taking drugs. If there is any doubt, do not operate the tool.
16. Maintenance. For your safety, service and maintenance should be performed
regularly by a qualified technician.
Note: Performance of this tool may vary depending on variations in air pressure and compres-
sor capability.

Page 4
SKU 93019 For technical questions, please call 1-800-444-3353
Unpacking
When unpacking, check to make sure the following parts are included. If any parts are miss-
ing or broken, please call Harbor Freight Tools at the number on the cover of this manual as
soon as possible.
Assorted Fittings,
Adapters, and Hoses
in kit
3 - Connection Hoses
Spare Oil Filter
Fluid Exchanger System
Product Specific Safety Precautions
Warning:This equipment is designed to be operated by qualified and trained personnel.
It should only be operated after reading and understanding the safety warnings and
operating procedures in this instruction manual.
1. Wear ANSI approved splash resistant safety goggles during use and maintenance.
Always protect your skin and eyes from contact with oil and solvents.
2. Do not smoke near this unit. Keep a type ABC fire extinguisher nearby in case of fire.
3. Use in a well ventilated area.
4. When leaks are found in the equipment or hoses, immediately turn the air pressure off
and repair the leaks. Keep an empty plastic bucket nearby in case of leaks.
5. Immediately clean up any fluid spills or leaks.
6. Do not exceed the recommended operating air pressure.This could damage equipment
or create a hazardous situation. See Specifications on page 2.
7. When cleaning, only use cleaning compounds made for use with transmissions.
8. Empty all new and used fluid from the system, disconnect the air supply, and ensure
that the system is not pressurized before changing the fluid filter or performing any other
maintenance or repair procedures to the Transmission Oil Exchanger.
Warning:The warnings, cautions, and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be under-
stood by the operator that common sense and caution are factors which cannot be built
into this product, but must be supplied by the operator.
REV 08/05; 01/07

Page 5
SKU 93019 For technical questions, please call 1-800-444-3353
Controls and Indicators
Air Input
New Oil Input
Hose Connector
Pressure Adapter
Quick Connector
Return Adapter
Quick Connector
Filling - Recycle
Reverse Control
Air Pressure
Regulator Control
Fuel Pressure -
Recycle Control
Oil Pressure
Gauge
Air Pressure
Gauge
Oil Fill Cap
Used Oil
View Flow
New Oil
View Flow
Used Oil Tank New Oil Tank
Fill Gauge Fill Gauge
As the tanks are filled, the fluids can be viewed
through the tank and measured.

Page 6
SKU 93019 For technical questions, please call 1-800-444-3353
Operation
Warning: The vehicle engine must never be started in a closed garage, or any
other sealed structure. Carbon monoxide is produced during operation and is deadly
in a closed environment. Early signs of carbon monoxide poisoning resemble the
flu, with headaches, dizziness, or nausea. If you have any of these signs get fresh air
immediately.
Preparation
1. Place vehicle on a hoist or on secure vehicle stands in a well ventilated area.
2. Set vehicle emergency brake and turn engine off.

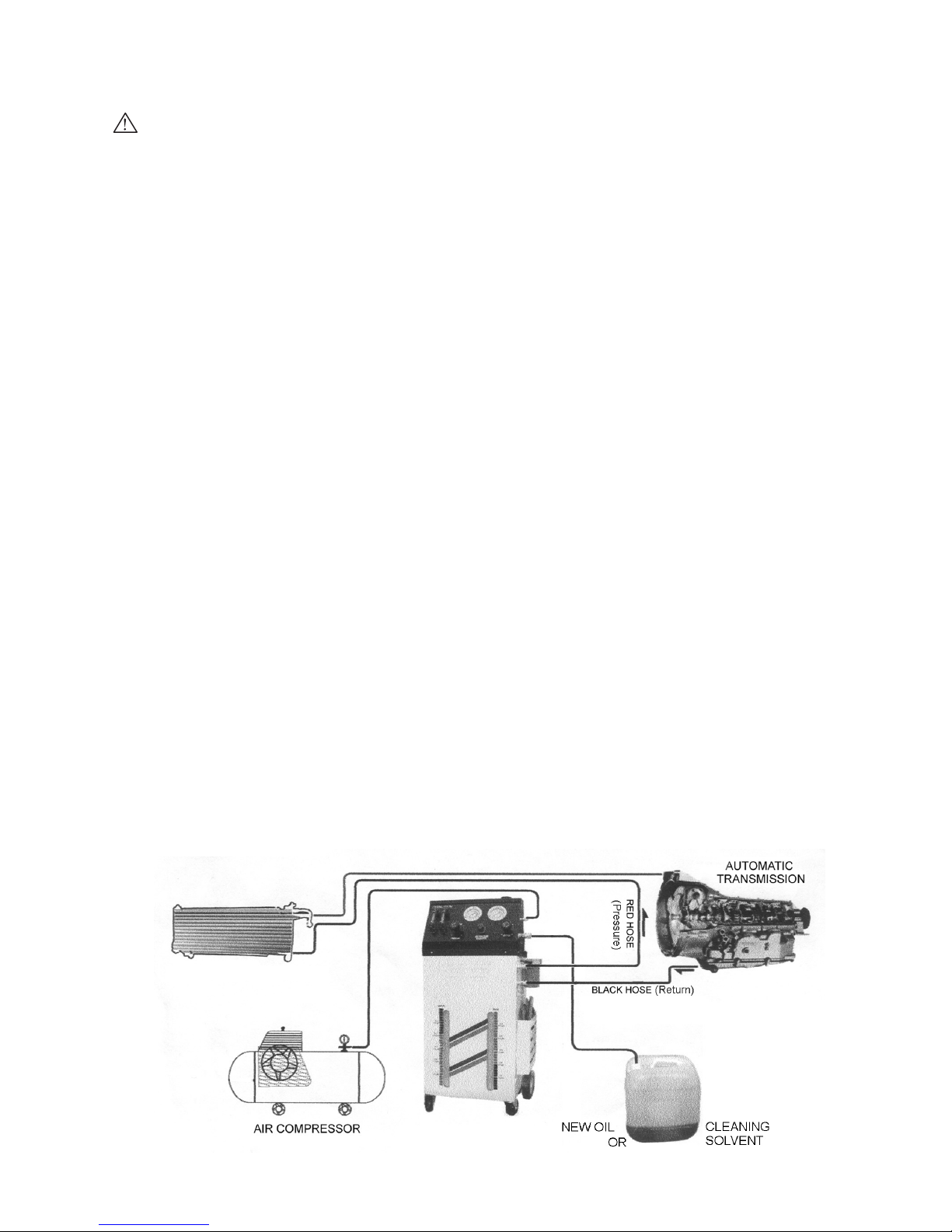

3. Locate the hose connection points on the transmission and its radiator.
See illustration below. Refer to the vehicle manufacturer’s maintenance manual and
adhere to all safety warnings and instructions in this manual.
4. Place the Transmission Oil Exchanger (TOE) unit to one side of the vehicle. Lock the
Locking Swivel Casters (30).
5. Turn on the air compressor (not supplied) and place its hose next to the TOE.
6. Have new transmission fluid or cleaning solvent ready for use near the TOE.
Filling Cleaning Fluids
1. Disconnect the transmission return line from under the transmission and from the
automatic transmission cooler.
2. Connect the TOE Black Hose (return line) to the oil outlet connector under the
transmission. (Supplied Adapters or Fittings may be required.) Connect the other end
of the Black Hose to the TOE Return Adapter Quick Connector. See illustration below.
3. Connect the Red Hose (pressure line) from the TOE Pressure Adapter Quick
Connector to the oil inlet connector on the transmission radiator.
4. Using one of the Adapter Kit clear hoses or the second Red Hose, connect it to the
TOE New Oil Input Hose Connector. Insert the other end into the solvent container
(to the bottom). Refer to the vehicle manufacturer’s maintenance manual for approved
cleaning solvents.
5. Turn the (left) Fuel Pressure Recycle Control knob to the Pressure position.
Automatic
Transmission cooler
REV 12/05

Page 7
SKU 93019 For technical questions, please call 1-800-444-3353
6. Turn the (right) Filling-Recycle Reverse Control knob to the Filling position.
7. Connect the air compressor line hose to the Air Input Quick Connector on the TOE.
8. While viewing the TOE Air Pressure Gauge, pull up on the TOE Air Pressure
Regulator Control knob and adjust the air pressure to between 40 and 90 PSI. (Check
the required pressure in the vehicle manufacturer’s maintenance manual.) The
cleaning solvent in now injected into the transmission.
9. Turn the (left) Fuel Pressure Recycle Control knob to the Recycle position.
10. Turn the (right) Filling-Recycle Reverse Control knob to the Recycle position.
11. Start the engine to begin the cleaning process. This should take five minutes. During
this process, view the fluid flow through the View Flow tubes.
12. Turn the engine off after five minutes.
13. Remove the air compressor line.
14. Begin the steps for the Oil Exchange Cycle (below).
Oil Exchange Cycle
1. Leave the Black Hose (return) and the Red Hose (pressure) connected as described
in the previous steps, but disconnect the hose to the TOE New Oil Input Hose
Connector.
2. Review the vehicle manufacturer’s maintenance manual for the correct type and
amount of transmission fluid oil.
3. Remove the Oil Fill Cap on the top of the TOE and pour in the correct amount of new
transmission fluid oil. View the amount of fluid filling the TOE New Oil Tank Gauge.
4. Turn the (left) Fuel Pressure Recycle Control knob to the Pressure position.
5. Turn the (right) Filling-Recycle Reverse Control knob to the Recycle position.
6. Connect the air compressor line hose to the Air Input Quick Connector on the TOE.
7. While viewing the TOE Air Pressure Gauge, pull up on the TOE Air Pressure
Regulator Control knob and adjust the air pressure to between 40 and 90 PSI. The
Automatic
Transmission cooler
REV 12/05

Page 8
SKU 93019 For technical questions, please call 1-800-444-3353
air pressure will force the new oil into the transmission, and the old oil will be forced
into the TOE Used Oil Tank. (During this process, view the new and used oil flow. They
should flow at equal rates. Adjust the air pressure, if necessary, to accommodate this.)
8. Start the engine and view the oil flow through the TOE New and Used Oil View Flow
tubes. When the color of the oil is the same in both tubes, the process is complete.
During the oil transfer process, with your foot securely holding down the brake, switch
gears in sequential order, starting with first gear. Keep in each gear for 10 seconds.
9. Turn the engine off and remove air line from the TOE.
10. Reconnect the vehicle oil output (return) line from the transmission to the input of
the automatic transmission cooler. Securely tighten clamps. Make certain that the
transmission is properly filled and not overfilled before using the vehicle.
Emptying Old Oil
1. Using an Adapter Hose from the kit, connect one end to the TOE New Oil Input Hose
Quick Connector, and the other end to the TOE Return Adapter Quick Connector. See
illustration below.
2. Connect a Black Hose to the TOE Pressure Adapter Quick Connector. Place the other
end of the Black Hose in an appropriate disposal tank of adequate size.
3. Turn the Fuel Pressure-Recycle Control knob to the Pressure position.
4. Turn the Filling-Recycle Reverse Control knob to the Filling position.
5. Connect the air compressor line hose to the Air Input Quick Connector on the TOE.
6. While viewing the TOE Air Pressure Gauge, pull up on the TOE Air Pressure
Regulator Control knob and adjust the air pressure to between 40 and 90 PSI. View
the used oil movement from the Used Oil View Flow tube.
7. When all the used oil is removed from the TOE Used Oil Tank, remove the air line from
the TOE. Remove the other hoses as well.
8. Dispose of used oil and solvents in a proper manner as dictated by local
environmental codes.
REV 12/05

Page 9
SKU 93019 For technical questions, please call 1-800-444-3353
Maintenance
1. Drain all hoses that were used in an appropriate oil disposal tank.
2. When finished using the TOE, coil the Red and Black Hoses and place in the TOE
side holder. Place the Adapter Fittings and Hoses back in their case. Store the case in
the top-back of the TOE.
3. Before each TOE use, discharge any water accumulation from the air compressor
tank. A water filter on the air compressor is recommended.
4. When oil flow through the TOE becomes very slow, even with higher air pressure,
replace the TOE oil filter.
REV 11/05; 12/05; REV 04/06
Troubleshooting
1. The air hose is connected to the TOE but it does not operate.
Verify that the air compressor is turned on and running.
Check the air pressure regulator at the air compressor, it should be 90 PSI.
2. The hoses are connected but no oil flow is viewed from the View Flow tubes, even
with higher air pressure.
Verify the correct settings of the Fuel Pressure-Recycle Control knob and the Filling-
Recycle Reverse Control knob.
3. The hoses are connected but no oil flow is viewed from the View Flow tubes, even
with higher air pressure, and the engine running.
Check to see if the direction of the oil inlet and oil return hoses are reversed.

Page 10
SKU 93019 For technical questions, please call 1-800-444-3353
Part Description Qty Part Description Qty
1 Oil Fill Cap 118A Three-way Ball Valve (Cu) 2
2 O Seal 119A Knob Connector 2
3 Gauge, Oil Pressure, 16 kgs 120A Knob 2
4 Gauge, Pump Pressure, 16 kgs 121 Pressure Regulator 1
5 Guage Stand 222 Three-way Connector, PD8-02 1
6 Connector, Quick, PCF10-02 323 Connector, PL10-02 2
7 Connector, PCF8-02 124 Filter Cover 1
25 Filter 2
8 Elbow Connector, PL12-02 426 Silencer 1
9 1/4” Elbow Connector (Cu) 227 Complete Set of Pump 1
10 PU Hose, Ø 12 228 Main Body 1
11 3-way Connector, PD10-02 4 29 Wheels 2
12 Air Inlet Connector, 1/4” Male 1 30 Casters with brake 2
13 1/4” Mail Quick Couplet, SM20 3 31 Screws, M8 16
14 1/4” Connector, PC8-02 1 32
1/4” Female Quick Couple,
SF20 3
15 1/4” Connector, PC10-02 5 33 1/4” Male Quick Connector,
PM20 3
16 Connector, PL8-02 2 34
Complete oil delivery hose w/
connectors
2 red, 1 back (not shown)
3
17A Connector, PL10-04 6 35 Tool Box 1
Transmission Oil Exchanger Parts List
NOTE: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
REV 08f

Page 11
SKU 93019 For technical questions, please call 1-800-444-3353
Transmission Oil Exchanger Assembly Diagram
REV 11/05; 12/05; REV 04/06; 08f
35
34

Page 12
SKU 93019 For technical questions, please call 1-800-444-3353
Adapter and Fitting Kit Parts List

Page 13
SKU 93019 For technical questions, please call 1-800-444-3353
Hose Connection Diagram
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANU-
FACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF
ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS
TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF
THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN
BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE BUYER.THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF
HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Page 14
SKU 93019 For technical questions, please call 1-800-444-3353
LIMITED 1 YEAR / 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality
and durability standards, and warrants to the original purchaser that for a period of one year
from date of purchase that the tank is free of defects in materials and workmanship (90 days
if used by a professional contractor or if used as rental equipment). Harbor Freight Tools also
warrants to the original purchaser, for a period of ninety days from date of purchase, that all
other parts and components of the product are free from defects in materials and workmanship.
This warranty does not apply to damage due directly or indirectly to misuse, abuse, negligence
or accidents, repairs or alterations outside our facilities, normal wear and tear, or to lack of
maintenance. We shall in no event be liable for death, injuries to persons or property, or for
incidental, contingent, special or consequential damages arising from the use of our product.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY
IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WAR-
RANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the complaint
must accompany the merchandise. If our inspection verifies the defect, we will either repair or
replace the product at our election or we may elect to refund the purchase price if we cannot
readily and quickly provide you with a replacement. We will return repaired products at our
expense, but if we determine there is no defect, or that the defect resulted from causes not
within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which
vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
REV 08F
