Central Pneumatic 92097 User manual

Mini Air Compressor
®
92097
®
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at: http://www.harborfreight.com
Copyright©2004 by Harbor FreightTools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor FreightTools.
For technical questions, please call 1-800-444-3353.

SKU 92097 Page 2
PRODUCT SPECIFICATIONS
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures, parts list and as-
sembly diagram. Keep your invoice with this manual. Write the invoice number
on the inside of the front cover. Keep this manual and invoice in a safe and dry
place for future reference.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas
invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control. Protect others in the work area from
debris such as chips and sparks. Provide barriers or shields as needed.
:noitcurtsnoC ,pmuPmunimulAtsaC .daeHdna,rednilyCelgniS :tnemeriuqeRrewoP CAstlov021/511 spmA90.1zH06/05
:rewoProtomcirtceleph8/1:yticapaCtuptuo.xamisp75
:rotalugeRlanretnI tuostucdnaisp53tastratS isp75ta :etaRwolFeerF etunimrepL42 mfc58.0
:epyTrosserpmoCegatselgniS,sselliO:deepSrotoMdeepseerfmpr0071
:epyTesoHgnol"71enahteruyloPdelioC:epyTrotcennoC tsacipt72"8/1 dedaerhtmunimula
:snoisnemiDH"4/3-7xW"6xL"2/1-8:thgieWteN.sbl00.8

SKU 92097 Page 3
ELECTRICAL SAFETY
4. Grounded tools must be plugged into an outlet properly installed and
grounded in accordance with all codes and ordinances. Never remove the
grounding prong or modify the plug in any way. Do not use any adapter
plugs. Check with a qualified electrician if you are in doubt as to whether
the outlet is properly grounded. If the tool should electrically malfunction or
break down, grounding provides a low resistance path to carry electricity away
from the user.
5. Double insulated tools are equipped with a polarized plug (one blade is
wider than the other). This plug will fit in a polarized outlet only one way. If
the plug does not fit fully in the outlet, reverse the plug. If it still does not
fit, contact a qualified electrician to install a polarized outlet. Do not
change the plug in any way. Double insulation eliminates the need for the
three wire grounded power cord and grounded power supply system.
6. Avoid body contact with grounded surfaces such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if your
body is grounded.
7. Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
8. Do not abuse the Power Cord. Never use the Power Cord to carry the tool
or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,
sharp edges, or moving parts. Replace damaged Power Cords immedi-
ately. Damaged Power Cords increase the risk of electric shock.
9. When operating a power tool outside, use an outdoor extension cord
marked “W-A” or “W”. These extension cords are rated for outdoor use, and
reduce the risk of electric shock.
PERSONAL SAFETY
10. Stay alert. Watch what you are doing, and use common sense when oper-
ating a power tool. Do not use a power tool while tired or under the influ-
ence of drugs, alcohol, or medication. A moment of inattention while operat-
ing power tools may result in serious personal injury.
11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts.

SKU 92097 Page 4
12. Avoid accidental starting. Be sure the Power Switch is off before plugging
in. Carrying power tools with your finger on the Power Switch, or plugging in
power tools with the Power Switch on, invites accidents.
13. Remove adjusting keys or wrenches before turning the power tool on. A
wrench or a key that is left attached to a rotating part of the power tool may result
in personal injury.
14. Do not overreach. Keep proper footing and balance at all times. Proper
footing and balance enables better control of the power tool in unexpected
situations.
TOOL USE AND CARE
15. Use clamps (not included) or other practical ways to secure and support
the workpiece to a stable platform. Holding the work by hand or against your
body is unstable and may lead to loss of control.
16. Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
17. Do not use the power tool if the Power Switch does not turn it on or off.
Any tool that cannot be controlled with the Power Switch is dangerous and must
be replaced.
18. Disconnect the Power Cord Plug from the power source before making any
adjustments, changing accessories, or storing the tool. Such preventive
safety measures reduce the risk of starting the tool accidentally.
19. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
20. Maintain tools with care. Keep tools maintained and clean. Properly
maintained tools with a sharp cutting edge are less likely to bind and are easier
to control. Do not use a damaged tool. Tag damaged tools “Do not use” until
repaired.
21. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the tool’s operation. If damaged, have
the tool serviced before using. Many accidents are caused by poorly main-
tained tools.

SKU 92097 Page 5
22. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous
when used on another tool. SERVICE
23. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of injury.
24. When servicing a tool, use only identical replacement parts. Follow
instructions in the “Inspection, Maintenance, And Cleaning” section of this
manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of electric shock or injury.
SPECIFIC SAFETY RULES
1. Maintain labels and nameplates on the Air Compressor. These carry impor-
tant information. If unreadable or missing, contact Harbor Freight Tools for a
replacement.
2. Always wear safety impact eye goggles and heavy work gloves when using
the Air Compressor. Using personal safety devices reduce the risk for injury.
Safety impact eye goggles and heavy work gloves are available from Harbor
Freight Tools.
3. Maintain a safe working environment. Keep the work area well lit. Make sure
there is adequate surrounding work space. Always keep the work area free of
obstructions, grease, oil, trash, and other debris. Do not use a power tool in
areas near flammable chemicals, dusts, and vapors. Do not use this product in a
damp or wet location.
4. Make sure to read and understand all instructions and safety precautions
as outlined in the manufacturer’s manual of any inflatible being pumped up
by this Mini Air Compressor.
5. When using a hand-held power tool, always maintain a firm grip on the tool
with both hands to resist starting torque.
6. Always keep an extension cord away from moving parts on a tool.
7. Avoid unintentional starting. Make sure you are prepared to begin work
before turning on the Air Compressor.
8. Do not force the Air Compressor. This tool will do the work better and safer at
the speed and capacity for which it was designed.

SKU 92097 Page 6
9. Never leave the Air Compressor unattended when it is plugged into an
electrical outlet. Turn off the tool, and unplug it from its electrical outlet before
leaving.
10. Always unplug the Air Compressor from its electrical outlet before perform-
ing and inspection, maintenance, or cleaning procedures.
11. People with pacemakers should consult their physician(s) before
using this product. Operation of electrical equipment in close proximity to a heart
pacemaker could cause interference or failure of the pacemaker.
12. Do not over-inflate any item with this compressor.
Over-inflation creates a risk of explosion potentially causing severe personal
injury and/or property damage.
13. Before using this compressor to inflate any item, carefully read the manufacturer’s
information on inflating that item.For your safety, follow the recommended proce-
dures and do not overinflate the item.
14. The brass components of this product contain lead,a
chemical known to the State of California to cause birth defects (or other
reproductive harm). (California Health & Safety code 25249.5, et seq. )

SKU 92097 Page 7

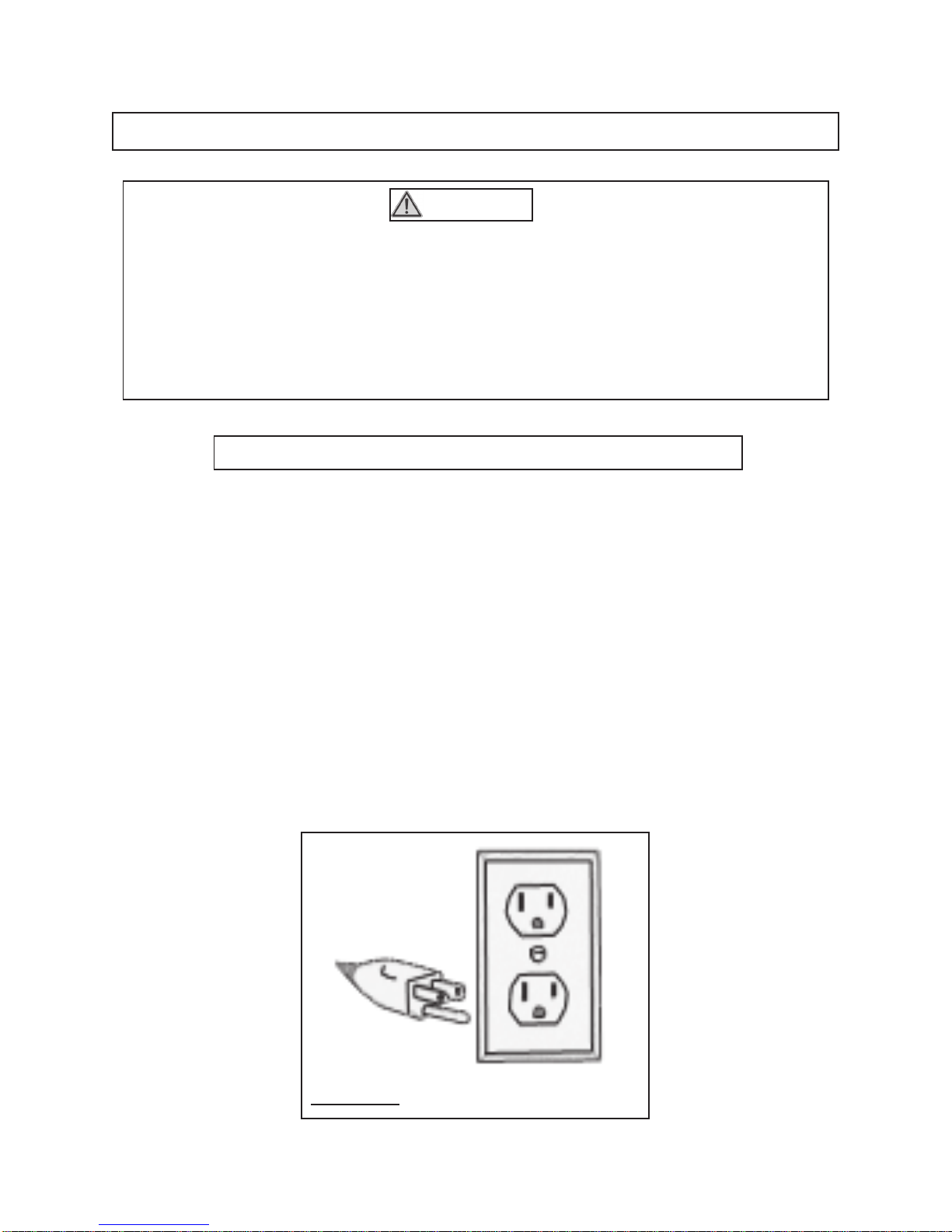

GROUNDING
WARNING!
Improperly connecting the grounding wire can result in the risk of electric
shock. Check with a qualified electrician if you are in doubt as to whether the
outlet is properly grounded. Do not modify the power cord plug provided with
the tool. Never remove the grounding prong from the plug. Do not use the
tool if the power cord or plug is damaged. If damaged, have it repaired by
a service facility before use. If the plug will not fit the outlet, have a proper
outlet installed by a qualified electrician.
GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS
1. Tools marked with “Grounding Required” have a three wire cord and three prong
grounding plug. The plug must be connected to a properly grounded outlet. If
the tool should electrically malfunction or break down, grounding provides a low
resistance path to carry electricity away from the user, reducing the risk of elec-
tric shock. (See Figure A.)
2. The grounding prong in the plug is connected through the green wire inside the
cord to the grounding system in the tool. The green wire in the cord must be the
only wire connected to the tool’s grounding system and must never be attached
to an electrically “live” terminal. (See Figure A.)
3. Your tool must be plugged into an appropriate outlet, properly installed and
grounded in accordance with all codes and ordinances. The plug and outlet
should look like those in the following illustration. (See Figure A.)
FIGURE A

SKU 92097 Page 8
FIGURE B
DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS
4. Tools marked “Double Insulated” do not require grounding. They have a special
double insulation system which satisfies OSHA requirements and complies with
the applicable standards of Underwriters Laboratories, Inc., the Canadian
Standard Association, and the National Electrical Code. (See Figure B.)
5. Double insulated tools may be used in either of the 120 volt outlets shown in the
following illustration. (See Figure B.)
EXTENSION CORDS
1. Grounded tools require a three wire extension cord. Double Insulated tools
can use either a two or three wire extension cord.
2. As the distance from the supply outlet increases, you must use a heavier gauge
extension cord. Using extension cords with inadequately sized wire causes a
serious drop in voltage, resulting in loss of power and possible tool damage.
(See Figure C, next page.)
3. The smaller the gauge number of the wire, the greater the capacity of the cord.
For example, a 14 gauge cord can carry a higher current than a 16 gauge cord.
(See Figure C.)
4. When using more than one extension cord to make up the total length, make
sure each cord contains at least the minimum wire size required.
(See Figure C.)
5. If you are using one extension cord for more than one tool, add the nameplate
amperes and use the sum to determine the required minimum cord size.

SKU 92097 Page 9
6. If you are using an extension cord outdoors, make sure it is marked with the
suffix “W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.
7. Make sure your extension cord is properly wired and in good electrical condition.
Always replace a damaged extension cord or have it repaired by a qualified
electrician before using it.
8. Protect your extension cords from sharp objects, excessive heat, and damp or
wet areas.
RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*
(120 VOLT)
NAMEPLATE
AMPERES
(
At Full Load
)
EXTENSION CORD LENGTH
25
Feet 50 Feet 75 Feet 100 Feet 150 Feet
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
* Based on limiting the line voltage drop
to five volts at 150% of the rated amperes.
FIGURE C
SYMBOLOGY
Double Insulated
Canadian Standards
Association
Underwriters
Laboratories, Inc.
Volts Alternating Current
Amperes
No Load Revolutions
per Minute (RPM)
noxxxx/min.
A
V ~
16

SKU 92097 Page 10
UNPACKING
When unpacking, check to make sure that your item is in good condition, and the following
components are included. If any parts are missing or broken, please call Harbor Freight
Tools at the number shown on the cover of this manual as soon as possible.
1/8 hp mini compressor
17” coiled air hose
ASSEMBLY AND OPERATING INSTRUCTIONS
NOTE: For additional information regarding the parts listed in the following pages, refer
to the Assembly Diagram on page 11.
1. CAUTION: Always make sure the Power Cord is unplugged from its electrical
outlet prior to assembling or making any adjustments to the tool.
2. Connect the Air Hose to the outlet on the Pressure Switch (41) by turning it
clockwise. Do not overtighten.Tighten only enough to create a seal. Remember
that the aluminum threads of the Air Hose may be easily stripped if forced.
3. Connect the other end of the Air Hose to your tool. Do not overtighten.
4. Plug the Power Cord (38) into a 120 Volt, breaker switch protected outlet.

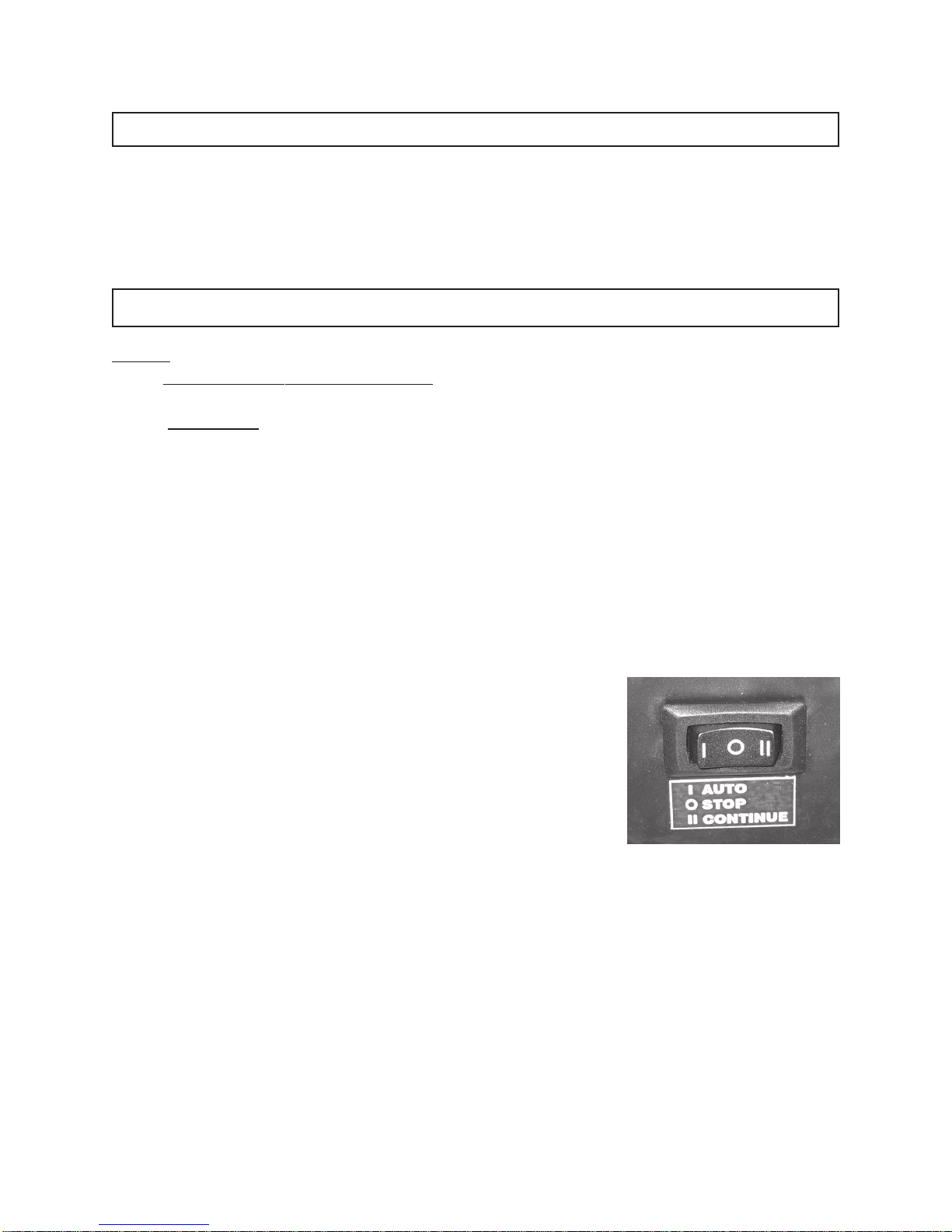

5. When ready to begin work, press the Power Switch
(37) to the “|” position.This is the “AUTO” setting.
When in the AUTO setting, the built in pressure regu-
lator will maintain a pressure between 35 and 57 psi.
6. If you need a continuous flow of air , such as when
blowing off a work bench, press the Power Switch
(37) to the “||” CONTINUE position. In this setting
the pressure regulator is deactivated, and the pump
will operate continuously.
WARNING:Do not operate the compressor in the CONTINUE mode if it is attached to
any air tool not having a regulator. Continuous pressure may cause damage to the
seals of this compressor or your tool.
WARNING:DO NOT OVERINFLATE any item with this compressor,which may cause
an explosion.Follow the manufacturer’s recommendations for inflation .
7. To turn OFF the compressor, move the Power Switch to the “O”STOP position.
8. When you are done work, disconnect your tool and the air hose. Unplug the
compressor from its power source, and store it properly.

SKU 92097 Page 11
INSPECTION, MAINTENANCE, AND CLEANING
1. WARNING! Make sure the Power Switch (37) of the air compressor is in its
“STOP” position and that the tool is unplugged from its electrical outlet before
performing any inspection, maintenance, or cleaning procedures.
2. BEFORE EACH USE, inspect the general condition of the air compressor.
Check for loose screws, misalignment or binding of moving parts, cracked or
broken parts, damaged electrical wiring, and any other condition that may affect
its safe operation. If abnormal noise or vibration occurs, have the problem cor-
rected before further use. Do not use damaged equipment.
3. Keep the intake air vents clear of dust and debris.
4. Do not run the air compressor for extended periods of time (several hours) with-
out a rest. The compressor may overheat from extended use, causing damage to
the cylinder, valve, seals or other components. Damage caused by overheating
will void any warranty.
5. This mini-compressor has no owner serviceable parts. Parts are listed for infor-
mation only. Parts Diagram

SKU 92097 Page 12
NOTE: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts.
PARTS LIST
#traPnoitpircseD.ytQ#traPnoitpircseD.ytQ
1revoCtfeL122gniR-O1
2revoCthgiR132gniR-O1
3naFgnilooCraeR142etalPevlaVteltuO1
4rotoMraeR152rehsaW1
5wercSrotoM262wercS1
6gniraeB272revoCrednilyC1
7rotatSrotoM182wercS4
8rotoRrotoM192gniR-E1
9rotoMtnorF103wercS3
01taeSrednilyC113tnorF1
11leehWcirtneccE123rotcennoCteltuO1
21wercS133tooFrebbuR4
31gniraeB143recapStooF4
41doRgnitcennoC153wercS4
51gniR-O163resnednoC1
61gniRnotsiP173hctiwSrewoP1
71evlaVtelnI183gulP/droCrewoP1
81teviRtelnI193wercSrevoC8
91rednilyC104wercSdexiFydoB4
02gniR-O114hctiwSerusserP1
12diLrednilyC124ebuTssarB1
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDEDTHE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER
NORDISTRIBUTOR MAKES ANY REPRESENTATIONORWARRANTYOFANYKINDTOTHEBUYER
THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR
SHE IS QUALIFIEDTO REPLACE ANY PARTS OF THE PRODUCT. IN FACT,THE MANUFACTURER
AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE
BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS
TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS
OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
PLEASE READ THE FOLLOWING CAREFULLY
