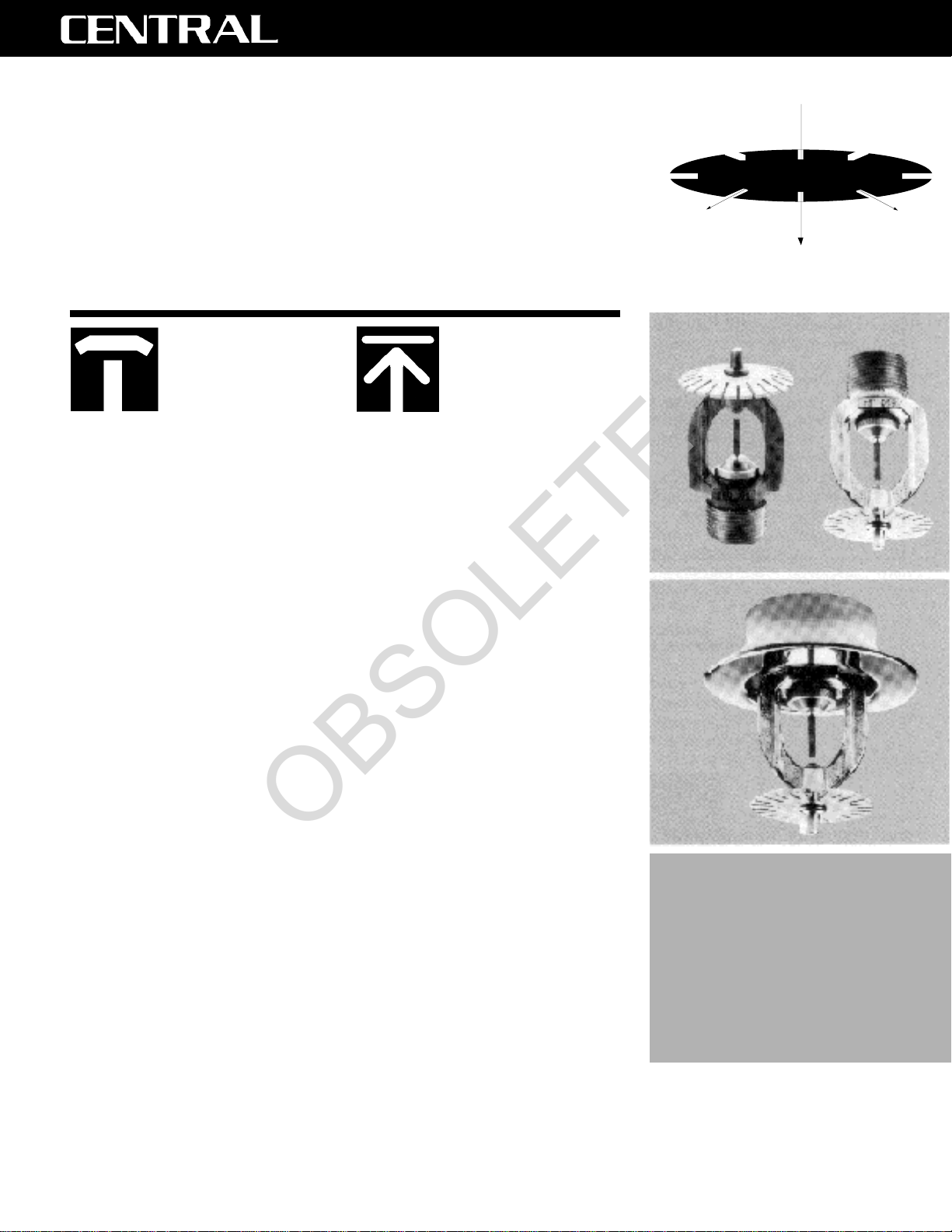

CENTRAL ELO-16 GB FR OH User manual

The Central Model ELO-16 GB FR Extra
Large Orifice Automatic Glass Bulb Upright,
Pendent and Recessed Pendent Sprinklers
are designed for Extended Coverage spacing
in Ordinary Hazard occupancies per NFPA 13
with very low pressure required.
The ELO-16 GB FR (upright and pendent)
is the first extended coverage ordinary hazard
sprinkler ever Approved by Factory Mutual.
As with any project that requires Factory
Mutual Approval, always consult the F.M.
Guidelines for their specific requirements.
The Model ELO-16 GB FR incorporate a
specially designed deflector that provides a
much greater area of coverage than most
commercial sprinklers. The extra large orifice
allows this greater area of coverage, while
requiring much lower pressure.
The ELO-16 GB FR are intended for use,
as all extended coverage sprinklers are, with
hydraulically designed systems and using the
flows and pressures as shown in this bro-
chure. All spacing is rounded up to the next
higher category. For example, 17'-6" x 15'-0"
spacing would be calculated at the Listed 18'
x 18' flow and pressure.
Operation: The glass bulb capsule
operating mechanism contains a heat-
sensitive liquid that expands upon application
of heat. At the rated temperature, the
frangible capsule ruptures, thereby releasing
the orifice seal. The sprinkler then discharges
water in a pre-designed spray pattern to
control or extinguish the fire.
Installation Limitations:
• Unobstructed or non-combustible
obstructed construction*
• Minimum hydraulic design area of 5
heads or 1500 sq. ft., whichever is
greater.
• Minimum spacing between sprinklers is
12' for upright and 12'-6" for pendent.
* WEB members of open WEB trusses must not exceed
1" diameter. Maximum ceiling slope of 2" per foot.
Model: ELO-16 GB FR
Style: Upright, Pendent and Recessed
Pendent
Escutcheon: Model ELO Recessed
(2-piece)
Note: For the recessed configuration,
only the Model ELO Recessed 2-piece
Escutcheon may be used. Substitution
of other “recessed” escutcheons may
impair the operating sensitivity and
distribution pattern. For the pendent
version, non-recessed escutcheons such
as the Model 401 may be used, but are
not required.
Wrench: ELO/ESLO/ESFR Combination
(upright and pendent) Part #1073
ELO Offset
(recessed pendent)
Part #1092
Orifice Size: 0.64"
(16.3 mm) (ELO)
K-Factor: 11.4
(163.02)
Thread Size: 3⁄4" N.P.T. (19.1 mm)
Temperature Rating & Glass Bulb Color:
Ordinary 155°F/68°C Red
Intermediate 200°F/93°C Green
High 250°F/121°C Blue
Approvals: U.L., **F.M.,
M.E.A. (466-92-E Vol. II)
**Upright & Pendent only, not recessed pendent.
Maximum Working Pressure: 175 psi
Factory Hydro Test: 100% at 500 psi
Standard Finishes: brass, chrome plated
Decorative Coatings
(F.M.) : white or
black painted
Corrosion-Resistant Coatings (F.M.) :
wax, lead, wax-over-lead
Corrosion-Resistant Coatings (U.L.) :
white or black painted
Escutcheon: brass, chrome plated, white
or black painted
Length: 31⁄8" (7.94 cm)
Width: 2" (5.08 cm)
Weight: 5.0 oz. (142 grams)
Response:Standard
Product
Description
Manufactured by: Central Sprinkler Company
451 North Cannon Avenue, Lansdale, Pennsylvania 19446
Technical
Data
Extended
Coverage
Ordinary Hazard
Upright, Pendent
& Recessed
Pendent Sprinkler
No. 3-3.1
ELO-16 GB FR
Extra Large Orifice
Extended Coverage Ordinary Hazard
Upright, Pendent and Recessed Pendent Glass Bulb
Automatic Sprinkler
I
M A O P T
ELO-16 GB FR OH 11-95
OBSOLETE

2
ELO-16 GB FR Extended Coverage
Ordinary Hazard Upright
3 1/8"
ELO .64
2" Diameter
ELO-16 GB FR Extended Coverage
Ordinary Hazard Pendent
ELO-16 GB FR
Extended Coverage Ordinary Hazard Recessed Pendent
Note: Central's Model 65 or 401 escutcheon may be used. When using
Central's Model 65 escutcheon, the face of R.C. is to protrude 1/8"
±1/16" beyond the finished ceiling line.
1" x 3/4" Reducing
Coupling
ELO .64
3 1/8"
1 7/8" Diamater
2 3/8"
(Ref.)
Face of
Reducing
Coupling
Finished
Ceiling LIne
1" x 3/4" Reducing
Coupling
ELO .64
Model ELO (2-piece)
Recessed Escutcheon
3/8" Min.
1 1/8" Max.
2 1/4" Dia. Min.
2 3/4" Dia. Max.
3 1/4" Diameter
1/8"
OBSOLETE

3
Design
Data Installation
All Central Model ELO-16 GB FR
Automatic Glass Bulb Sprinklers must
be installed according to current NFPA
13 Standards and these installation
instructions. Deviations from these
requirements and standards or any
alteration to the sprinkler itself will void
any warranty made by Central Sprinkler
Company. In addition, installation must
also meet local government provisions,
codes, and standards as applicable.
The system piping must be properly
sized to ensure the minimum required
flow rate at the sprinkler. Check for the
proper model, style, orifice size, and
temperature rating prior to installation.
Install sprinklers after the piping is in
place to avoid mechanical damage;
replace any damaged units.
Upon completion of the installation,
the system must be tested per
recognized standards.
In the event of a thread leak, remove
the unit, apply new pipe joint compound
or tape, and reinstall.
Installation Sequence
Step 1. For Recessed Pendent
Sprinklers, the face of the sprinkler
fitting should be installed a nominal 3⁄4"
(±3⁄8") behind the ceiling line.
Adjustments are made via the push-on
escutcheon.
Step 2. Use only a non-hardening pipe
joint compound or Teflon* tape. Apply
only to the male threads.
Step 3. Hand tighten the sprinkler into
the fitting. Use the appropriate Central
wrench to tighten the unit into the fitting.
A leak-tight joint requires only 7 to 14
ft.-lbs. of torque; a tangential force of 14
to 28 lbs. delivered through a 6" handle
will deliver adequate torque. Torque
levels over 21 ft.-lbs. may distort the
orifice seal, resulting in leakage.
The upright sprinklers shall be
oriented so the frame arms are parallel
with the branch line pipe per NFPA.
*Teflon is a trademark of the DuPont Corp.
Caution: Minimum spacing between sprinklers is 12' for upright
and 12'-6" for pendent.
Design Requirements — Commercial Extended Coverage Applications
Ordinary Hazard, Group 3, Density 0.21 GPM/ft2- NFPA 13 1989 or earlier
Minimum Distance From Deflector to Top of Commodities is 18".
Maximum Minimum Design Minimum Design
Spacing Between Location From Flow per Sprinkler Pressure per Sprinkler
Sprinklers Any Wall (gpm) (psi)
14 x 14 feet (196 sq. ft.) 7 feet 41.2 13.1
16 x 16 feet (256 sq. ft.) 8 feet 53.8 22.3
Design Requirements — Commercial Extended Coverage Applications
Ordinary Hazard, Group 2, Density 0.20 GPM/ft2- NFPA 13 1991 and later
Minimum Distance From Deflector to Top of Commodities is 18".
Maximum Minimum Design Minimum Design
Spacing Between Location From Flow per Sprinkler Pressure per Sprinkler
Sprinklers Any Wall (gpm) (psi)
14 x 14 feet (196 sq. ft.) 7 feet 39.2 11.8
16 x 16 feet (256 sq. ft.) 8 feet 51.2 20.2
Maximum Minimum Design Minimum Design
Spacing Between Location From Flow per Sprinkler Pressure per Sprinkler
Sprinklers Any Wall (gpm) (psi)
14 x 14 feet (196 sq. ft.) 7 feet 37.2 10.6
16 x 16 feet (256 sq. ft.) 8 feet 48.6 18.2
Design Requirements — Commercial Extended Coverage Applications
Ordinary Hazard, Group 2, Density 0.19 GPM/ft2- NFPA 13 1989 or earlier
Minimum Distance From Deflector to Top of Commodities is 18".
Maximum Minimum Design Minimum Design
Spacing Between Location From Flow per Sprinkler Pressure per Sprinkler
Sprinklers Any Wall (gpm) (psi)
14 x 14 feet (196 sq. ft.) 7 feet 31.4 7.6
16 x 16 feet (256 sq. ft.) 8 feet 41.0 12.9
Design Requirements — Commercial Extended Coverage Applications
Ordinary Hazard, Group 1, Density 0.16 GPM/ft2- NFPA 13 1989 or earlier
Minimum Distance From Deflector to Top of Commodities is 18".
Design Requirements — Commercial Extended Coverage Applications
Ordinary Hazard, Group 1, Density 0.15 GPM/ft2- NFPA 13 1991 and later
Minimum Distance From Deflector to Top of Commodities is 18".
Maximum Minimum Design Minimum Design
Spacing Between Location From Flow per Sprinkler Pressure per Sprinkler
Sprinklers Any Wall (gpm) (psi)
14 x 14 feet (196 sq. ft.) 7 feet 29.4 6.7
16 x 16 feet (256 sq. ft.) 8 feet 38.4 11.3
For FM Projects
Consult the Factory Mutual Guidelines for
specific Factory Mutual requirements if Factory
Mutual Approval is required.
OBSOLETE

©1995 Central Sprinkler Company
Printed in U.S.A. ELO-16 GB FR OH.1
Central Sprinkler Company
451 N. Cannon Avenue, Lansdale, PA 19446
Phone [phone]
FAX [phone]
Ordering
Information
Ordering Information: When placing
an order, indicate the full product
name. Please specify the quantity,
model, style, orifice size, temperature
rating, type of finish or coating, and
sprinkler wrench.
Availability and Service: Central
sprinklers, valves, accessories, and
other products are available through-
out the U.S. and Canada, and
internationally, through a network of
Central Sprinkler distribution centers.
You may write directly to Central
Sprinkler Company, or call (215) 362-
0700 for the distributor nearest you.
Guarantee: Central Sprinkler Com-
pany will repair and/or replace any
products found to be defective in
material or workmanship within a
period of one year from the date of
shipment. Please refer to the current
Price List for further details of the
warranty.
Patents: The ELO-16 GB FR
Optima™ sprinklers are protected
under U.S. Patent No. 5,366,022.
Conversion Table:
1 inch = 25.400 mm
1 foot = 0.3048 M
1 pound = 0.4536 kg
1 foot pound = 1.36 Nm
1 psi = 6.895 kpa
= 0.0689 bar
= 0.0703 kg/cm2
1 U.S. gallon = 3.785 dm3
= 3.785 liters
Conversions are approximate.
OPTIMA™ is a registered trademark
of Central Sprinkler Company.
Care &
Maintenance
Sprinklers must be handled care-
fully. They must not be transported or
stored where ambient temperature
may exceed 100°F/38°C. For best
results, store them in a dry, cool
location in the original shipping
package.
Do not install sprinklers that have
been dropped or visibly damaged.
Sprinklers should never be painted,
coated, plated, or altered in any other
way from manufactured condition or
they may not function properly. Any
sprinklers altered in such manner
must be replaced.
The owner is responsible for the
proper operating condition of all fire
protection devices and accessories.
The NFPA Standard 25 entitled,
“Inspection, Testing and Maintenance
of Water-Based Fire Protection
System” , contains guidelines and
minimum maintenance requirements.
Furthermore, the local Authority
Having Jurisdiction may have addi-
tional regulations and requirements
for maintenance, testing, and inspec-
tion that must be obeyed.
It is advisable to have sprinkler
systems inspected regularly by a
qualified inspection service. Length
of time between such inspections can
vary due to accessibility, ambient
atmosphere, water supply, and site
activity.
Do not attempt to reassembly or
otherwise reuse a sprinkler that has
operated. Replace any sprinkler
exhibiting corrosion or damage;
always use new sprinklers of the
same type and temperature rating as
replacements.
Because the discharge pattern is
critical to protection of life and
property, nothing should be hung or
attached to the sprinkler unit that
would disrupt the pattern. Such
obstructions must be removed. In the
event that construction has altered
the original configuration, additional
sprinklers should be installed to
maintain the protection level.
Do not attempt to replace sprinklers
without first removing the fire protec-
tion system from service. Be certain
to secure permission from all Authori-
ties Having Jurisdiction , and notify all
personnel who may be affected
during system shutdown. A fire
watch during maintenance periods is
a wise precaution.
To remove the system from service
mode, first refer to the system
operating guide and valve instruction.
Drain the water and relieve pressure
in the pipes. Remove the existing
unit and install the replacement, using
only the special sprinkler wrench. Be
certain to match the model, style,
orifice, and temperature rating.
A fire protection system that has
been shut off after an activation
should be returned to service immedi-
ately. Inspect the entire system for
damage and replace or repair as
necessary. Sprinklers that did not
operate but were subjected to corro-
sive elements of combustion or
excessive temperatures should be
inspected, and replaced if need be.
The Authority Having Jurisdiction will
detail minimum replacement require-
ments and regulations.
OBSOLETE
