CENTRAL ROC User manual

used to mark the center of the ceiling
hole into plaster board, ceiling tiles, etc.
by pushing the ceiling product against
the Cap. When the ceiling installation is
complete, the Cap is removed and the
Cover Plate Assembly installed.
Operation: When exposed to heat from
a fire, the Cover Plate, which is normally
soldered to the Support Cup at three
points, falls away to expose the
Sprinkler Assembly. At this point the
Deflector supported by the Arms drops
down to its operational position. The
fusible link of the Sprinkler Assembly is
comprised of two link halves which are
joined together by a thin layer of solder.
When the rated temperature is reached,
the solder melts and the two link halves
seperate, which then allows the
sprinkler to activate and flow water.
WARNING
The ROC Residential Pendent
Sprinklers described herein must be
installed and maintained in compli-
ance with this document, as well as
with the applicable standards of the
National Fire Protection Association,
in addition to the standards of any
other authorities having jurisdiction.
Failure to do so may impair the
integrity of these devices.
Because of the above cited stipula-
tions and the varied nature of
residential type architecture, there
will be some compartment designs
which cannot be fully sprinklered in
accordance with the recomendations
of NFPA 13, NFPA 13D, or
NFPA 13R. In the event of this
condition, consult the authorities
having jurisdiction for guidance and
approval.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating
condition. The installing contractor
or sprinkler manufacturer should be
contacted relative to any questions.
Tyco Fire Products --- www.centralsprinkler.com
451 North Cannon Avenue, Lansdale, Pennsylvania 19446 --- USA
Customer Service/Sales: Tel: (215) 362-0700 / Fax: (215) 362-5385
Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500
Model ROC
Residential OptimaTM Concealed
4.2 K-factor -
Fast Response Residential
Concealed Pendent Fusible Link Automatic Sprinkler
No. 4-5.0
General
Description
The Central ROC - Residential Optima
Concealed, 4.2 K-factor, Residential
Pendent Sprinklers are decorative
sprinklers featuring a flat cover plate
designed for use in residential occupan-
cies such as homes, apartments,
dormitories, and hotels.
They are to be used in wet pipe
residential sprinkler systems for one-
and two-family dwellings and mobile
homes per NFPA 13D; wet pipe
residential sprinkler systems for
residential occupancies up to and
including four stories in height per
NFPA 13R; or wet pipe sprinkler
systems for the residential portions of
any occupancy per NFPA 13.
The Cover Plate Assembly conceals the
sprinkler operating components above
the ceiling. The separable two-piece
design of the Cover Plate and Support
Cup Assemblies allows installation of
the sprinklers and pressure testing of
the fire protection system prior to
installation of a suspended ceiling or
application of the finish coating to a
fixed ceiling. They also permit removal
of suspended ceiling panels for access
to building service equipment without
having to first shut down the fire
protection system and remove sprin-
klers. Also, the separable two-piece
design of the the Sprinkler provides for
1/2 inch (12,7 mm) of vertical adjust-
ment, to reduce the accuracy to which
the length of fixed pipe drops to the
sprinklers must be cut.
The ROC Residential Pendent Sprin-
klers are shipped with a Disposable
Protective Caps. The Protective Cap is
temporarily removed to install the ROC,
and then replaced to protect the ROC
while the ceiling is being installed and
finished. The tip of the Cap can also be
CENTRAL ROC 7-02
Residential
Concealed
Pendent
Sprinklers
I
M
A
O
P
T
SPRINKLERS FOR REPLACEMENT USE ONLY IN EXISTING SPRINKLER SYSTEMS
OBSOLETE

Design
Criteria
The Model ROC Residential Optima Concealed Pendent
Sprinklers are UL, C-UL Listed and NYC Approved (MEA 7-
95-E) for use in accordance with current NFPA standards on
wet pipe sprinkler systems. These sprinklers with a maximum
ceiling to top of sprinkler deflector distance of 4 inches, have
been investigated for use under smooth flat horizontal ceilings
with slopes up to 2 inches per foot using the hydraulic design
requirements found in Table 1. When unique conditions exist
such as sloping ceilings, and when acceptable to the local
authority, guidance on the placement of residential sprinklers
on sloped ceilings has been provided in Figures 5 -14. This
information will provide the minimum spacing requirements
necessary for preventing the wetting (i.e., cold soldering) of the
heat responsive element (link) of a non-operated Central
Model ROC, which is adjacent to one, which has operated. In
these situations the minimum required sprinkler flow rates
given in Table 1 should be used. Your local authority should
be consulted to determine the number of sprinklers required in
the hydraulic design area.
The Model ROC Residential Optima Concealed Pendent
Sprinklers are only listed with the Series GB4/ROC Concealed
Cover Plate Assembly.
The minimum required flow rates for systems designed to
NFPA 13D or NFPA 13R occupancies are given in Table 1 as
a function of temperature rating, ceiling to top of deflector
distance, and the maximum allowable coverage areas. The
single sprinkler flow rate is the minimum required discharge
Technical
Data
Sprinkler Identification Number
SIN C2596
Approvals
UL & C-UL Listed. NYC Approved
(Refer to the Design Criteria Section)
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
1/2 inch NPT
Discharge Coefficient
K = 4.2 GPM/psi1/2 (60,5 LPM/bar1/2)
Temperature Ratings
160°F/71°C Sprinkler/135°F/57°C Plate
Finishes
Sprinkler: Natural Brass
Cover Plate: Chrome or Brass Plated; *Flat White, Bright
White, or Custom Painted
* Standard Finish supplied when White is specified
Physical Characteristics
The Model ROC Residential Optima Concealed Pendent
Sprinklers utilize a dezincification resistant (DZR) bronze frame
and a monel thermal sensitive link. The sprinkler frame orifice is
sealed with a gasketed spring plate (Belleville Seal) consisting of
a beryllium nickel disc spring that is sealed on both its inside and
outside edges with a TeflonTM gasket. The arms and deflector are
bronze, and the support cup is steel. The cover plate and retainer
assembly are brass.
from the most hydraulically demanding single sprinkler and,
the multiple sprinkler flow rate is the minimum required
discharge from each of the total number of "design sprinklers"
as specified in NFPA 13D or NFPA 13R.
TIA 99-1 (Tentative Interim Ammendment) with an effective
date of May 22, 2000 states that the minimum required
discharge from each of the "design sprinklers" for systems
designed to NFPA 13 must be calculated based on delivering
a minimum design density of 0.1 gpm/sq. ft. for each of the
listed coverage areas shown in Table 1. If the flow rates listed
in Table 1 exceed a minimum design density of 0.1 gpm/sq. ft.,
then the flow rates in the Table shall be used. Consult the
authority having jurisdiction regarding the application of this
TIA to the currently adopted NFPA 13.
Model ROC Residential Pendent and Recessed Pendent
Sprinklers must be installed using the obstruction criteria for
extended coverage sprinklers found in the current edition of
NFPA 13.
NOTES
Residential Fire Sprinkler Systems should only be
designed and installed by those competent and
completely familiar with automatic sprinkler system
design, installation procedures, and techniques.
The sprinkler must be secured in position by firmly
fastening the sprinkler system piping to the structure. If
the sprinkler is not properly secured in position, reaction
forces resulting from sprinkler operation could alter its
orientation and its water distribution pattern. The
sprinkler escutcheon cannot be used to hold the sprinkler
in position.
Several criteria may apply to the installation and usage of
each sprinkler. Consequently, it is recommended that the
sprinkler system designer review and develop a working
understanding of the complete list of criteria prior to
initiating the design of the sprinkler system.
Questions concerning sprinkler installation and usage
criteria, which are not covered by the following
instructions, should be submitted to Central Sprinkler.
Include sketches and technical details as appropriate.
In some instances, the requirements of this document
may concern specifications which are more stringent and
which take precedence over those specified in NFPA 13,
NFPA 13D, NFPA 13R, or by the authority having
jurisdiction.
Figure 1 - ROC Sprinkler Wrench (1265)
OBSOLETE

Figure 3
Residential Optima Concealed Pendent
(Activated)
Figure 2
Residential Optima Concealed Pendent
(Non-Activated)
2-1/2" ±1/8"
(63,5 mm ±3,2 mm)
Hole Diameter
Face of Reducing Coupling
Reducing Coupling
3-1/4" (82,6 mm) Diameter 3/16" (4,8 mm)
2" ±1/4"
(50,8 mm ±6,4 mm)
3/8" (9,5 mm)
(ref.)
2-9/16" to 3-1/16"
(65,1 mm to 77,8 mm)
5/8" (15,9 mm) Min.
1-1/8" (28,6 mm) Max.
OBSOLETE

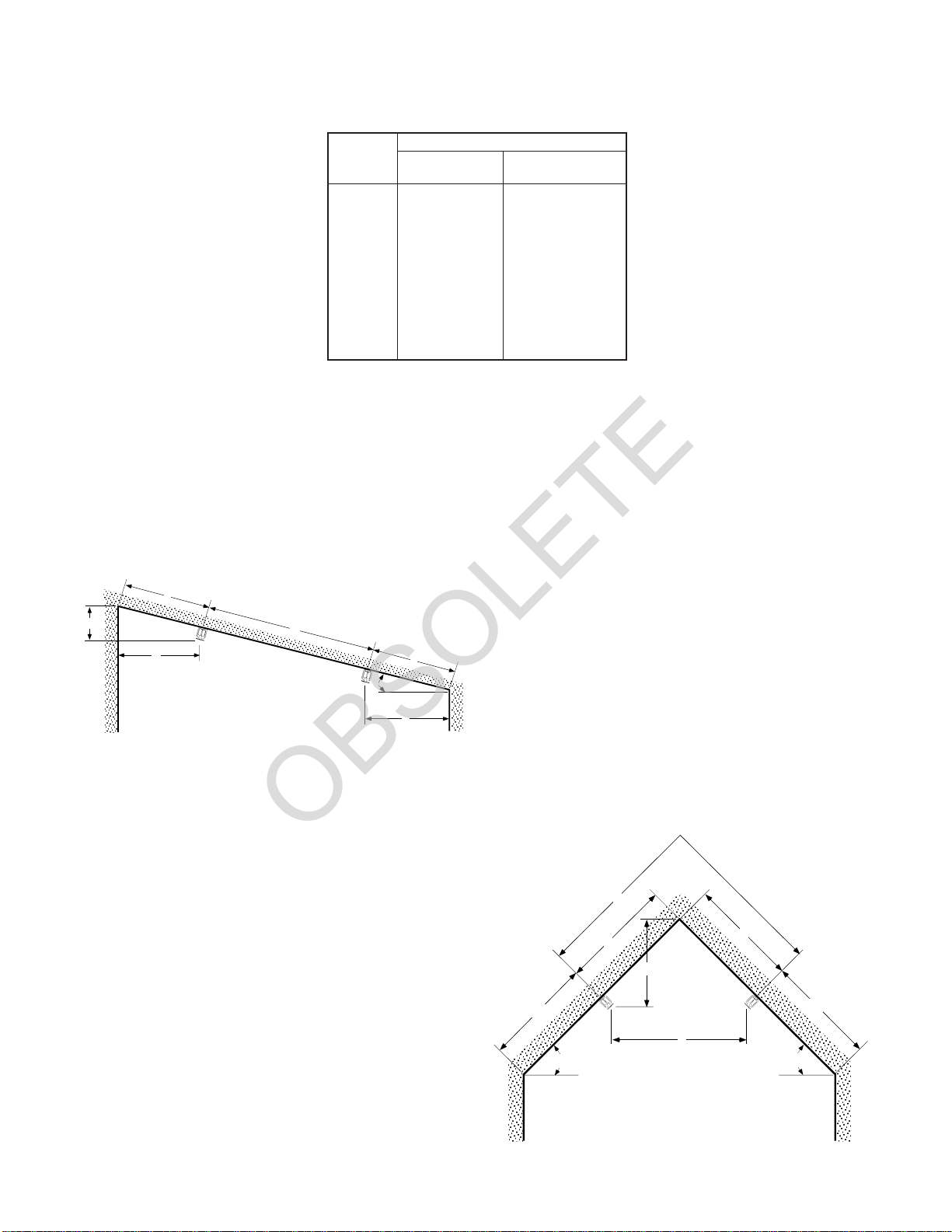

Figure 5 - Sprinkler Location for Sloped Ceiling
Note the minimum distance between sprinklers changes by
the angle of the slope. Verify the Listed flows and pressures
for “maximum” and “1/2 maximum” distances. Dimensions
“A” and “B” are measured along the slope. For angles
greater than 60°, verify with Central's Technical Services
Department.
A— NFPA minimum of 4" (verify “G” dimension minimum of
4"), maximum 1/2 of the Listed spacing that the sprinkler
was calculated for. (i.e., 18' x 18' spacing is maximum of
9'-0" from a wall).
B— For angles 0°to 39°minimum B = 8'-0".
For angles 40°to 45°minimum B = 9'-0".
For angles 46°to 60°minimum B = 9'-6".
Maximum Listed spacing that the sprinkler was calcu-
lated for.
C— Maximum of 3'-0" vertically from the peak.
F— Acceptable for angles 0°to 60°.
G— Minimum of 4", for maximum, refer to “A” and measure
along slope.
B
G
A
A
G
C
F
Figure 6 - Symmetric Sprinkler Location on Opposing Slopes*
The minimum distance between sprinklers on opposing slopes
is measured horizontally, some difficult conditions can be
solved by staggering the sprinklers, thus increasing the
horizontal distance. Remember to measure along the slope
for “A” and “B”. For angles greater than 60°, verify with
Central's Technical Services Department.
A— NFPA minimum of 4", maximum 1/2 of the Listed spacing
that the sprinkler was calculated for.
B— See “E” for minimum spacing. Maximum Listed spacing
that the sprinkler was calculated for.
C — Maximum 3'-0" vertically from the peak.
E— NFPA minimum of 8'-0" (when minimum of 8'-0" cannot
be obtained due to “B”, a baffle must be installed
between these sprinklers to obstruct the discharge
and prevent cold-solder). See “B” for maximum.
F— Acceptable for angles 0°to 60°.
* For unequal spacing down from peak, see Figure 8.
A
AA
A
E
C
B
FF
Table 1 - ROC Residential Optima Concealed
Pendent Hydraulic Design Requirements for
NFPA 13D & NFPA 13R Occupancies
Minimum spacing between sprinklers is 8' (2,4 m).
Minimum Design Flow
Coverage Multiple
Area Single Sprinkler Sprinklers
12' x 12' 18 GPM (18.4 psi) 13 GPM (9.6 psi)
(3,7 x 3,7m) 68,1 lpm (1,27 bar) 49,2 lpm (0,66 bar)
14' x 14' 18 GPM (18.4 psi) 13 GPM (9.6 psi)
(4,3 x 4,3m) 68,1 lpm (1,27 bar) 49,2 lpm (0,66 bar)
16' x 16' 18 GPM (18.4 psi) 13 GPM (9.6 psi)
(4,9 x 4,9m) 68,1 lpm (1,27 bar) 49,2 lpm (0,66 bar)
18' x 18' 24 GPM (32.7 psi) 17 GPM (16.4 psi)
(5,5 x 5,5m) 90,8 lpm (2,25 bar) 64,4 lpm (1,13 bar)
20' x 20' 24 GPM (32.7 psi) 17 GPM (16.4 psi)
(6,1 x 6,1m) 90,8 lpm (2,25 bar) 64,4 lpm (1,13 bar)
OBSOLETE

First verify that the sprinkler at the peak is considered to be
“Acceptable” or “Obstructed” by the sloped ceiling in accordance
with Figure 12 Graph. Measure horizontally from the deflector to
the sloped ceiling, this is equal to the “D” dimension in the Figure
12 Graph. If the “D” dimension is “Acceptable”, then Figure 7
applies. If “D” is “Obstructed”, then the protection area of the
sprinkler at the peak will be the horizontal distance to the obstruct-
ing ceiling. The minimum distance between sprinklers is mea-
sured horizontally. Staggering sprinklers will help maintain
minimum horizontal distances in difficult situations. Dimensions
“A” and “B” are measured along the slope. For angles greater
than 60°, verify with Central's Technical Services Department.
A— NFPA minimum 4", maximum 1/2 of the Listed spacing that
the sprinkler was calculated for.
B— See “E” for minimum spacing. Maximum Listed spacing that
the sprinkler was calculated for.
C— Maximum of 3'-0" vertically from the peak.
D— Horizontal distance from the deflector to the intersecting
sloped ceiling.
E— NFPA minimum of 8'-0" (when minimum of 8'-0" cannot be
obtained due to “B”, a baffle must be installed between
these sprinklers to obstruct the discharge and prevent cold-
solder). See “B” for maximum.
F— Acceptable for angles 0°to 60°.
Figure 7 - Spacing for Sprinkler at the Peak of a Sloped Ceiling
A
E
B
CA
E
D
B
D
FF
Figure 8 - Sprinkler Location on Opposing Slopes
First verify that the sprinkler nearest the peak is “Acceptable”
or “Obstructed” per Figure 14. If “Acceptable”, Figure 8
applies. If “Obstructed”, the horizontal distance to the
opposing slope is to be considered as the protected area. The
minimum distance between sprinklers is measured horizon-
tally, shown as dimension “E”. Staggering the sprinklers will
help maintain minimum horizontal distances in difficult
situations. Dimensions “A” and “B” are measured along the
slope. For angles greater than 60°, verify with Central's
Technical Services Department.
A— NFPA minimum of 4", maximum 1/2 of the Listed spacing
that the sprinkler was calculated for.
B— See “E” for minimum spacing. Maximum Listed spacing
that the sprinkler was calculated for.
C— Maximum of 3'-0" vertically from the peak.
D— Minimum 4". Also, see note above.
E— NFPA minimum of 8'-0" (when minimum of 8'-0" cannot
be obtained due to “B”, a baffle must be installed
between these sprinklers to obstruct the discharge and
prevent cold-solder). See “B” for maximum.
F— Acceptable for angles from 0°to 60°.
A
A
DC
F
E
B
Figure 9 - Sprinkler Location on Coffered Ceiling
First verify that “D” is “Acceptable” or “Obstructed” per Figure
13. If “Acceptable”, Figure 9 applies. If “Obstructed”,
additional sprinklers will be necessary to protect the flat ceiling
area. The minimum distance between sprinklers is measured
horizontally. Staggering sprinklers will help maintain minimum
horizontal distances in difficult situations. Dimensions “A” and
“B” are measured along the slope. For angles greater than
60°, verify with Central's Technical Services Department.
A— NFPA minimum of 4", maximum 1/2 of the Listed
spacing that the sprinkler was calculated for.
B— See “E” for minimum spacing. Maximum Listed spacing
that the sprinkler was calculated for.
C— Maximum 3'-0" vertically from the peak.
D— Refer to Figure 13.
A
E
D
C
D
A
B
E— NFPA minimum of 8'-0" (when minimum of 8'-0" cannot
be obtained due to “B”, a baffle must be installed
between these sprinklers to obstruct the discharge and
prevent cold-solder). See “B” for maximum.
F — Acceptable for angles 0°to 60°.
OBSOLETE

Figure 10 - Minimum Distance Between Sprinklers on Intersecting Ceilings
First verify that “D” is “Acceptable” or “Obstructed” per
Figure 12 for the horizontal ceiling sprinkler and Figure 13
for the sloped ceiling sprinkler. If “Acceptable”, Figure 10
applies. If “Obstructed”, per Figure 12 or 13, then “D” is to
be considered the area of coverage. The minimum distance
between sprinklers is measured horizontally. Staggering
sprinklers will help maintain maximum horizontal distances
in difficult situations. Dimension “B” is measured along the
slope. For angles greater than 60°, verify with Central's
Technical Services Department.
B— See “E” for minimum spacing. Maximum Listed
spacing that the sprinkler was calculated for.
D— Distance to intersecting ceiling.
E— NFPA minimum of 8'-0" (when minimum of 8' cannot
be obtained due to “B”, a baffle must be installed
between these sprinklers to obstruct the discharge
and prevent cold-solder) see “B” for maximum.
F— Acceptable for angles 0°to 60°.
D
E
D
F
B
Figure 11 - Sprinkler Location on Sloped Ceiling Intersecting a Flat Ceiling
First verify that “D” is “Acceptable” or “Obstructed” per
Figure 13. If “Acceptable”, Figure 11 applies. If “Ob-
structed”, additional sprinklers will be necessary to protect
the flat ceiling area. Dimension “A” is measured along the
slope. For angles greater than 60°, verify with Central's
Technical Services Department.
A— NFPA minimum of 4", maximum 1/2 of the Listed
spacing that the sprinkler was calculated for.
C— Maximum 3'-0" vertically from the peak.
D— Refer to Figure 13.
F — Acceptable for angles 0°to 60°.
A
D
C
A
Figure 12 - Obstruction to Discharge by Intersecting Sloped Ceiling
If “D” is “Obstructed” per Figure 12 Graph, then “D” is to
be considered the area of coverage and additional
sprinklers along the sloped ceiling will be necessary.
Only if “D” is “Acceptable” can “A” be considered 1/2 of
the maximum Listed spacing that the sprinkler was
calculated for. Dimension “A” is measured along the
slope.
A— Maximum 1/2 of the Listed spacing that the sprinkler
was calculated for.
D— Distance to intersecting sloped ceiling.
F — Acceptable for angles 0°to 60°.
DA
F
0°4°8°12°16°20°24°28°32°36°40°44°48°52°56°60°
10'
9'
8'
6'
5'
4'
3'
2'
1'
7'
"D"
(in feet)
"F"
(in degrees)
Obstructed
Acceptable
20' x 20'
18' x 18'
16' x 16'
14' x 14'
12' x 12'
OBSOLETE

Installation
The Central ROC Residential Optima
Concealed Pendent Sprinklers must be
installed in accordance with the following
instructions:
NOTES
Damage to the fusible Link Assembly
during installation can be avoided by
handling the sprinkler by the frame arms
only (i.e., do not apply pressure to the
fusible Link Assembly), and by using the
appropriate sprinkler wrench. Damaged
sprinklers must be replaced.
A leak tight 1/2 inch NPT sprinkler joint
should be obtained with a torque of 7 to
14 ft.lbs. (9,5 to 19,0 Nm). A maximum of
21 ft.lbs. (28,5 Nm) of torque is to be
used to install 1/2 inch NPT sprinklers.
Higher levels of torque may distort the
sprinkler inlet with consequent leakage
or impairment of the sprinkler.
Step 1. The sprinkler must only be
installed in the pendent position and with
the centerline of the sprinkler perpen-
dicular to the mounting surface.
Step 2. Remove the Protective Cap.
Step 3. With pipe thread sealant applied
to the pipe threads, and using the ROC
Wrench shown in Figure 1, install and
tighten the Sprinkler/Support Cup
Assembly into the fitting. ROC Wrench
will except a 1/2 inch ratchet drive.
Step 4. Replace the Protective Cap by
pushing it upwards until it bottoms out
against the Support Cup. The Protective
Cap helps prevent damage
to the Deflector and Arms during ceiling
installation and/or during application of
the finish coating of the ceiling. It may
also be used to locate the center of the
clearance hole by gently pushing the
ceiling material up against the center
point of the Cap.
NOTE
As long as the Protective Cap remains in
place, the system is considered to be
"Out of Service"
Step 5. After the ceiling has been
completed with the 2-1/2 inch (66,7 mm)
diameter clearance hole and in prepara-
tion for installing the Cover Plate
Assembly, remove and dis-
card the Protective Cap, and verify that
the Deflector moves up and down freely.
If the Sprinkler has been damaged and
the Deflector does not move up and
down freely, replace the entire Sprinkler
assembly. Do not attempt to modify or
repair a damaged sprinkler.
Step 6. Screw on the Cover Plate/
Retainer Assembly until its flange just
comes in contact with the ceiling. Do not
continue to screw on the Cover Plate/
Retainer Assembly such that it lifts a
ceiling panel out of its normal position. If
the Cover Plate/Retainer Assembly
cannot be engaged with the Support Cup
or the Cover Plate/Retainer Assembly
cannot be engaged sufficiently to contact
the ceiling, the Sprinkler Fitting must be
repositioned.the Sprinkler Fitting must be
repositioned.
A— NFPA minimum of 4", maximum 1/2 of the Listed
spacing that the sprinkler was calculated for.
D— Distance to opposing sloped ceiling.
F & G — Acceptable for angles 0°to 60°.
Figure 13 - Obstruction to Discharge by Intersecting Flat Ceiling
If “D” is “Obstructed” per Figure 13 Graph, then “D” is to be
considered the area of coverage and additional sprinklers
along the horizontal ceiling will be necessary. Only if “D” is
“Acceptable” can “A” be considered 1/2 of the maximum
Listed spacing that the sprinkler was calculated for. Dimen-
sion “A” is measured along the slope.
A— Maximum 1/2 of the Listed spacing that the sprinkler
was calculated for.
D— Distance to intersecting horizontal ceiling.
F— Acceptable for angles 0°to 60°.
Figure 14 - Obstruction to Discharge by an Opposing Sloped Ceiling
If “D” is “Obstructed” per Figure 14 Graph, then the
horizontal distance to the opposing slope is the extent of
coverage and additional sprinklers will be necessary to
protect the remainder of the opposing slope. Only if “D” is
“Acceptable” can “A” equal 1/2 of the maximum Listed
spacing that the sprinkler was calculated for. Dimension “A”
is measured along the slope.
D
F
A
0°4°8°12°16°20°24°28°32°36°40°44°48°52°56°60°
10'
9'
8'
6'
5'
4'
3'
2'
1'
7'
"D"
(in feet)
"F"
(in degrees)
Obstructed
Acceptable
20' x 20'
18' x 18'
16' x 16'
14' x 14'
12' x 12'
A
D
A
GF
5'
4'
3'
2'
1'
"D"
(in feet)
"F" or "G"
(whichever is greater)
(in degrees)
Obstructed
10°15°20°25°30°35°40°45°
Acceptable
20' x 20'
18' x 18'
16' x 16'
14' x 14'
12' x 12'
OBSOLETE

It is recommended that automatic
sprinkler systems be inspected and
maintained in accordance with the
advice and suggestions given in NFPA
25.
Sprinklers which are found to be leaking or
exhibiting visible signs of corrosion must
be replaced.
Automatic sprinklers must never be
shipped or stored where its temperature
will exceed 100°F/38°C and they must
never be painted, plated, coated, or
otherwise altered after leaving the factory.
Modified or over-heated sprinklers must
be replaced.
Care must be exercised to avoid damage
- both before and after installation.
Sprinklers damaged by dropping, striking,
wrench twist/slippage, or the like, must be
replaced.
The ROC Residential OptimaConcealed
Pendent Sprinklers must only be replaced
with pendent sprinklers which are listed for
residential fire protection service and
which have the same nominal K-factor,
the same coverage area, and the same or
lower flow ratings (as indicated under
"Design Criteria").
When remodeling, such as by adding
false beams or light fixtures or changing
the location of compartment walls, first
verify that the new construction will not
violate the installation requirements stated
under WARNINGS. Alter the new
construction and/or the sprinkler system to
suit the requirements of this document.
The owner is responsible for the inspec-
tion, testing, and maintenance of their fire
protection system and devices in compli-
ance with this document, as well as with
the applicable standards of the National
Fire Protection Association (e.g., NFPA
25), in addition to the standards of any
other authorities having jurisdiction. The
installing contractor or sprinkler manufac-
turer should be contacted relative to any
questions.
It is recommended that automatic sprinkler
systems be inspected, tested, and
maintained by a qualified Inspection
Service.
Printed in U.S.A. 7-02
Ordering Information: When placing an
order, indicate the full product name.
Please specify the quantity, model, style,
orifice size, temperature rating, type of
finish or coating, and sprinkler wrench.
Refer to price list for complete listing of
Part Numbers.
Teflon is a trademark of the DuPont Corp.
Ordering
Information
Flow Control
Tyco Fire
Products
The Central ROC Residential Optima
Concealed Pendent Sprinklers must be
maintained and serviced in accordance
with the following instructions:
NOTES
Wet pipe sprinkler systems must be
maintained at a minimum temperature
of 40
°
F/4
°
C to prevent freezing and
bursting of the pipe and/or sprinklers.
Automatic sprinklers are not to be
tested with a heat source. Operation of
the heat responsive element (link) can
result.
Absence of the Cover Plate assembly
may delay sprinkler operation in a fire
situation.
When properly installed, there is a
nominal 3/32 inch (2,4 mm) air gap
between the lip of the Cover Plate and
the ceiling. This air gap is necessary
for proper operation of the sprinkler. If
the ceiling is to be repainted after the
installation of the Sprinkler, care must
be exercised to ensure that the new
paint does NOT seal off any of the air
gap
Factory painted Cover Plates MUST
NOT be repainted. They should be
replaced, if necessary, by factory
painted units.
Do not pull the Cover Plate relative to
the Enclosure. Separation may result.
Before closing a fire protection system
main control valve for maintenance
work on the fire protection system
which it controls, permission to shut
down the affected fire protection
system must be obtained from the
proper authorities. All personnel who
may be affected by this action must be
notified.
Do NOT enclose sprinklers within
drapes, curtains, or valances.
Do NOT hang anything from the
sprinklers.
Do NOT cleanse the sprinklers with
soap and water, detergents, ammonia,
cleaning fluids, or other chemicals.
Remove dust, lint, cobwebs, cocoons,
insects, and larvae by gently brushing
with a feather duster or gently vacuum-
ing with a soft bristle (i.e., dusting)
brush attachment.
Exercise suitable safety precautions in
the use and storage of highly flam-
mable materials. The rapid rate of fire
development and spread of which can
be caused by such materials can
reduce the ability of the sprinkler
system to aid in the control of a fire in
which they are involved.
Care &
Maintenance
Products manufactured by Tyco Fire
Products are warranted solely to the
original Buyer for ten (10) years against
defects in material and workmanship
when paid for and properly installed and
maintained under normal use and service.
This warranty will expire ten (10) years
from date of shipment by Tyco Fire
Products. No warranty is given for
products or components manufactured by
companies not affiliated by ownership with
Tyco Fire Products or for products and
components which have been subject to
misuse, improper installation, corrosion, or
which have not been installed, maintained,
modified or repaired in accordance with
applicable Standards of the National Fire
Protection Association, and/or the
standards of any other Authorities Having
Jurisdiction. Materials found by Tyco Fire
Products to be defective shall be either
repaired or replaced, at Tyco Fire
Products' sole option. Tyco Fire Products
neither assumes, nor authorizes any
person to assume for it, any other
obligation in connection with the sale of
products or parts of products. Tyco Fire
Products shall not be responsible for
sprinkler system design errors or inaccu-
rate or incomplete information supplied by
Buyer or Buyer's representatives.
IN NO EVENT SHALL TYCO FIRE
PRODUCTS BE LIABLE, IN CON-
TRACT, TORT, STRICT LIABILITY OR
UNDER ANY OTHER LEGAL THEORY,
FOR INCIDENTAL, INDIRECT, SPECIAL
OR CONSEQUENTIAL DAMAGES,
INCLUDING BUT NOT LIMITED TO
LABOR CHARGES, REGARDLESS OF
WHETHER TYCO FIRE PRODUCTS
WAS INFORMED ABOUT THE POSSI-
BILITY OF SUCH DAMAGES, AND IN
NO EVENT SHALL TYCO FIRE PROD-
UCTS' LIABILITY EXCEED AN AMOUNT
EQUAL TO THE SALES PRICE.
THE FOREGOING WARRANTY IS
MADE IN LIEU OF ANY AND ALL
OTHER WARRANTIES EXPRESS OR
IMPLIED, INCLUDING WARRANTIES
OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
Limited
Warranty
OBSOLETE
Table of contents
Other CENTRAL Irrigation System manuals

CENTRAL
CENTRAL tyco CHEC User manual

CENTRAL
CENTRAL GBR User manual

CENTRAL
CENTRAL A-1 User manual

CENTRAL
CENTRAL ELO-231 User manual

CENTRAL
CENTRAL ESFR-1 User manual

CENTRAL
CENTRAL GB User manual

CENTRAL
CENTRAL ULTRA K-25 ESFR User manual

CENTRAL
CENTRAL ELO LH User manual

CENTRAL
CENTRAL ELO-16 GB FR OH User manual
Popular Irrigation System manuals by other brands

aquapick
aquapick AQ-240 user guide

Johnson Controls
Johnson Controls tyco TY-FRB Series manual

Tyco
Tyco EC-11 Series manual

Tyco Fire Product
Tyco Fire Product CENTRAL H instruction manual

Valley
Valley VRI-iS installation manual

Task Force Tips
Task Force Tips Mid-Force INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
