Centurion Vantage User manual

page 1 www.CentSys.com
VANTAGE
Mechanical Installation Manual
Centurion Systems (Pty) Ltd www.CentSys.com

After-sales
multi-language
Technical Support
from 07h00 to 18h00
UTC+2
Monday to Friday
Manufacture to
international
quality standard
ISO 9001:2008
100%
testing of
products
In-house
R&D
development
team
Centurion Systems (Pty) Ltd reserves the right to make changes to the products described in this
manual without notice and without obligation of Centurion Systems (Pty) Ltd to notify any persons
of any such revisions or changes. Additionally, Centurion Systems (Pty) Ltd makes no representations
or warranties with respect to this manual. No part of this document may be copied, stored in a retrieval
system or transmitted in any form or by any means electronic, mechanical, optical or photographic,
without the express prior written consent of Centurion Systems (Pty) Ltd.
1986 1990 1995 1999 Today
COMPANY PROFILE
Company Prole
Sales and technical support
to Africa, Europe, Asia,
the Americas, Australia
and the Pacic

www.CentSys.com
SAFETY
FIRST IMPORTANT SAFETY INSTRUCTIONS
1. General Description
2. Icons Used in this Manual
3. Specications
3.1. Physical Dimensions
3.2. Technical Specications
3.3. V-Series Controller
3.4. Lightning Protection
3.5. Power Supply
3.6. Allowable Gate Mass
3.7. Allowable Wind Load
4. Product Identication
4.1. V-Series Wall Box
5. Required Tools and Equipment
6. Preparation of Site
6.1 General Considerations for the Installation
6.2. Determine Gate Opening Angle
6.3. Key Terms Used in this Section
6.4. Side Wall Limitation - Inward Opening
6.5. Pillar Hinge Depth Limitation - Inward Opening
6.6. Wall Bracket Mounting Methods
6.7. Strength of the Gate and Gate Bracket
7. Cabling Requirements
8. Critical Installation Checklist
9. Operator Installation - Inward Opening Gate(s)
10. Operator Installation - Outward Opening Gate(s)
page 5
Contents
CONTENTS
page 8
page 9
page 10
page 10
page 11
page 12
page 12
page 12
page 13
page 14
page 15
page 16
page 17
page 18
page 18
page 19
page 20
page 20
page 21
page 22
page 24
page 25
page 26
page 27
page 36

page 4 www.CentSys.com
STEP
1
These quick steps are for the experienced installer who needs a checklist to get a
standard installation up and running in the minimum of time.
Detailed installation features and functions are referred to later in this manual.
Gather Required Tools and Equipment
STEP
2
STEP
3
Heed Necessary Site Considerations
Check Cabling Requirements
STEP
4Determine Gate Swing Angle
STEP
5
STEP
6
STEP
7
STEP
8
STEP
9
Conrm that gate leaf meets allowable wind loading specications
Determine Installation Type
• Inward Opening Installation
• Outward Opening Installation
Mount the Gate and Wall Bracket(s)
Install Operator and Link to Gate
Mount Controller Enclosure
FAST TRACK Mechanical Setup
MECHANICAL SETUP

page 5www.CentSys.com
ATTENTION
To ensure the safety of people and possessions, it is important that you
read all the following instructions.
Incorrect installation or incorrect use of the product could cause
serious harm to people.
The installer, being either professional or DIY, is the last person
on the site who can ensure that the operator is safely installed, and that
the whole system can be operated safely.
IMPORTANT
SAFETY INSTRUCTIONS
Warnings for the Installer
CAREFULLY READ AND FOLLOW ALL INSTRUCTIONS before beginning to install
the product.
• All installation, repair, and service work to this product must be carried out by a
suitably qualied person
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety
• Do not activate your gate unless you can see it and can determine that its area of
travel is clear of people, pets, or other obstructions
• NO ONE MAY CROSS THE PATH OF A MOVING GATE;
always keep people and objects away from the gate and its area of travel
• NEVER LET CHILDREN OPERATE OR PLAY WITH THE GATE CONTROLS
• Secure all easily-accessed gate opener controls in order to prevent unauthorised use
of the gate
• Do not in any way modify the components of the automated system
• Do not install the equipment in an explosive atmosphere: the presence of ammable
gasses or fumes is a serious danger to safety
• Before attempting any work on the system, cut electrical power to the operator and
disconnect the batteries
• The Mains power supply of the automated system must be tted with an all-pole
switch with contact opening distance of 3mm or greater; use of a 5A hydraulic
breaker with all-pole circuit break is recommended
• Make sure that an earth leakage circuit breaker with a threshold of 30mA is tted
upstream of the system
IMPORTANT SAFETY INSTRUCTIONS SAFETY FIRST

page 6 www.CentSys.com
• Never short-circuit the battery and do not try to recharge the batteries with power
supply units other than that supplied with the product, or manufactured by
Centurion Systems (Pty) Ltd
• Make sure that the earthing system is correctly constructed, and that all metal parts
of the system are suitably earthed
• Safety devices must be tted to the installation to guard against mechanical
movement risks such as crushing, dragging and shearing
• It is recommended that at least one warning indicator light be tted to every system
• Always t the warning signs visibly to the inside and outside of the gate
• The installer must explain and demonstrate the manual operation of the gate in case
of an emergency, and must hand the User Guide/Warnings over to the user
• The installer must explain these safety instructions to all persons authorised to use
this gate, and be sure that they understand the hazards associated with automated
gates
• Do not leave packing materials (plastic, polystyrene, etc.) within reach of children as
such materials are potential sources of danger
• Dispose of all waste products like packing materials, worn-out batteries etc, according
to local regulations
• Always check the obstruction detection system, and safety devices for correct
operation
• Neither Centurion Systems (Pty) Ltd, nor its subsidiaries, accept any liability caused
by improper use of the product, or for use other than that for which the automated
system was intended
• This product was designed and built strictly for the use indicated in this
documentation; any other use, not expressly indicated here, could compromise the
service life/operation of the product and/or be a source of danger
• Everything not expressly specied in these instructions is not permitted
IMPORTANT SAFETY INSTRUCTIONSSAFETY FIRST
Never run the operator directly from the battery!
Doing so will cause damage to the operator.
Only run the operator from the V-Series Controller.

page 7www.CentSys.com
This section has been left blank intentionally.

page 8 www.CentSys.com
The VANTAGE linear swing gate motor, available in two models with actuation strokes of
400mm and 500mm, respectively, has been designed to automate a wide variety of swing
gates, from single light-domestic gates to heavy industrial double swing gates.
The fail-safe and fully-redundant Position and Collision Detection System has been designed
and tested to set the standard in safety of operation and to provide an unparalleled level of
reliability and durability in operation.
The gate Travel Limits are managed by a sealed double-redundant opto-electronic system
that has been designed not only to ensure ultra-reliable operation, but also to ensure precise
position and trajectory control. This enables very accurate and reliable collision detection to
ensure safe operation even under trying conditions.
This guide covers the mechanical installation of your new VANTAGE swing gate operator.
SECTION 1 GENERAL DESCRIPTION
1. General Description
VANTAGE swing gate operators can be installed on both inward- and
outward opening swing gates. Please see the relevant sections for each
type of installation, paying attention to any site preparation that needs
to be made before the operators are installed.

page 9www.CentSys.com
SECTION 2ICONS USED IN THIS MANUAL
2. Icons Used in this Manual
This icon indicates tips and other information that could be useful during the
installation.
This icon denotes variations and other aspects that should be considered during
installation.
This icon indicates warning, caution or attention! Please take special
note of critical aspects that MUST be adhered to in order to prevent
injury.

page 10 www.CentSys.com
SECTION 3 SPECIFICATIONS

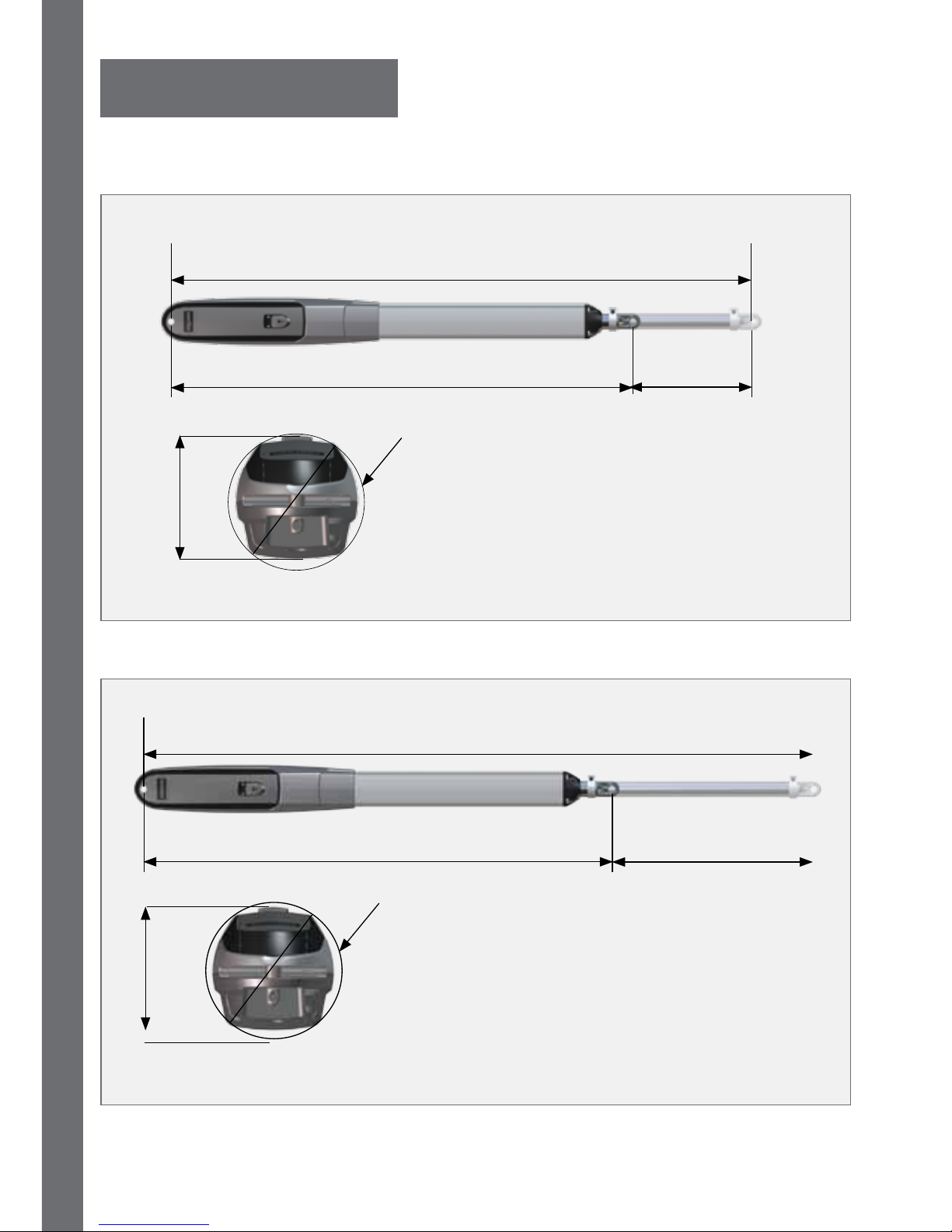

3.1. Physical Dimensions
1000mm retracted
1400mm extended
95mm
Ø100mm
400mm
extended
piston stroke
500mm
extended
piston stroke
FIGURE 1. VANTAGE 400 OVERALL DIMENSIONS
FIGURE 2. VANTAGE 500 OVERALL DIMENSIONS
1600mm extended
95mm
1100mm retracted
Ø100mm
3. Specications

page 11www.CentSys.com
SECTION 3SPECIFICATIONS
3.2. Technical Specications - VANTAGE Operator
VANTAGE 400 VANTAGE 500
Input voltage 90V - 240V AC ± 10%, 50/60Hz
Motor voltage 12V DC
Motor power supply Battery-driven (standard capacity - 7Ah)1
Battery charger21.8A @ 13.8V
Current consumption (Mains) 170mA
Current consumption (motor at rated load) 15A - maximum
Operator push force - maximum 250kgf
Operator stroke 400mm 500mm
Piston extension/retraction speed 28mm/sec (variable)
Typical gate opening time314.3 sec 17.8 sec
Manual override Key release4
Maximum number of operations per day 250
Duty cycle - Mains present5 6 50%
Operations in standby with 7Ah battery7
Half day 70
Full day 58
Collision Sensing Electronic
Operating temperature range -15°C to +50°C
Mass of unit packed (excluding battery)
Single kit88.5kg 9kg
Double kit914kg 15kg
1. Can increase battery capacity for longer standby times
2. Can operate o a solar supply, consult your reseller for assistance
3. Assumes a full stroke of operator is used
4. Each operator comes with a unique set of keys
5. Based on 25°C ambient temperature and unit not in direct sunlight
6. Based on an operator push force of less than 50% of rated
7. Based on double kit excluding Infrared Safety Beams
8. Single kit contains one operator and Wall Box
9. Double kit contains two operators and one Wall Box
TABLE 1

page 12 www.CentSys.com
SECTION 3 SPECIFICATIONS
3.3. V-Series Controller
Maximum motor current per channel 15A (fused)
Maximum input voltage 14.4V DC
Standby current draw 48mA
Maximum solenoid current draw 2A DC
Maximum auxillary output current 3A (Resettable Electronic Fuse)
Collision detection Current sense and redundant-optical
Position and trajectory control Redundant optical
Temperature range -20°C to +60°C
Onboard receiver type Code-hopping multichannel
Receiver code storage capacity 64 transmitter buttons
Receiver frequency 433MHZ
TABLE 2
3.5. Power Supply
Nominal input voltage 90V - 240V AC ±10% @ 50/60Hz
AC current draw (maximum) 170mA
Temperature range -20°C to +60°C
Battery charger output current
(dependant on PSU input voltage)
90V AC input: 1.2A @ 13.8V
240V AC input: 1.8A @ 13.8V
TABLE 3
3.4. Lightning Protection
The V-Series Controller utilises the same proven surge protection philosophy that is
used in all our products. While this does not guarantee that the unit will not be damaged
in the event of a lightning strike or power surge, it greatly reduces the likelihood of
such damage occurring. The earth return for the surge protection is provided via the
mains power supply earth. In order to ensure that the surge protection is eective, it is
essential that the unit is properly earthed.

page 13www.CentSys.com
SECTION 3SPECIFICATIONS
3.6. Allowable Gate Mass
Ensure that the gate leaf meets Wind Load Specications
Gate
swing
angle
Up to
1.5m
Up to
2m
Up to
2.5m
Up to
3m1
Up to
3.5m1
Up to
4m1
90° 500kg 500kg 500kg 360kg 260kg 200kg
100° 500kg 500kg 388kg 160kg 190kg 150kg
110° 500kg 306kg 198kg 130kg
120° 180kg 100kg 65kg Not recommended
TABLE 4
1. An electric lock must be tted to secure gate in closed position
Gate
swing
angle
Up to
1.5m
Up to
2m
Up to
2.5m
Up to
3m1
Up to
3.5m1
Up to
4m1
90° 750kg 750kg 750kg 550kg 410kg 310kg
100° 750kg 750kg 600kg 420kg 310kg 230kg
110° 750kg 500kg 320kg 220kg
120° 310kg 170kg 110kg Not recommended
Maximum allowable gate mass for the VANTAGE 500 operator
TABLE 5
1. An electric lock must be tted to secure gate in closed position
Maximum allowable gate mass for the VANTAGE 400 operator

page 14 www.CentSys.com
SECTION 3 SPECIFICATIONS
Wind speeds for which operator will still operate the gate.
(VANTAGE 400 or VANTAGE 500 operators)
For a 25% covered gate: (Palisades, etc.) x 1.8 metre high
Value of
A or B
dimension
once
installed1
Individual gate leaf lengths:
Up to
1.5m
Up to
2m
Up to
2.5m
Up to
3m2
Up to
3.5m2
Up to
4m2
100mm 94km/h 66km/h 48km/h 44km/h 41km/h 37km/h
140mm 119km/h 85km/h 65km/h 57km/h 51km/h 46km/h
180mm 138km/h 101km/h 78km/h 67km/h 60km/h 53km/h
220mm 156km/h 114km/h 89km/h 76km/h 67km/h 60km/h
260mm 171km/h 126km/h 99km/h 84km/h 74km/h 65km/h
300mm 186km/h 137km/h 108km/h 91km/h 80km/h 71km/h
340mm 199km/h 147km/h 116km/h 98km/h 86km/h 76km/h
Wind speeds for which operator will still operate the gate.
(VANTAGE 400 or VANTAGE 500 operators)
For a 100% covered gate: (Fully-clad gates, etc.) x 1.8 metre high
Value of
A or B
dimension
once
installed1
Individual gate leaf lengths:
Up to
1.5m
Up to
2m
Up to
2.5m
Up to
3m2
Up to
3.5m2
Up to
4m2
100mm 47km/h 33km/h 24km/h 22km/h 47km/h 19km/h
140mm 59km/h 43km/h 32km/h 28km/h 59km/h 23km/h
180mm 69km/h 50km/h 39km/h 34km/h 69km/h 27km/h
220mm 78km/h 57km/h 44km/h 38km/h 78km/h 30km/h
260mm 86km/h 63km/h 49km/h 42km/h 86km/h 33km/h
300mm 93km/h 63km/h 54km/h 46km/h 93km/h 35km/h
340mm 100km/h 74km/h 58km/h 49km/h 100km/h 38km/h
TABLE 6
TABLE 7
1. See Section 9/10 for installation details
2. An electric lock must be tted
1. See Section 9/10 for installation details
2. An electric lock must be tted
3.7. Allowable Wind Load

page 15www.CentSys.com
4. Product Identication
SECTION 4PRODUCT IDENTIFICATION
FIGURE 3. KIT IDENTIFICATION
5
6
1
2
3
4
7
1. Keys are specic to each operator - key number must be recorded
1
2
8
9
10
11
12
1. Gate Bracket pin
2. 14mm snap ring
3. VANTAGE gate operator
(complete assembly)
4. Wall Bracket
5. Wall Bracket mounting plate
6. Mechanical Installation Manual
7. Gate operator keys1
8. Stainless steel cap screw M5 x 25
9. Origin clamp
10. M5 barrel nut
11. Gate Bracket
12. Gate Warning Decal

page 16 www.CentSys.com

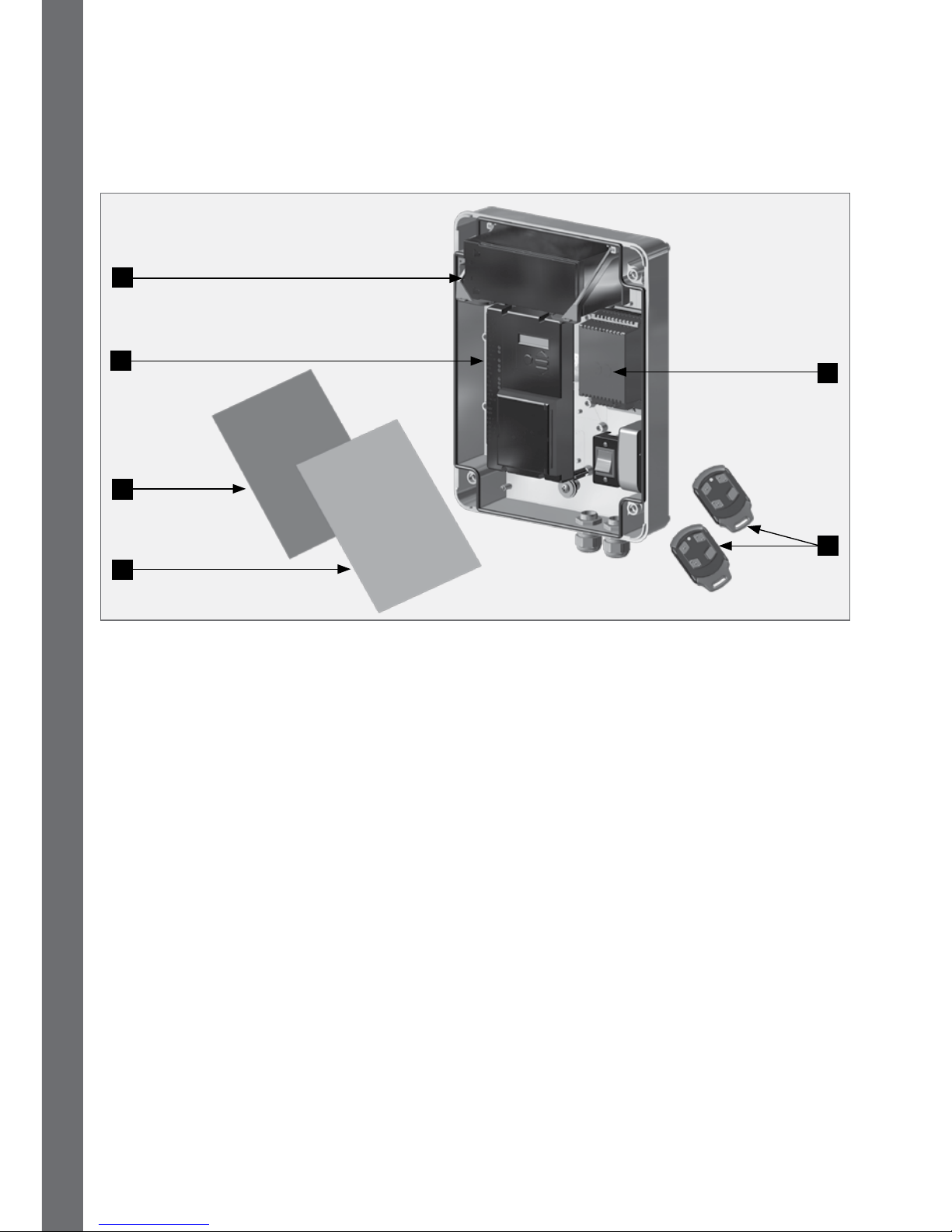

1. 12V 7.2Ah Battery 1
2. V-Series Controller with built-in
receiver
3. V-Series User Guide
4. V-Series Electrical Setup &
Commissioning Guide
5. Charger
6. Code-hopping remote controls
FIGURE 4. V-SERIES WALL BOX INCLUDING CHARGER AND CONTROLLER
3
4
6
1
5
2
SECTION 4 PRODUCT IDENTIFICATION
4.1. V-Series Wall Box
1. Batteries can be of a larger capacity for longer power failure autonomy and are not included in the kit;
Consult your local authorised dealer for assistance

page 17www.CentSys.com
FIGURE 5
Spanners
17mm/15mm
preferably socket set
Crimping tool
and Pin lugs
Ø12mm masonry drill bit for
wall mount bracket
Ø6.5mm steel drill bit
for gate bracket
Connector
block
Hole saw
20mm
Angle grinder
Pin punch
6mm
Hacksaw
Spirit level
Marking
pen/chalk
Extension cord
Soldering
iron
Safety equipment
(goggles, gloves etc.)
Welding machine
(including consumables)
and safety equipment
Measuring
tape
Allen key
5mm
G-clamps
x2
Electric drilling
machine
Screwdrivers
6mm Phillips
3.5mm Flat
Hammer
Pliers
5. Required Tools & Equipment
SECTION 5REQUIRED TOOLS & EQUIPMENT

page 18 www.CentSys.com
6.1. General Consideration for the Installation
Always recommend the tment of additional safety equipment such as safety edges
and Safety Beams (i5 or Photon), for additional protection against entrapment or
other mechanical risks.
Check that no pipes or electrical cables are in the way of the intended installation.
Check that enough space is available for the gate operator with the gate in the
required open position (see Figure 6).
If the swing gate leaf is longer than 3 metres, ensure that an electric lock can be
tted.
For security reasons, never t an operator on the outside of the gate, where the
public has access to it (refer to the instructions for an Outward-opening swing gate).
Never run an operator directly o the 12V battery.
Install the gate operator only if:
• It will not pose a hazard to the public
• There is sucient clearance to a roadway and/or public thoroughfares
• The installation will meet all municipal and/or local authority requirements once
completed
• The gate mass, leaf width, wind loading and application is within the operator
specications
• The gate is in good working order, meaning:
• that it swings freely;
• does not move on its own if left in any position;
• each gate leaf is strong and rigid;
• Once installed, there is sucient clearance between moving parts during operation of
the gate to reduce the risk of personal injury and/or entrapment
• It is recommended that Pushbuttons and Keyswitches, if tted, be positioned in such
a way that the gate is in line of sight of the user
6. Preparation of Site
SECTION 6 PREPARATION OF SITE

page 19www.CentSys.com
SECTION 6PREPARATION OF SITE
6.2. Determine Gate Opening Angle
Use this procedure to accurately determine the gate opening angle:
FIGURE 6
1 metre
1 metre
Gate in closed
position
Gate hinge
point
Gate in open position
Mark the ground
Distance Z
Mark the ground
Wall
6.2.1. Step 1
Close the gate and measure a
distance of one metre from the
centreline of the gate hinge.
Make a mark on the ground.
6.2.2. Step 2
Open the gate and measure along the
gate a distance of one metre from
the centreline of the gate hinge.
Make a mark on the ground.
Measure the distance on the ground
between the two marks (Z).
Using this Z-Value, read o the gate
opening angle from the Table below.
6.2.3. Step 3
Gate opening angle based on Z-Value
From To Use gate swing angle of
1414mm 1521mm 90° - 99°
1532mm 1638mm 100° - 110°
TABLE 8

page 20 www.CentSys.com
SECTION 6 PREPARATION OF SITE
6.4. Side Wall Limitation - Inward Opening
Figure 7 shows the side wall limitations for an Inward opening gate. The operator
must be installed in accordance with these limitations. If the wall minimum cannot be
achieved, consider using an outward swing conguration.
FIGURE 7. SIDE WALL LIMITATION FOR INWARD OPENING GATE
Wall minimum
must be greater than 200mm
Side wall
Wall Gate in closed position
Gate in open position
Gate swing angle
Gate hinge point
6.3. Key Terms Used in this Section
6.3.1. Pillar maximum
The maximum allowable distance measured from the centre of the gate hinge to the edge
of the pillar.
6.3.2. Wall minimum
This value denotes the minimum amount of space needed to install the operator and is
measured from the side wall to the gate when the gate is in the open position.
