Certa CTWHBTROL8A User manual

8-IN-1 TROLLEY, WHEELBARROW,
CART AND DOLLY
CTWHBTROL8A

General Safety Warnings
WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in serious injury. Retain this user guide for future reference.
WARNING: This product may contain lead, phthalate or other chemicals known to cause
cancer, birth defects and other reproductive harm. Always wash your hands after use.
• Operators should be aware of and minimise the following hazards:
o Running the cart’s wheels off of dock platforms, uneven surfaces or
inclines.
o Colliding with other carts or obstructions.
o Securing the load and closing containers to prevent losing control of the
load while moving.
o Jamming of the operator’s hands between the cart and other objects.
o Running the cart’s wheels over feet.
• When transporting chemicals, ensure to use the rails to prevent chemicals from
falling off the cart.
• Inspect carts routinely and do not use them if they show any signs of damage.
• Maintain adequate visibility. Do not stack materials beyond a safe height or in a
manner that obstructs vision. Pay attention to the path of travel and do not move
too fast.
• Do not exceed recommended load limits. Be aware of lifting/bending and other
ergonomic hazards when using carts. Avoid heavy loads that require excessive
force to move, do not twist while moving a cart and be aware of terrain hazards
that can cause the cart to shift or stop abruptly (e.g., cracks, dips, uneven surfaces,
etc.).
• Ensure that the load is not wider than the cart, especially when traveling in narrow
halls and doorways.
• Use caution when navigating carts on stairs or steep inclines.
• When not in use, carts should be parked in a designated area, not in aisles or other
places where they cause trip hazards, block traffic or obstruct access to breaker
boxes, fire extinguishers and other safety equipment.
• Do not sit or stand on the hand cart.
SAFETY & WARNINGS

Two-wheeled Cart Safety Warnings
• Keep the load’s center of gravity as low as possible. Place heavy objects below
lighter objects.
• Balance the load so the weight will be carried by the axle, not the handles. The
operator should only balance and push.
• Position the load so it will not slip, shift or fall; and use straps, chains or rope to
secure load, if necessary.
• Never walk backwards with a cart.
• When going up or down a slight incline, keep the cart in front of you. Do not
operate the cart on steep inclines.
Symbols
Pay close attention to the following symbols whenever they appear in this user guide.
Incorrect
Correct
Lock
Unlock

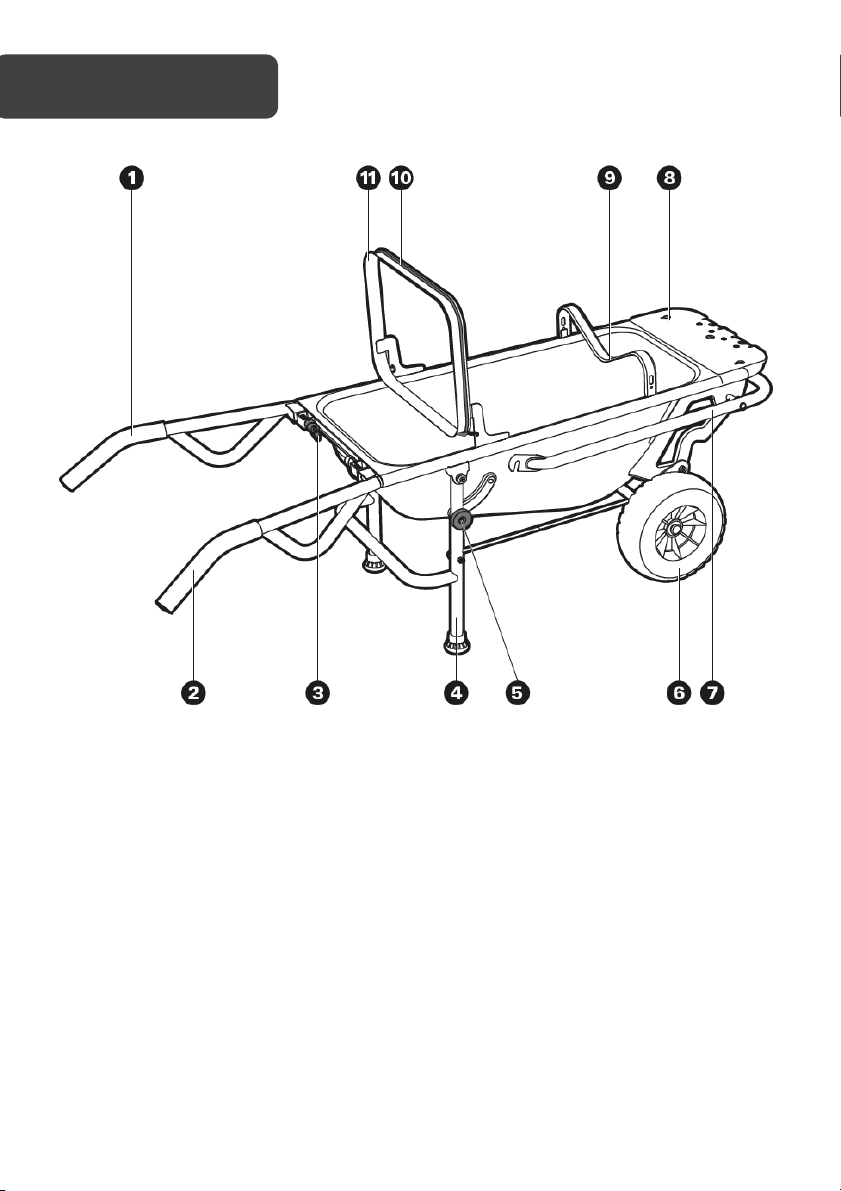

1
Left handle
7
Extension arm
2
Right handle
8
Dolly flap plate
3
Handle locking lever
9
Cylinder holder
4
Leg
10
Elastic cord
5
Leg lock knob
11
Bag holder
6
Wheel
OVERVIEW

Accessories
12
Wheel shaft
13
Lock pin
14
Rock mover
15
Plant mover strap

The main body of the cart has been assembled at the factory. If you find any parts damaged
or missing, do not continue with assembly and contact Kogan.com for support.
Before beginning, remove all packing material, including black rubber corner pieces which
are attached to the corners of tub.

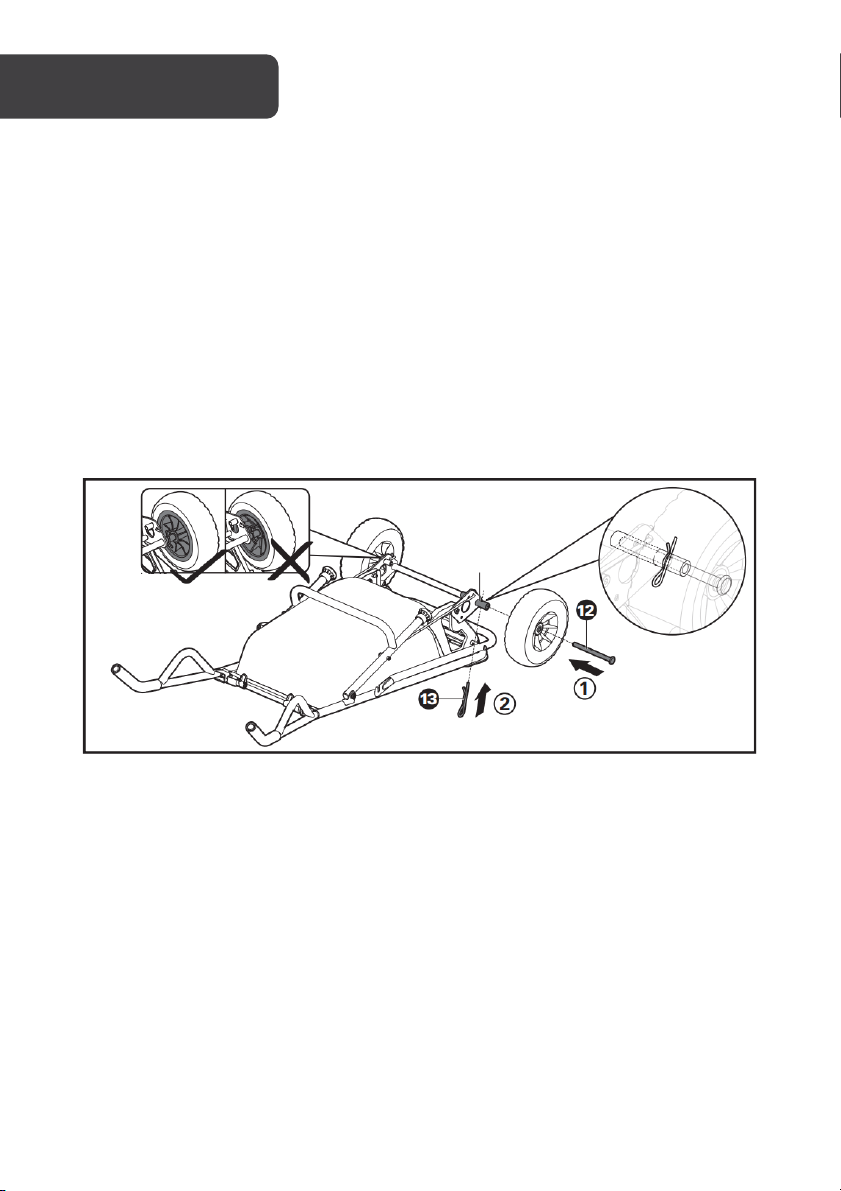

Step 1: Attach Wheels
• Insert the wheel shaft through the wheels and into the axle.
Note: Ensure the concave side of the wheel is facing outward.
• Secure the wheel shaft by inserting the lock pin through both the wheel shaft and
axle.
ASSEMBLY
Axle

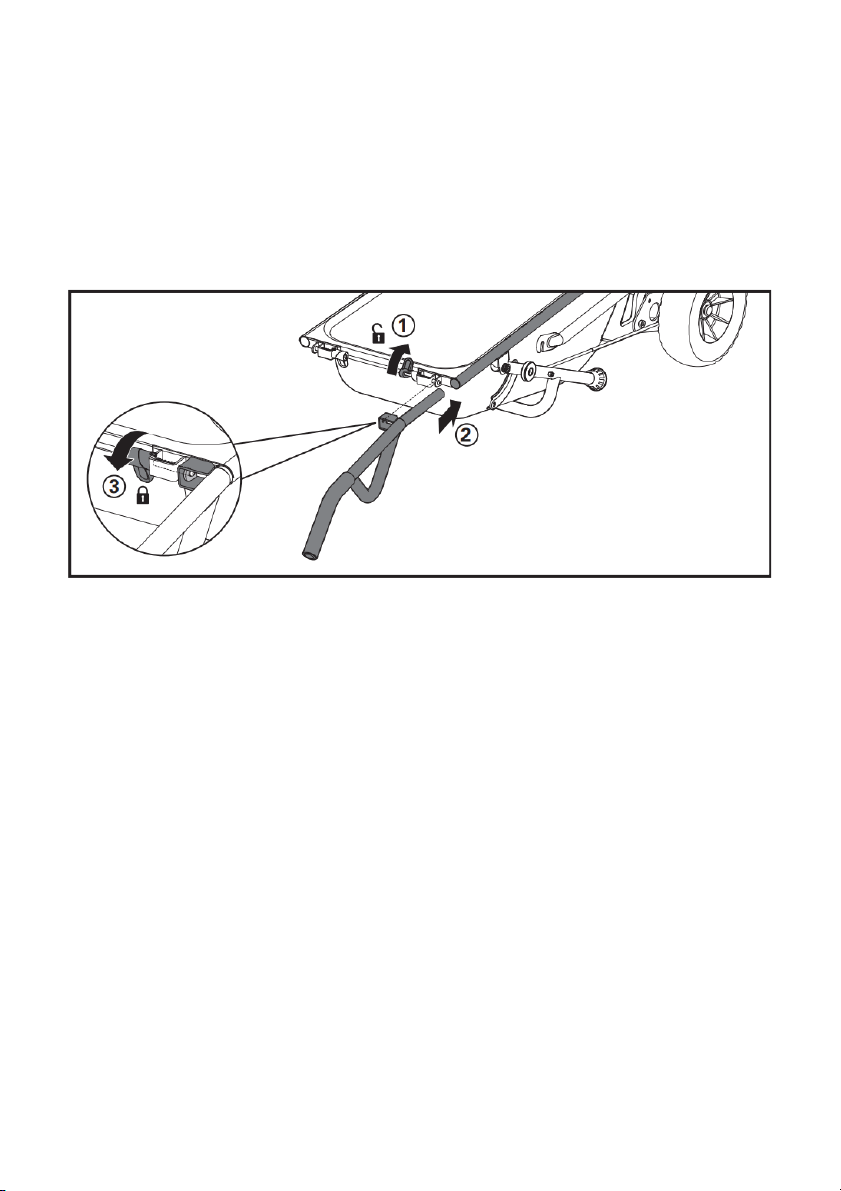

Step 2: Attach Handles
• Lift the handle locking lever.
• Attach the handles to the cart.
• Return the handle locking lever to the locked position.
Note:Pay attention to the orientation of the tabs on the handles. They can only be
attached to one side of the cart.

Wheelbarrow: 136kg
Hand trolley:136kg
Cylinder holder:36kg
Extension arms: 36kg
Bag holder:18kg
Trailer dolly:45kg
(trailer weight: 450kg)
WEIGHT LIMITS

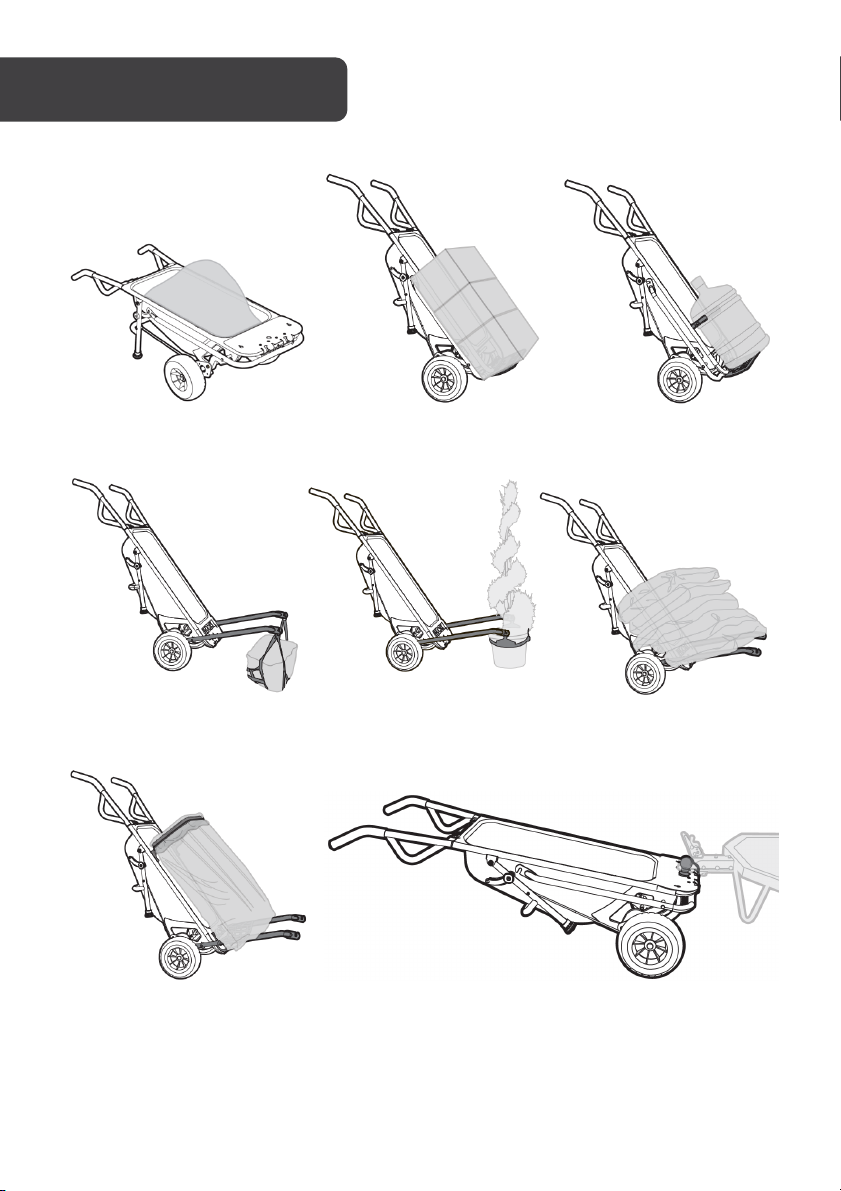

This product is able to transform between a hand trolley and a wheelbarrow. The
wheelbarrow configuration features two wheels for improved stability and comfort.
When you first remove the product from its packaging it will be in the hand trolley
configuration with the dolly flap plate closed.
Wheelbarrow Mode
1. Stand the cart up vertically so that it is resting on its nose.
2. Grasp the leg support and pull upwards until the leg lock knob ‘clicks’ into the
locked position.
3. Lower the cart back down so it is resting on its legs.
4. The cart is now able to be used as a wheelbarrow.
OPERATION
Click!

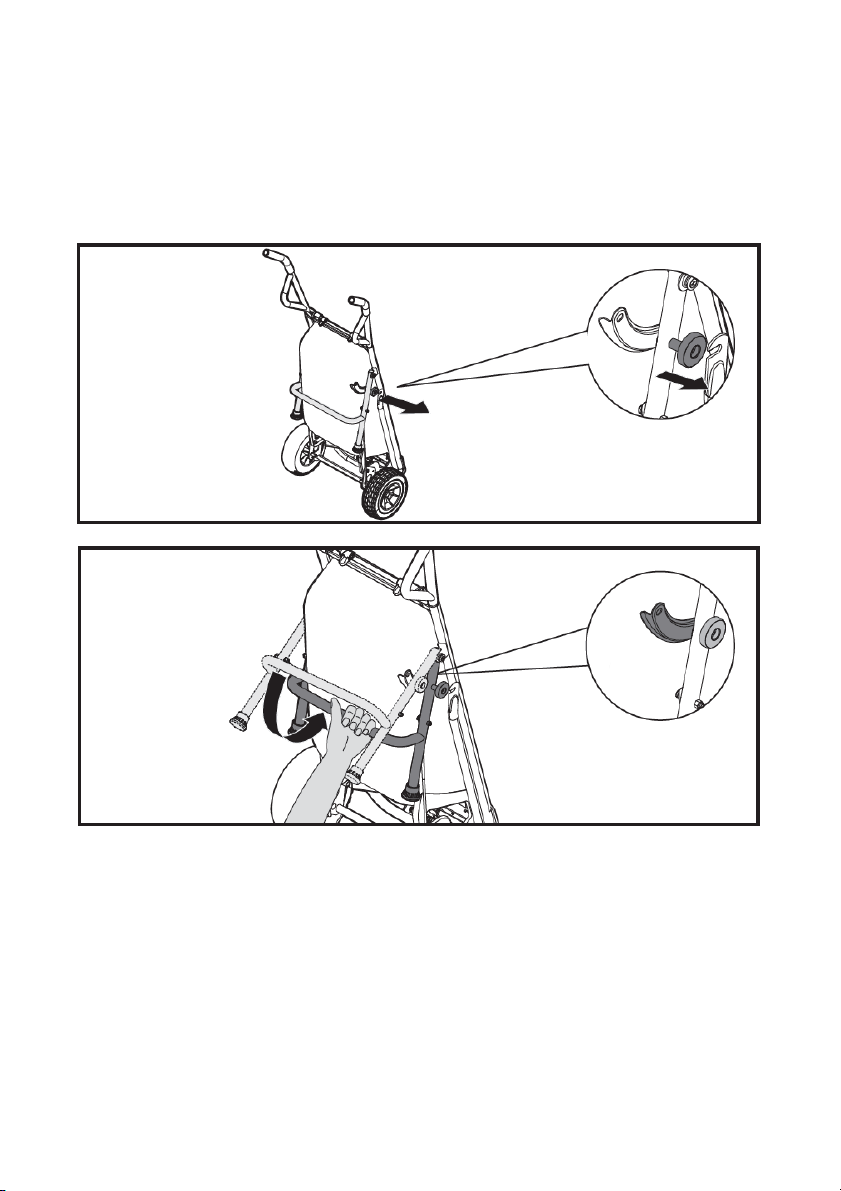

Hand Trolley Mode
• Stand the cart up vertically so that it is resting on its nose.
• Firmly pull the leg lock knob outward.
• Lower the legs down until the leg lock knob ‘clicks’ back into the locked position.
Click!

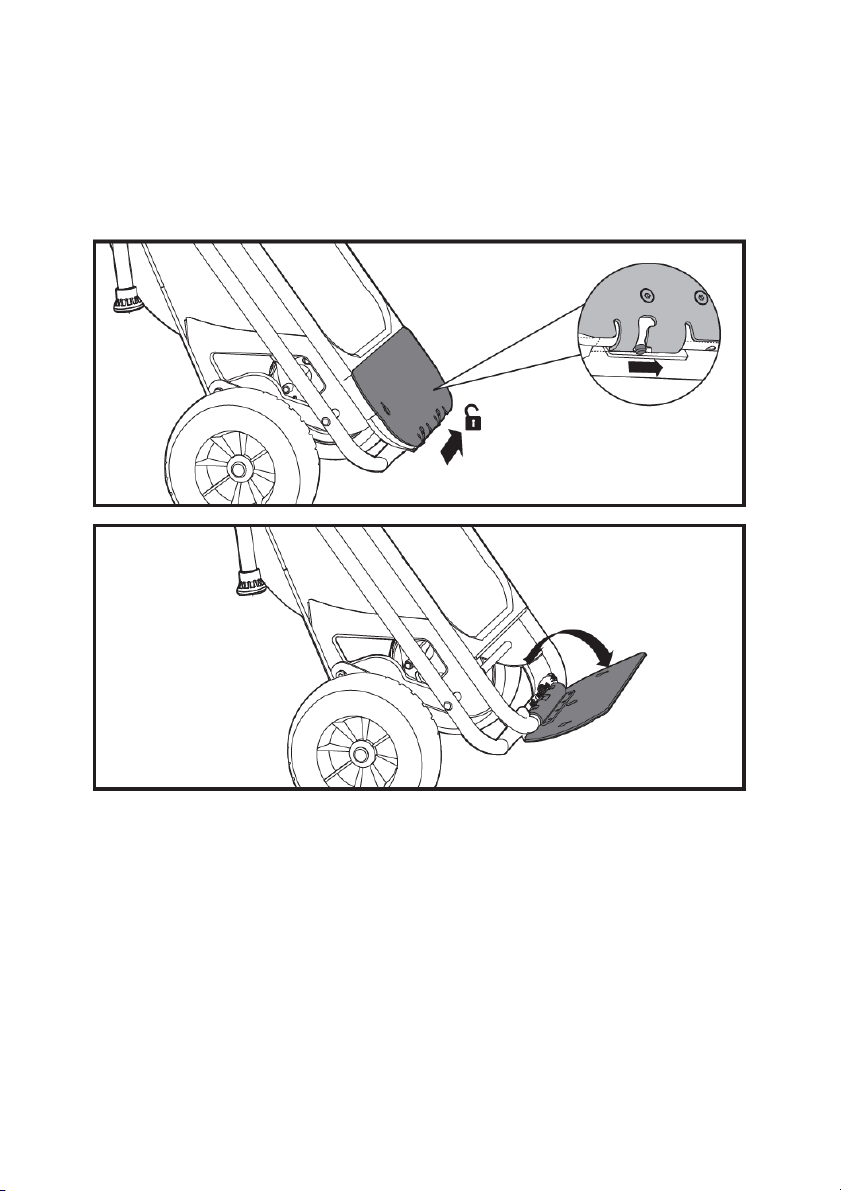

Dolly Flap Plate
• Slide the dolly flap plate towards the right, as shown below.
• Flip the dolly flap plate up or down as required.
Note: The dolly flap plate will automatically lock back into position.

Attaching the Cylinder Holder
• Ensure the cart is in hand trolley mode with the dolly flap plate opened.
• Insert the tabs on the cylinder holder in the slots on the rim of the tub.
• Press down firmly to ensure that the tabs are well seated in the slots.
• Place load onto the cylinder holder and secure it in place.
WARNING:Always follow manufacturer’s instructions when securing
and transporting pressurised tanks or similar items.

Extension Arms
Grasp and position the extension arms into the position desired.
Attaching the Bag Holder
• Insert the tabs on the bag holder in the slots on the rim of the tub.
• Press down firmly to ensure that the tabs are well seated in the slots.
• Place a bag into the bag holder and secure it place using the elastic strap.

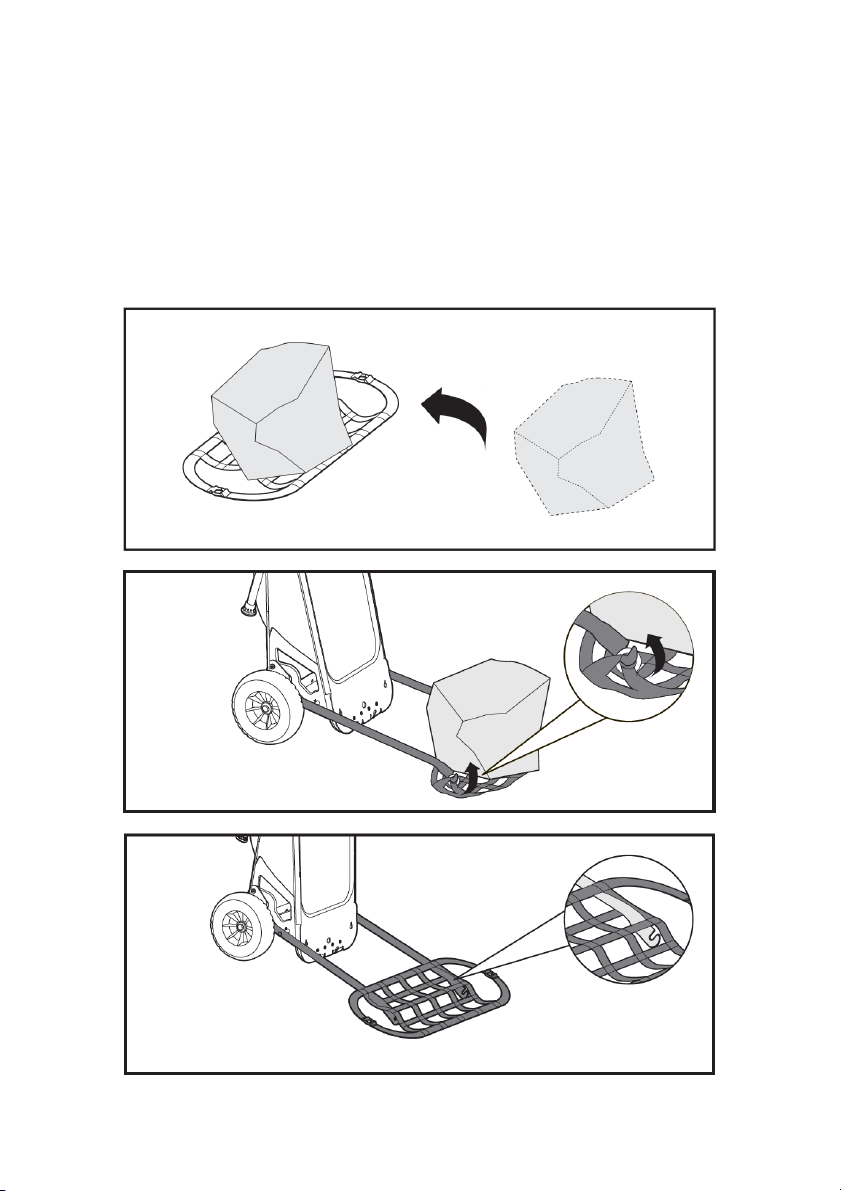

Attaching the Rock Mover
• Carefully position the rock or heavy object onto the rock mover.
• Attach the rings on the rock mover to the extension arms.
• Alternatively, the rock mover mesh can be directly attached to the extension arms
before loading an object.
Note:This method is suitable when transporting a bag or an object that may tend
to sag.

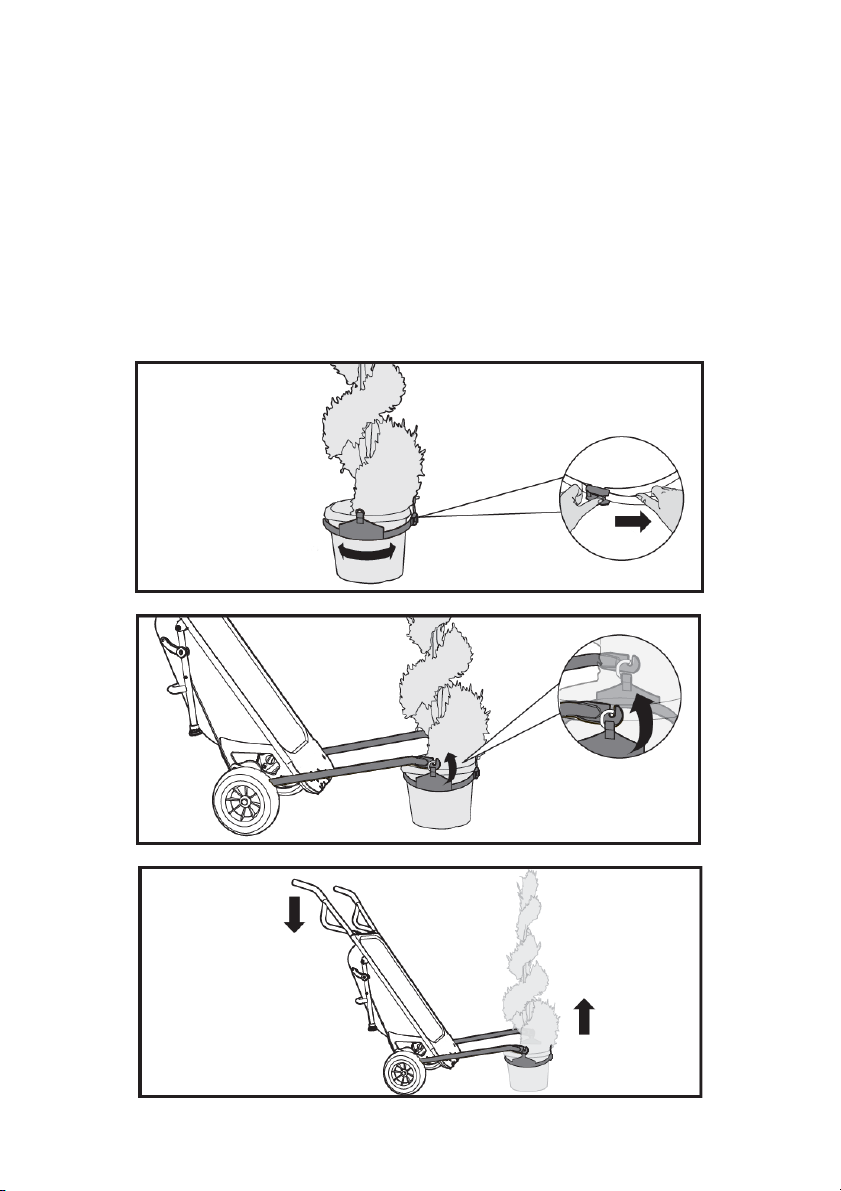

Attaching the Plant Mover
• Place the plant mover strap around the pot or object. Ensure the metal rings are
pointing upward.
• Tighten the strap securely.
• Space the metal rings an equal distance apart.
• Connect the rings on the plant mover strap to the extension arms.
• Lift the object carefully by pushing down on the handles.
Note: If the load is not balanced, reposition the rings on the plant mover strap.

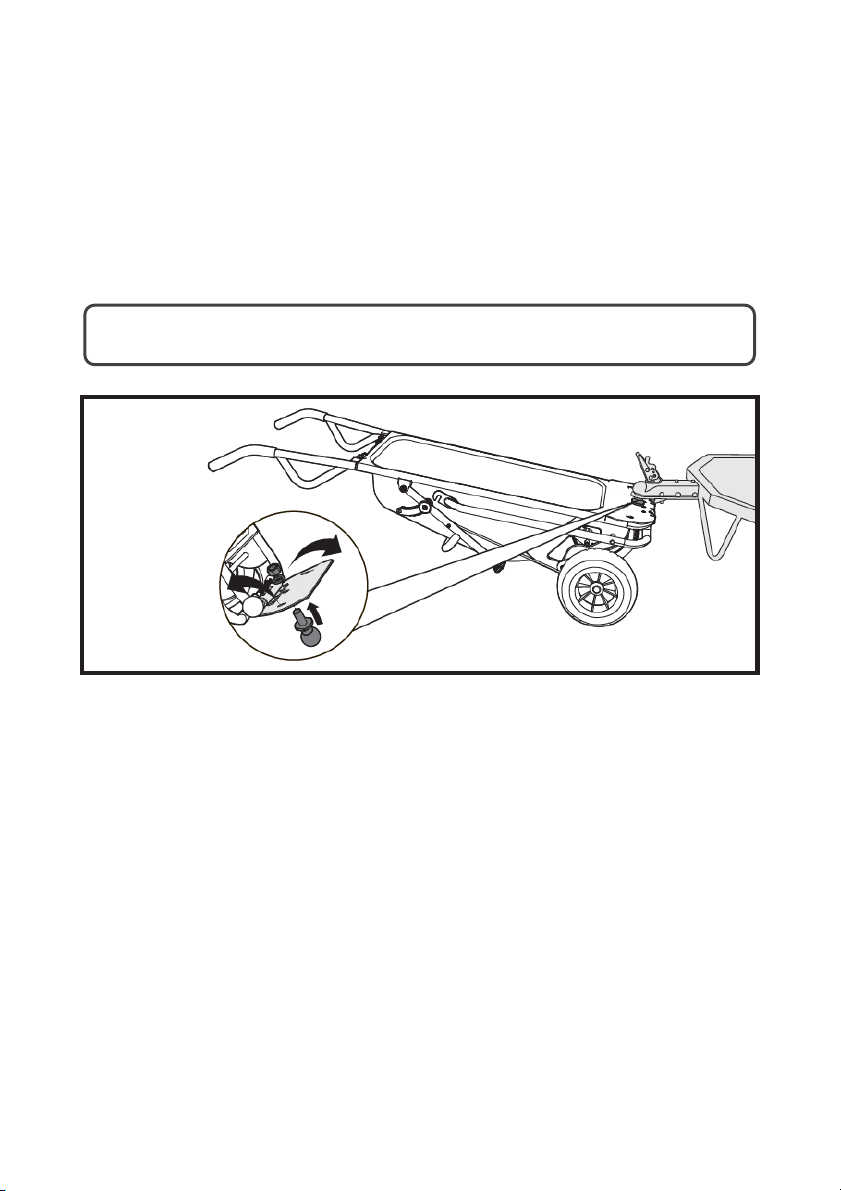

Trailer Dolly
• Ensure the cart is in hand trolley mode with the dolly flap plate opened.
• Locate the hole in the dolly flap plate and insert a tow ball (not included) into the
hole.
• Secure the tow ball to the dolly flap plate using the fasteners supplied with your
tow ball.
• Position the tow ball under trailer hitch and push the handles down to raise the
trailer.
WARNING:Do not attempt to move a trailer on a steep incline.
