Certa CTJMPSTW16A User manual

16000MAH WATER RESISTANT
PORTABLE JUMP STARTER
CTJMPSTW16A

1. Use only the original supplied smart battery clamp to start the car.
2. Do not use this unit if any cable clamp or cord is damaged.
3. Do not connect two clamps together when the product is turned on.
4. Do not connect both cable clamps to the same piece of metal. Otherwise, the
jump starter will be damaged.
SAFETY AND WARNINGS

No. Function Operation
1 ON/OFF Button
(Multifunctional) Press to charge and display the remaining capacity. Long press to turn the flashlight on/off.
2 Charge Indicator Lights Shows the charging progress: 25%, 50%, 75% and 100%.
3 LED Flashlight Flashlight modes: Solid, SOS, Flash and Off
4–5 USB Output Port 1-2
(QC 3.0) Charge your devices (QC 3.0 compatible) faster, with 75% increase in speed.
6 USB-C Input Charge the jump starter (via USB-A to USB-C cable).
7 Micro USB Input Port Charge the jump starter via the Micro USB cable.
8 Jump Starting Port Connect the jump starter plug
9 Black Clamp Connect the black clamp to the negative terminal of the
car battery.
10 Red Clamp Connect the red clamp to the positive terminal of the car
battery.
11 Plug Connect the jump starter plug
12 Battery Clamp Indicator
Lights Show the status of the smart battery clamp.
13 Force Start Button Press to force start if the car battery voltage is too low.
OVERVIEW

Charging the Product
1. Connect the jump starter and the power source via the USB-C cable or Micro USB
cable.
2. Short press the ON/OFF button to turn on the product. While charging the jump
starter, the battery level indicator will flash. Once it is fully charged, all 4 battery
level indicator lights will be on.
3. Unplug the cable when no charge is required.
Power Bank
1. Connect your device to the via USB cable.
2. Press the ON/OFF button to turn on the product.
3. Unplug the cable when no charge is required.
LED Flashlight
Long press ON/OFF button for 3 seconds to turn on the light. Short press ON/OFF button to
cycle through Solid, SOS, Flash and OFF
Jump Start Car
Note:
 When using the product for the first time, make sure that the jump
starter is fully charged.
 Please use the provided USB-C cable or Micro USB cable to charge
the product.
 Wall adapter is not included in the package.
Note:
 This product is for 12V cars only (up to all petrol or 6.0L diesel engine)
 Check to make sure that 3 or 4 indicator lights are illuminated
(indicating the battery level is above 50%) before you use it to jump start
your car.

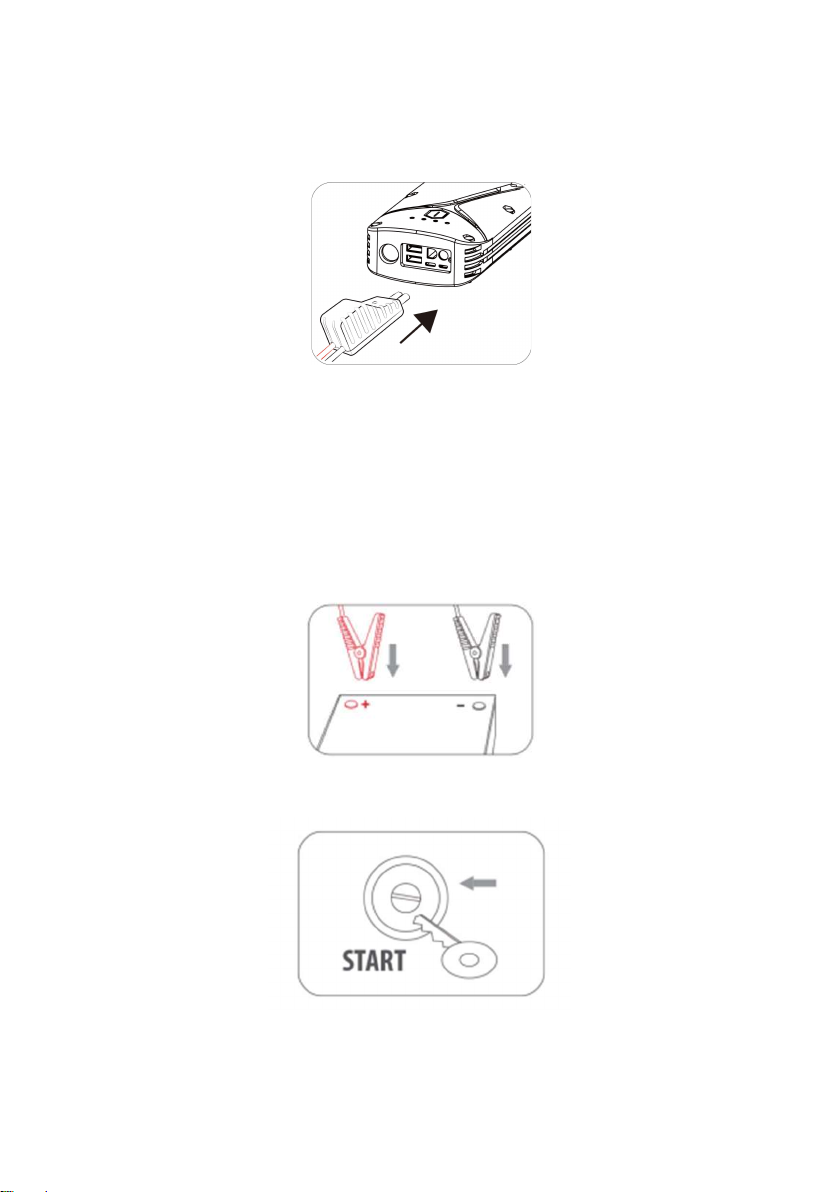

Step 1
Insert the plug of the smart battery clamp completely into the jump starter. If the green and
red light indicators on the battery clamp are flashing alternately, you are safe to move onto
the next step.
Step 2
Connect the red clamp to the positive terminal (+) of the car battery and connect the black
clamp to the negative terminal (-) of the car battery. If the green and red light indicators on
the battery clamp are flashing alternately, you are safe to move onto the next step.
However, if the red indicator light is on:
1. The battery clamp may be connected in reverse. If so, you need to disconnect the
battery clamp from the vehicle and the jump starter.
2. Adjust the clamps for maximum contact with battery terminals.
Step 3
a. Start your car.
 If you failed to start your car, you need to disconnect the battery clamp from the
vehicle and the jump starter. Wait for at least 30 seconds and then try again.
 If you failed to start your car after 3 attempts, you can use the force start function.
See step 3-b.

b. (optional): Force Start Function
First please make sure that the clamps are connected to the correct polarity battery
terminal. Then, hold the force start button for 3 seconds to start your car. When the indicator
light of the smart clamp is solid green, you need to start the vehicle within 30 seconds.
Step 4
Once your car is started, remove the battery clamp from the car battery and the jump starter
within 30 seconds.
LED Indicators
Indicator Situation
The red/green light will
flash Ready to work
The green light is
always on Work status
The red light is always
on
1. Battery clamp is reversely connected.
- Check whether the clamp is reversely connected.
2. The clamp is short-circuited.
- Check whether two clamps together connect or connect
both clamps to the same piece of metal.
The red light flashes
slowly
Reverse charging protection, the voltage of the car battery is
higher than 12.6V.
-No jump starter needed, the car battery is enough to start
your car.
The red light flashes
quickly The temperature of the clamp exceeds 65(+/-5) degrees. -Remove the clamp until the red/green light flash
The green light flashes
slowly The voltage of the jump starter is too low. -Try to replace the jump starter or charge it in time.

1. DO NOT use the product to start a bulging, damaged or faulty car battery.
2. Store the product in a shaded, well-ventilated area.
3. Handle the product with care and do not abuse it. Avoid dropping or striking the
product heavily or repeatedly.
4. DO NOT disassemble or modify the product.
5. DO NOT use detergents to clean the product.
6. DO NOT place the products in a high-temperature environment for long.
- The operating temperature of this product is -20-60°.
- The storage temperature of the product should not exceed 50°C.
7. Check the battery level of the product at least once every three months and ensure
it is sufficiently charged.
8. Keep the product away from children and pets.
Capacity 16000mAh
Micro USB input 5V/2A
Type C input 5V/2A
USB output 1 5V/3A, 9V/2A, 12V/1.5A
USB output 2 5V/3A, 9V/2A, 12V/1.5A
Start current 600A (last for 1s)
Peak current 1200A (last for 0.2s)
Short circuit protection Effective
Over-discharge protection
≦
3v±0.3v
Over-temperature protection >65°±5C°
Reverse polarity protection Effective
Reverse charging protection
≧
(12.6v±0.3v)
Dimensions (L*W*H) 185*100*45mm
SPECIFICATIONS
MAINTENANCE

Q: How do I turn off the product?
A: This product will power off automatically when no load is detected or when charging is
complete.
Q: How long does it take to fully charge the jump starter?
A: About 9 hours through the Micro USB input port or Type C input port.
Q: How many times can this product start the vehicle with full capacity?
A: About 20 times.
Q: How many times can this product fully charge my cell phone?
A: It depends on the battery capacity of your cell phone. For example, iPhone 8 can be fully
charged 4~5 times.
Q: What are the safety protections of the smart battery clamp?
A: Short-circuit protection, over-temperature protection, over-voltage protection, over-charge
protection, over-discharge protection, over-current protection and reverse polarity protection.
16000mAh Jump Starter 1
Smart Battery Clamp 1
USB Type C Cable 1
Micro USB Cable 1
User Manual 1
Carry Pouch 1
IN THE BOX
FAQ

Need more information?
This is a Quick Start Guide and while we hope that this has given you the assistance
needed for a simple set-up, a full user guide outlining all of this product’s instructions and
features can be found online at help.kogan.com
