CertaUPS C750 User manual

C750 / C750R USER MANUAL
A COMPLETE INSTALLATION
AND USER GUIDE
THE C750 & C750R SERIES
An uninterruptible power supply (UPS) incorporating
online double conversion technology, which
eliminates all mains power disturbances and IOT
Technology
www.certaups.com
For assistance please contact your local
CertaUPS partner.
Scan to download the APP

C750 & C750R User
Manual Page 4
Contents
SAFETY INSTRUCTIONS ............................................................................................................................................ 6
SPECIAL SYMBOLS .............................................................................................................................................. 6
SAFETY OF PERSONS........................................................................................................................................... 7
SPECIAL PRECAUTIONS...................................................................................................................................... 8
1. INTRODUCTION................................................................................................................................................... 9
1.1 SPECIAL CHARACTERISTIC:.......................................................................................................................... 9
1.2 ENVIRONMENTAL PROTECTION ................................................................................................................ 10
2. PRODUCT OVERVIEW....................................................................................................................................... 11
2.1 MODEL LIST ................................................................................................................................................. 11
2.2 PRESENTATION ............................................................................................................................................ 13

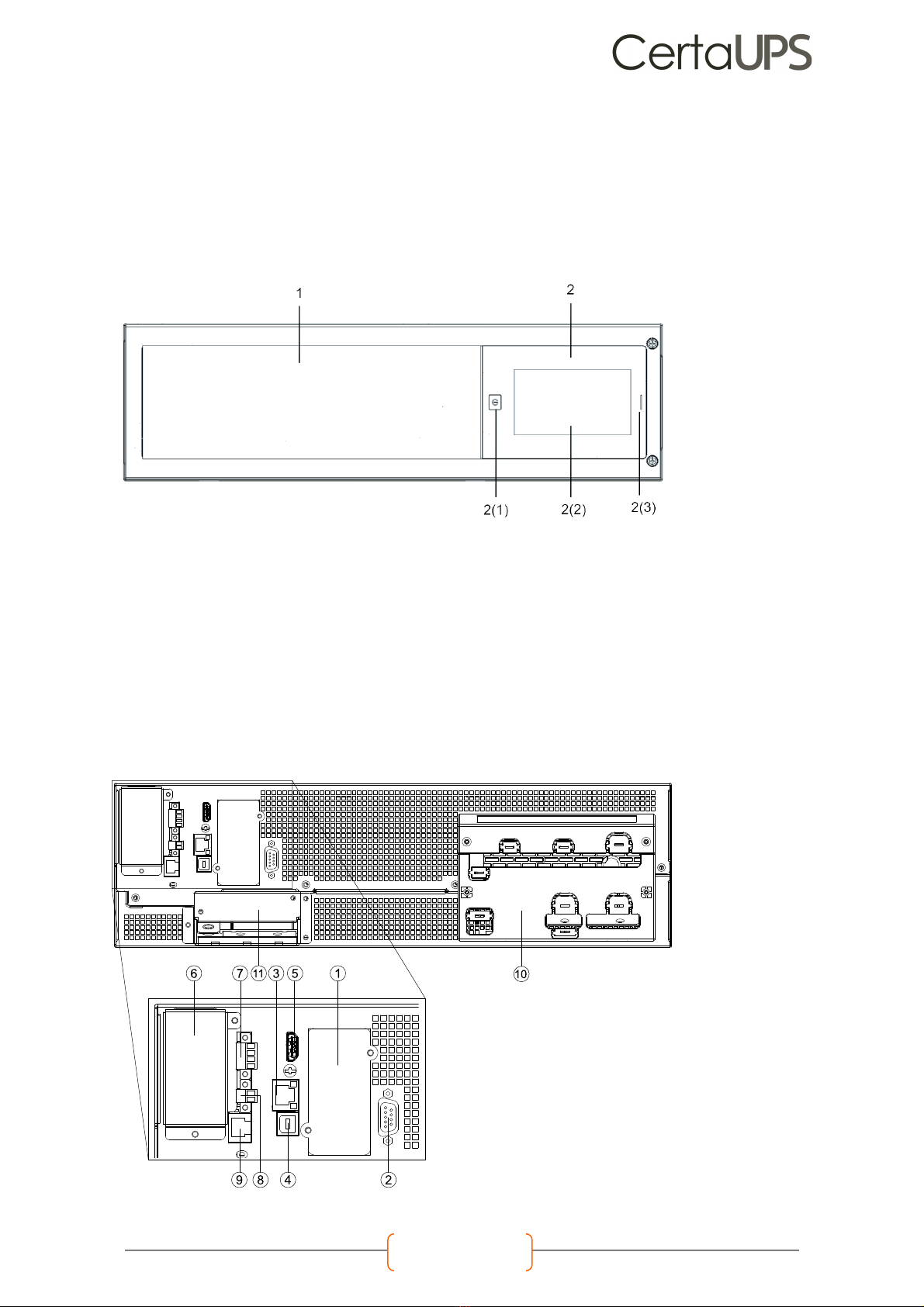

2.2.2 RACKMOUNTABLE MODEL .................................................................................................................. 14
3. INSTALLATION.................................................................................................................................................... 17

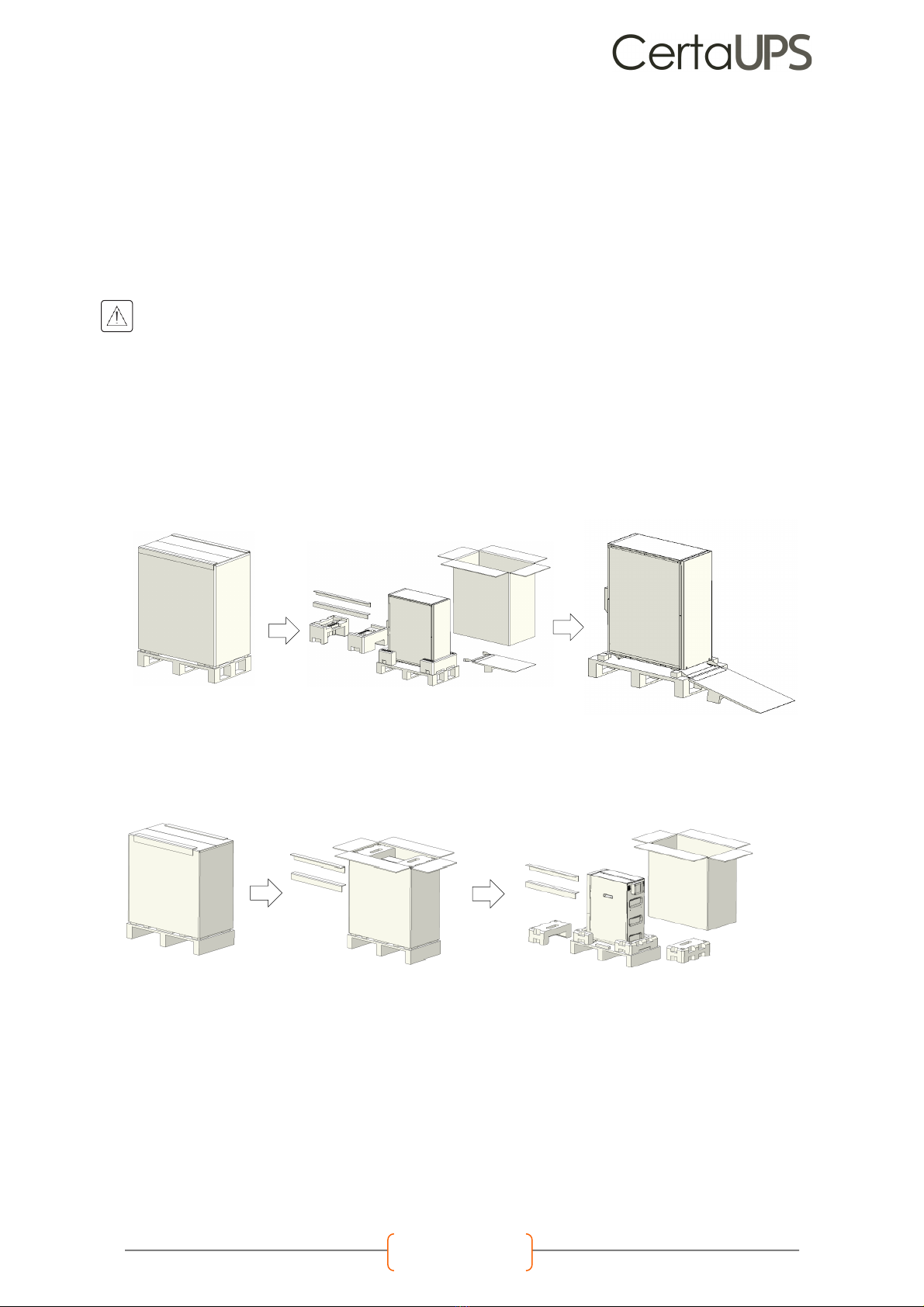

3.1 UNPACKING AND INSPECTING ................................................................................................................. 17
3.2 CHECKING THE ACCESSORY KIT ............................................................................................................... 18
3.3 MECHANICAL INSTALLATION .................................................................................................................... 20
3.3.1 TOWER MODEL ..................................................................................................................................... 20
3.3.2 RACKMOUNTABLE MODEL .................................................................................................................. 21
3.4 POWER CABLES CONNECTION................................................................................................................. 23
3.4.1 INPUT /OUTPUT WIRING SPECIFICATION............................................................................................. 23
3.4.2 WIRING EXTERNAL BATTERY MODULE (EBM) (DC SOURCE TO UPS) ................................................ 33
3.4.3 Wiring with Rackmountable (RT) MBP (MBP source to RT UPS only)............................................... 35
4. PARALLEL SYSTEM INSTALLATION AND OPERATION (OPTIONAL) ................................................................. 36
4.1 WIRING FOR AC/DC CABLE...................................................................................................................... 36
4.1.1 Input/Output wiring specifications .................................................................................................... 36
4.1.2 Wiring for AC cable (AC source to UPS) ........................................................................................... 37
4.1.1.1 WIRING WITH EXTERNAL BATTERY MODULAR (EBM) (DC SOURCE TO UPS) .......................... 40
WIRING FOR PARALLEL SIGNAL CABLE ....................................................................................................... 40
PARALLEL SYSTEM OPERATION..................................................................................................................... 41
5. OPERATION ....................................................................................................................................................... 42
5.1 LCD PANEL.................................................................................................................................................. 42
5.2 LCD DESCRIPTION ...................................................................................................................................... 43
5.3 MENU STRUCTURE....................................................................................................................................... 44
5.4 CONTROL AND PRODUCT INFORMATION............................................................................................... 44
5.5 STARTING UP THE UPS WITH UTILITY............................................................................................................ 47
5.6 STARTING THE UPS ON BATTERY ................................................................................................................ 48
5.7 UPS SHUTDOWN.......................................................................................................................................... 48
6 COMMUNICATION ............................................................................................................................................ 49
6.1 RS232 AND USB........................................................................................................................................... 49
6.2 UPS REMOTE CONTROL FUNCTIONS......................................................................................................... 49
6.3 IoT (INTERNET OF THINGS) .......................................................................................................................... 49
6.4 MODBUS TCP .............................................................................................................................................. 50

C750 & C750R User
Manual Page 5
6.5 INTELLIGENT CARD (OPTIONAL)................................................................................................................ 50
6.6 UPS MANAGEMENT SOFTWARE ................................................................................................................ 51
6.6.1 WINPOWER ........................................................................................................................................... 51
6.6.2 WINPOWER VIEW APP.......................................................................................................................... 51
7. UPS MAINTENANCE .......................................................................................................................................... 52
7.1 EQUIPMENT CARE ...................................................................................................................................... 52
7.2 TRANSPORTING THE UPS ............................................................................................................................ 52
7.3 STORING THE EQUIPMENT.......................................................................................................................... 52
7.4 RECYCLING................................................................................................................................................. 52
8. TROUBLESHOOTING.......................................................................................................................................... 53
8.1 TYPICAL ALARMS AND FAULTS.................................................................................................................. 53
9. SPECIFICATIONS................................................................................................................................................ 55
9.1 UPS BLOCK DESIGN.................................................................................................................................... 55
9.2 UPS SPECIFICATIONS .................................................................................................................................. 56

C750 & C750R User
Manual Page 6
SAFETY INSTRUCTIONS
SPECIAL SYMBOLS
RISK OF ELECTRIC SHOCK - Observe the warning associated with the risk of electric shock symbol.
Important instructions that must always be followed.
EU separate collection and lead content mark for lead acid batteries. Indicates that the battery must not be
disposed of to the ‘normal’ household waste but be separately collected and recycled.
EU separate collection mark for waste electrical and electronic equipment (WEEE). Indicates that the item
must not be disposed of to the ‘normal’ household waste but be separately collected and recycled.
Information, advice, help.
Refer to the user manual.
KEEP THESE INSTRUCTIONS IN A SAFE PLACE
This manual contains important instructions that should be followed during installation and maintenance of the
UPS and batteries.
All UPS models are considered operating at an optimal temperature of 20 – 25°C

C750 & C750R User
Manual Page 7
SAFETY OF PERSONS
l RISK OF VOLTAGE BACKFEED. The system has its own power source (the battery). Isolate the UPS and check for
hazardous voltage upstream and downstream during lockout-tagout operation. Terminal blocks may be
energized even if the system is disconnected from the AC power source.
l Dangerous voltage levels are present within the system. It should be opened exclusively by qualified service
personnel.
l The system must be properly grounded.
l The battery supplied with the system contains small amounts of toxic materials. To avoid accidents, the directives
listed below must be observed:
! Servicing of batteries should be performed by personnel knowledgeable about batteries and the required
precautions.
! When replacing batteries, replace with the same type and number of batteries or battery packs.
! Do not dispose of batteries in fire. The batteries may explode.
! Batteries constitute a danger (electrical shock, burns). The short-circuit current may be very high.
l Precautions must be taken for all handling:
! Wear rubber gloves and boots.
! Do not lay tools or metal parts on top of batteries.
! Disconnect charging source prior to connecting or disconnecting battery terminals.
! Determine if battery is inadvertently grounded. If inadvertently grounded, remove source from ground.
Contact with any part of a grounded battery can result in electrical shock. The likelihood of such shock can
be reduced if such grounds are removed during installation and maintenance (applicable to equipment
and remote battery supplies not having a grounded supply circuit).
PRODUCT SAFETY
l The UPS connection instructions and operation described in the manual must be followed in the indicated order.
l UPS enclosure IP rating IP20.
l CAUTION - To reduce the risk of fire, the unit connects only to a circuit provided with branch circuit overcurrent
protection for
l The upstream circuit breaker for Normal AC/Bypass AC must be easily accessible. The unit can then be
disconnected from AC power source by opening this circuit breaker.
l An additional AC contactor is used for back feed protection and must comply with IEC/EN 62040-1
l Disconnection and overcurrent protection devices shall be provided by others for permanently connected AC
input (Normal AC/Bypass AC) and AC output circuits.
l Check that the indications on the rating plate correspond to your AC powered system and to the actual electrical
consumption of all the equipment to be connected to the system.
l For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.
l Never install the system near liquids or in an excessively damp environment.
l Never let a foreign body penetrate inside the system.
l Never block the ventilation grates of the system.
l Never expose the system to direct sunlight or source of heat.
l If the system must be stored prior to installation, storage must be in a dry place.
l The admissible storage temperature range is -25°C to +55°C without battery (-15°C to +40°C with battery).
l TN-S/IT/TN-C/TT of electrical supply system may be connected by UPS.
l This UPS may be provided with a maximum of 6 extension battery cabinets or equivalent.

C750 & C750R User
Manual Page 8
SPECIAL PRECAUTIONS
l The UPS and EBMs are heavy: wear safety shoes and use vacuum lifter preferentially for handling operations.
l All handling operations will require at least two people (unpacking, lifting, installation in rack system).
l Before and after the installation, if the UPS remains de-energized for a long period, the UPS must be energized for
a period of 24 hours, at least once every 6 months (for a normal storage temperature less than 25°C). This charges
the battery, thus avoiding possible irreversible damage.
l During the replacement of a Battery Module, it is imperative to use the same type and number of batteries as the
original Battery Module provided with the UPS to maintain an identical level of performance and safety.
l This is a category C3 UPS product. In a residential environment, this product may cause radio interference, in
which case the user may be required to take additional measures.

C750 & C750R User
Manual Page 9
1. INTRODUCTION
Thank you for selecting our UPS to protect your electrical equipment.
We recommend that you take the time to read this manual to take full advantage of the many features of your UPS.
Before installing your UPS, please read the booklet presenting the safety instructions. Then follow the indications in
this manual.
PRODUCT FEATURES
The UPS protects your sensitive electronic equipment from the most common power problems, including power
failures, power sags, power surges, brownouts, line noise, high voltage spikes, frequency variations, switching
transients, and harmonic distortion.
1.1 SPECIAL CHARACTERISTIC:
•
Double converter with pure sine waveform output
•
Full digital control
•
Output power factor = 1
•
High charger capability, the charger current is up to 13Amps
•
Smart charging method to expand battery life time
•
EBM quantity auto detection
•
Communication ports: RPO, Dry in, Dry out, intelligent slot, USB, RS232
•
IoT: Ethernet(default) and Wireless (optional)
•
Dot-matrix touch LCM, it supports multi-language
•
3 mode compatible (3-3 mode / 3-1 mode / 1-1 mode)
•
ECO Mode
•
Startable without battery

C750 & C750R User
Manual Page 10
1.2 ENVIRONMENTAL PROTECTION
Products are developed according to an eco-design approach.
Substances
This product does not contain CFCs, HCFCs or asbestos.
Packing
To improve waste treatment and facilitate recycling, separate the various packing components.
•
The cardboard we use comprises over 50% of recycled cardboard.
•
Sacks and bags are made of polyethylene.
•
Packing materials are recyclable.
Follow all local regulations for the disposal of packing materials.
Product
The product is mainly made up of recyclable materials.
Dismantling and disassembly must take place in compliance with all local regulations concerning waste. At the end
of its service life, the product must be transported to recycling centers, re-use and treatment facilities for Waste
Electrical and Electronic Equipment (WEEE).
Battery
This product contains lead-acid batteries that must be processed according to applicable local regulations
concerning batteries.
The battery may be removed to comply with regulations and in view of correct disposal.

C750 & C750R User
Manual Page 11
2. PRODUCT OVERVIEW
2.1 MODEL LIST
1. C750-xxx-B model means ‘Battery model’, C750-xxx-C means ‘Charger model’ without internal batteries
2. UPS 10kVA and EBM (C750-BB10P for 10kVA) is 2x10 batteries selectable, UPS 20kVA and EBM (C750-BB20P
for for 20kVA) is 2x20 batteries selectable.
3. The weight in this table is reference only, please see the labels on the carton for details.
4. Dimension ‘D’ is chassis only, not including panel.

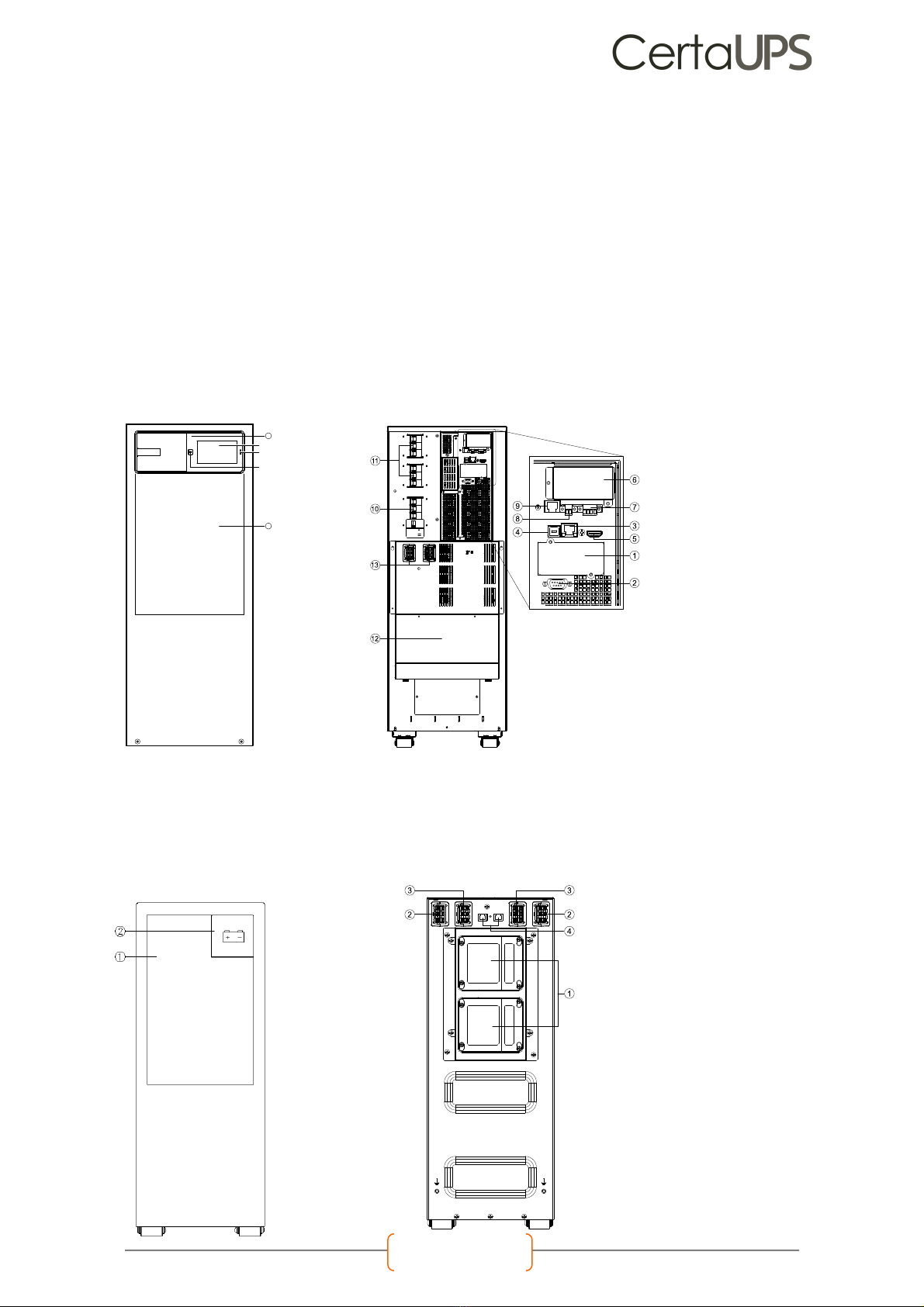

Tower Model:
Product
Description
Net Weights
(kg)
Unit Size
(W x H x D)(mm)
UPS
C750-100-B
106
300*805.5*633.2
C750-200-B
159.5
C750-100-C
52.9
C750-200-C
54.2
EBM
C750-BB10p (1)
95.2
225*589*416
C750-BB20p (2)
115.6
(1) For tower 10kVA UPS+/-.
(2) For tower 20kVA UPS – +/- strings
Rackmounable Model:
Product
Description
Net Weights
(kg)
Size
(W x H x D)(mm)
UPS
C750R-100-C
23.8
438*129(3U)*559
C750R-200-C
24.8
C750R-100-B
23.8
C750R-200-B
24.8

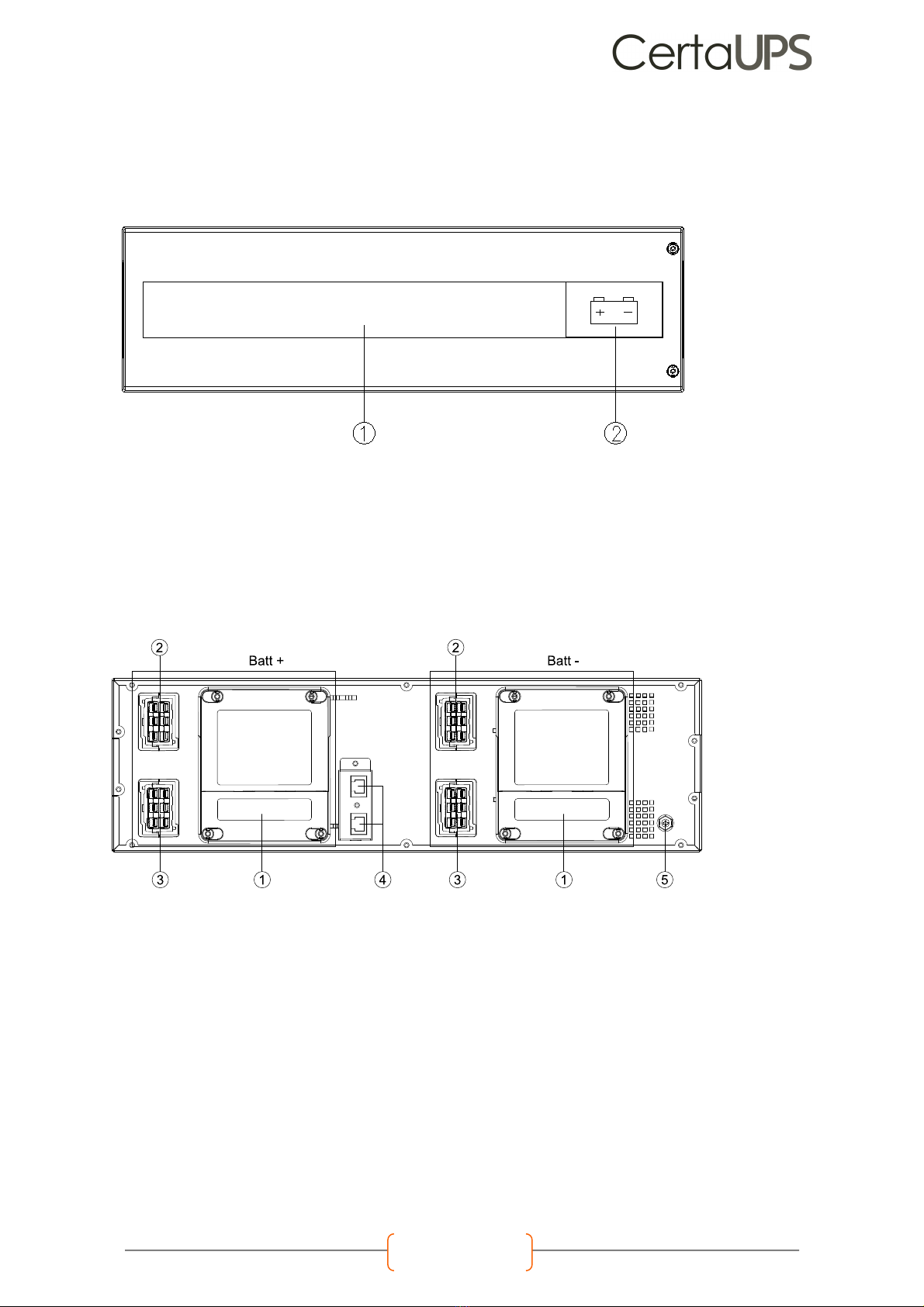

EBM
C750R-BB10p(1)
60.5
438*129(3U)*559
C750R-BB20p (2)
60.5
(1) For RT 10kVA UPS - +/-
(2) For RT 20kVA UPS. Each RT 20kVA UPS needs 2pcs RT EBM for positive and negative battery input.

C750 & C750R User
Manual Page 12
Optional modules and accessories:
To order further modules or accessories, please contact a CertaUPS distributor or partner.
Type
Description
Remark
750R-MBP
R 3-3 10K/20K MBP
For R model only
R 3-3 10K/20K PARA MBP
For R model only in a parallel system
installation
Intelligent Card
Dry Contact card (C-Relay)
See in chapter 6.5
C-NMC card
MODBUS card (C-Modbus)
EMP
Temperature and humidity sensors (C-EMP)
WLAN module
WLAN module (C-WIFI)
Wireless connection for IoT
Battery cable
Battery cable (20 or 40 batteries)
for Tower UPS connect with user’s own EBM
1.8m length,
see in chapter 3.4.3
Battery cable (20 or 40 batteries)
for Tower UPS connect with user’s own EBM
Rail kit
Rail kit for R model in Rack installation
See in chapter 3.3.2

C750 & C750R User
Manual Page 13
2.2 PRESENTATION
2.2.1 C750 TOWER MODEL:
UPS Module:
Front view:
1. Ventilation area
2. LCD module, including:
1. Power button
2. Touch screen
3. LED indicator
EBM (External Battery Module)
Front View:
1. Ventilation area
2. EBM label
1
2
(1)
(2)
(3)
1. DRY in/out
2. RPO
3. RJ45 (for EBM detect)
4. Maintenance bypass switch
5. Main input switch and bypass input switch
6. AC input/output port (terminal block)
7. External battery port
Rear view:
8. Intelligent slot
9. RS232
10. Ethernet port (RJ45, for IoT
function)
11. USB
12. Wireless (HDMI, for IoT
function)
13. Parallel port (optional)
Rear view:
1. Fuse board cover (replace EBM fuse)
2. EBM port 1
3. EBM port 2
4. EMB detection (RJ45 port)

C750 & C750R User
Manual Page 14
2.2.2 C750R RACKMOUNTABLE MODEL
UPS module
Front view
1. Ventilation area
2. LCD Modular, including: (1)---Power button (2)---Touch screen (3)---LED indicator
Rear view
1. Intelligent slot
7. DRY in/out
2. RS232
8. RPO
3. Ethernet port (RJ45, for IoT function)
9. RJ45 (for EBM detection/RT MBP detection)
4. USB
10. AC input/output port (terminal block)
5. Wireless (HDMI, For IoT function)
11. External battery port (terminal block)
6. Parallel port (optional by factory, default is
no)

C750 & C750R User
Manual Page 15
External Battery Module (EBM)
Front view
1. EBM label area
2. EBM label
Rear view of EBM (C750R-BB10P for 10kVA)
1. Fuse board cover (replace EBM fuse)
2. EBM port 1
3. EBM port 2
4. EBM detection Box (RJ45 port)
5. Ground screw

C750 & C750R User
Manual Page 16
Rear view of EBM (C750R-BB20P for 20kVA)
1. Fuse board cover (replace EBM fuse)
2. EBM port 1
3. EBM port 2
4. EBM detection Box (RJ45 port)
5. Ground screw

C750 & C750R User
Manual Page 17
3. INSTALLATION
It is recommended to move the equipment to the installation site by using a pallet jack or a truck before unpacking.
The system may be installed only by qualified electricians in accordance with applicable safety regulations.
The cabinet is heavy and should only be installed by at least two persons.
3.1 UNPACKING AND INSPECTING
Unpacking the unit in a low-temperature environment may cause condensation to occur in and on the
cabinet. Do not install the unit until the inside and outside of the unit are absolutely dry (hazard of electric
shock).
If any equipment has been damaged during shipment, keep the shipping cartons and packing materials for
the carrier or place of purchase and file a claim for shipping damage. If you discover damage after
acceptance, file a claim for concealed damage.
Tower UPS
Tower EBM

C750 & C750R User
Manual Page 18
Rackmountable UPS
Rackmountable EBM
Note: The cabinet is heavy, please see weight stated on the carton/label.
Do not lift the unit by the front panel or rear panels.
Dispose of, or recycle the packaging in a responsible manner, or store it for future use.
Packaging materials must be disposed of in compliance with all local regulatios concerning waste.
3.2 CHECKING THE ACCESSORY KIT
Varify that the following additional items are included with the unit:
Tower model
C750-100/200-C
C750-100/200-B
Tower EBM
Battery cable
O
√
EBM detection cable
√
Copper bus-bar
√
√
USB cable
√
√
Parallel cable
O
O
Tower foot
√
√
√
PLEASE FIND UPS PRODUCT DIAGRAMS AND FULL TECHNICAL SPECIFICATIONS IN CHAPTER 9 OR VISIT
http://www.certaups.com/PRODUCT/CERTAUPS-C750/

C750 & C750R User
Manual Page 19
Rackmountable model
C750R-100/200-C
C750R-100/200-B
RT EBM
Battery cable
(EBM to UPS)
√
Battery cable
(EBM to EBM)
√
√
EBM detection cable
√
Copper bus-bar
(with jumper cable)
√
√
USB cable
√
√
Parallel cable
O
O
Tower foot
√
√
Rack ear
√
√
√
Rack rail kit
O
O
O
Note：√--- Standard configuration; O---Option, default is Not configured
PLEASE FIND UPS PRODUCT DIAGRAMS AND FULL TECHNICAL SPECIFICATIONS IN CHAPTER 9 OR VISIT
http://www.certaups.com/PRODUCT/CERTAUPS-C750R/

C750 & C750R User
Manual Page 20
3.3 MECHANICAL INSTALLATION
3.3.1 TOWER MODEL
To keep air-flowing freely, it is recommended to keep a clearance of at least 500mm space at both the
front and rear ends.
UPS model
1. Place the unit on a flat surface in its final location and install ‘Tower foot’ for stability.
2. Install the unit to ground(optional): Place 4pcs bolts (M8 is recommended) in the final location for bolt
positions please refer to below, then fix the unit to the bolts.
EBM model
It is recommended to place EBMs to UPS’s right side.
1. Place the unit on a flat surface in its final location and install ‘Tower foot’ for stability.
2. Install the unit to ground(optional): Place 4pcs bolts (M8 is recommended) in the final location for bolt
positions please refer to below, then fix the unit to the bolts.

C750 & C750R User
Manual Page 21
3.3.2 RACKMOUNTABLE MODEL
1. This model support 2 installation modes: Rack installation and Tower installation.
2. To keep good ventilation, please keep a free-space (500mm at least) for front / rear panels of the module.
3. Do not carry the unit by the front or rear panels of the module during installation.
Rack installation
This procedure is suitable for 19 inches rack cabinet installation, it is recommended that the depth of the
cabinet be no less than 800mm.
UPS model
Identify the final position and keep ‘3U’ space for this installation.
1. Install the rail kit (if configured). This rail kit is ‘2U
with screw holes (M5)’, the depth of the rail kit
is: 443-773mm.
2. Fasten the rail kit to the cabinet with 8pcs M5
screws + washers (as below)
3. Install ‘Rack ear” to the unit by the M4 screws
(flat head).
4. Slide the unit into the ‘rail kit’ and make sure to
tighten the ‘rack mounting screw’

C750 & C750R User
Manual Page 22
EBM model
EBM modular installation steps are same as UPS above, Pay attention to this installation:
Tower Installation
UPS model
Screw the tower feet to the UPS: The LCD of this UPS modular has gravity sensing, the vision window will automatically
adjust the display orientation.
EBM model
1. Place EBM modular to UPS’s right side and align with front-panel.
2. Screw the UPS’s tower foot: one is to UPS’s side, another one to EBM’s side (as above)
2 EBMs are required for R 20kVA UPS, please keep an enough space for installation.
1. EBM modular must be installed on the lower level of the UPS (as shown below).
2. 2 EBMs are required for R 20kVA UPS, each EBM with a height of 3U;
therefore, 6U installation space is required for 1complete EBM.
